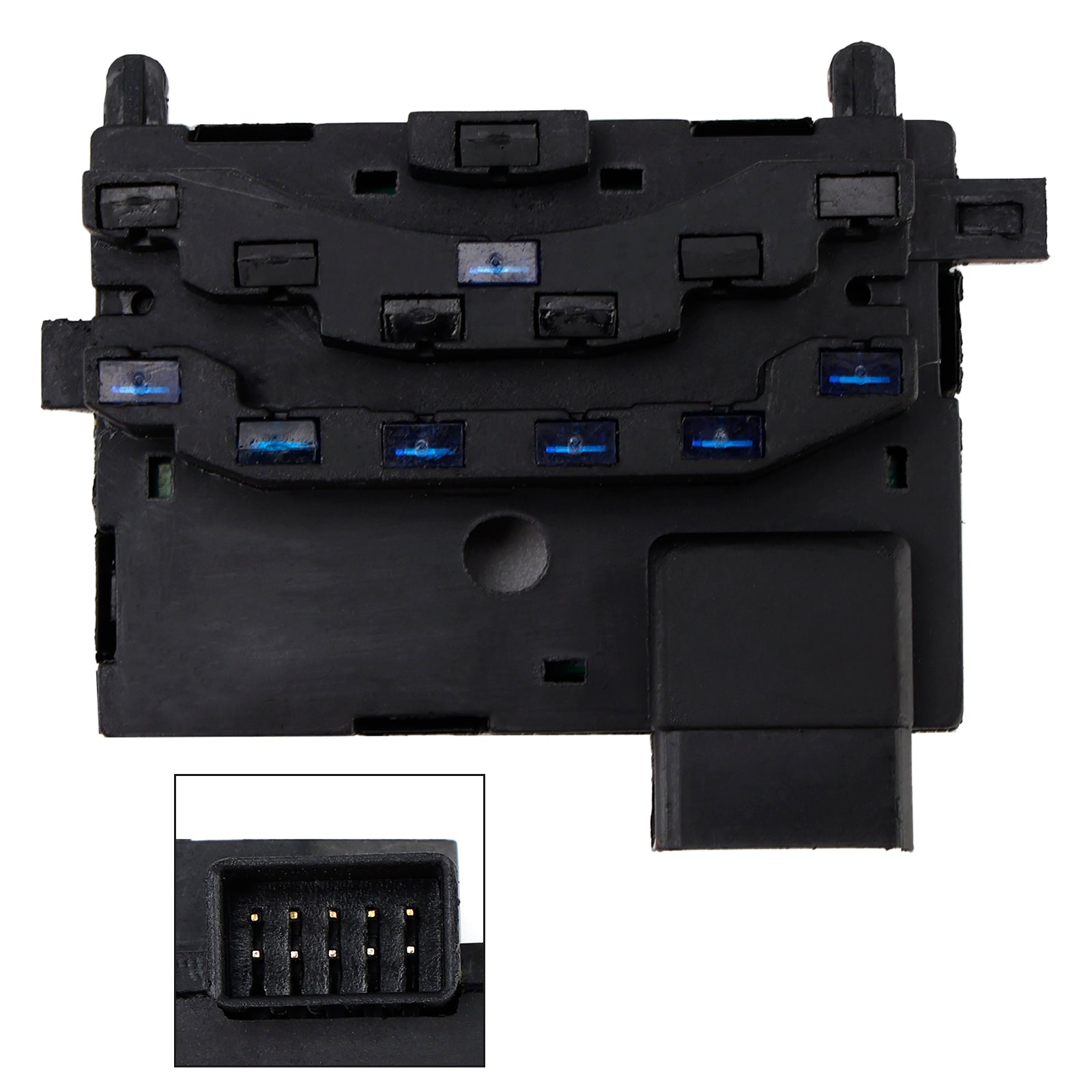

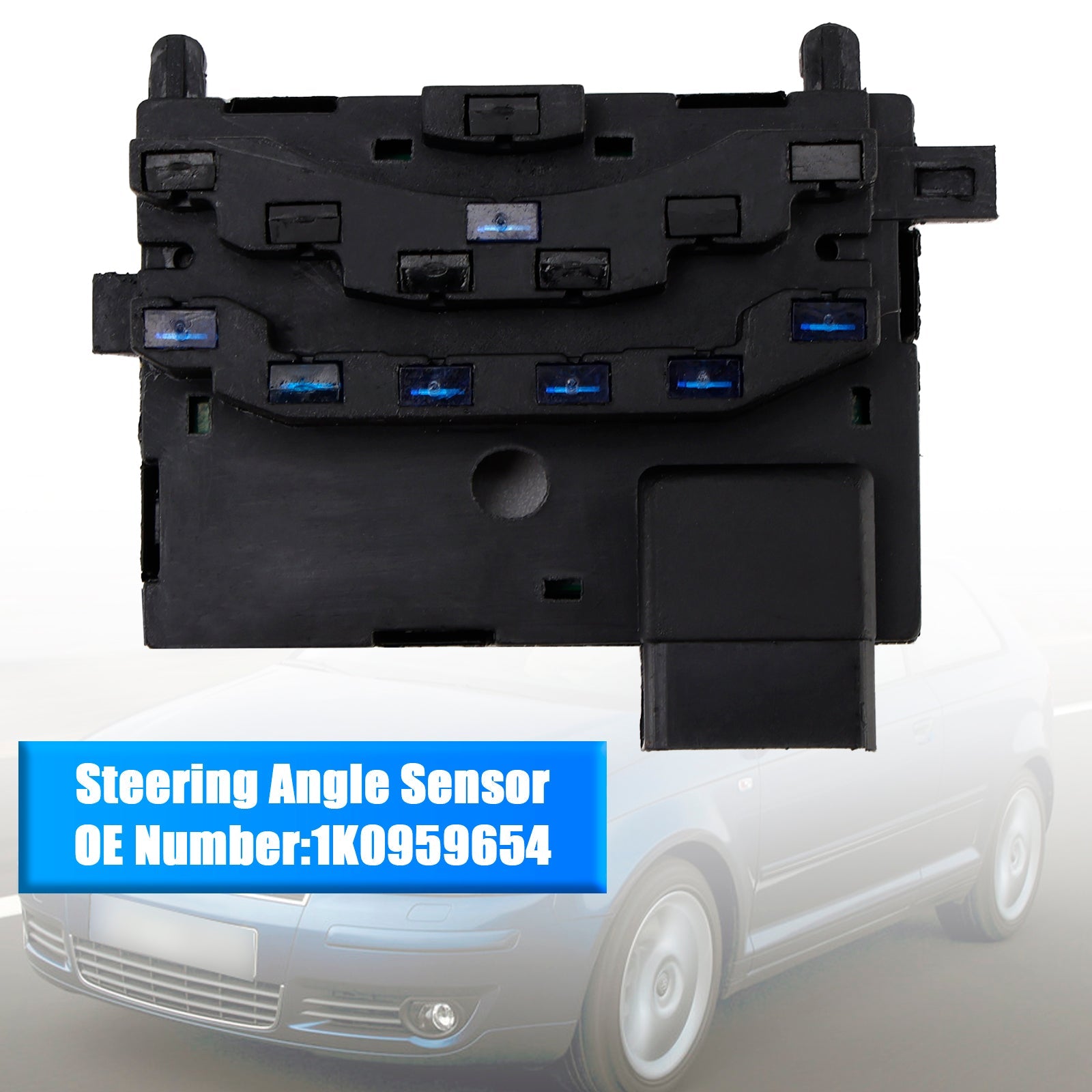

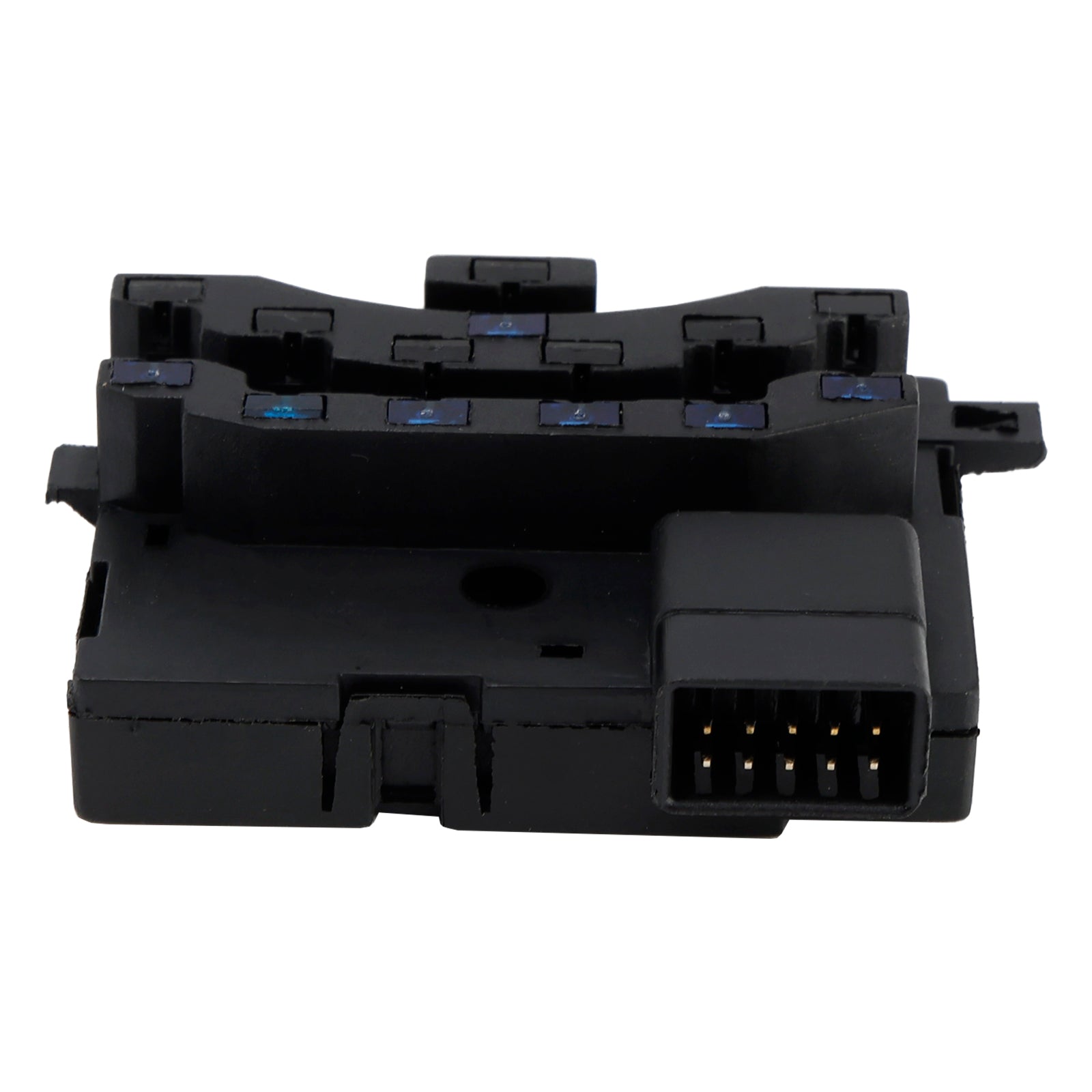

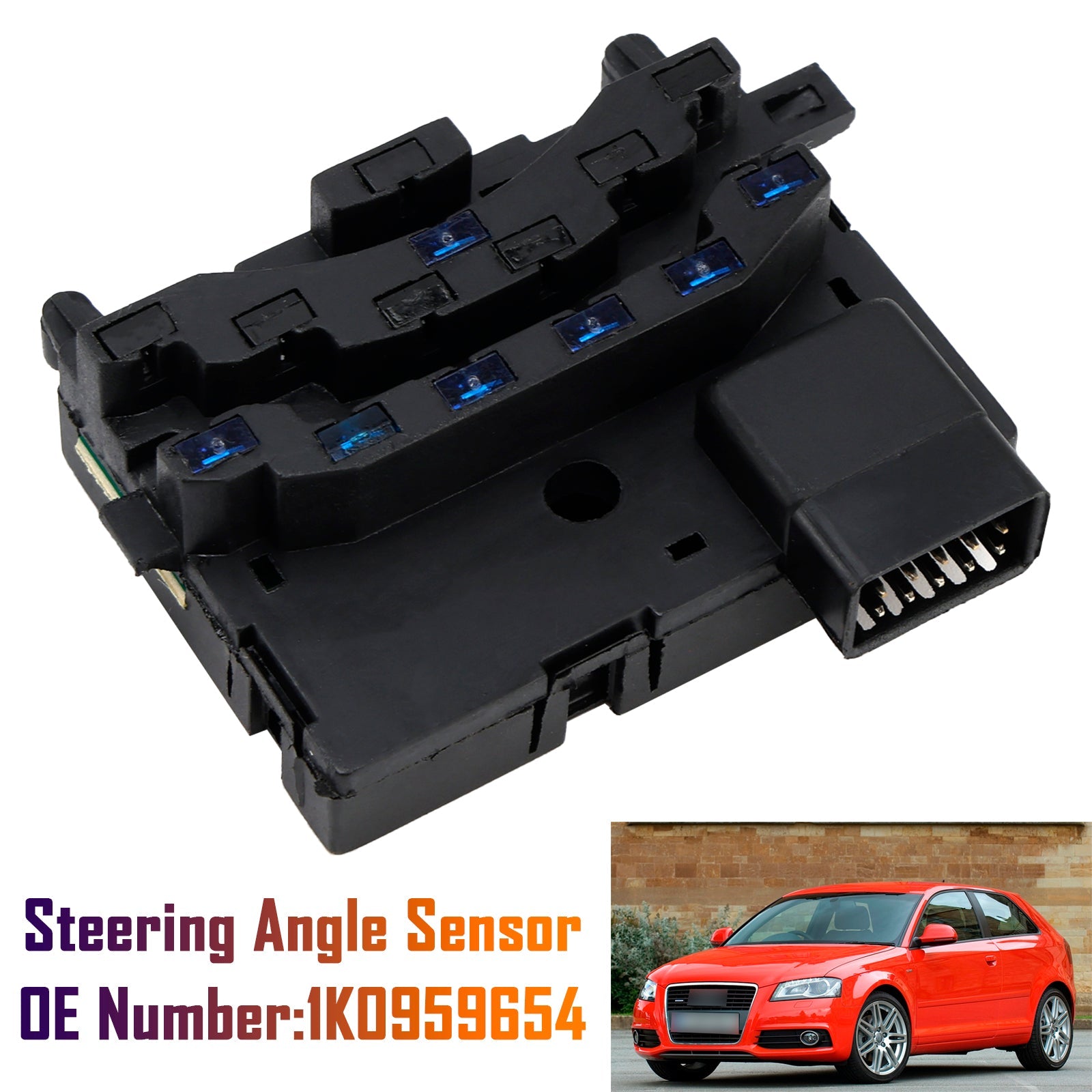

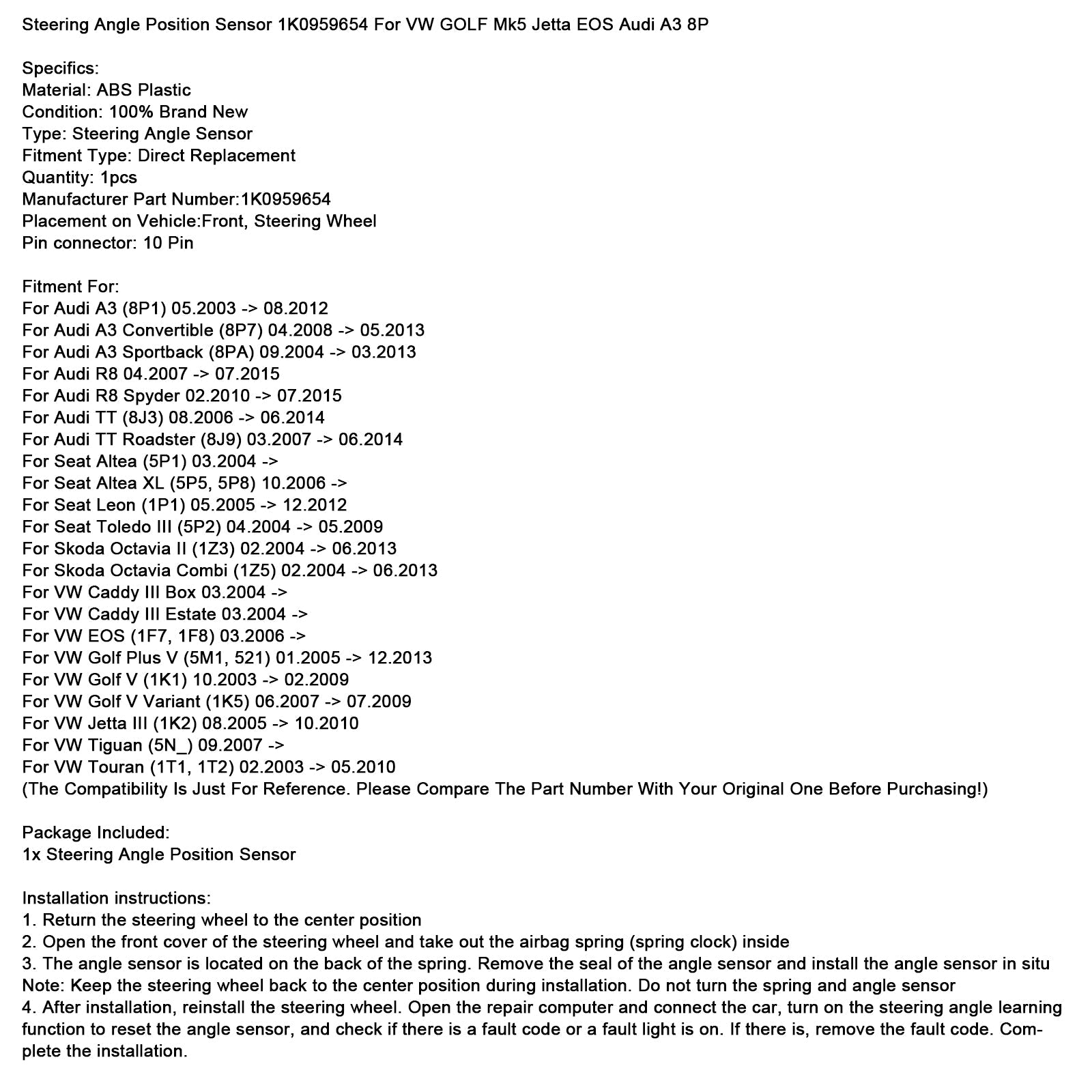

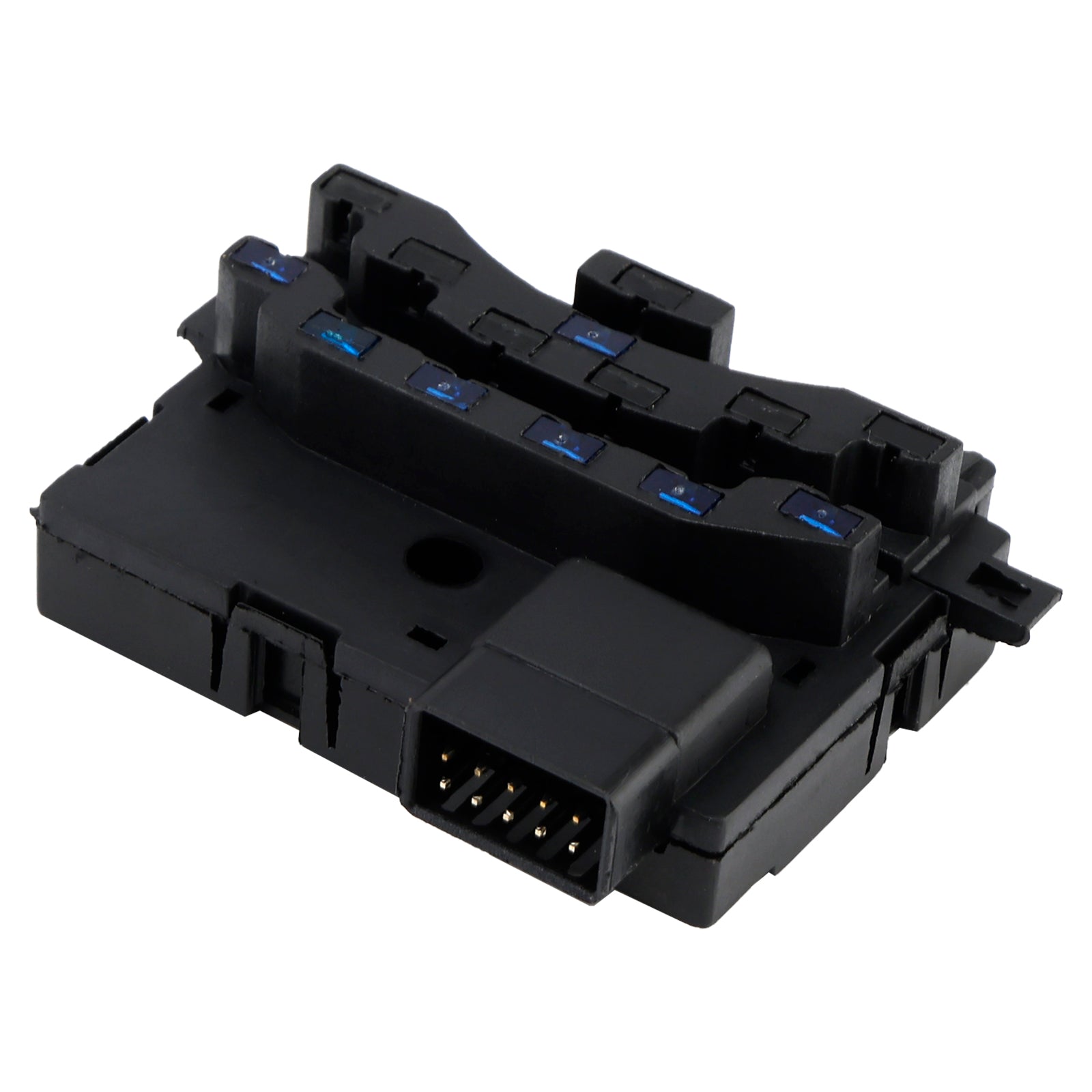

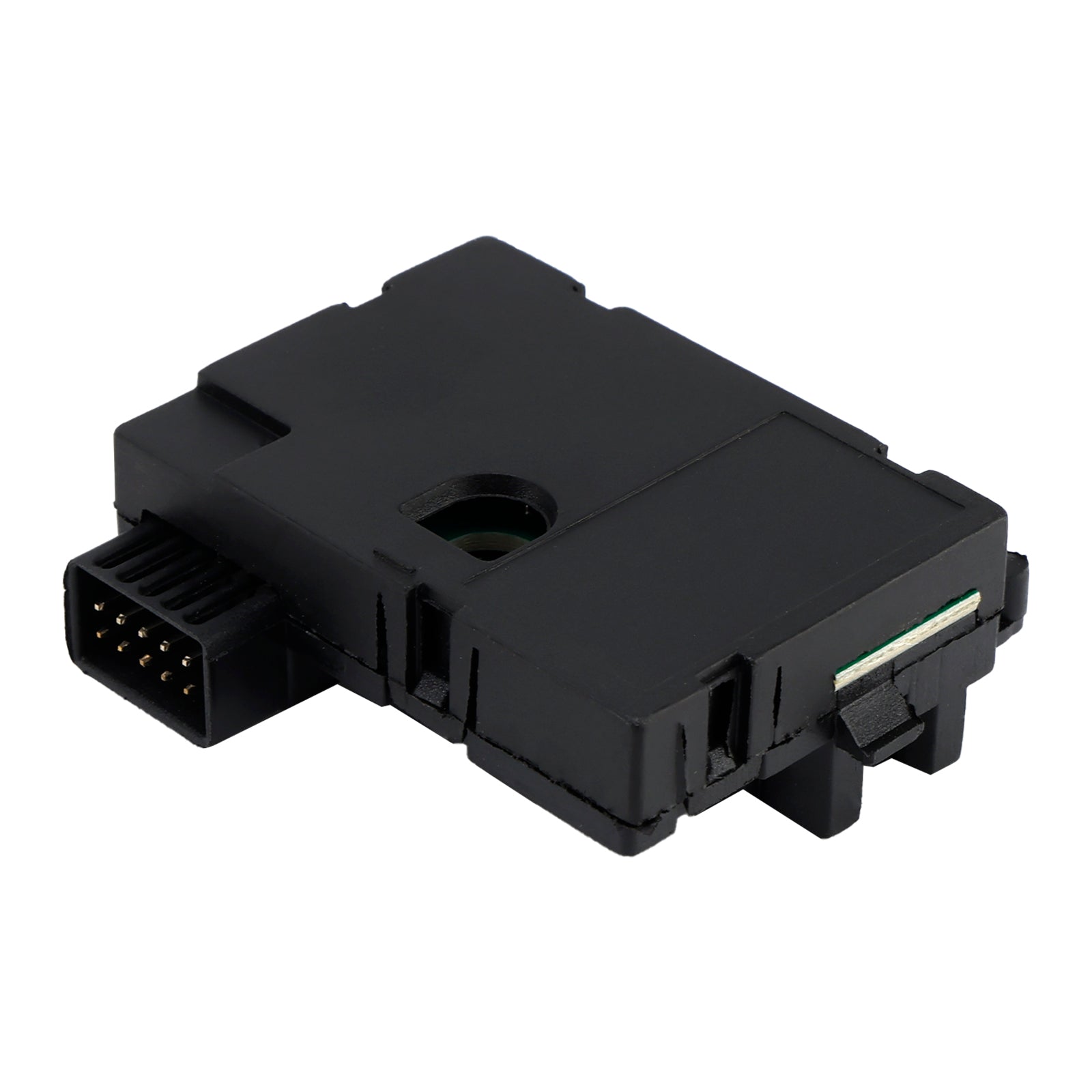

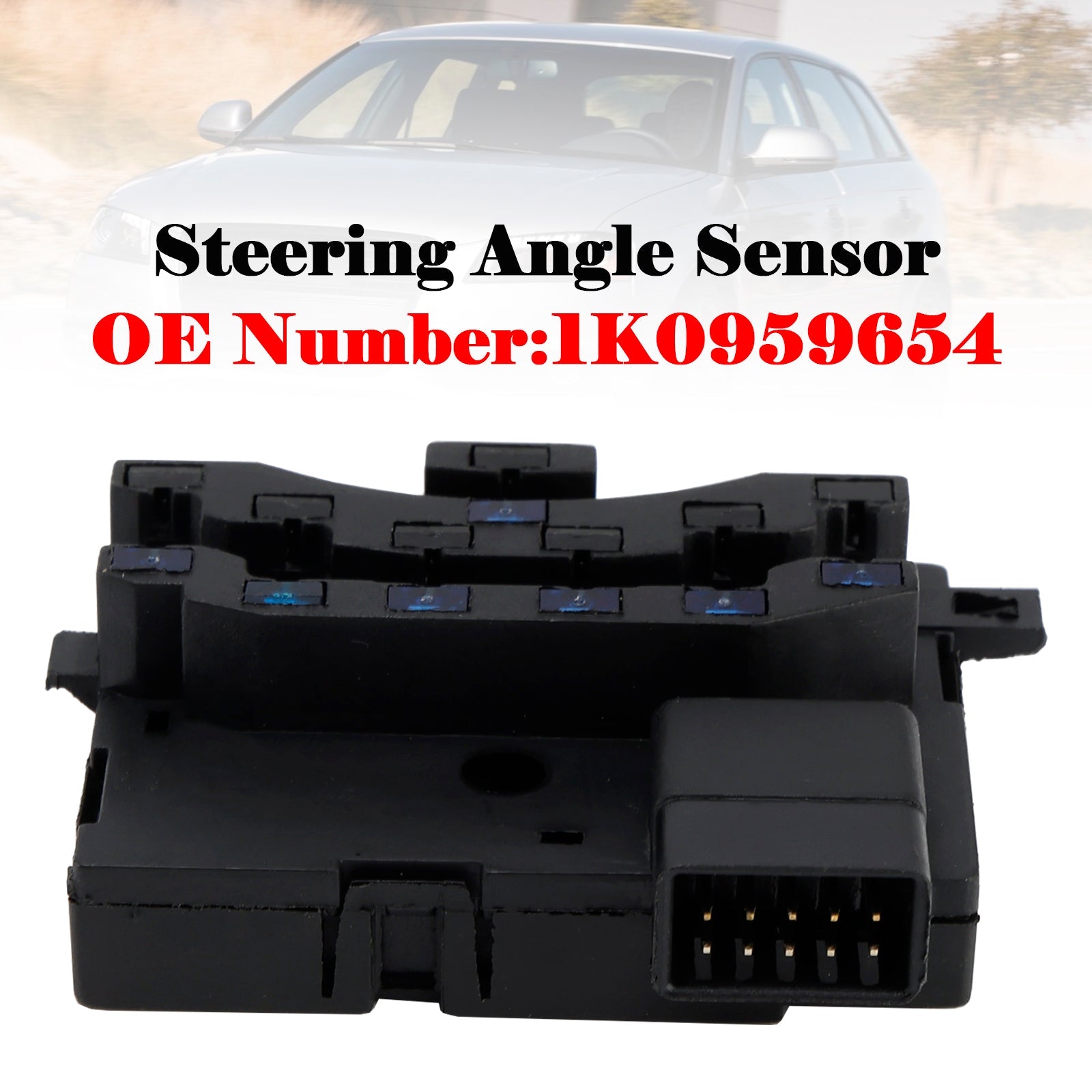

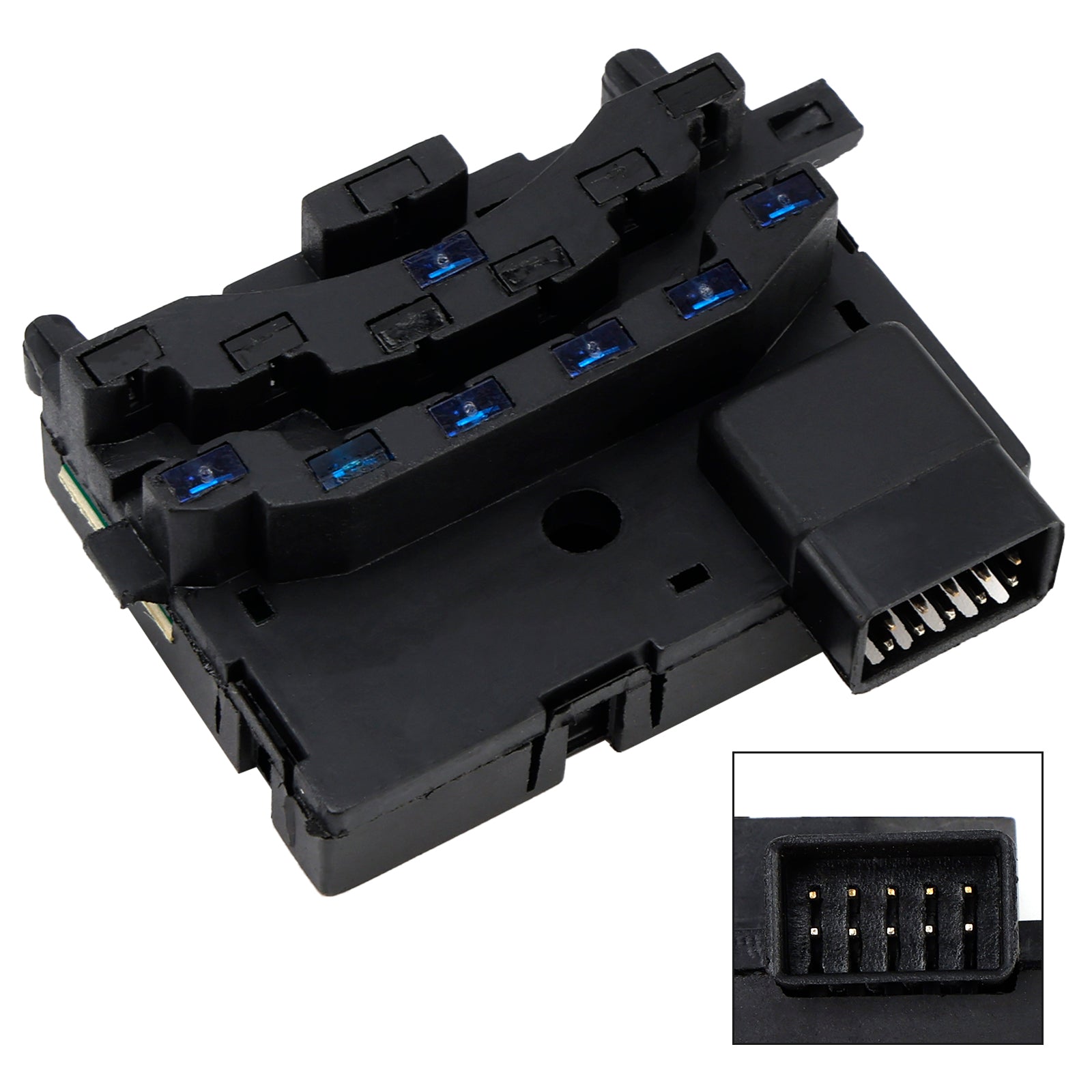

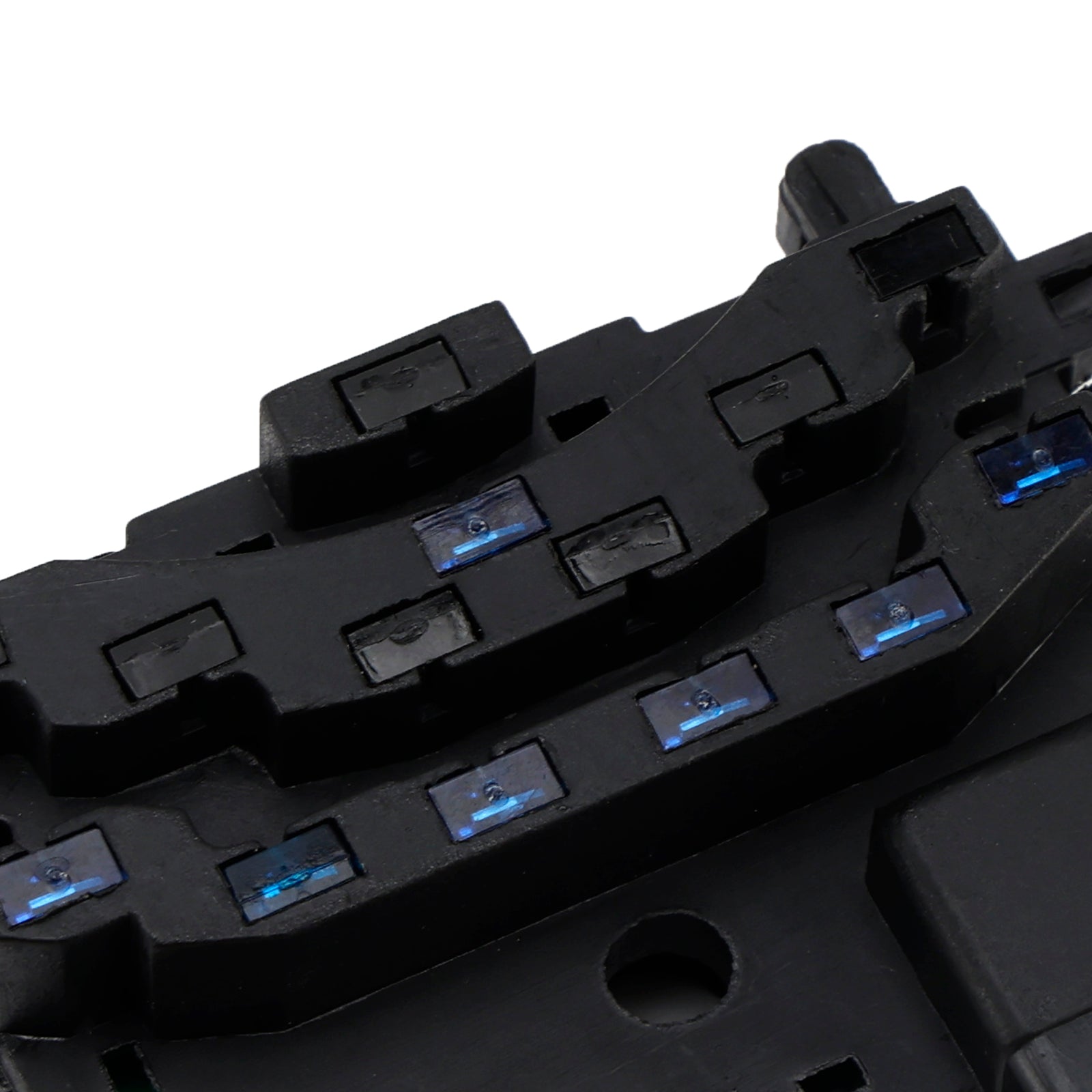

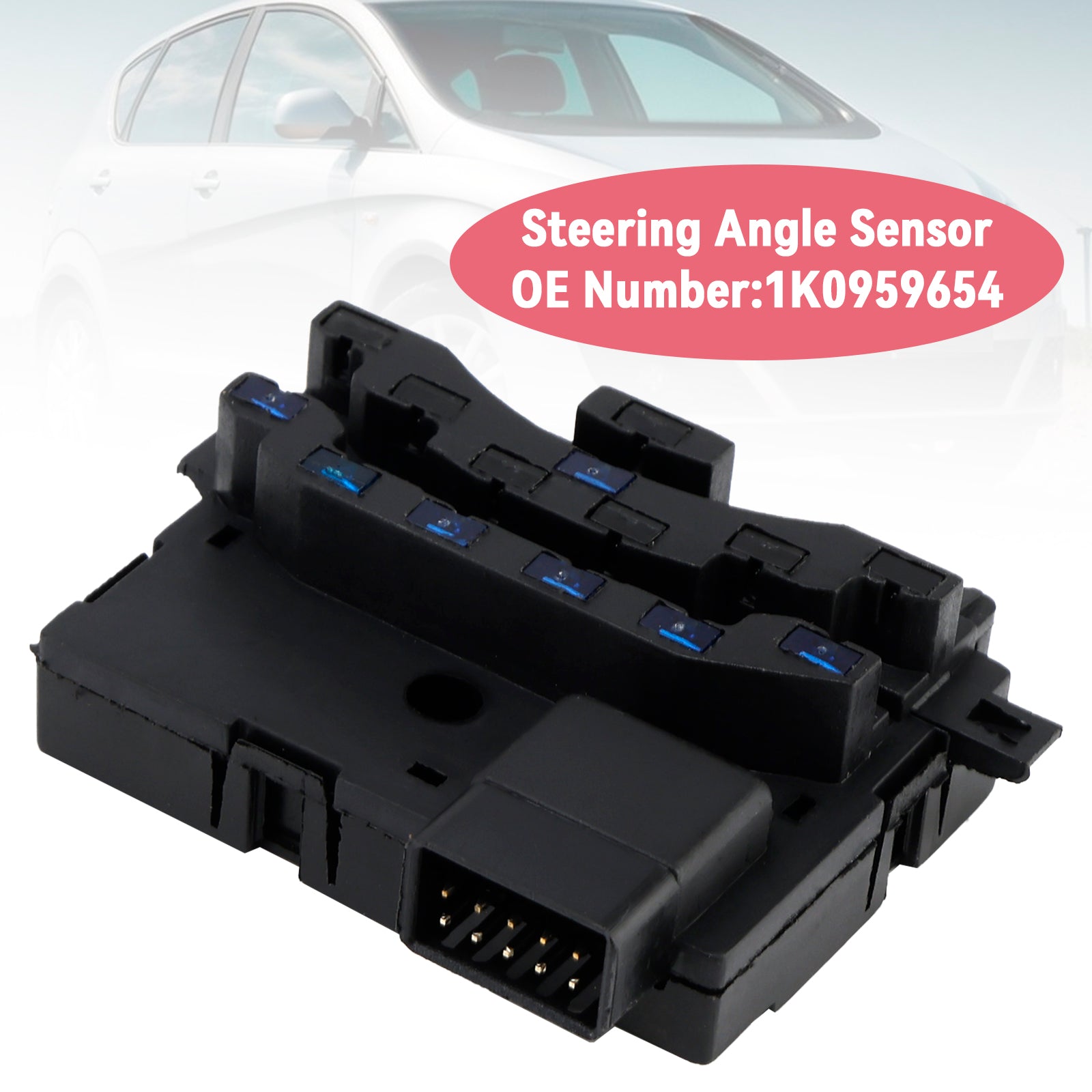

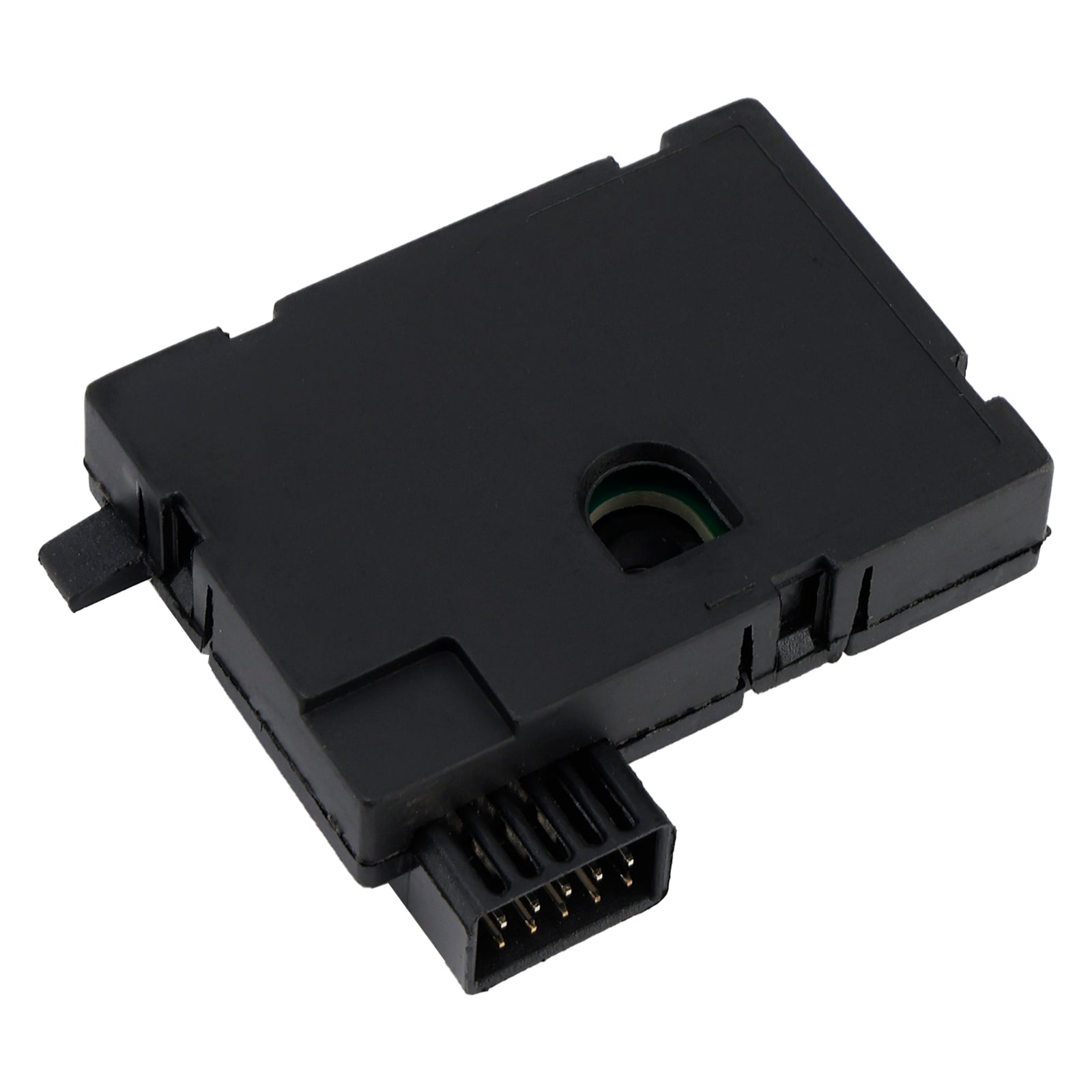

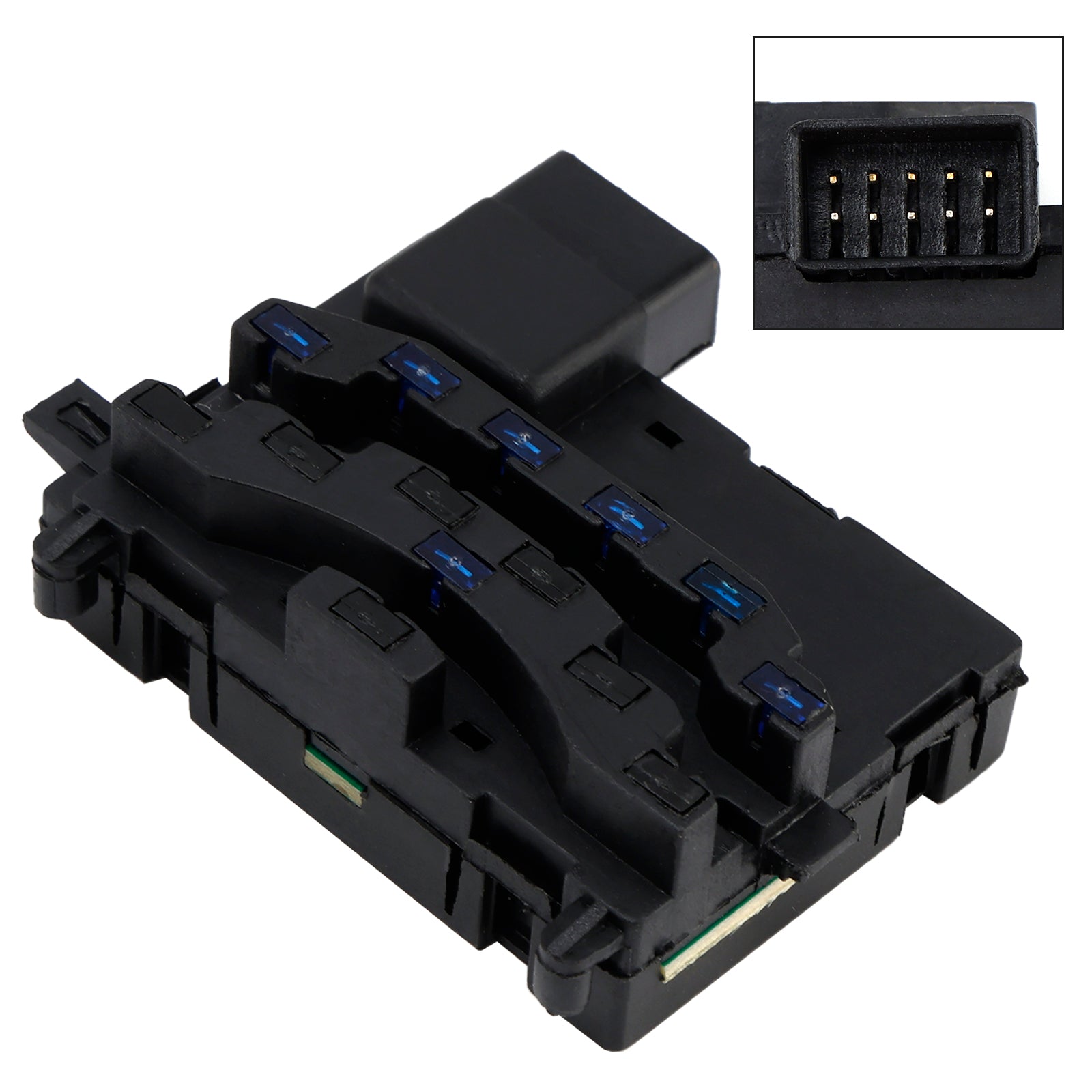

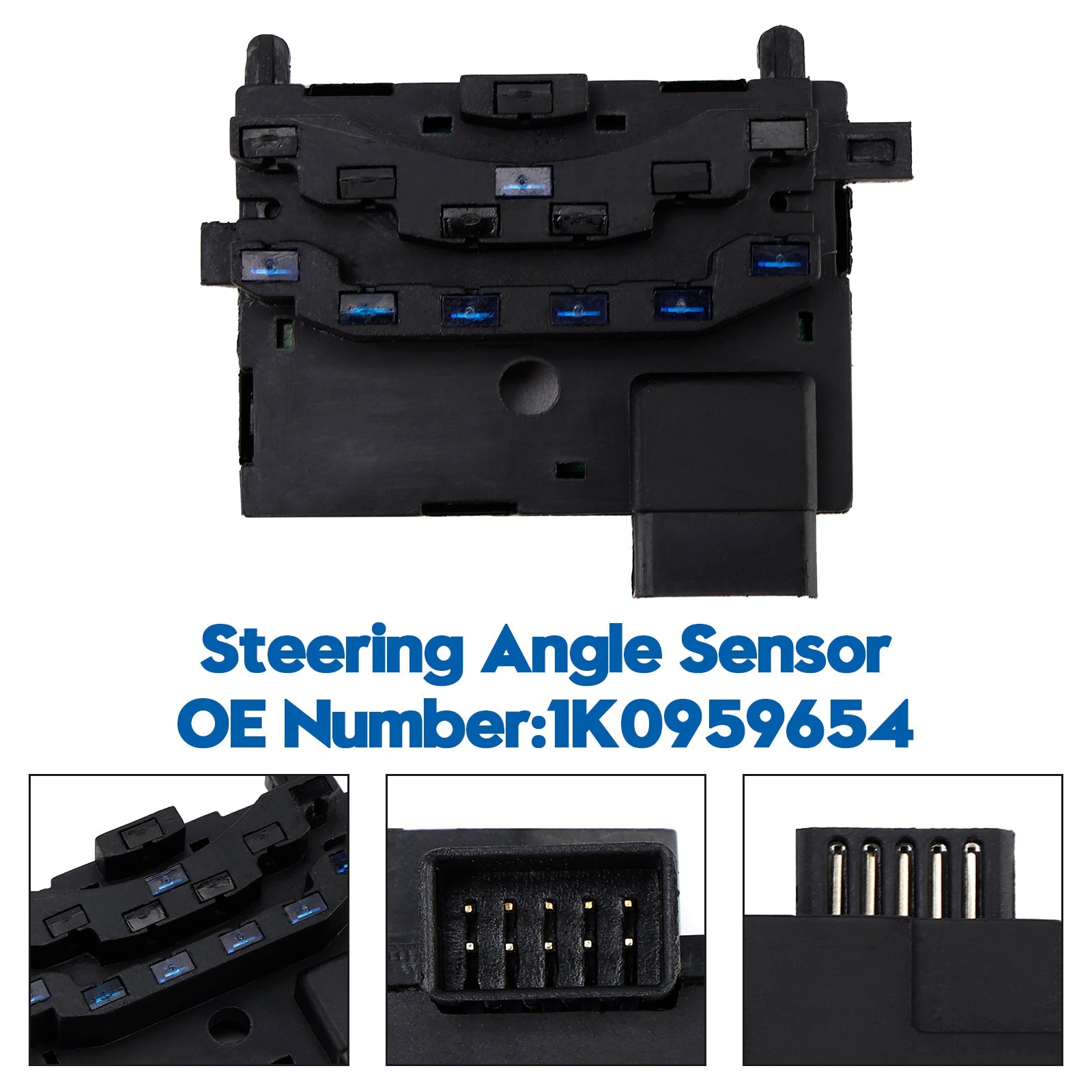

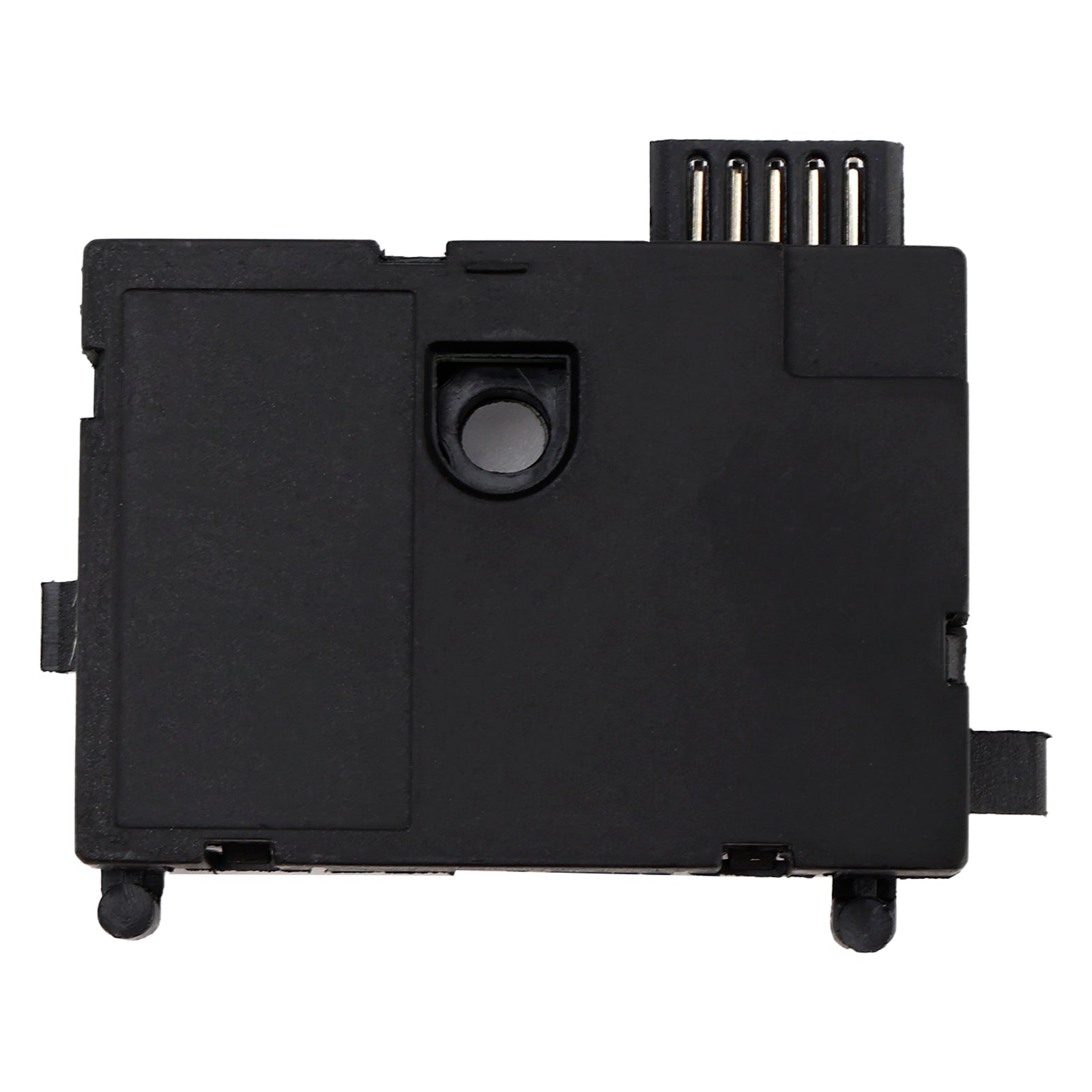

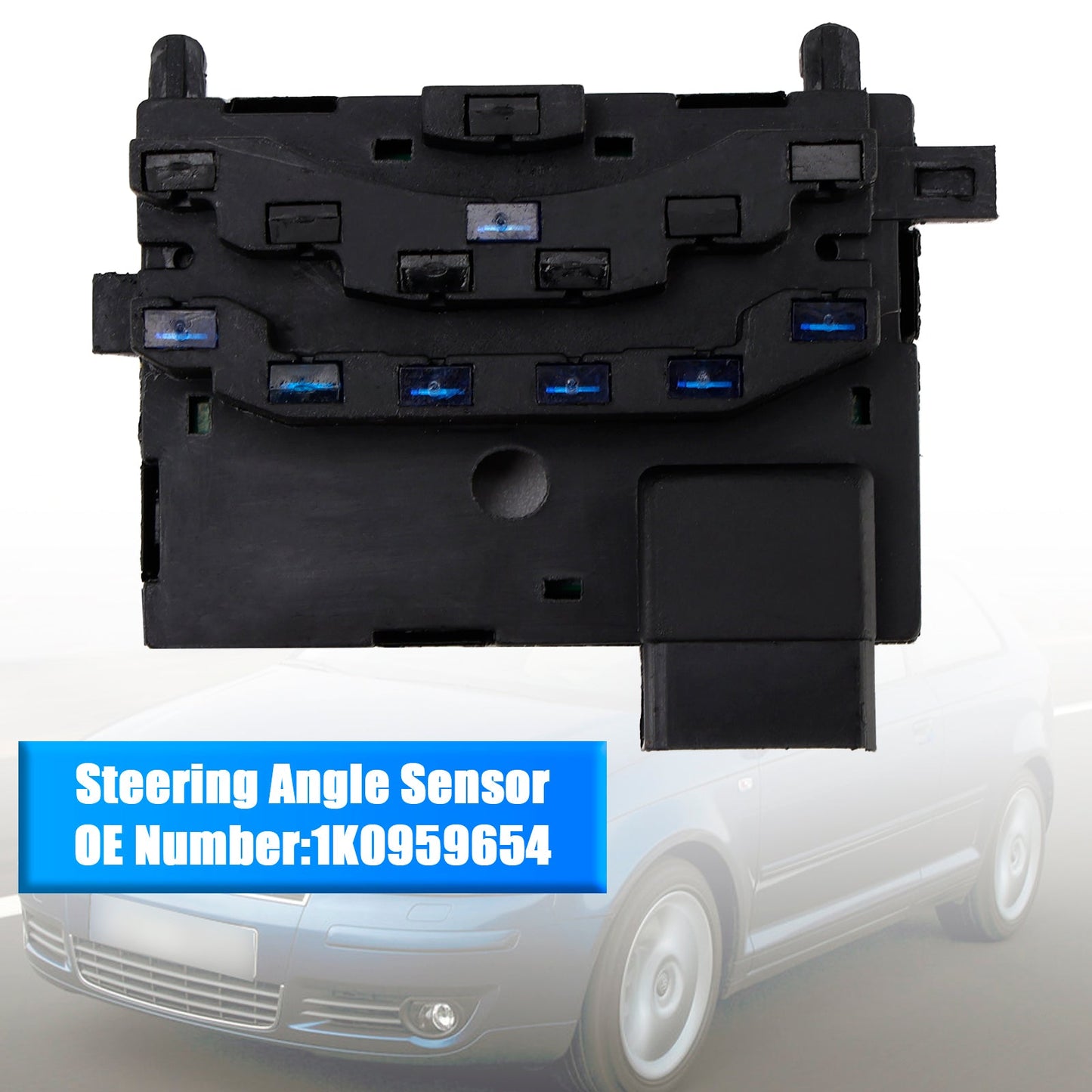

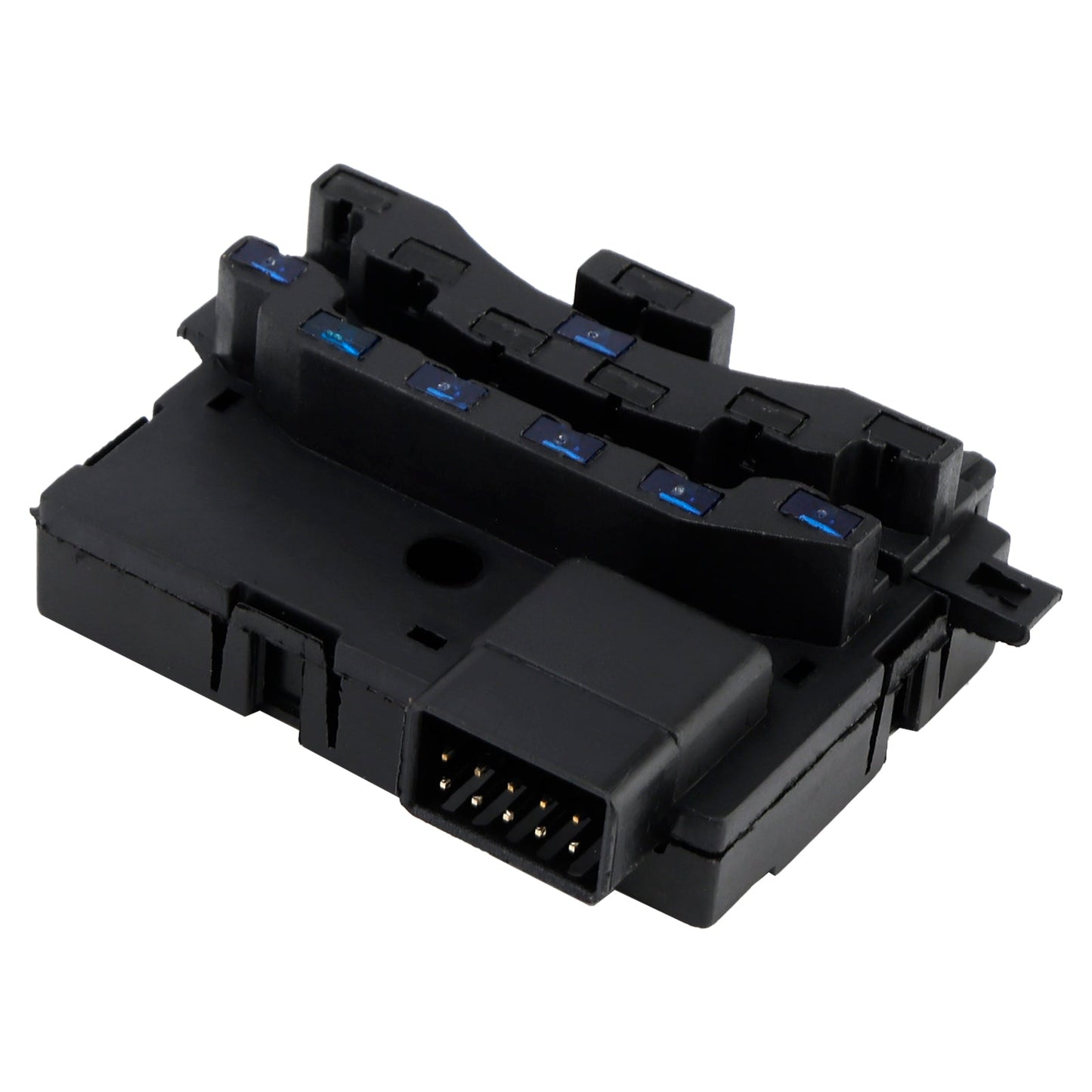

Steering Angle Position Sensor 1K0959654 For VW GOLF Mk5 Jetta EOS Audi A3 8P
Specifics:
Material: ABS Plastic
Condition: 100% Brand New
Type: Steering Angle Sensor
Fitment Type: Direct Replacement
Quantity: 1pcs
Manufacturer Part Number:1K0959654
Placement on Vehicle:Front, Steering Wheel

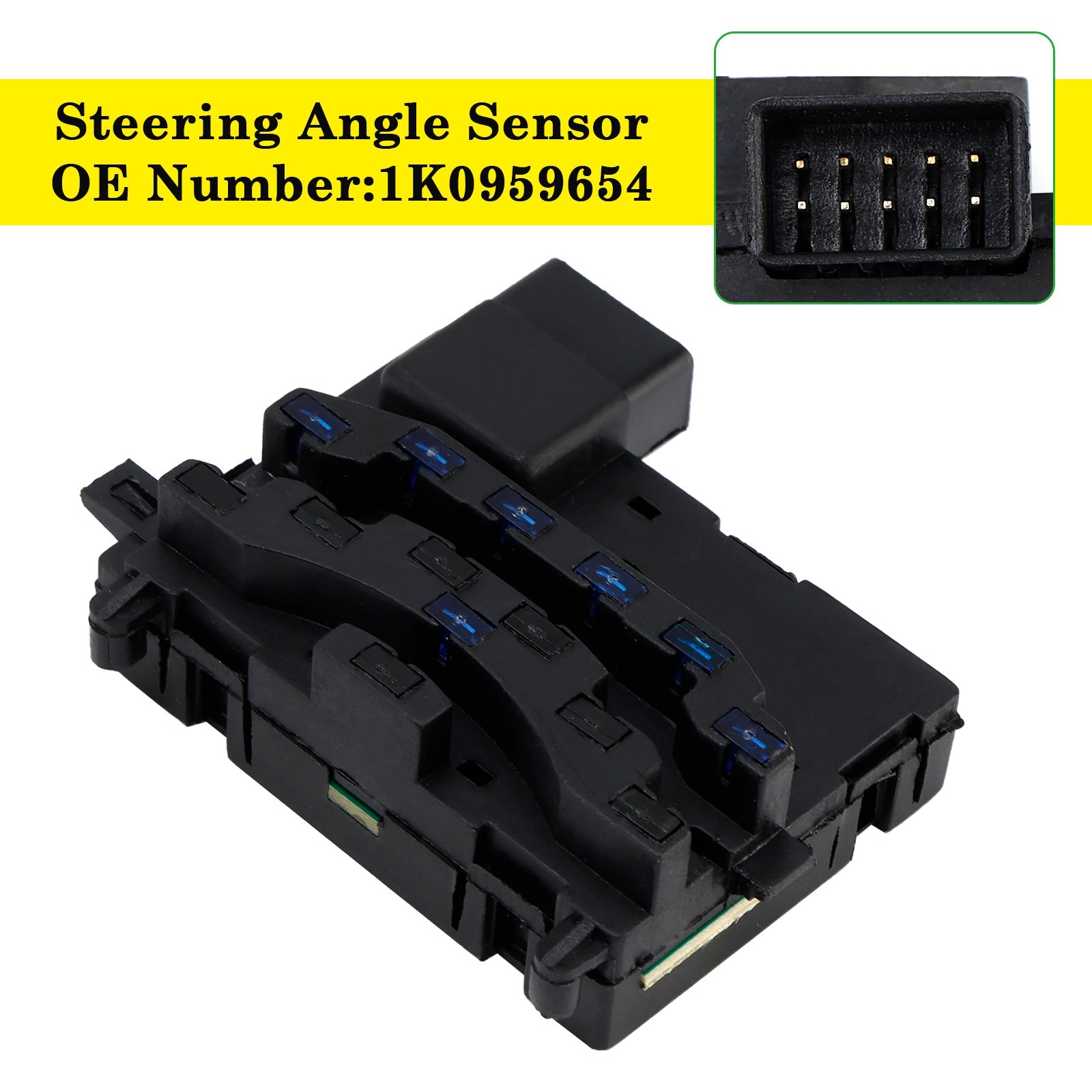

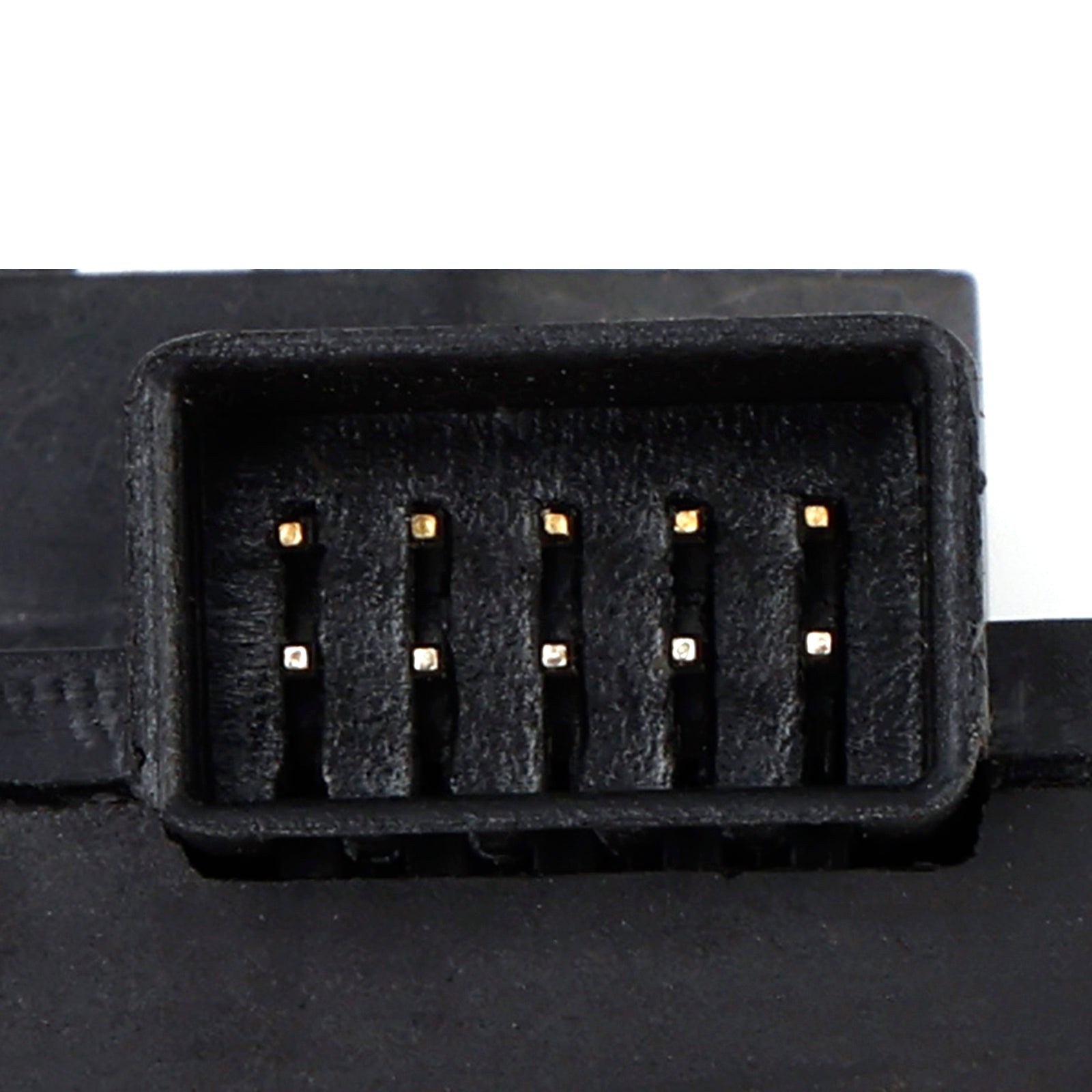

Pin connector: 10 Pin
Fitment For:
For Audi A3 (8P1) 05.2003 -> 08.2012
For Audi A3 Convertible (8P7) 04.2008 -> 05.2013
For Audi A3 Sportback (8PA) 09.2004 -> 03.2013
For Audi R8 04.2007 -> 07.2015
For Audi R8 Spyder 02.2010 -> 07.2015
For Audi TT (8J3) 08.2006 -> 06.2014
For Audi TT Roadster (8J9) 03.2007 -> 06.2014
For Seat Altea (5P1) 03.2004 ->
For Seat Altea XL (5P5, 5P8) 10.2006 ->
For Seat Leon (1P1) 05.2005 -> 12.2012
For Seat Toledo III (5P2) 04.2004 -> 05.2009
For Skoda Octavia II (1Z3) 02.2004 -> 06.2013
For Skoda Octavia Combi (1Z5) 02.2004 -> 06.2013
For VW Caddy III Box 03.2004 ->
For VW Caddy III Estate 03.2004 ->
For VW EOS (1F7, 1F8) 03.2006 ->
For VW Golf Plus V (5M1, 521) 01.2005 -> 12.2013
For VW Golf V (1K1) 10.2003 -> 02.2009
For VW Golf V Variant (1K5) 06.2007 -> 07.2009
For VW Jetta III (1K2) 08.2005 -> 10.2010
For VW Tiguan (5N_) 09.2007 ->
For VW Touran (1T1, 1T2) 02.2003 -> 05.2010
(The Compatibility Is Just For Reference. Please Compare The Part Number With Your Original One Before Purchasing!)
Package Included:
1x Steering Angle Position Sensor
Installation instructions:
1. Return the steering wheel to the center position
2. Open the front cover of the steering wheel and take out the airbag spring (spring clock) inside
3. The angle sensor is located on the back of the spring. Remove the seal of the angle sensor and install the angle sensor in situ
Note: Keep the steering wheel back to the center position during installation. Do not turn the spring and angle sensor
4. After installation, reinstall the steering wheel. Open the repair computer and connect the car, turn on the steering angle learning function to reset the angle sensor, and check if there is a fault code or a fault light is on. If there is, remove the fault code. Complete the installation.
