2019-2020 SYM HD 300i Joymax Z 300i ABS Stator & Regulator Rectifier Gasket

Generator Stator Regulator Rectifier Gasket Set For SYM HD 300i Joymax Z 300i 2019-2020

Features:
Kit include Stator, Regulator Rectifier and gasket.
Meet or exceeds the OEM quality, direct replacement to your original unit.
Perfect fit and ready to install.
Always use a sealant to mount the cable gland joint.
Instruction is NOT included.

Attention:
One of the most common reasons a stator breaks down is due to a broken regulator, which burns the stator in no time.
Therefore we highly recommend you to switch both parts.
Technically modified stators are excluded from exchange.

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator and Regulator Kit

other specification:

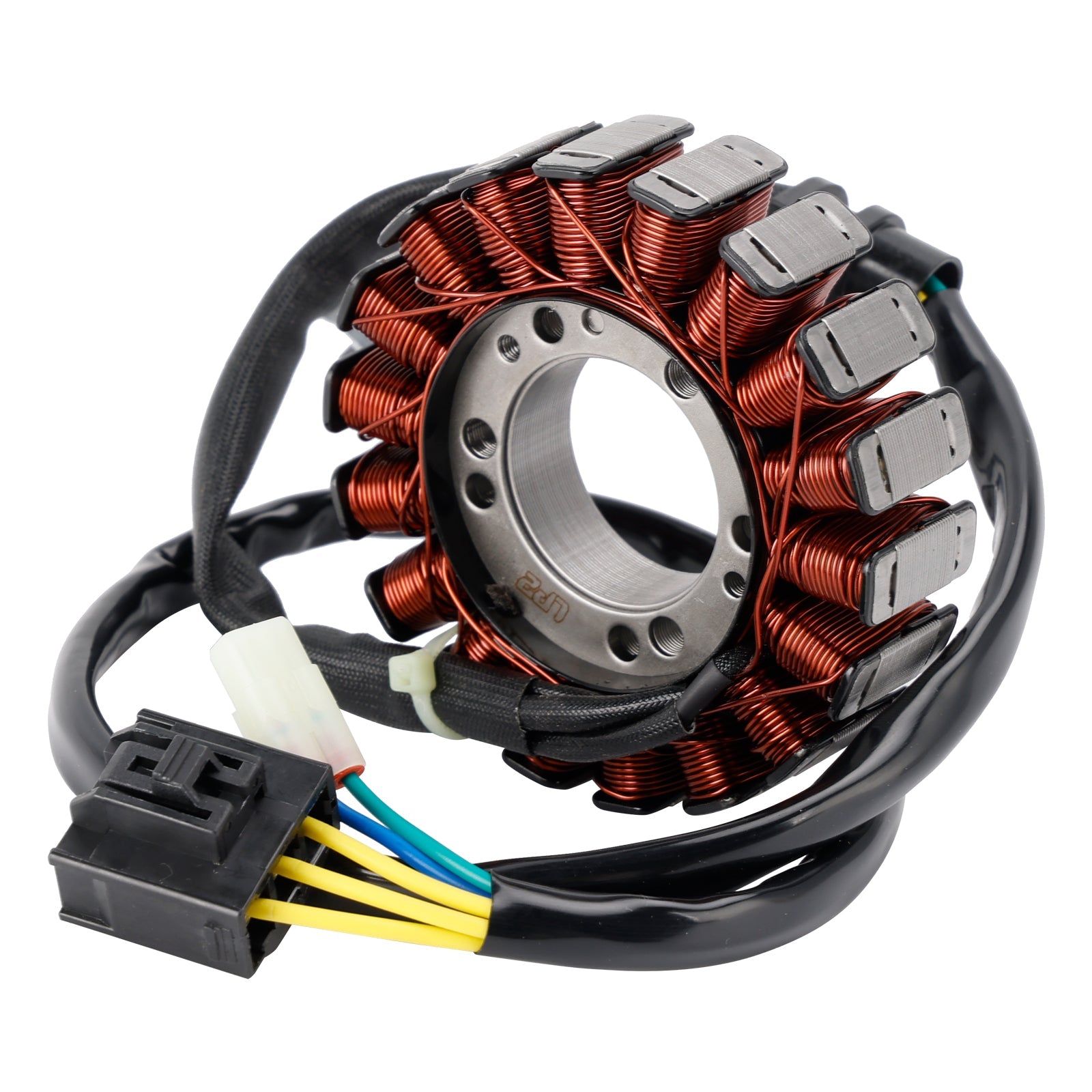

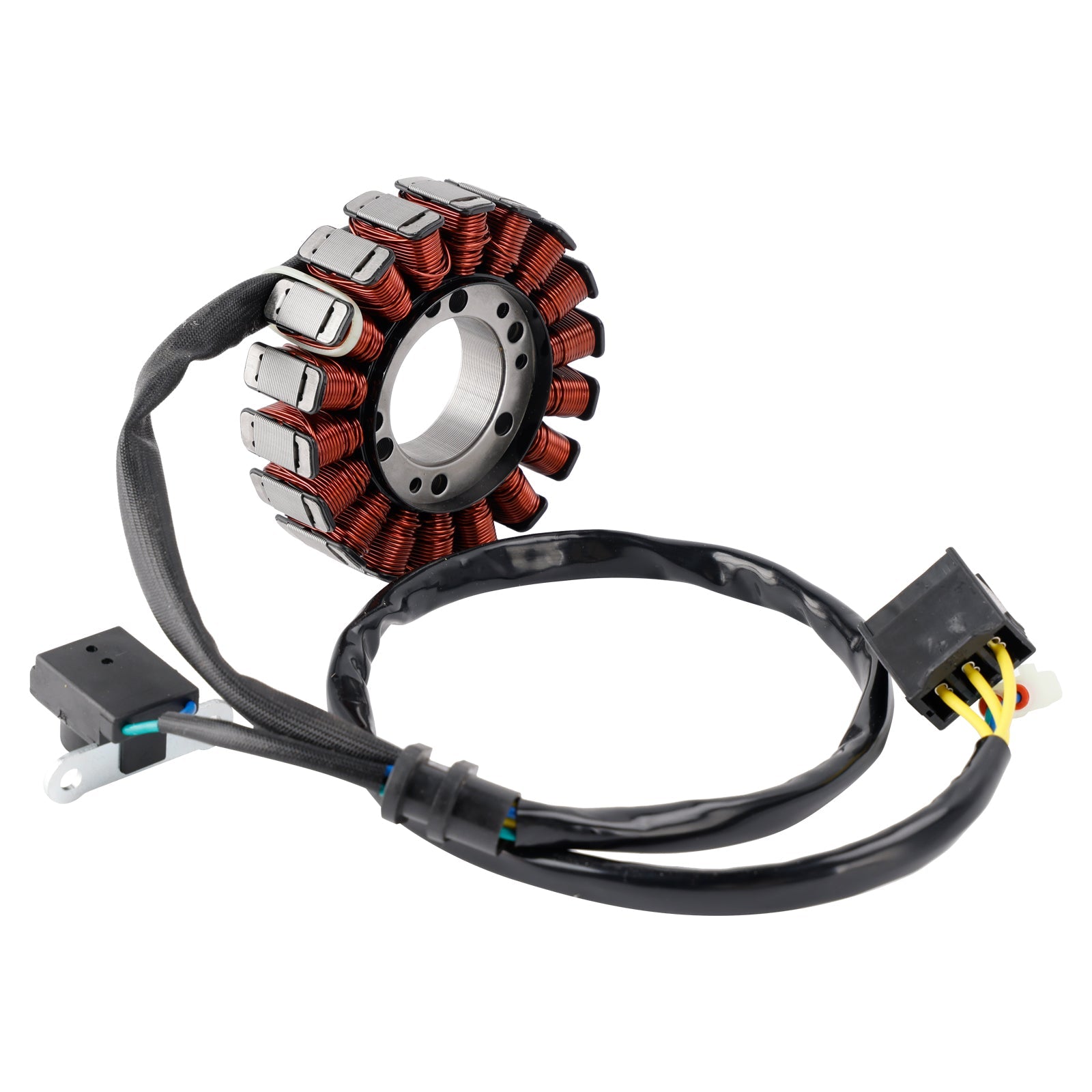

Stator
Number of wires: 5

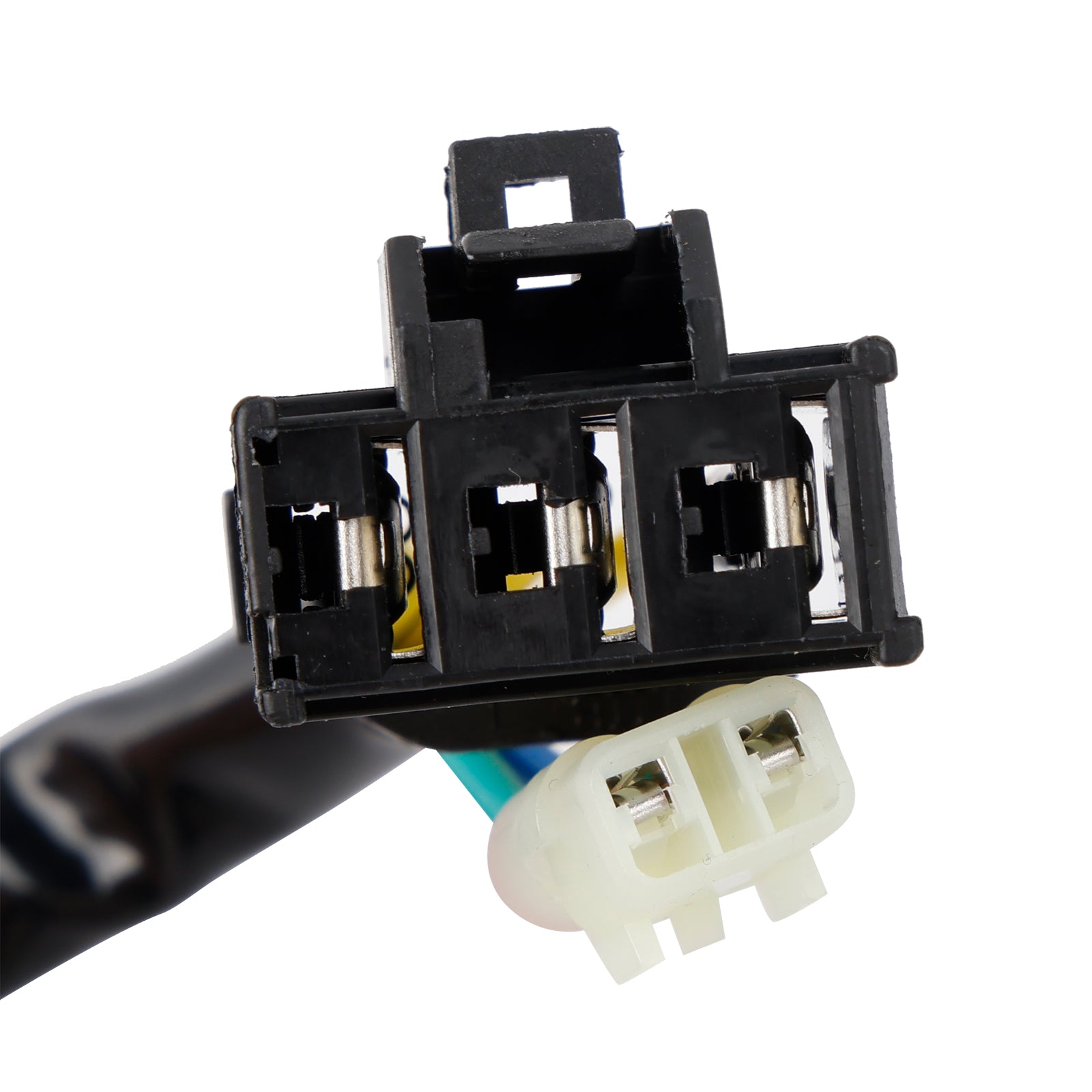

Number of plugs: 2
Number of pins: 3 + 2
Number of fixation holes: 5
Number of poles: 18

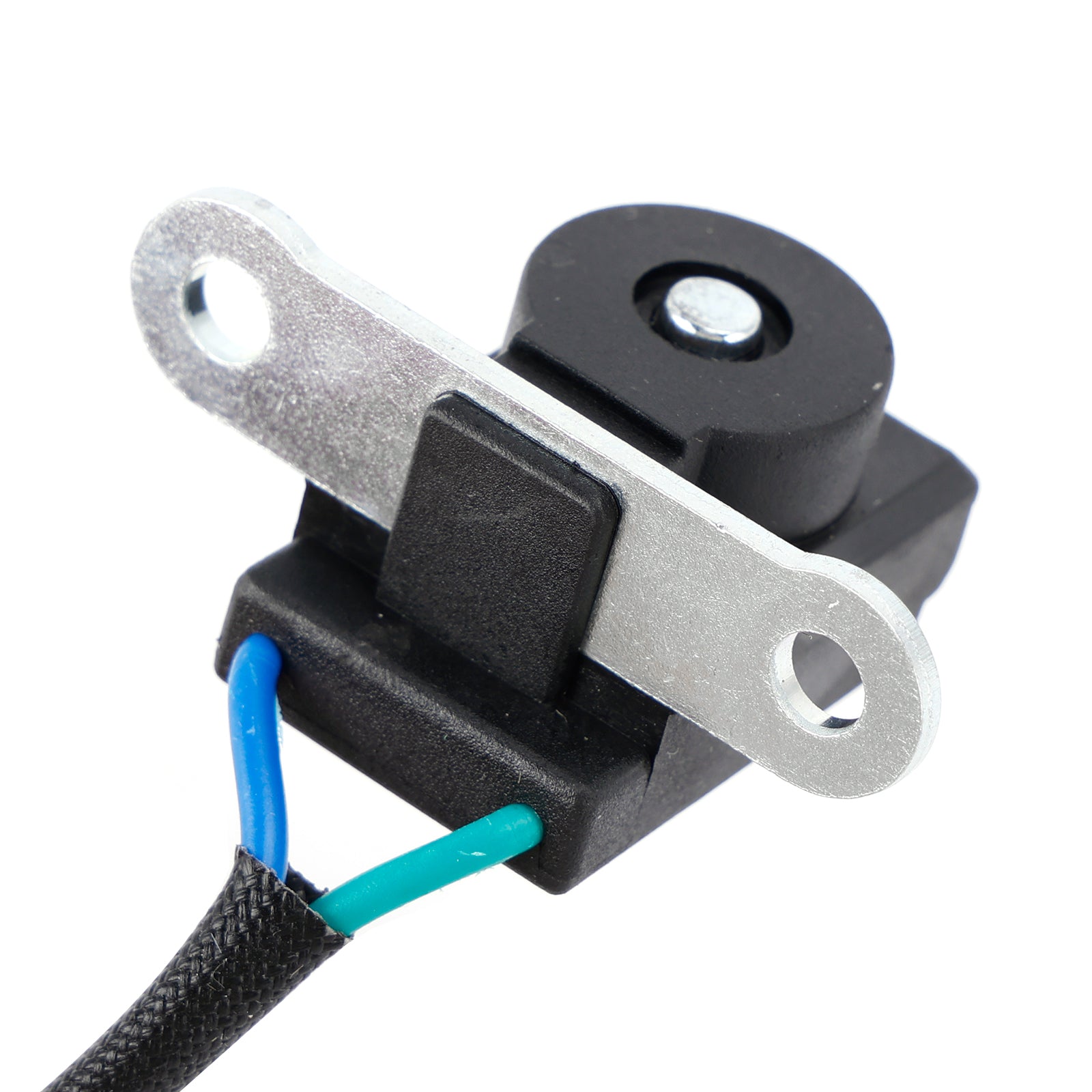

Pick up pulsar coil included.

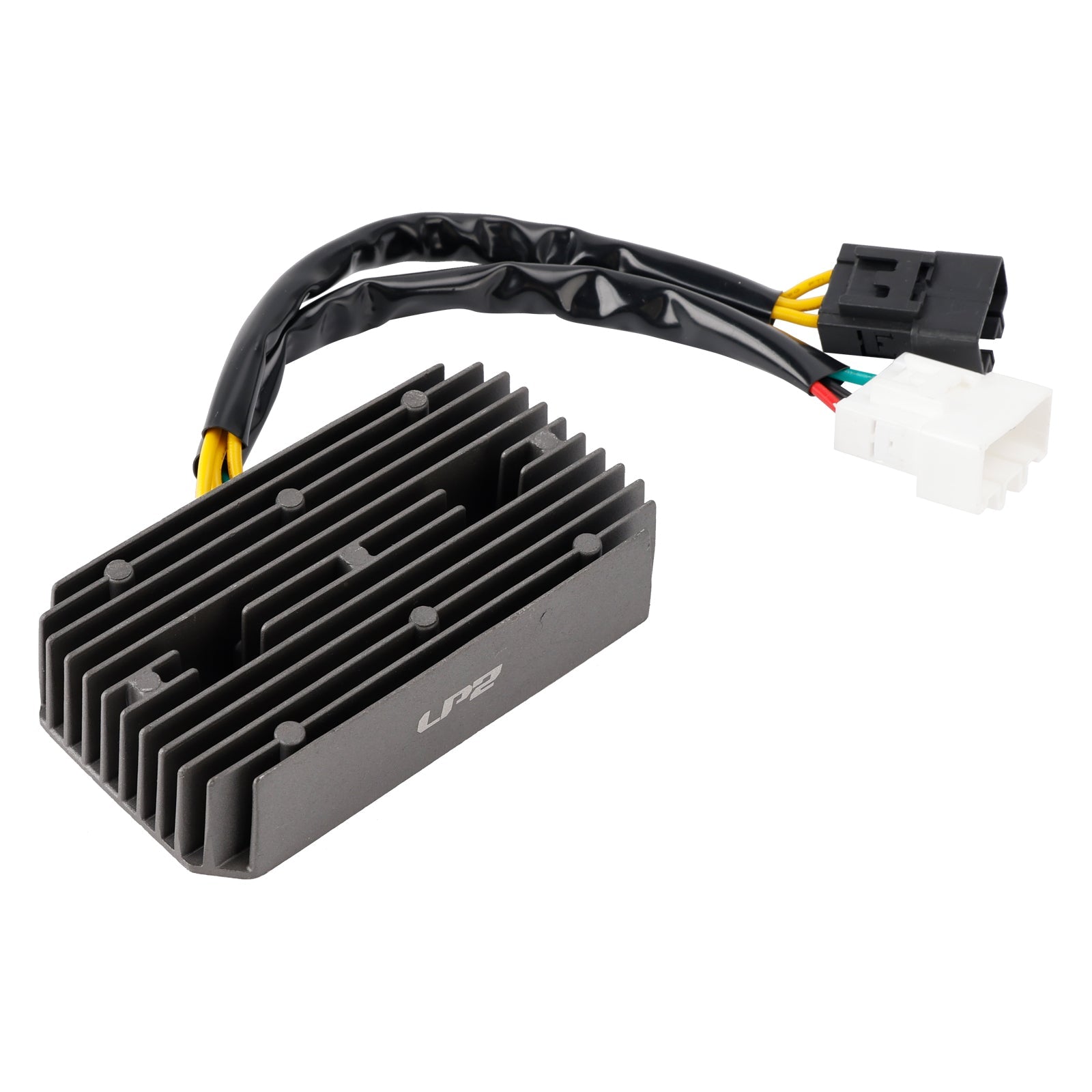

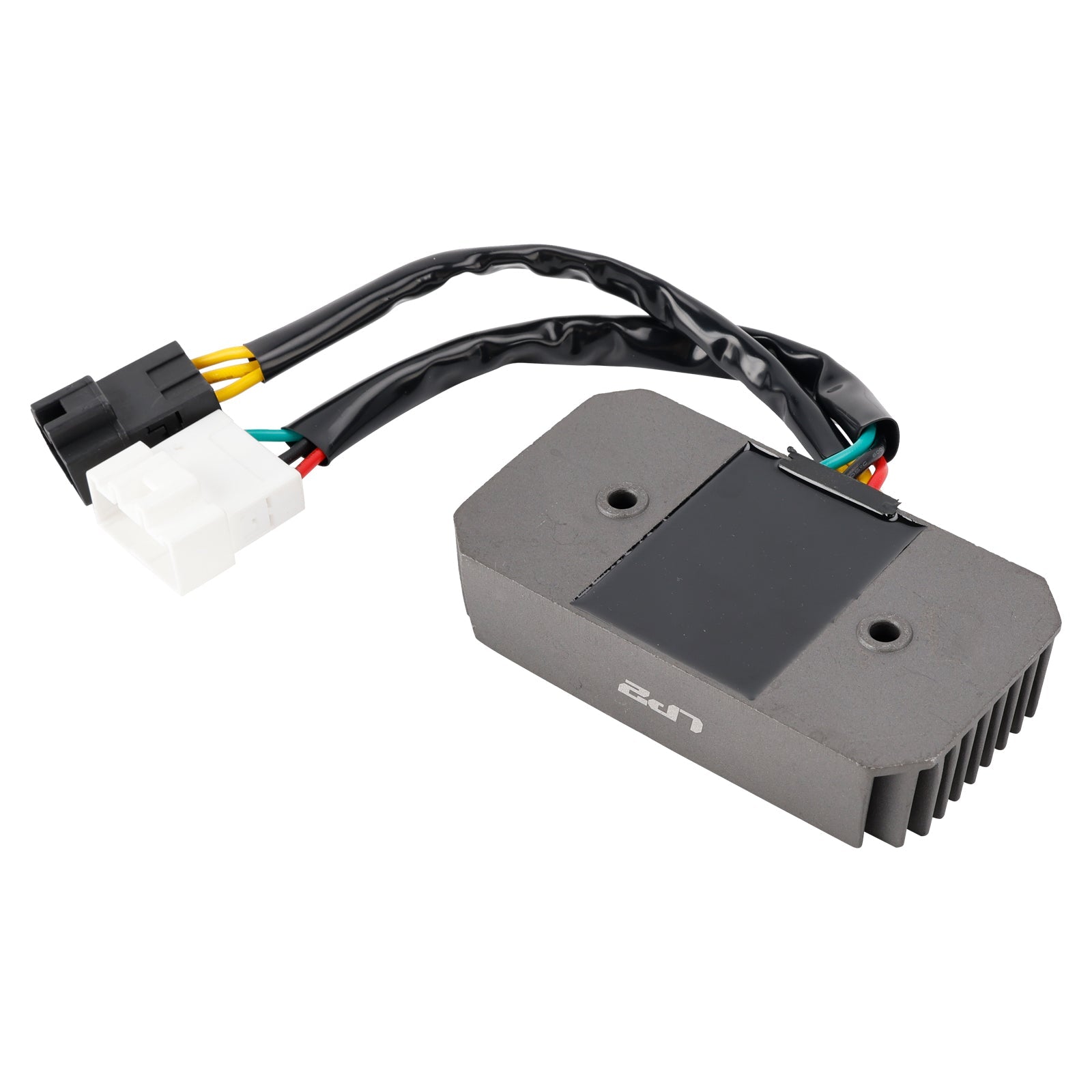

Regulator
Number of wires: 6

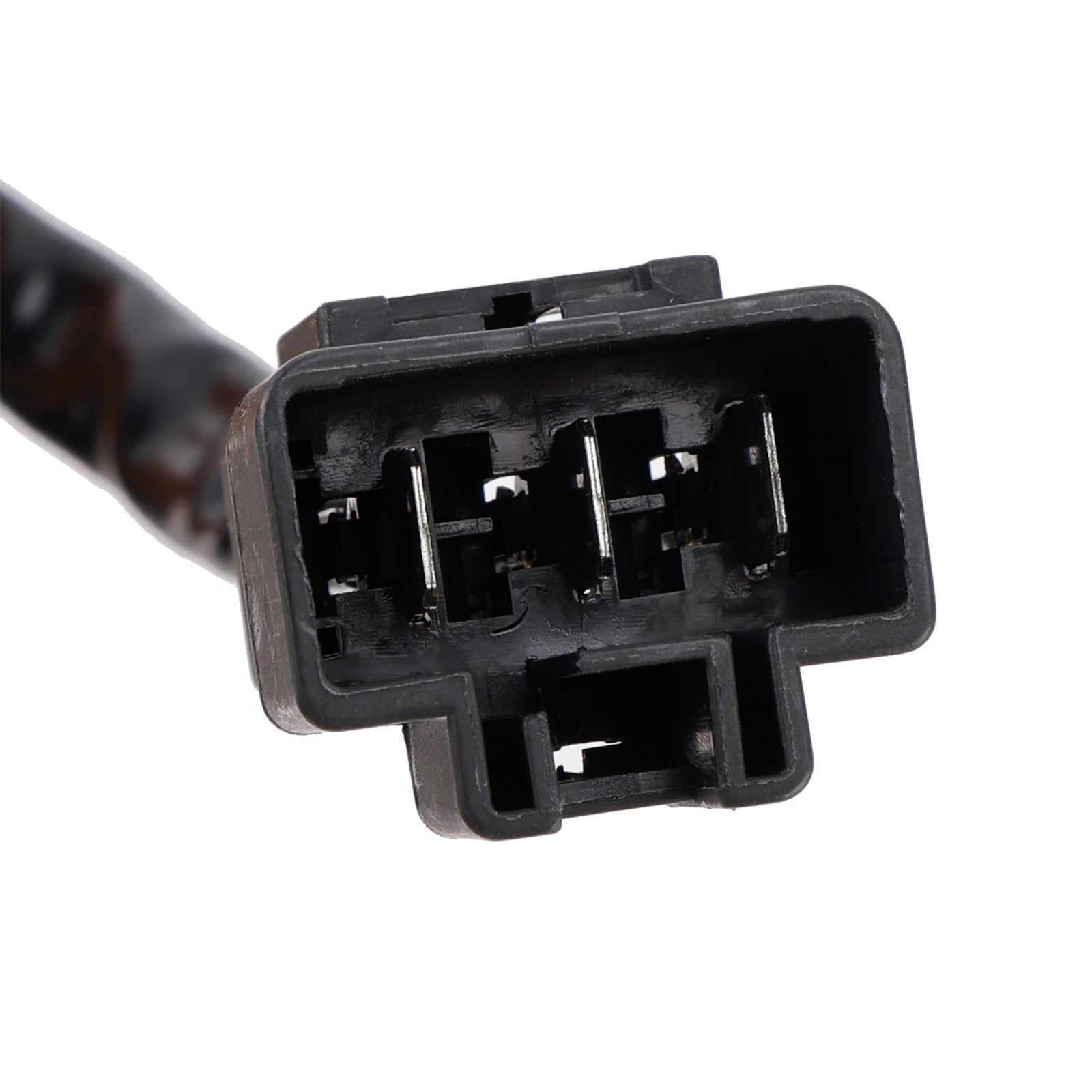

Number of plugs: 2

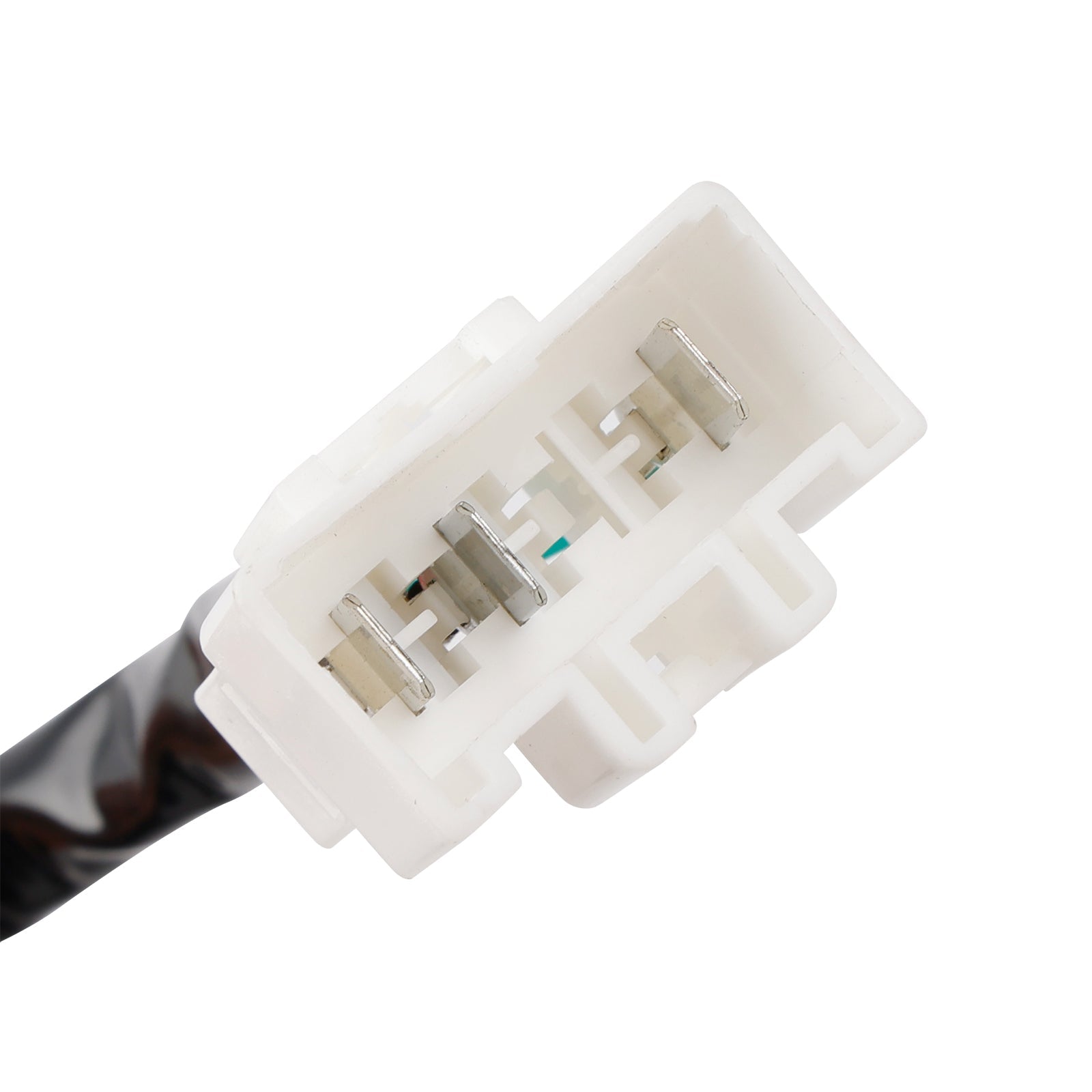

Number of pins: 3 + 3

Please compare the number of pins and plugs with the old part before purchasing.

Replacement Part Number:
Stator Assy: 31120-LH1-000
Rectifier, regulator: 31600-L4A-000, 31600-L3A-000

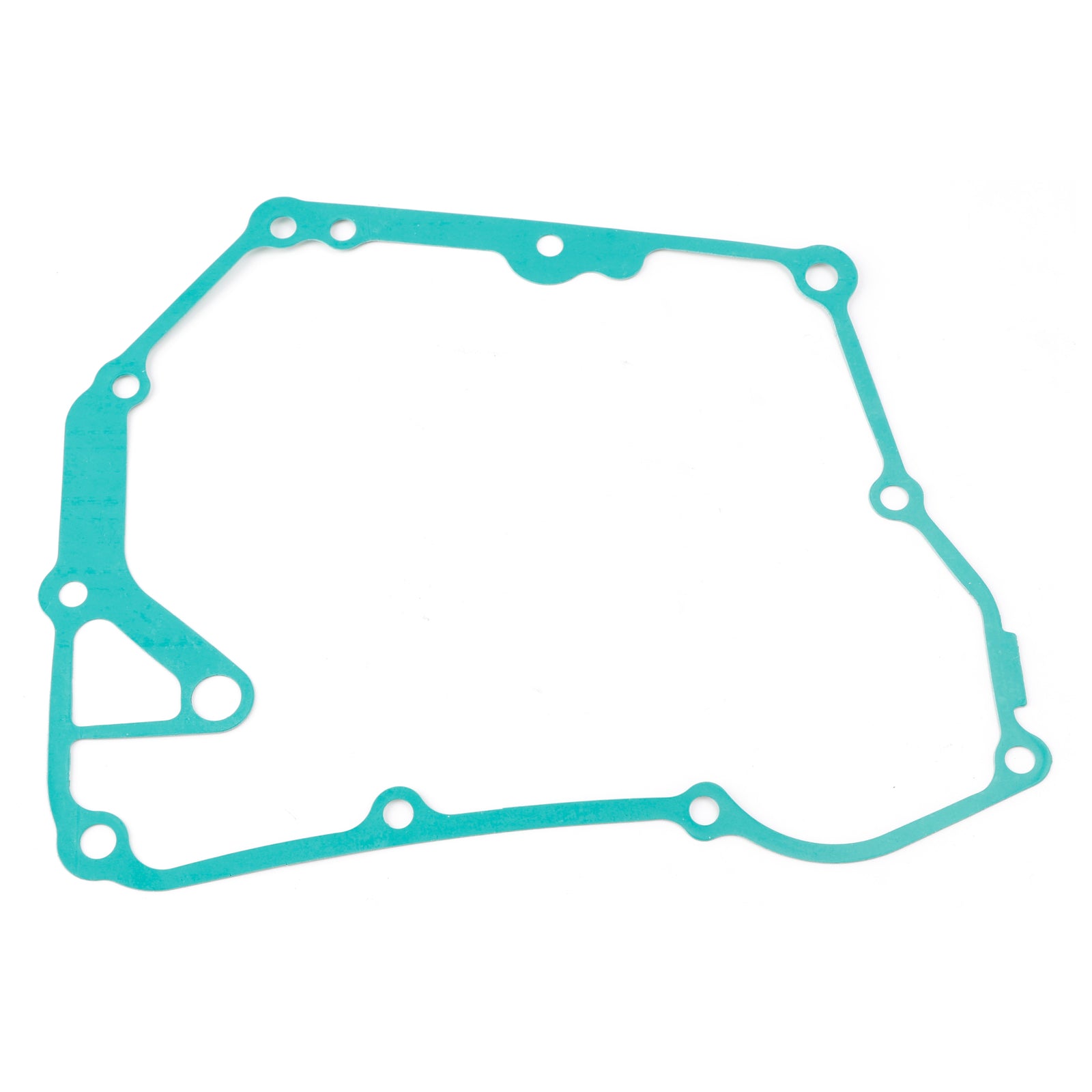

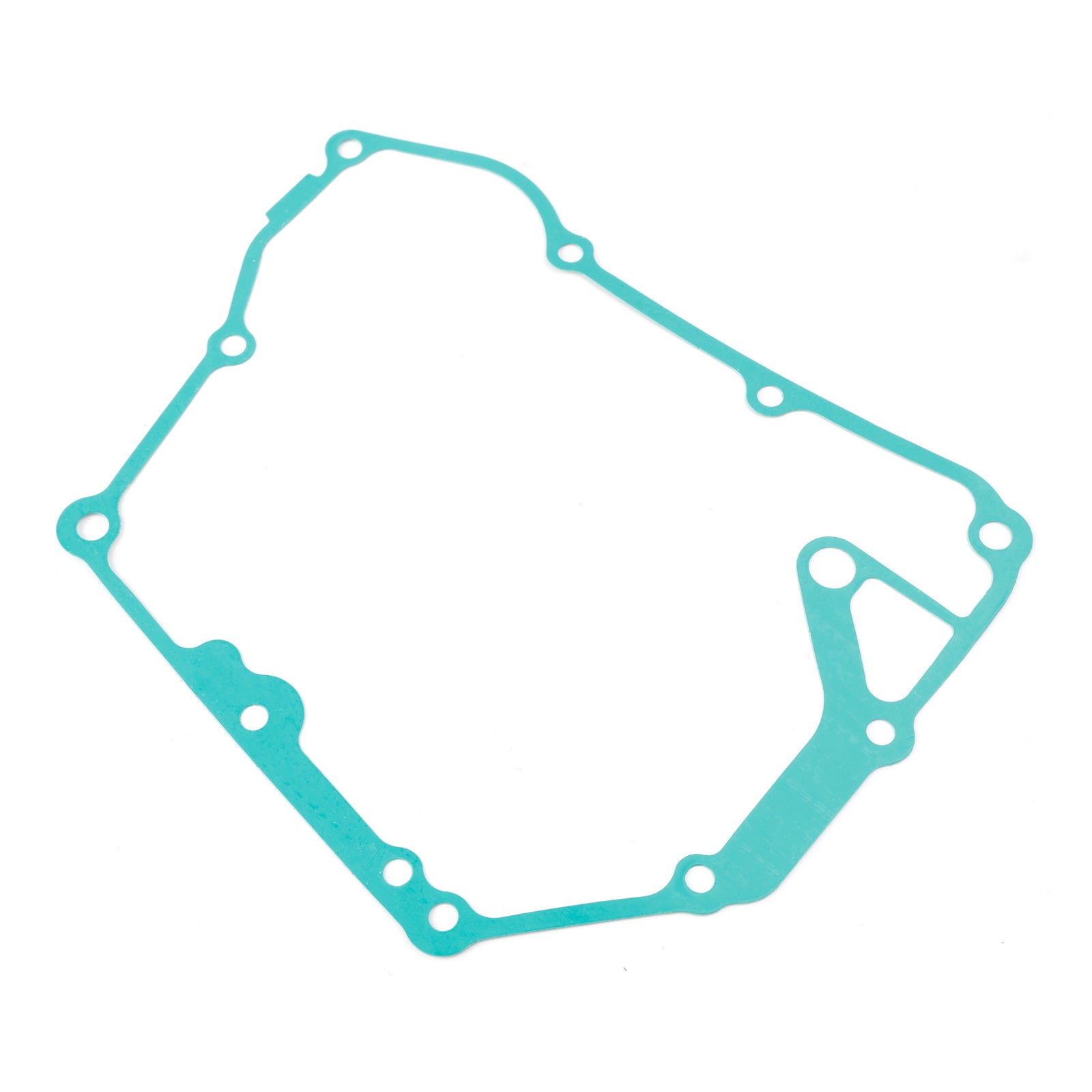

Gasket, generator cover: 11394-HMA-002

Fits Make/Model/Year:
Fit for SYM HD 300i 4T ABS E4 (LS30W1-EU) 2019-2020
Fit for SYM Joymax Z 300i 4T ABS E4 (LW30W1-EU) 2019-2020

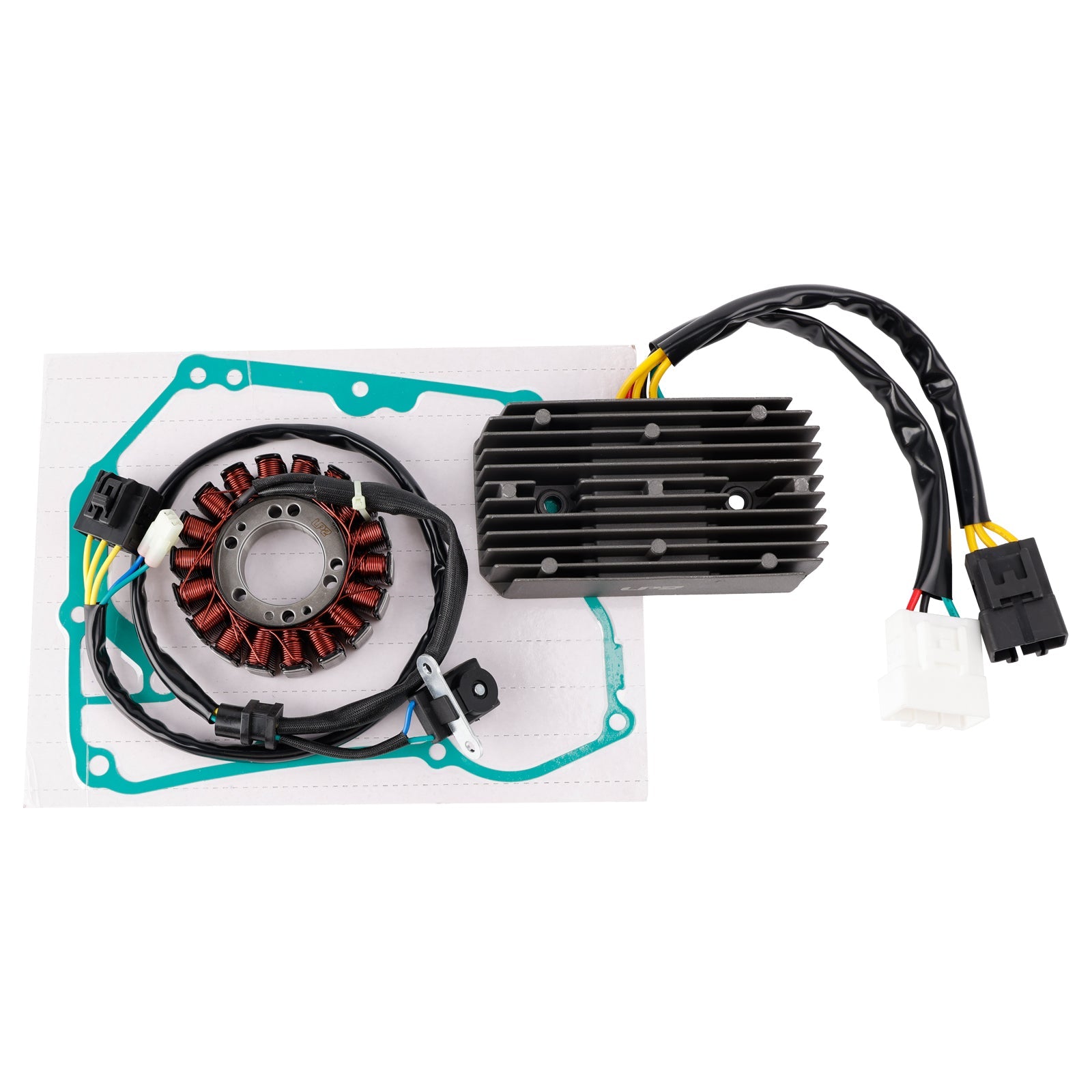

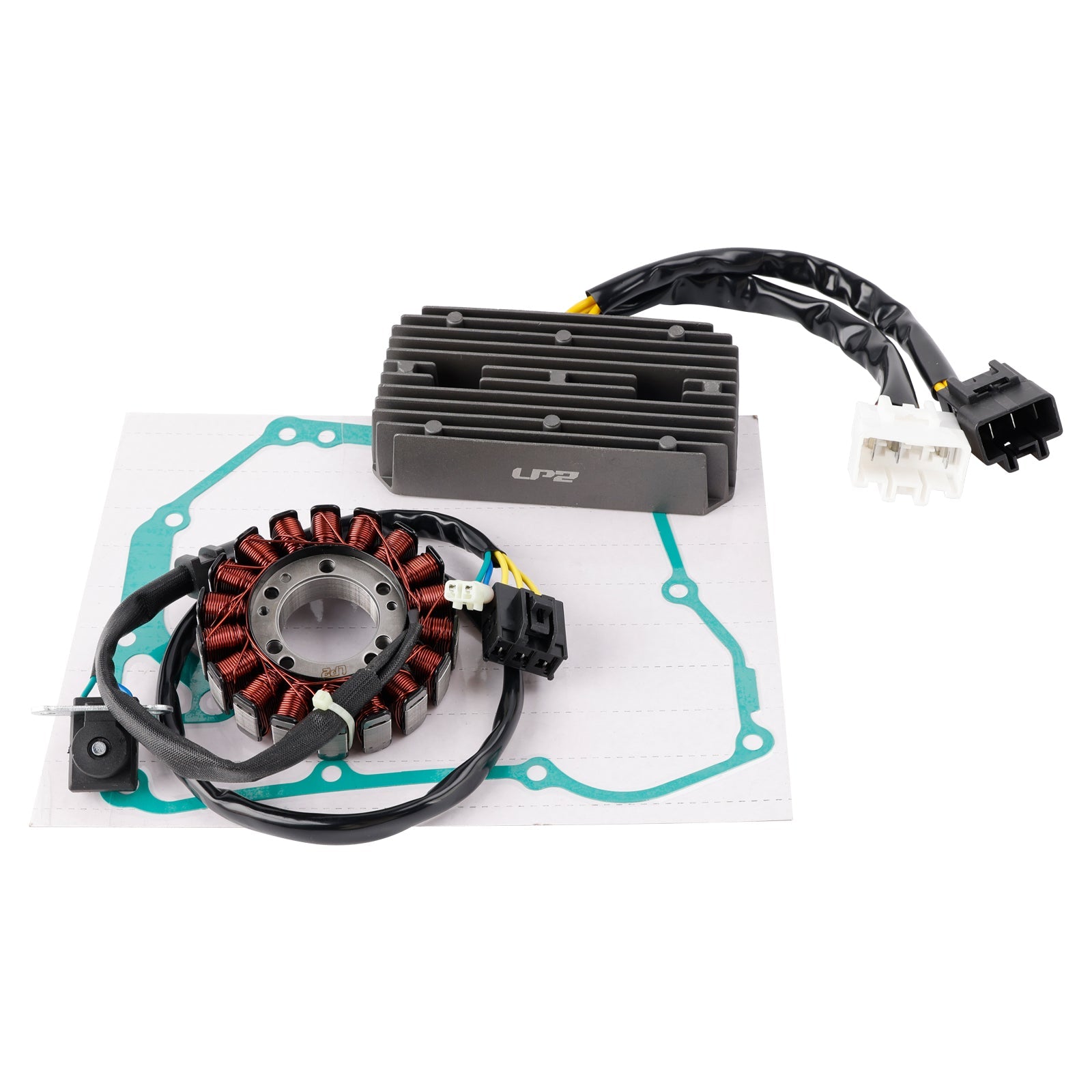

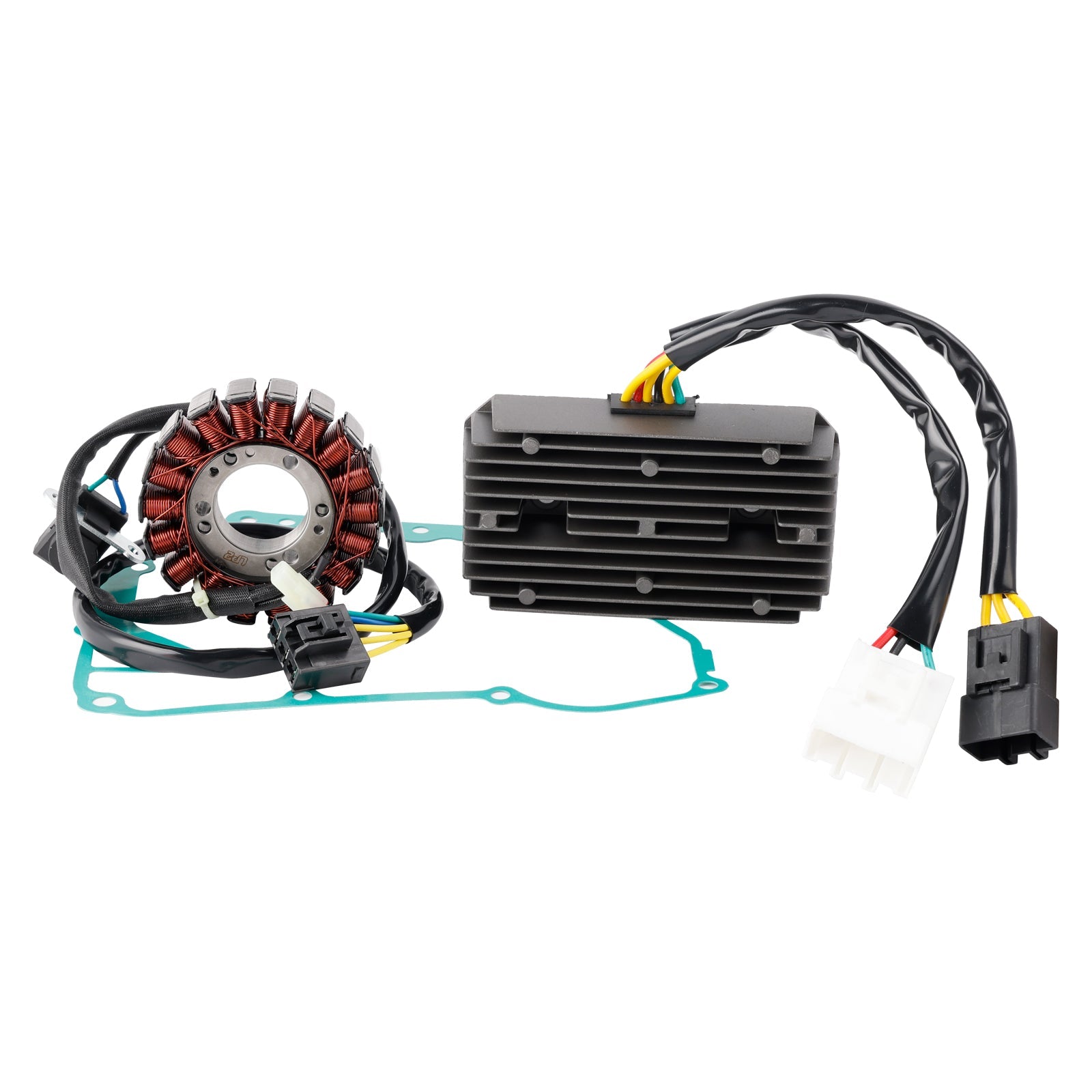

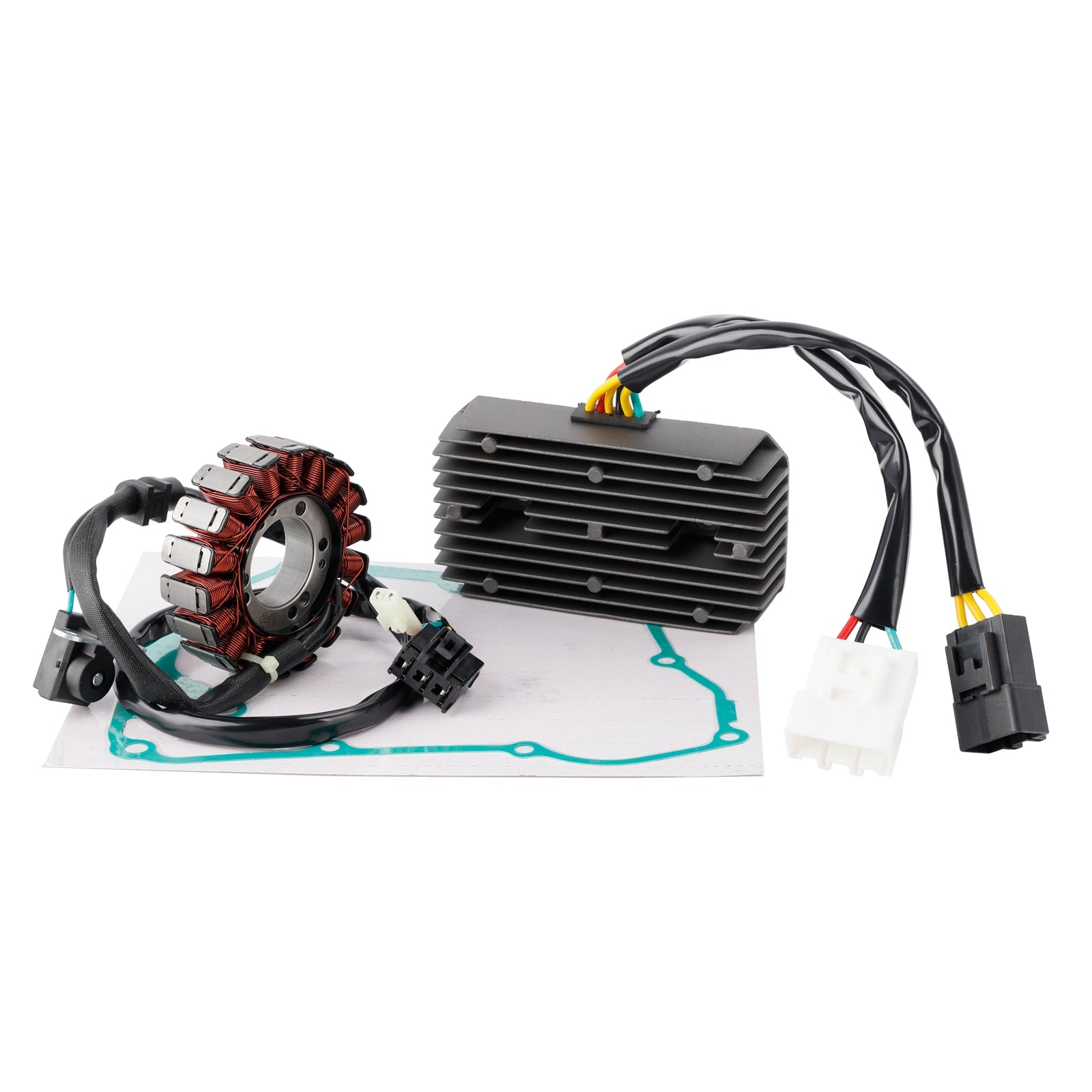

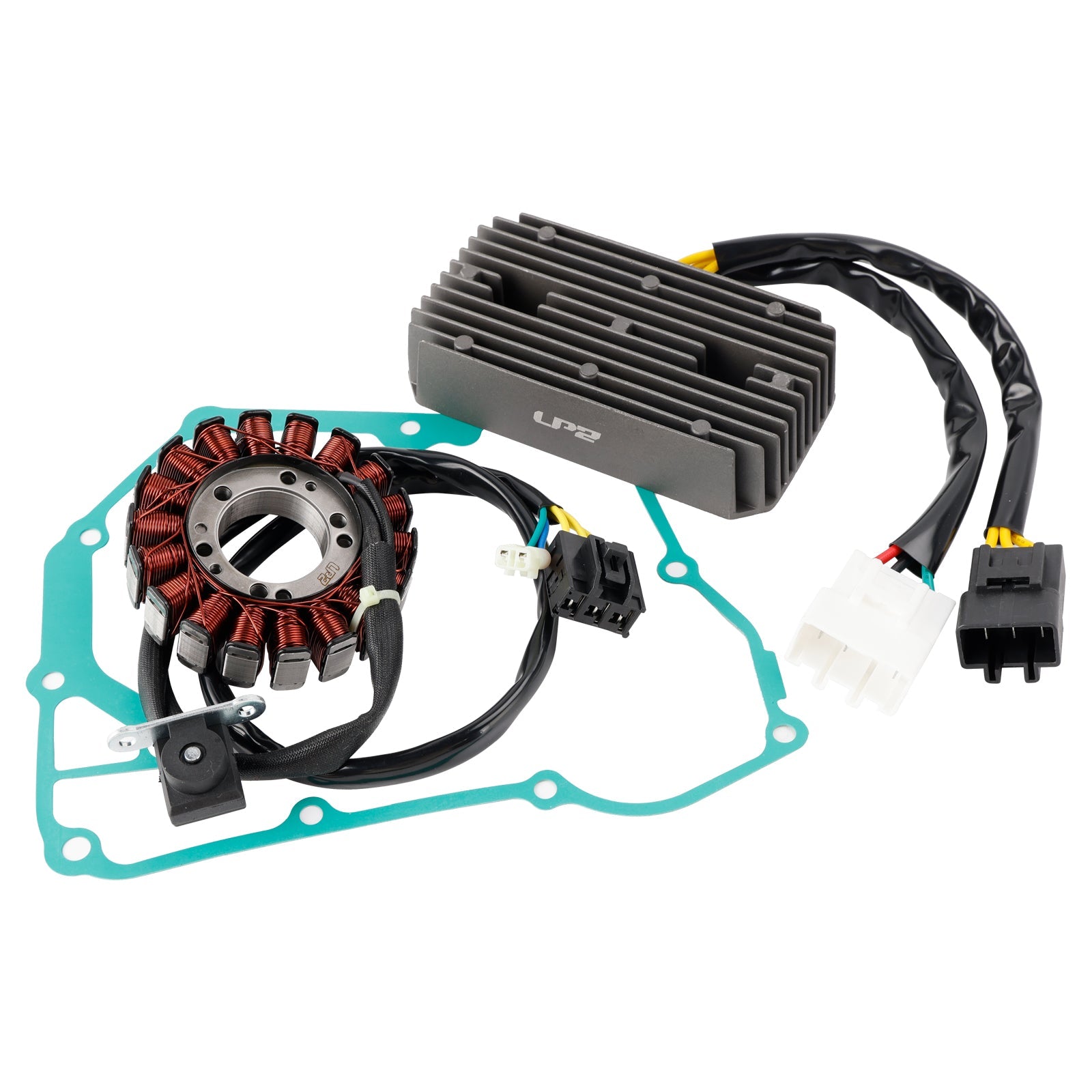

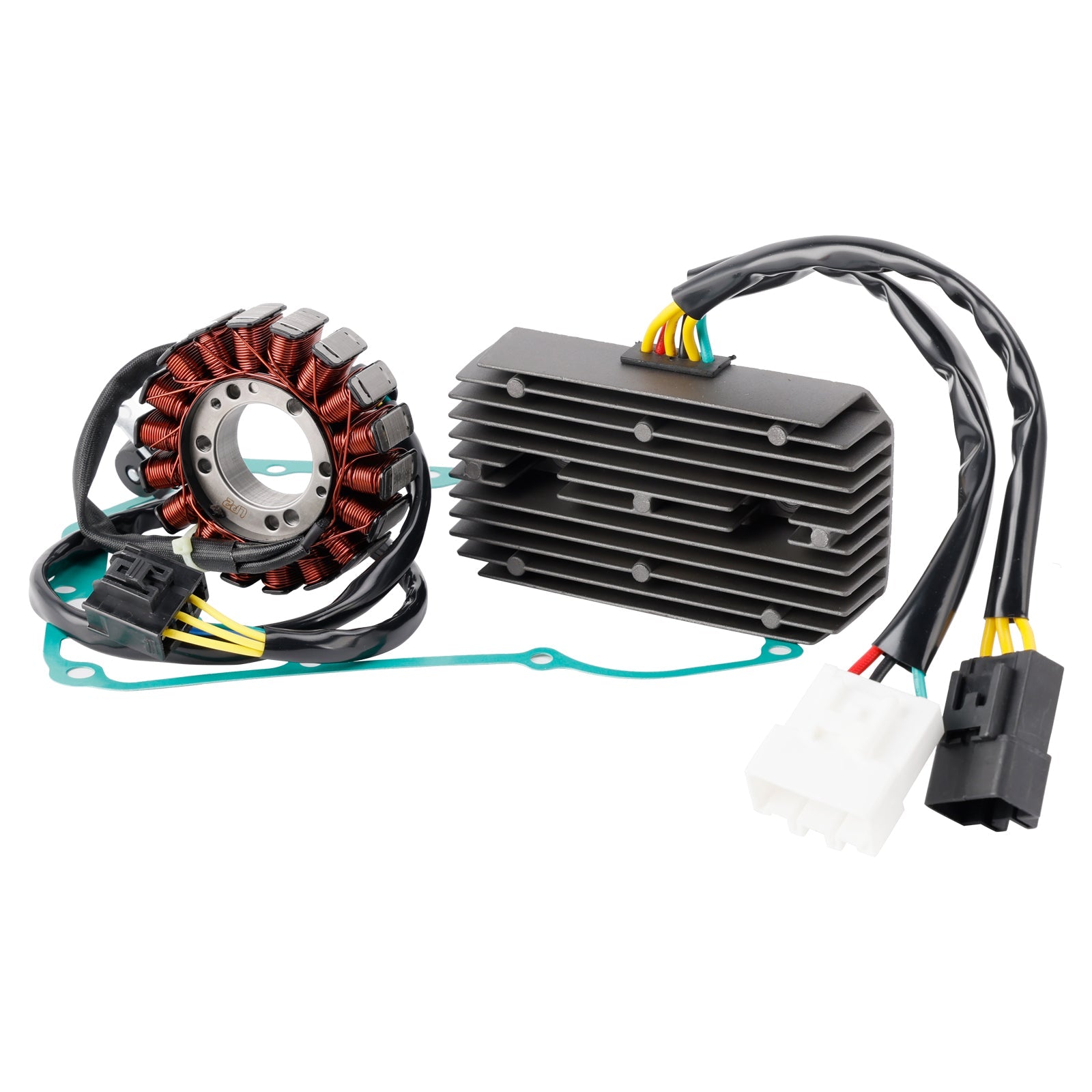

Package Includes:
1 x 18-Pole Generator Stator
1 x 6-Wire Regulator Rectifier
1 x Crankcase Gasket
