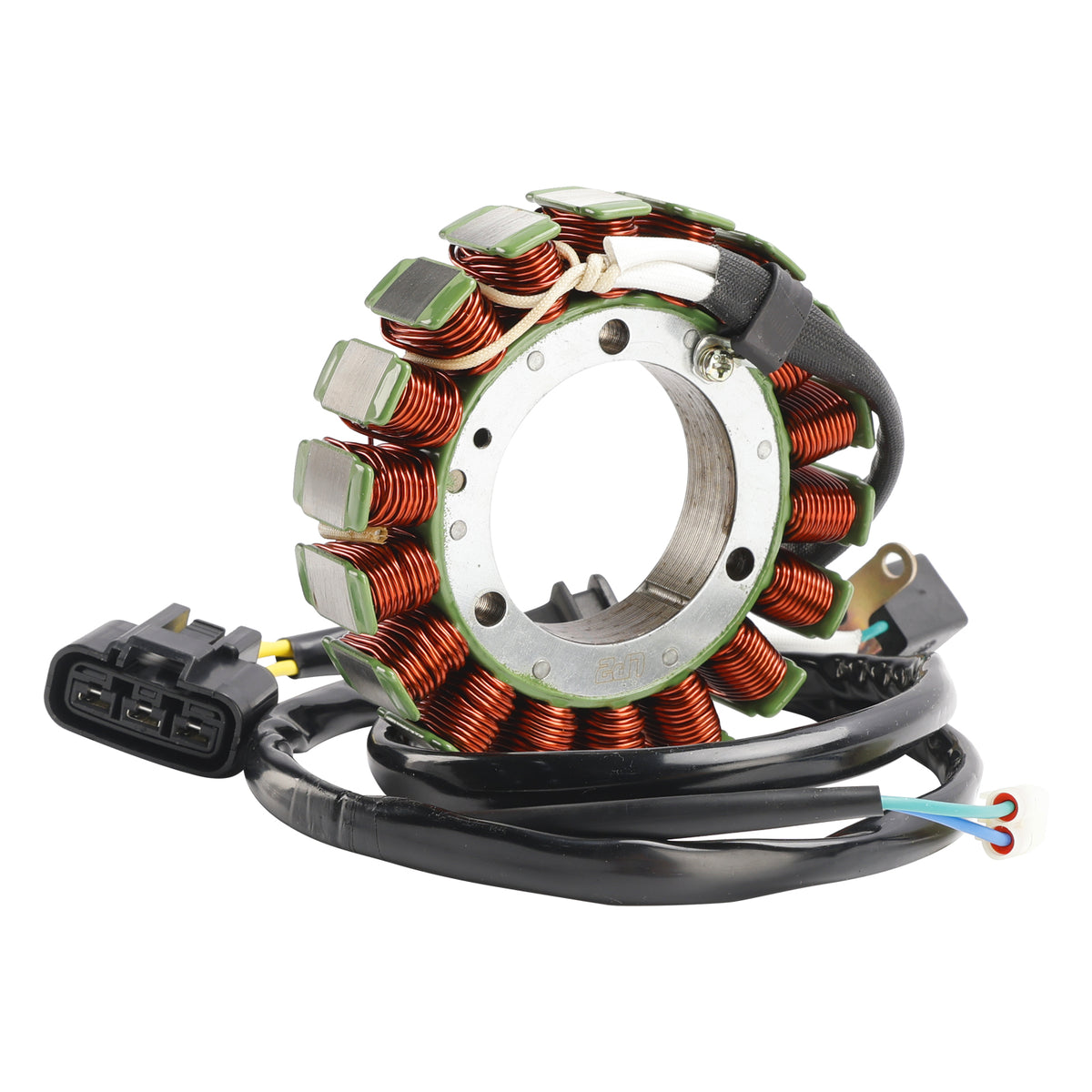

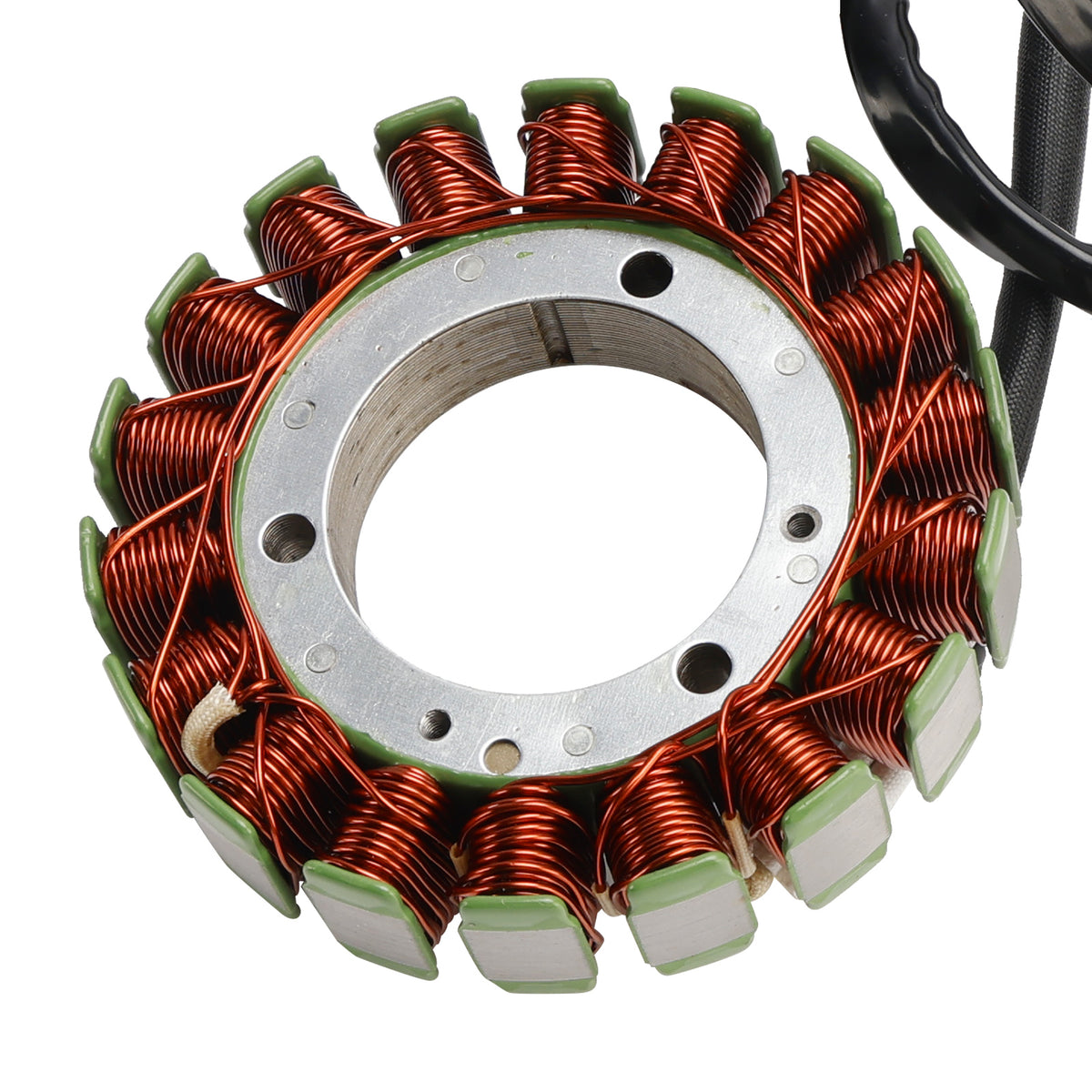

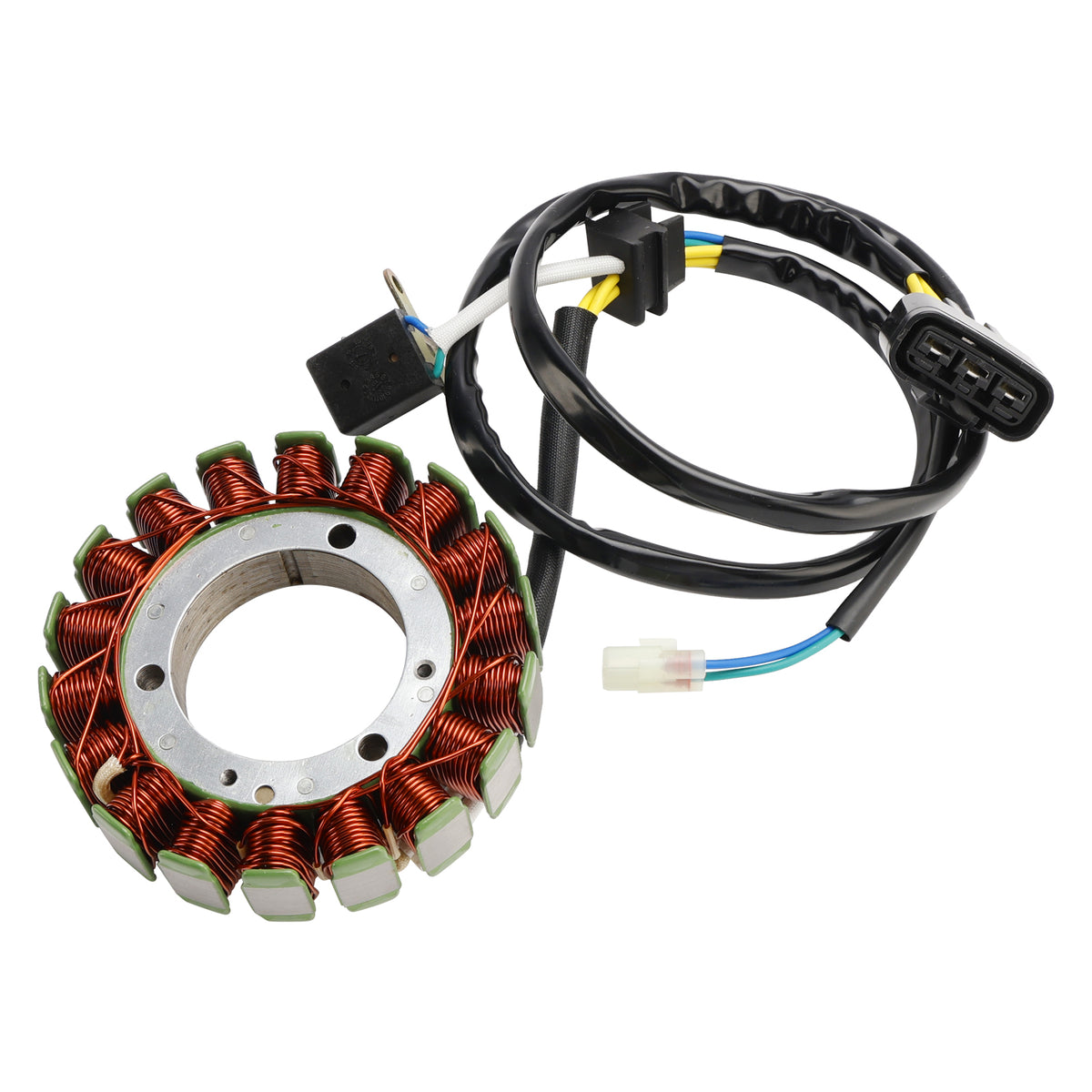

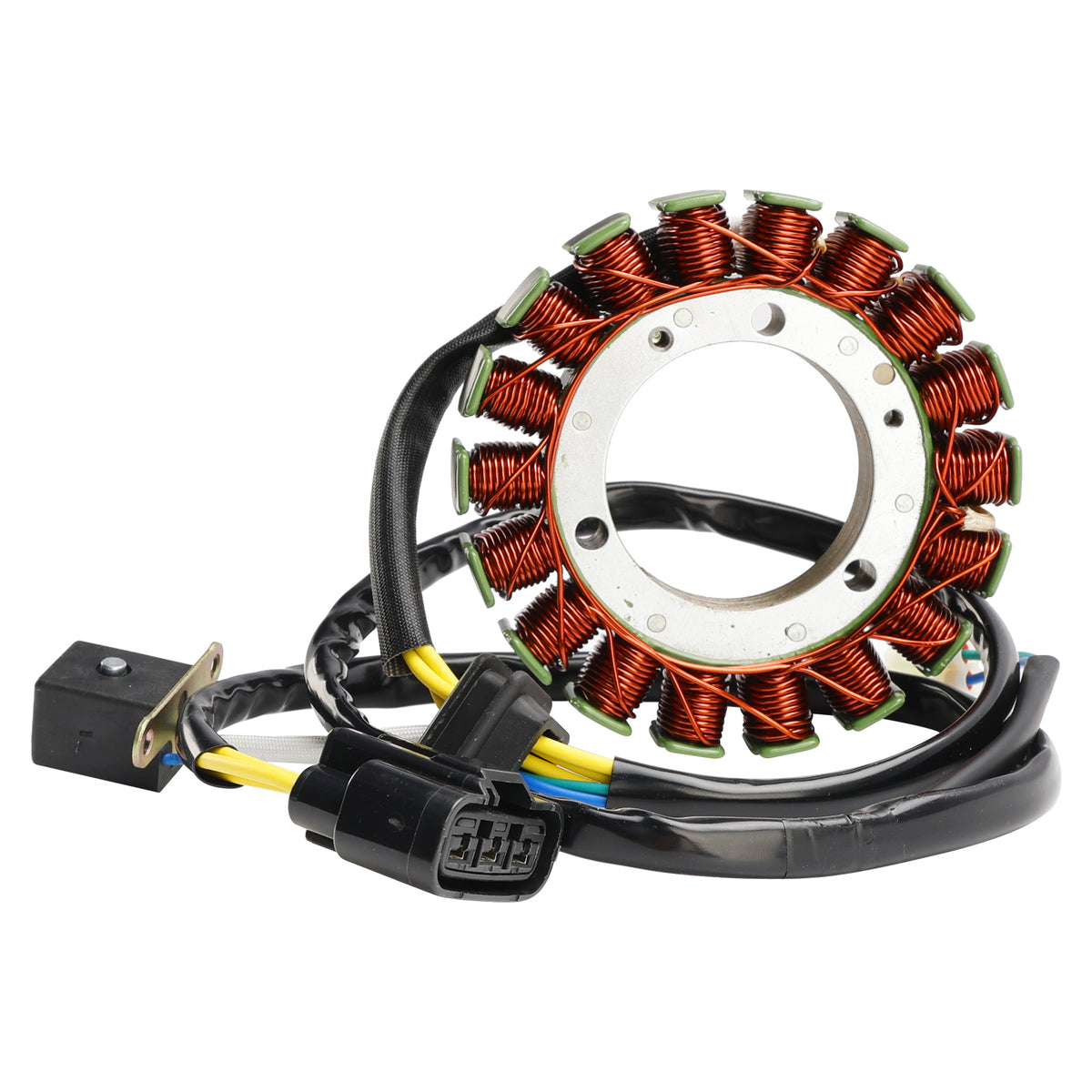

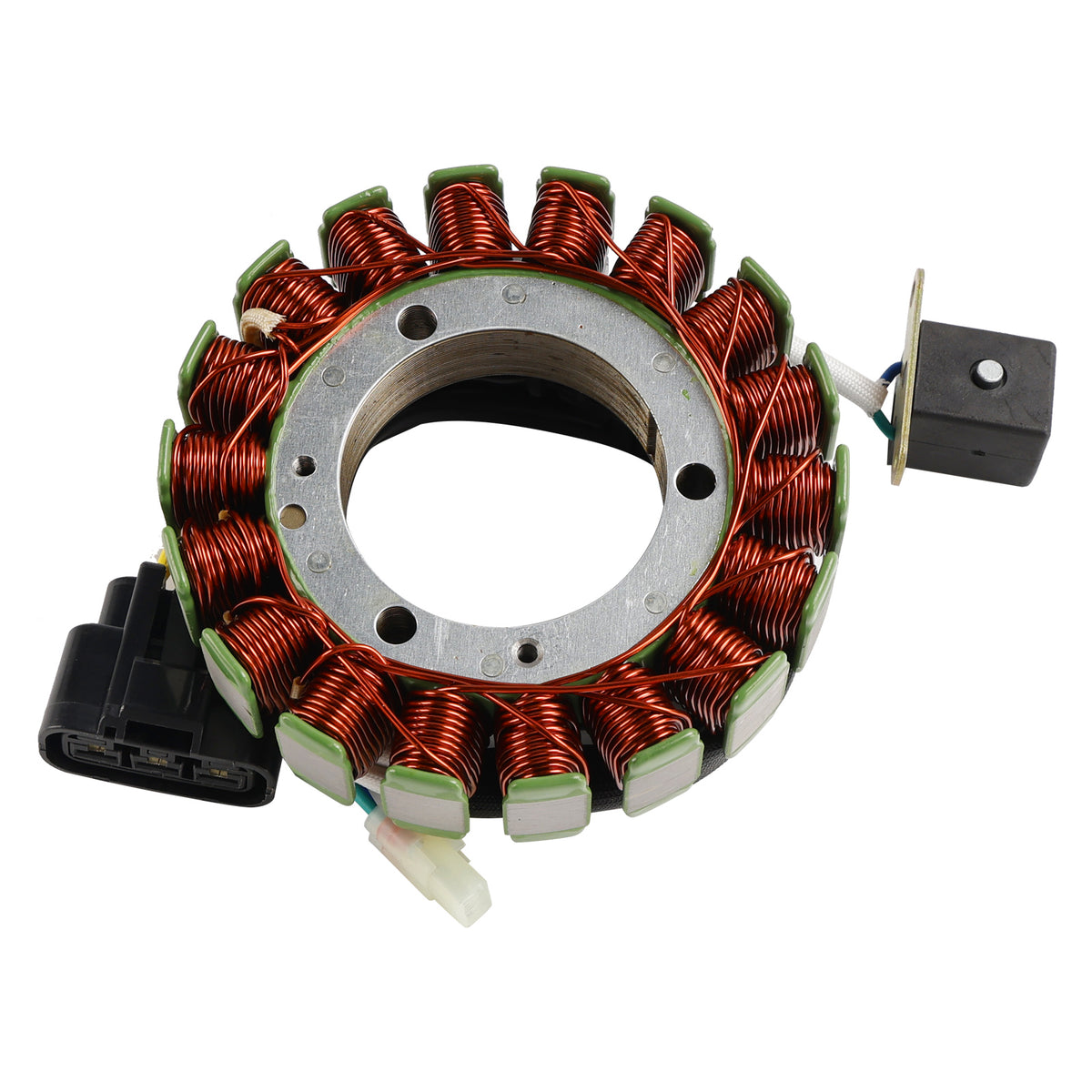

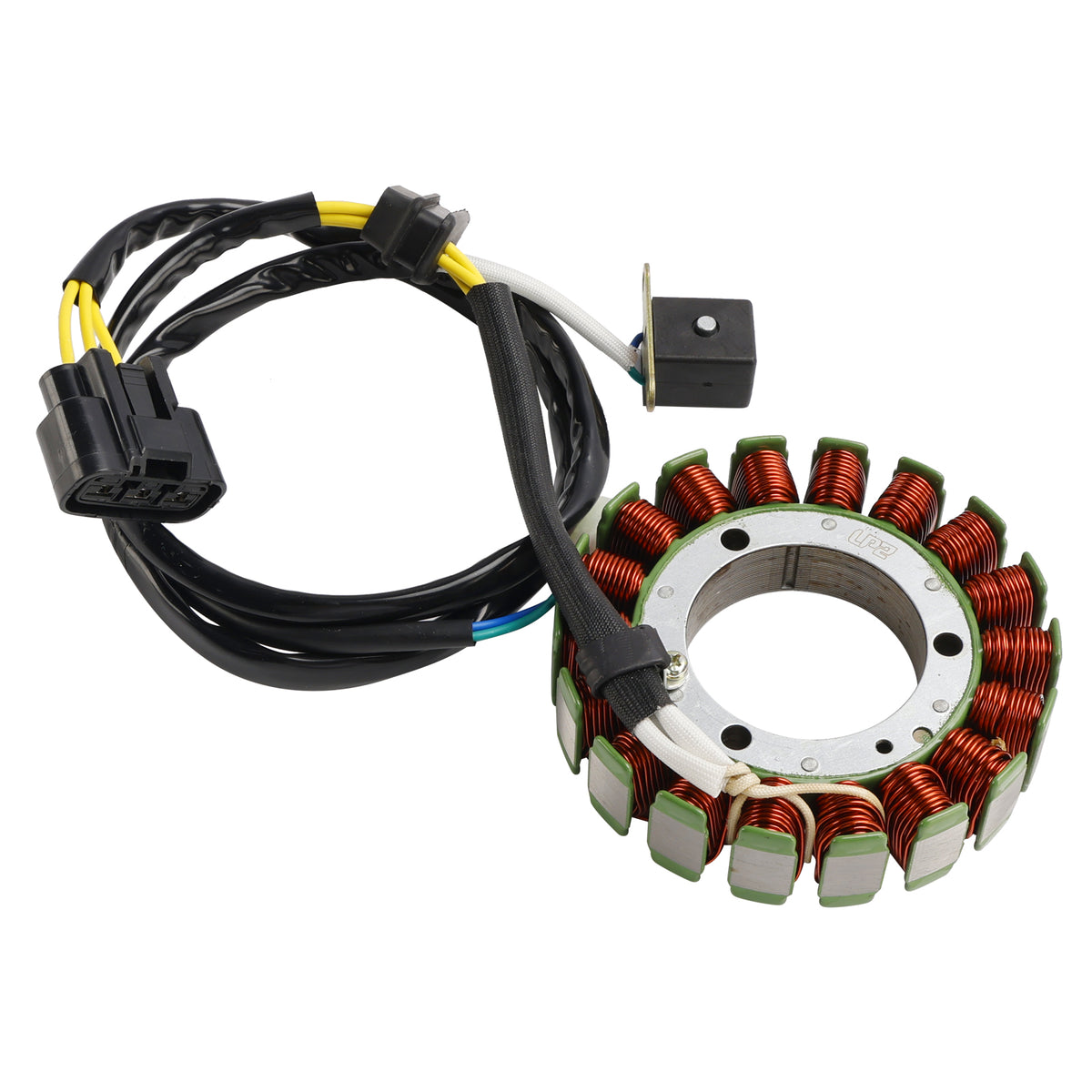

18-Pole Magneto Generator Stator Fit for LINHAI ATV500 / UTV 500 / M550 - 35334

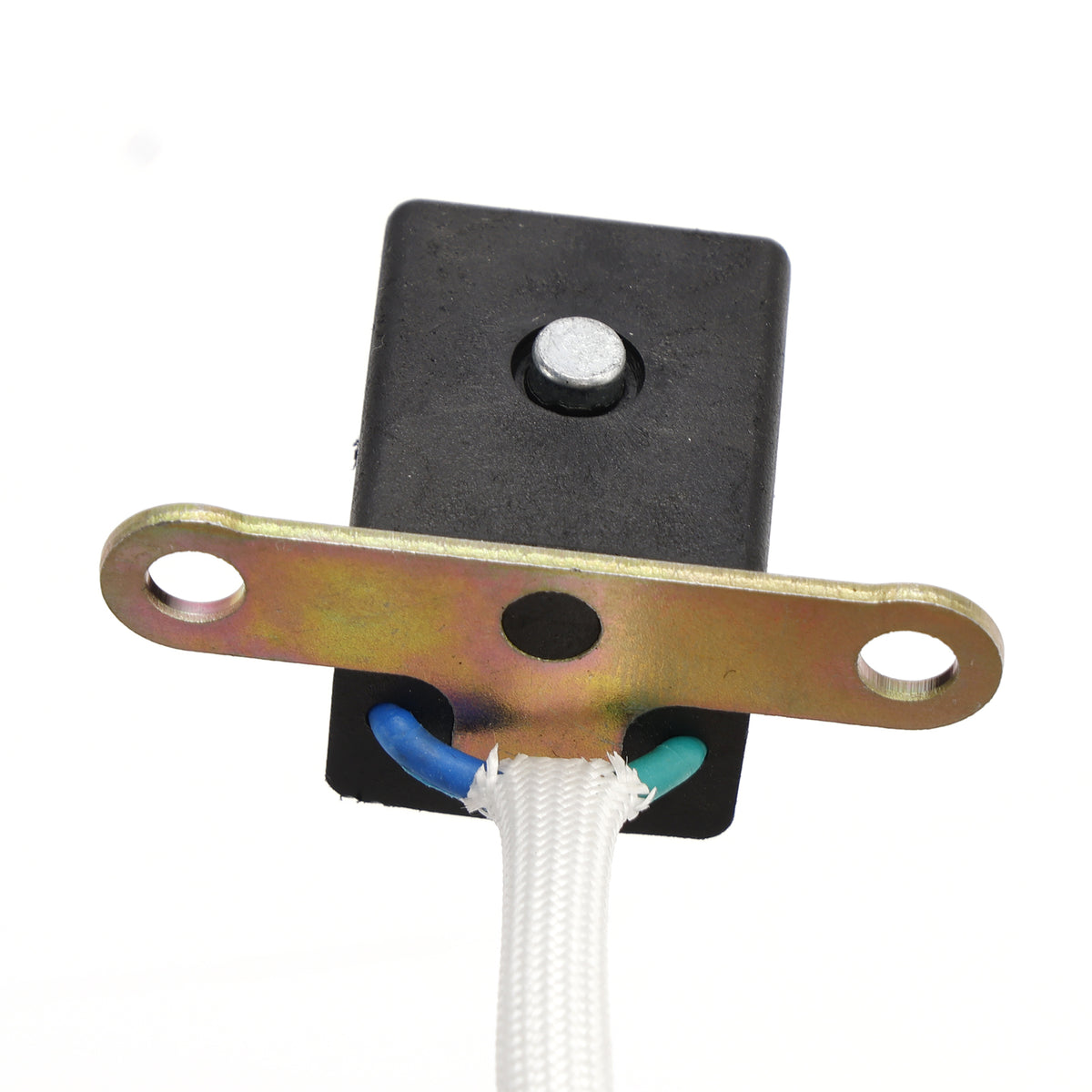

Features: Direct replacement to your original unit Plug-and-play, direct fit, easy installation. Highest grade lamination materials. Pick up pulsar coil included. Connector included. Rubber grommet included. All products shipped are tested.
Specifications: Condition: Aftermarket 100% Brand New Type: Stator Coil

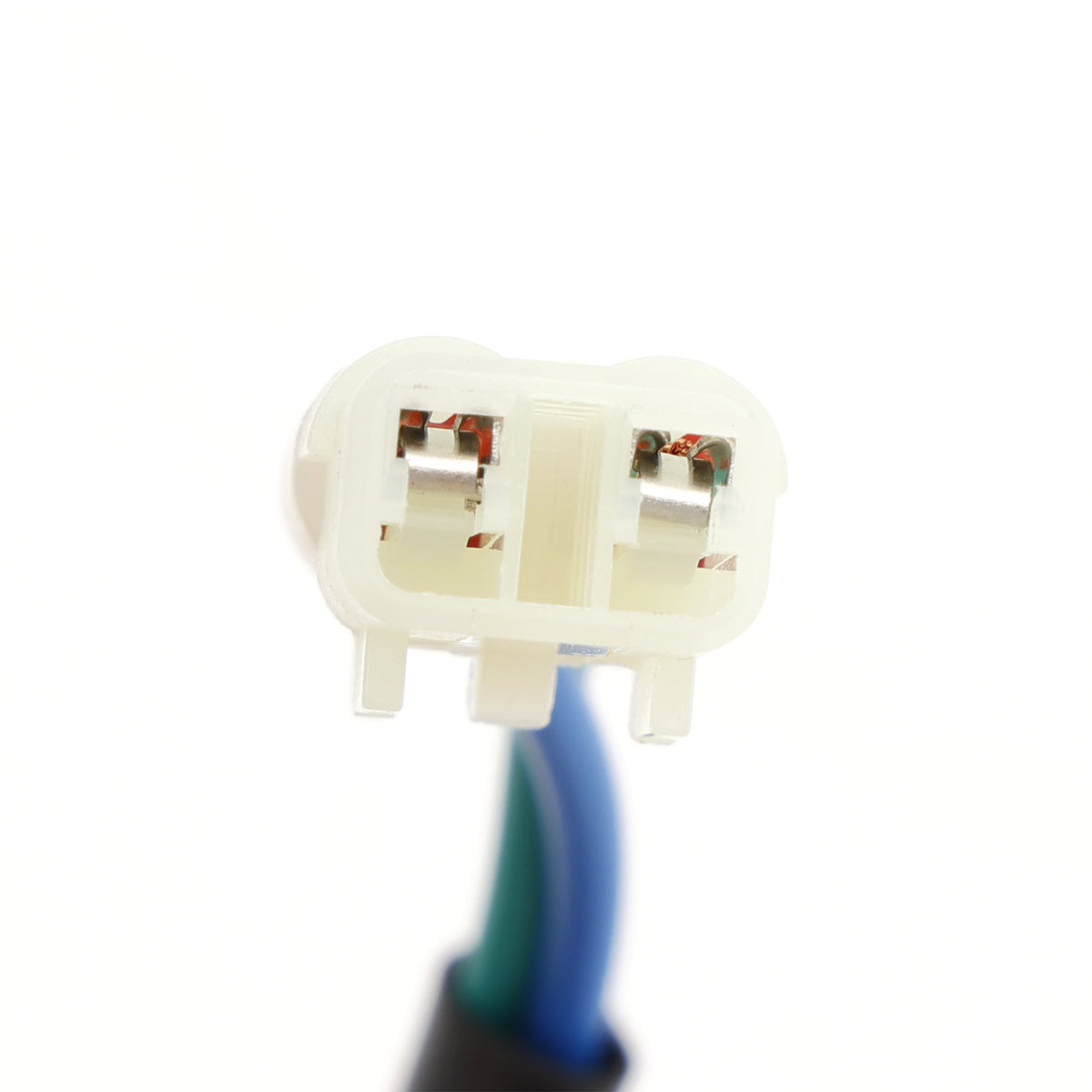

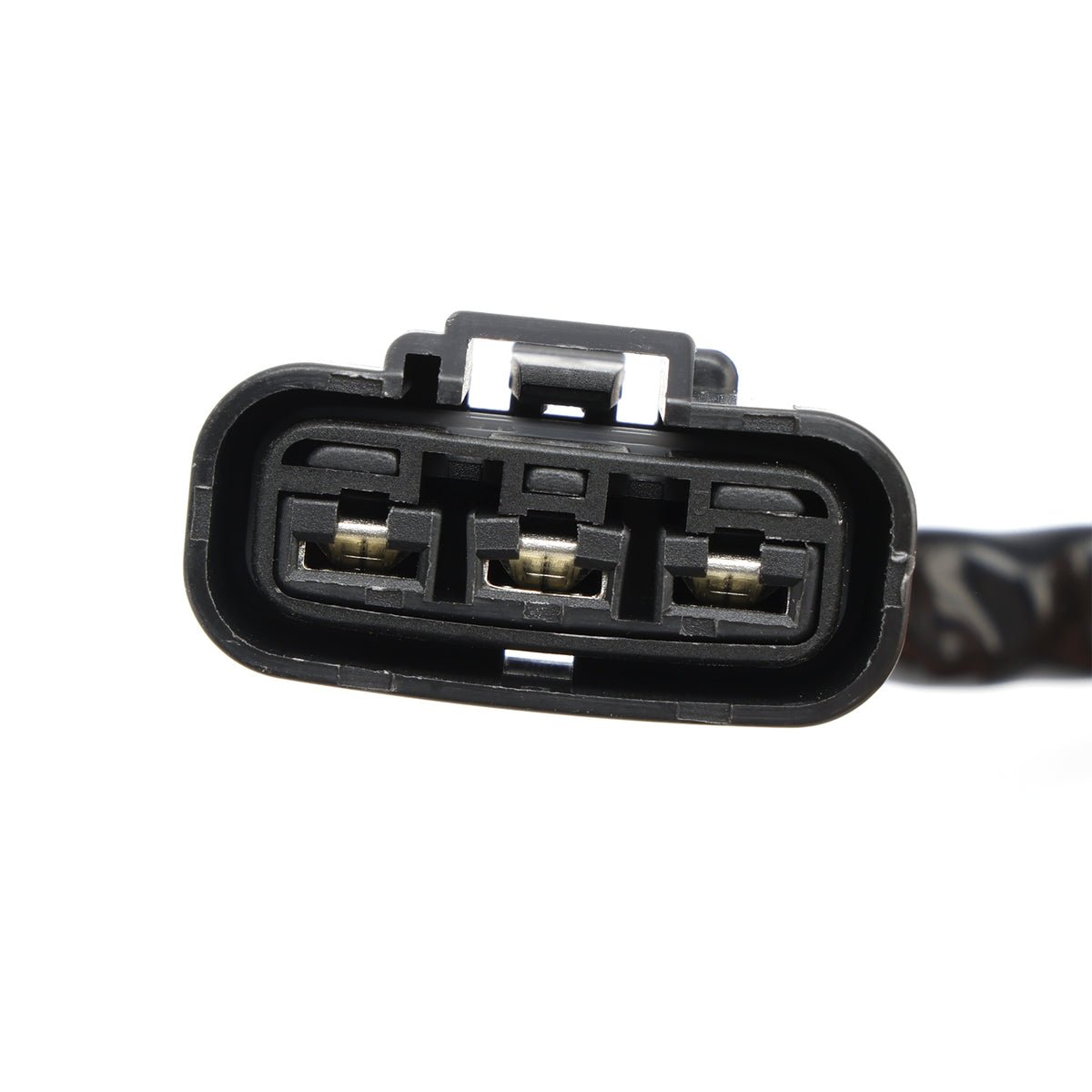

other specifications: Number of wires: 5 Number of plugs: 1 x 3-Pin Male plug, 1 x 2-Pin Male plug Number of pins: 3 + 2 Number of fixation holes: 3 Number of poles: 18
Please compare the number of pins and plugs with the old part before purchasing.
Size: Inner diameter: 54mm Outer diameter: 115mm
Replacement Part Number: 35334 35334E
(Use the part number to verify fitment to your application. )
Fits Make/Model: Fit for Linhai ATV LH500 ATV-D Fit for Linhai ATV M550 E4 Fit for Linhai ATV 500 PROMAX T3b Fit for Linhai ATV M550 E2 Fit for Linhai ATV M550L E2 Fit for Linhai ATV 500 E2 Fit for Linhai ATV M550L E4 Fit for Linhai ATV 500 T3b EFI Fit for Linhai ATV 500 E4 Fit for Linhai ATV 500 T3b Fit for Linhai ATV 500 PROMAX E4 Fit for Linhai UTV T-BOSS 550 E4 (EPS) Fit for Massimo UTV T-BOSS 550 Fit for Massimo UTV T-BOSS 550X Fit for Massimo UTV T-BOSS 550F Fit for Massimo UTV T-BOSS 560 Fit for Massimo ATV MSA 550
Please check and see if your stator pole's number as same as our and your connectors and harness looks like the one in the photo before purchasing.
(Compatibility Chart is for Reference ONLY!!!) (Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included: 1x 115mm Stator Generator
NOTICE: Before installing your new stator
Check the AC output of the stator. Replace any burned or corroded connectors on stator and regulator/rectifier. Check and repair any melted wiring. Use hi-temp dielectric grease on all connectors Our stator may use a different wire color code than your original. All of the wires are installed in the correct order; please do not change any of the wiring configurations. This stator is designed as a direct plug-in replacement and should be used as such. When bolting stator in, always use locking compound. If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer. The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
