SKU:M550-B033
Couldn't load pickup availability
Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1PC

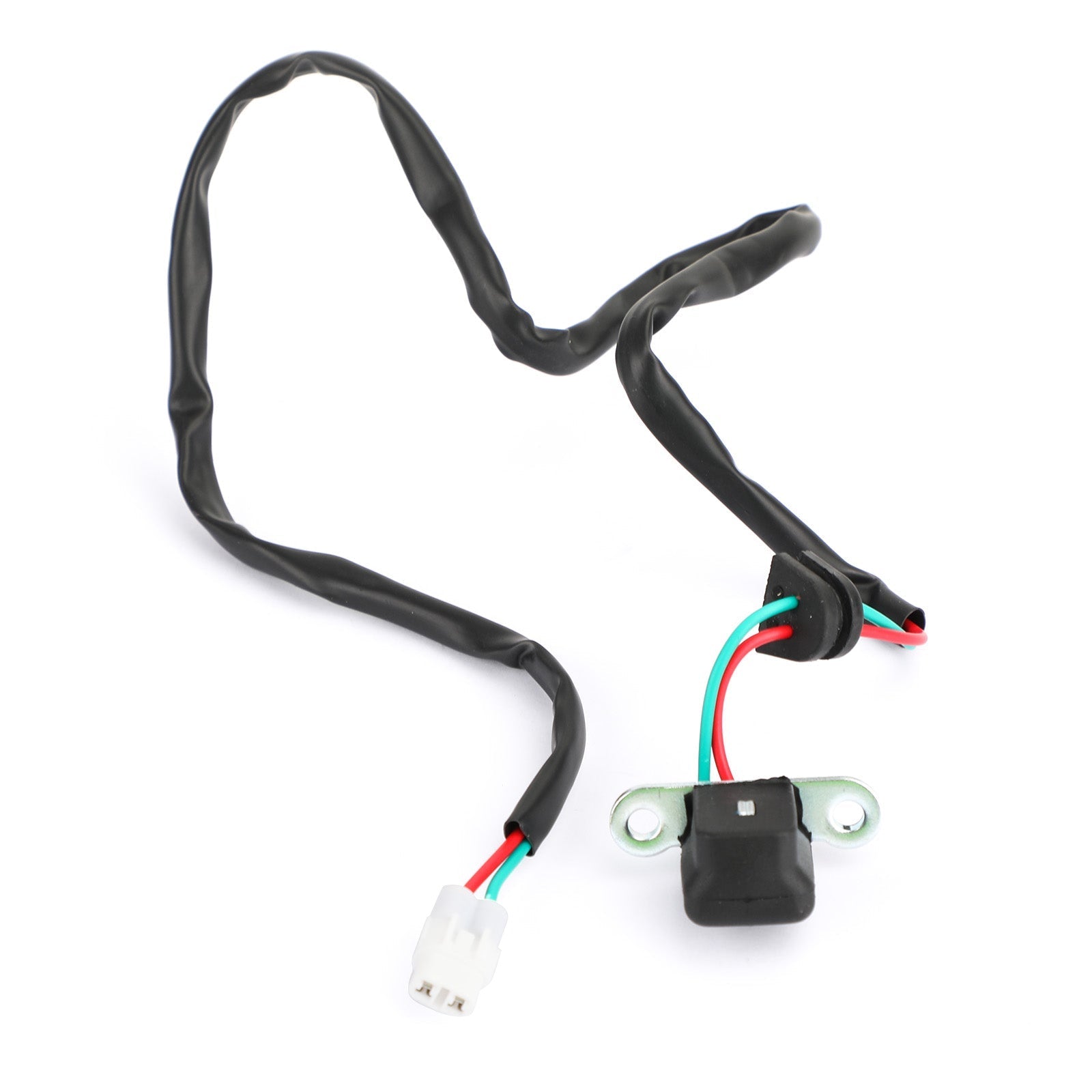

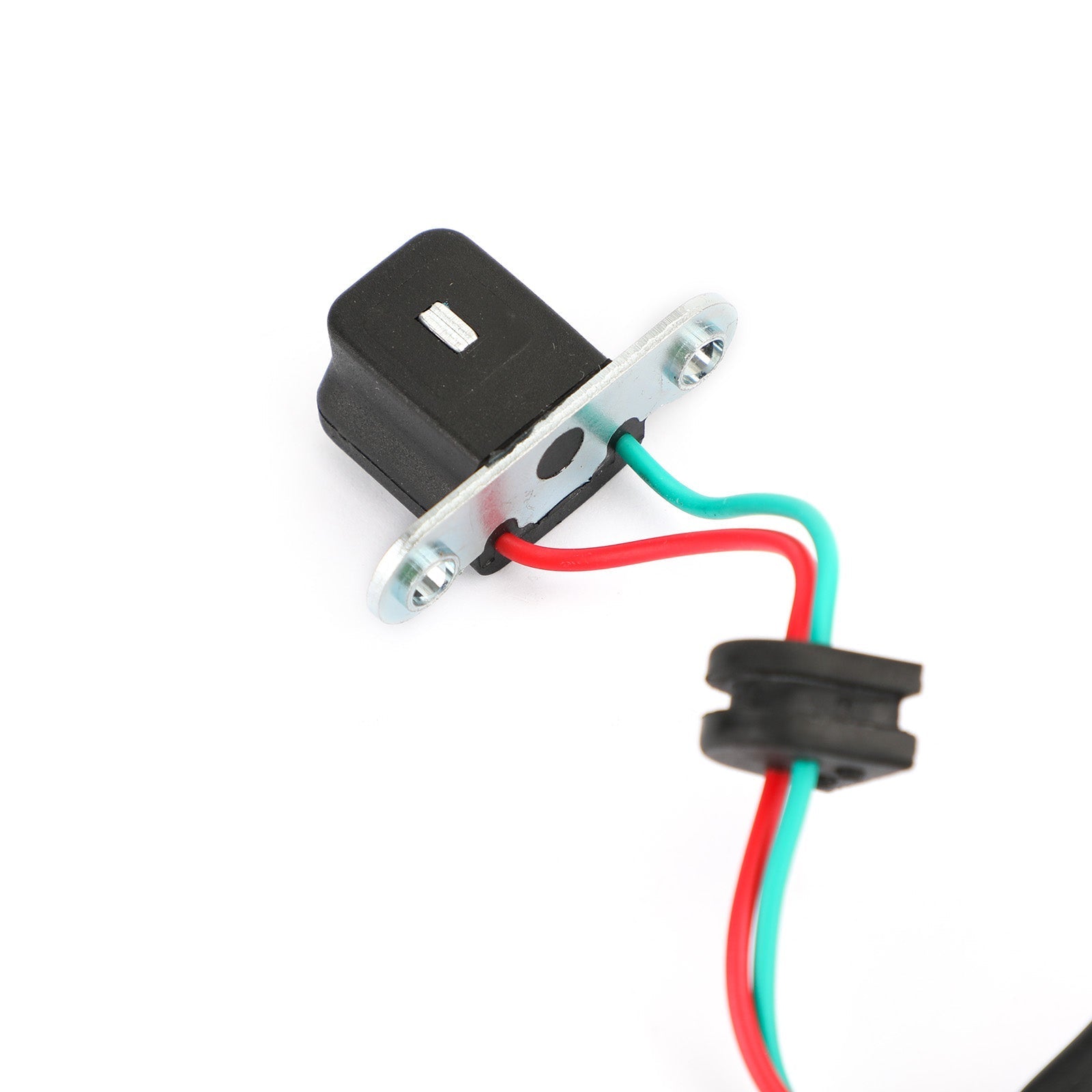

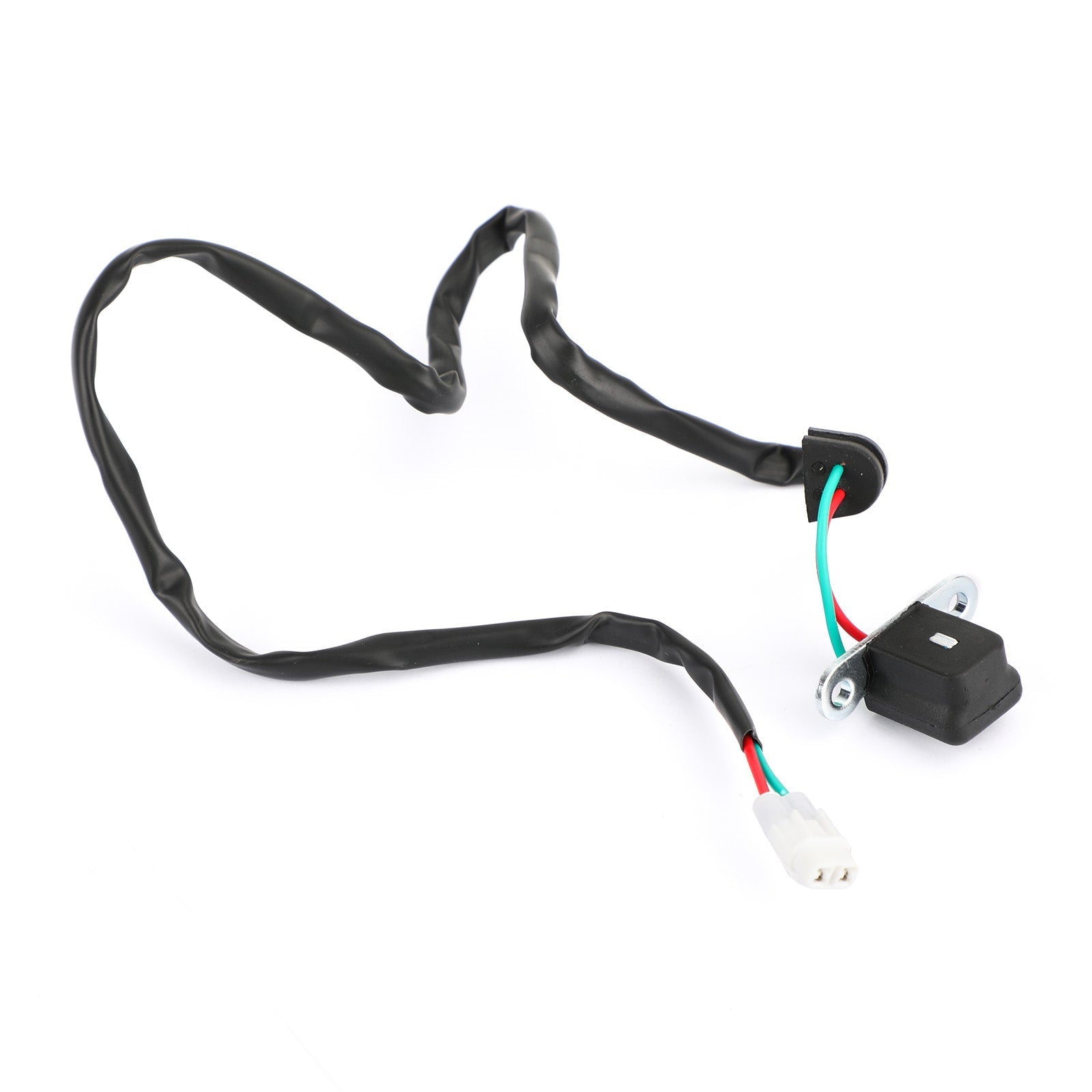

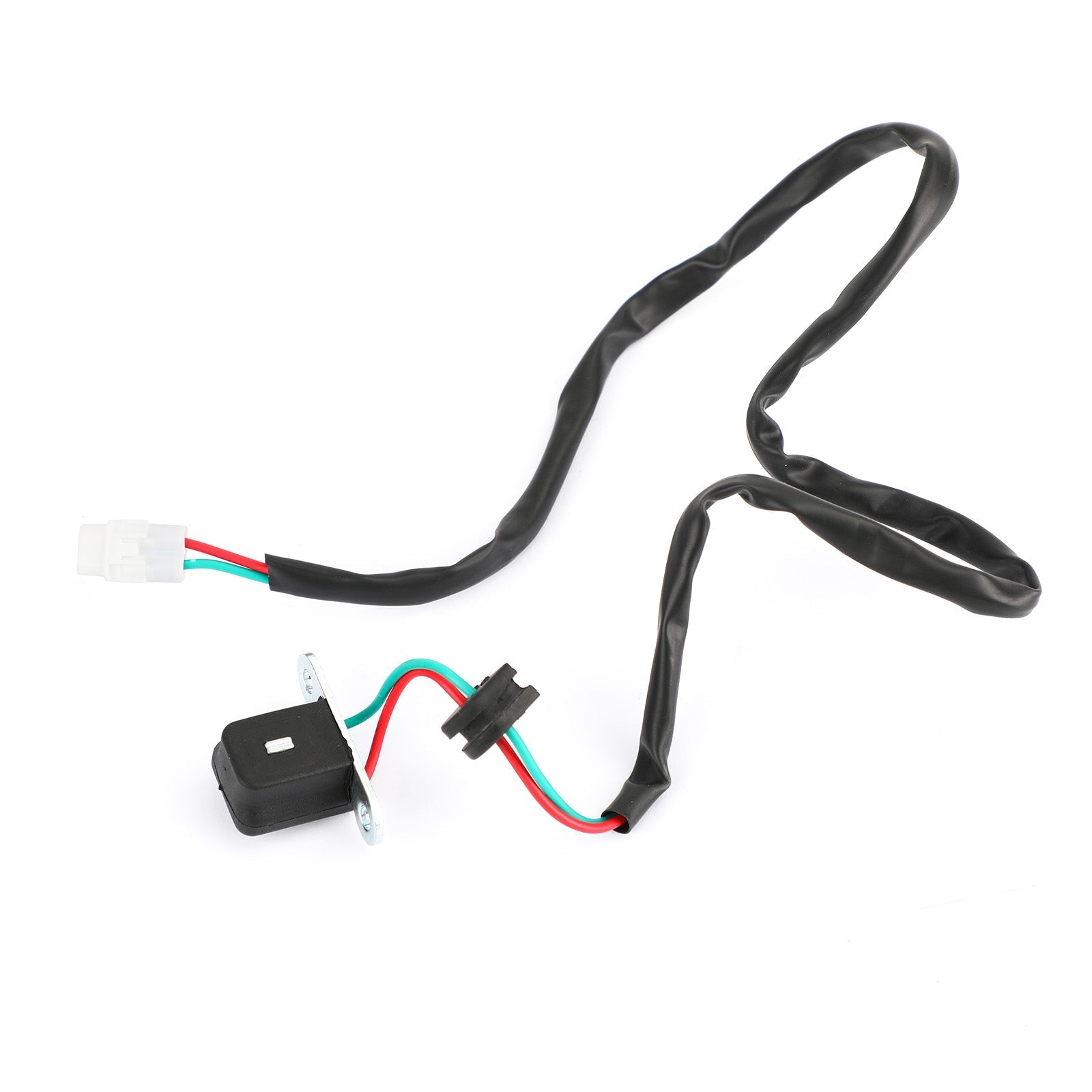

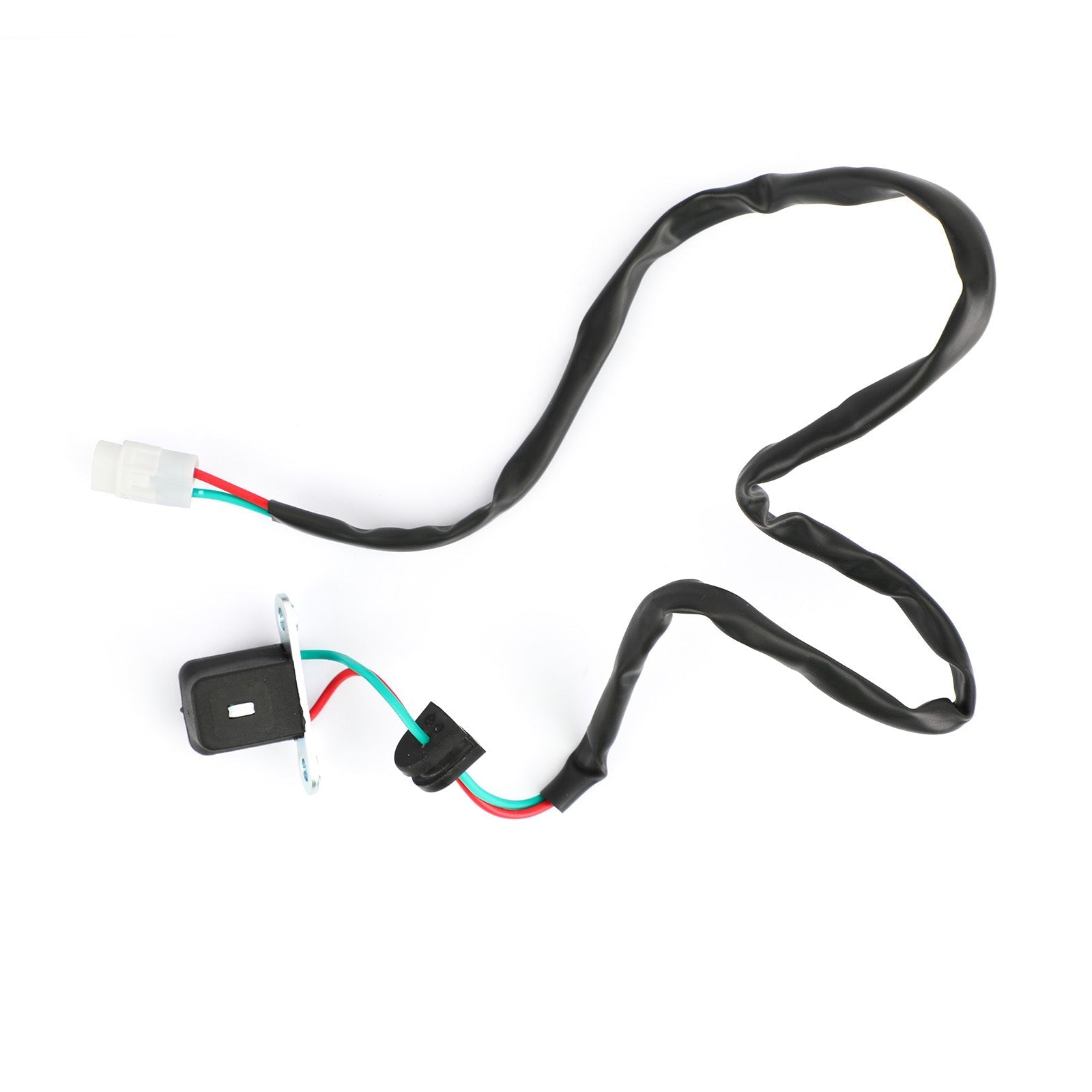

Type: Pick up pulsar coil

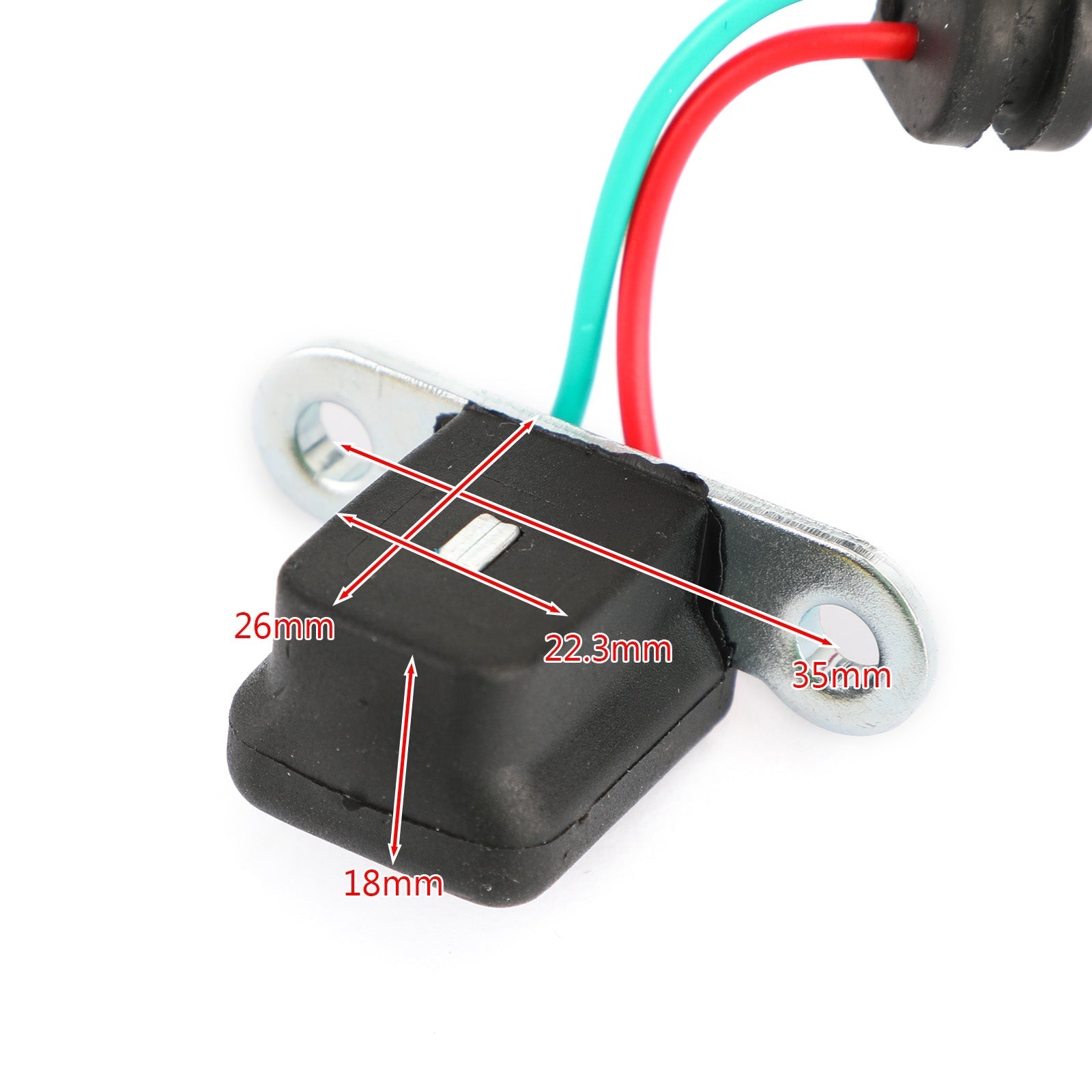

Dimensions:
Height: 18mm
Length: 26mm
Width: 22.3mm
Bracket center to center: 35mm
Other Specifications:
Number of wires: 2

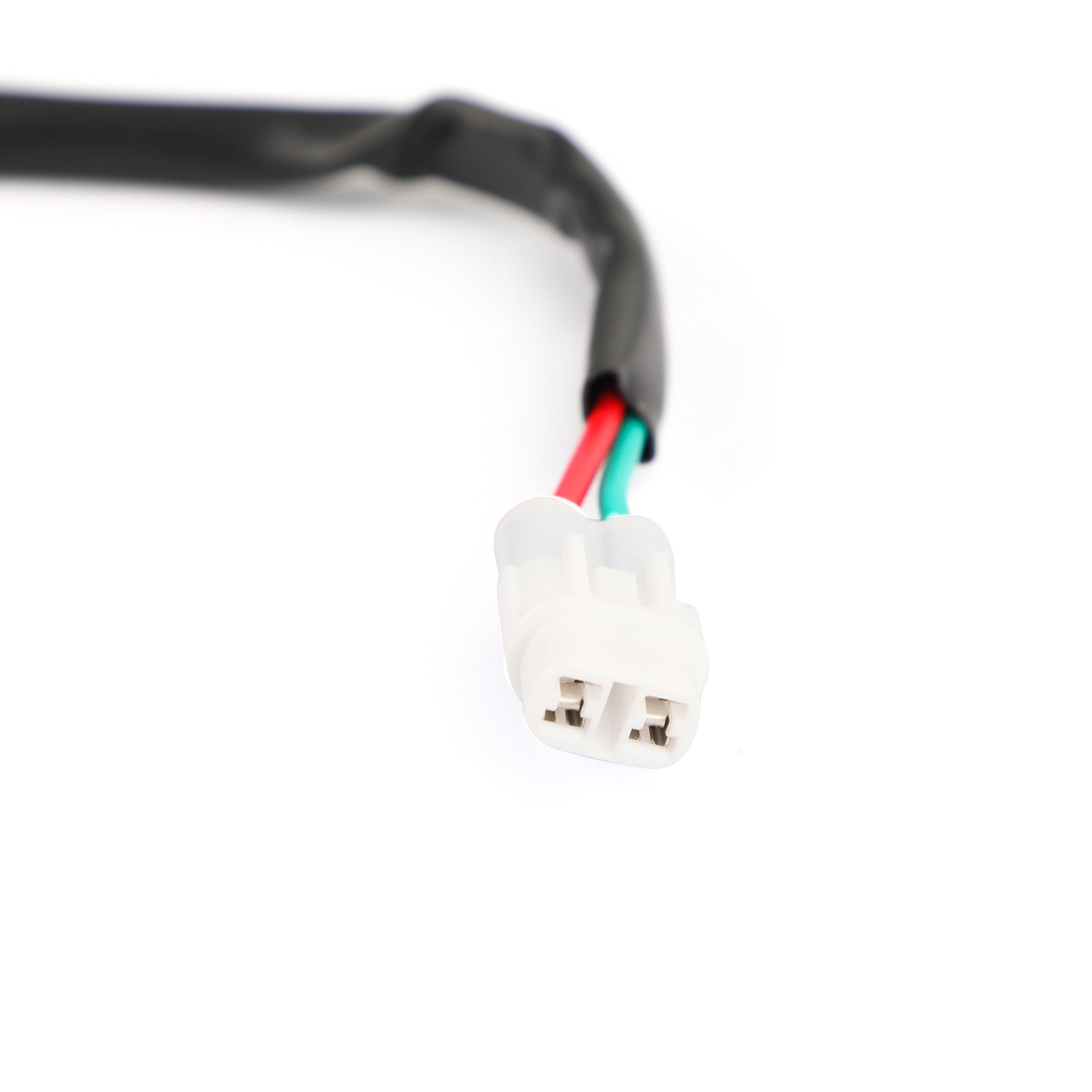

Number of plugs: 1
Number of pins: 2
PART NUMBERS:
026100030000
006100300000
Fitments:
Fit for Beta Xtrainer 2015-2018
Fit for Beta RR 2T 125 2018
Fit for Beta RR 2T 250 2013-2018
Fit for Beta RR 2T 300 2013-2018
Fit for Beta RR 2T 250 Racing 2014-2018
Fit for Beta RR 2T 300 Racing 2013-2018
Fit for Beta RR 4T Factory 2012
Fit for Beta RR 4T 400 Factory 2011
Fit for Beta RR 4T 450 Factory 2011
Fit for Beta RR 4T 520 Factory 2011
Fit for Beta RR 4T 350 Factory 2014
Fit for Beta RR 4T Cross Country 2012
Fit for Beta RR 4T 350 EFI 2015
Fit for Beta RR 4T 350 2011-2018
Fit for Beta RR 4T 390 2014-2018
Fit for Beta RR 4T 400 2010-2013
Fit for Beta RR 4T 430 2014-2018
Fit for Beta RR 4T 450 2010-2013
Fit for Beta RR 4T 480 2014-2018
Fit for Beta RR 4T 498 2012-2013
Fit for Beta RR 4T 520 2010-2011
Fit for Beta RR 4T 350 Racing 2013/2015-2018
Fit for Beta RR 4T 430 Racing 2015-2018
Fit for Beta RR 4T 450 Racing 2013-2014
Fit for Beta RR 4T 480 Racing 2015-2018
Fit for Beta RR 4T 498 Racing 2014
Features:
Brand new pickup/pulsar coil for you to repair your stator.
Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
Often unavailable from the OEM manufacturer.
All products shipped are tested.
Package Included:
1 x Pick up pulsar coil
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
NOTE:
Not following these instructions may result in damaging the part or other components on your vehicle.
-By using a small soldering iron weld the wires to the ones on your OEM wiring harness.
-Insulate your solders with heat shrink.
-Before attempting to start your vehicle, adjusting the air gap is necessary for certain models.
-Rotate the fly wheel by hand so the raised node is lined up with the pick up /pulsar coil and adjust as close as possible, but no less than 0.010 in.
-If no spark or erratic spark, switch the wires at the plug.
Shipping:
Free Shipping
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days
Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
