08-19 Suzuki GSXR 600 750 Magneto Coil Stator+Voltage Rectifier+Gasket

08-19 Suzuki GSXR 600 750 Magneto Coil Stator+Voltage Rectifier+Gasket

Regular price €64,89 EUR
Regular price Sale price €64,89 EUR
Sale Sold out
Shipping calculated at checkout.

Fitment:
Fit for Suzuki GSX-R600 GSXR600 2008-2019
Fit for Suzuki GSX-R750 GSXR750 2008-2019

Replacement Part Number:

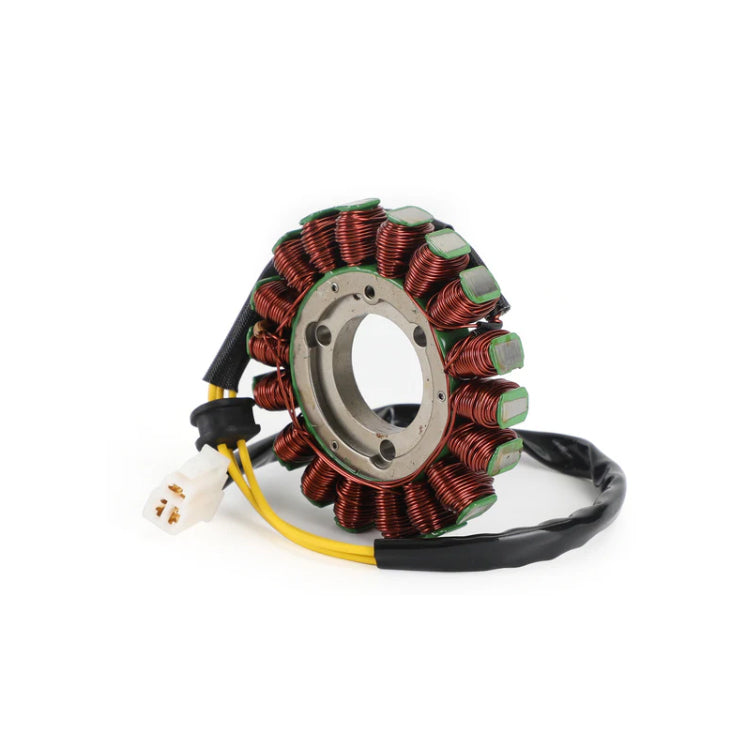

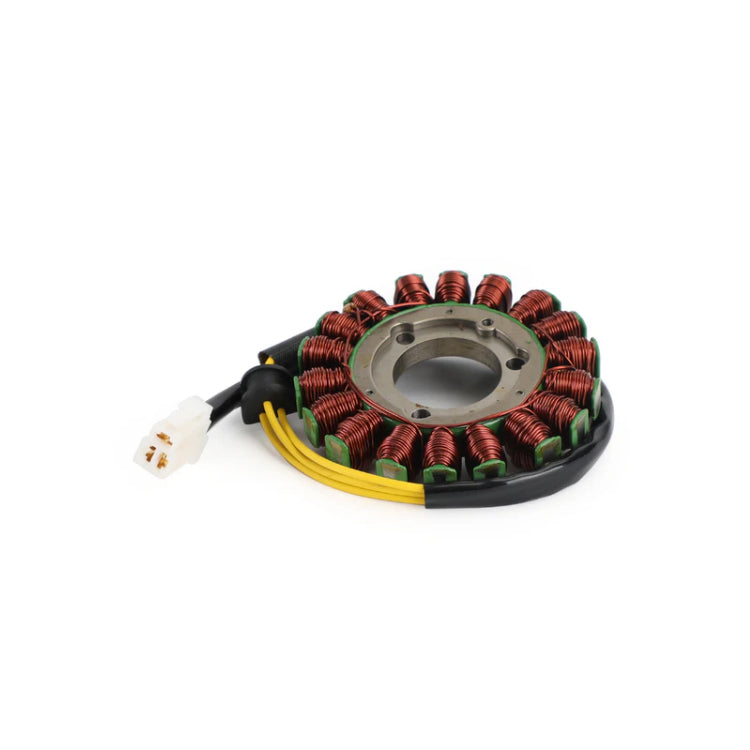

Stator Assy: 31401-01H10 / 31401-01H11 / 31401-01H20 / 31401-01H21

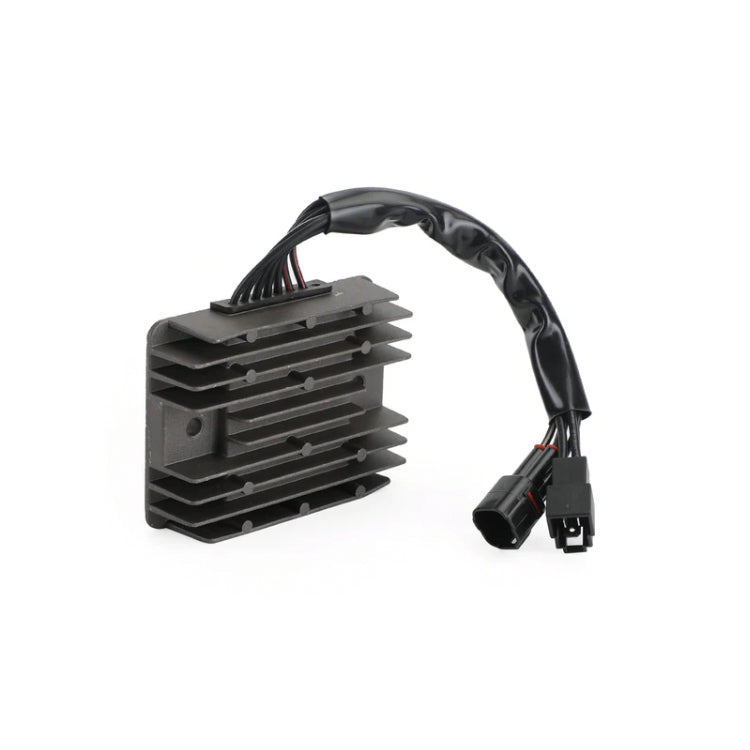

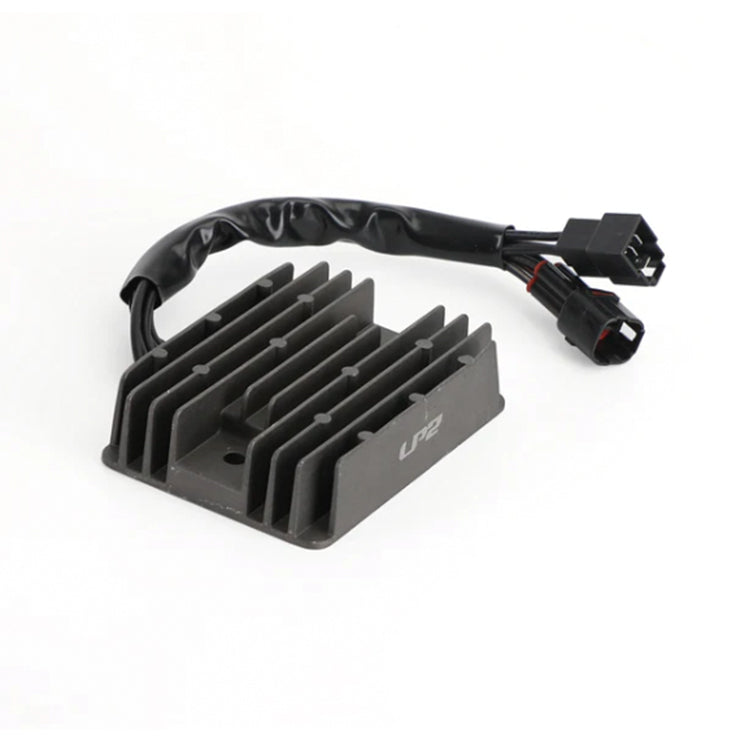

Rectifier, regulator: 32800-18H00 / 32800-47H00 / 32800-41G10 / 32800-41F10 / 32800-41G10-RX0 / 32800-47H00-RX0

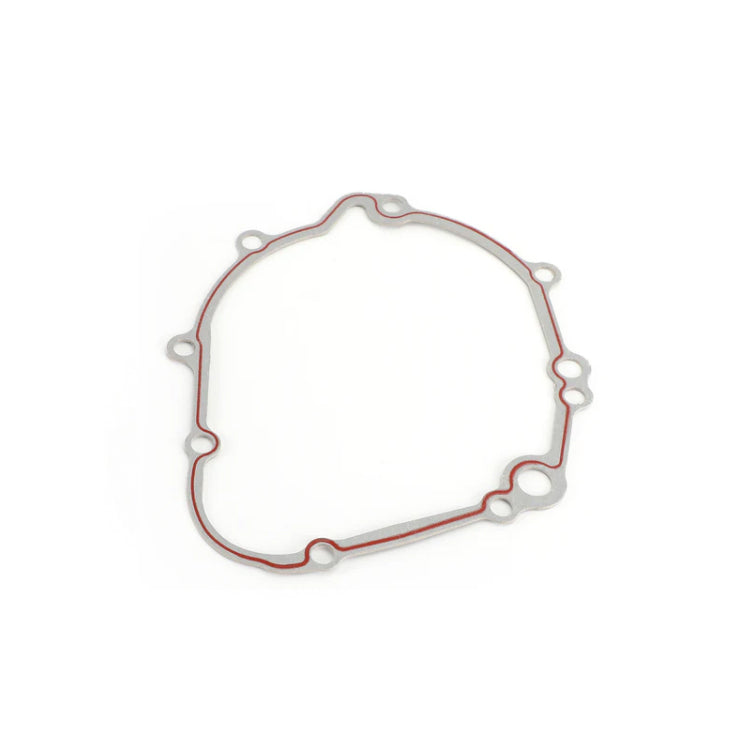

Gasket, generator cover: 11483-01H00

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator + Regulator + Gasket

Features:
Made of high grade magnetically conductive material to minimize the magnetic losses.
Computerized winding to optimize quality of copper wiring
Higher grade of electric components.
Dramatically improves reliability and durability comparing to stock units.
Best quality lead wires with insulation bring both enhanced abrasion and heat resistant.
Rectifier made of highest quality electro-conducting lamination materials.
Improved heat sink and charging capabilities.
Direct replacement to your original unit.

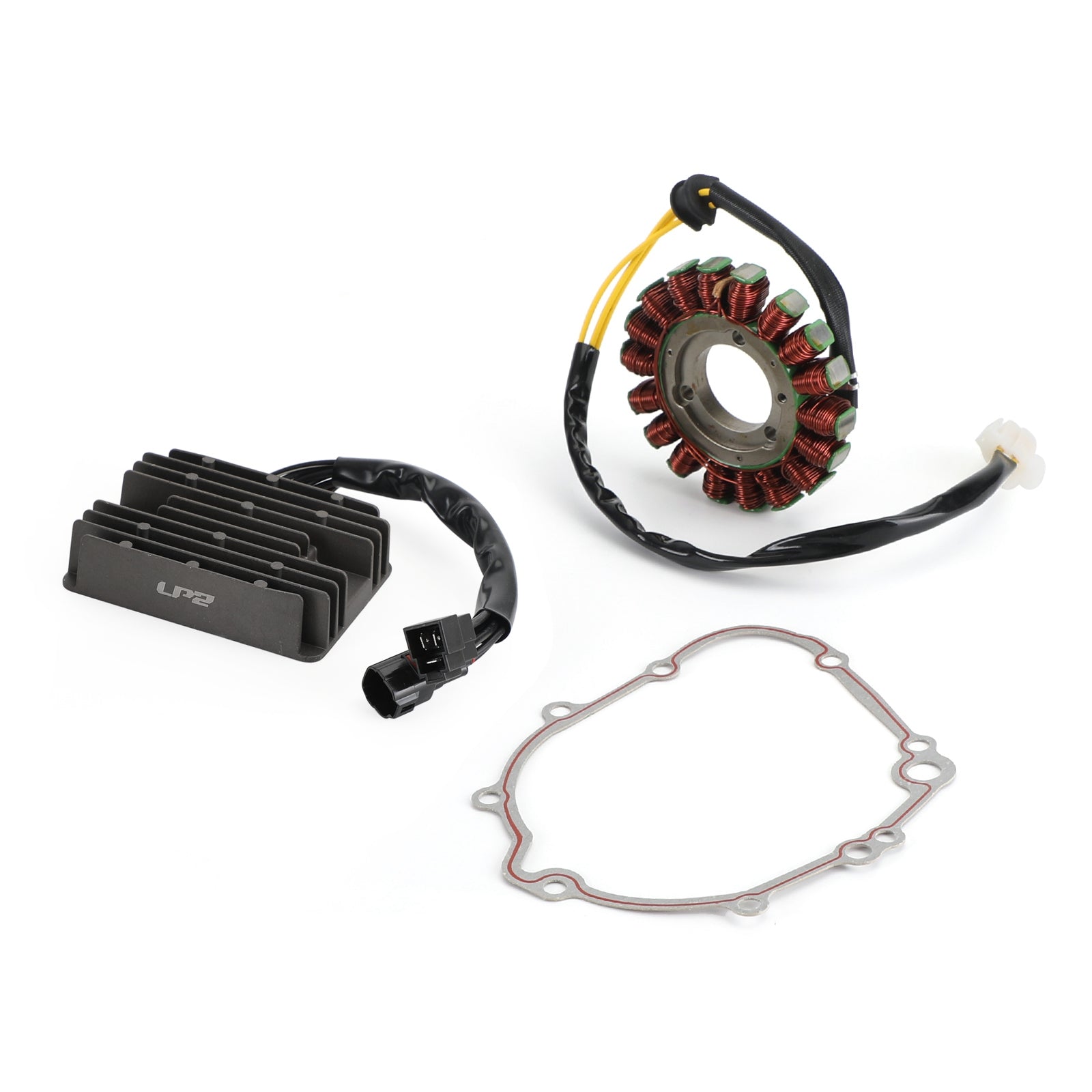

Package Includes:
1 x Stator Coil
1 x Voltage Rectifier
1 x Generator Gasket

Note:
Before installing your new stator regulator rectifier;
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
Our stator / regulator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
You will get exactly what you see in pictures, if in doubt do not hesitate to compare our item to your original part.

Shipping:
Free Shipping
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days

Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
