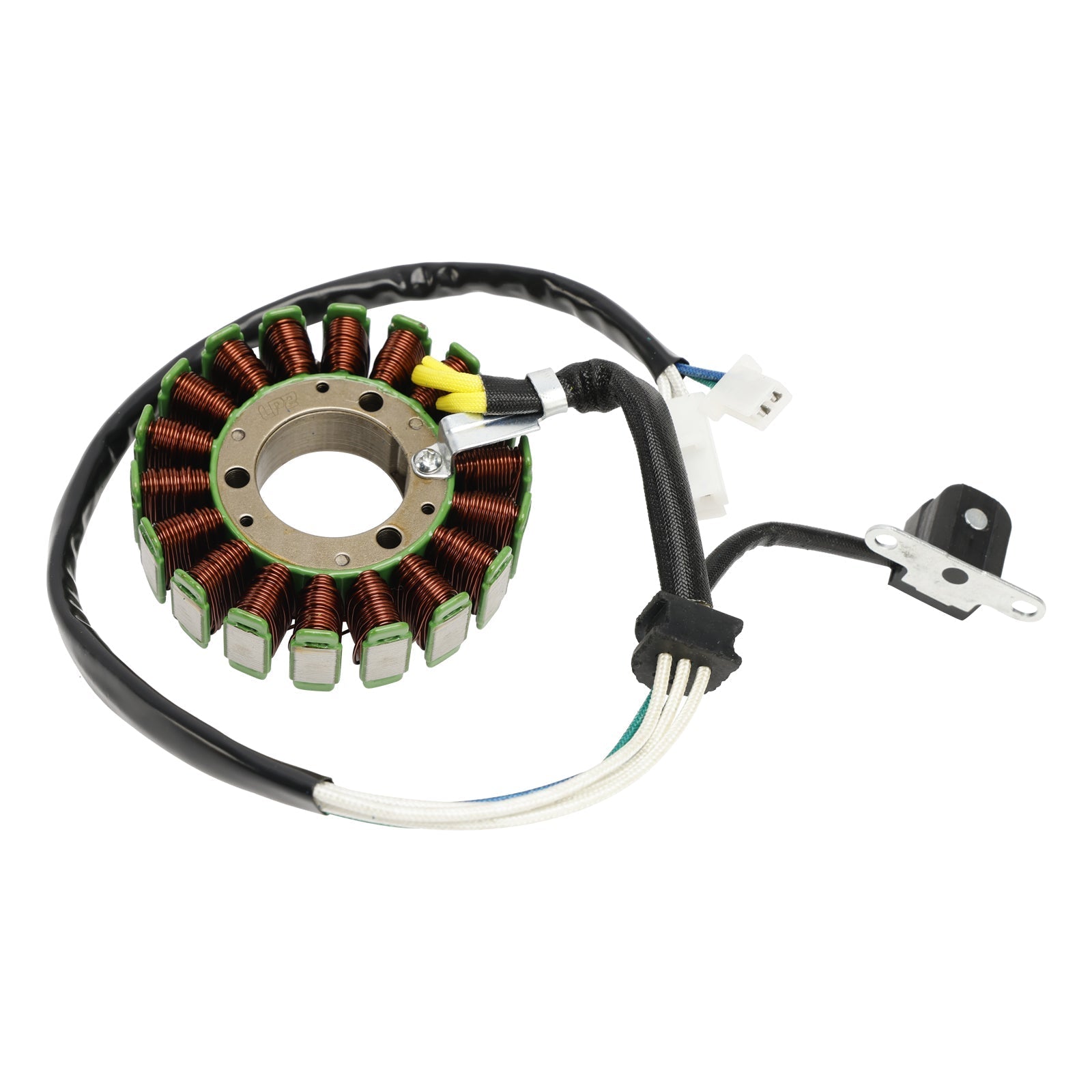

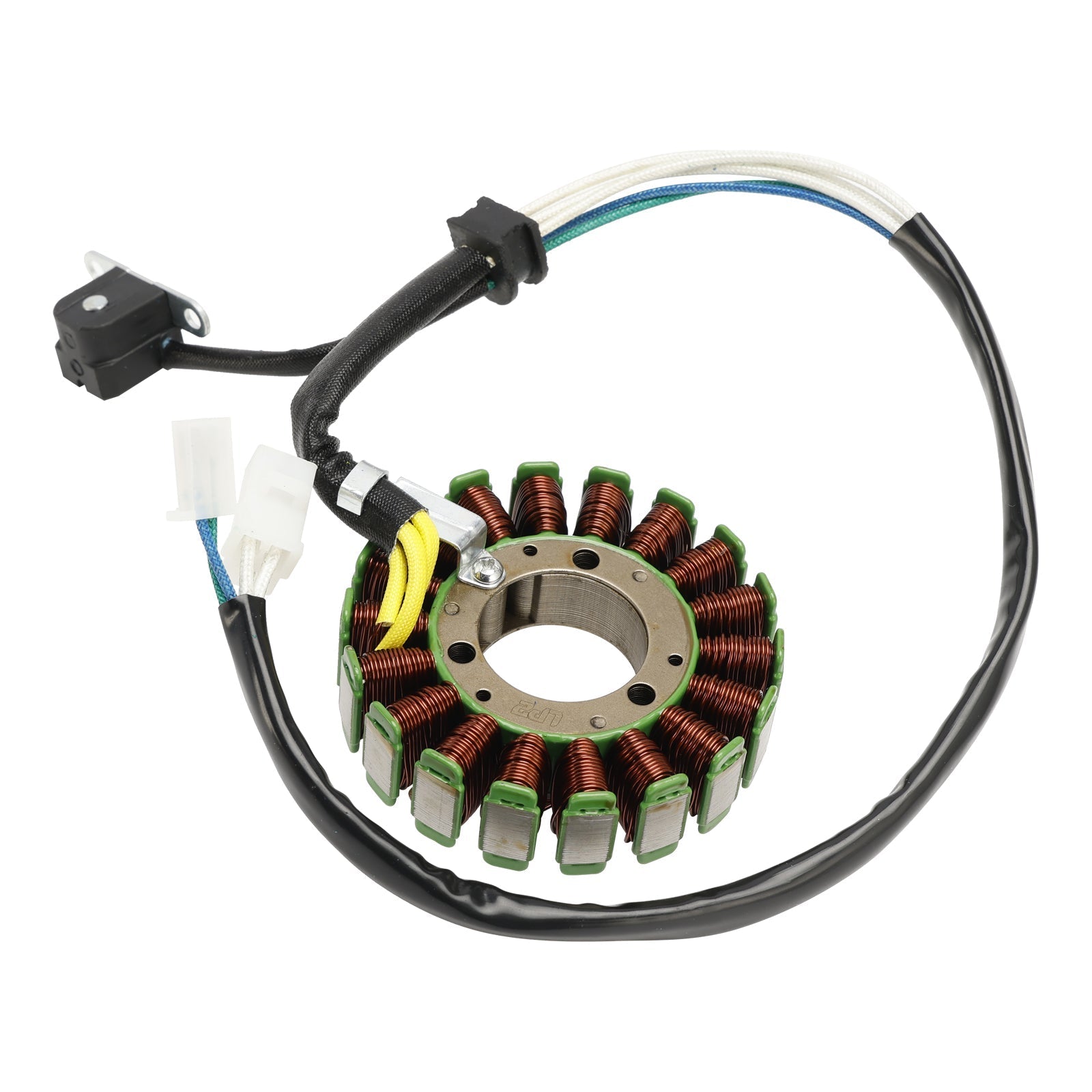

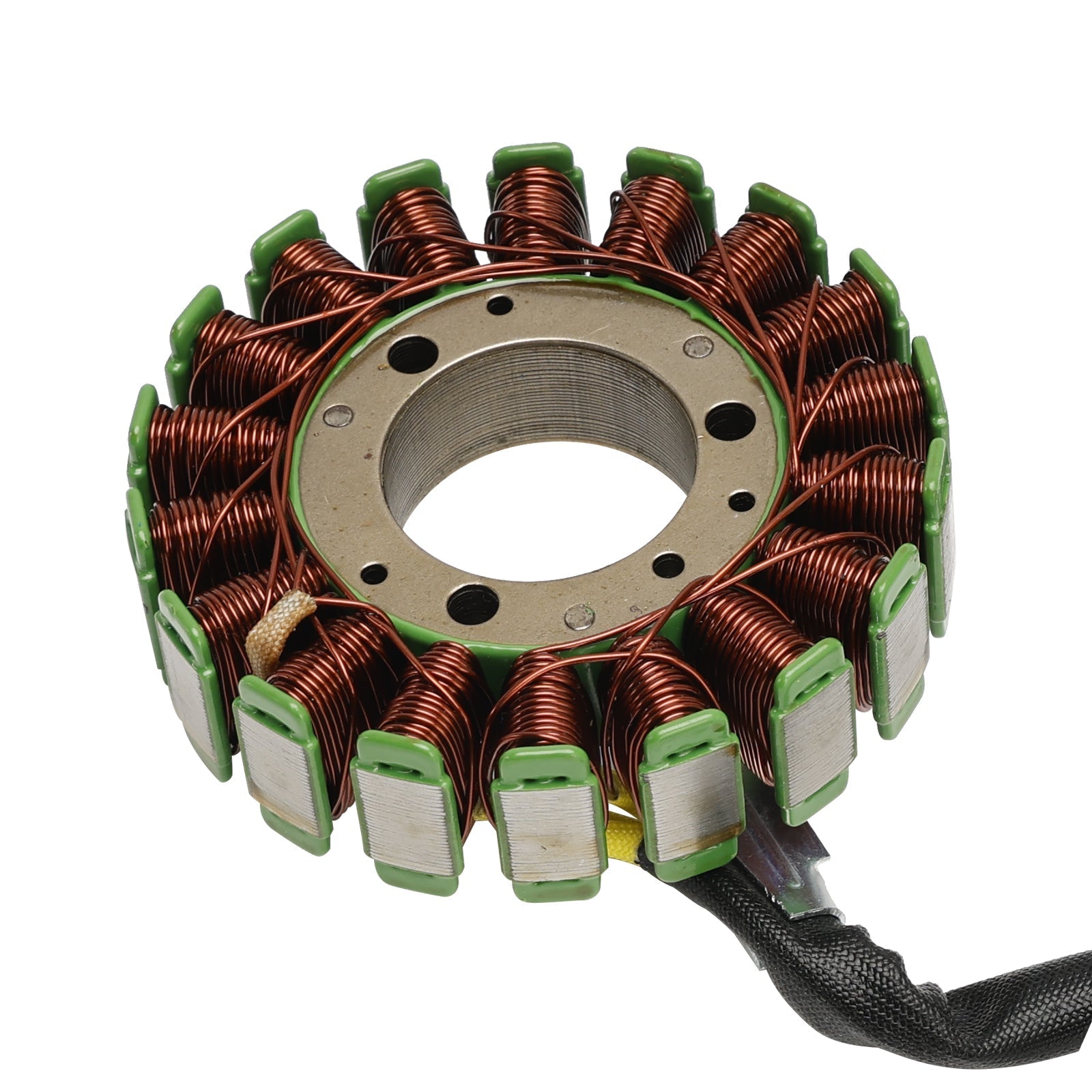

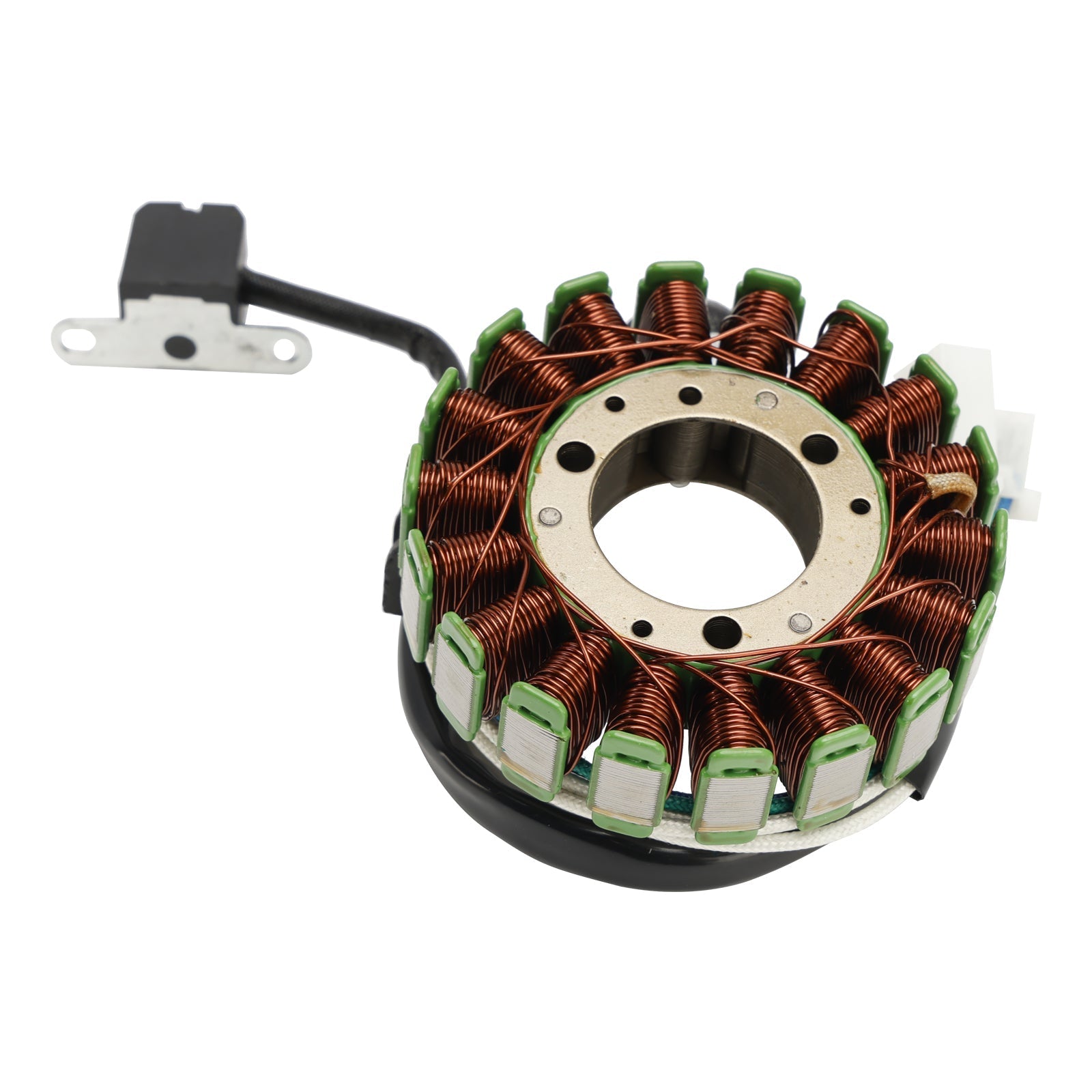

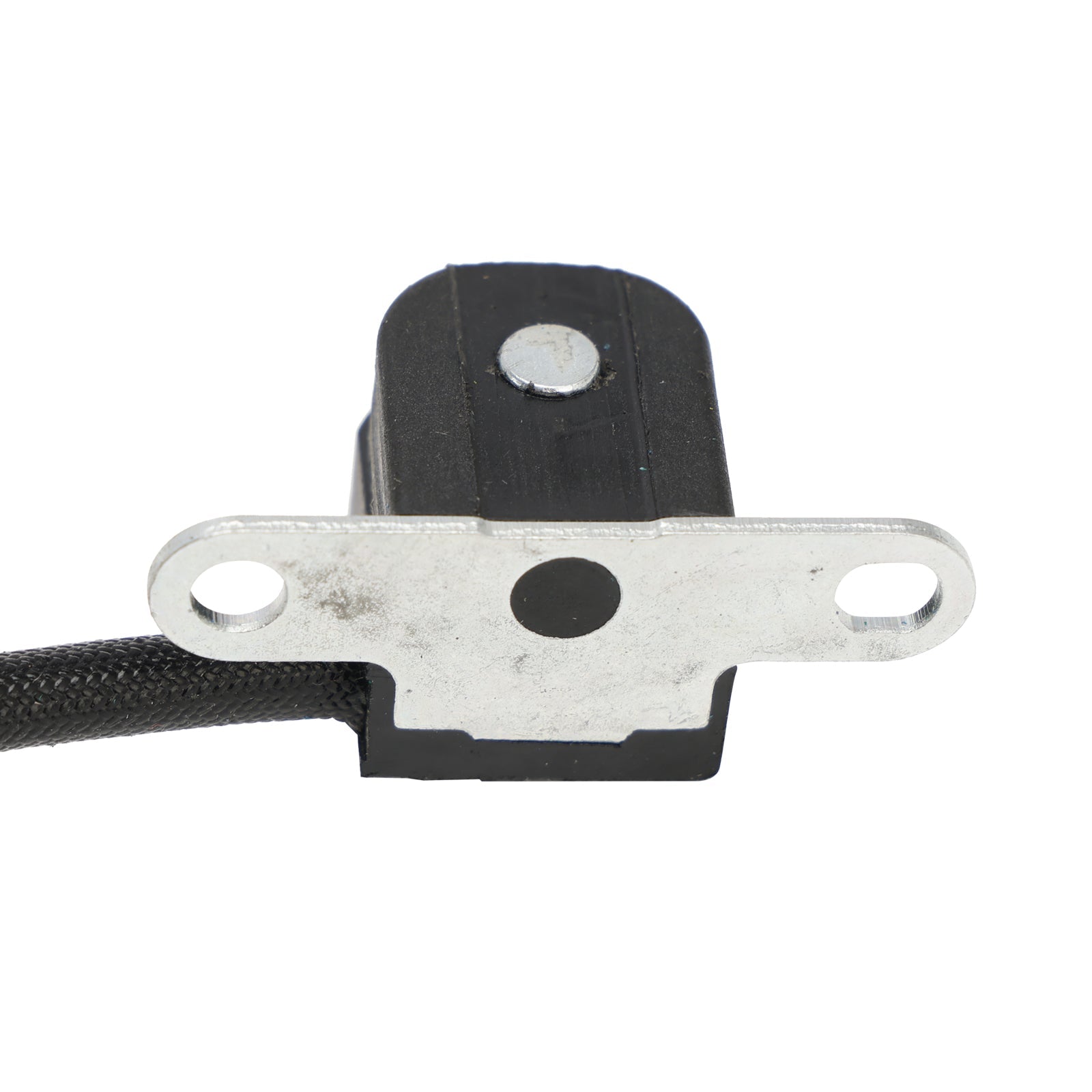

Features: Direct replacement to your original unit Plug-and-play, direct fit, easy installation. Highest grade lamination materials. Pick up pulsar coil included. Connector included. Rubber grommet included. All products shipped are tested.
sizes: - Inner diameter: 35 mm - Outer diameter: 93 mm - Thickness(Height): 26 mm

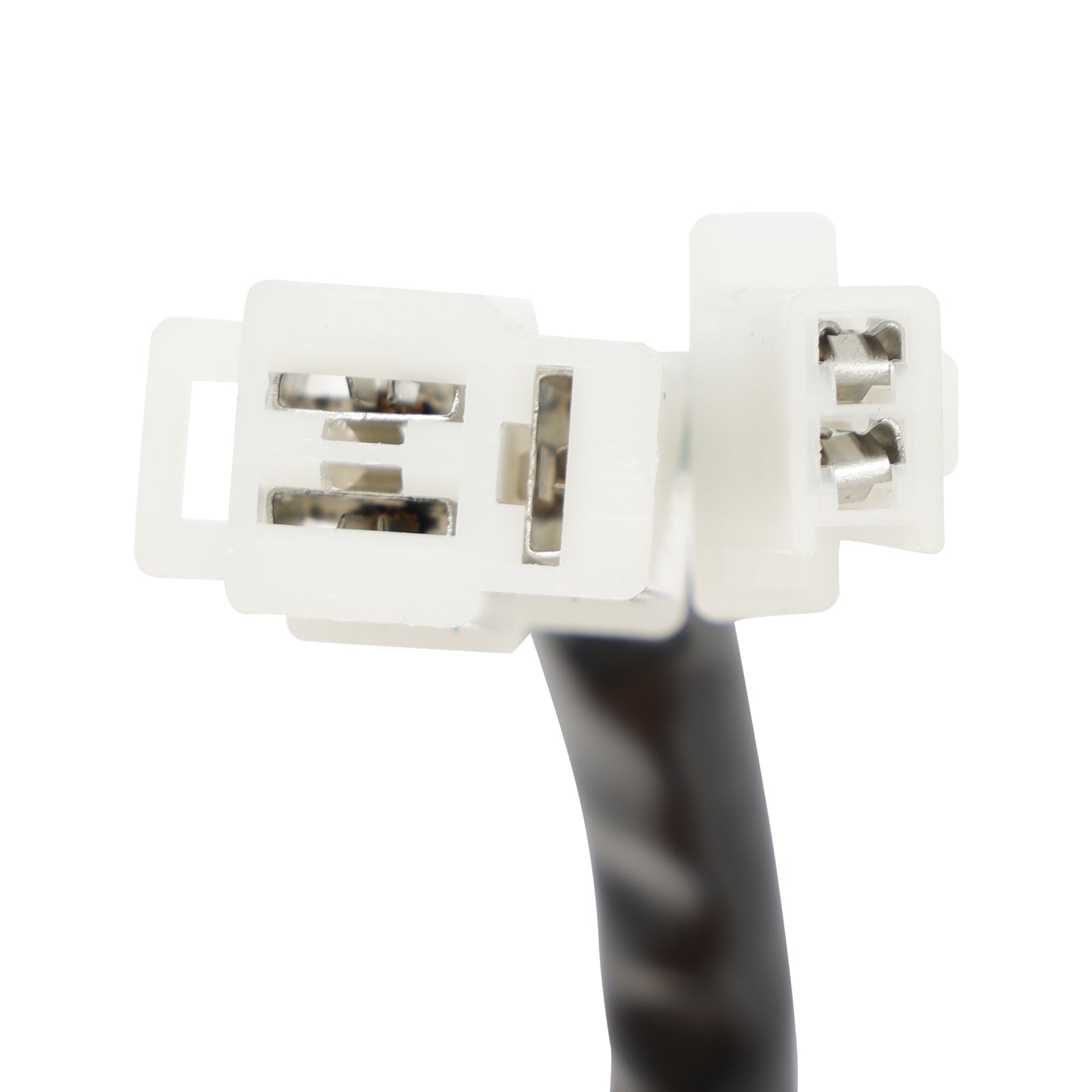

other specifications: Number of wires: 5 Number of plugs: 2 Number of pins: 2 + 3 Number of poles: 18 Number of fixing holes: 3
Replacement Part Number: 24001
Fits Make/Model/Year: Fits for many 4-stroke ATVs, Dirt Bikes, Go Karts and Scooters Fit for Xingyue 260cc ATVs Fit for Linhai ATV 250cc 257cc 260cc 300cc 400cc, Manco Talon 260cc 300cc, Baja 260cc 300cc, BMS 260cc 300cc, Big daddy 260cc, Yamaha Bighorn 260cc
This one is a smaller power stator( P.N. 24001, I.D. 35mm, O.D. 93mm), there are another bigger one ( P.N. 24001A, I.D. 39mm, O.D. 103mm), They are different, please make sure this stator is what you want.
(Compatibility Chart is for Reference ONLY!!!) (Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included: 1x 93mm Stator Generator
NOTICE: Before installing your new stator
Check the AC output of the stator. Replace any burned or corroded connectors on stator and regulator/rectifier. Check and repair any melted wiring. Use hi-temp dielectric grease on all connectors Our stator may use a different wire color code than your original. All of the wires are installed in the correct order; please do not change any of the wiring configurations. This stator is designed as a direct plug-in replacement and should be used as such. When bolting stator in, always use locking compound. If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer. The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
Shipping: Free Shipping Handling?time: Ship within 24 hours Delivery Time: 3-7 business days
Warranty: 1. Condition: 100% Brand New 2. Warranty Period: 1 Years 3. 24-Hour Support: Provide you with timely after-sale support
