Honda SH125 SH150 2005-2012 Magneto Coil Stator 31120-KTF-640+ Voltage Regulator 31600-KTF-641+Gasket

Honda SH125 SH150 2005-2012 Magneto Coil Stator 31120-KTF-640+ Voltage Regulator 31600-KTF-641+Gasket

SKU:M550-C523

Regular price $80.99 USD
Regular price Sale price $80.99 USD
Sale Sold out
Shipping calculated at checkout.

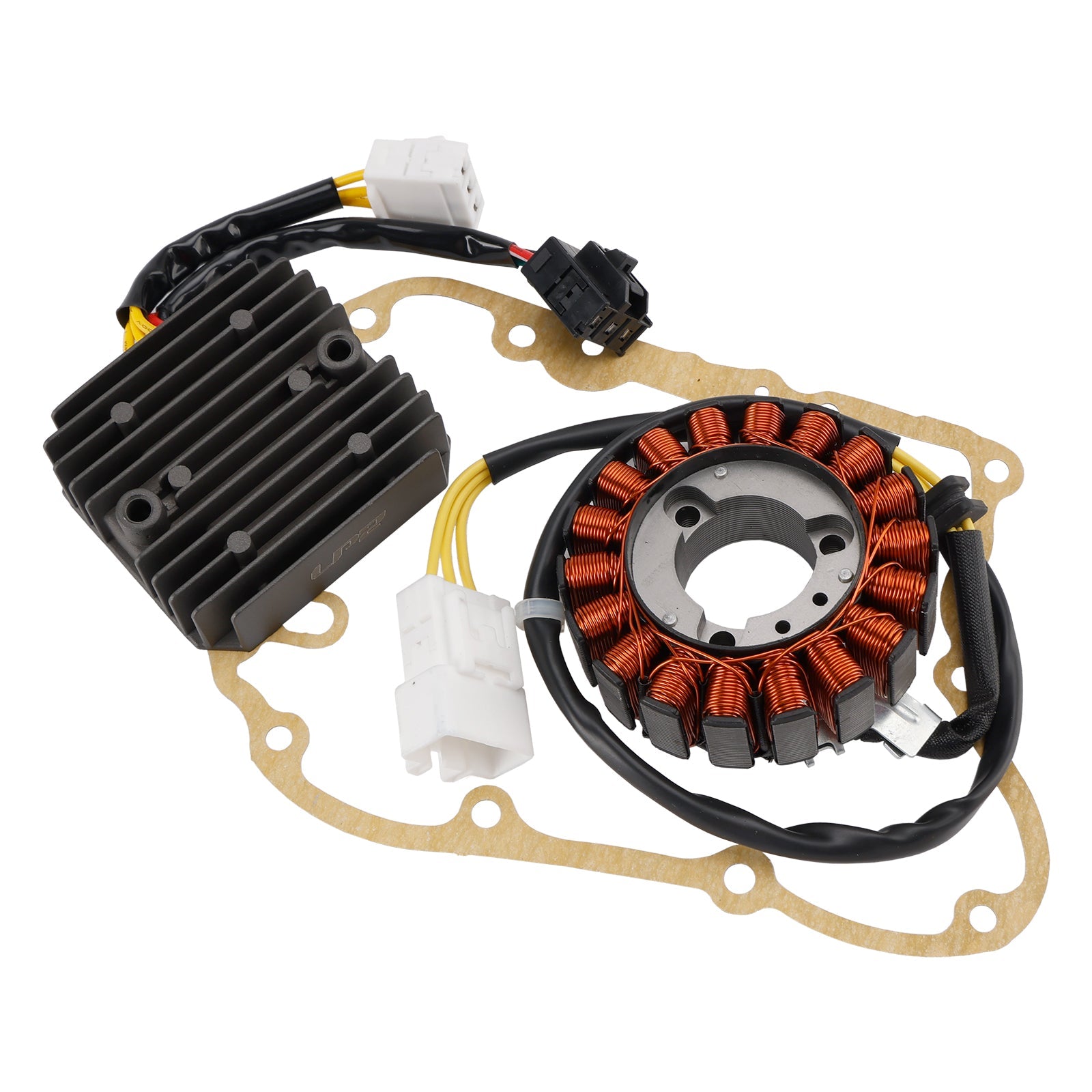

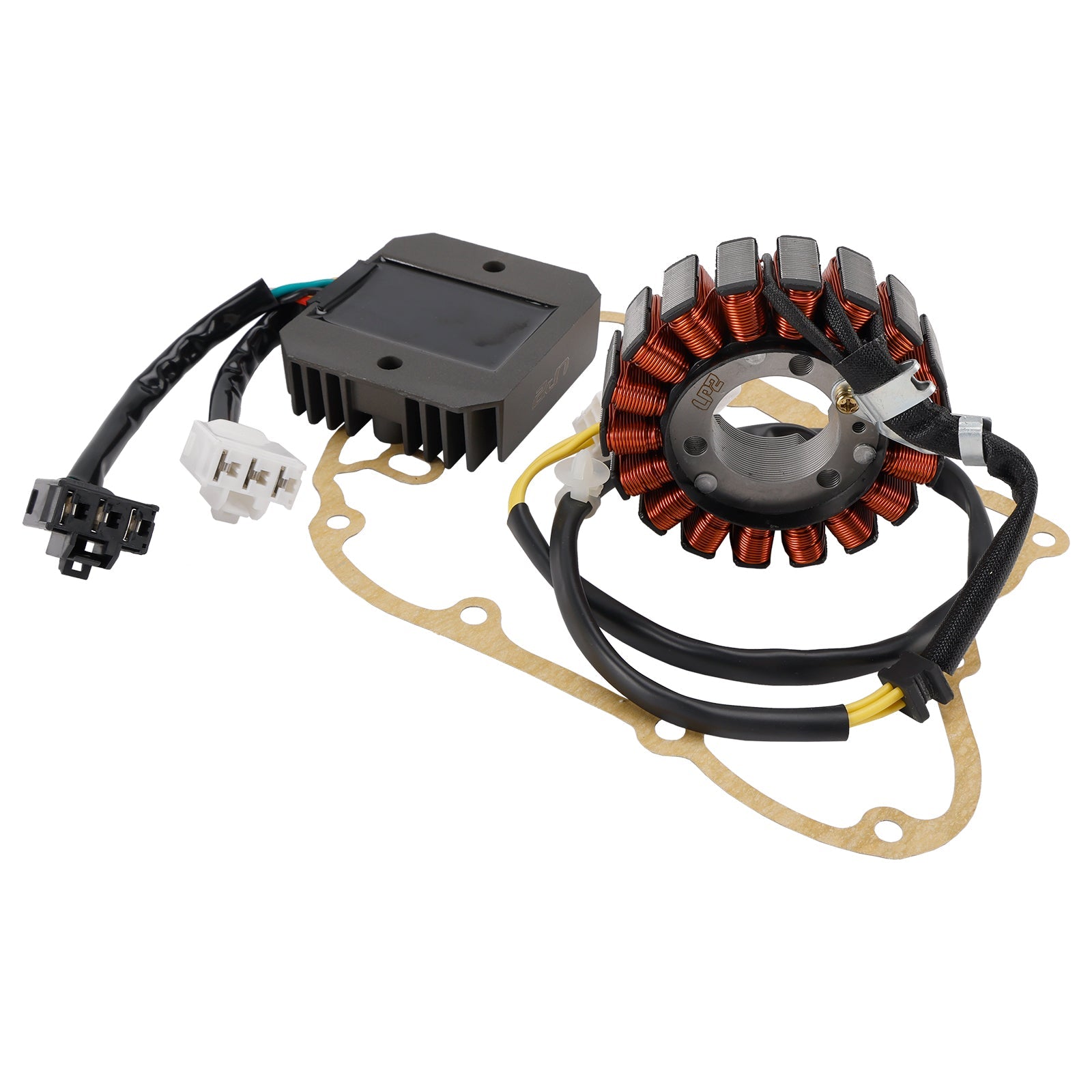

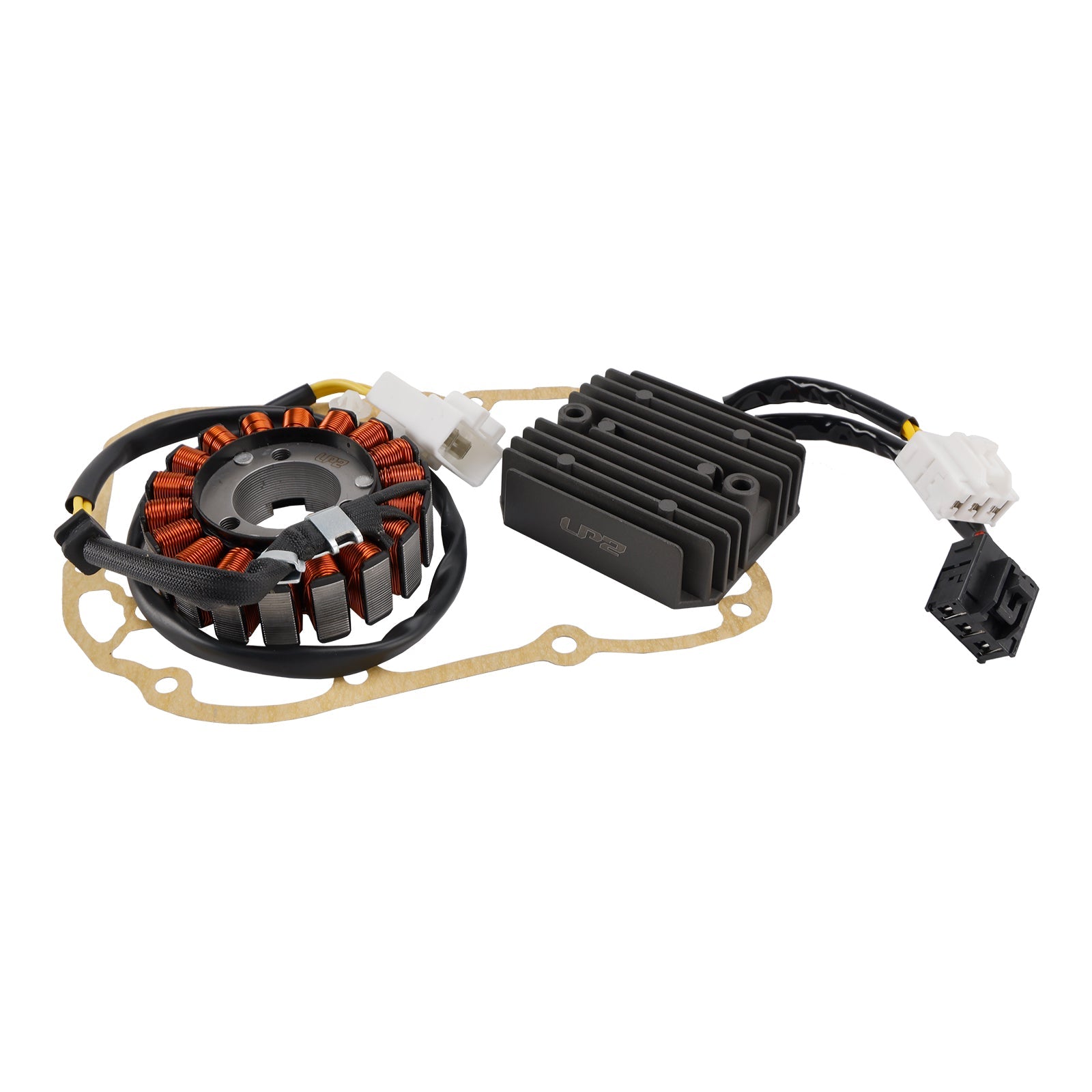

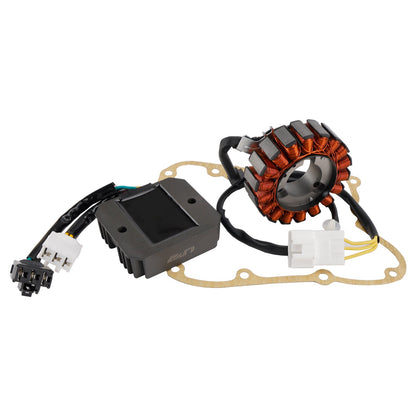

Magneto Coil Stator + Voltage Regulator + Gasket Assy For Honda SH125 SH150 2005-2012

Replacement Part Number:
Stator Assy: 31120-KTF-640
Rectifier, regulator: 31600-KTF-641

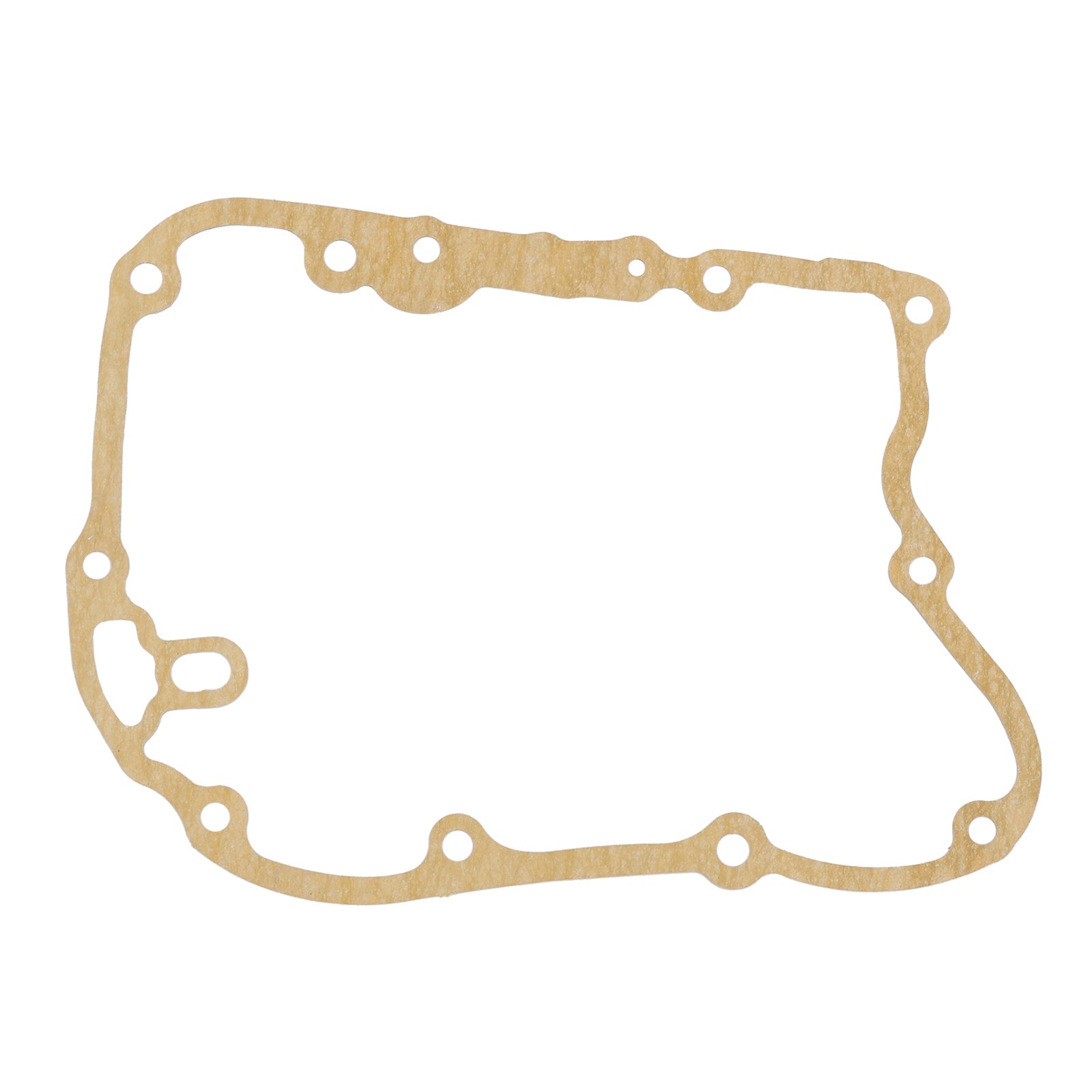

Gasket, generator cover: 11394-KGF-910, 11394-KGF-911, 11394-KGF-912

Fits Make/Model/Year:
Fit for Honda SH125 2005-2012
Fit for Honda SH125D 2009-2012
Fit for Honda SH125S 2007-2010
Fit for Honda SH125R 2008-2010/2012
Fit for Honda SH150 2005-2012
Fit for Honda SH150S 2007-2008/2011
Fit for Honda SH150R 2008/2010-2012
Fit for Honda SH150D 2009
Fit for Honda SH150I 2010
Fit for Honda PES125 PS125 2006-2012
Fit for Honda PES125R PS125 2008-2010
Fit for Honda PES150 PS150 2006-2010
Fit for Honda PES150R PS150 2008-2009
Fit for Honda UH125D 2009

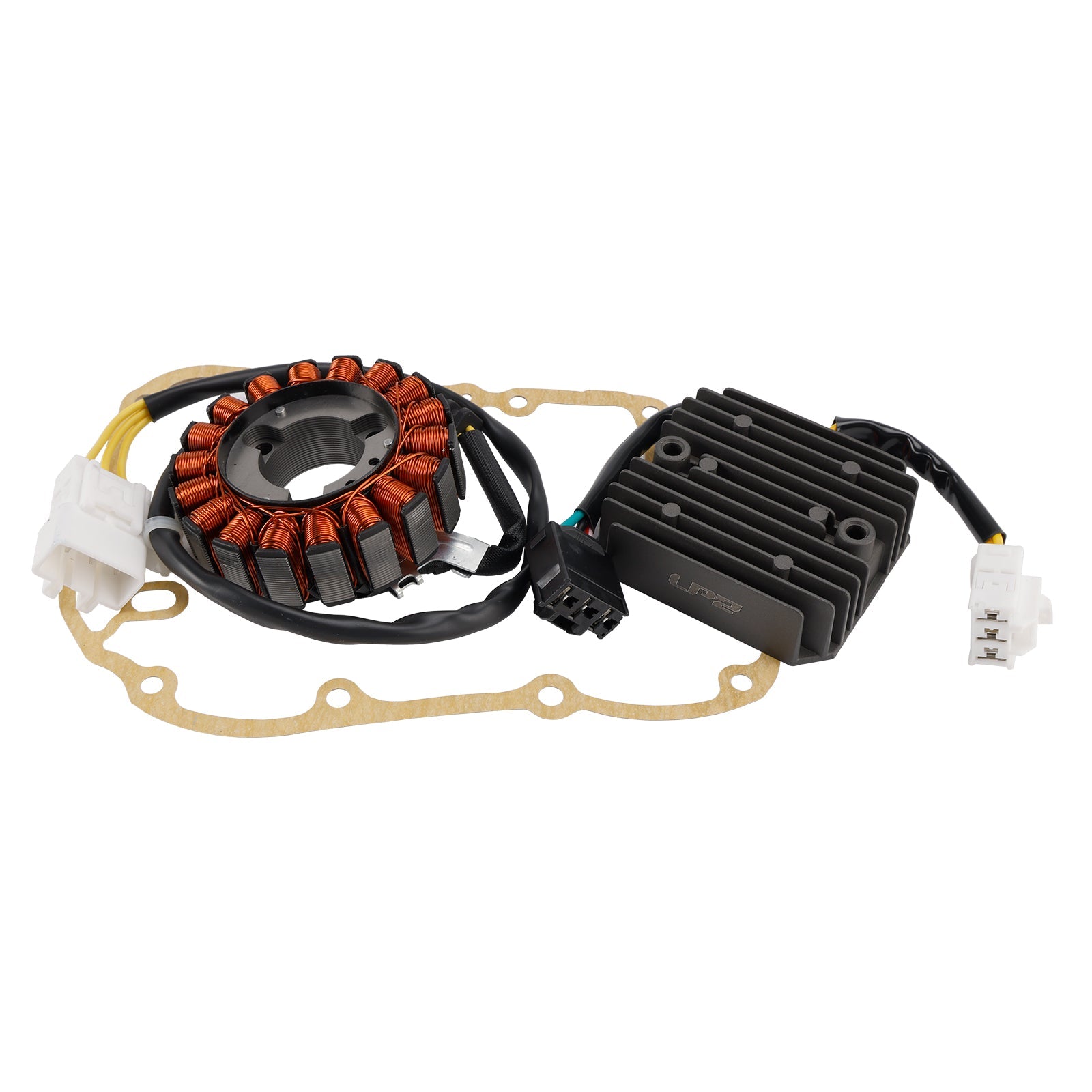

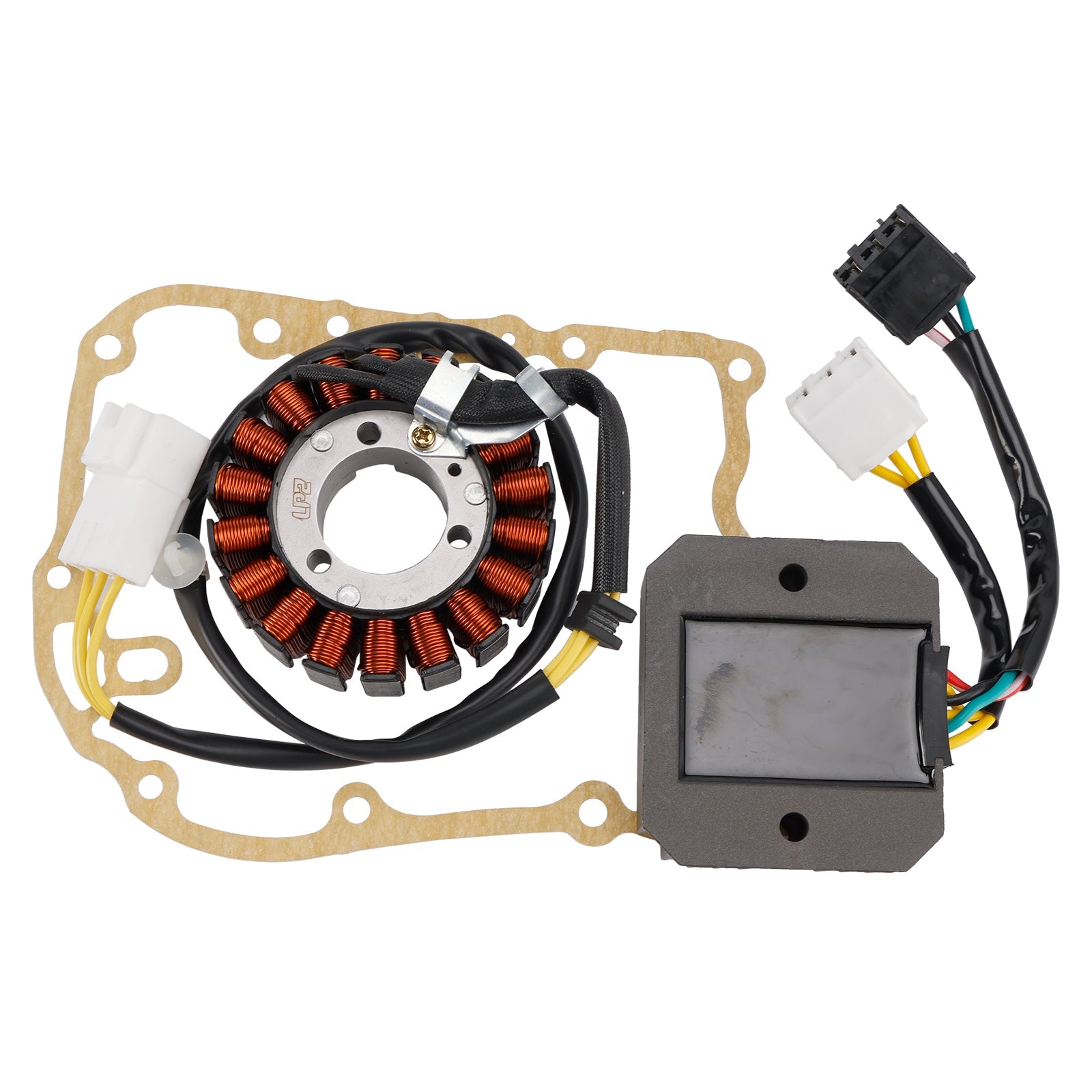

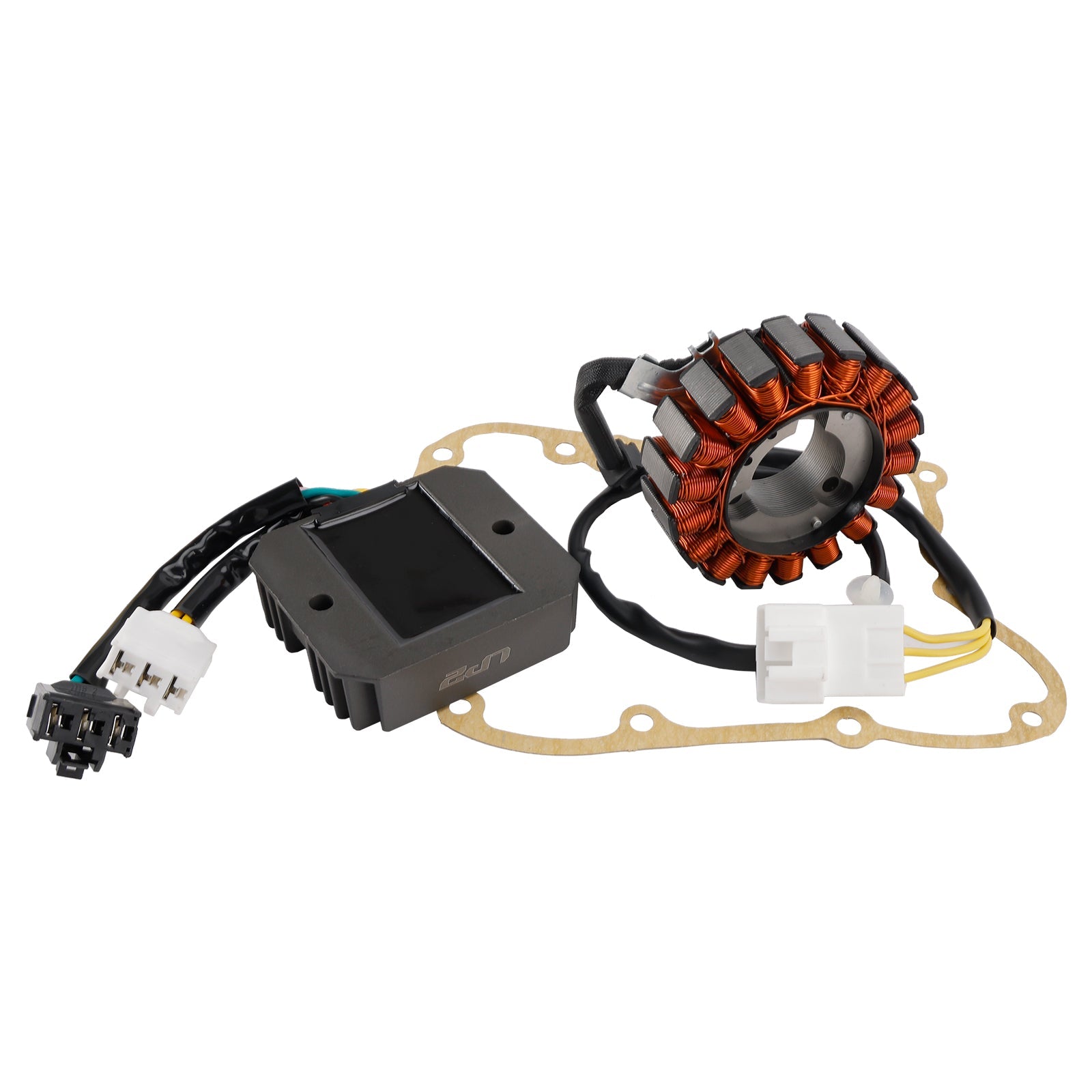

Package Includes:
1 x 18-Pole Generator Stator
1 x 6-Wire Voltage Regulator
1 x Crankcase Gasket

Features:
Kit include Stator, Regulator Rectifier and gasket.
Meet or exceeds the OEM quality, direct replacement to your original unit.
Perfect fit and ready to install.
Always use a sealant to mount the cable gland joint.
Instruction is NOT included.

Attention:
One of the most common reasons a stator breaks down is due to a broken regulator, which burns the stator in no time.
Therefore we highly recommend you to switch both parts.
Technically modified stators are excluded from exchange.

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator and Regulator Kit

other specification:

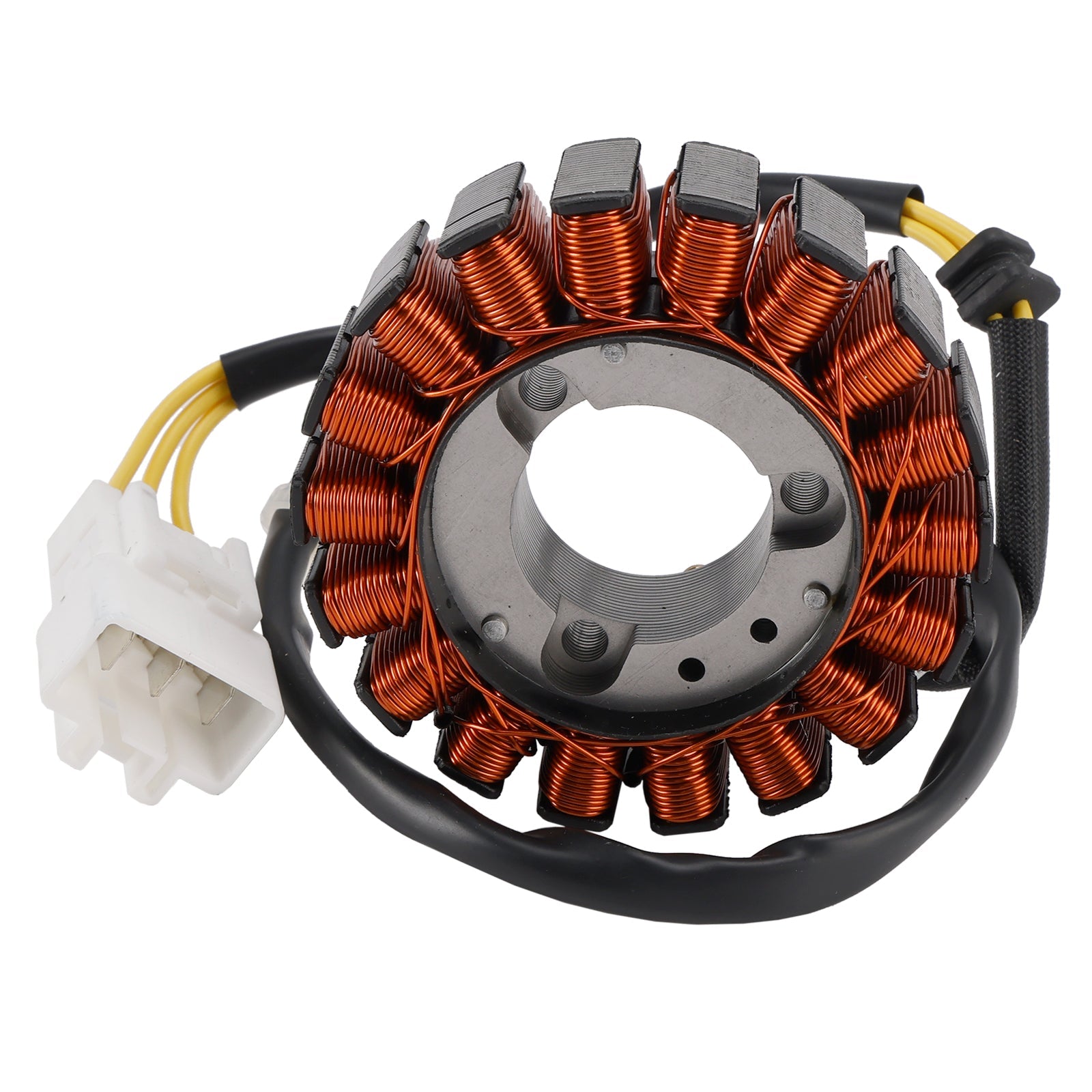

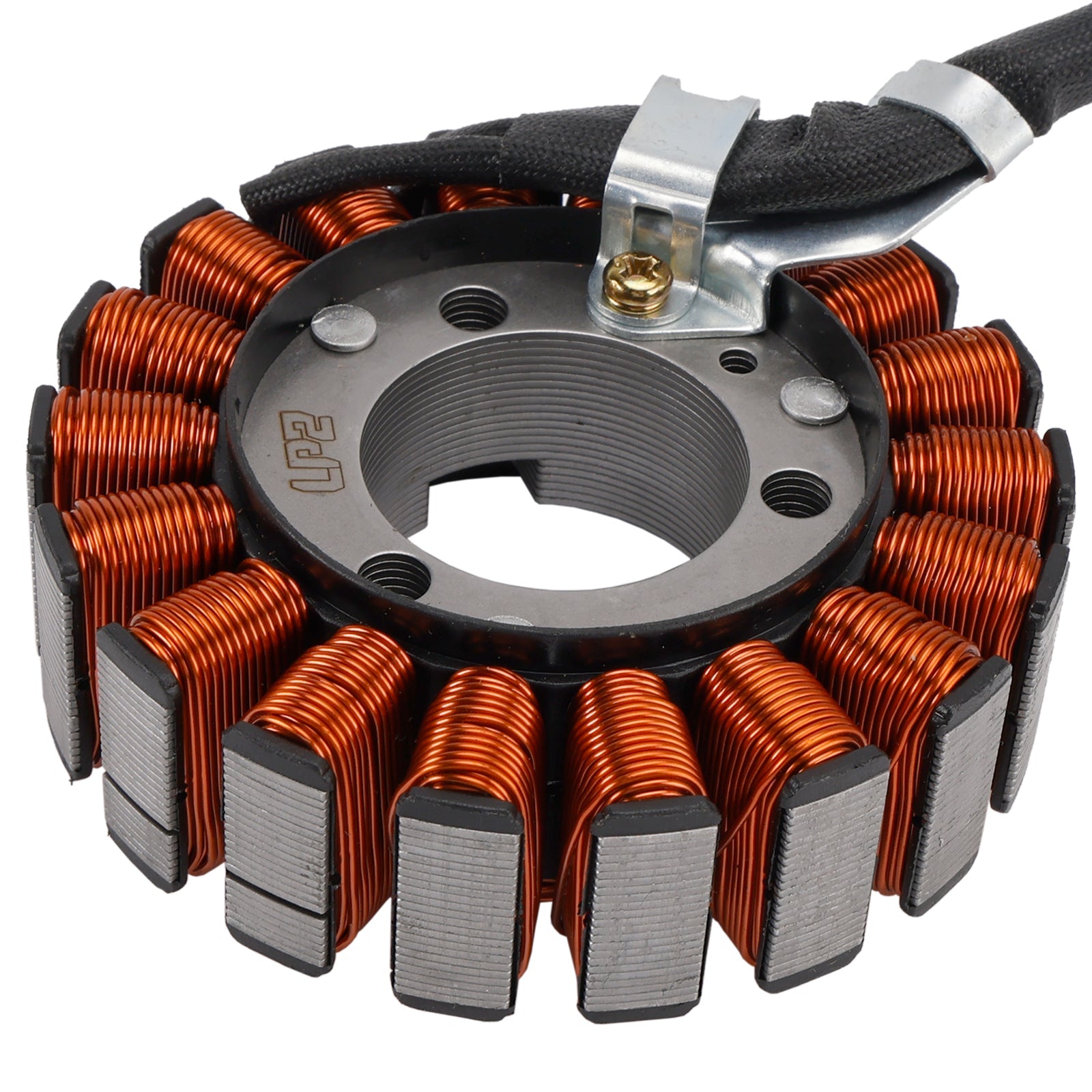

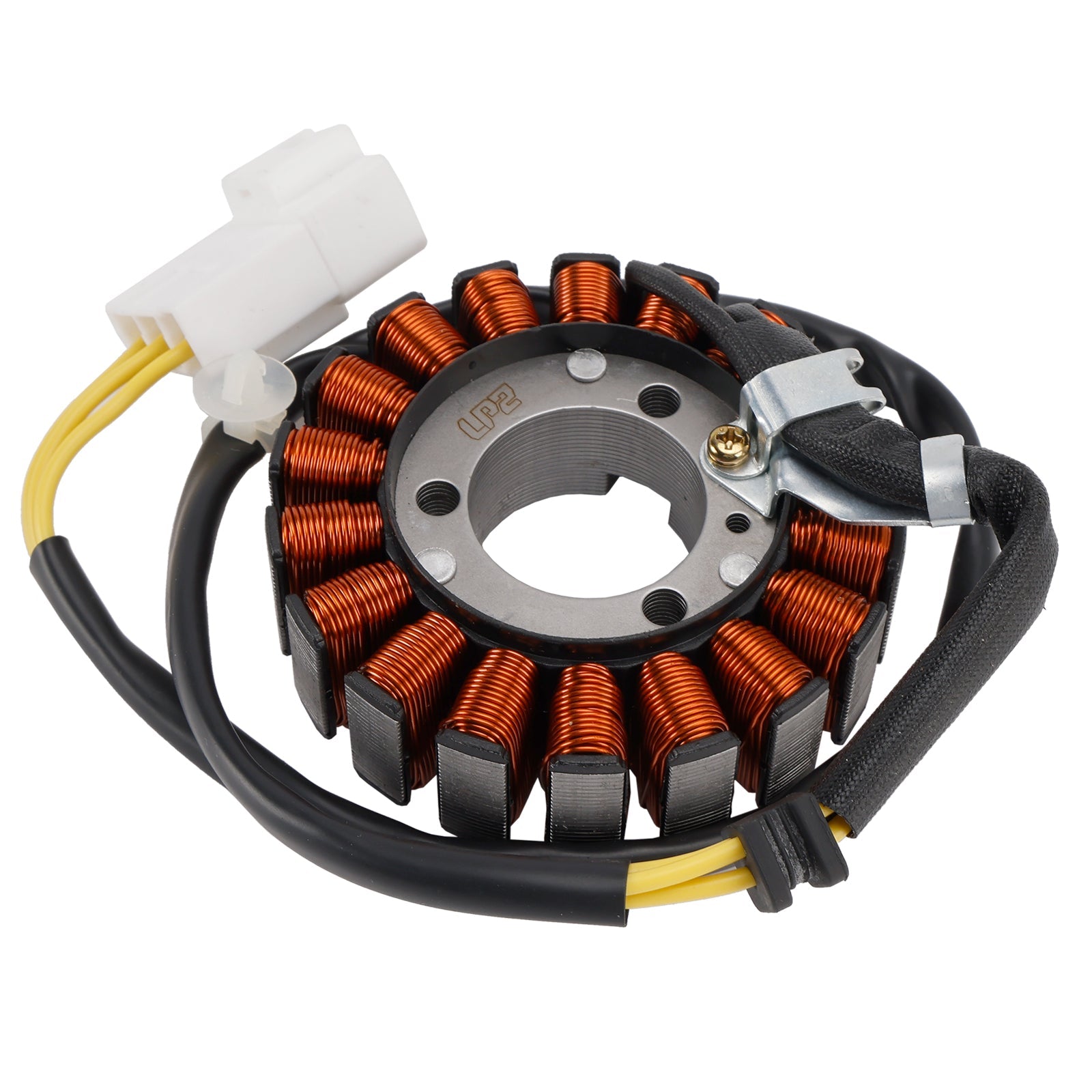

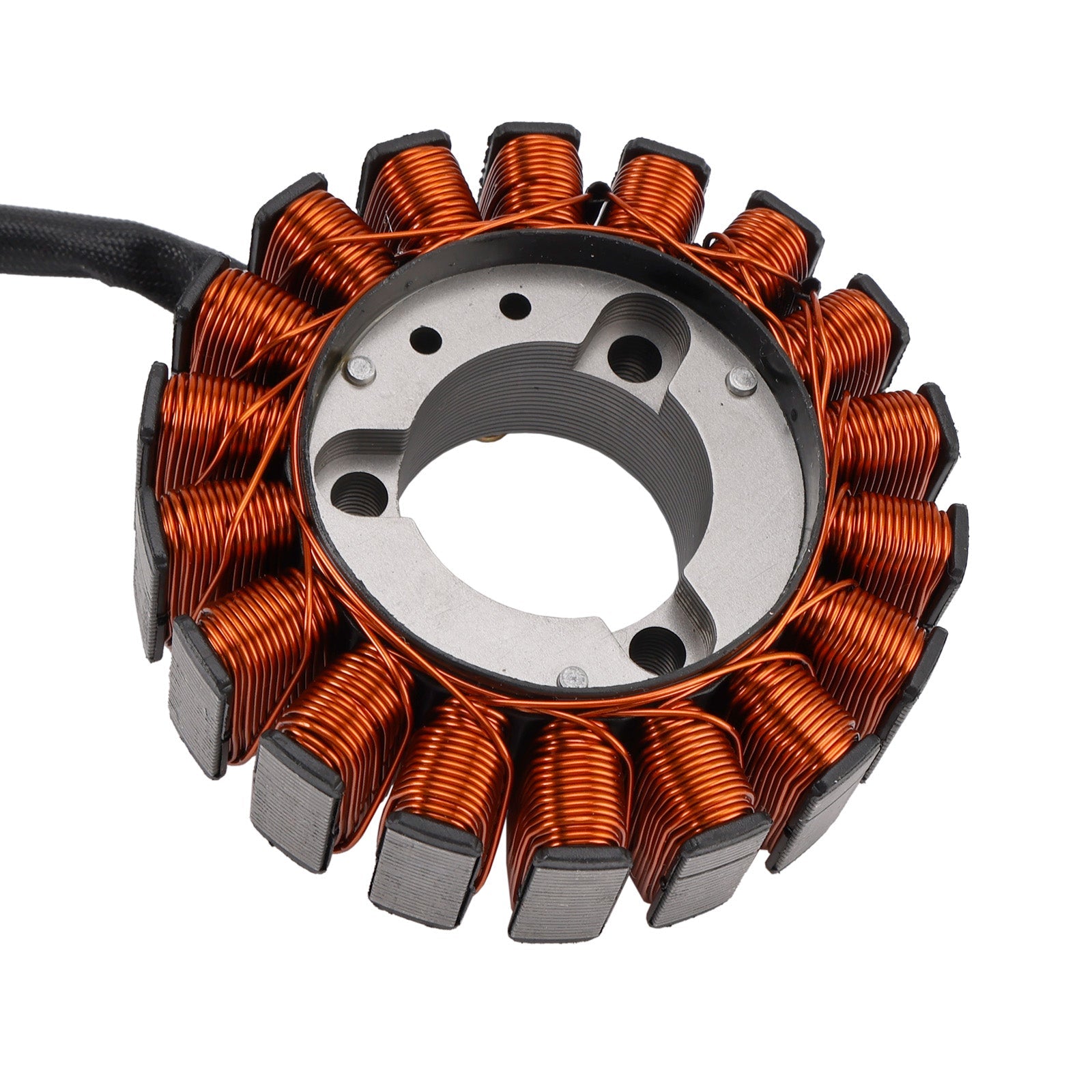

Stator
Number of wires: 6

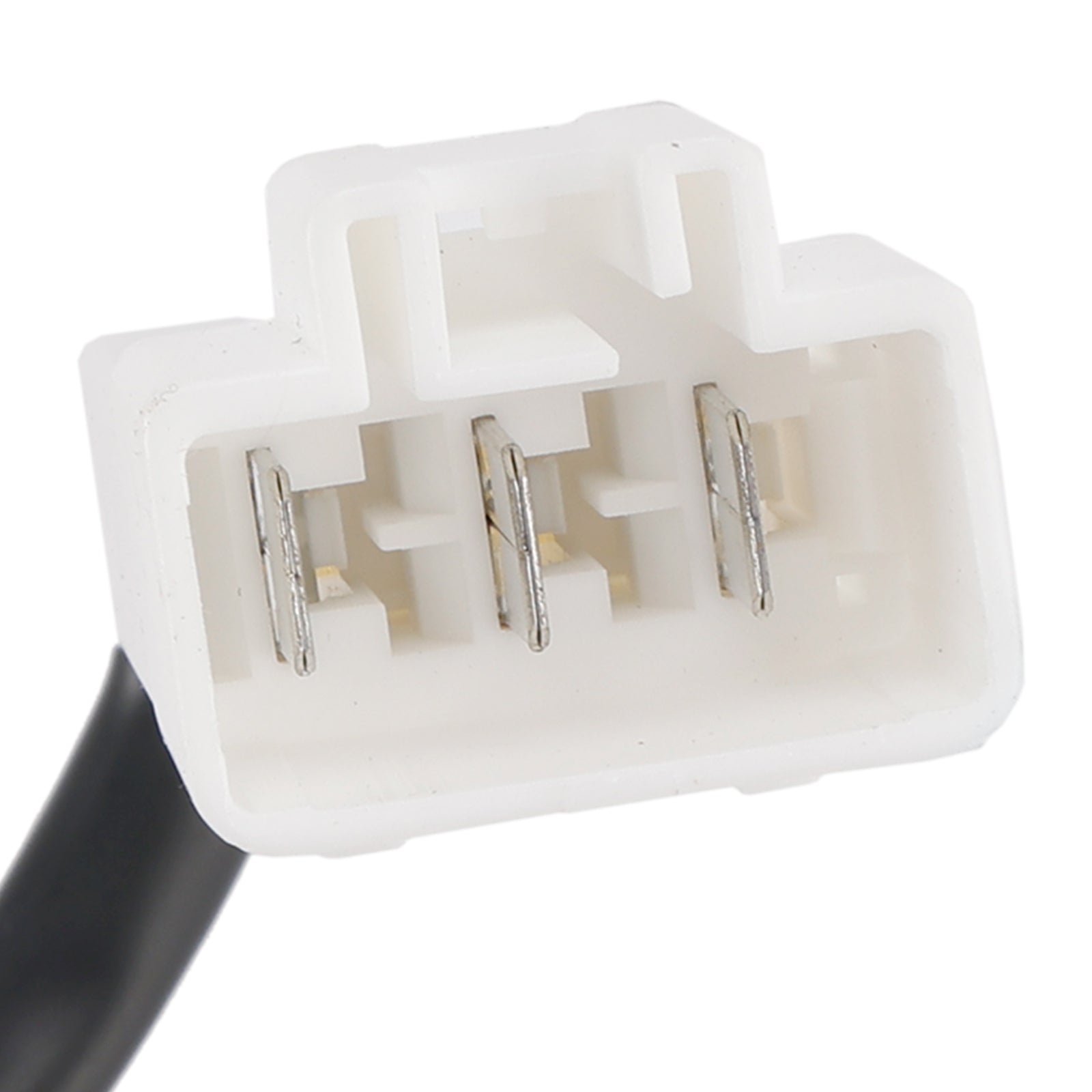

Number of plugs: 2
Number of pins: 3 + 3
Number of fixation holes: 3
Number of poles: 18
Exterior diameter: 92mm
Interior diameter: 35mm

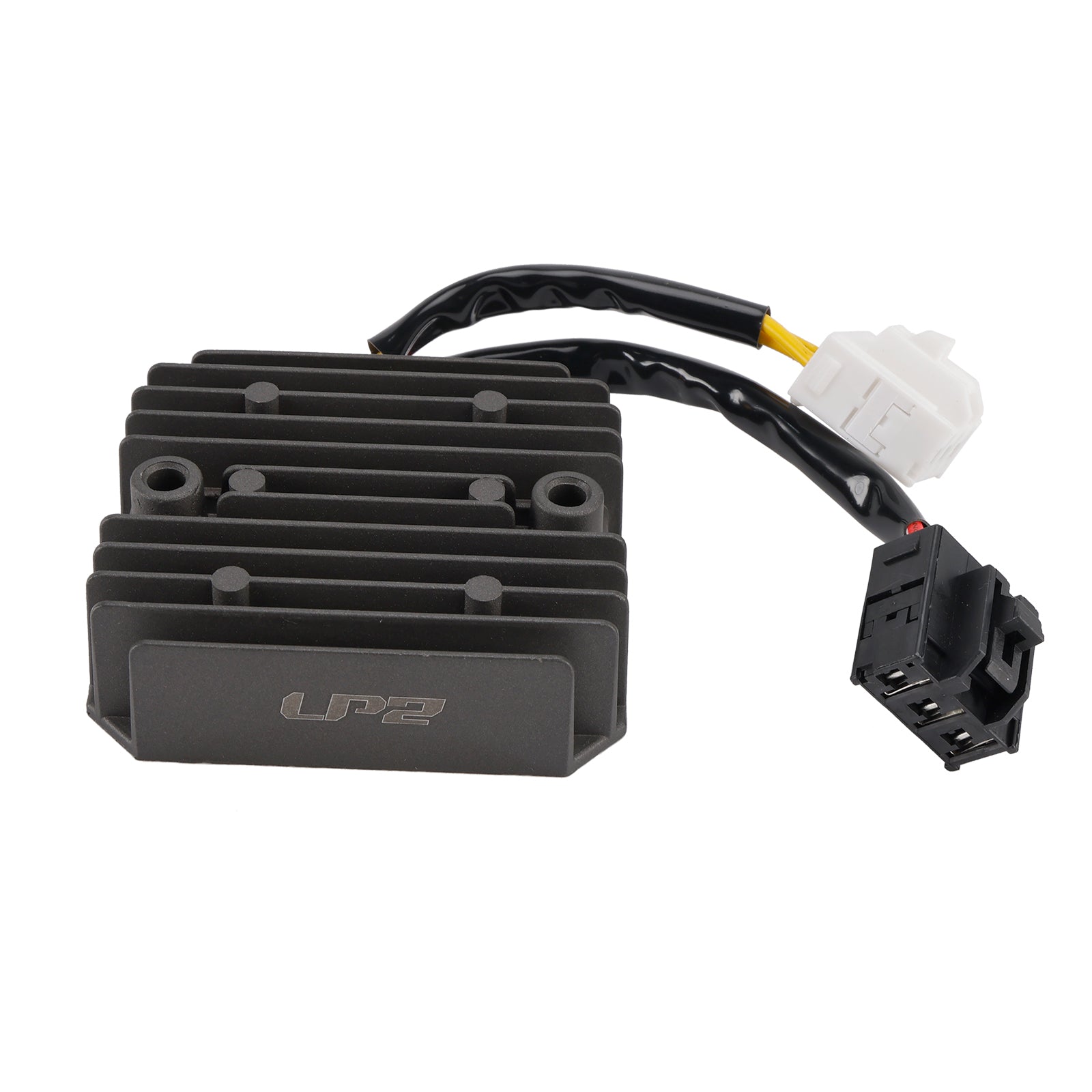

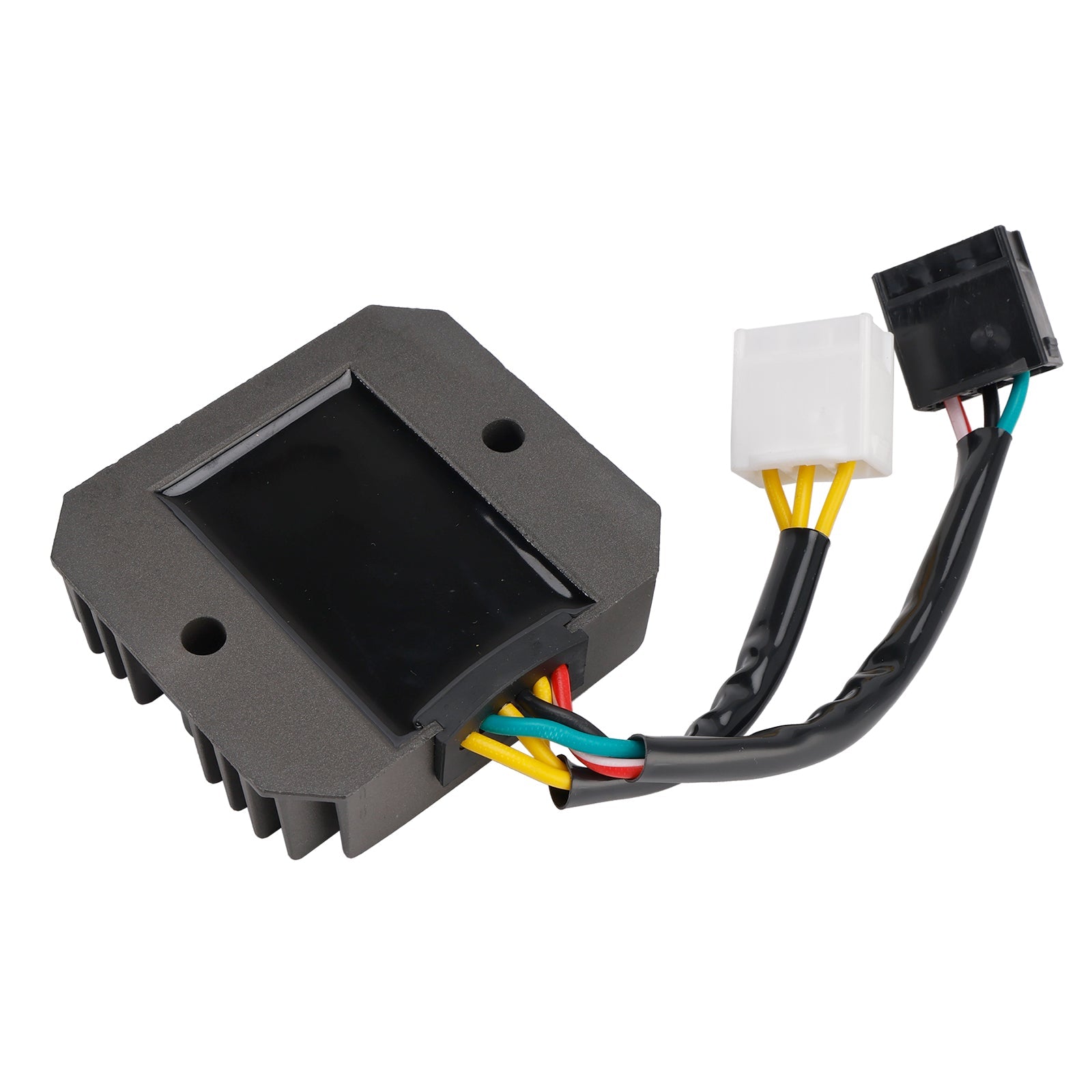

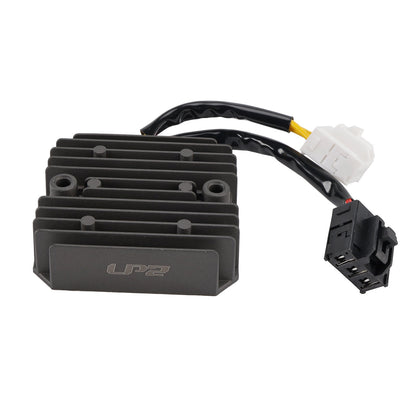

Regulator
Number of wires: 6

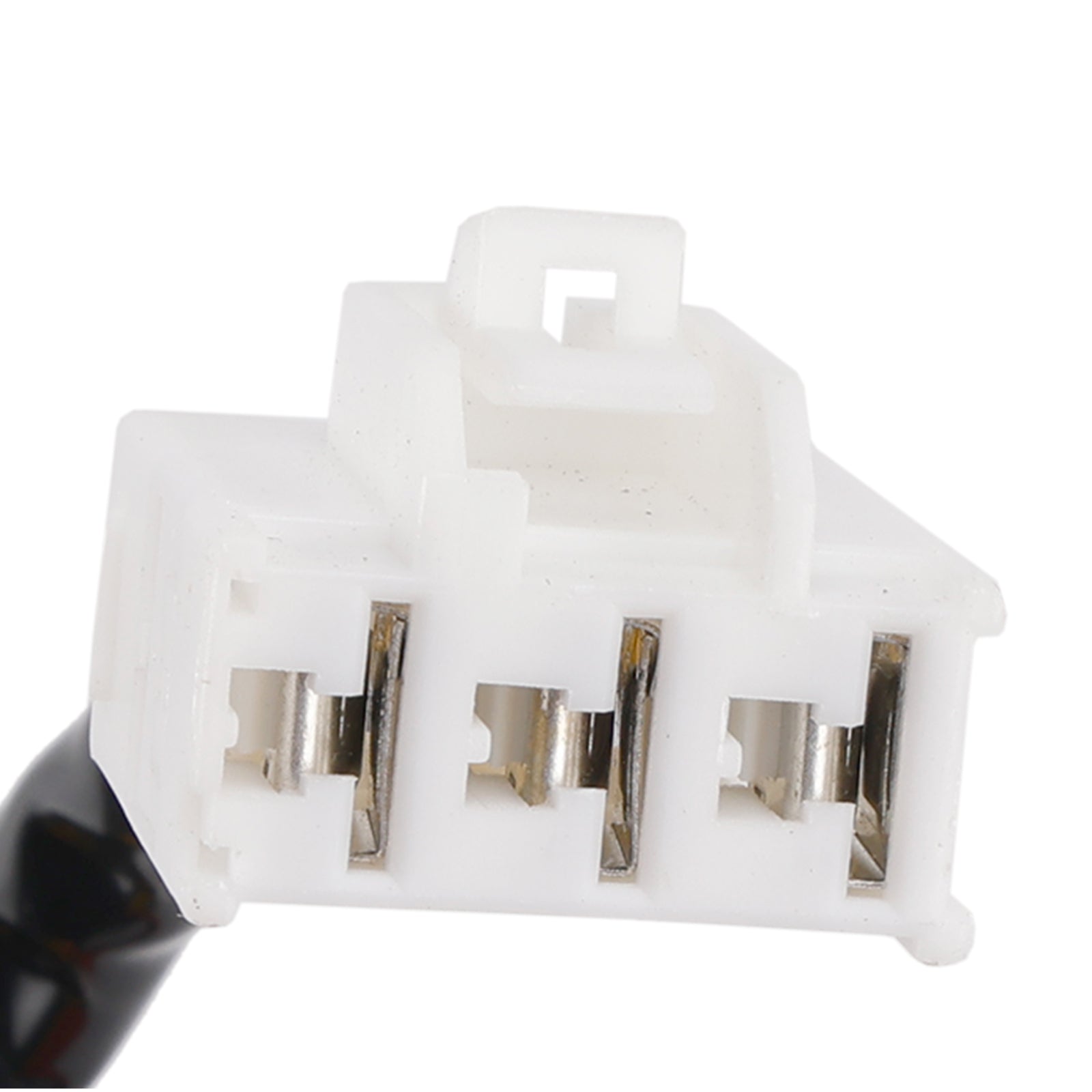

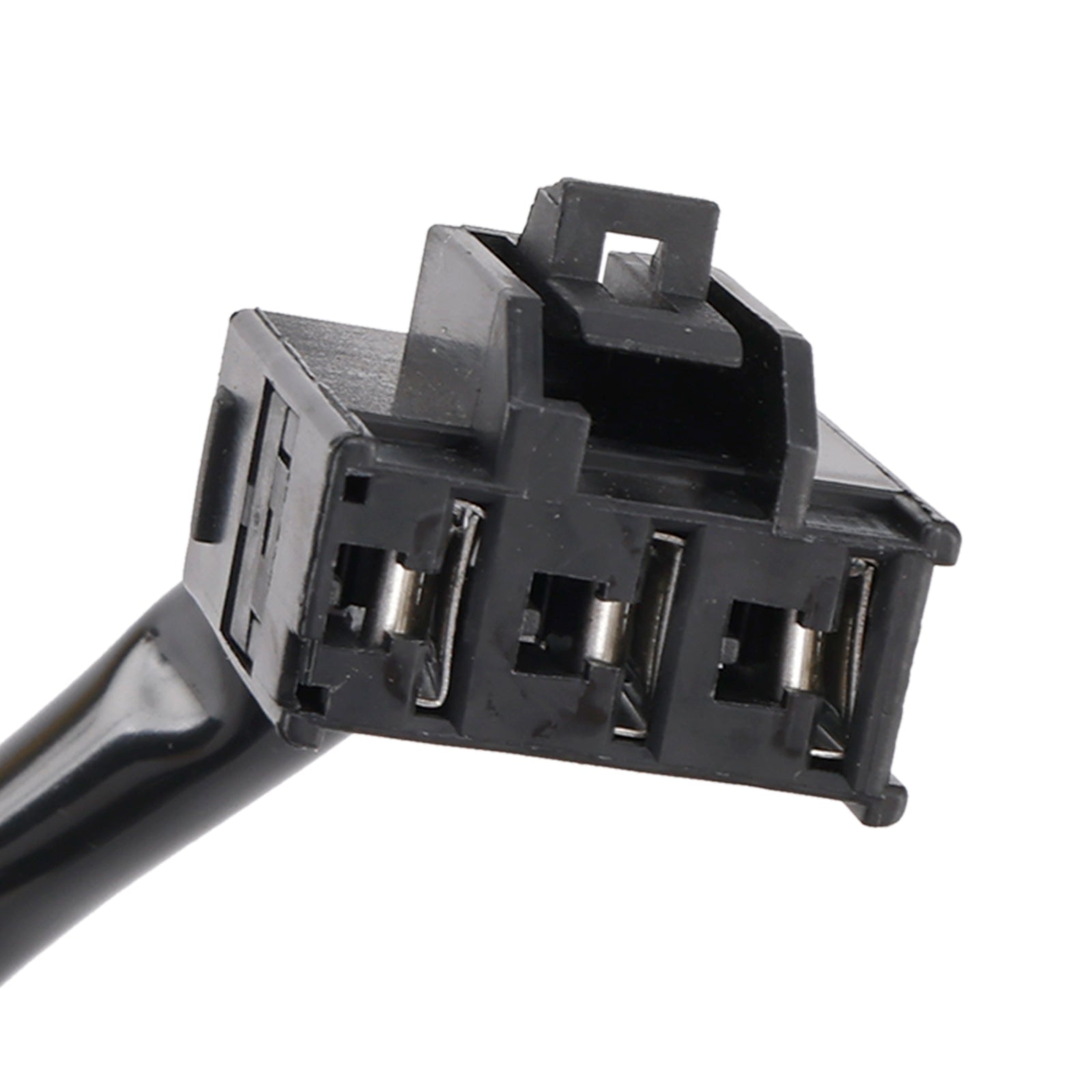

Number of plugs: 2
Number of pins: 3 + 3

Please compare the number of pins and plugs with the old part before purchasing.
