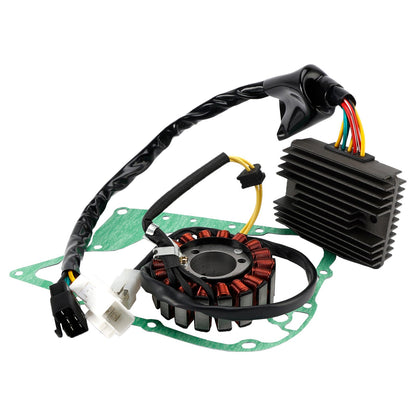

Honda NSS 250 250S Reflex 2004-2007 Magneto Coil Stator 31120-KSZ-771+ Voltage Regulator 31600-KSZ-770+Gasket

Honda NSS 250 250S Reflex 2004-2007 Magneto Coil Stator 31120-KSZ-771+ Voltage Regulator 31600-KSZ-770+Gasket

SKU:M550-C500

Regular price $108.99 USD
Regular price Sale price $108.99 USD
Sale Sold out
Shipping calculated at checkout.

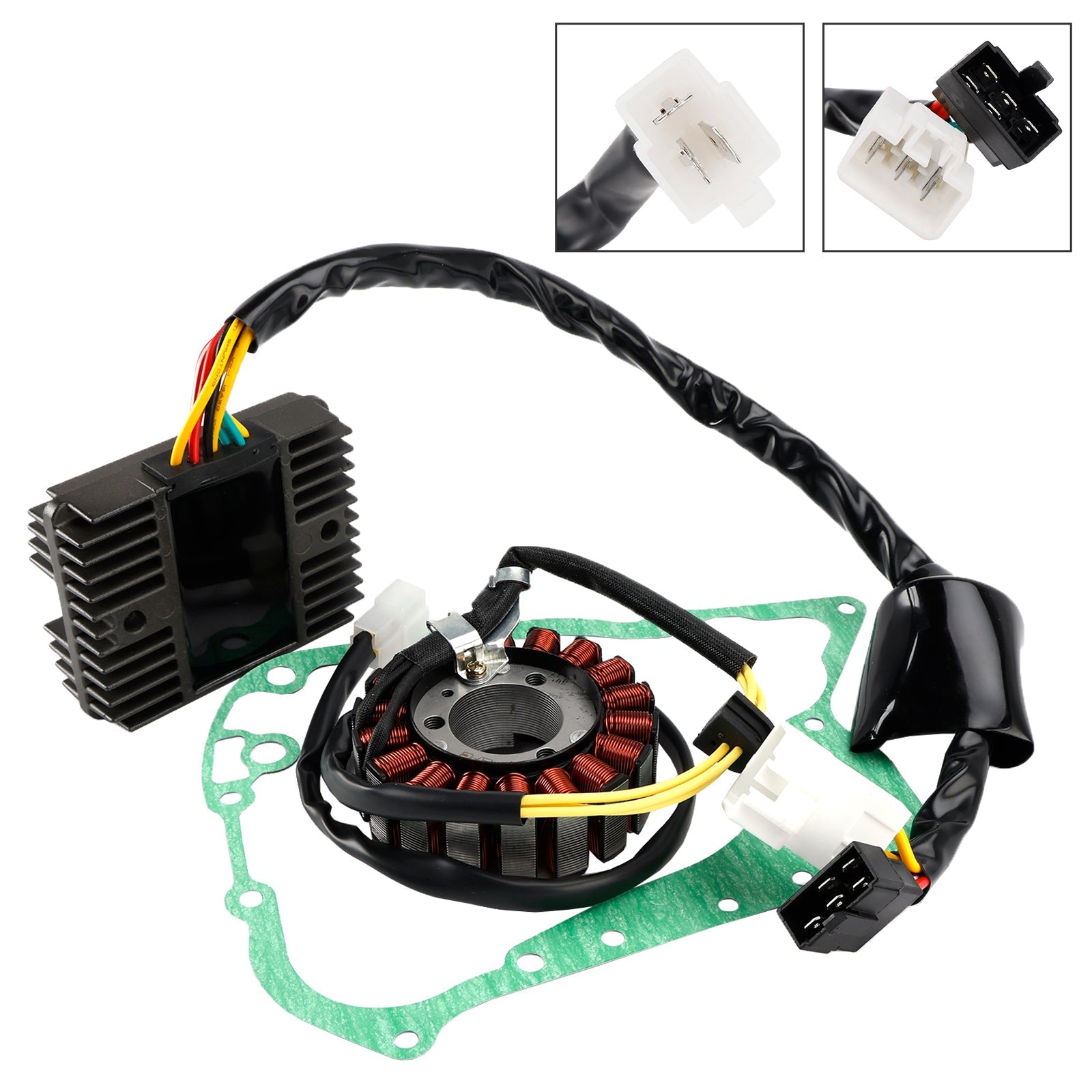

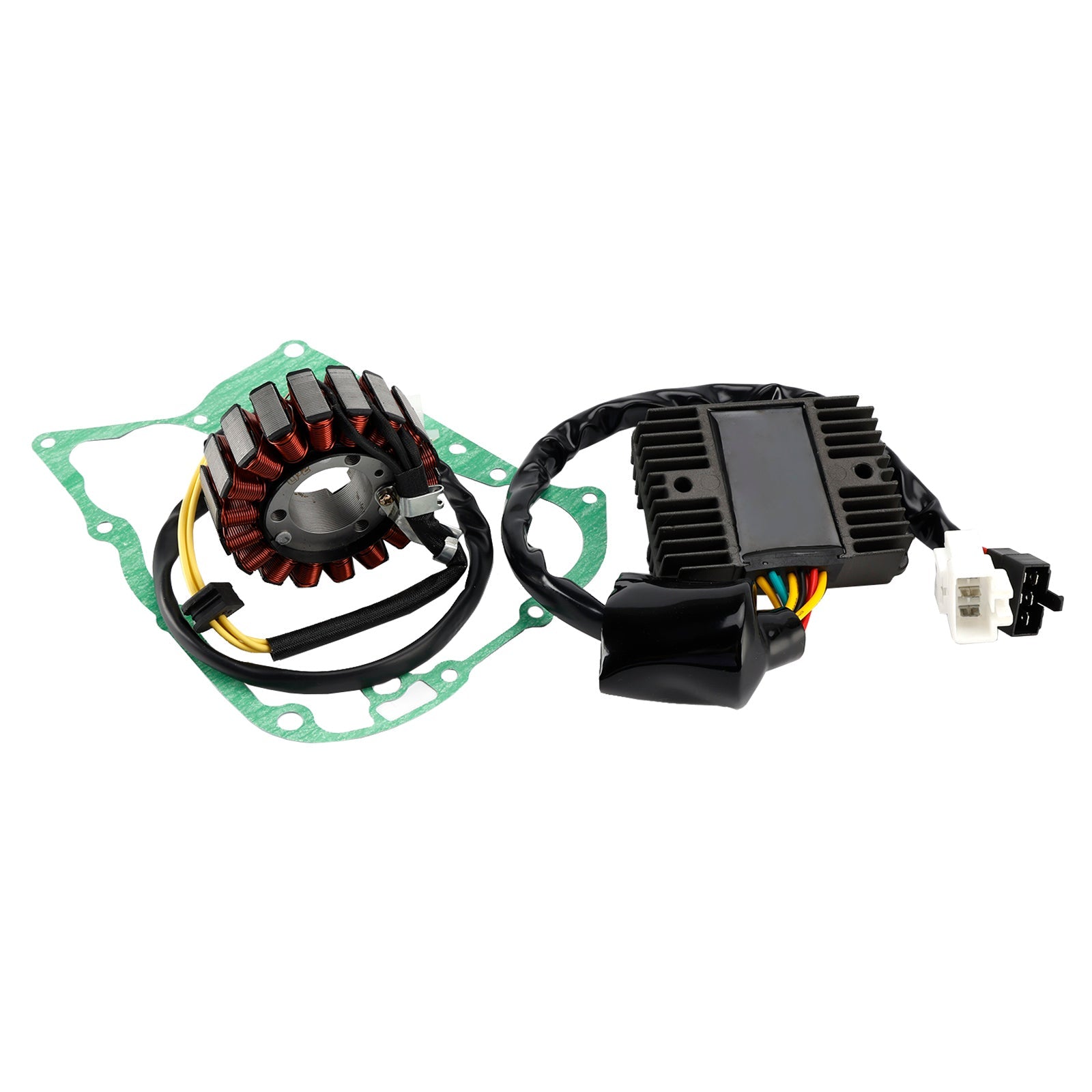

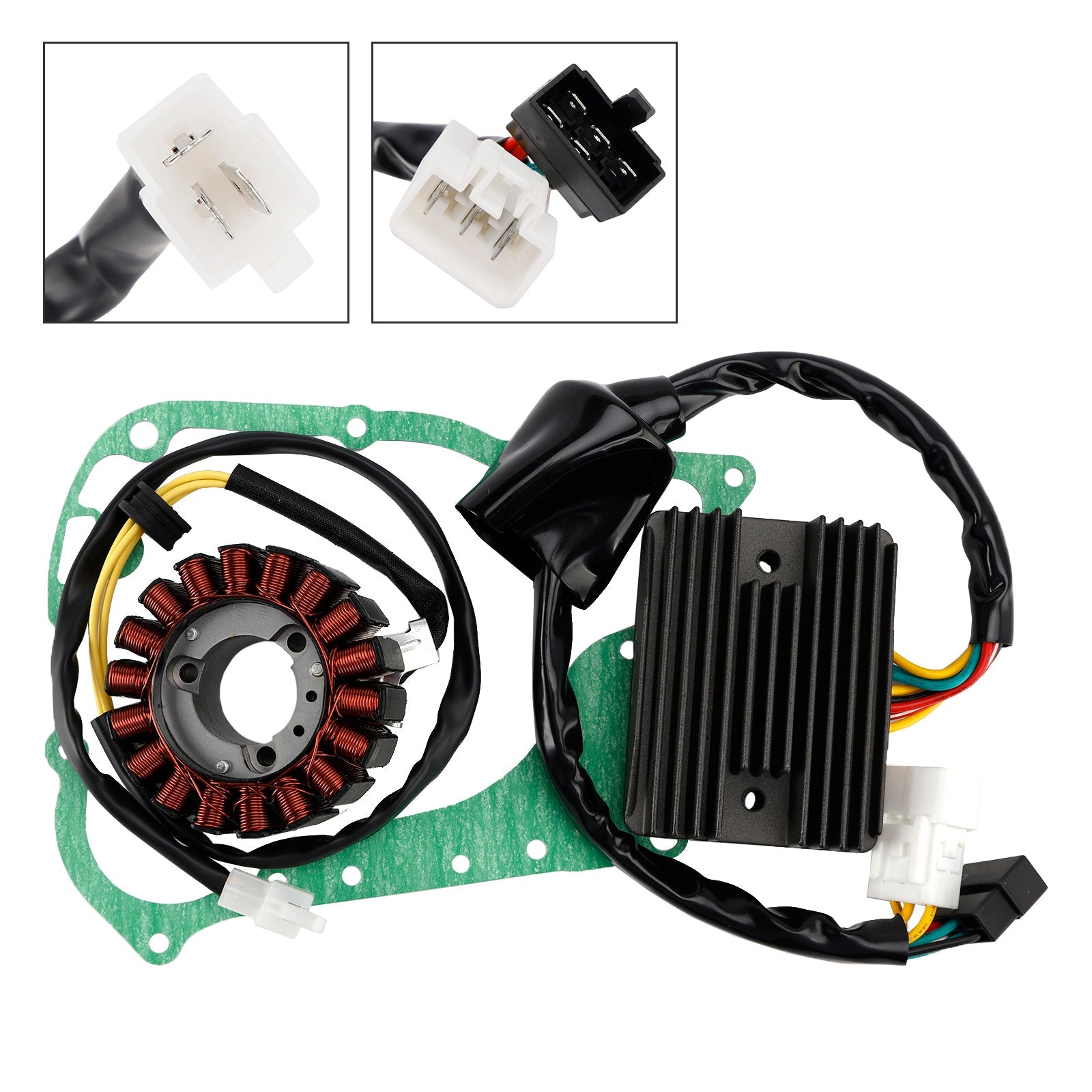

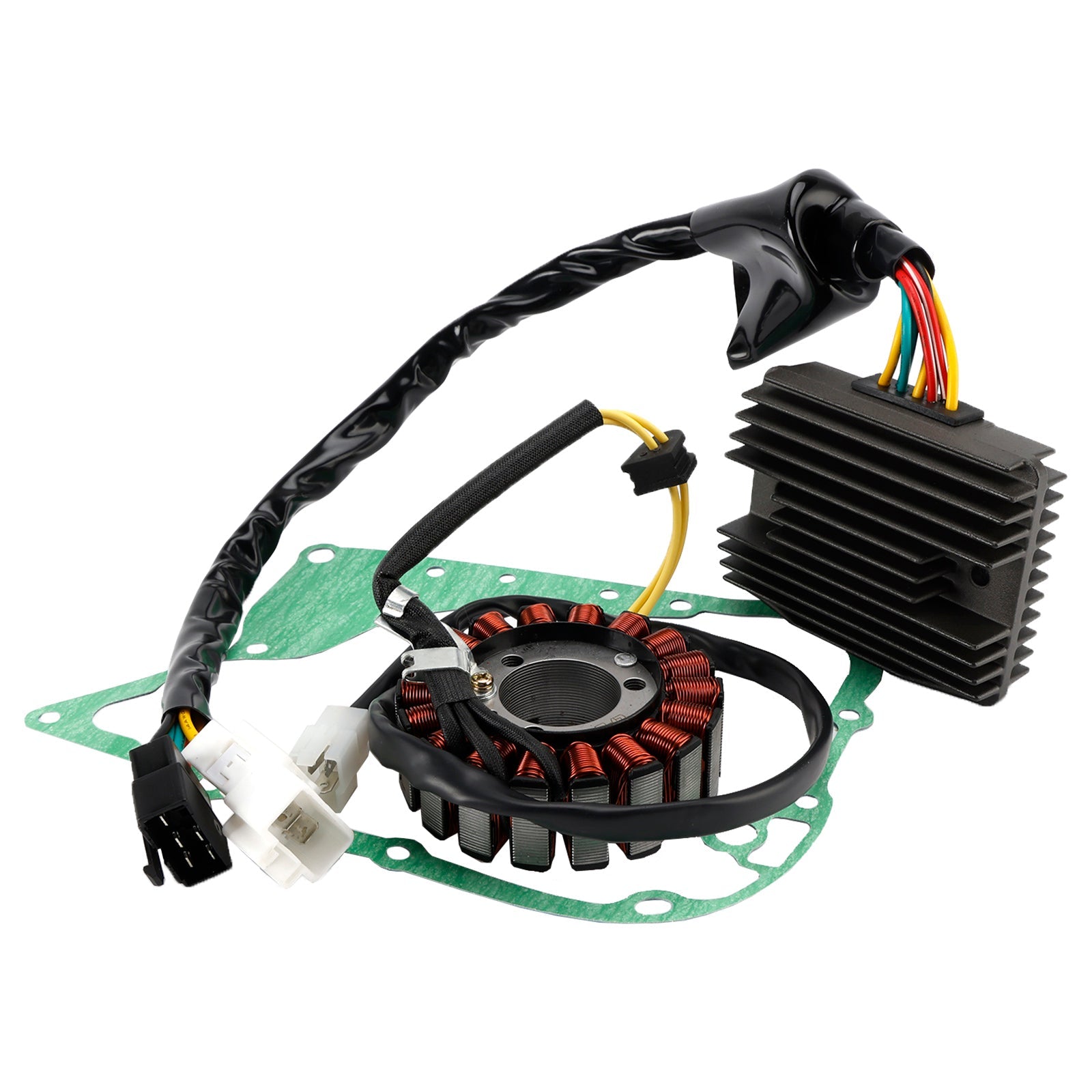

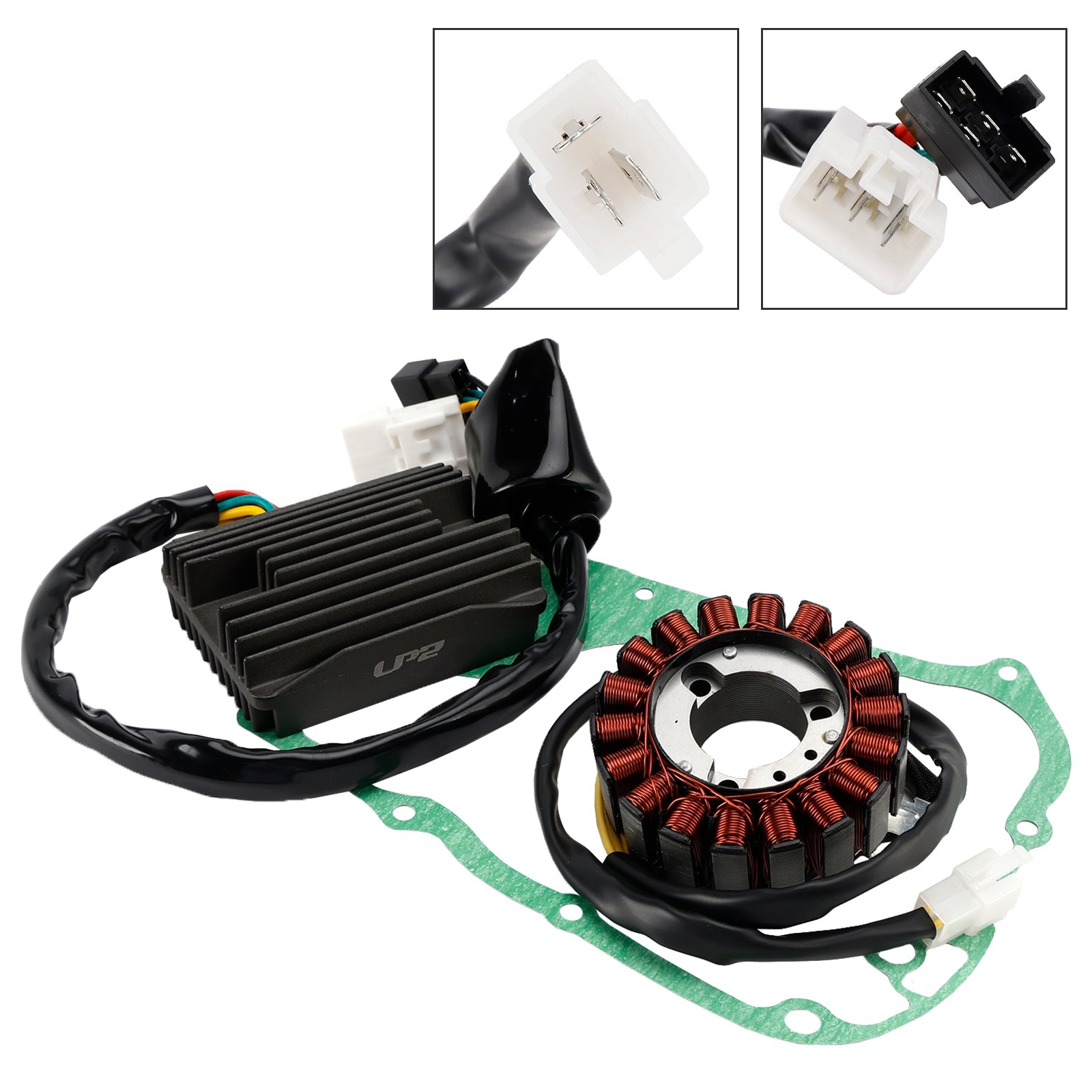

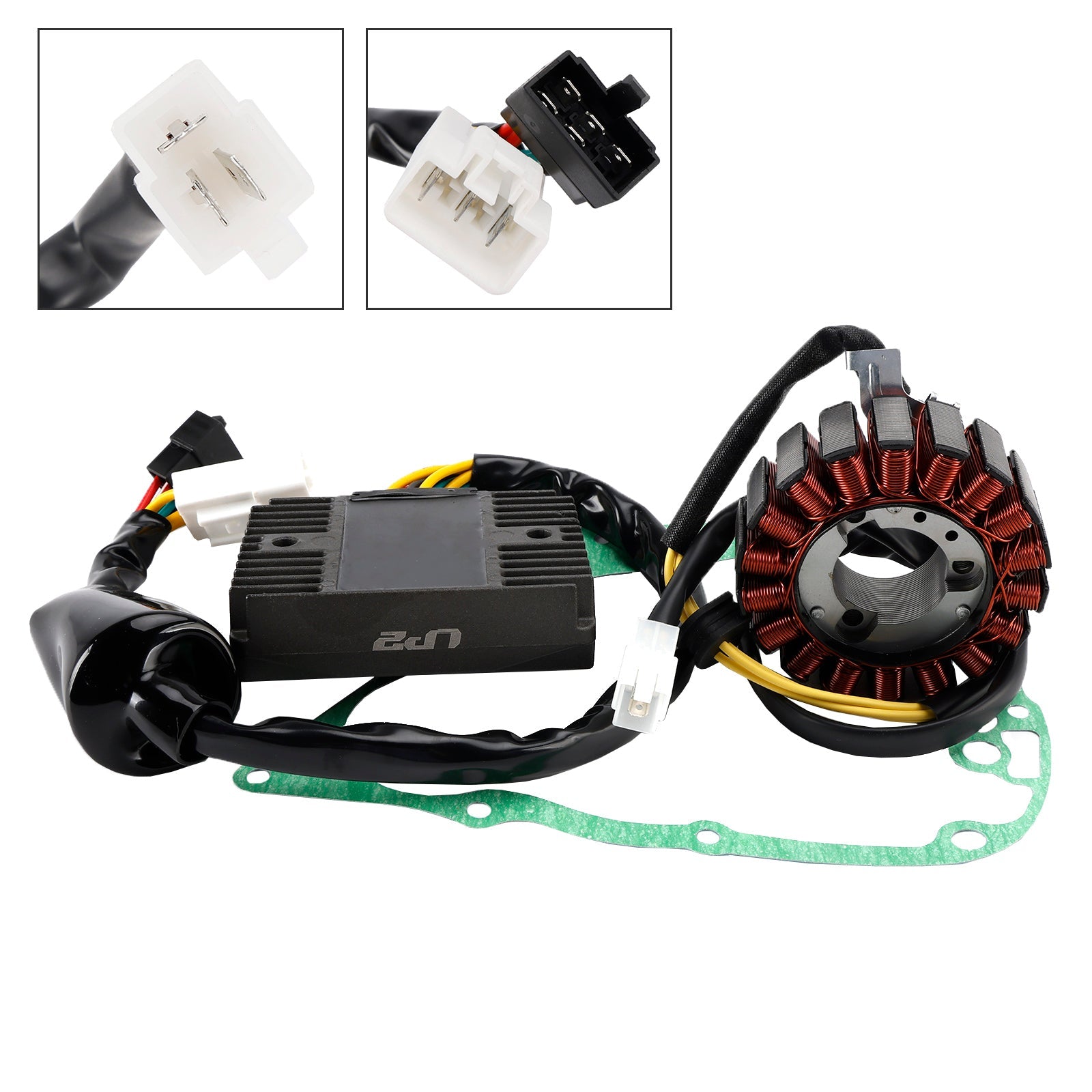

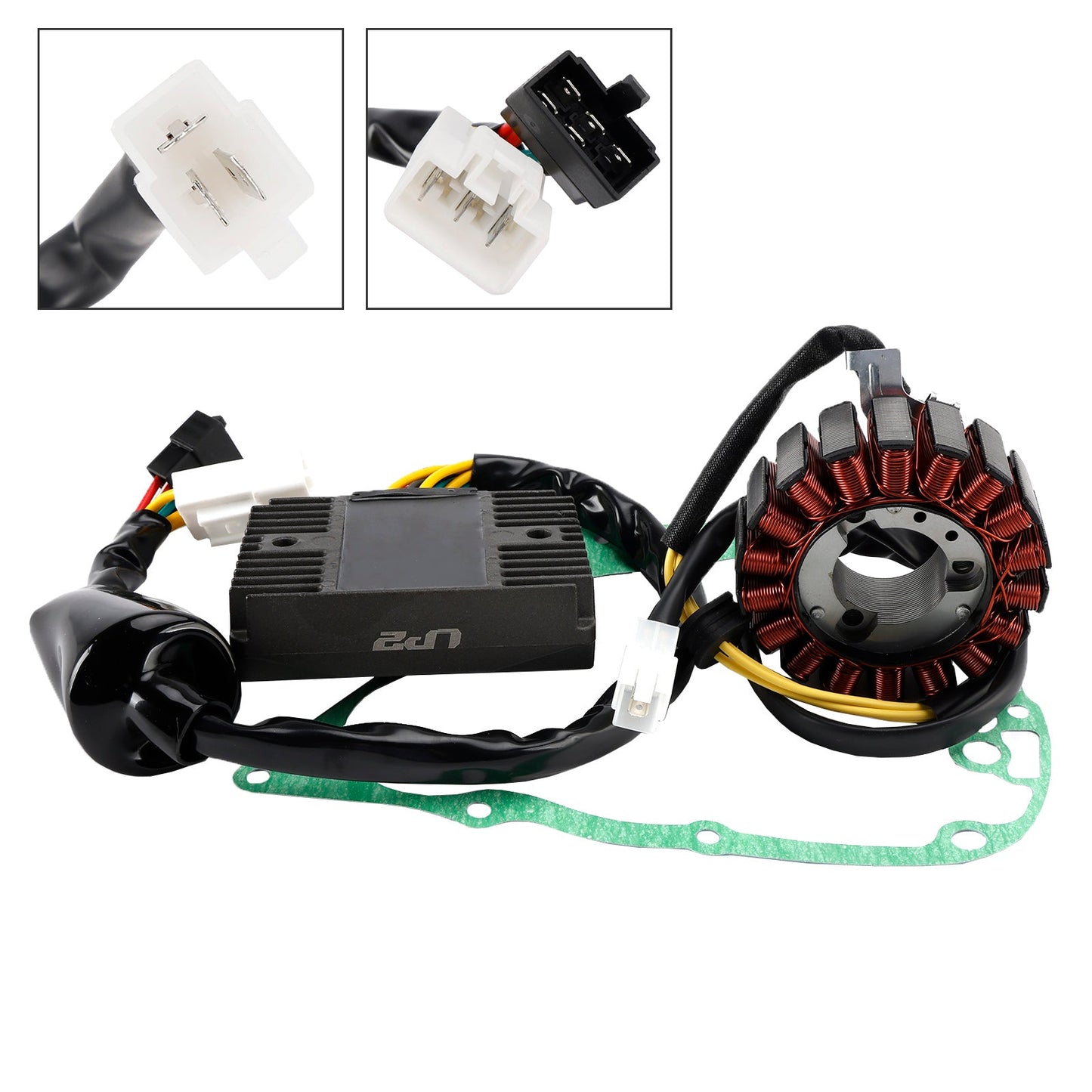

Magneto Coil Stator + Voltage Regulator + Gasket Assy For Honda NSS 250 250S Reflex 2004-2007

Replacement Part Number:
Stator Assy: 31120-KSZ-771
Rectifier, regulator: 31600-KSZ-770

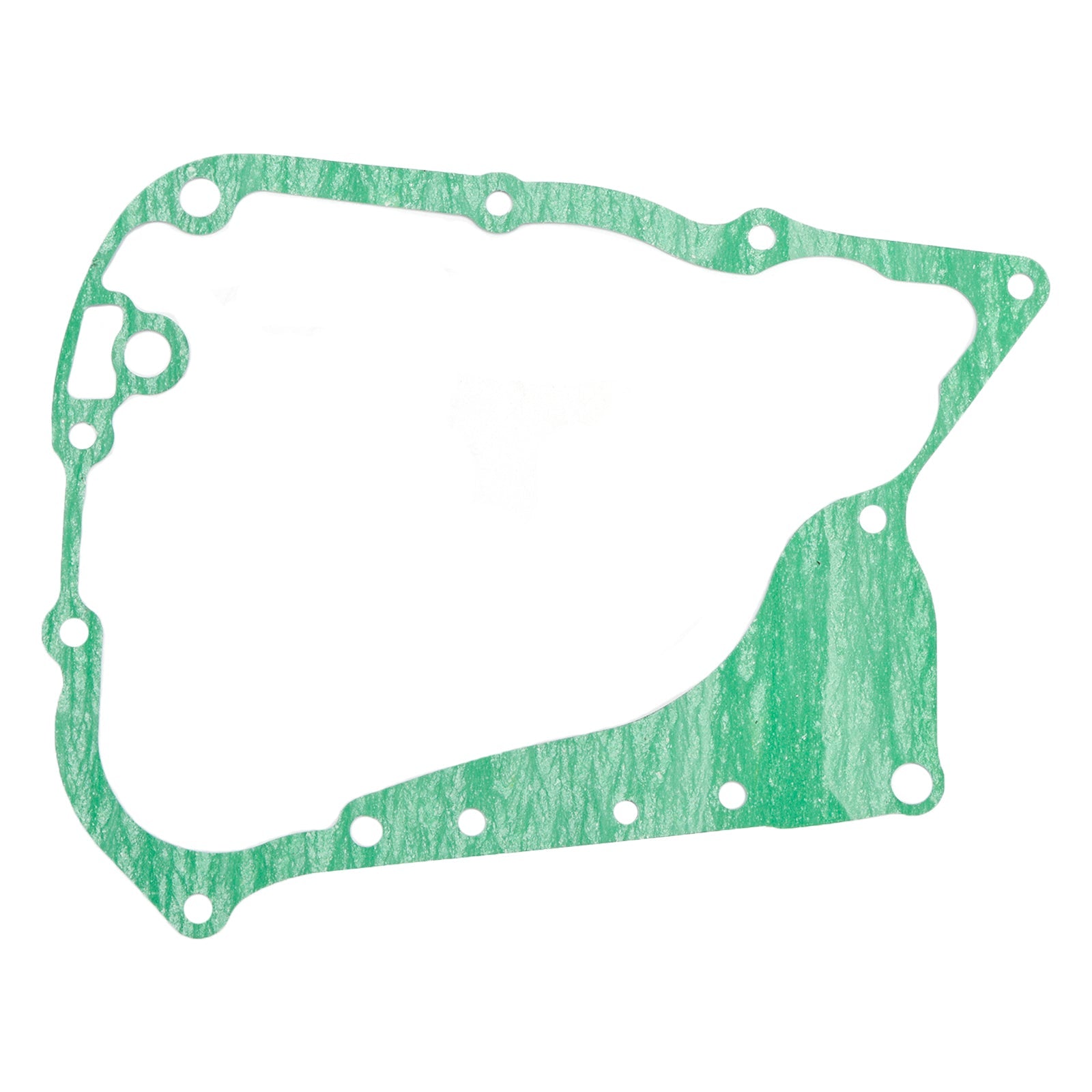

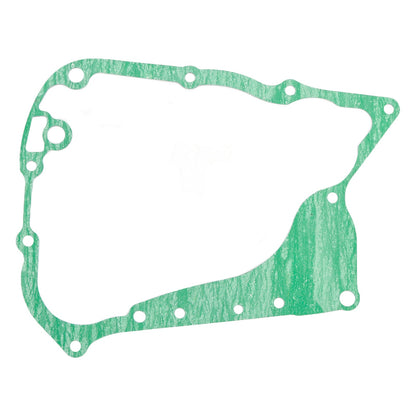

Gasket, generator cover: 11394-KAB-020, 11394-KAB-010, 11394-KAB-000, 11394-KFG-000

Fits Make/Model/Year:
Fit for Honda NSS 250 Reflex 250 (MF06) 2004-2007
Fit for Honda NSS 250 Reflex 250 ABS (MF06) 2004-2007
Fit for Honda NSS 250 S Reflex 250 (MF06) 2004-2007
Fit for Honda NSS 250 S Reflex 250 ABS (MF06) 2004-2007

Package Includes:
1 x 18-Pole Generator Stator
1 x 8-Wire Voltage Regulator
1 x Crankcase Gasket

Features:
Kit include Stator, Regulator Rectifier and gasket.
Meet or exceeds the OEM quality, direct replacement to your original unit.
Perfect fit and ready to install.
Always use a sealant to mount the cable gland joint.
Instruction is NOT included.

Attention:
One of the most common reasons a stator breaks down is due to a broken regulator, which burns the stator in no time.
Therefore we highly recommend you to switch both parts.
Technically modified stators are excluded from exchange.

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator and Regulator Kit

other specification:

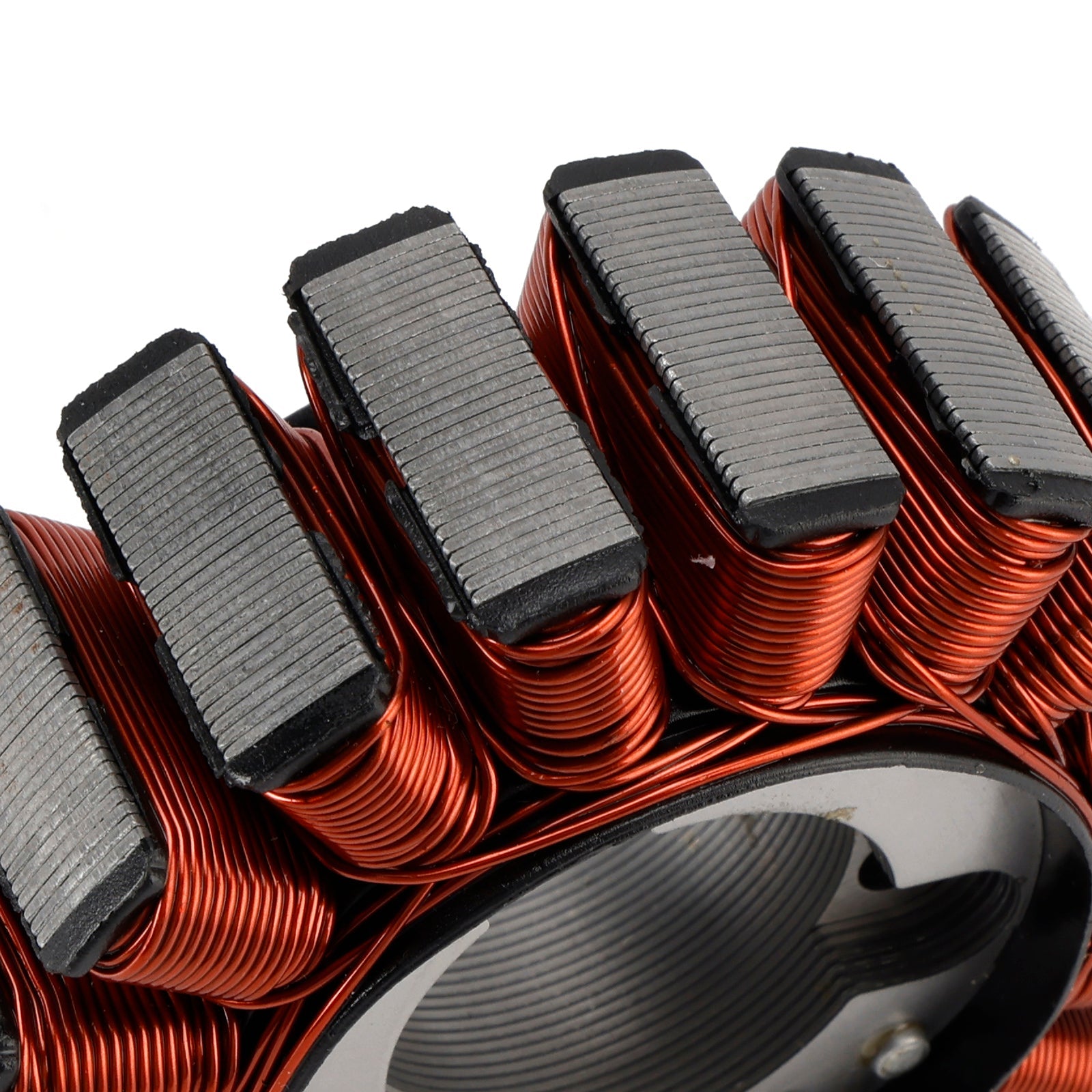

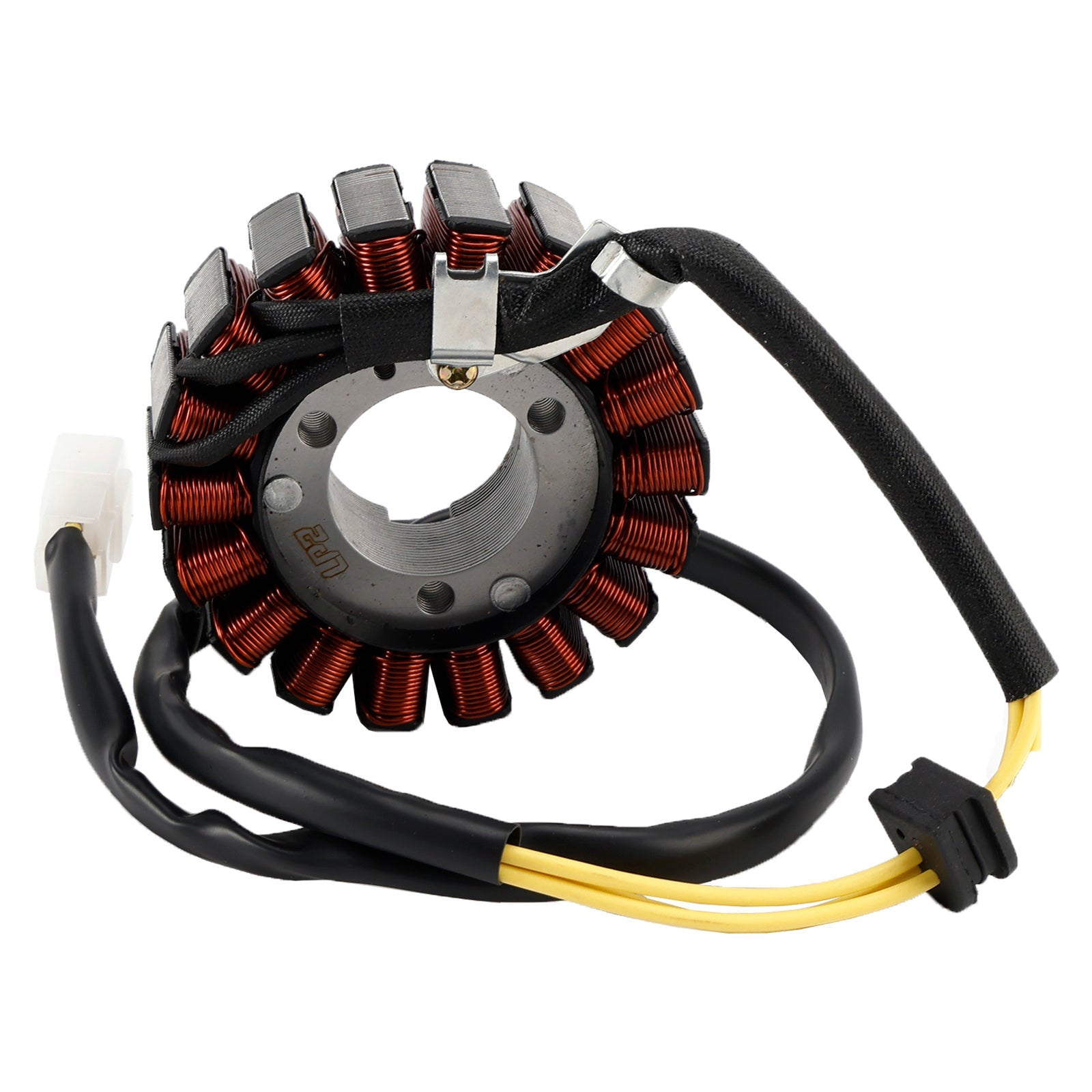

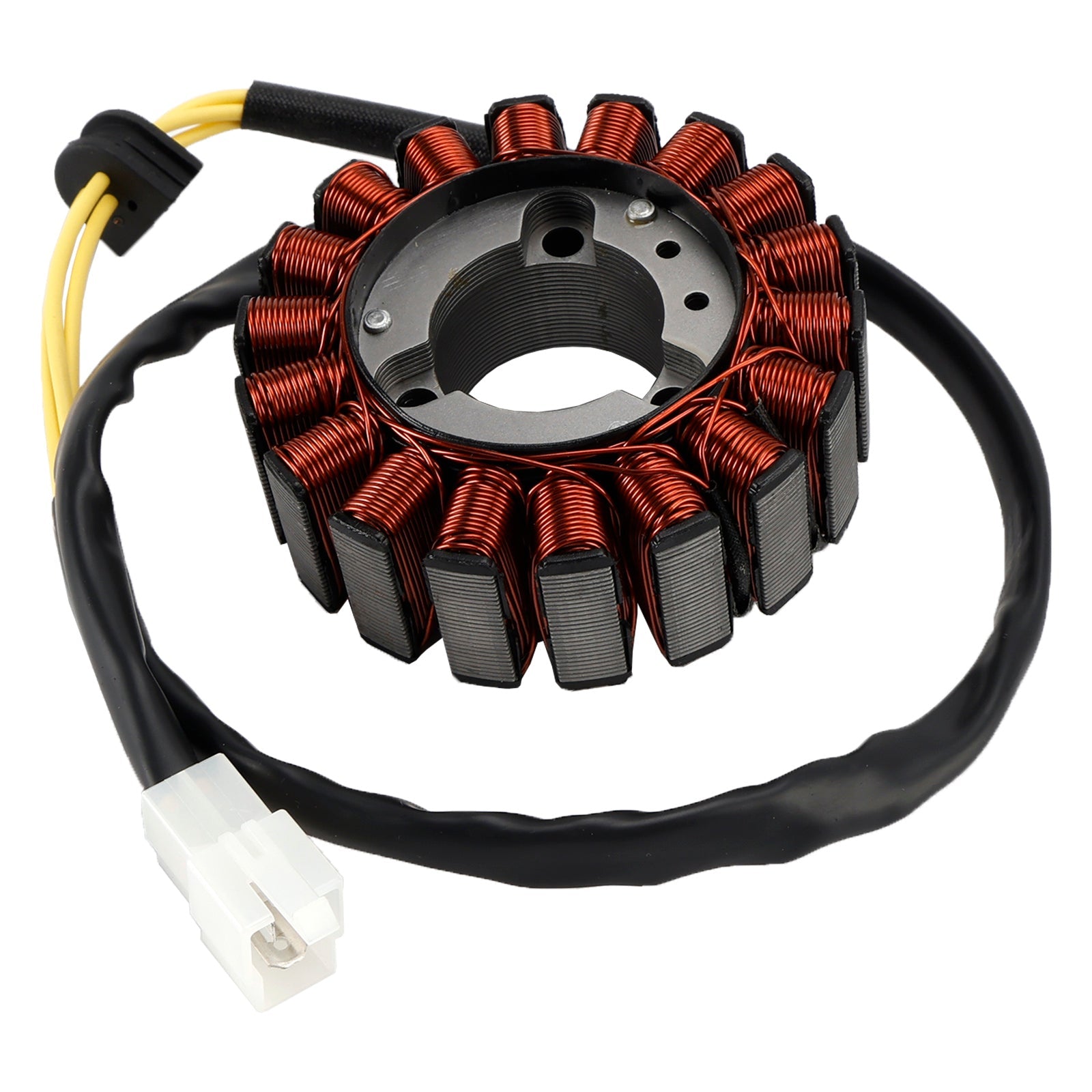

Stator
Number of wires: 3

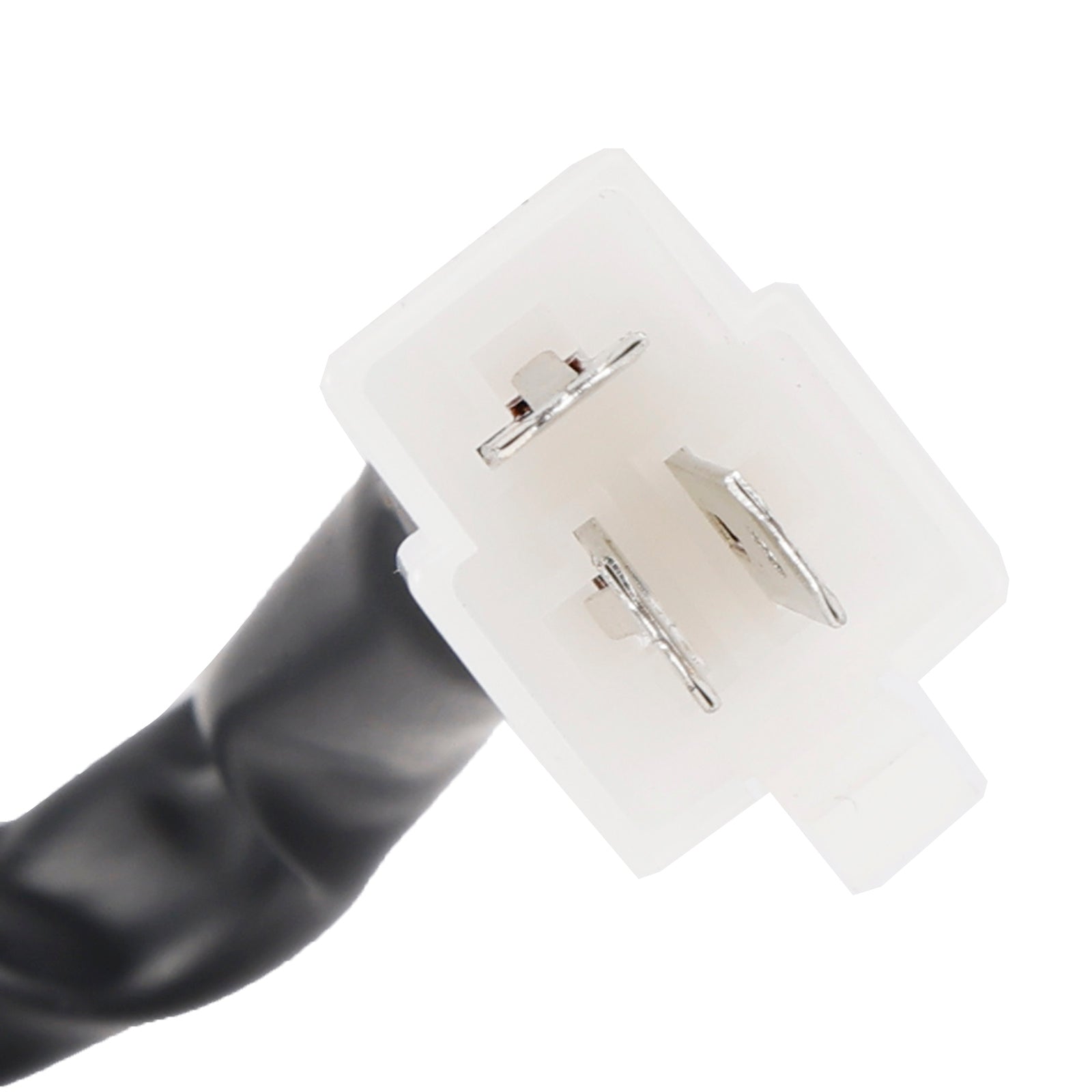

Number of plugs: 1
Number of pins: 3
Number of fixation holes: 3
Number of poles: 18
Exterior diameter: 92mm
Interior diameter: 35mm

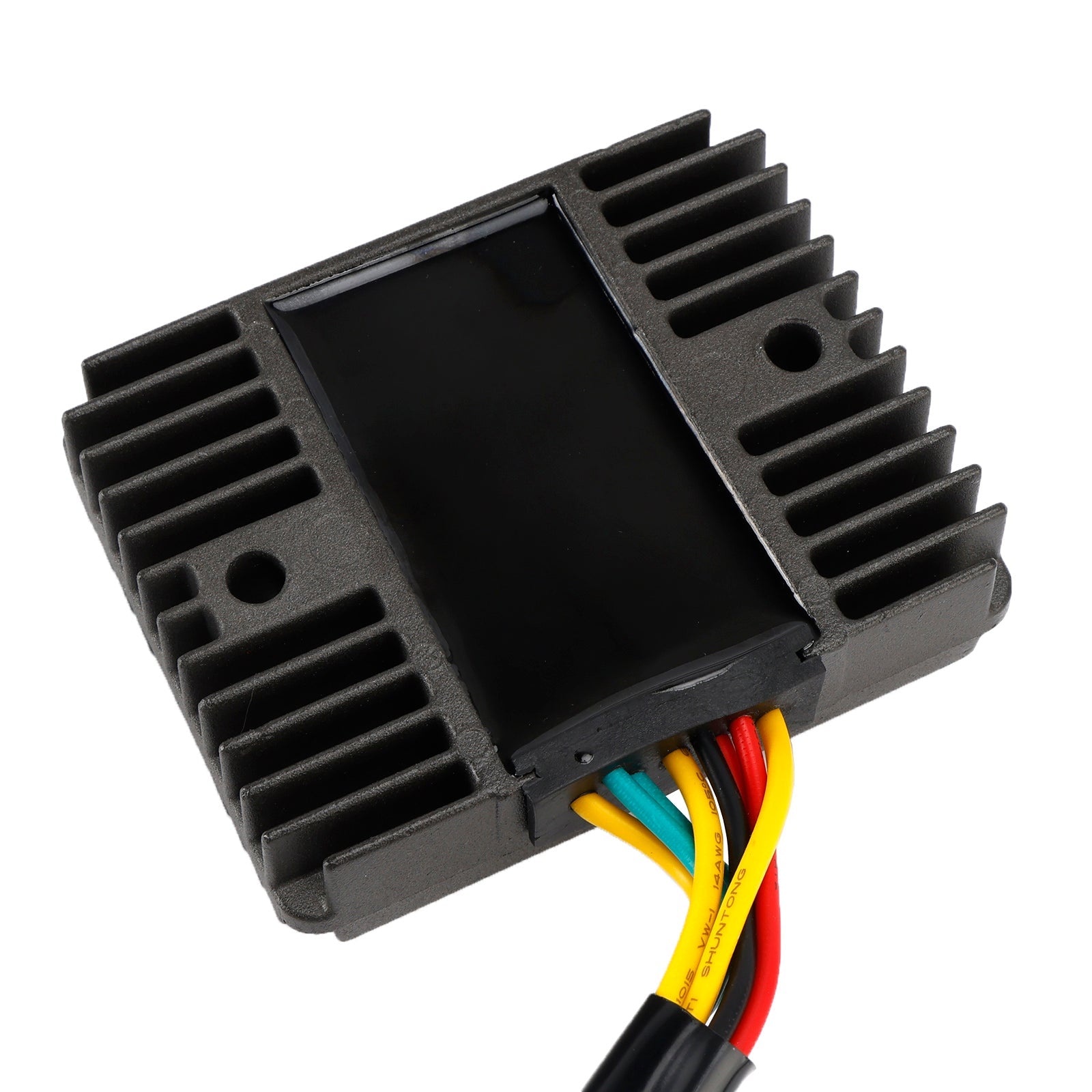

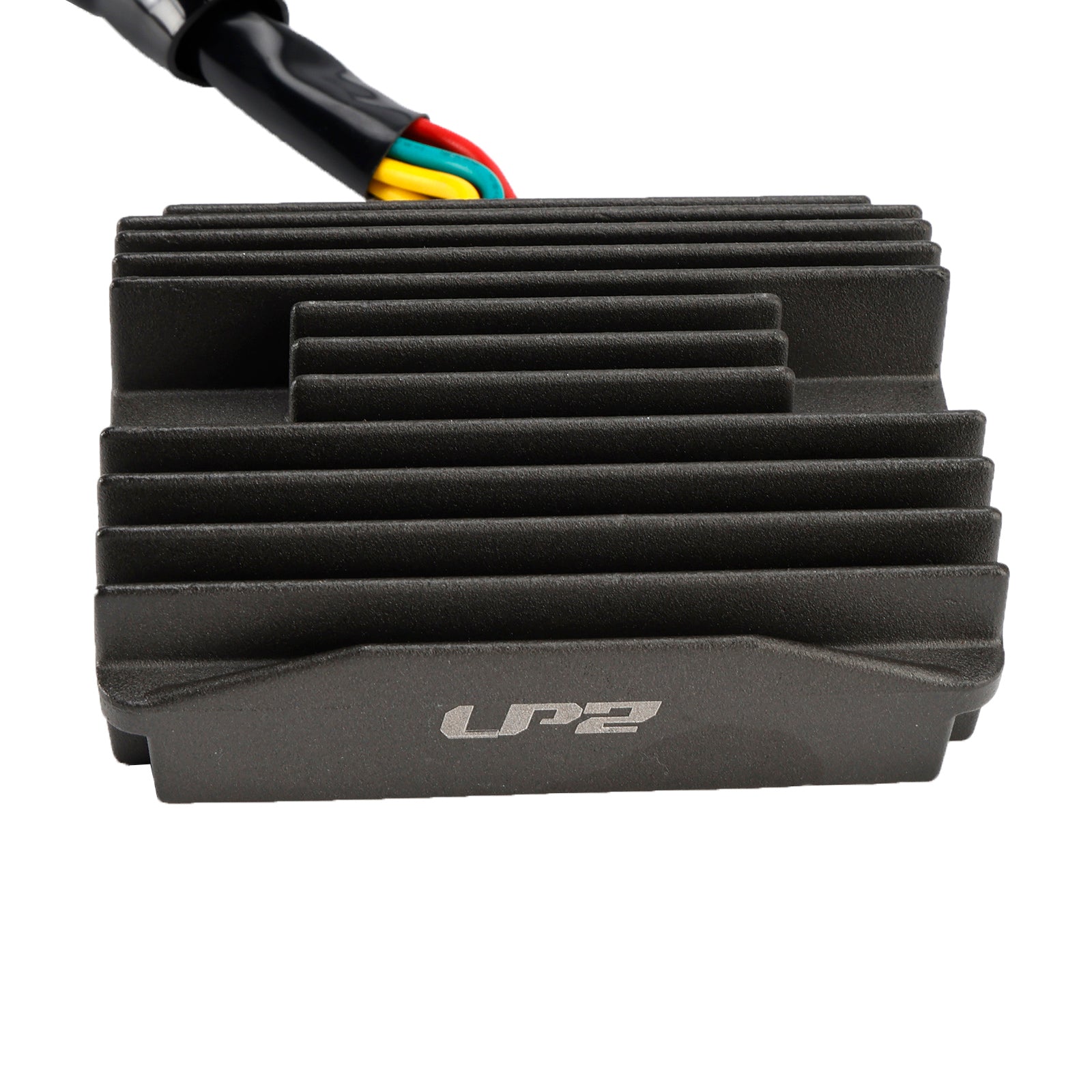

Regulator
Number of wires: 8

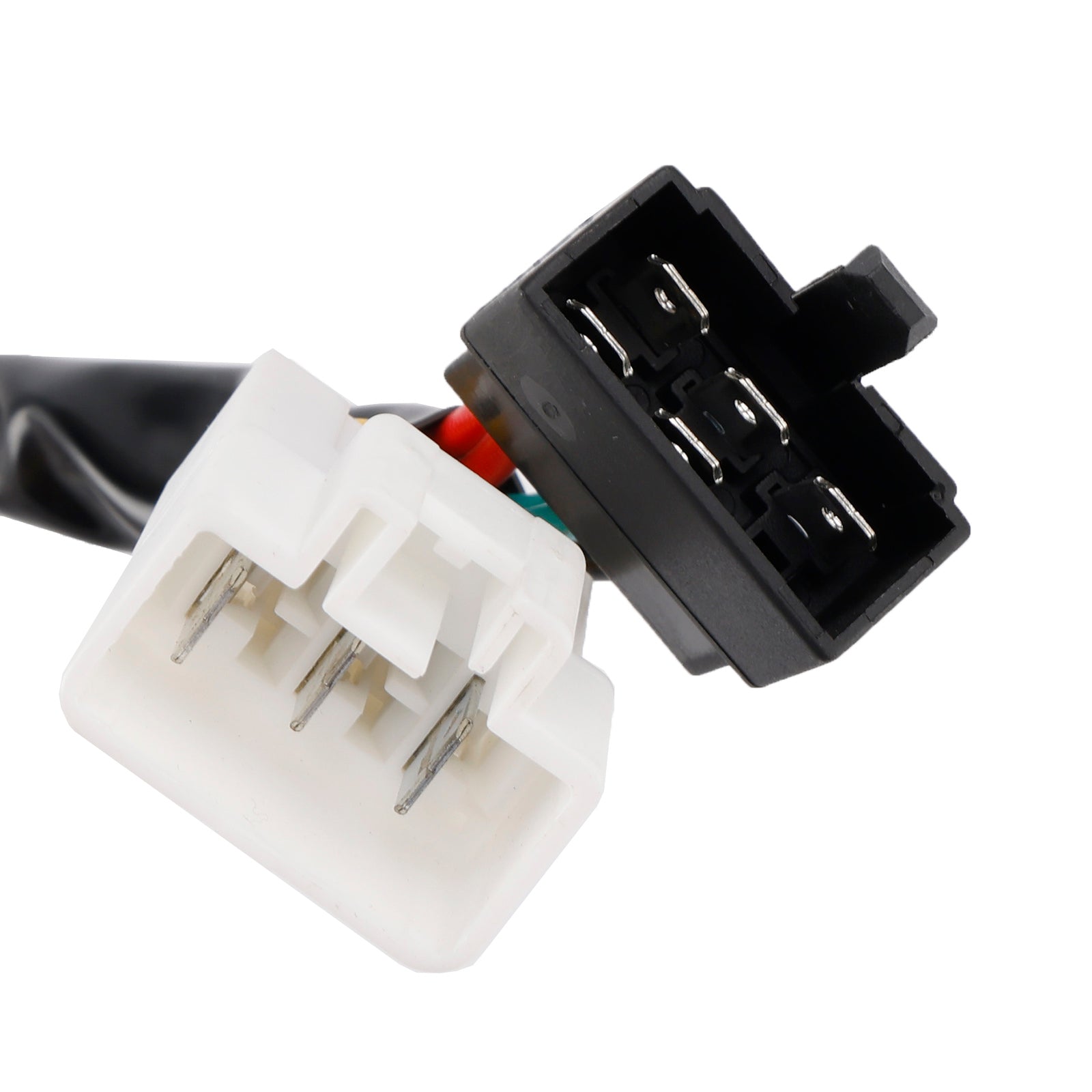

Number of plugs: 2
Number of pins: 3 + 5

Please compare the number of pins and plugs with the old part before purchasing.
