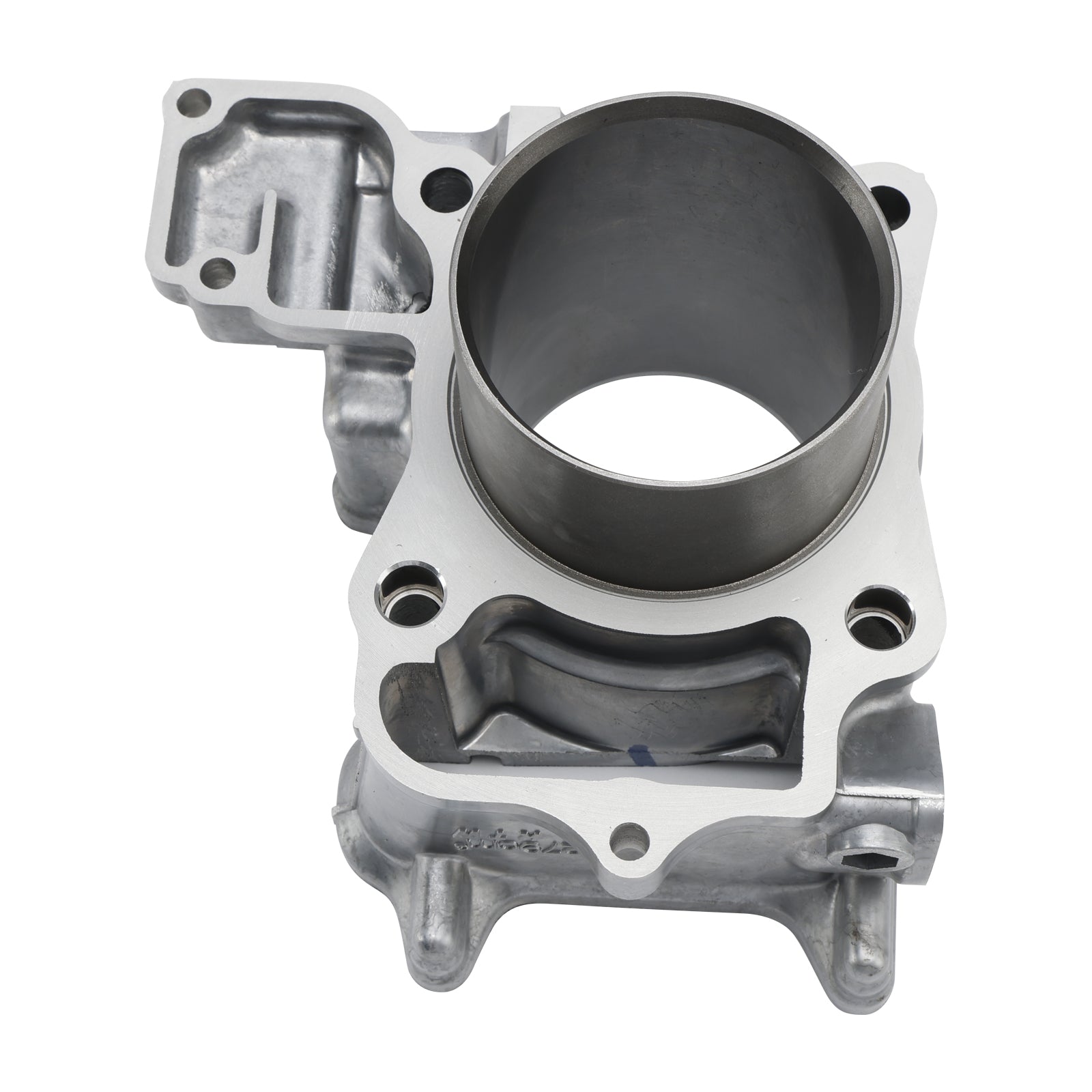

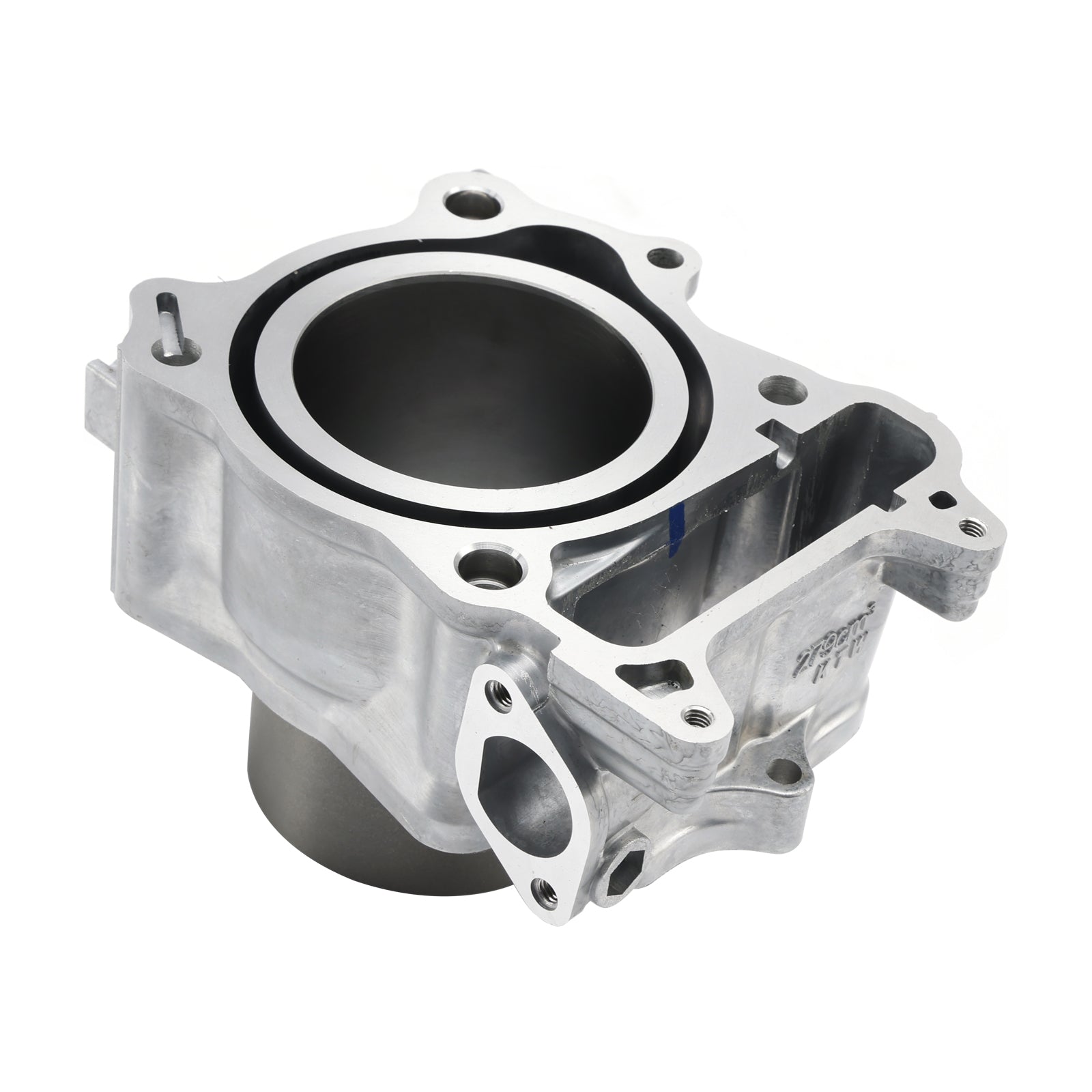

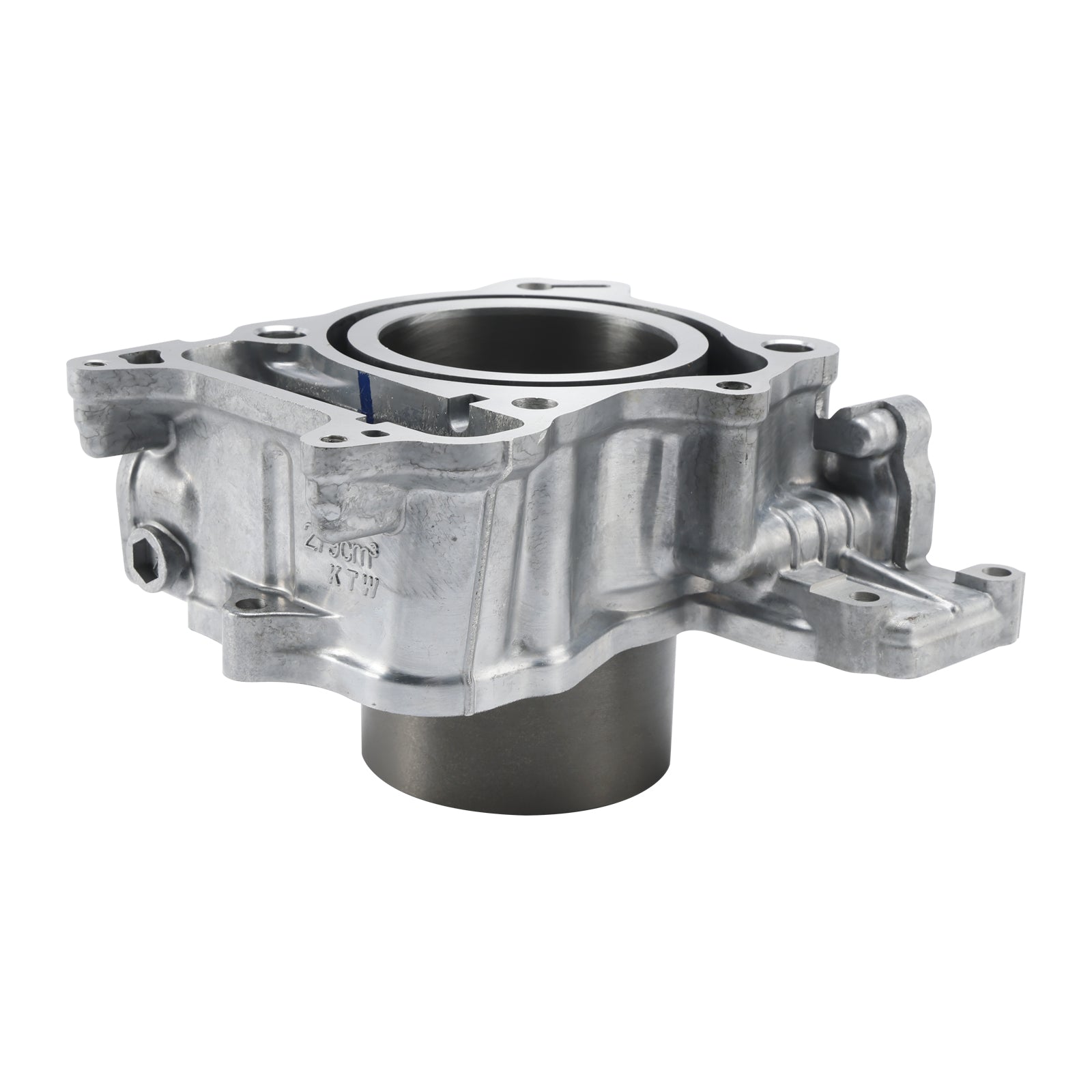

Features: If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you. Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured). Piston is anodized for superior heat resistance and longer lifespan. The gaskets use performance materials to increase durability and provide greater reliability. Includes all gaskets pictured to rebuild top end. Kit is for standard bore size - 72.0 mm x 68.5 mm stroke, 17mm steel piston pin. This kit is excellent as a low-cost replacement for defects in the original cylinder.
Specifications: Condition: Aftermarket 100% Brand New Quantity: 1 Set Material: Aluminum Displacement: 279cc Engine type: 4-Stroke Bore Type: Standard Bore Bore diameter: STD 72mm Stroke: 68.5mm Pin diameter: 17mm
Replacement Part Number: Cylinder: 12100-KTW-901, 12100-K04-931 Cylinder Base Gasket: 12191-KTW-901 Cylinder Head Gasket: 12251-KTW-901 Cam Chain Adjust Gasket: 14555-KAB-771, 14555-K04-931 Piston (Std): 13101-KTW-901, 13101-K04-930 Pin, Piston: 13111-MBG-000, 13111-K04-930 Piston Ring Set (Std): 13011-KTW-900 Circlips, piston (2): 94601-17000
Fits Make/Model/Year: Fit for Honda SH 300 i (NF02A) 2008 - 2010 Fit for Honda SH 300 i A ABS (NF02B) 2007 - 2010 Fit for Honda SH 300 i A ABS (NF02D) 2011 - 2015 Fit for Honda SH 300 i A ABS (NF05A) 2016 - 2018 Fit for Honda SH 300 i A ABS (NF05B) 2019 - 2020 Fit for Honda NSS 300 Forza (NF04A) 2013 - 2017 Fit for Honda NSS 300 A Forza ABS (NF04B) 2013 - 2017 Fit for Honda NSS 300 A Forza ABS (NF08A) 2018 - 2020
(Compatibility Chart is for Reference ONLY!!!) (Please Compare with Your faulty unit and the image we provided to Decide Fitment)

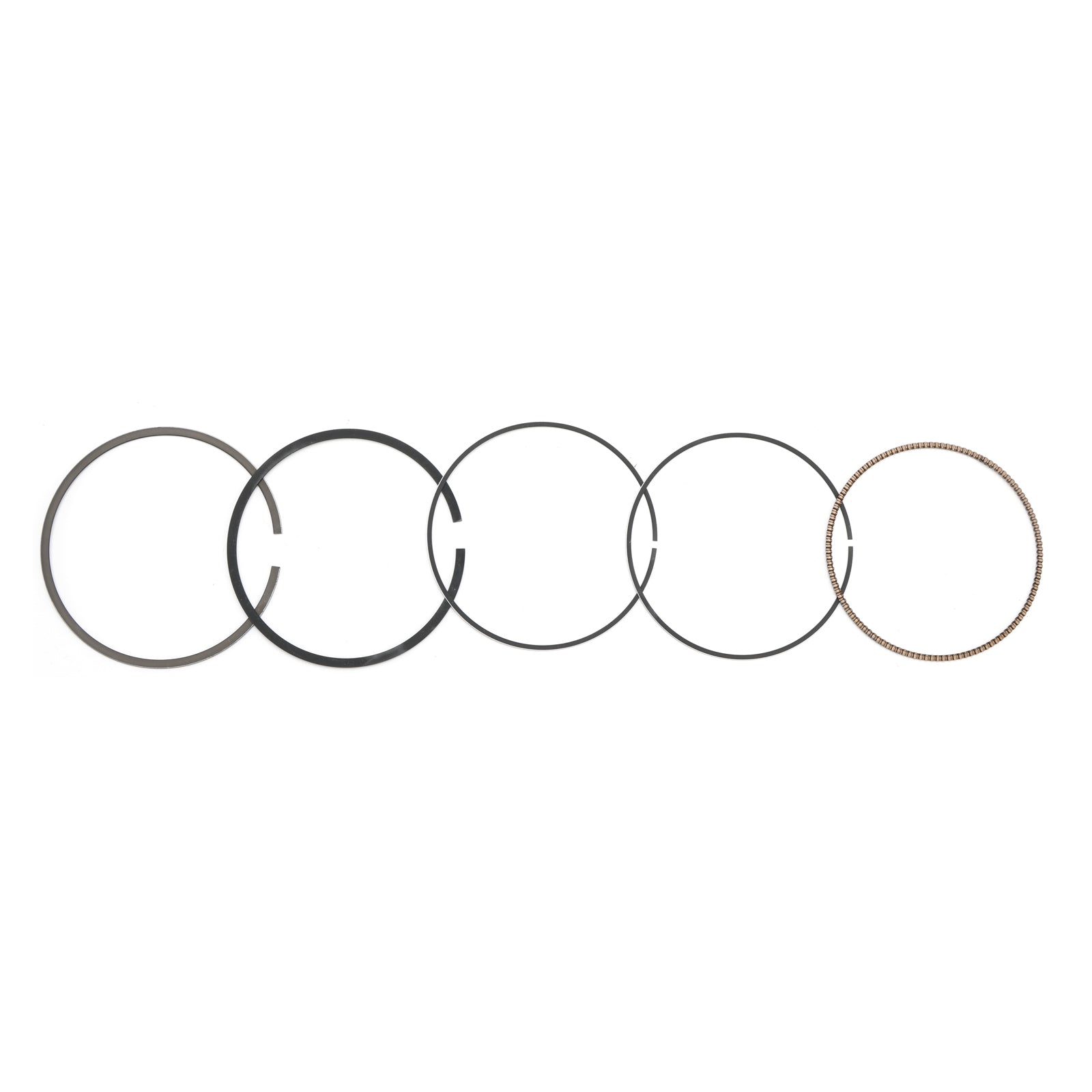

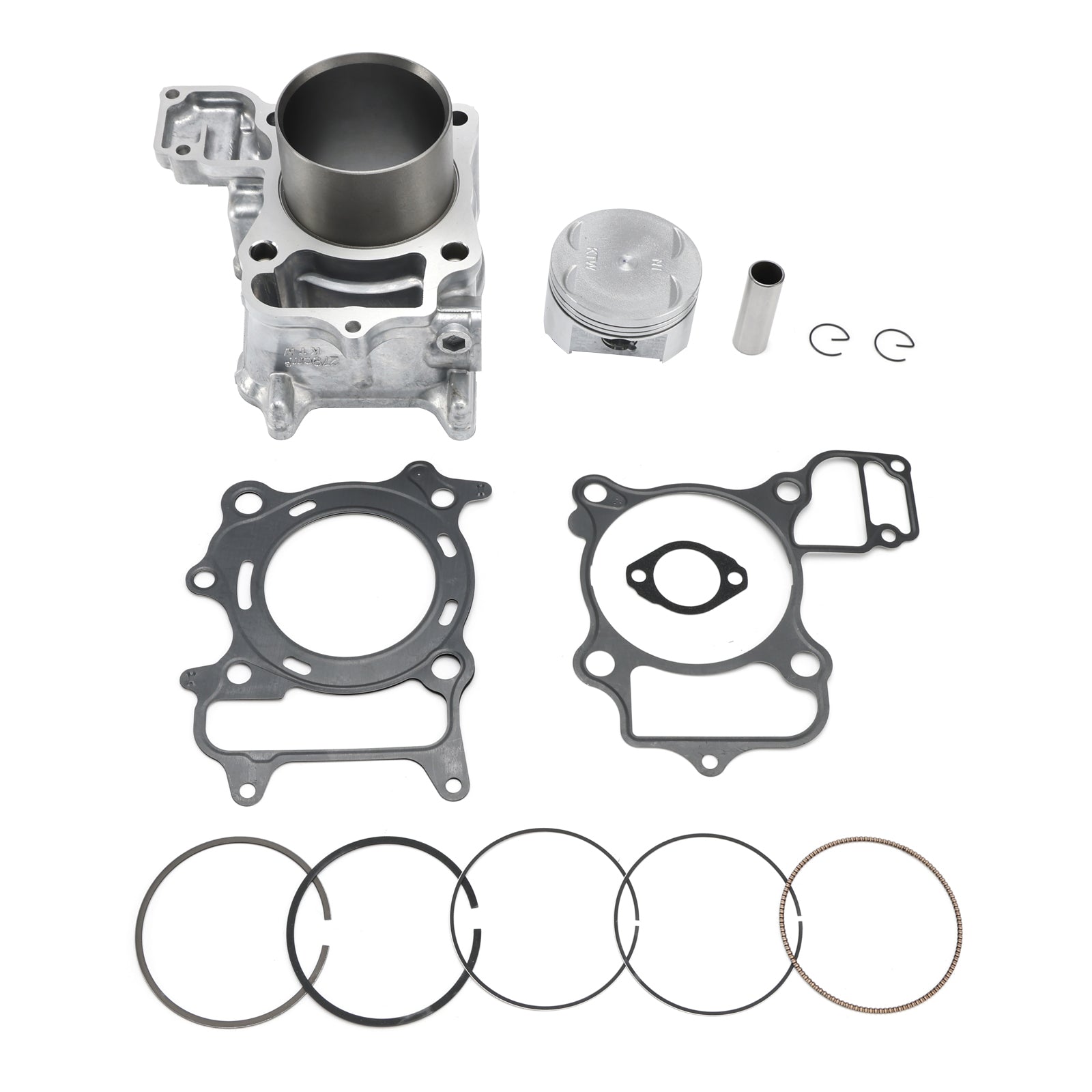

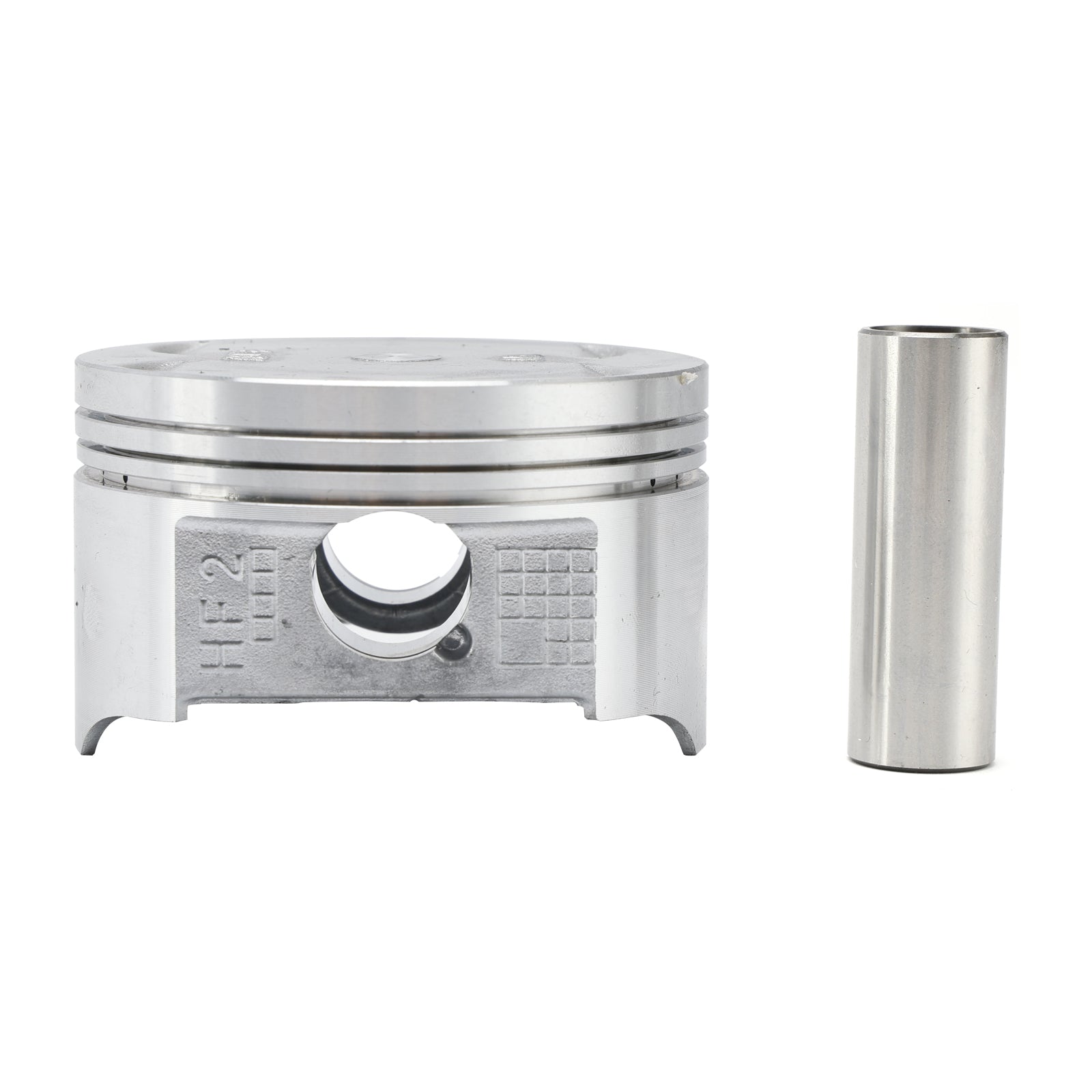

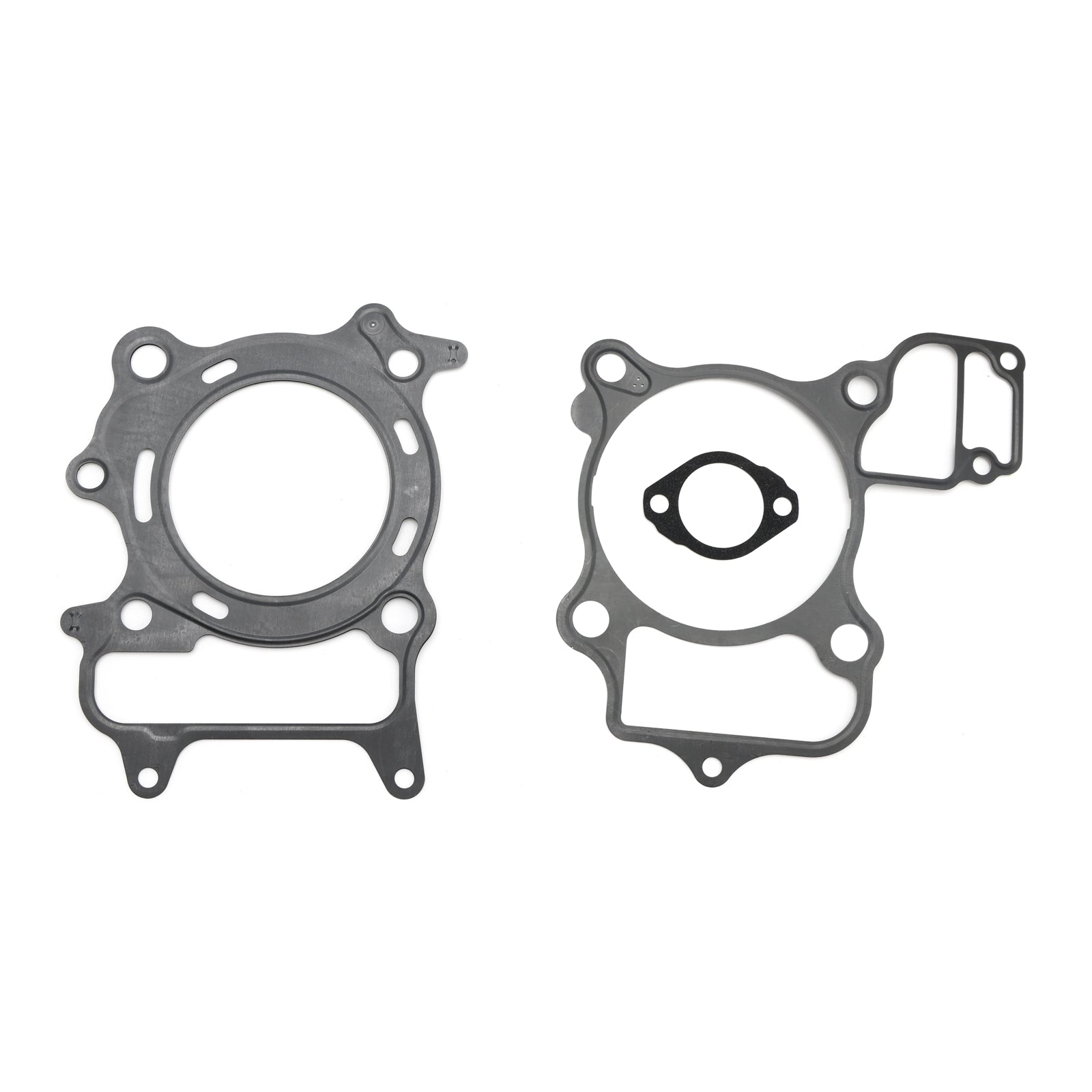

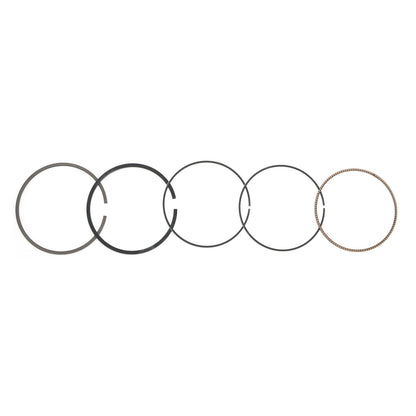

Package Includes: 1x Cylinder 1x Piston 1x Piston Ring Set 1x 17mm Wristpin 1x Circlip(2) 1x Cylinder Base Gasket 1x Cylinder Head Gasket 1x Camchain Gasket
(Comes exactly as pictured.)
Note: Carefully compare to your old parts to be sure this is the correct part for your machine.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer. The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
Shipping: Free Shipping Handling?time: Ship within 24 hours Delivery Time: 3-7 business days
Warranty: 1. Condition: 100% Brand New 2. Warranty Period: 1 Years 3. 24-Hour Support: Provide you with timely after-sale support
