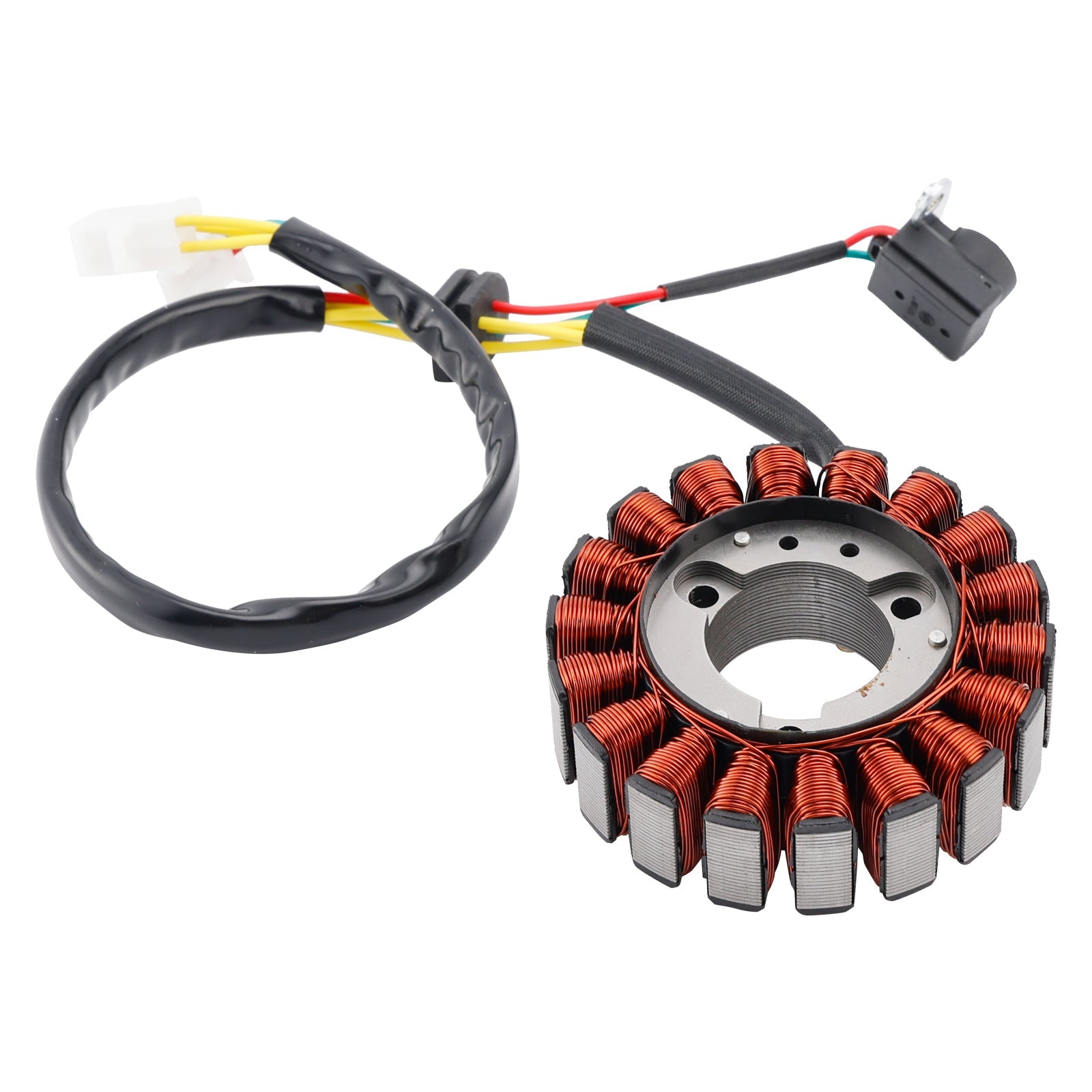

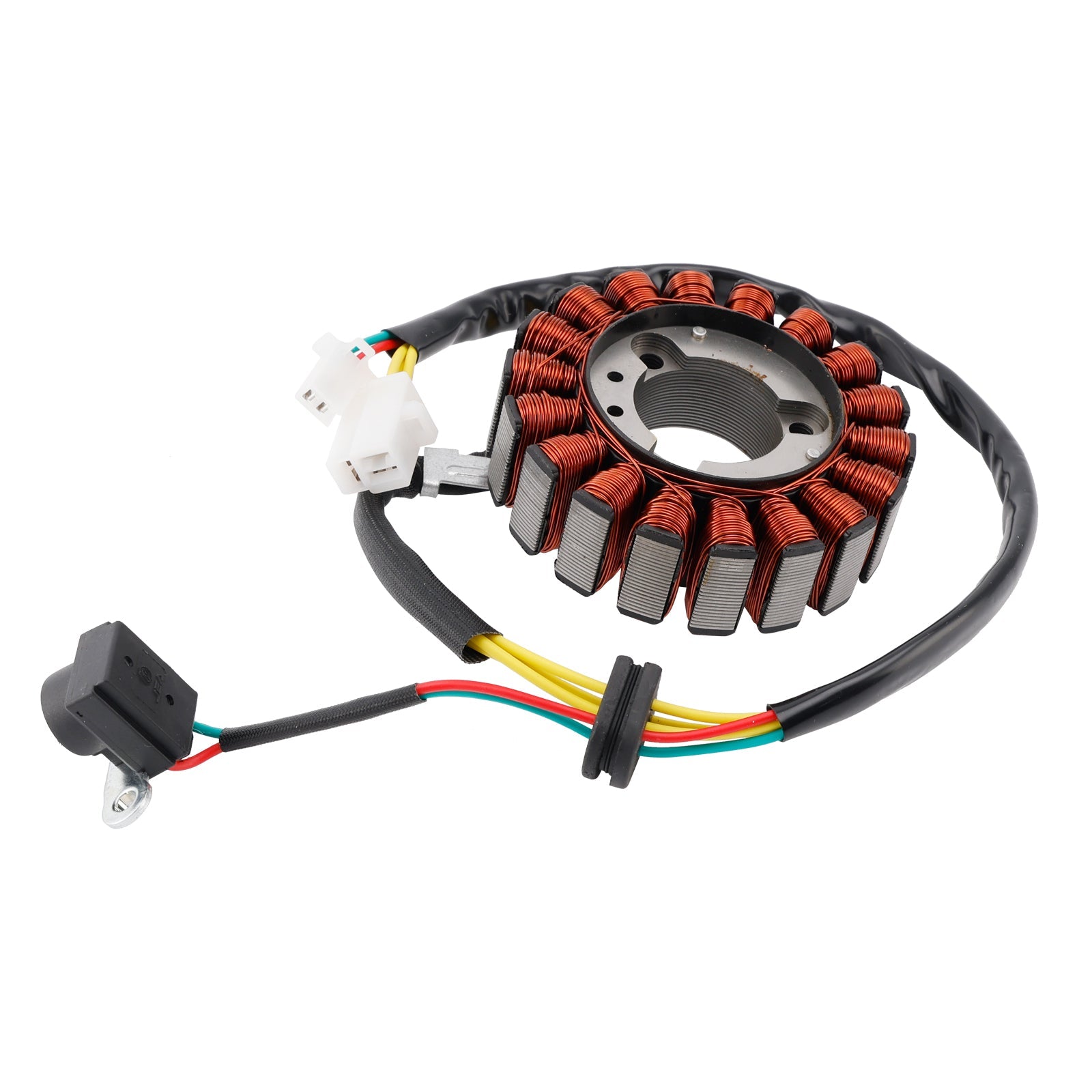

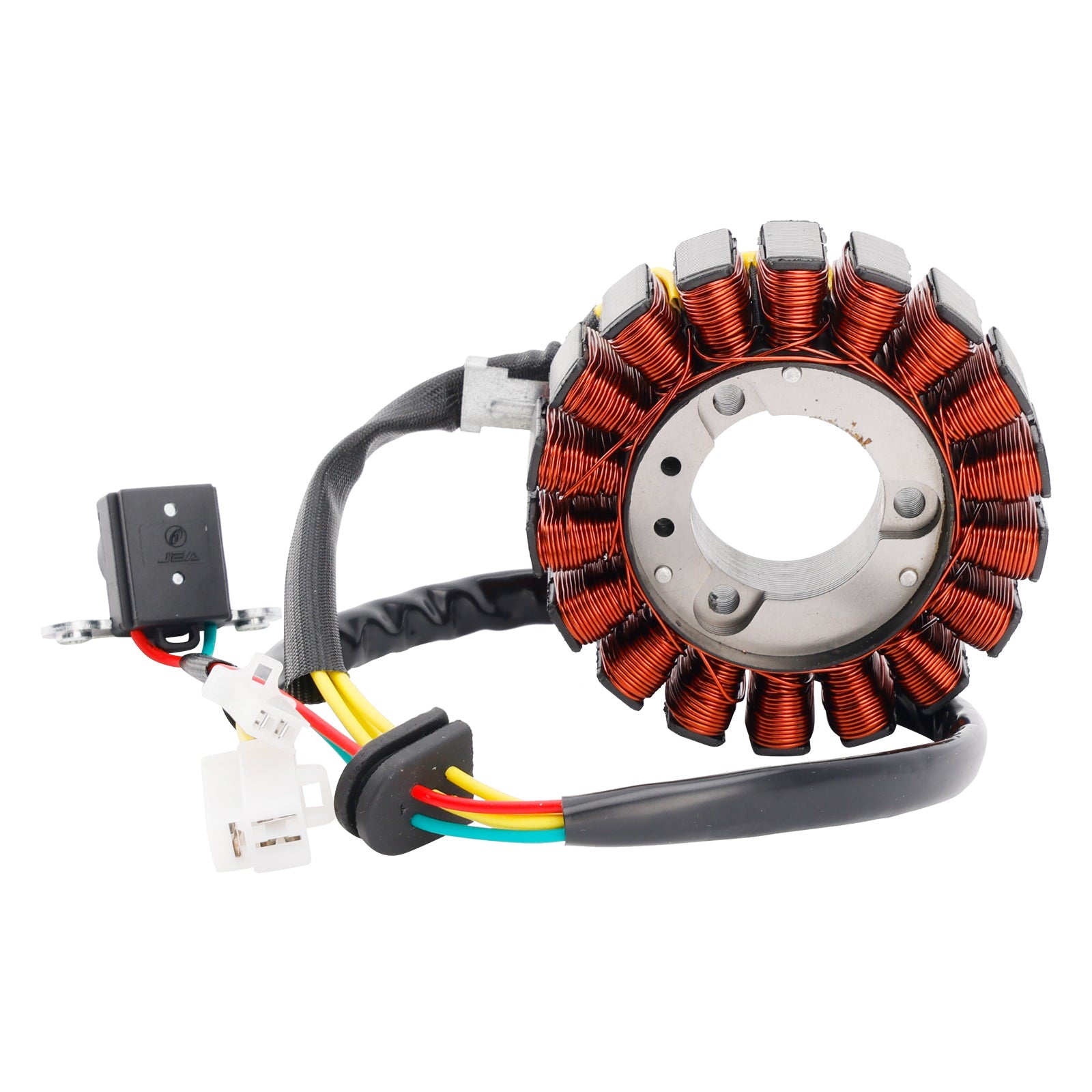

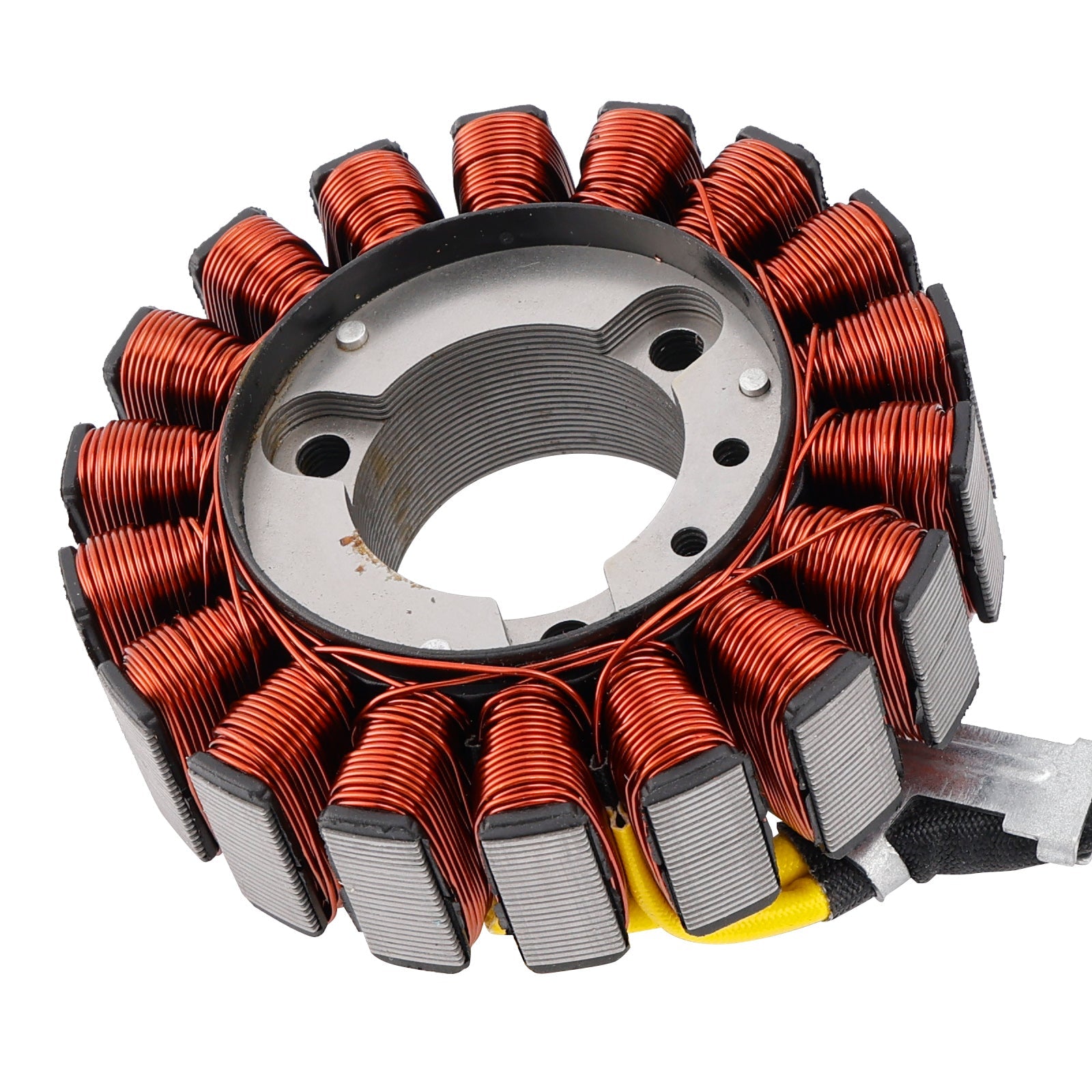

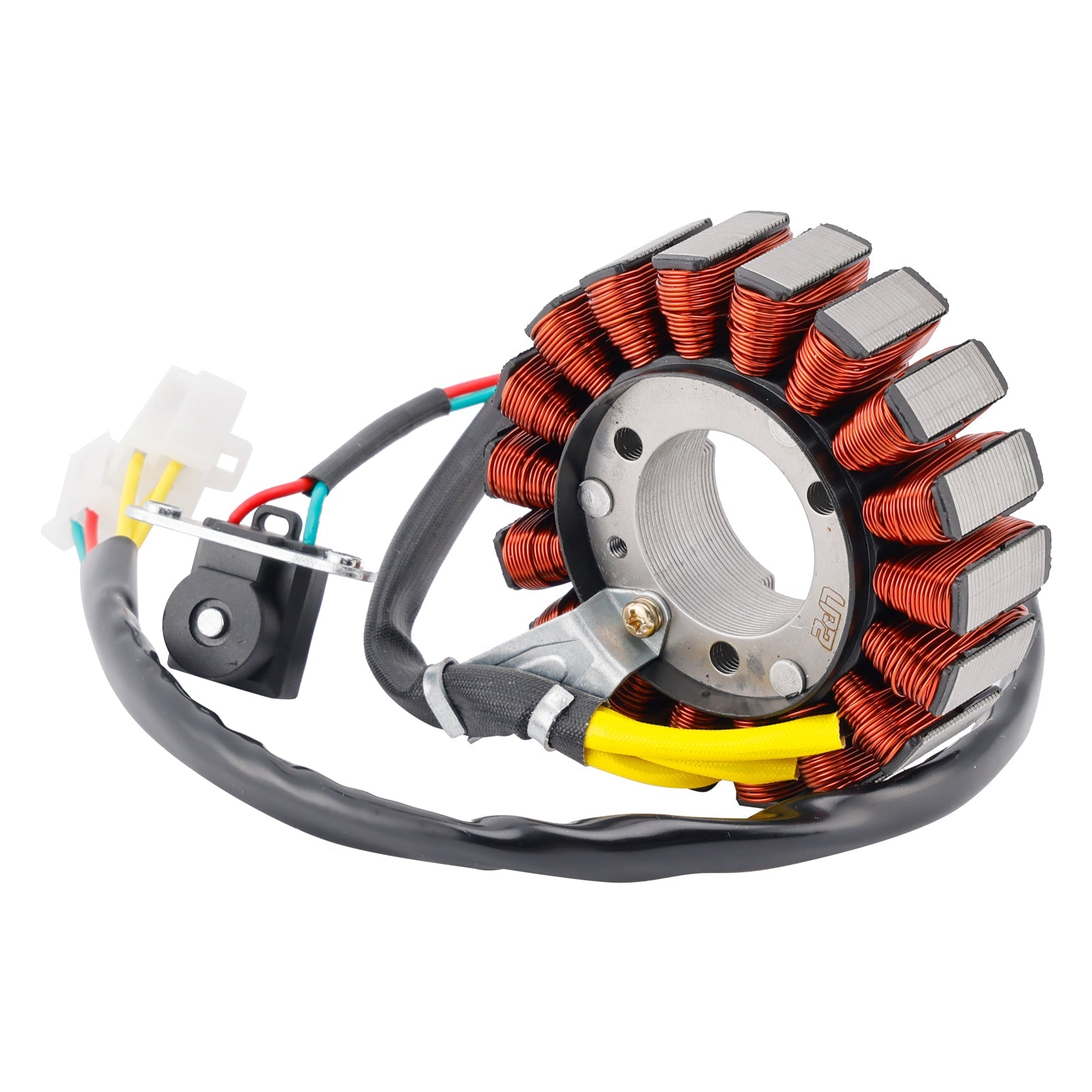

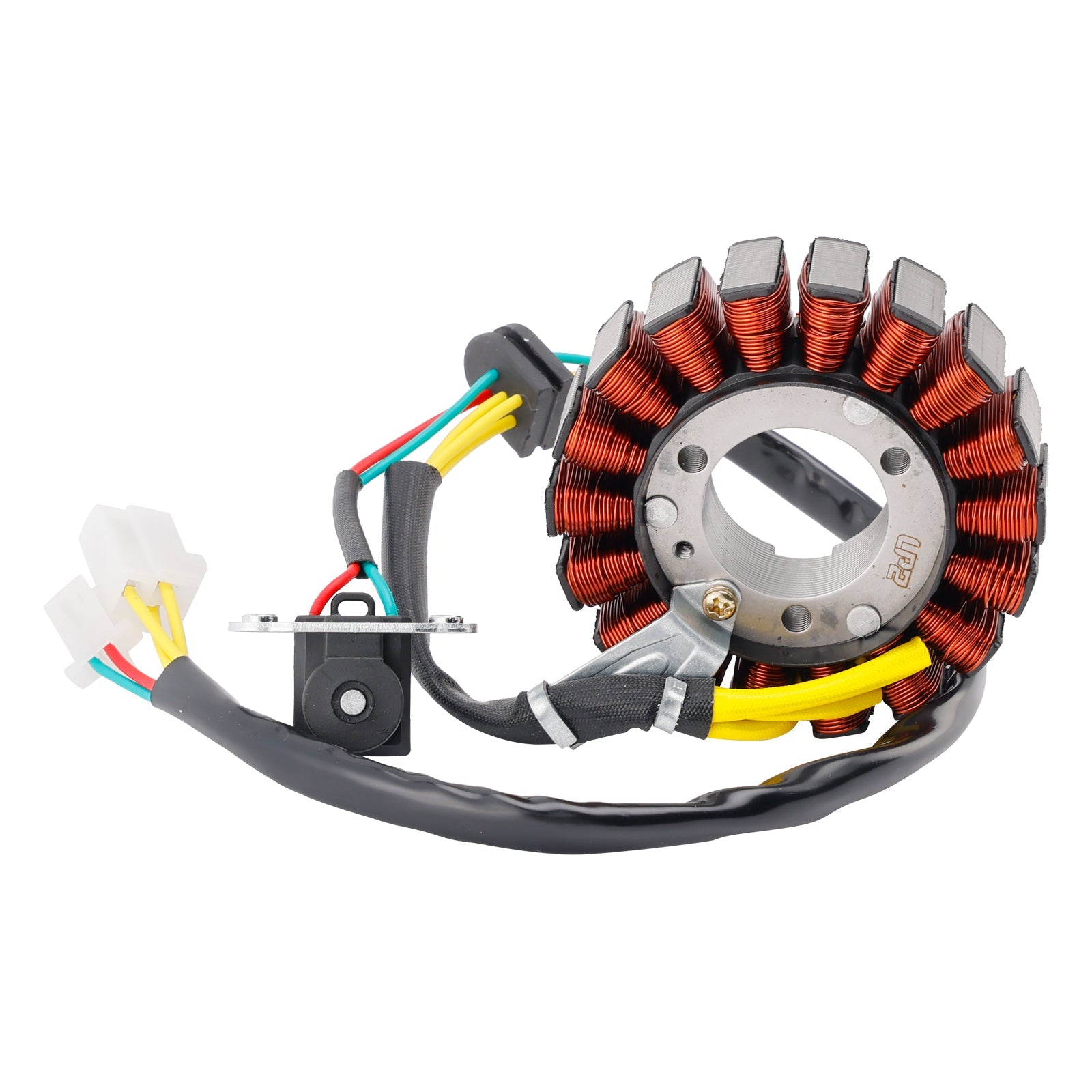

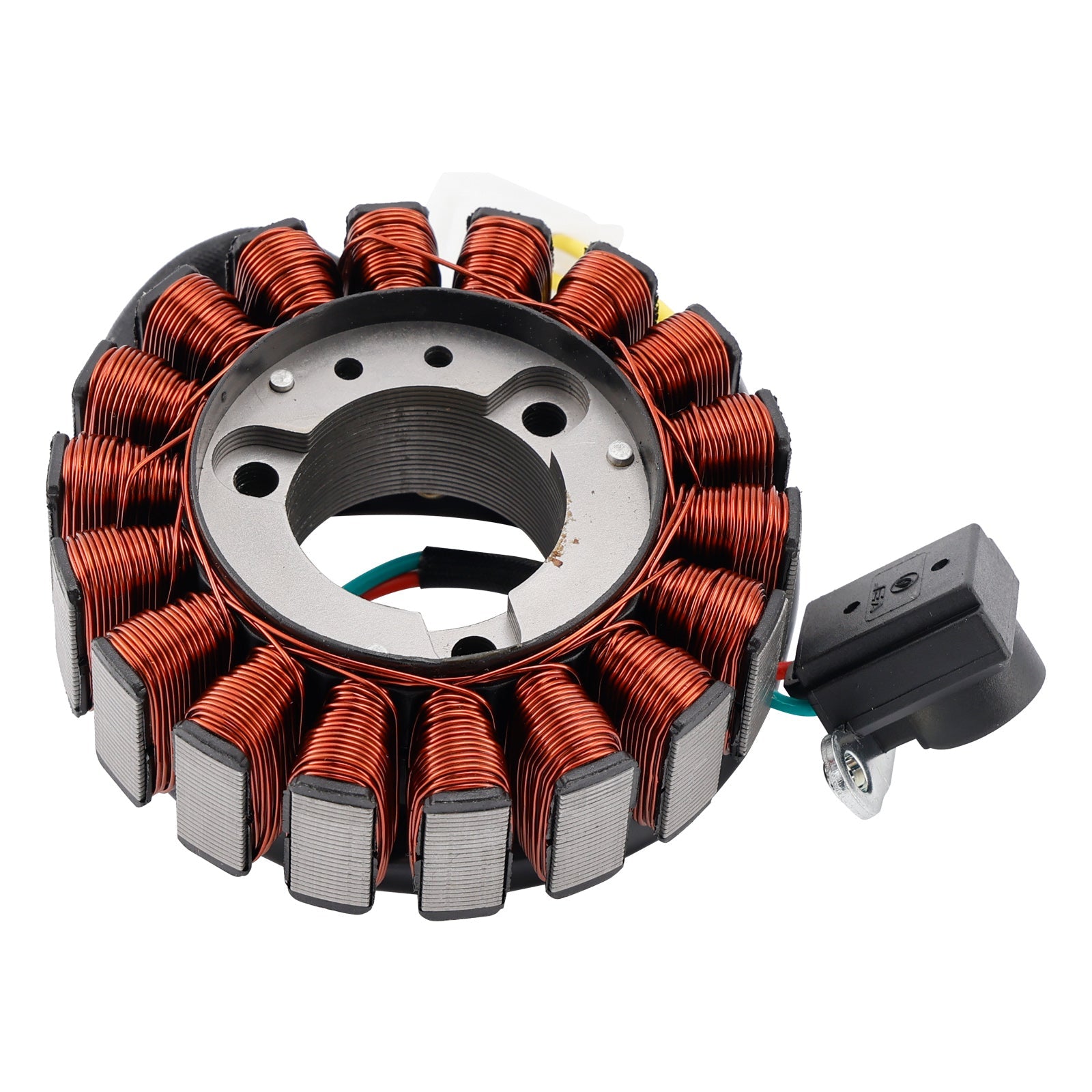

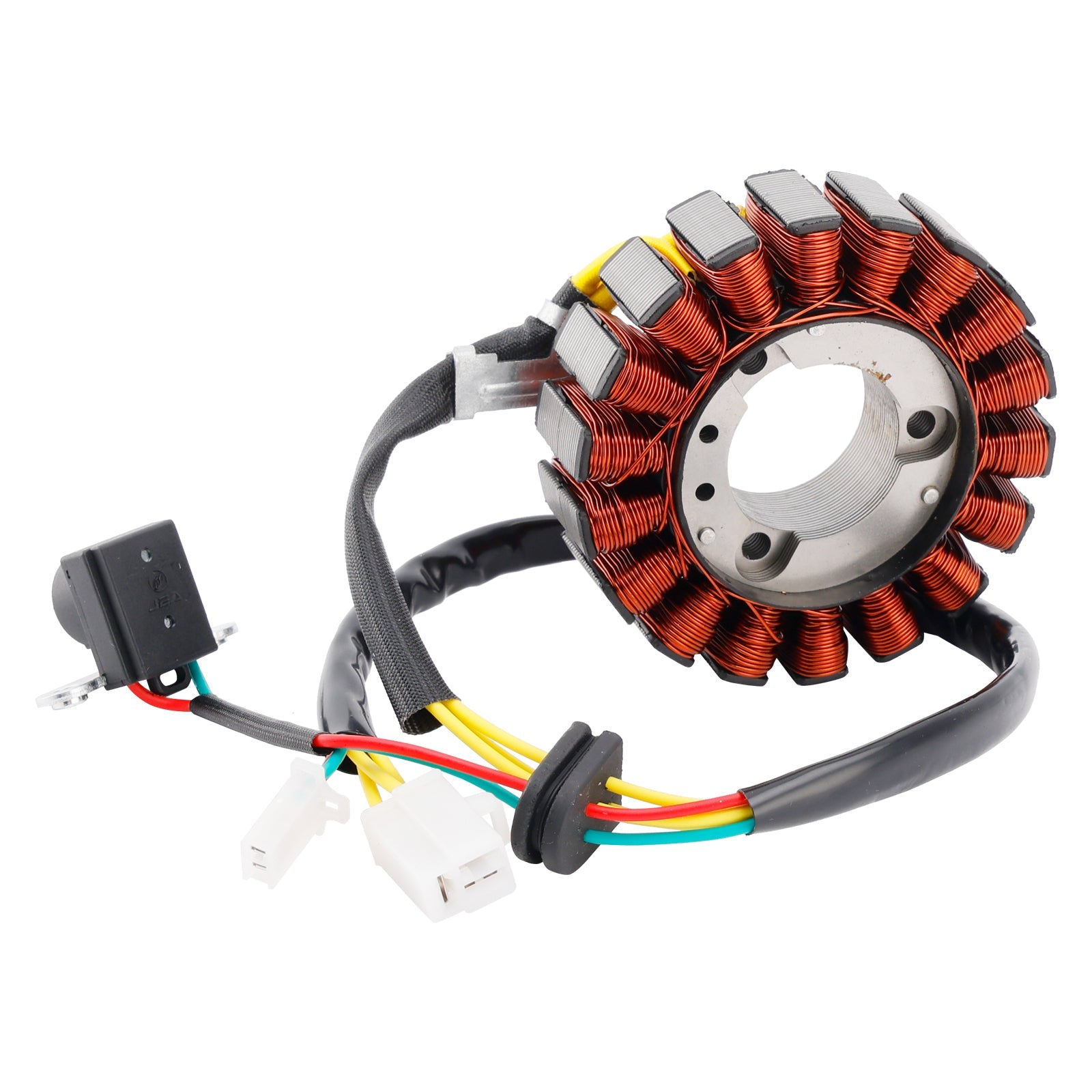

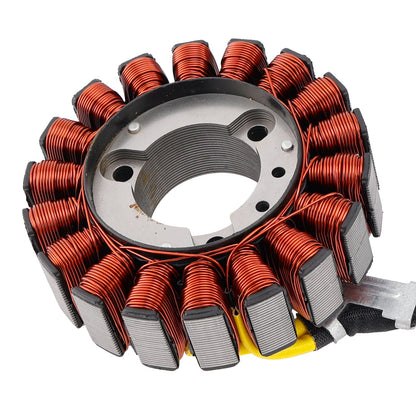

Daelim S3 125 S3 250 S3 FI 125 S300 SV250 EFI models 18-Pole 31120-SAB-0000 DAE-31120-SAB-0000 Magneto Generator Stator
Daelim S3 125 S3 250 S3 FI 125 S300 SV250 EFI models 18-Pole 31120-SAB-0000 DAE-31120-SAB-0000 Magneto Generator Stator
Couldn't load pickup availability
Replacement Part Number:
31120-SAB-0000
DAE-31120-SAB-0000
Fitments:
Fit for Daelim S3 125
Fit for Daelim S3 250
Fit for Daelim S-3 F.i. (125)
Fit for Daelim S-300
Fit for Daelim SV-250
It cannot fit on CARBY(Carburetor) models, only for the EFI models.
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.

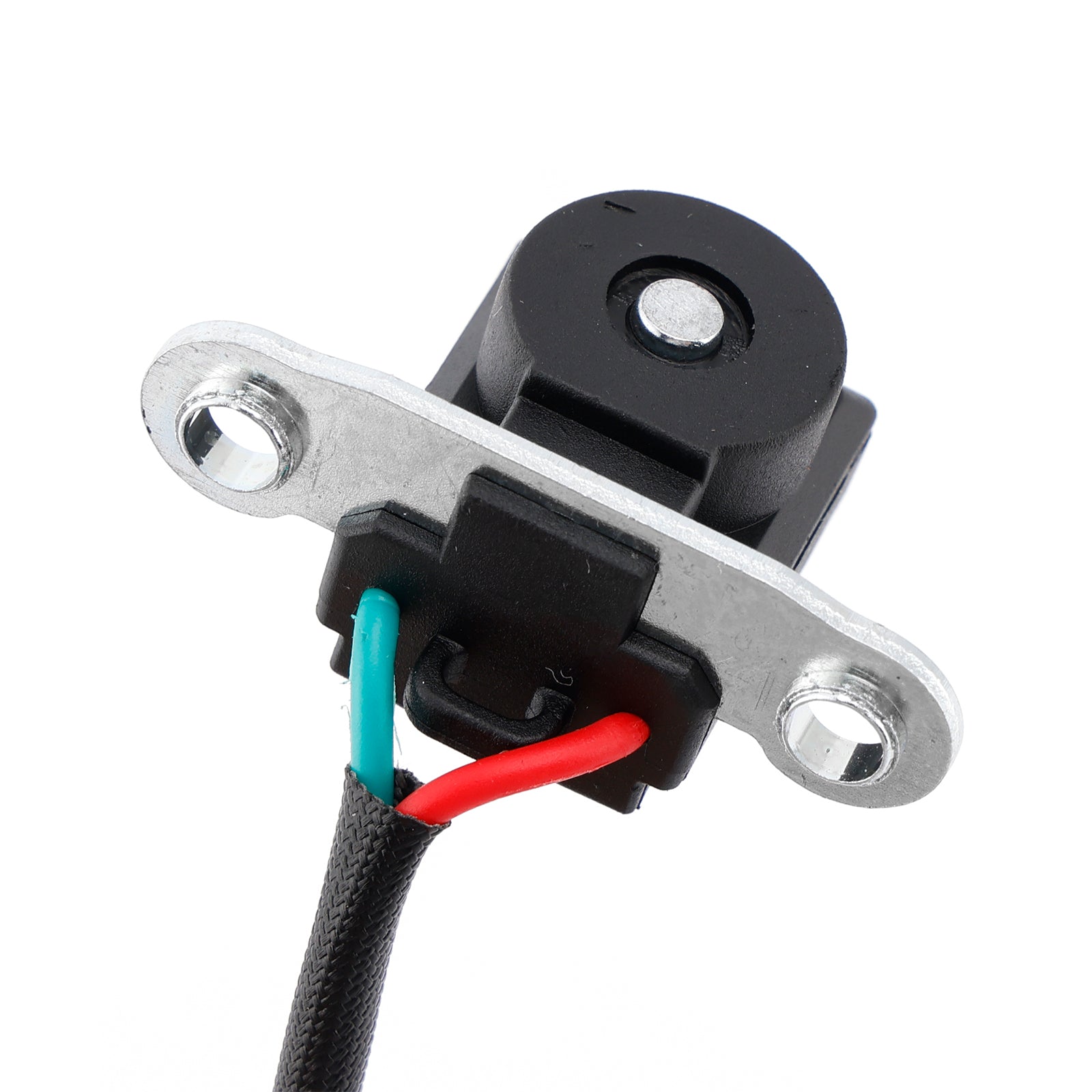

Pick up pulsar coil included.
Connector included.
Rubber grommet included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator Coil
other specifications:
Number of wires: 5

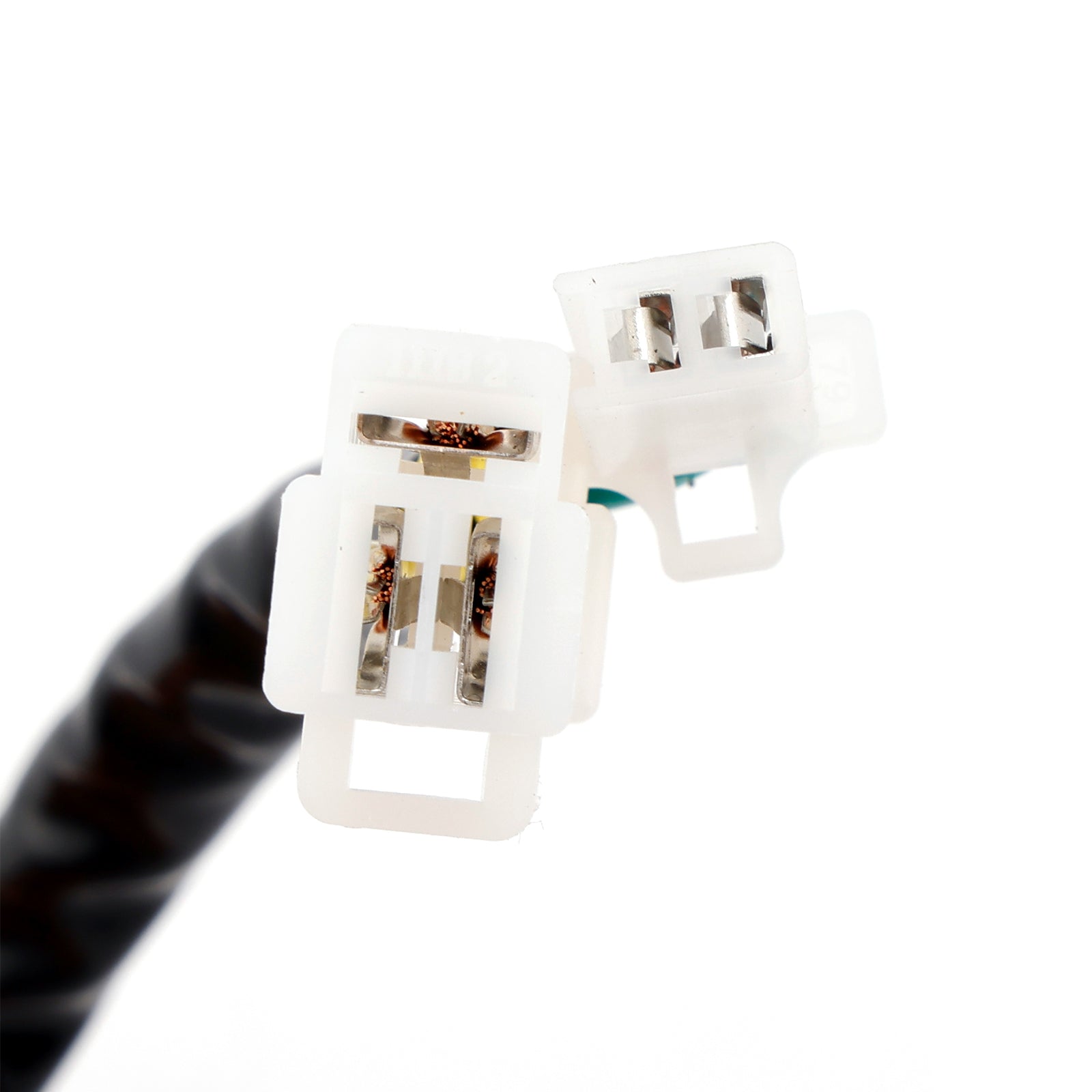

Number of plugs: 2
Number of pins: 2 + 3
Number of fixation holes: 3
Number of poles: 18
Package Included:
1x Stator Generator
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
