Complete Cylinder Barrel Piston Gasket Kit For Yamaha FZ-16 FZ16 2015-2018

58mm Cylinder Barrel Jug Piston Gasket Kit For Yamaha FZ16 FZ-16 2015-2018

Features:
Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
Cast piston has super-high silicone content for additional strength.
Piston skirts are Molybdenium Teflon coated to minimize resistance/wear and provide extended life.
Piston dome is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 58.00 mm.
All of the components within this kit are bolt-on ready for a hassle free installation.

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Piston Material: Forged Aluminum
Actual Displacement: 153cc
Bore Type: Standard Bore
Bore: 58 mm
Stroke: 57.9 mm

Replacement Part Number:
Cylinder: 45P-E1310-00
Cylinder Base Gasket: 45P-E1351-00
Cylinder Head Gasket: 45P-E1181-00
Piston: 45P-E1630-00
Pin, piston: 45P-E1633-08
Ring Set, piston: 21C-E1603-00
Circlips, piston: 93450-16068

Fitments:
Fit for Yamaha FZ16 all years

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

Package Includes:

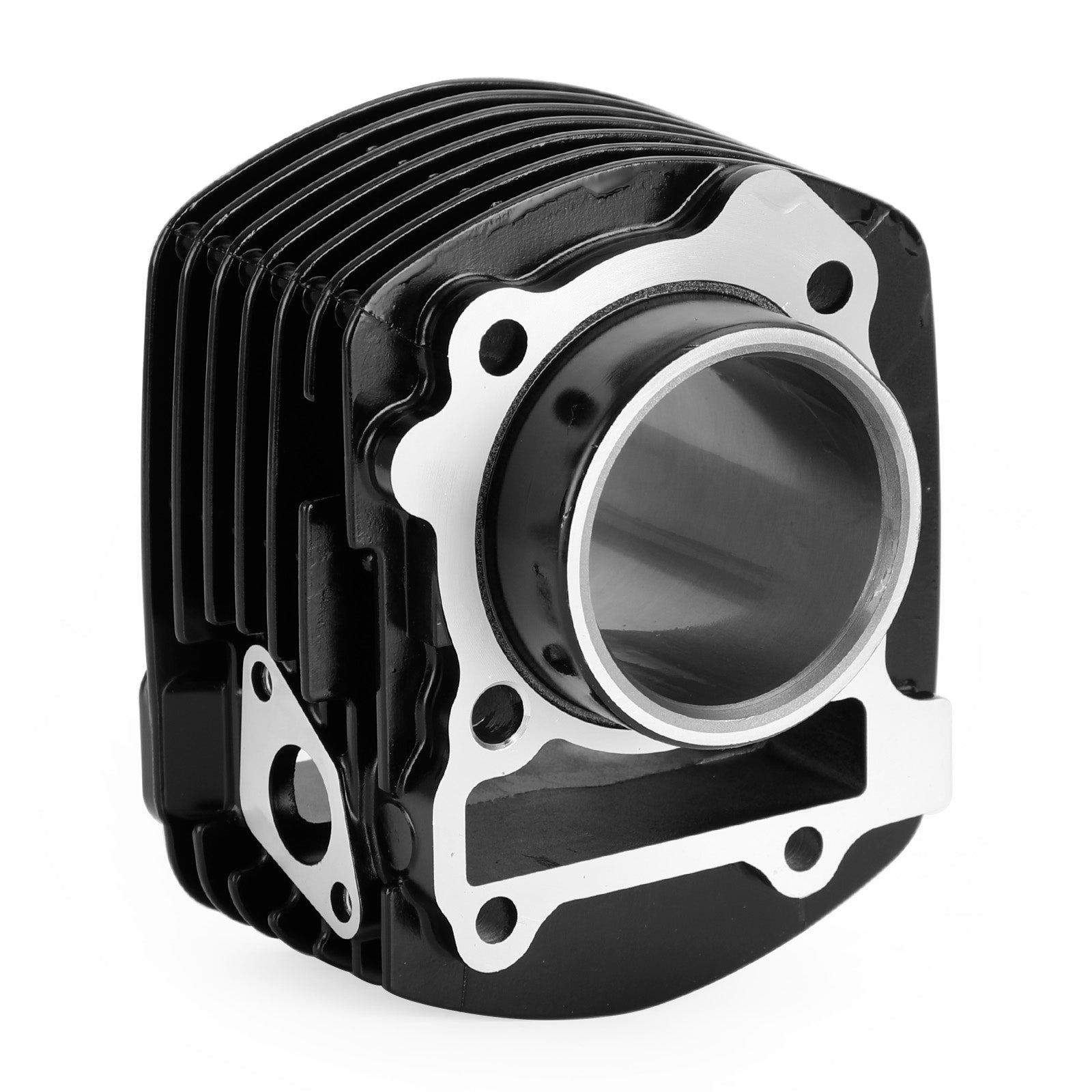

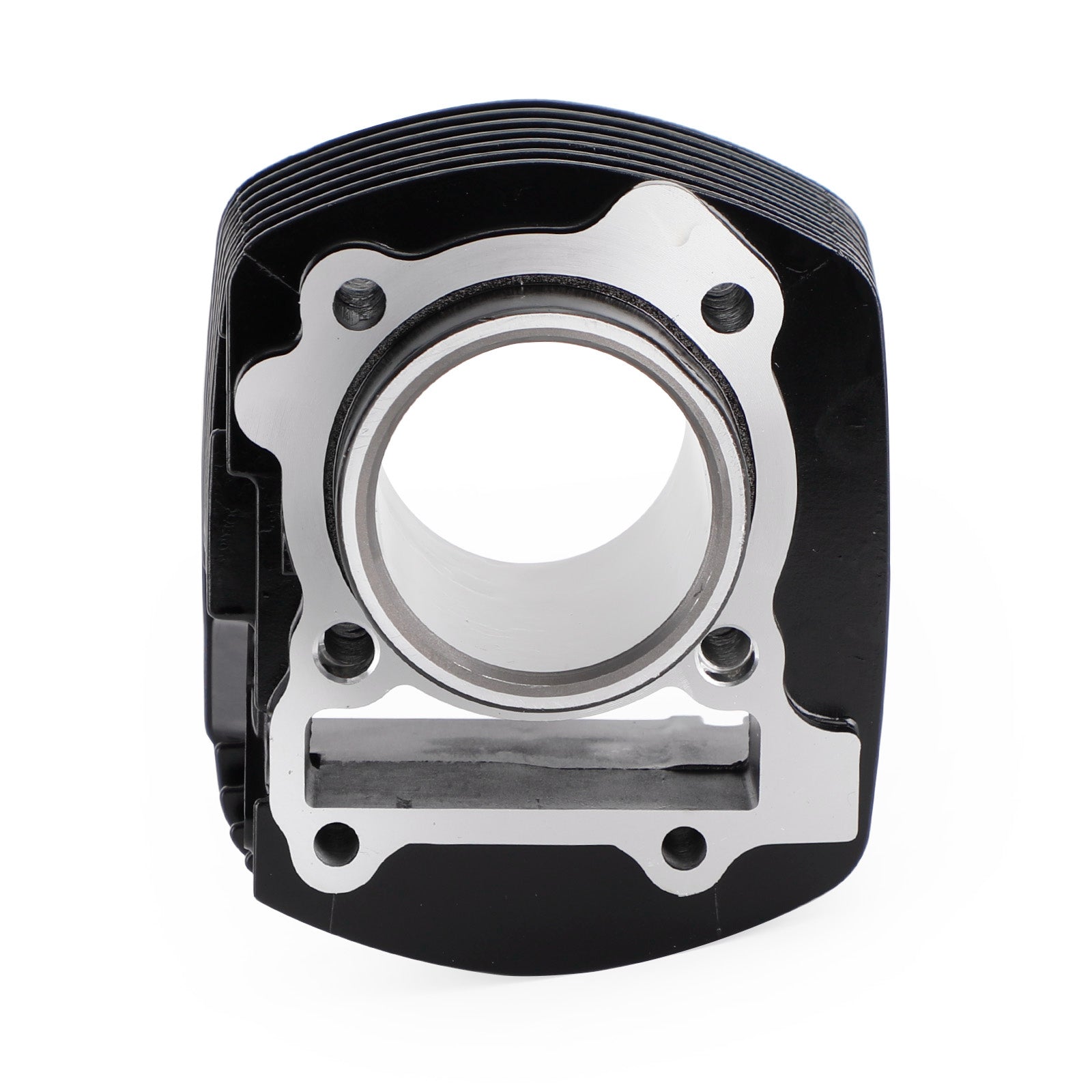

1x 58mm Cylinder
1x Piston(STD)

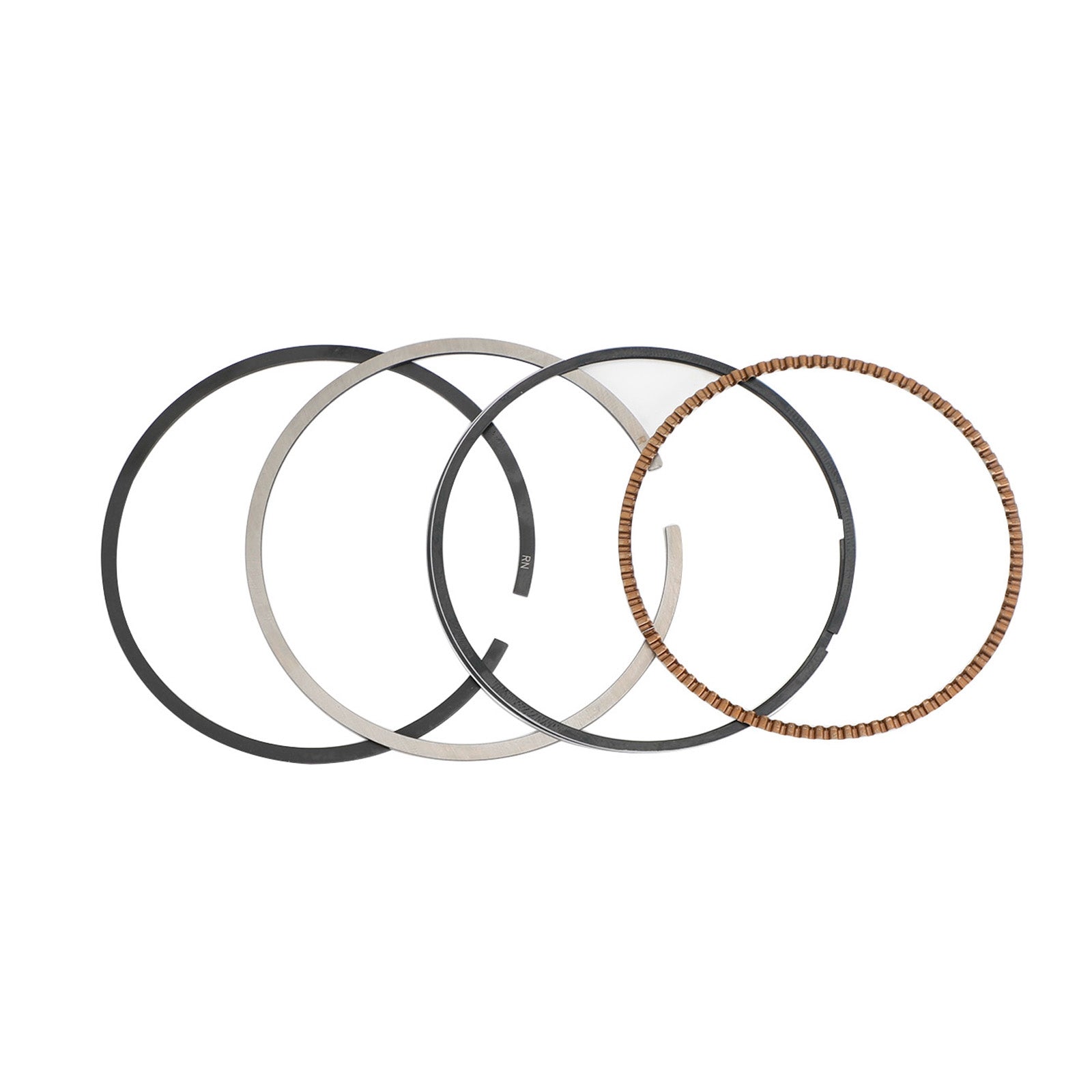

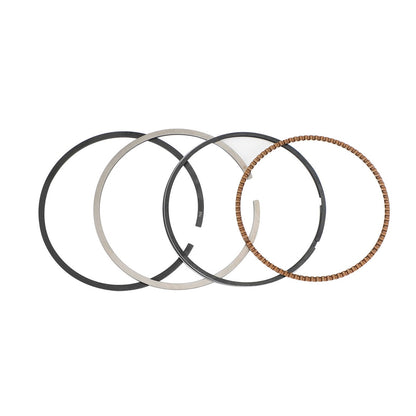

1x Piston Ring Set
1x Wristpin
1x Circlip(2)
2x Valve seals
1x Cylinder Base Gasket
1x Cylinder Head Gasket

Note:
Ring end gaps are checked prior to shipment for proper sizing.
Please check out the product and size fits your motorcycle or not before you purchase.
