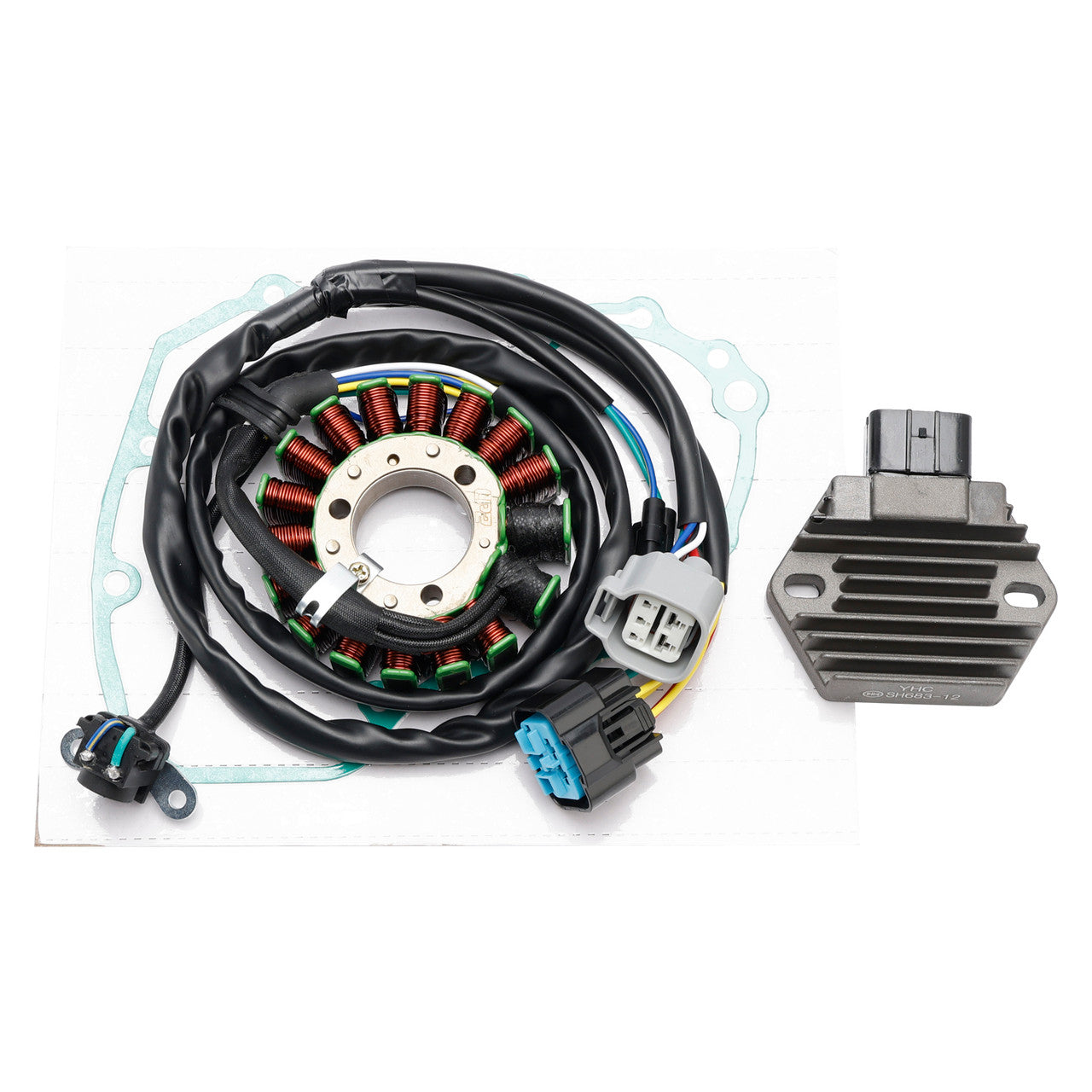

2006-09 Honda TRX450R TRX450ER Magneto Coil Stator+Voltage Regulator+Gasket Assy 31120-HP1-601 31600-KTB-003

2006-09 Honda TRX450R TRX450ER Magneto Coil Stator+Voltage Regulator+Gasket Assy 31120-HP1-601 31600-KTB-003

SKU:M550-C455~2

Regular price $97.99 USD
Regular price Sale price $97.99 USD
Sale Sold out
Shipping calculated at checkout.

Replacement Part Number:
Stator Assy: 31120-HP1-601
Rectifier, regulator: 31600-KTB-003

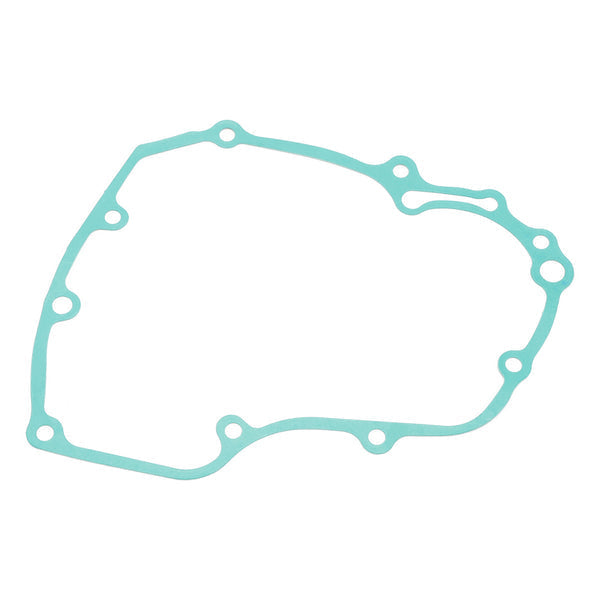

Gasket, generator cover: 11395-HP1-600

Fits Make/Model/Year:
Fit for Honda TRX450ER 2006-2009/2012-2014
Fit for Honda TRX450R 2006-2009

Features:

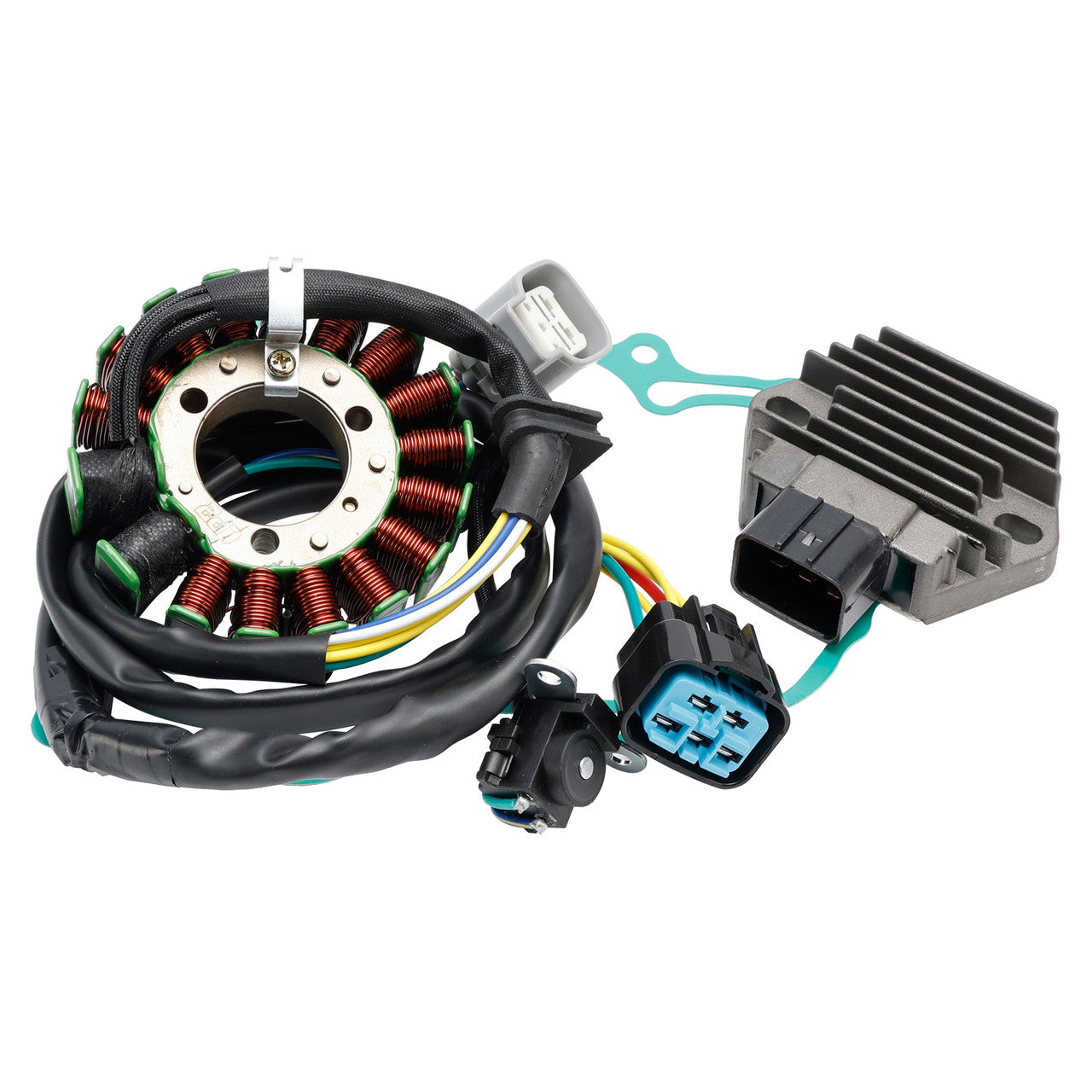

Kit include Stator, Regulator Rectifier and gasket.
Meet or exceeds the OEM quality, direct replacement to your original unit.
Perfect fit and ready to install.
Always use a sealant to mount the cable gland joint.
Instruction is NOT included.

ATTENTION:
One of the most common reasons a stator breaks down is due to a broken regulator, which burns the stator in no time.
Therefore we highly recommend you to switch both parts.
Technically modified stators are excluded from exchange.
This regulator is not suitable for lithium-ion batteries! The battery or other electric parts can be damaged!

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator and Regulator Kit

other specification:

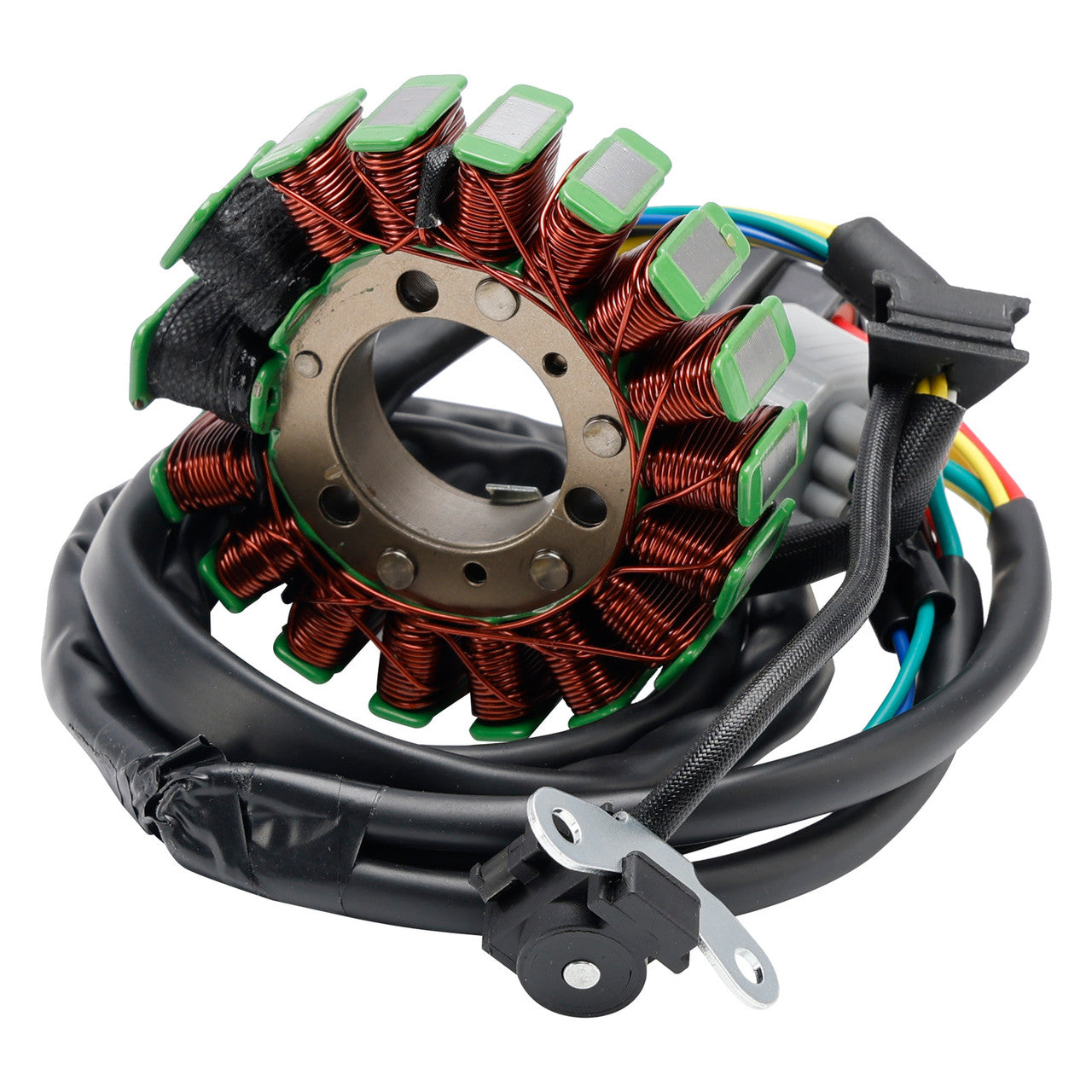

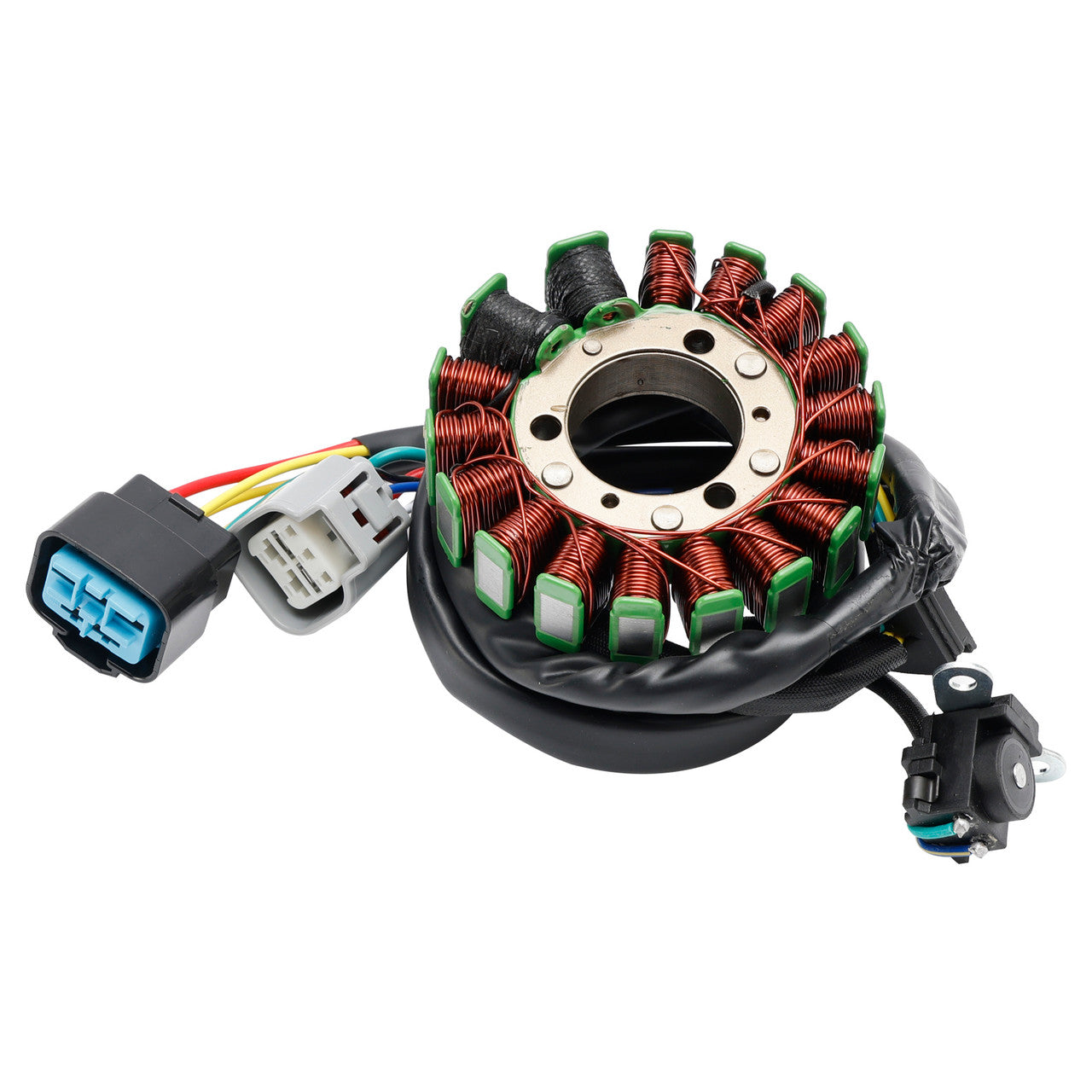

Stator
Number of wires : 12

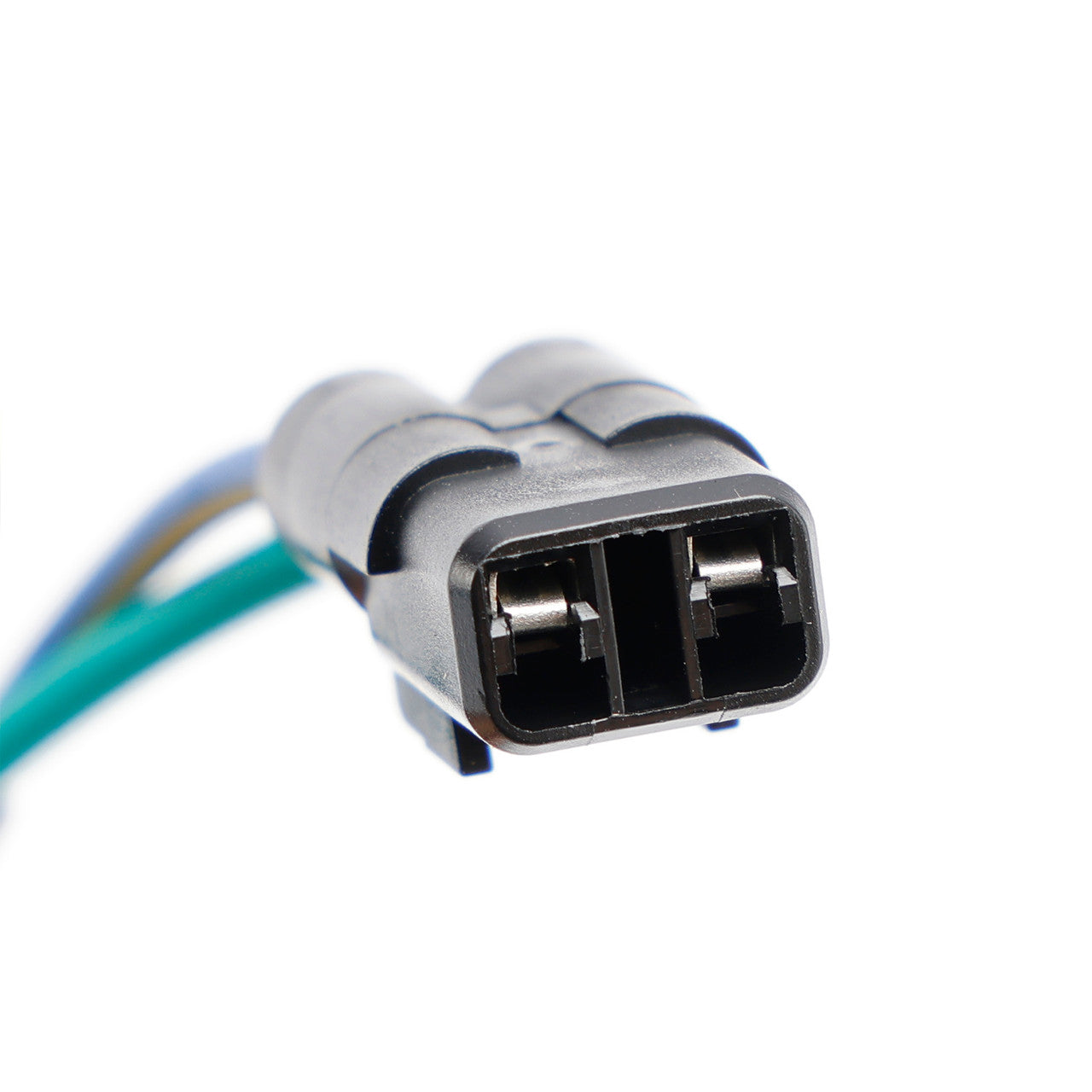

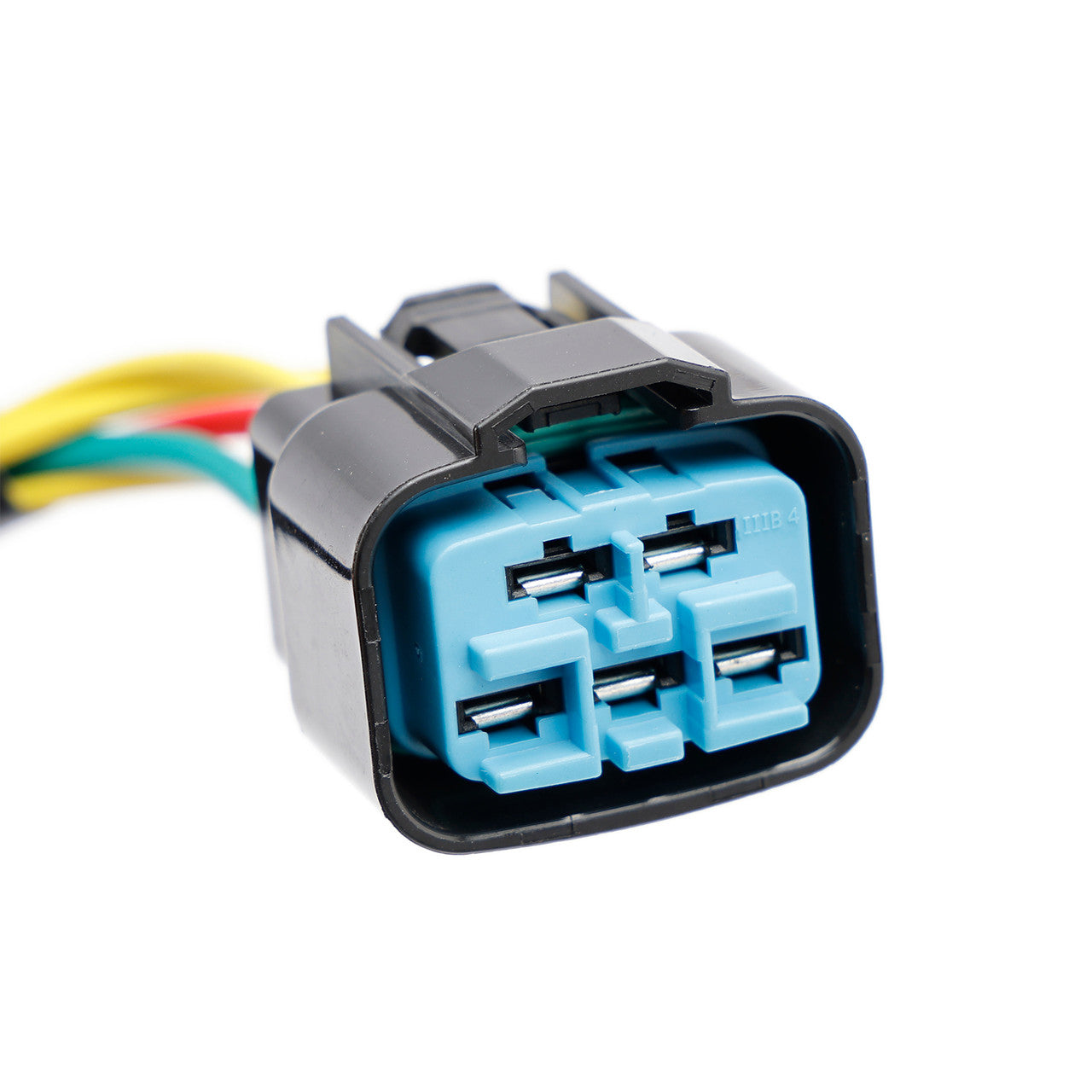

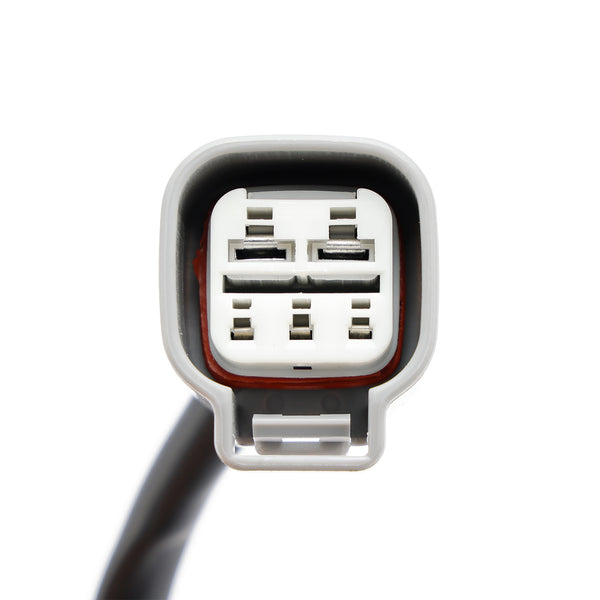

Number of plugs : 3
Number of pins : 5 + 2 + 5
Number of poles: 17
Interior diameter : 34mm
Exterior diameter : 93mm

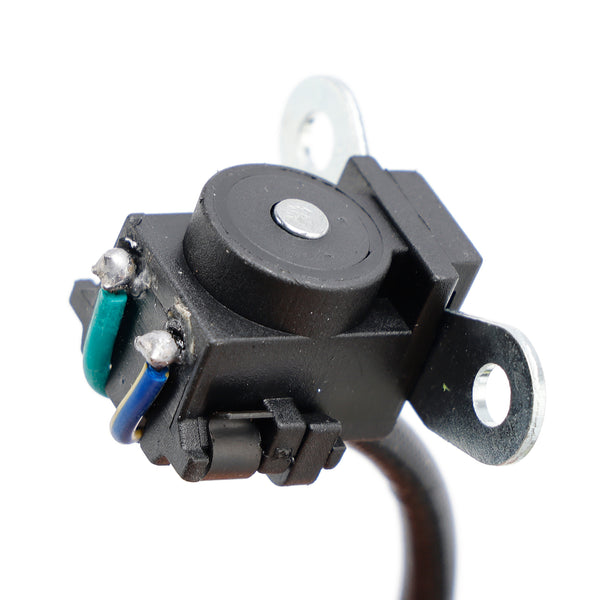

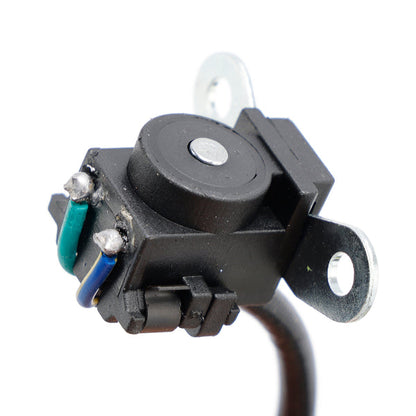

Pick up pulsar coil included.

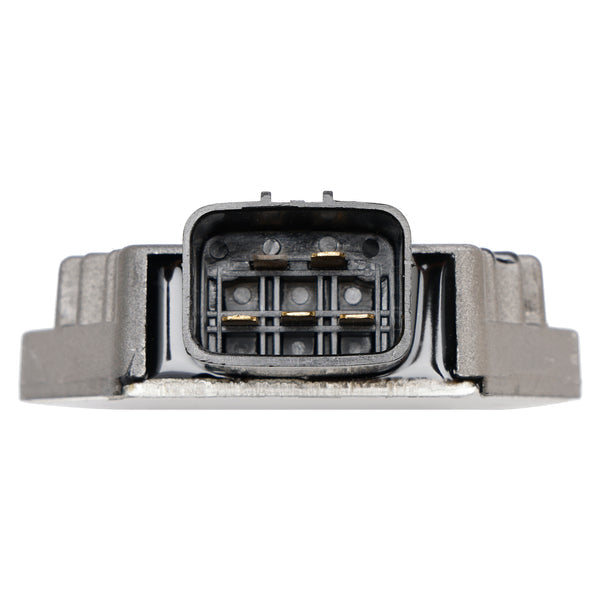

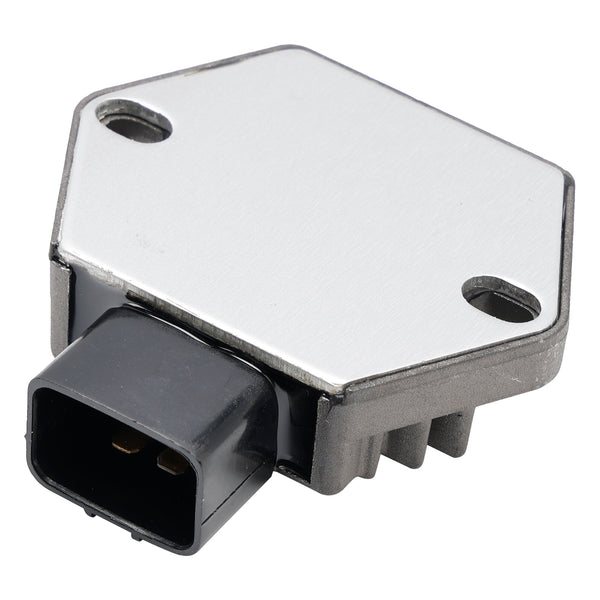

Regulator
Number of plugs: 1
Number of pins: 5

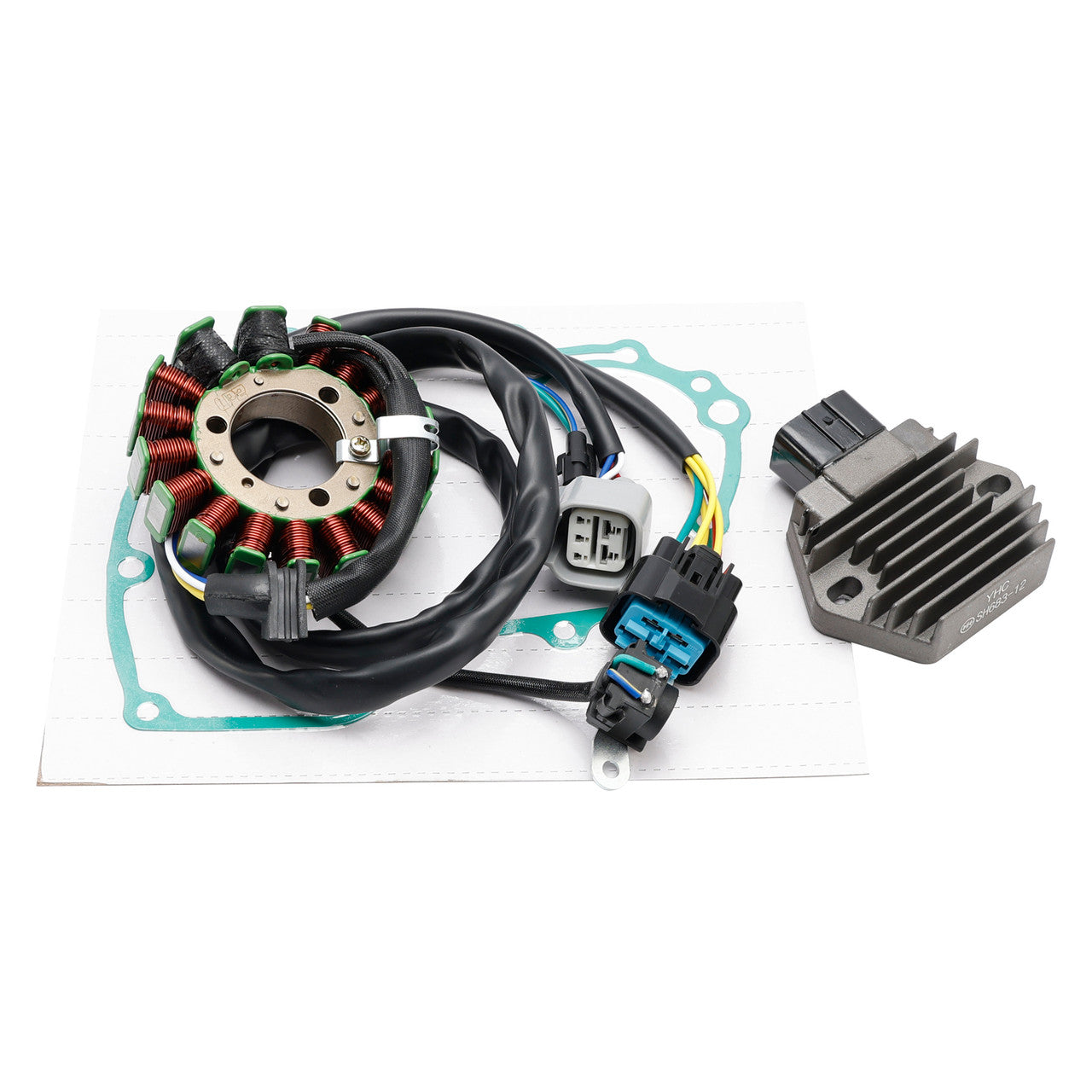

Package Includes:
1 x 12-Wire Generator Stator
1 x 5-Pin Voltage Regulator
1 x Crankcase Gasket
