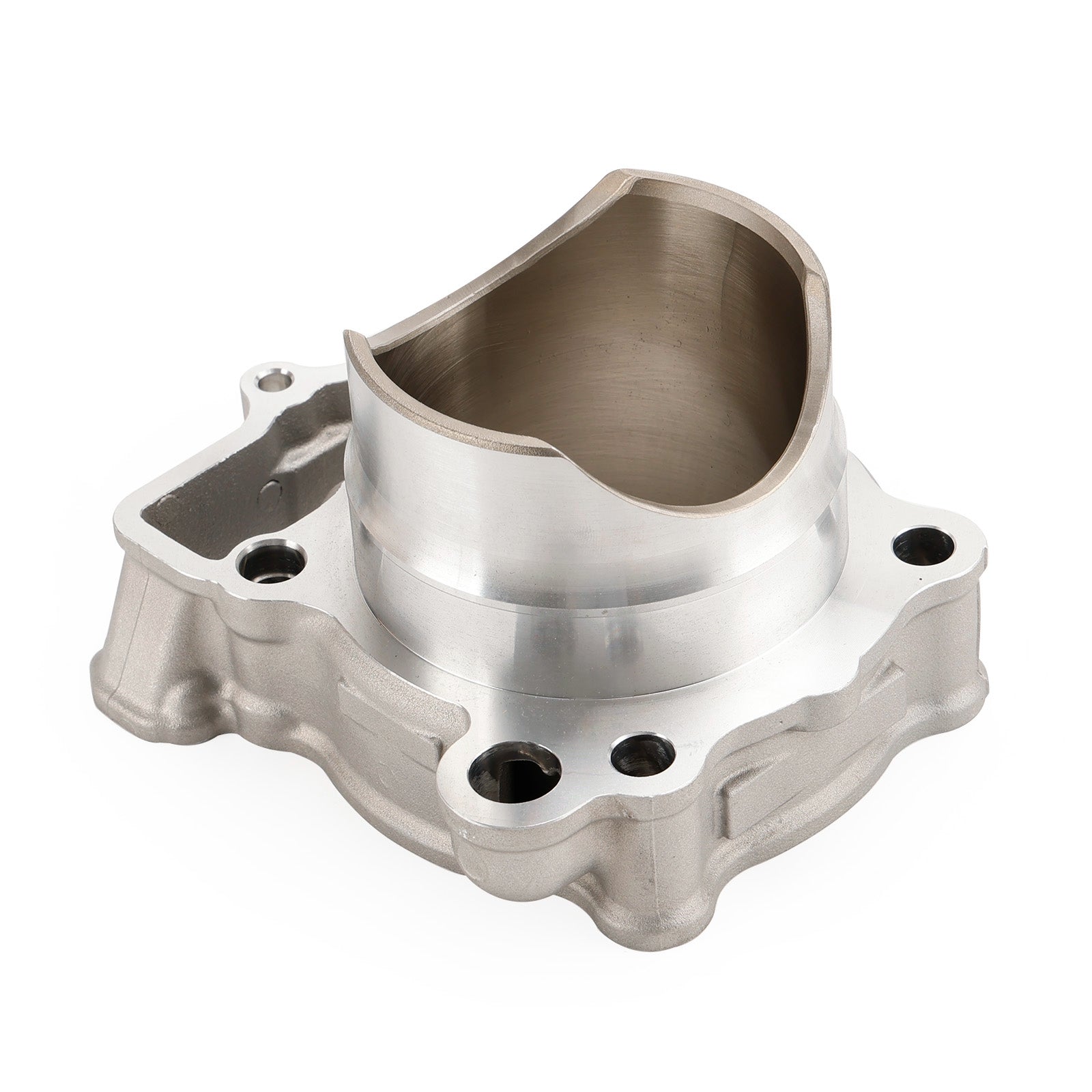

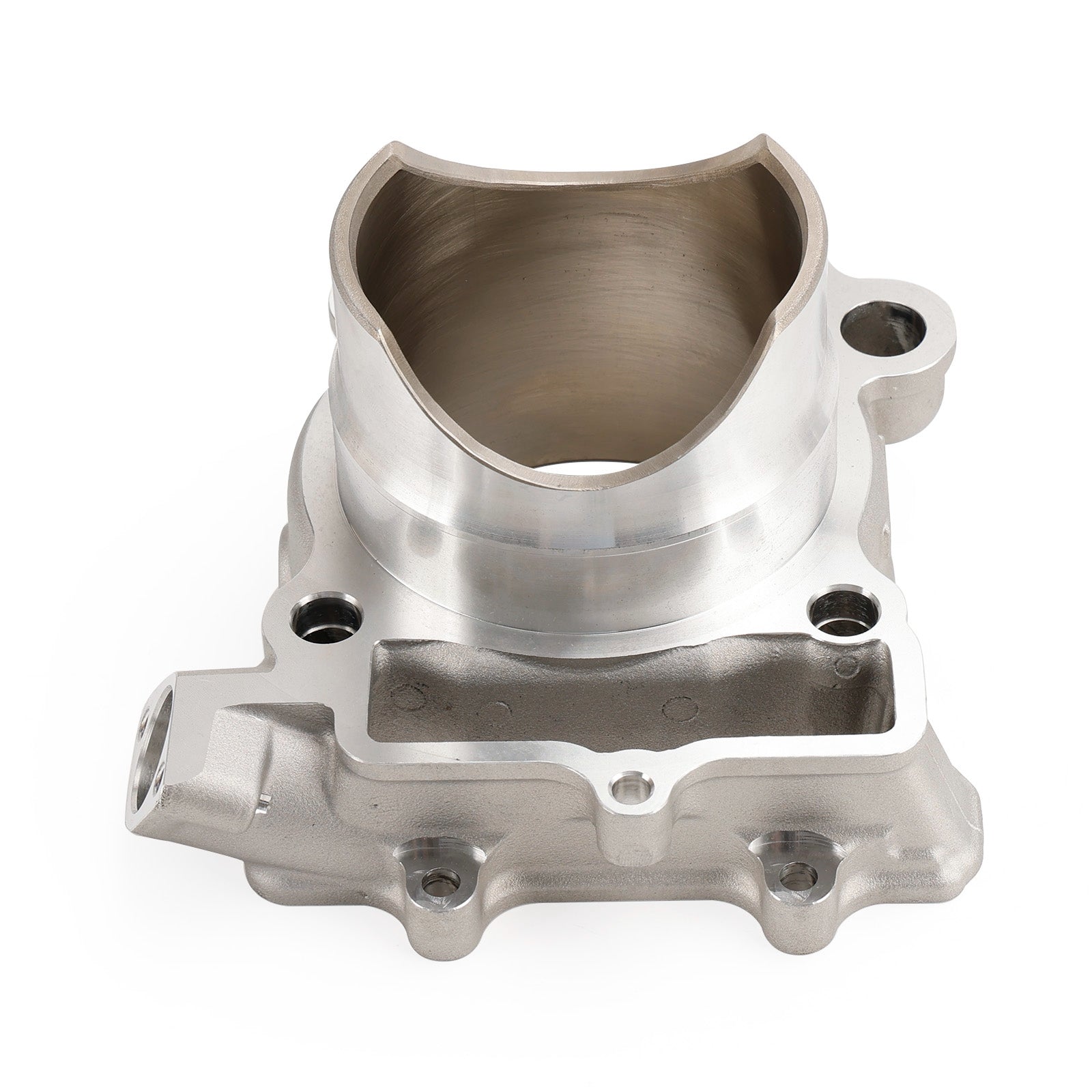

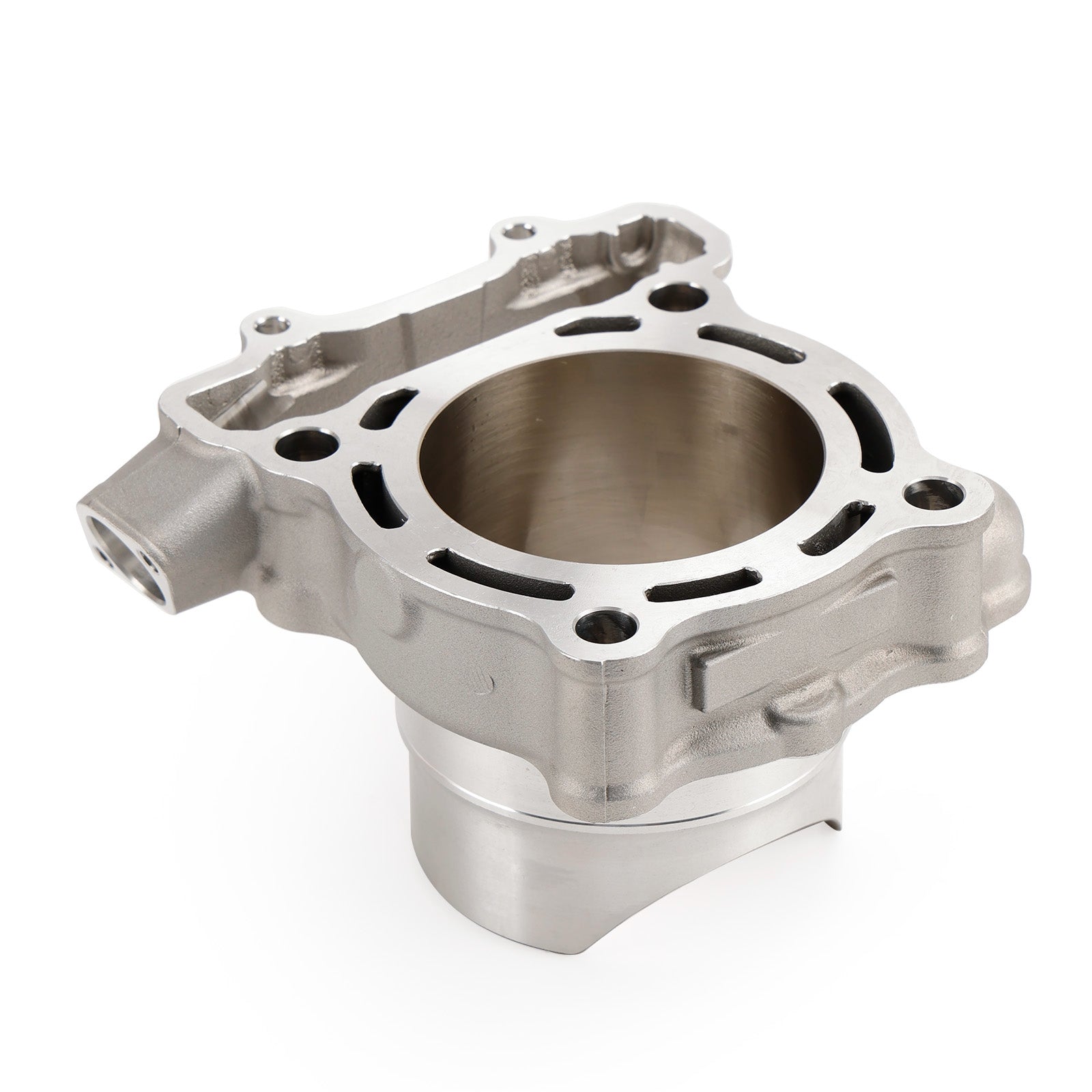

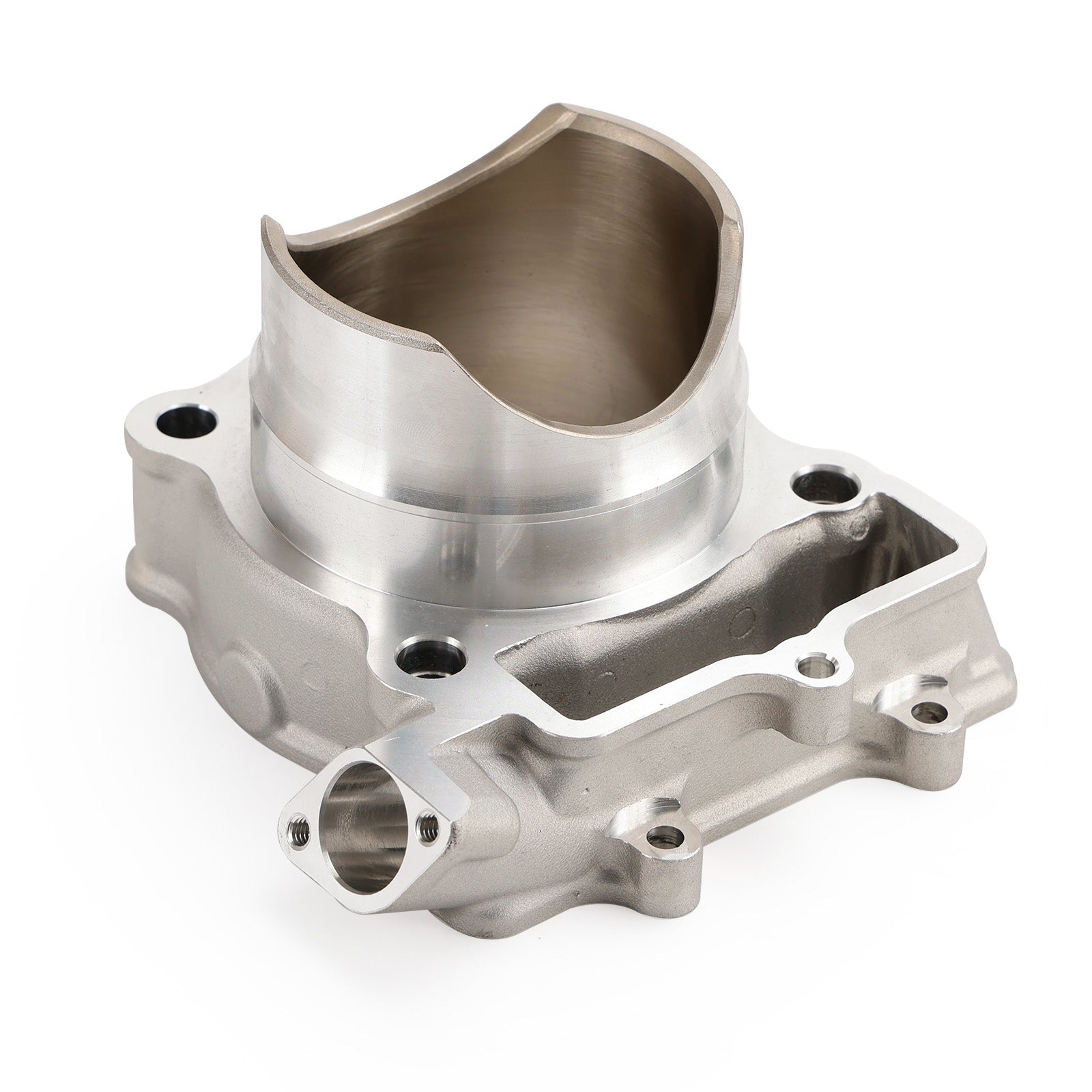

Features: If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you. Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured). Piston is anodized for superior heat resistance and longer lifespan. The gaskets use performance materials to increase durability and provide greater reliability. Includes all gaskets pictured to rebuild top end. Kit is for standard bore size - 77mm x 53.6mm stroke, 16mm steel piston pin. Compression Ratio: 13.5:1. This kit is excellent as a low-cost replacement for defects in the original cylinder.
Specifications: Condition: Aftermarket 100% Brand New Quantity: 1 Set Material: Aluminum Displacement: 249cc Bore Type: Standard Bore Bore diameter: STD 77mm Stroke: 53.6mm Pin diameter: 16mm
Replacement Part Number: Cylinder: 11005-0005, 11005-0037, 11005-0069, K1100-50005, K1100-50037 Cylinder Base Gasket: 11061-0025, K1106-10025 Cylinder Head Gasket: 11004-0090, K1100-40090 Piston (Std): 13001-0052, K1300-10052, 13001-0088 Pin, Piston: 13002-0018, K1300-20018 Piston Ring Set (Std): 13008-0028, K1300-80028 Circlips, piston: 92033-1161, K9203-31161
Fits Models: Fit for Kawasaki KX250F (KX250-N1) 2004 Fit for Kawasaki KX250F (KX250-N2) 2005 Fit for Kawasaki KX250F (KX250T6F) 2006 Fit for Kawasaki KX250F (KX250T7F) 2007 Fit for Kawasaki KX250F (KX250T8F) 2008
Fit for Suzuki RM-Z250 K4 2004 Fit for Suzuki RM-Z250 K5 2005 Fit for Suzuki RM-Z250 K6 2006
(Compatibility Chart is for Reference ONLY!!!) (Please Compare with Your faulty unit and the image we provided to Decide Fitment)

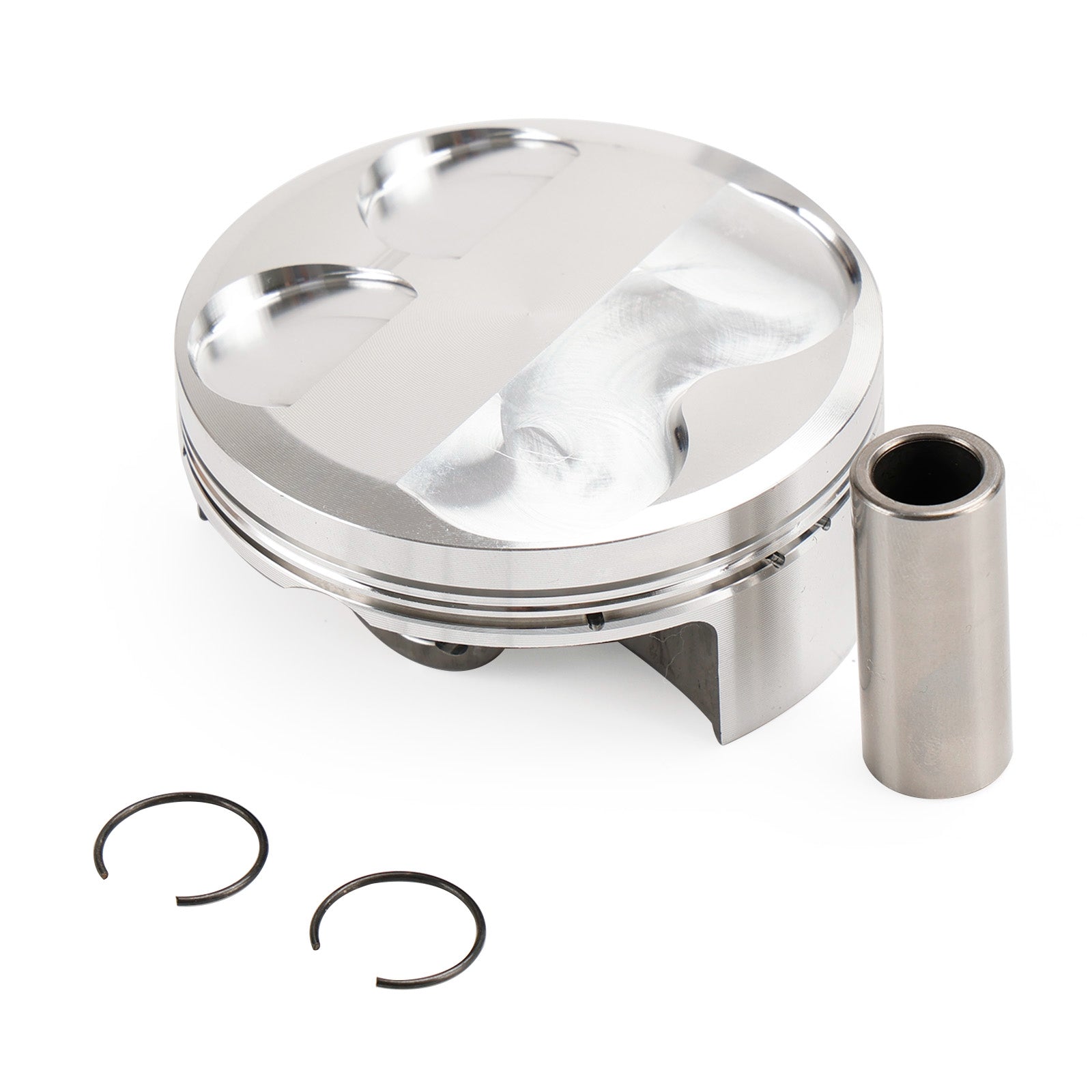

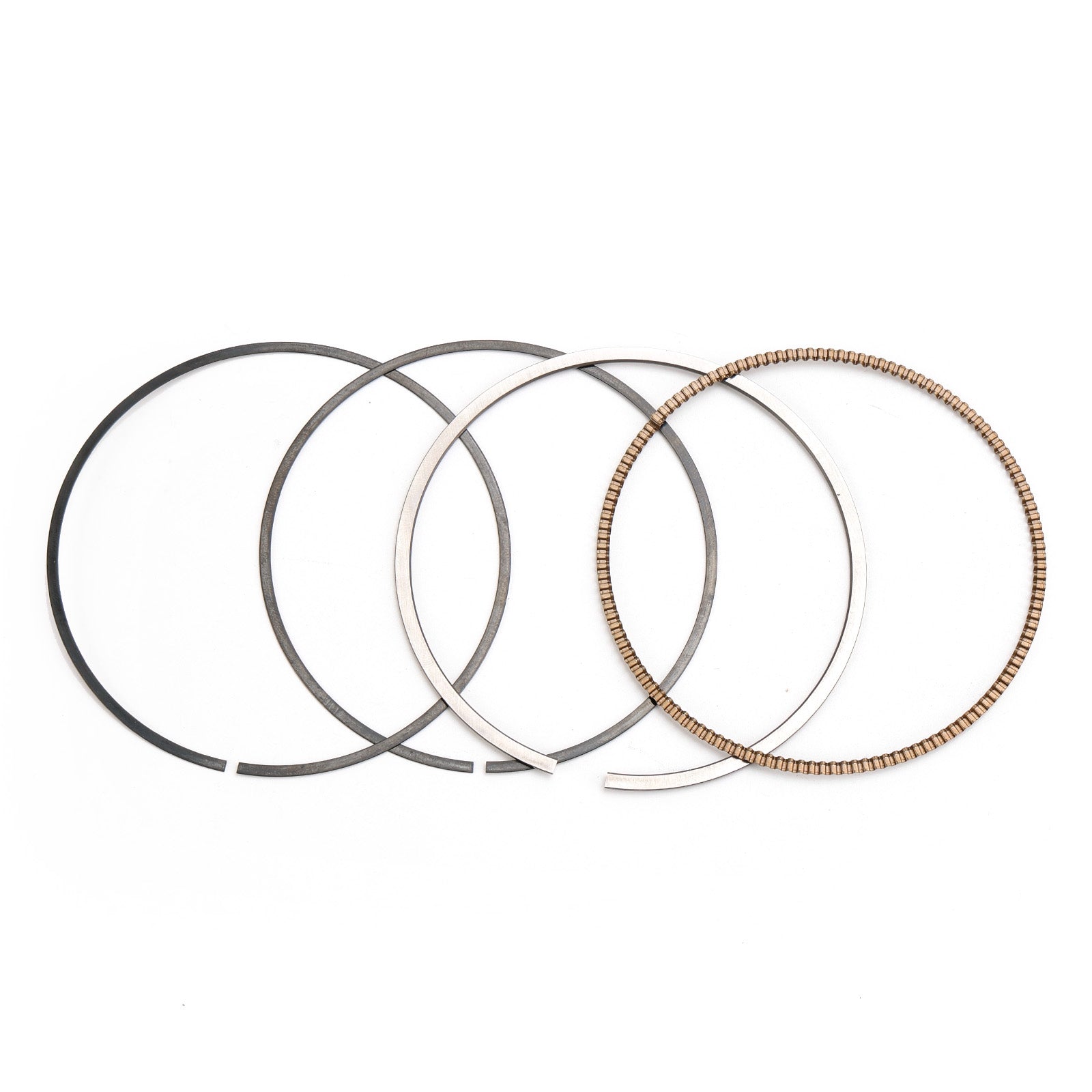

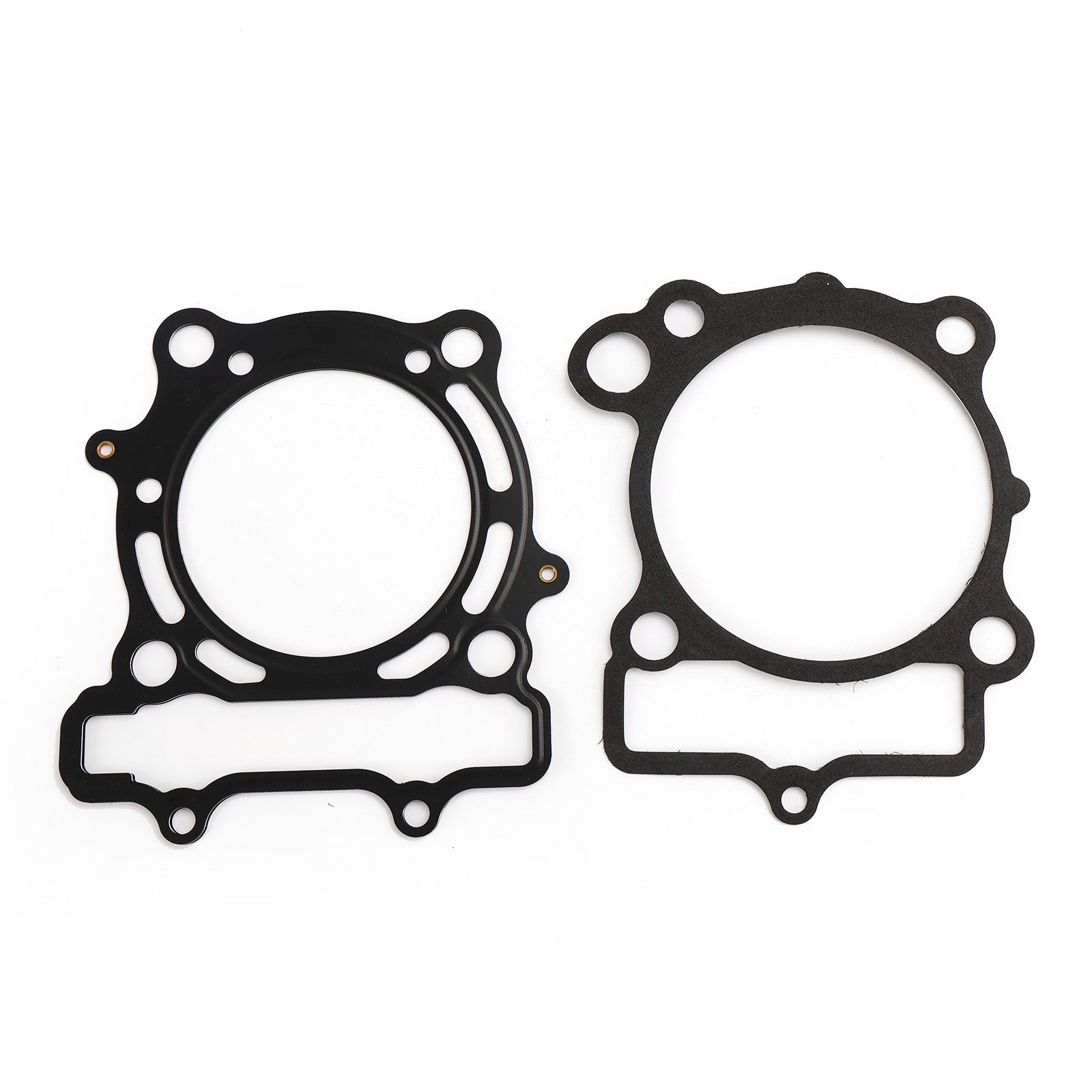

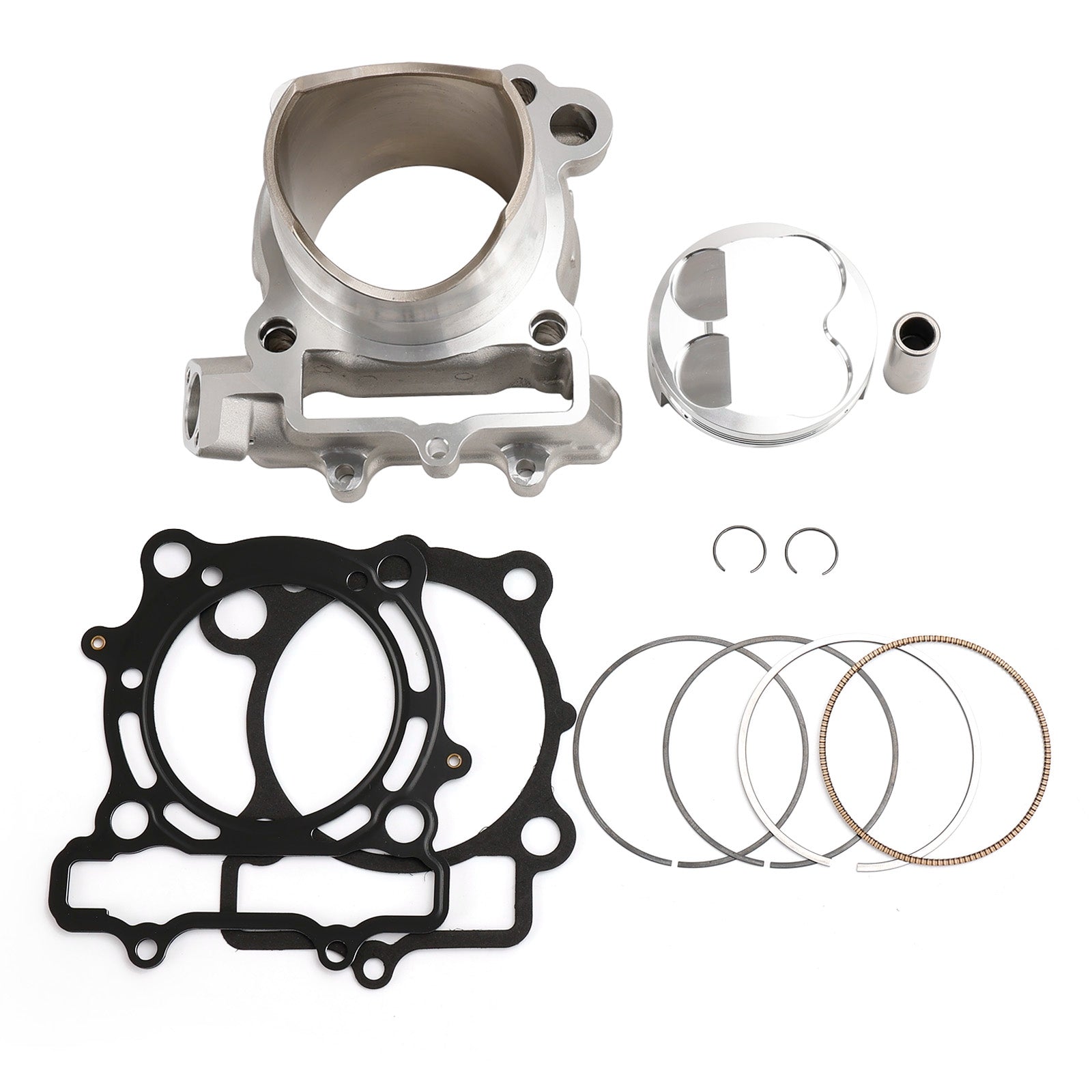

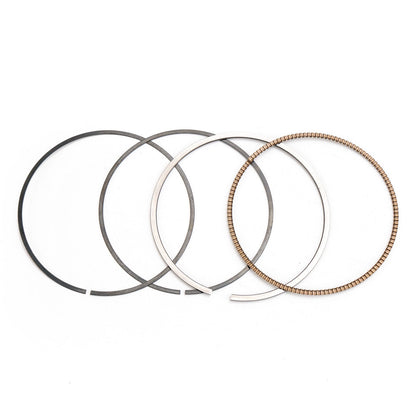

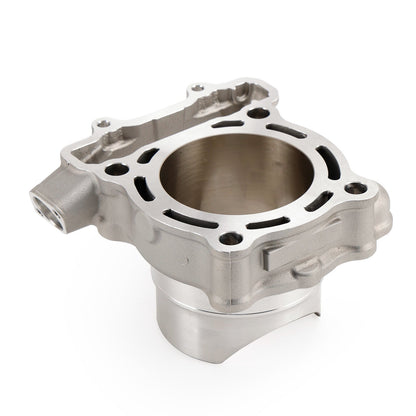

Package Includes: 1x Cylinder 1x Piston 1x Piston Ring Set 1x Wristpin 1x Circlip(2) 1x Cylinder Base Gasket 1x Cylinder Head Gasket
Note: Carefully compare to your old parts to be sure this is the correct part for your machine.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer. The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
Shipping: Free Shipping Handling?time: Ship within 24 hours Delivery Time: 3-7 business days
Warranty: 1. Condition: 100% Brand New 2. Warranty Period: 1 Years 3. 24-Hour Support: Provide you with timely after-sale support
