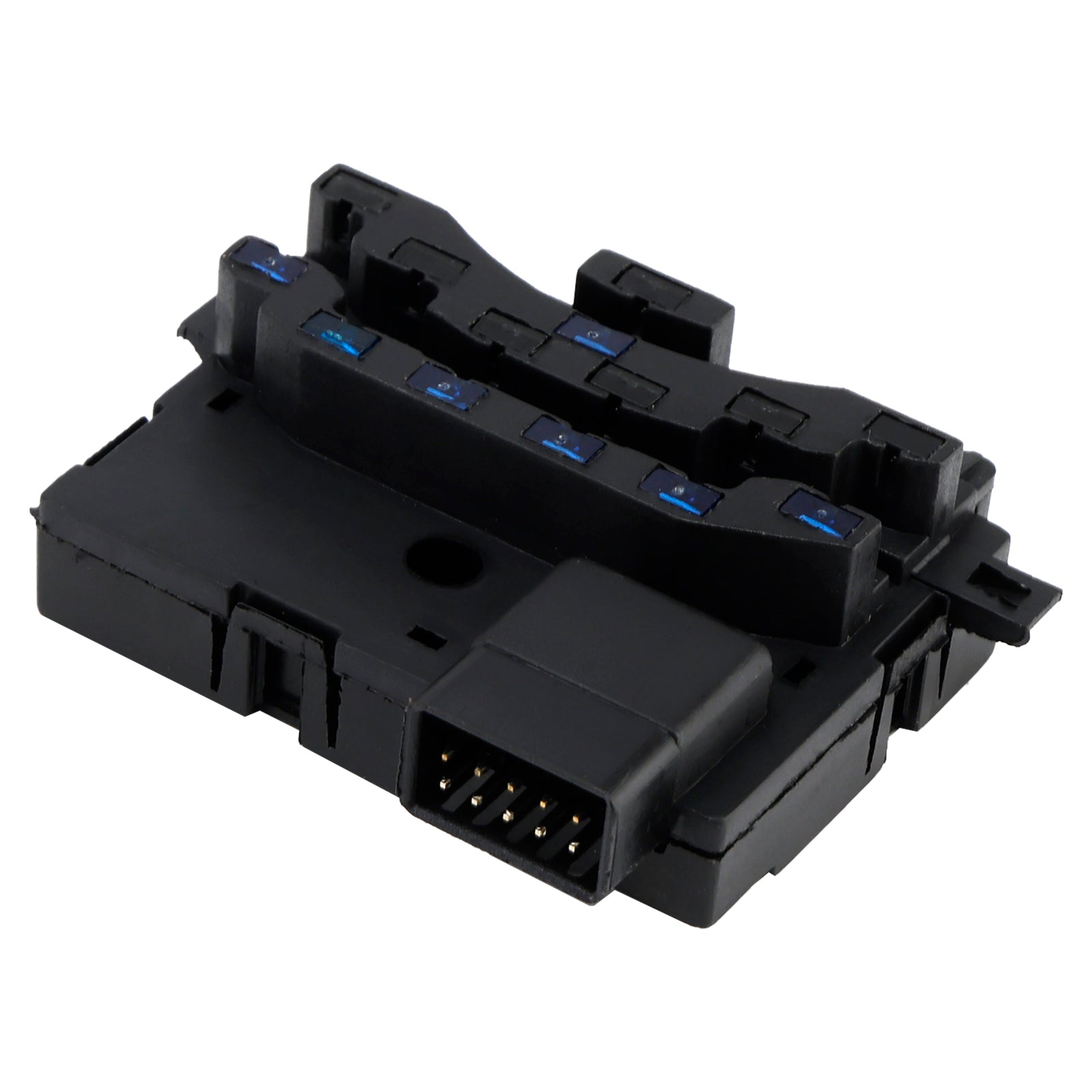

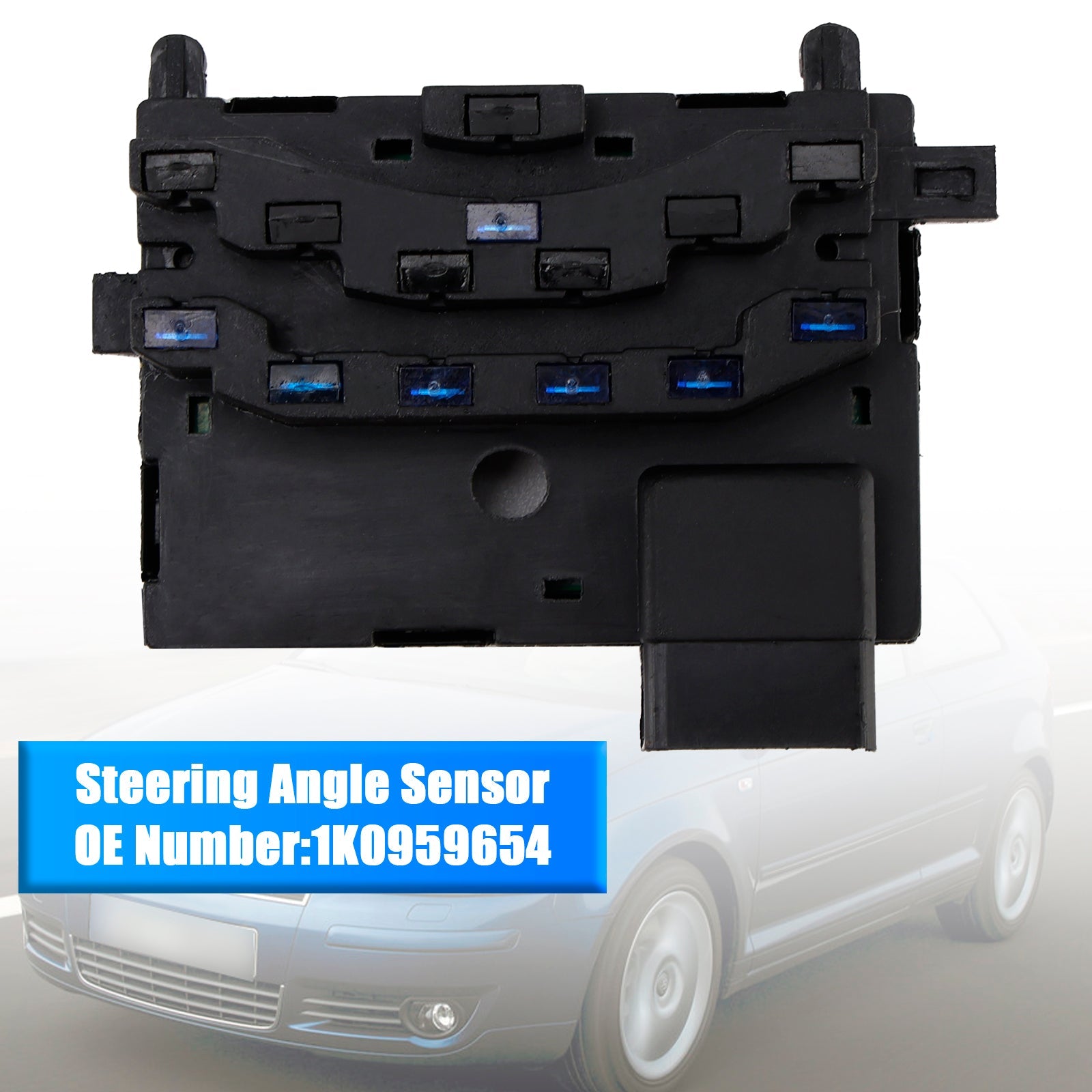

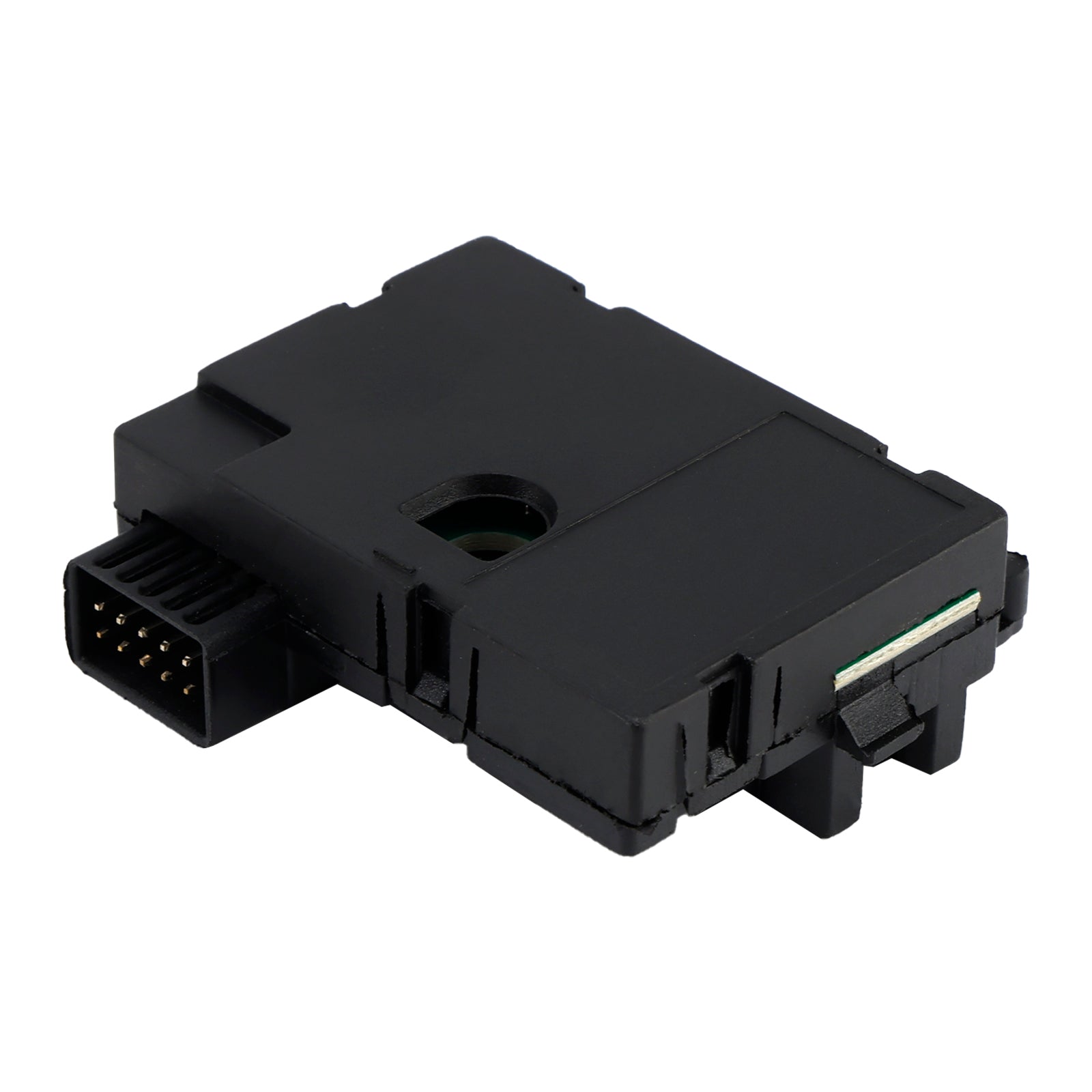

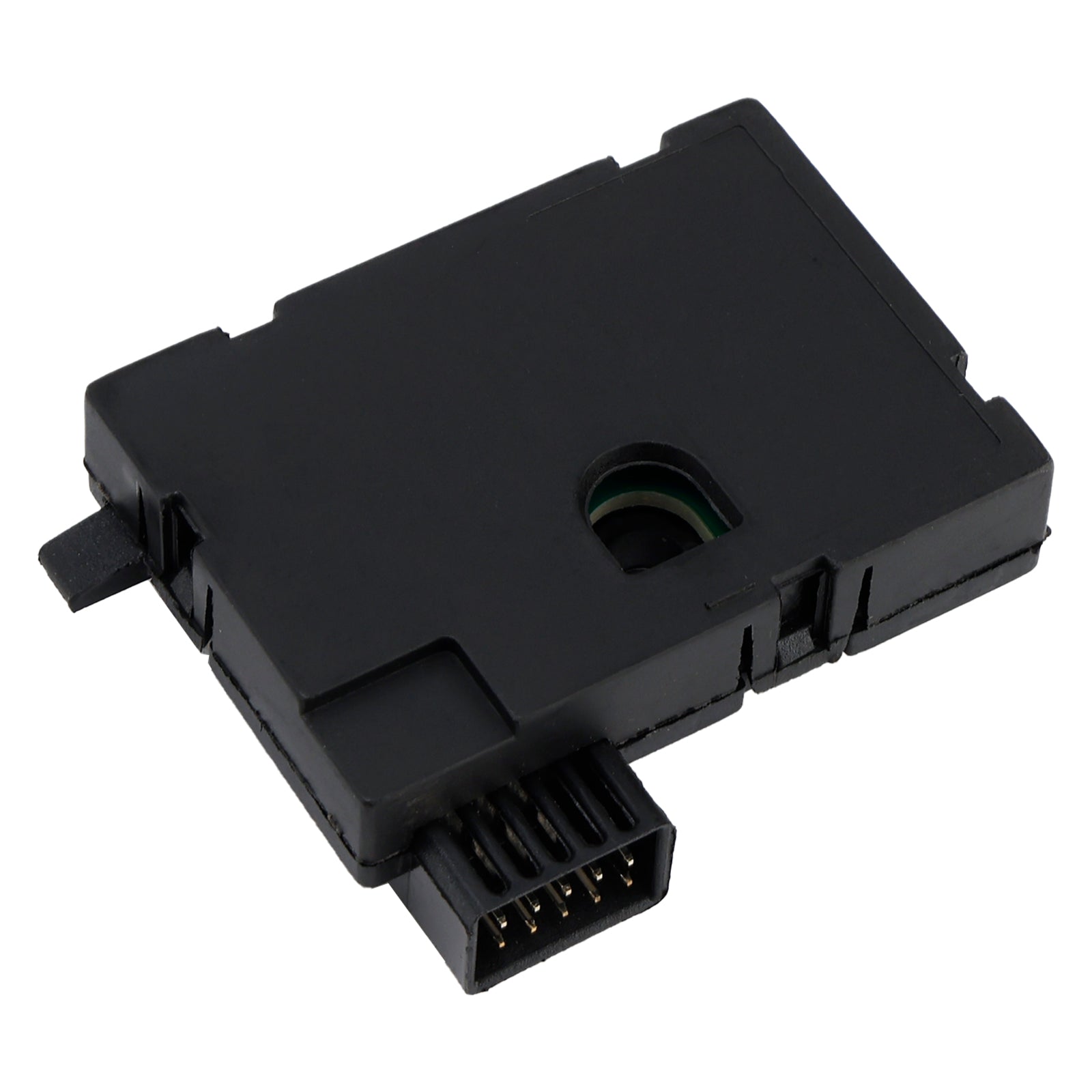

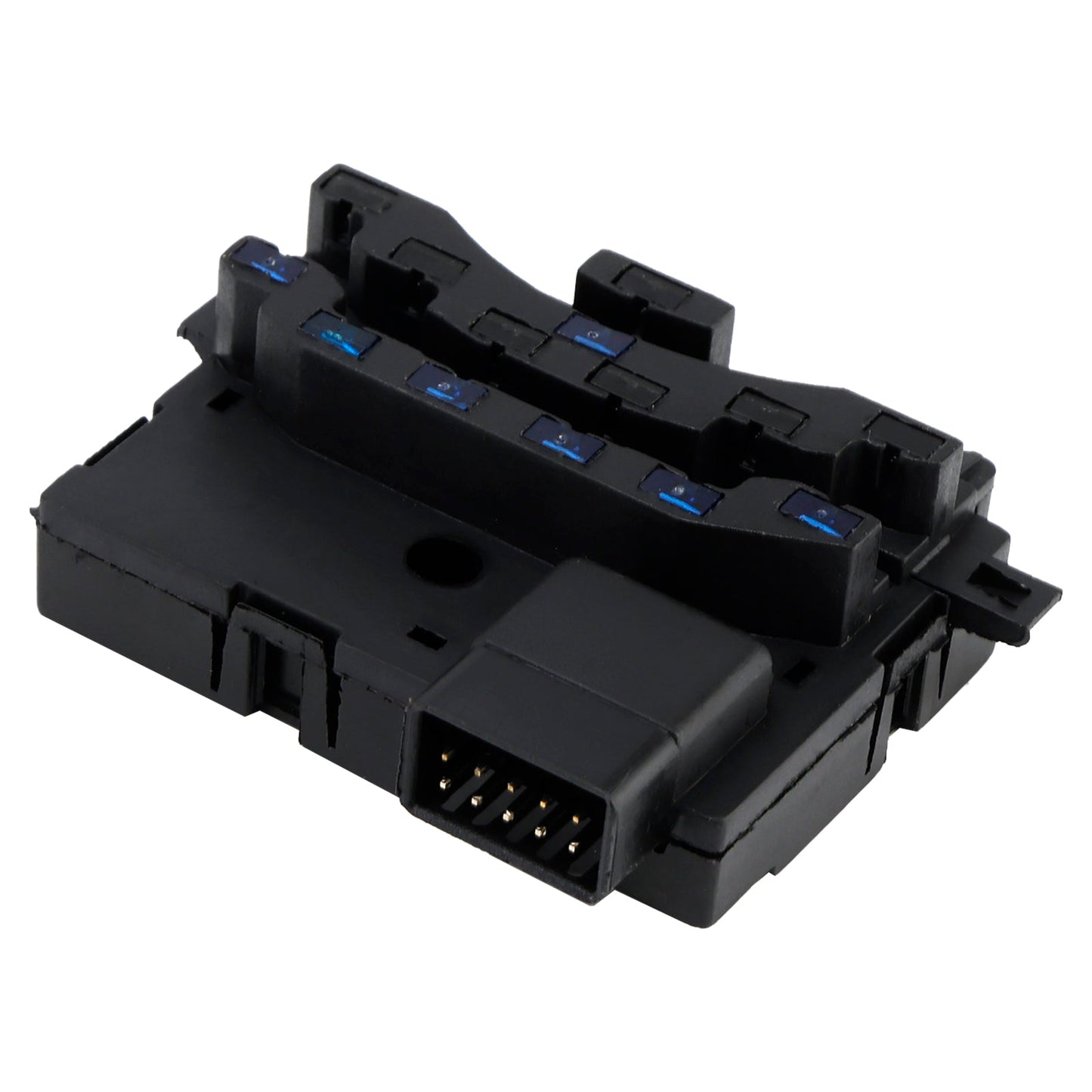

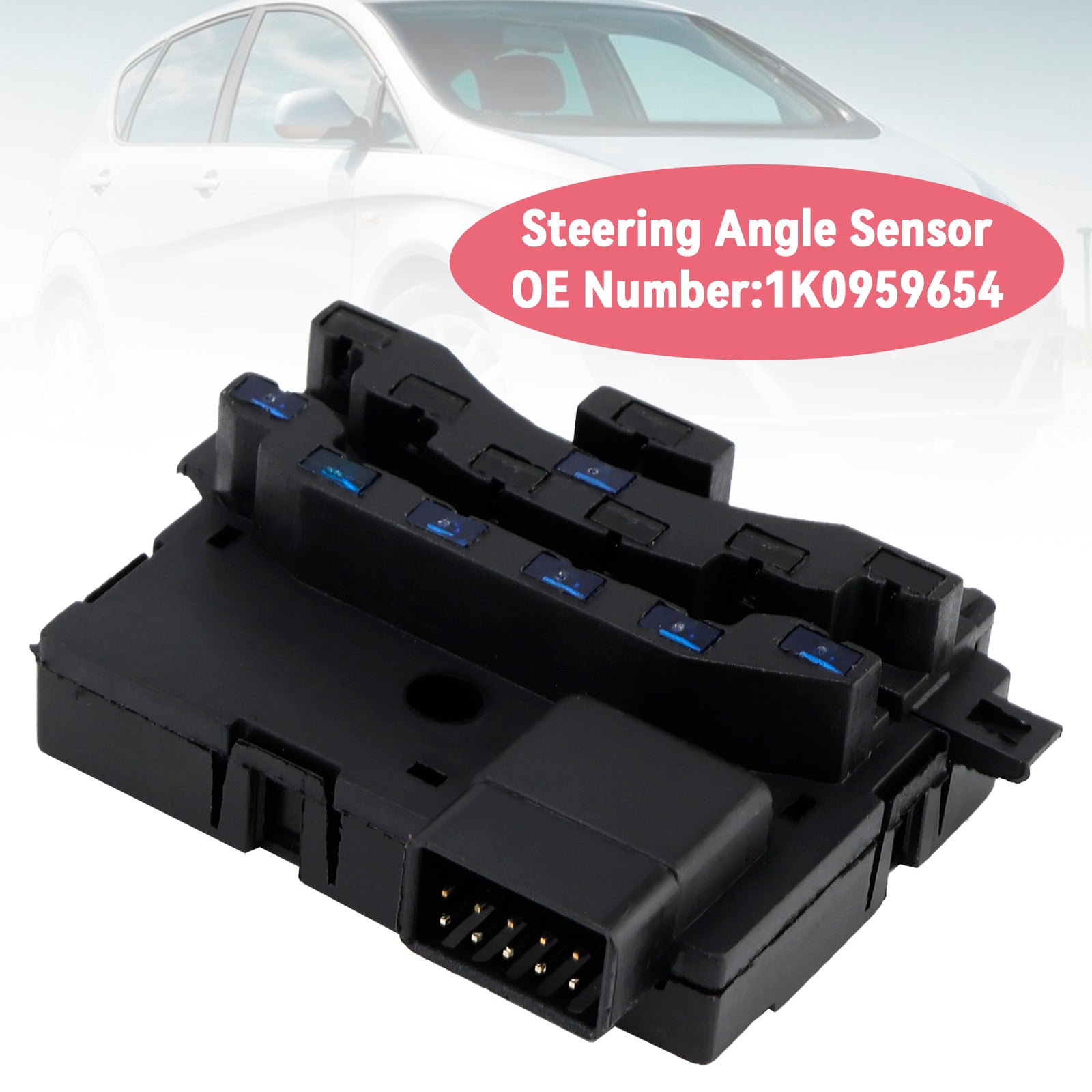

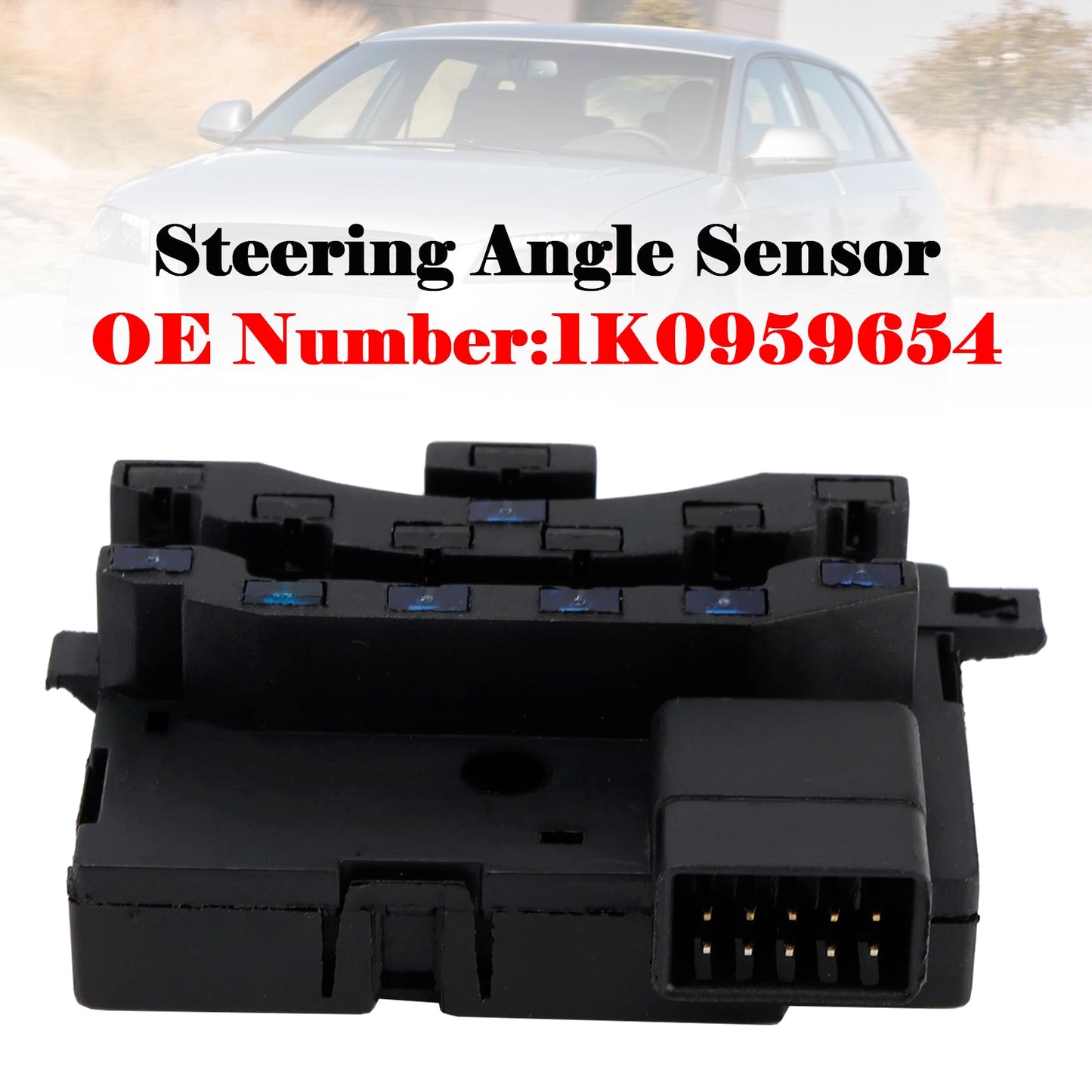

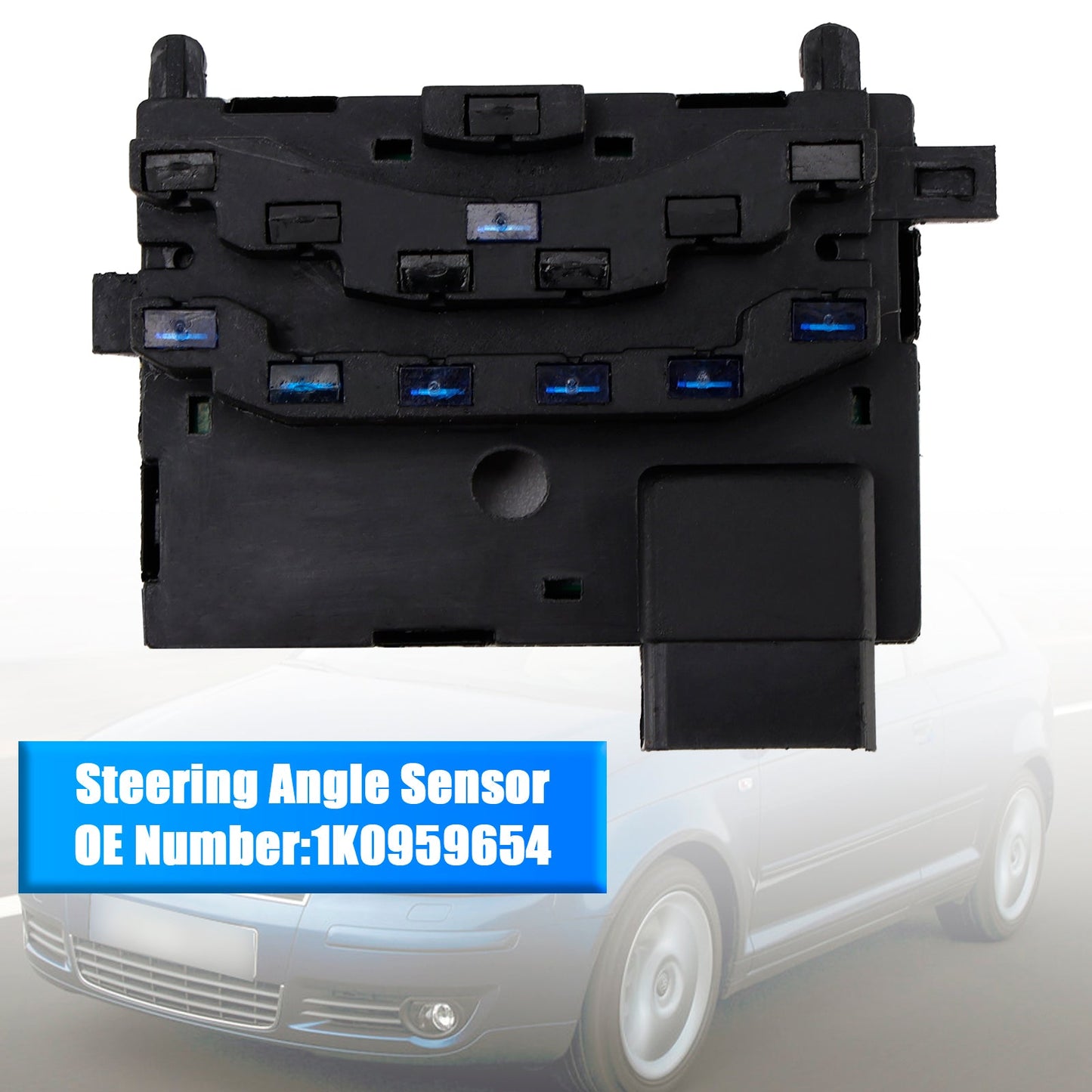

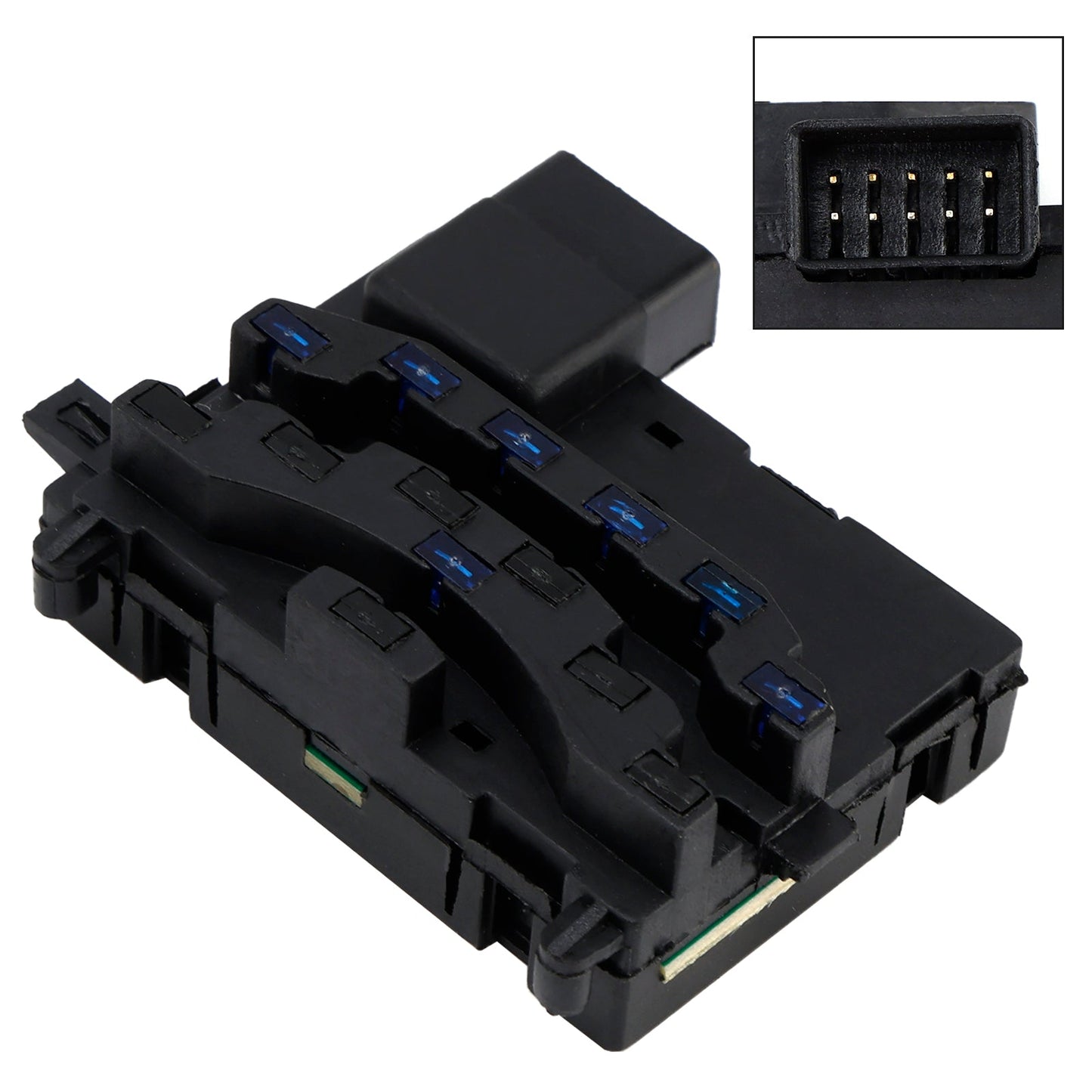

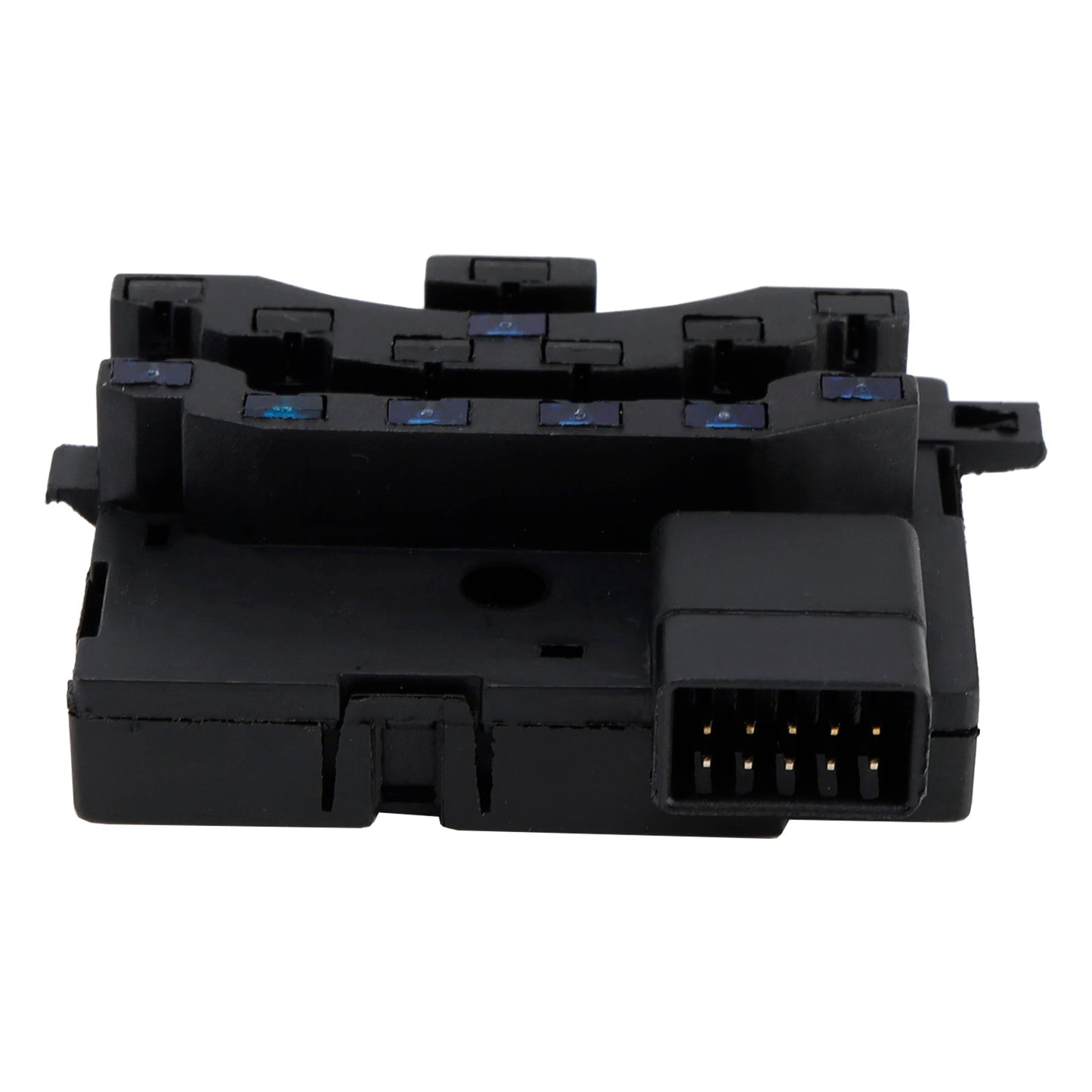

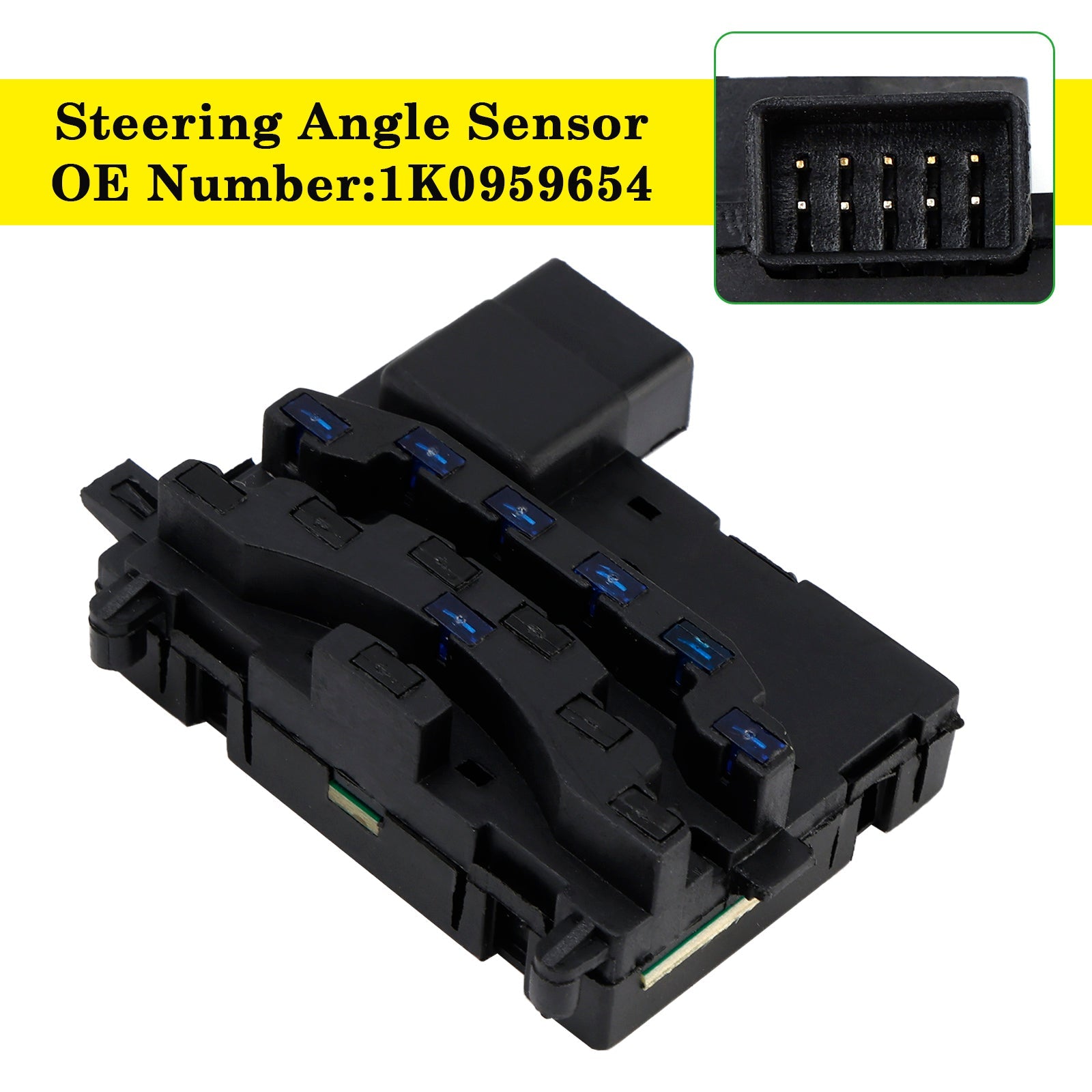

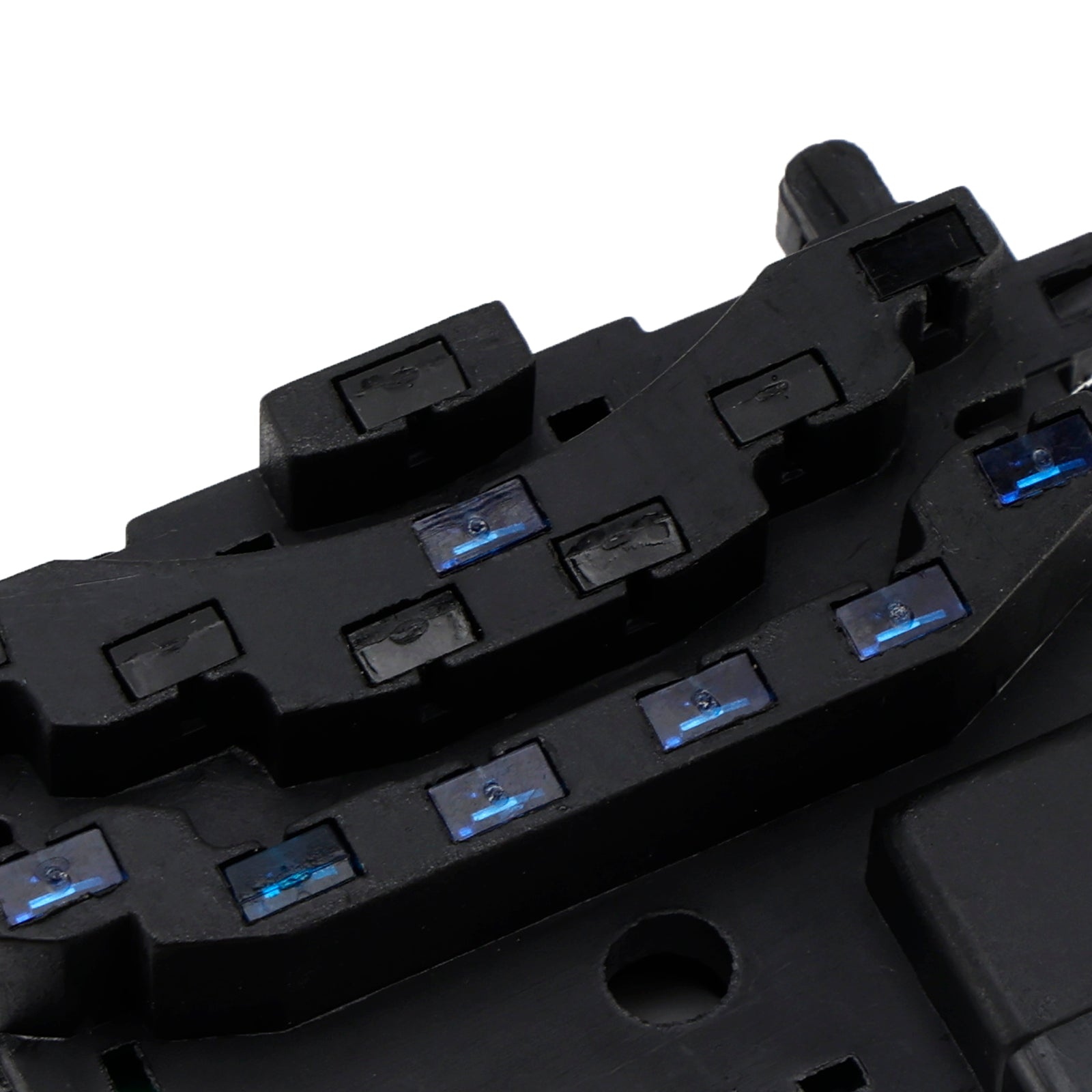

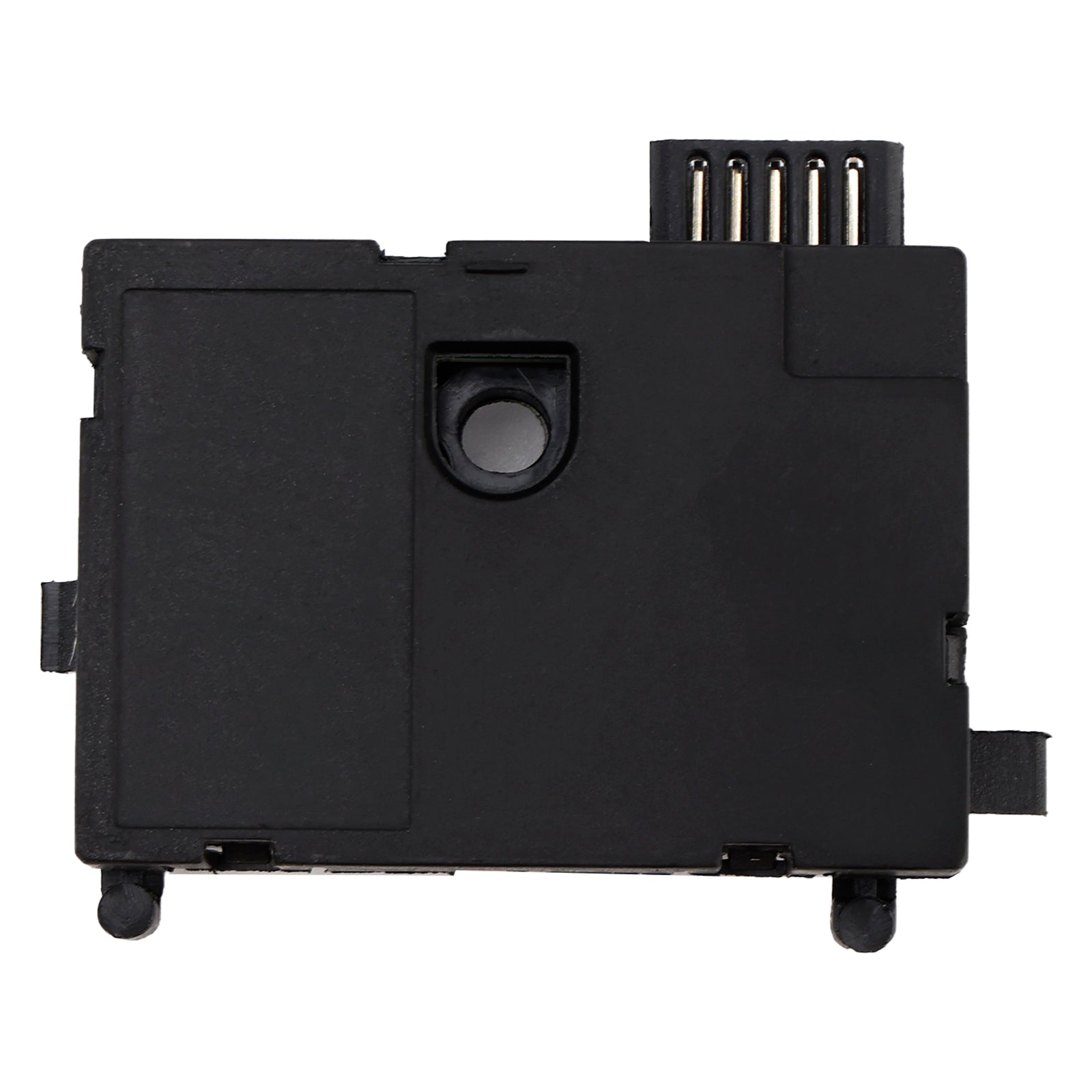

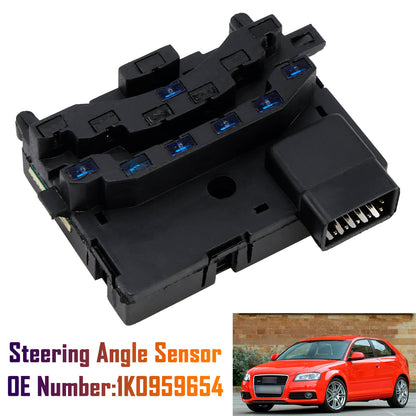

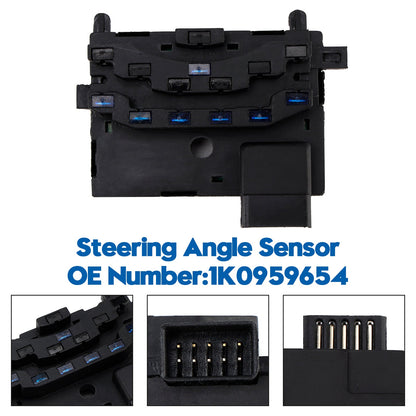

Steering Angle Position Sensor 1K0959654 For VW GOLF Mk5 Jetta EOS Audi A3 8P

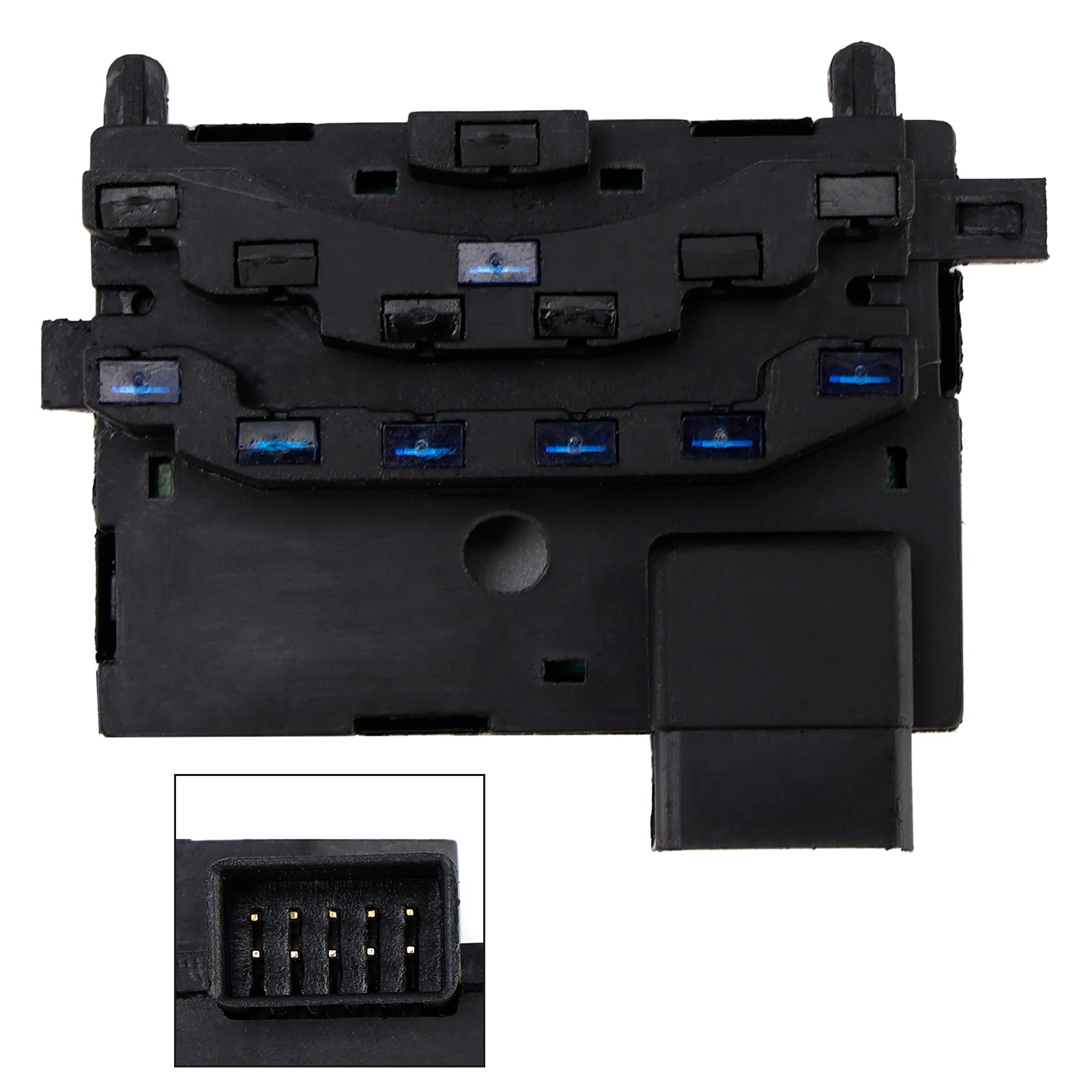

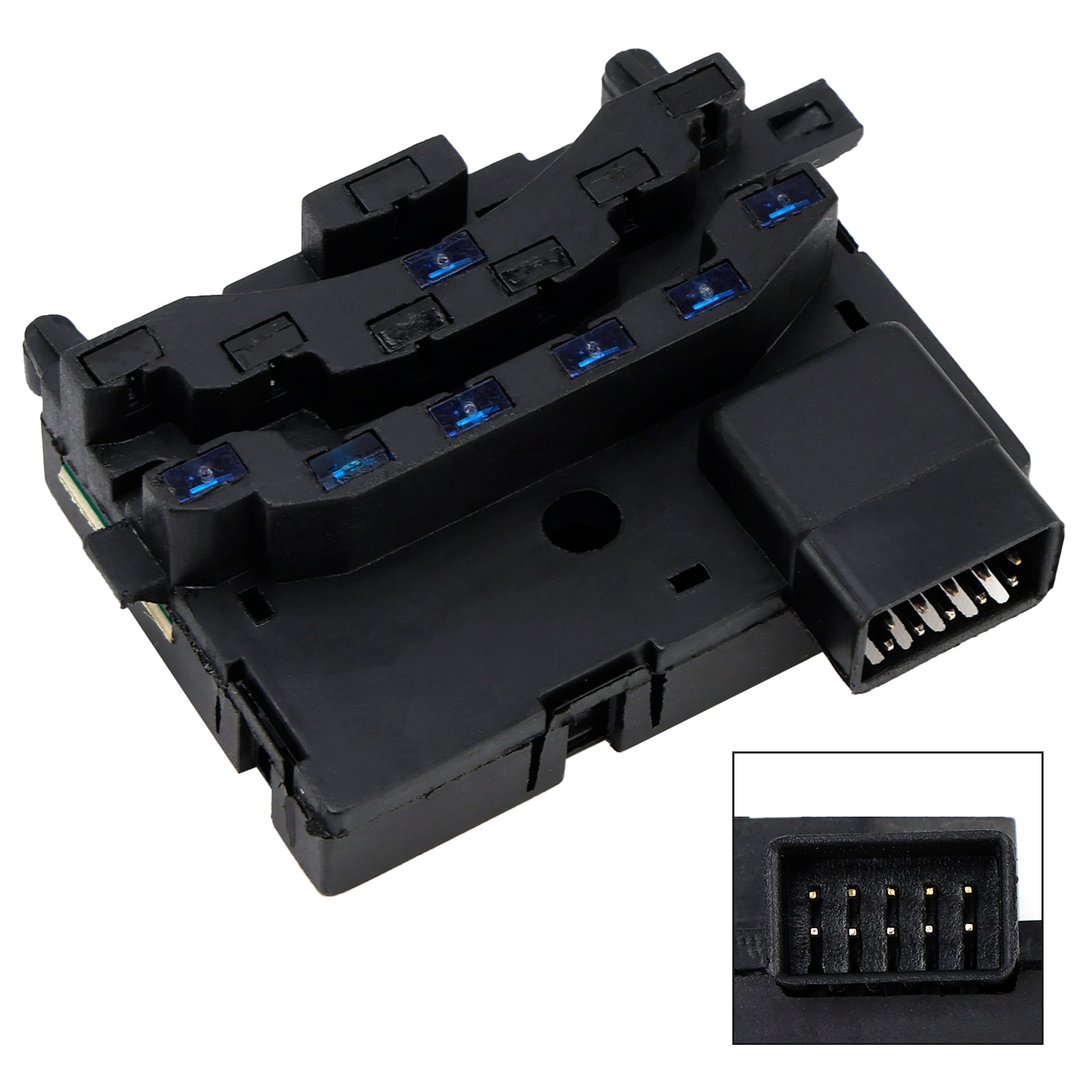

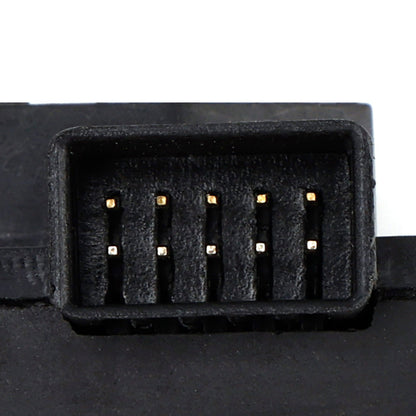

Specifics: Material: ABS Plastic Condition: 100% Brand New Type: Steering Angle Sensor Fitment Type: Direct Replacement Quantity: 1pcs Manufacturer Part Number:1K0959654 Placement on Vehicle:Front, Steering Wheel Pin connector: 10 Pin
Fitment For: For Audi A3 (8P1) 05.2003 -> 08.2012 For Audi A3 Convertible (8P7) 04.2008 -> 05.2013 For Audi A3 Sportback (8PA) 09.2004 -> 03.2013 For Audi R8 04.2007 -> 07.2015 For Audi R8 Spyder 02.2010 -> 07.2015 For Audi TT (8J3) 08.2006 -> 06.2014 For Audi TT Roadster (8J9) 03.2007 -> 06.2014 For Seat Altea (5P1) 03.2004 -> For Seat Altea XL (5P5, 5P8) 10.2006 -> For Seat Leon (1P1) 05.2005 -> 12.2012 For Seat Toledo III (5P2) 04.2004 -> 05.2009 For Skoda Octavia II (1Z3) 02.2004 -> 06.2013 For Skoda Octavia Combi (1Z5) 02.2004 -> 06.2013 For VW Caddy III Box 03.2004 -> For VW Caddy III Estate 03.2004 -> For VW EOS (1F7, 1F8) 03.2006 -> For VW Golf Plus V (5M1, 521) 01.2005 -> 12.2013 For VW Golf V (1K1) 10.2003 -> 02.2009 For VW Golf V Variant (1K5) 06.2007 -> 07.2009 For VW Jetta III (1K2) 08.2005 -> 10.2010 For VW Tiguan (5N_) 09.2007 -> For VW Touran (1T1, 1T2) 02.2003 -> 05.2010 (The Compatibility Is Just For Reference. Please Compare The Part Number With Your Original One Before Purchasing!)
Package Included: 1x Steering Angle Position Sensor
Installation instructions: 1. Return the steering wheel to the center position 2. Open the front cover of the steering wheel and take out the airbag spring (spring clock) inside 3. The angle sensor is located on the back of the spring. Remove the seal of the angle sensor and install the angle sensor in situ Note: Keep the steering wheel back to the center position during installation. Do not turn the spring and angle sensor 4. After installation, reinstall the steering wheel. Open the repair computer and connect the car, turn on the steering angle learning function to reset the angle sensor, and check if there is a fault code or a fault light is on. If there is, remove the fault code. Complete the installation.
The airbag light was on, and the steering wheel buttons had stopped working. After replacing this part, the light went out and all the controls started working again. No problems since.
F
Fred Raul
Fix the problem
G
Grisel Davalenzuela
Product came just as listed, no surprises. Happy with the whole experience and the quality is solid.
R
Raul Segura
Remarkable!
F
Fabrizio Rojas
Good clock spring, fixing all the issue immdeiately
