52.4mm Cylinder Piston Gasket Rebuild Kit 125cc For Honda ANF 125 125i INNOVA 2003-2013 12100-KPH-700
Features:
If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.

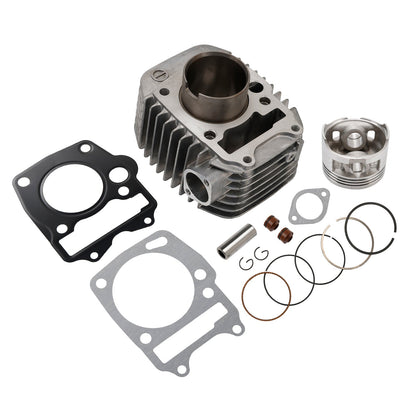

Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
Piston is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 52.4mm x 57.9mm stroke, 13mm steel piston pin.
Compression Ratio: 9.3:1.
This kit is excellent as a low-cost replacement for defects in the original cylinder.
Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum
Displacement: 124cc
Bore Type: Standard Bore
Cylinder Type: KPH
Bore diameter: STD 52.4mm
Stroke: 57.9mm
Pin Diameter: 13mm
Replacement Part Number:
Cylinder: 12100-KPH-970, 12100-KPH-700
Cylinder Base Gasket: 12191-KPH-902
Cylinder Head Gasket: 12251-KPH-901
Piston (Std): 13101-KTM-D20
Pin, Piston: 13111-GB0-910
Piston Ring Set (Std): 13011-KPH-900
Circlips, piston: 13115-GN5-910
Tensioner Gasket: 14560-KGH-900
Valve Stem Seal: 12209-GB4-681
Fits Models:
Fit for Honda ANF125 Innova 2003-2006 (Carburetor)
Fit for Honda ANF125 Innova 2007-2013
Fit for Honda Wave 125
Package Includes:

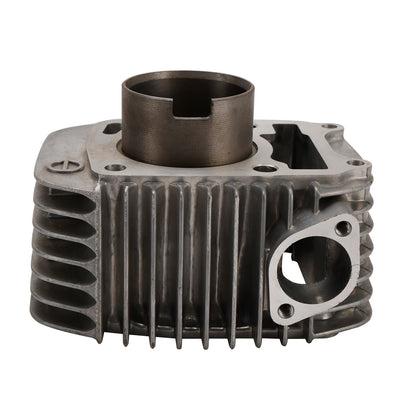

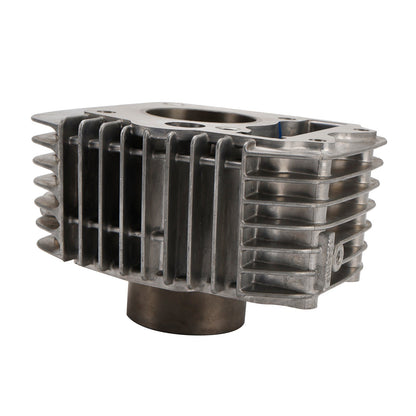

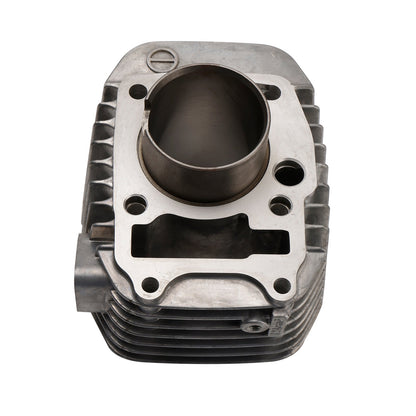

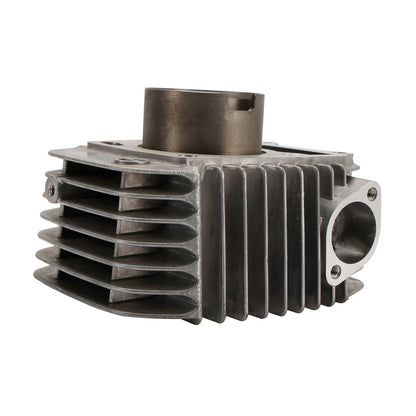

1x 52.4mm Cylinder

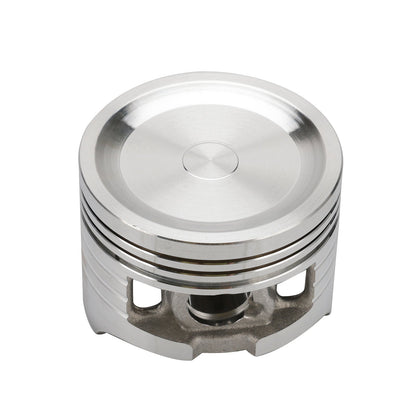

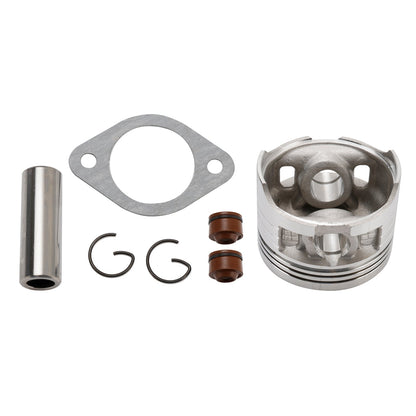

1x Piston

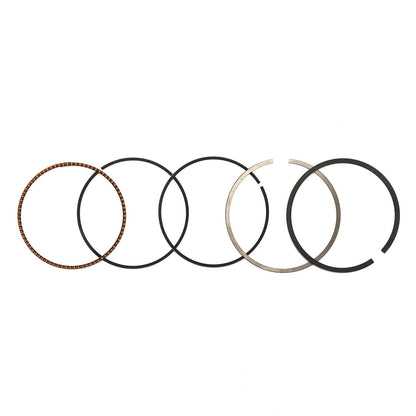

1x Piston Ring Set
1x Wristpin
1x Circlip(2)
1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Tensioner Gasket
2x Valve Stem Seals
