2001-2004 Yamaha YFM250X Bear Tracker 2WD 4XE-81410-00 Stator & Regulator Gasket

2001-2004 Yamaha YFM250X Bear Tracker 2WD 4XE-81410-00 Stator & Regulator Gasket

SKU:M550-C557~2

Regular price $67.99 USD
Regular price Sale price $67.99 USD
Sale Sold out
Shipping calculated at checkout.

Generator Stator Regulator Rectifier Gasket Set For Yamaha Big Bear / Bruin / Bear Tracker / 250

Features:
Kit include Stator, Regulator Rectifier and gasket.
Meet or exceeds the OEM quality, direct replacement to your original unit.
Perfect fit and ready to install.
Always use a sealant to mount the cable gland joint.
Instruction is NOT included.

Attention:
One of the most common reasons a stator breaks down is due to a broken regulator, which burns the stator in no time.
Therefore we highly recommend you to switch both parts.
Technically modified stators are excluded from exchange.

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator and Regulator Kit

other specification:

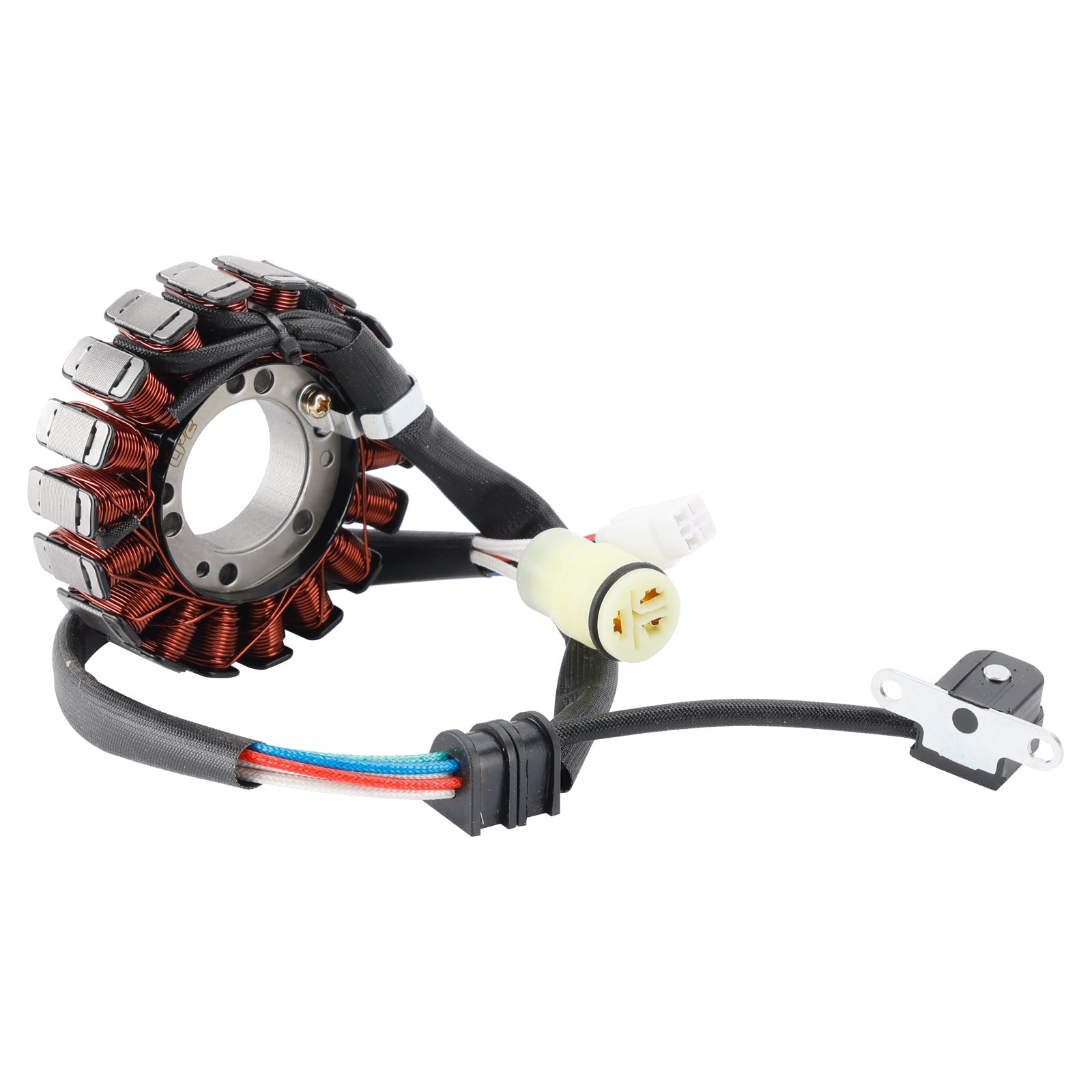

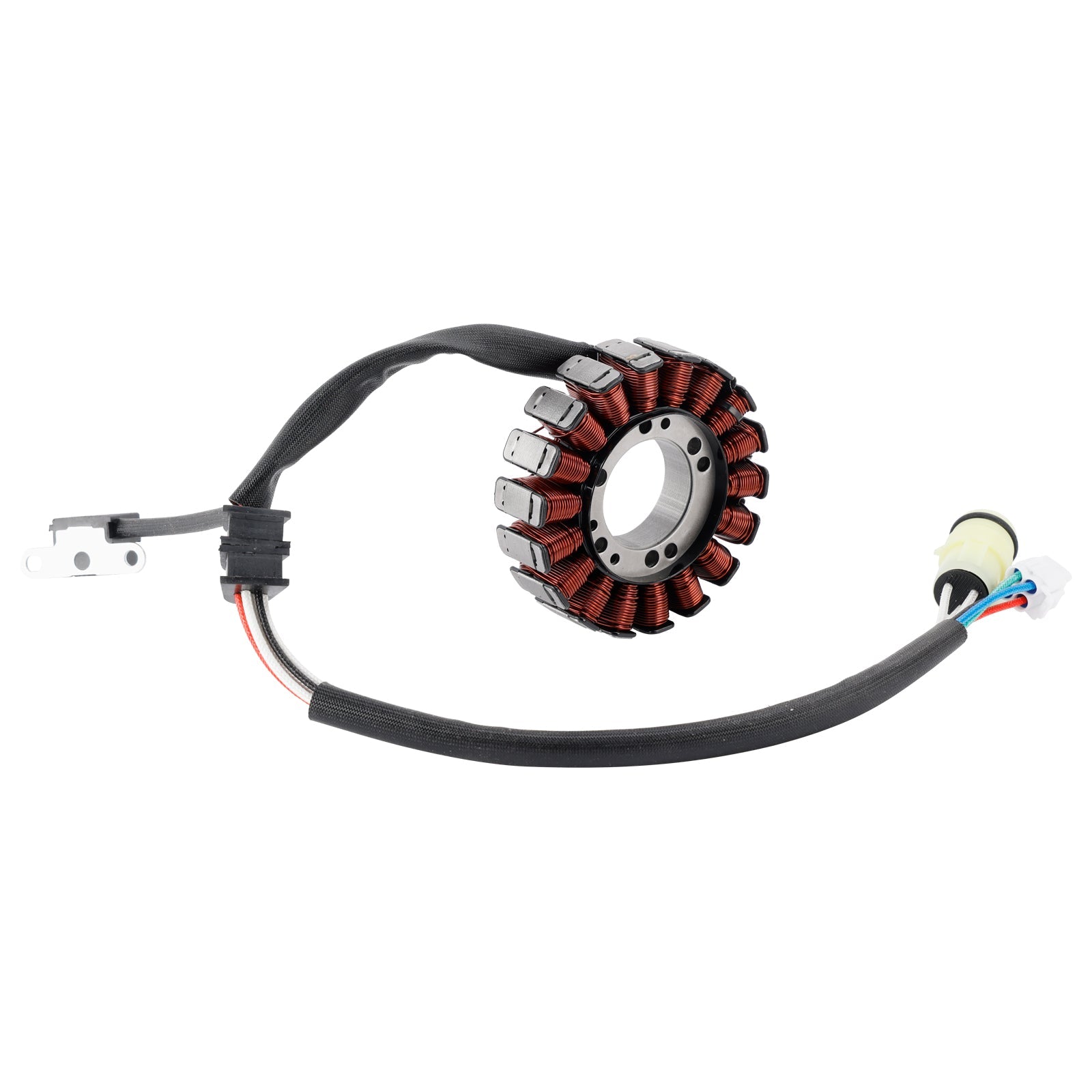

Stator
Number of wires: 7

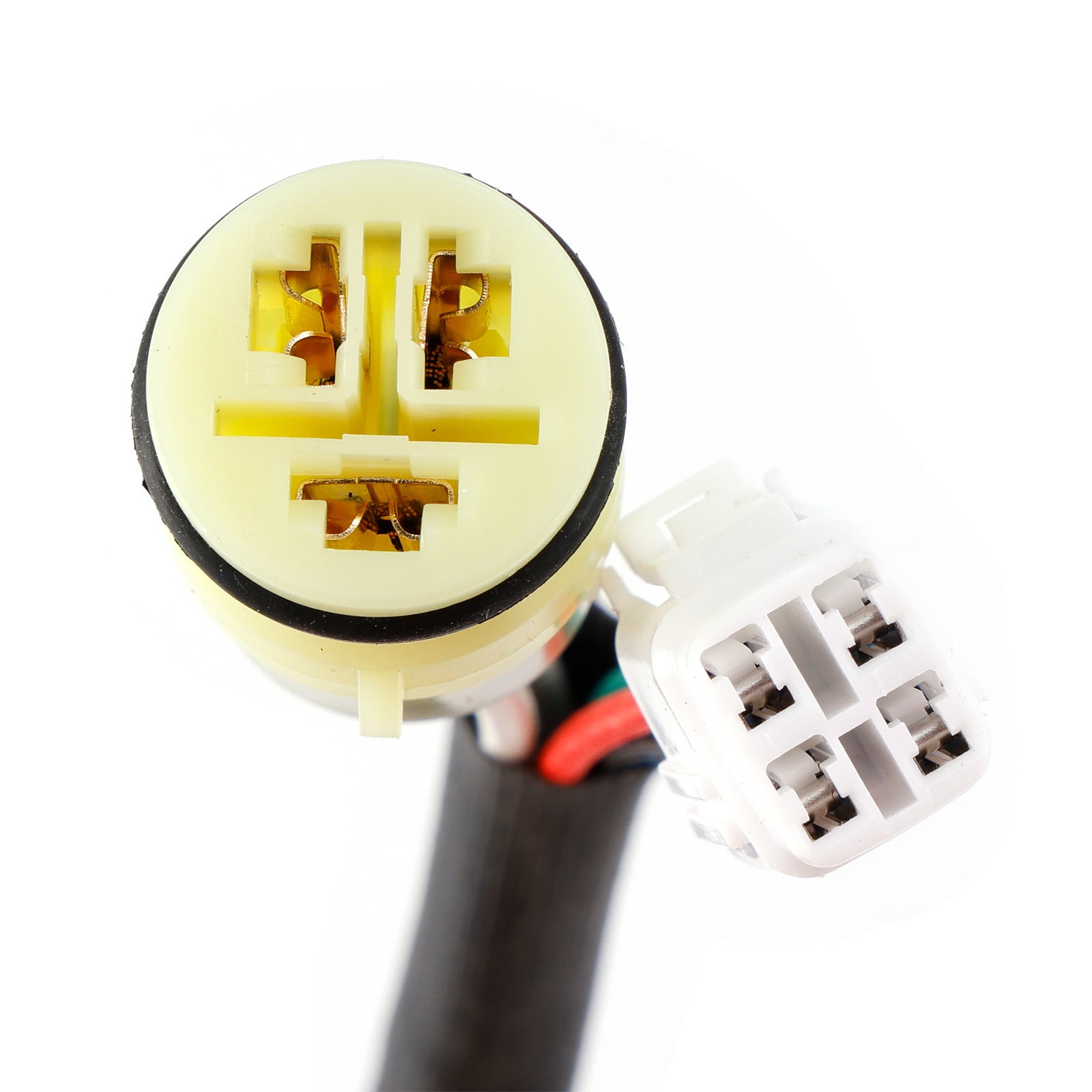

Number of plugs: 2
Number of pins: 3 + 4
Number of fixation holes: 3
Number of poles: 18
Interior diameter: 35 mm
Exterior diameter: 91 mm

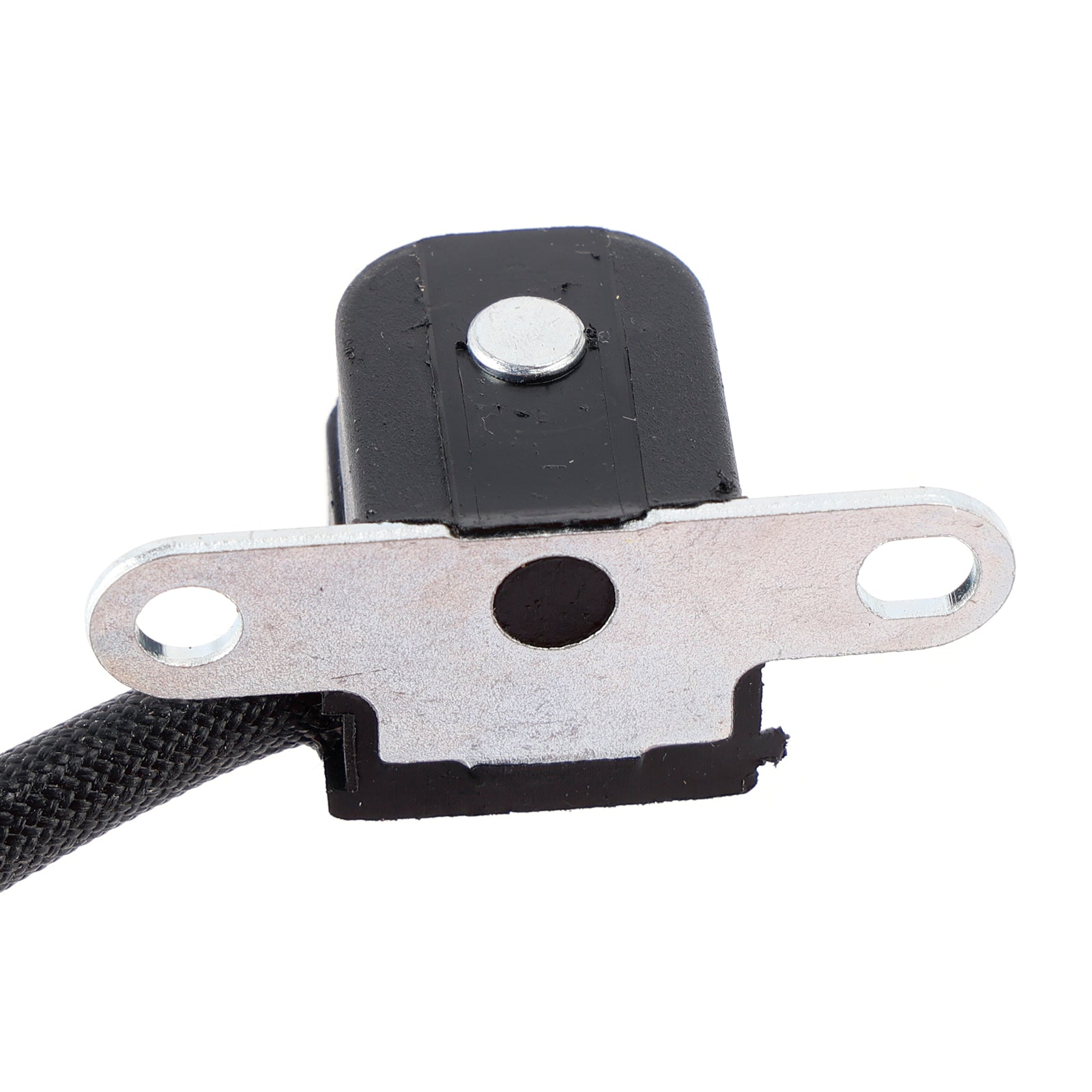

Pick up pulsar coil included.

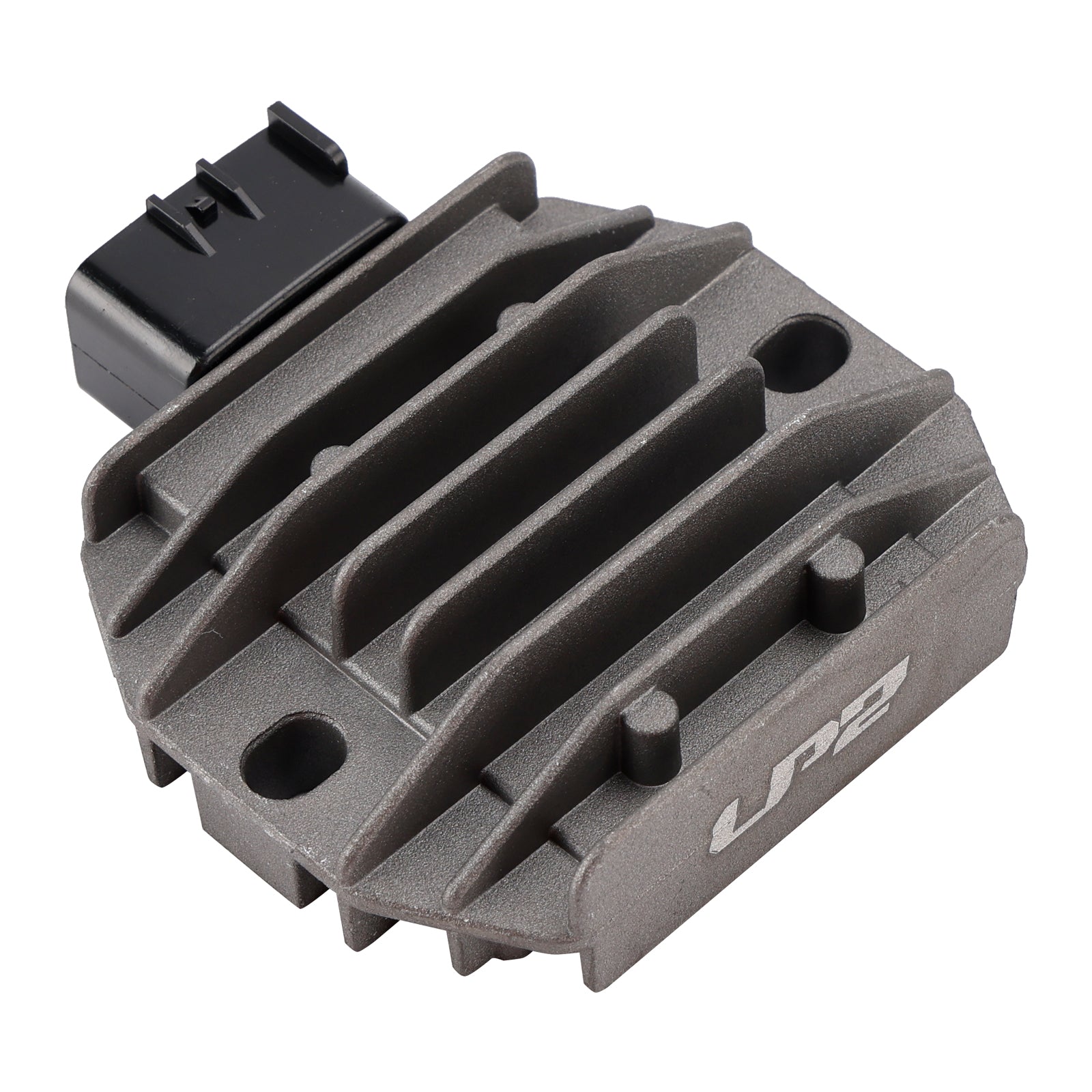

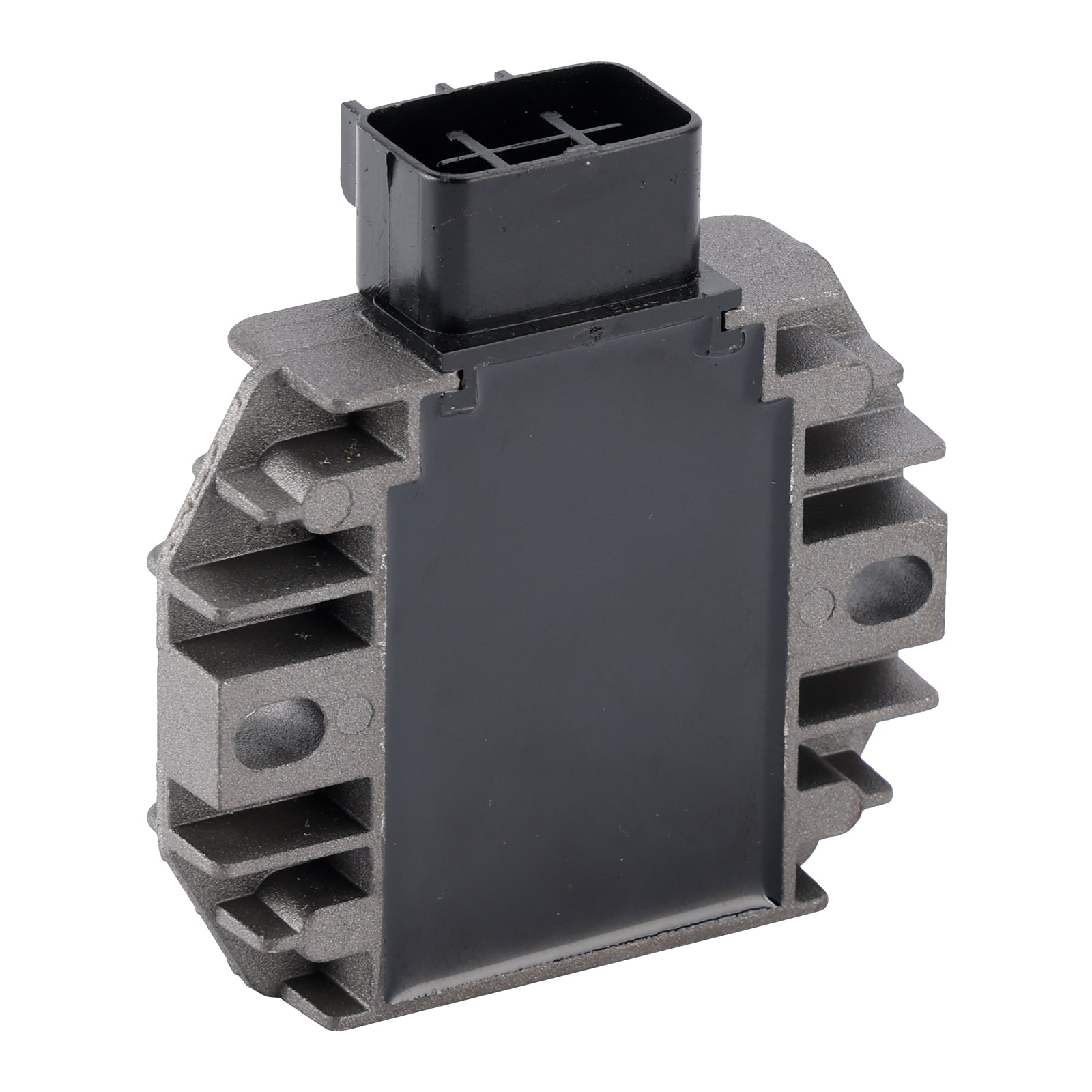

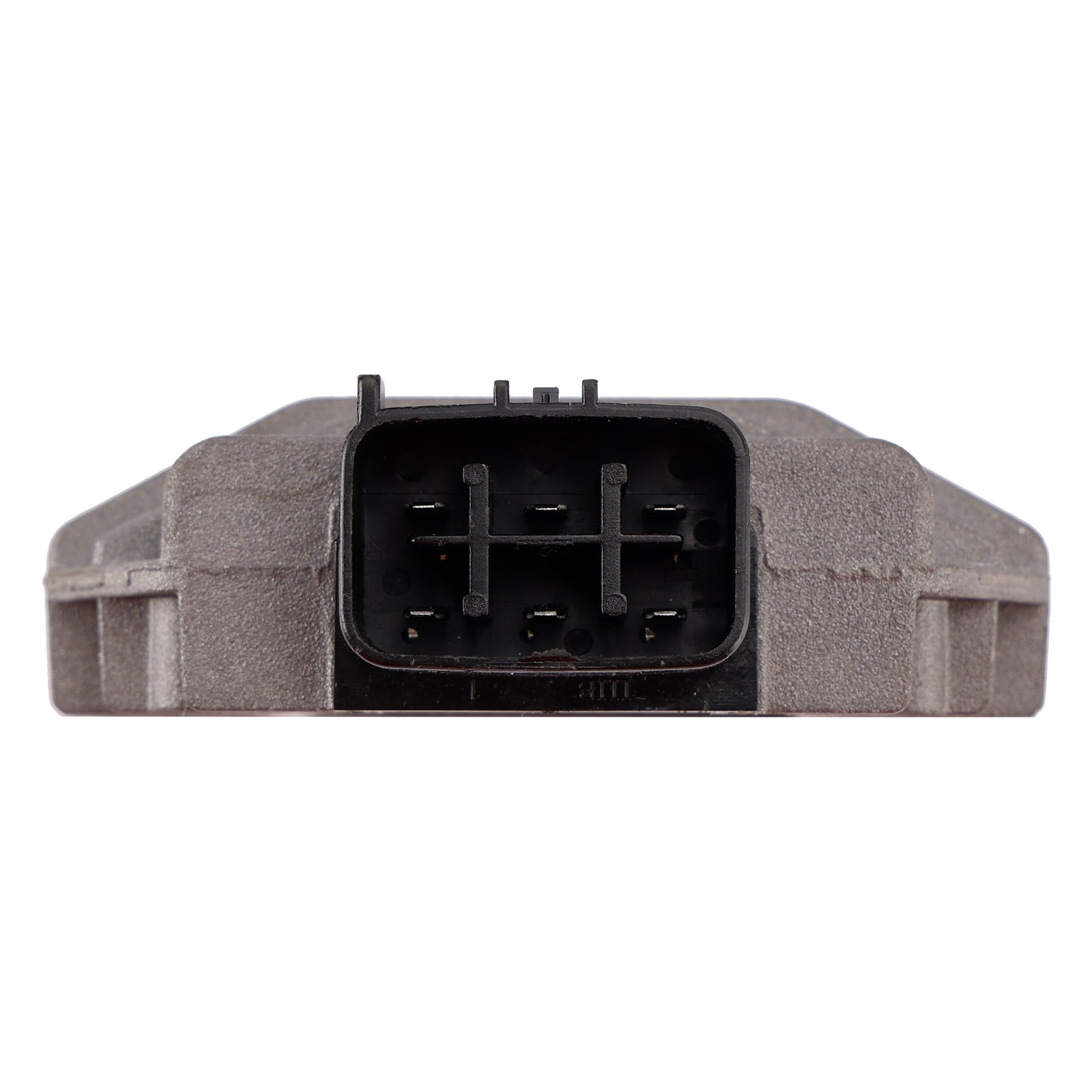

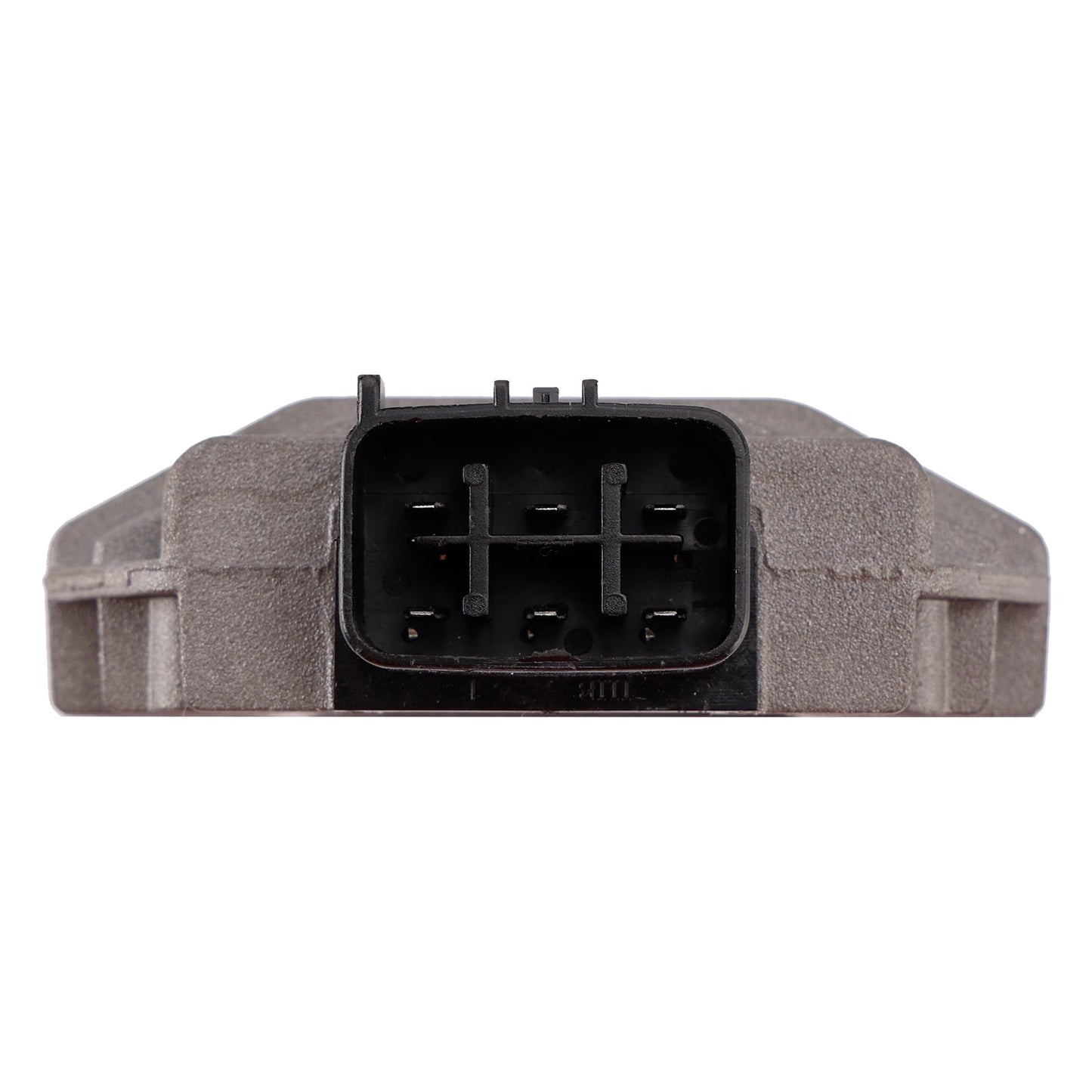

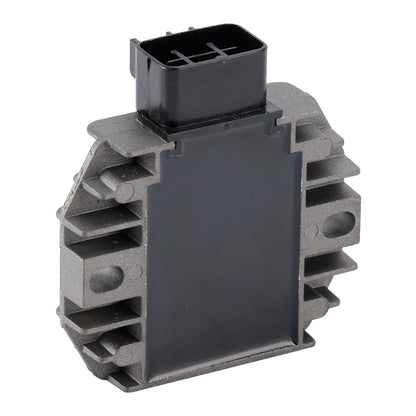

Regulator
Number of plugs: 1
Number of pins: 6

Please compare the number of pins and plugs with the old part before purchasing.

Replacement Part Number:
Stator Assy: 4XE-81410-00, 1P0-H1410-00
Rectifier, regulator: 5GT-81960-00

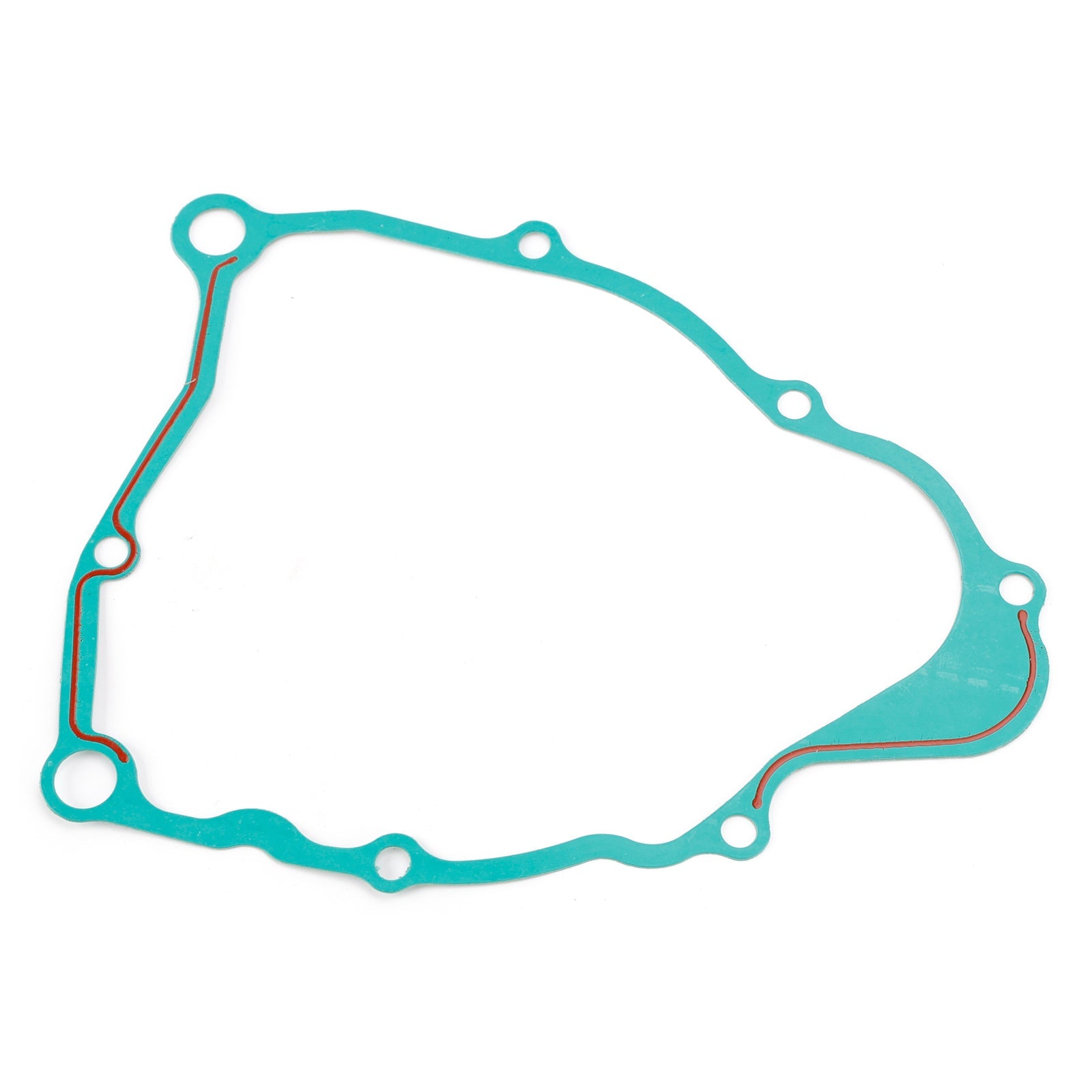

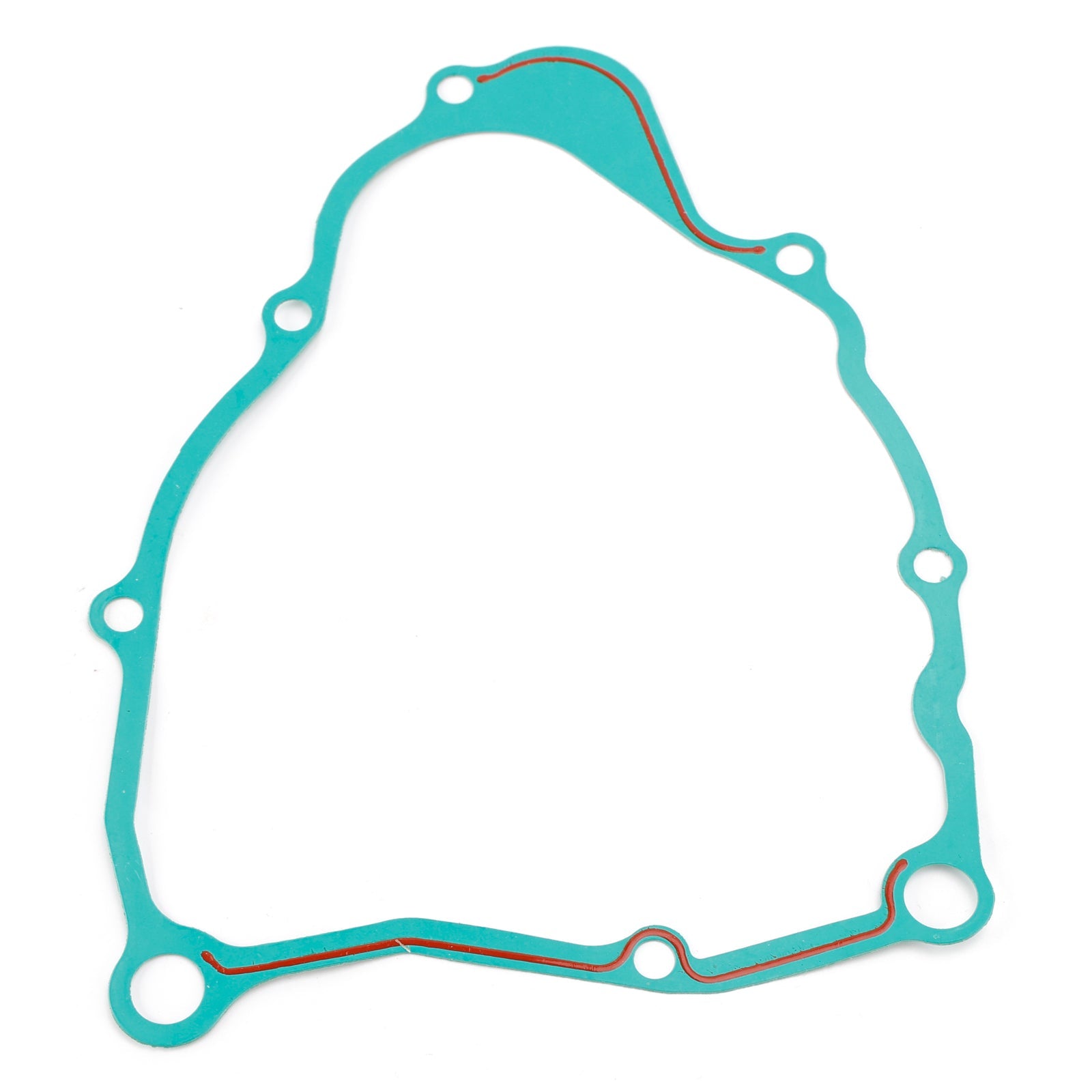

Gasket, generator cover: 4BD-15451-00, 4BD-15451-01, 24W-15451-00

Fits Make/Model/Year:
Fit for Yamaha YFM250X Bear Tracker 2WD 2001-2004
Fit for Yamaha YFM250B Big Bear 250 2WD 2007-2011
Fit for Yamaha YFM250B Bruin 250 2WD 2005-2006

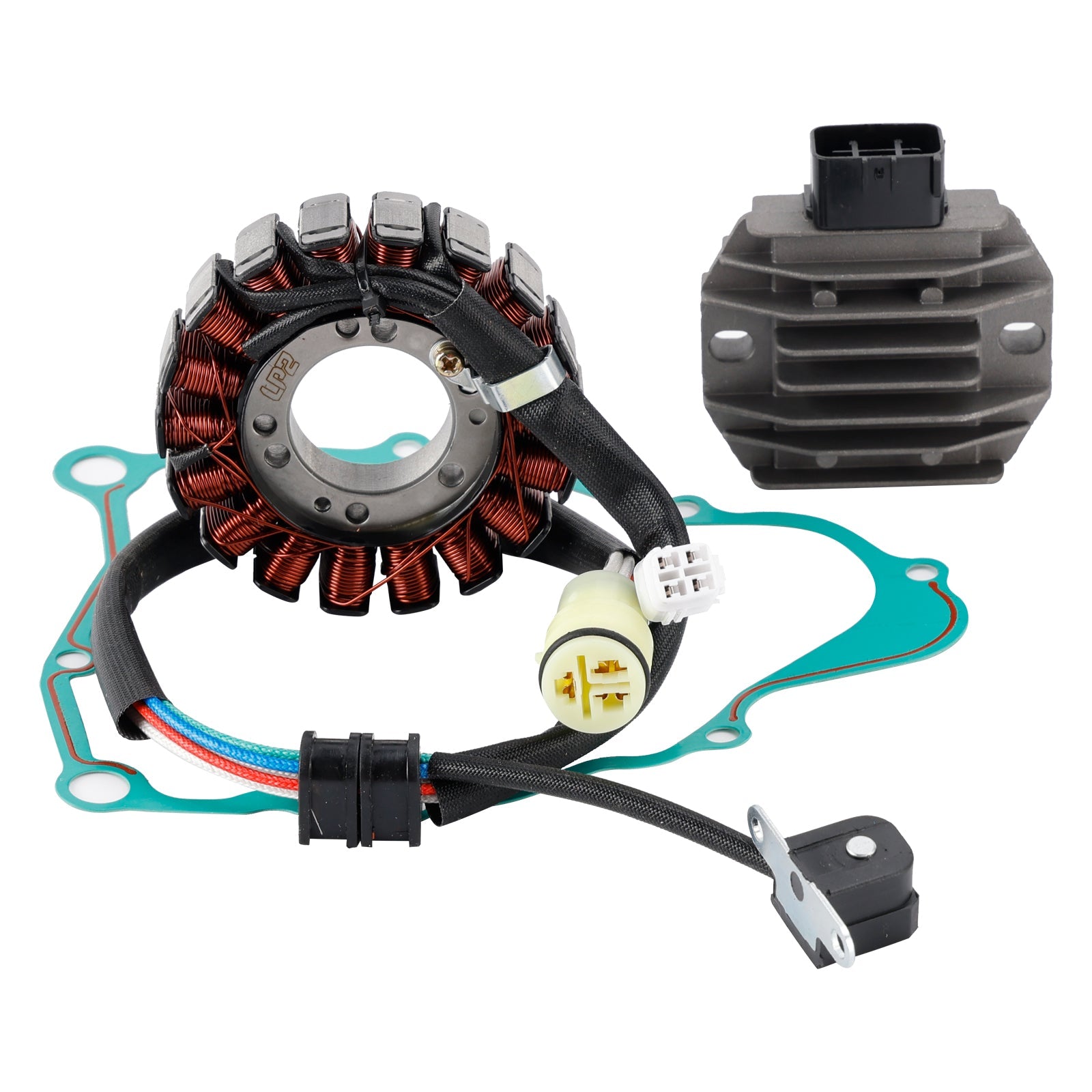

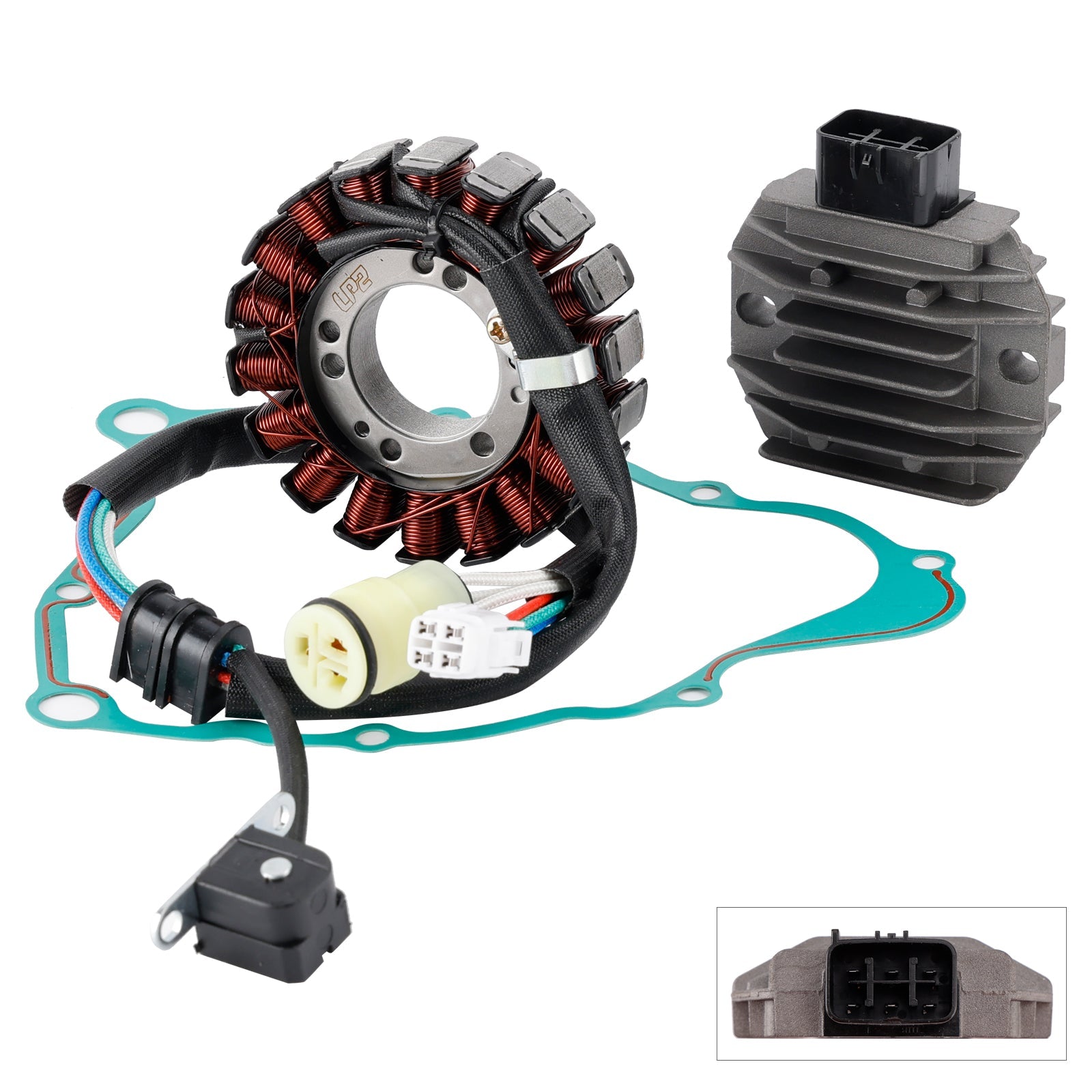

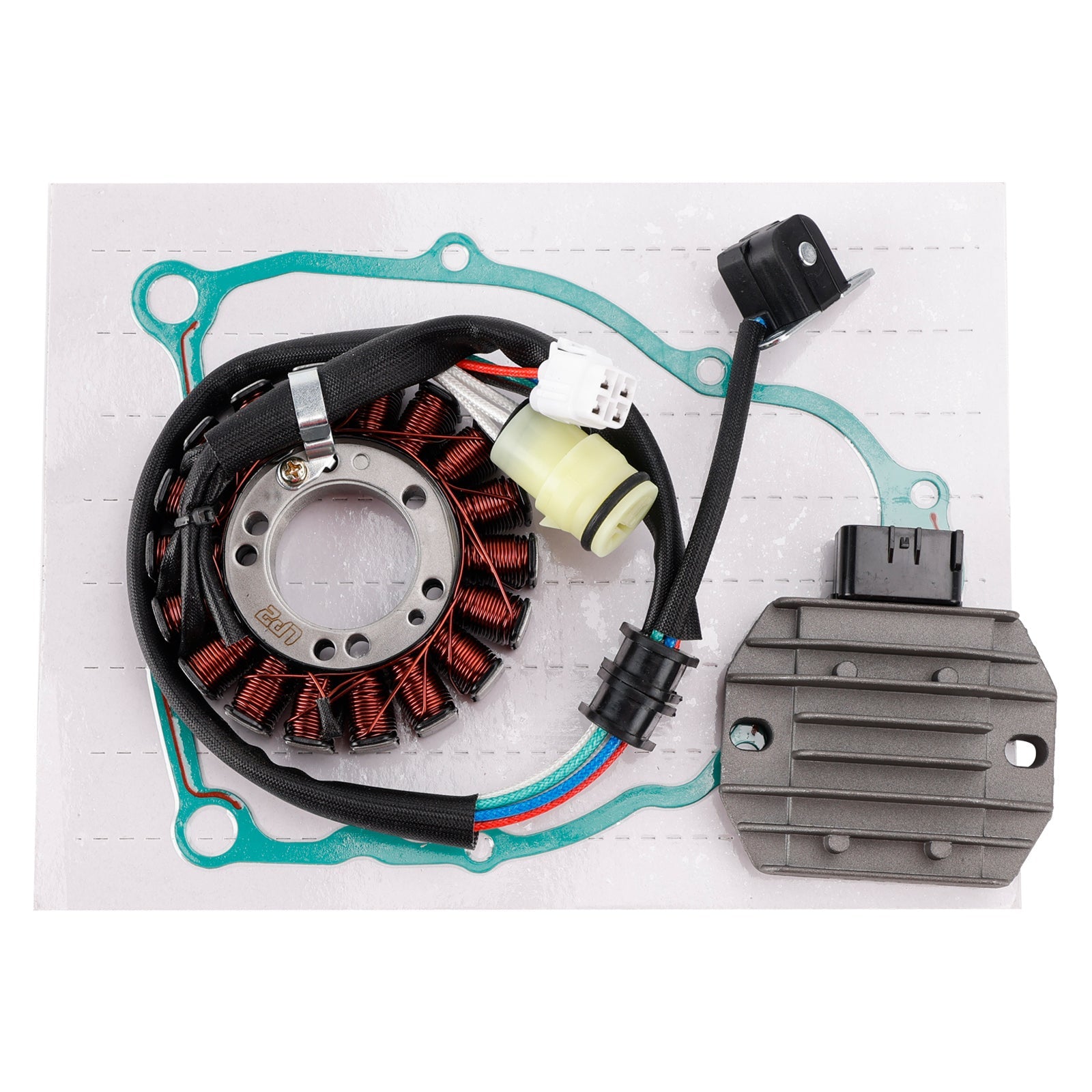

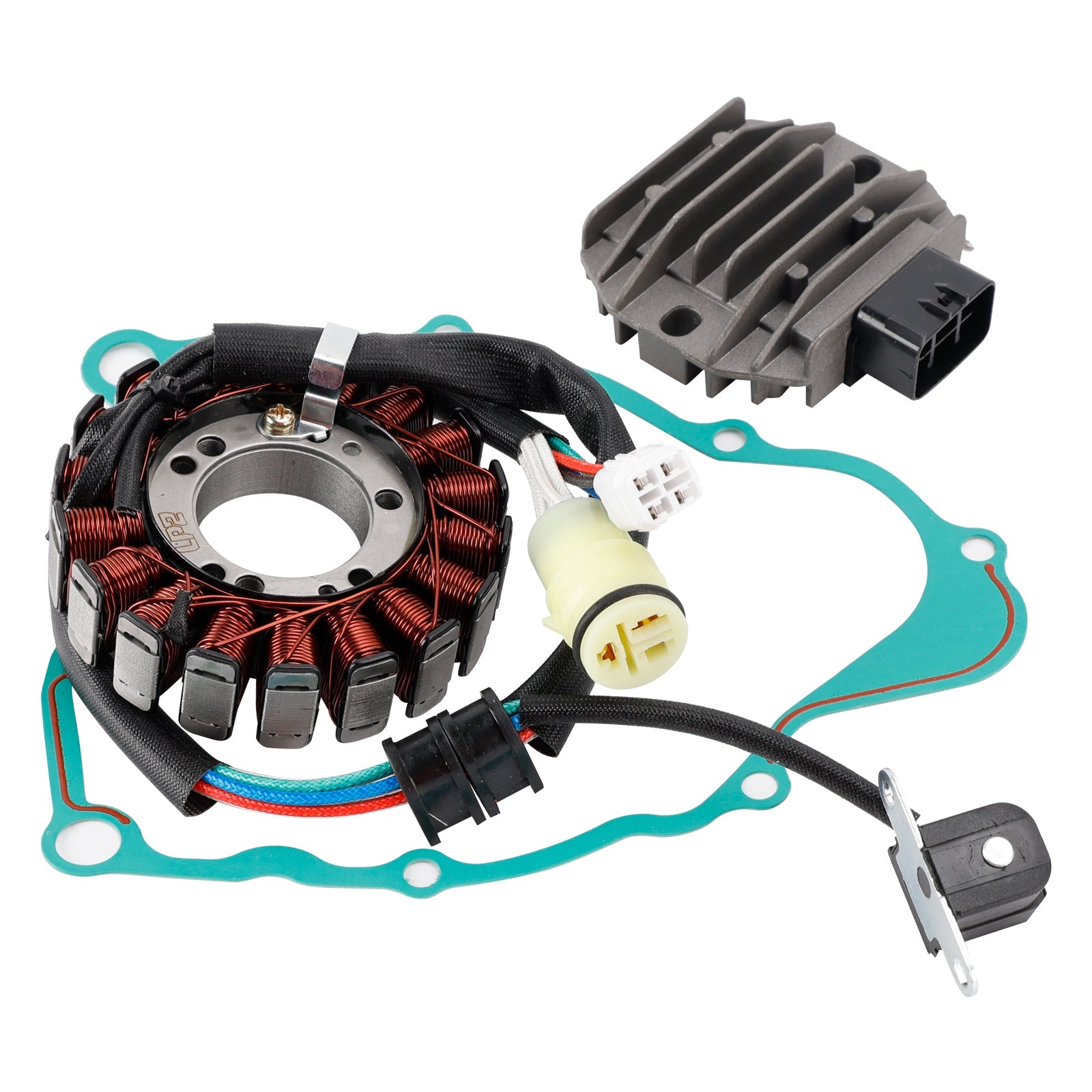

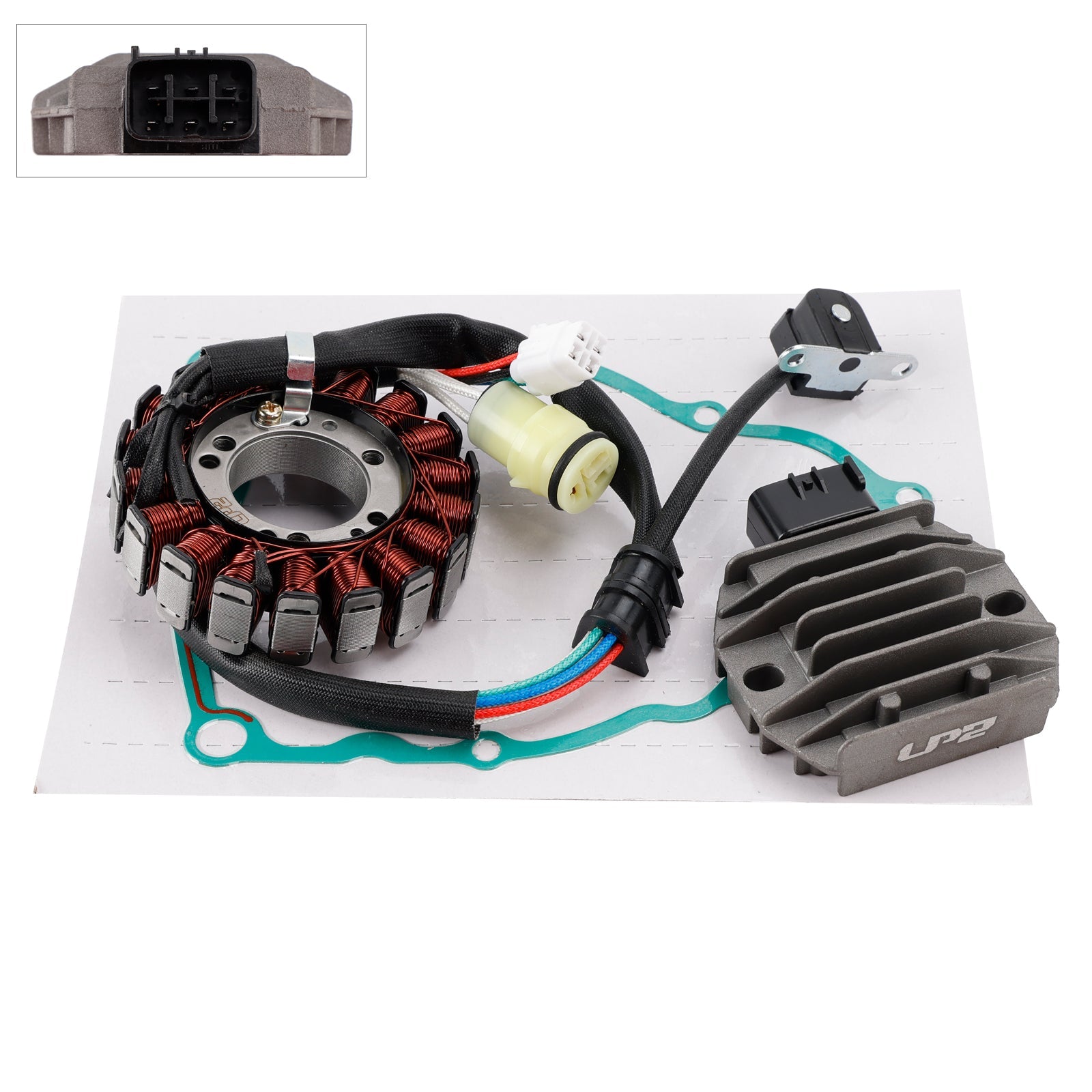

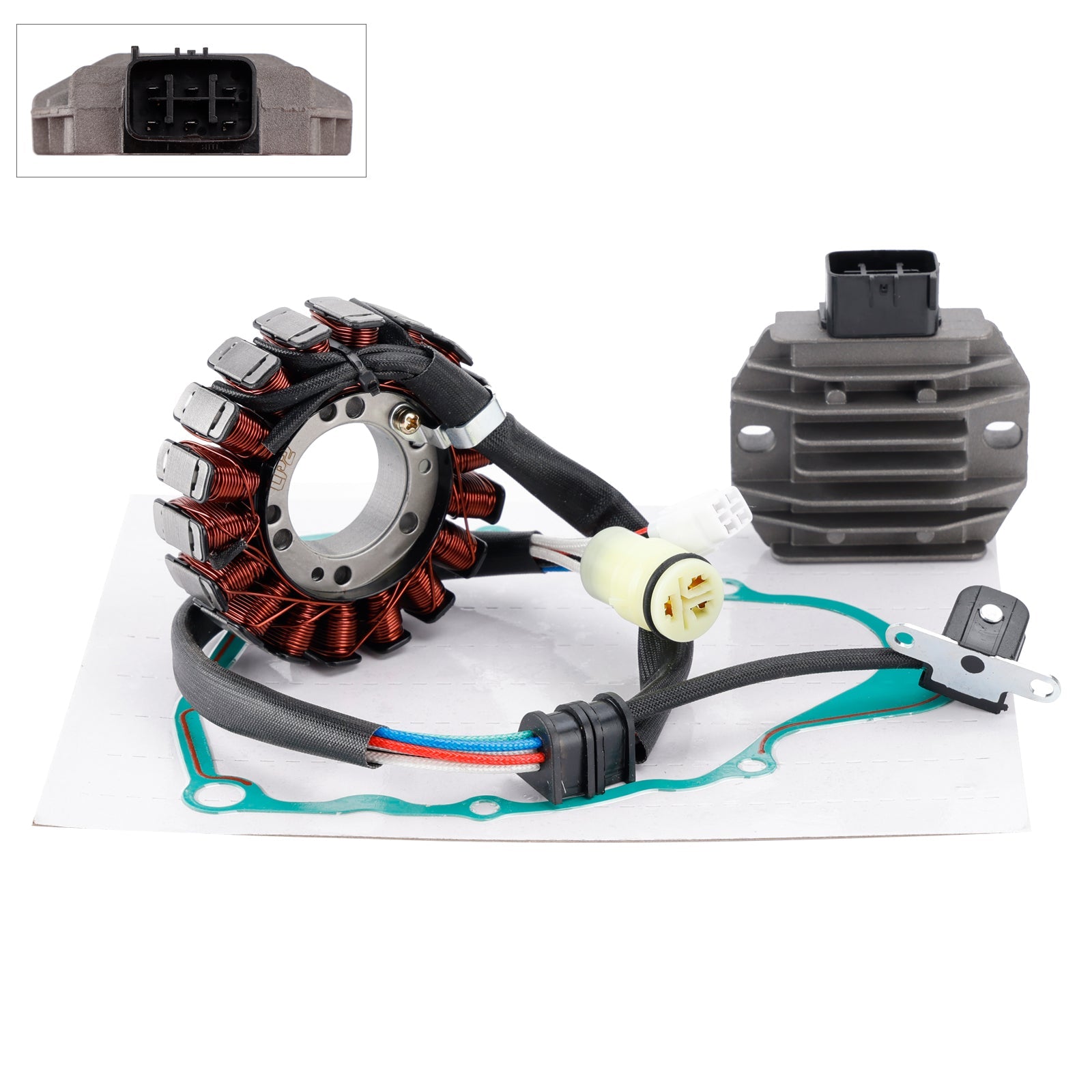

Package Includes:
1 x 18-Pole Generator Stator
1 x 6-Pin Regulator Rectifier
1 x Crankcase Gasket
