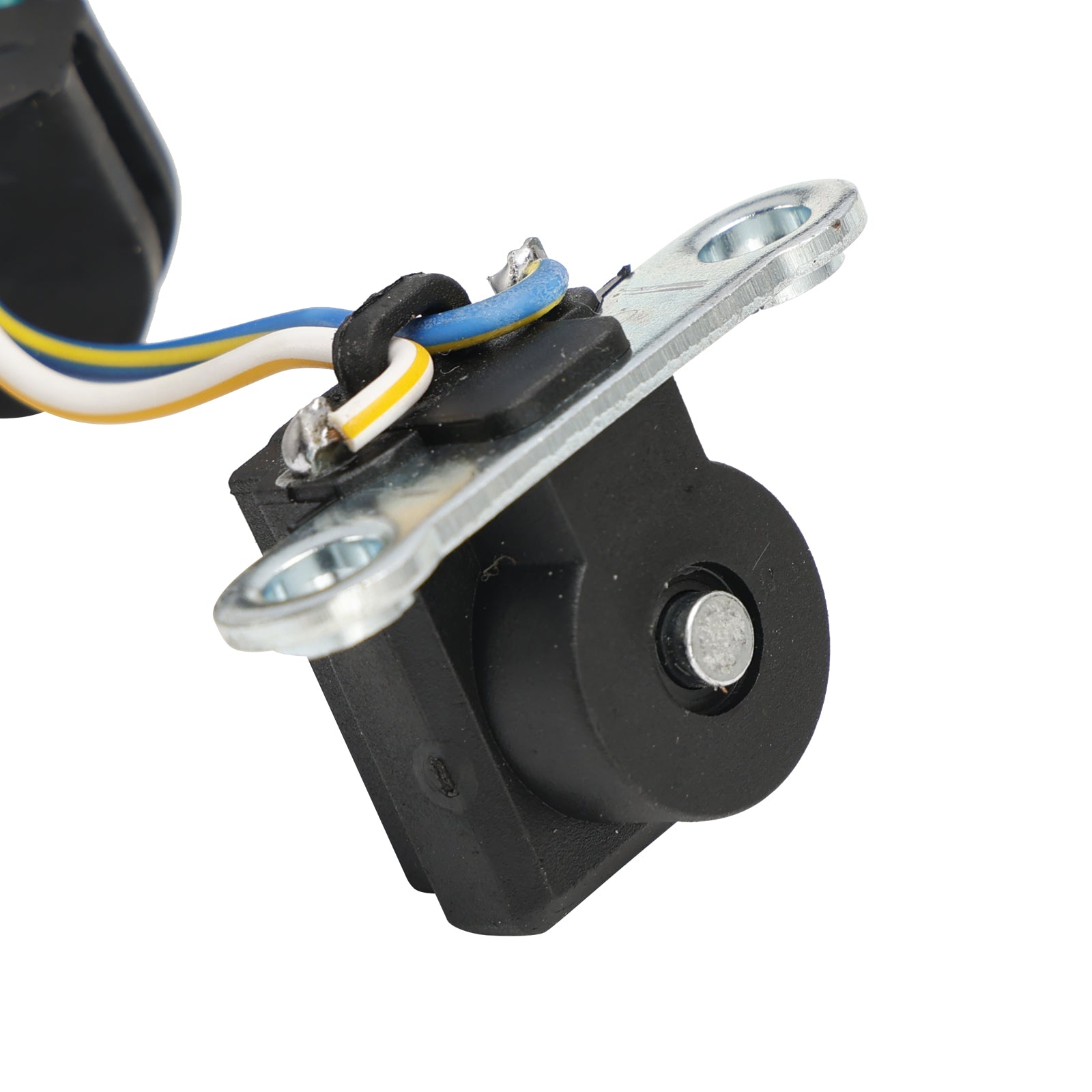

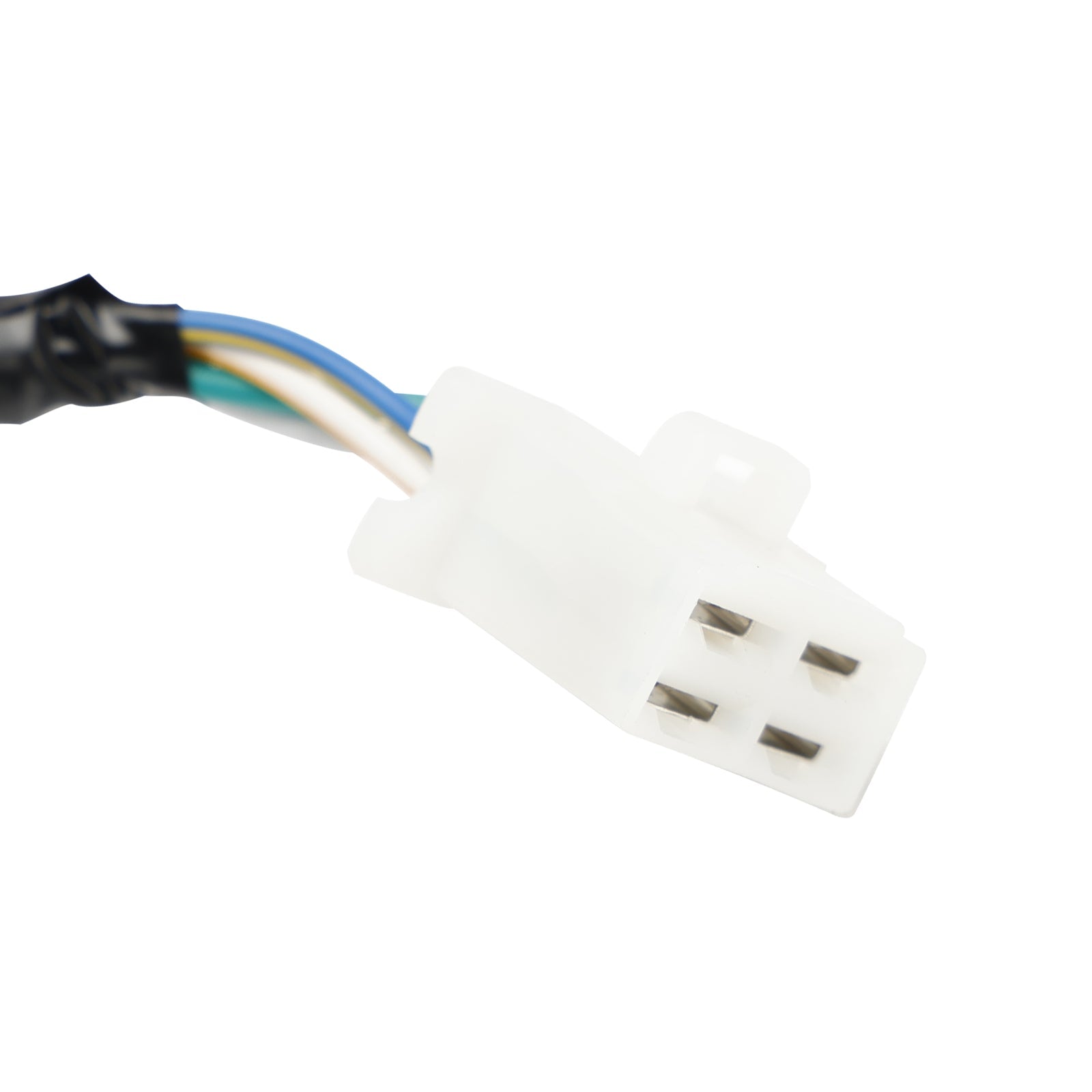

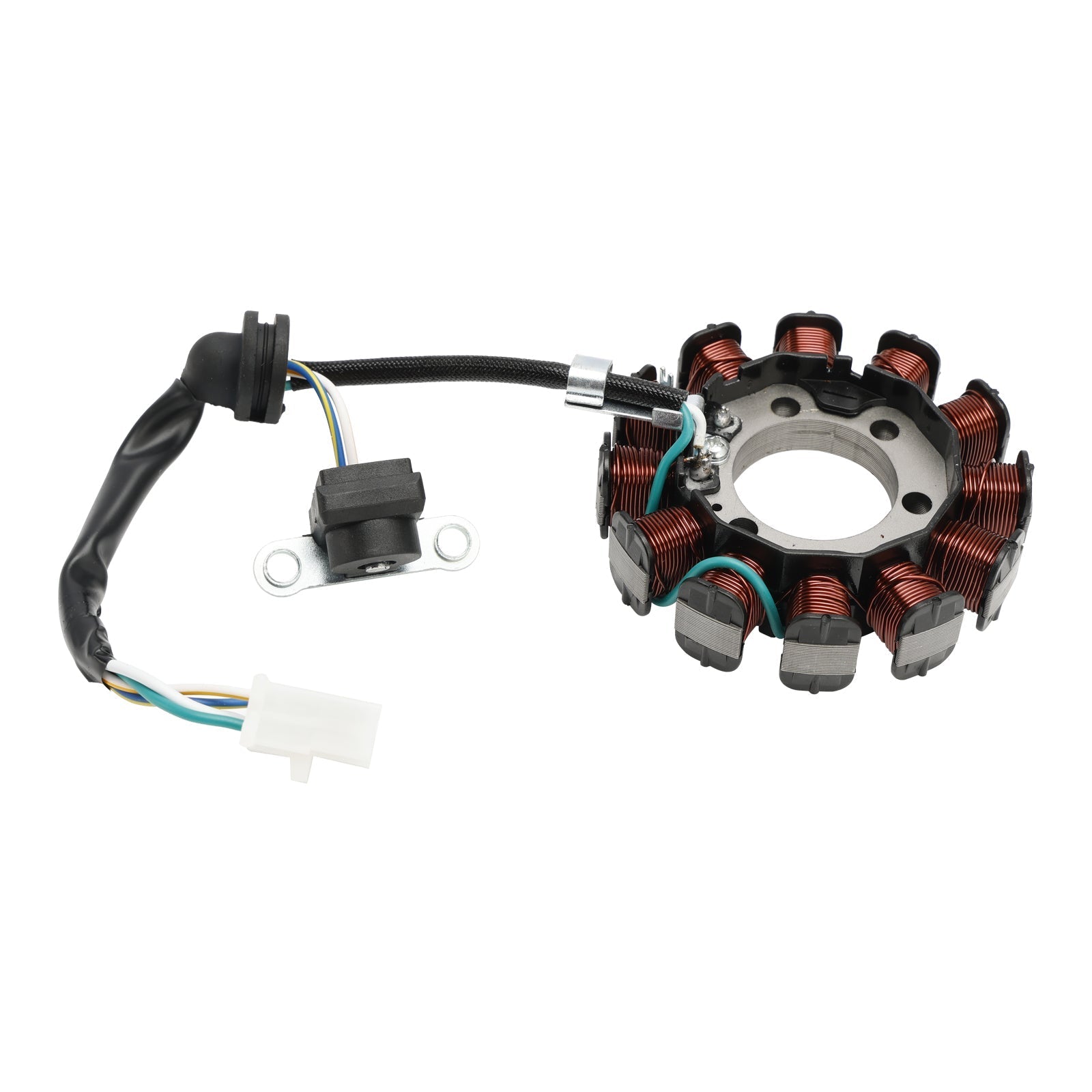

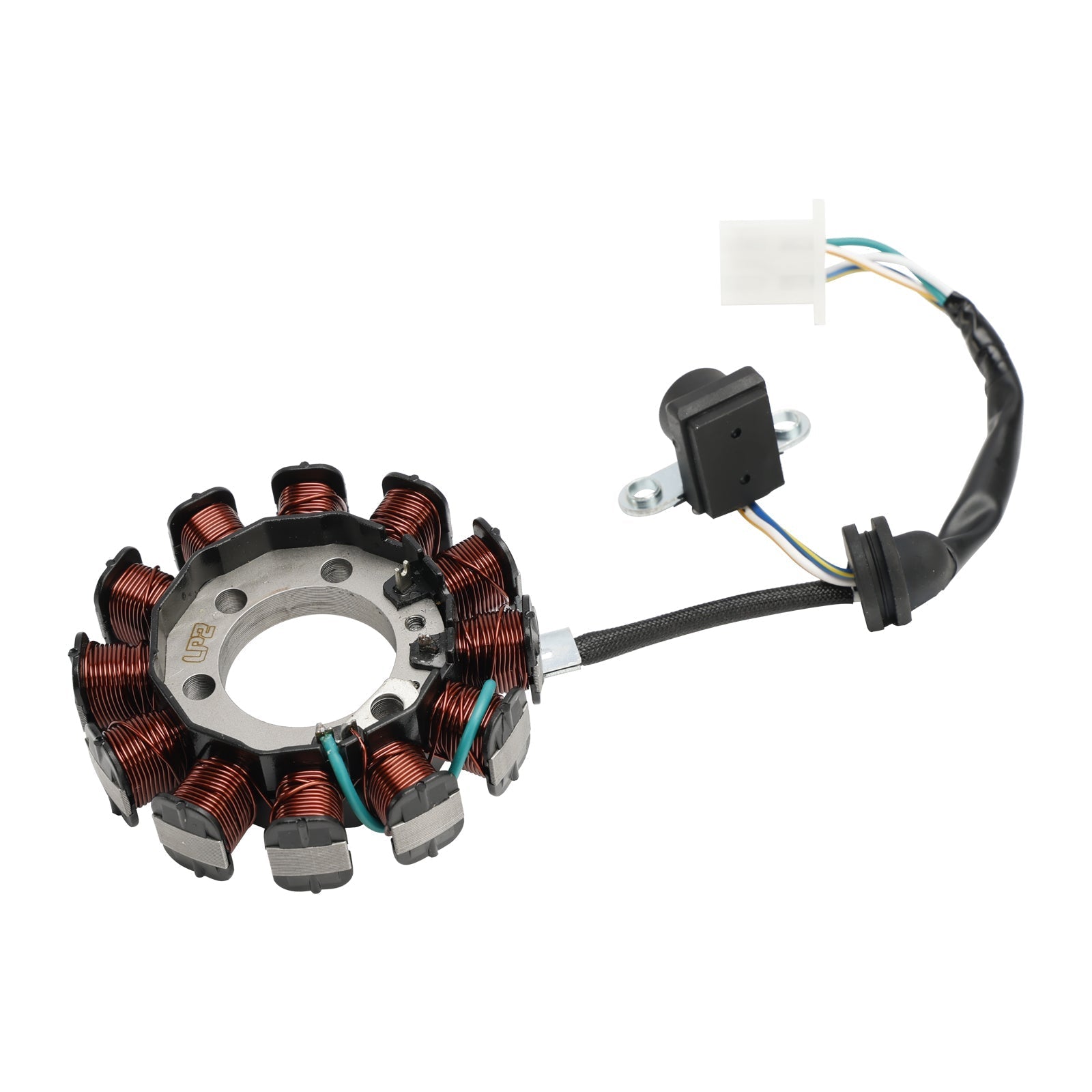

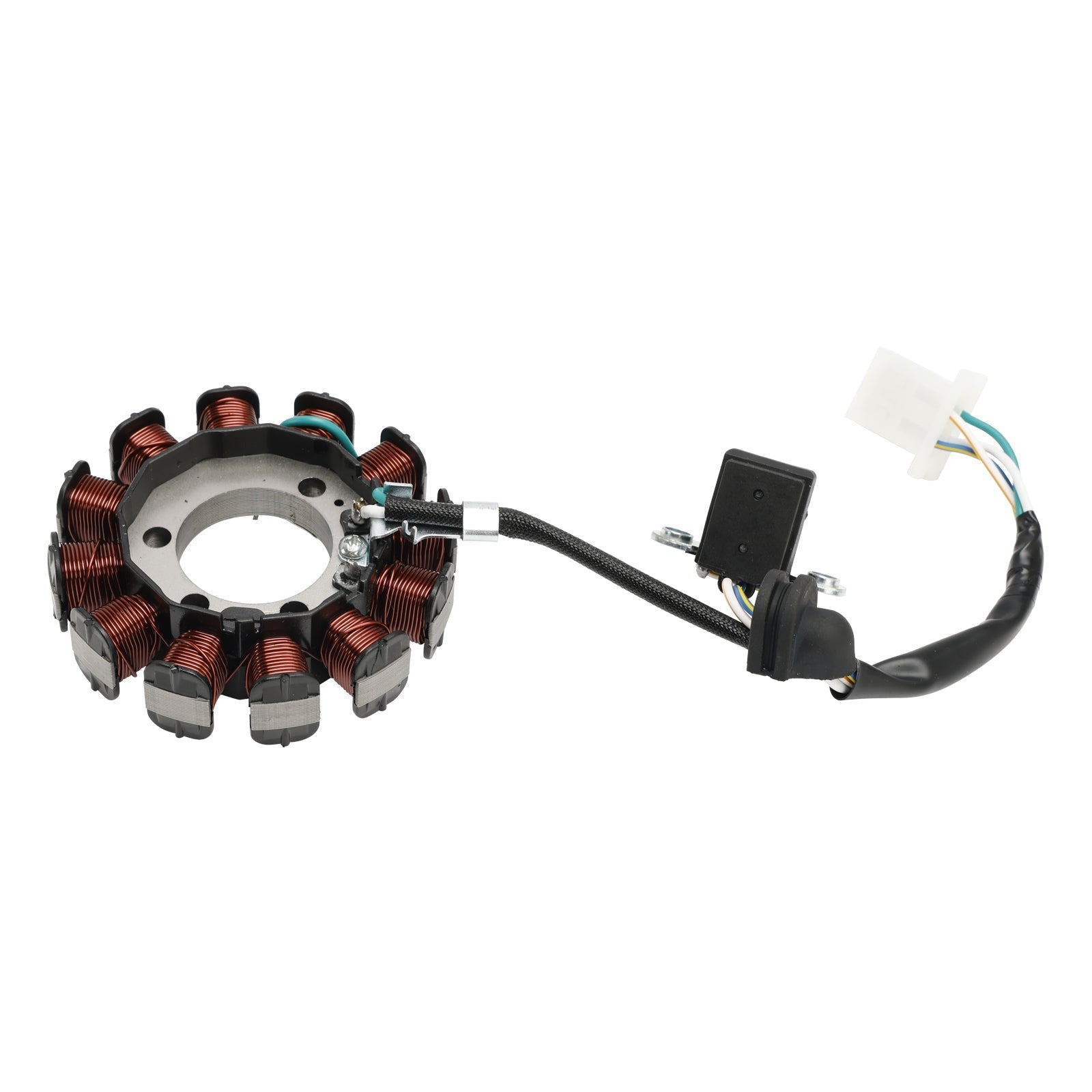

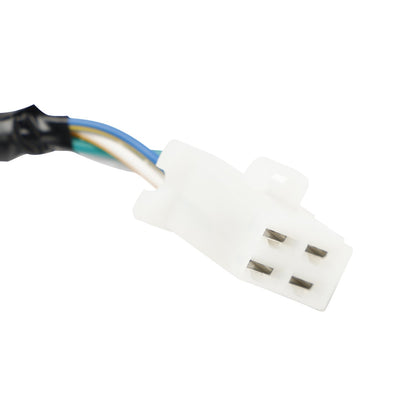

Features: Direct replacement to your original unit Plug-and-play, direct fit, easy installation. Highest grade lamination materials. Pick up pulsar coil included. Connector included. Rubber grommet included. All products shipped are tested.

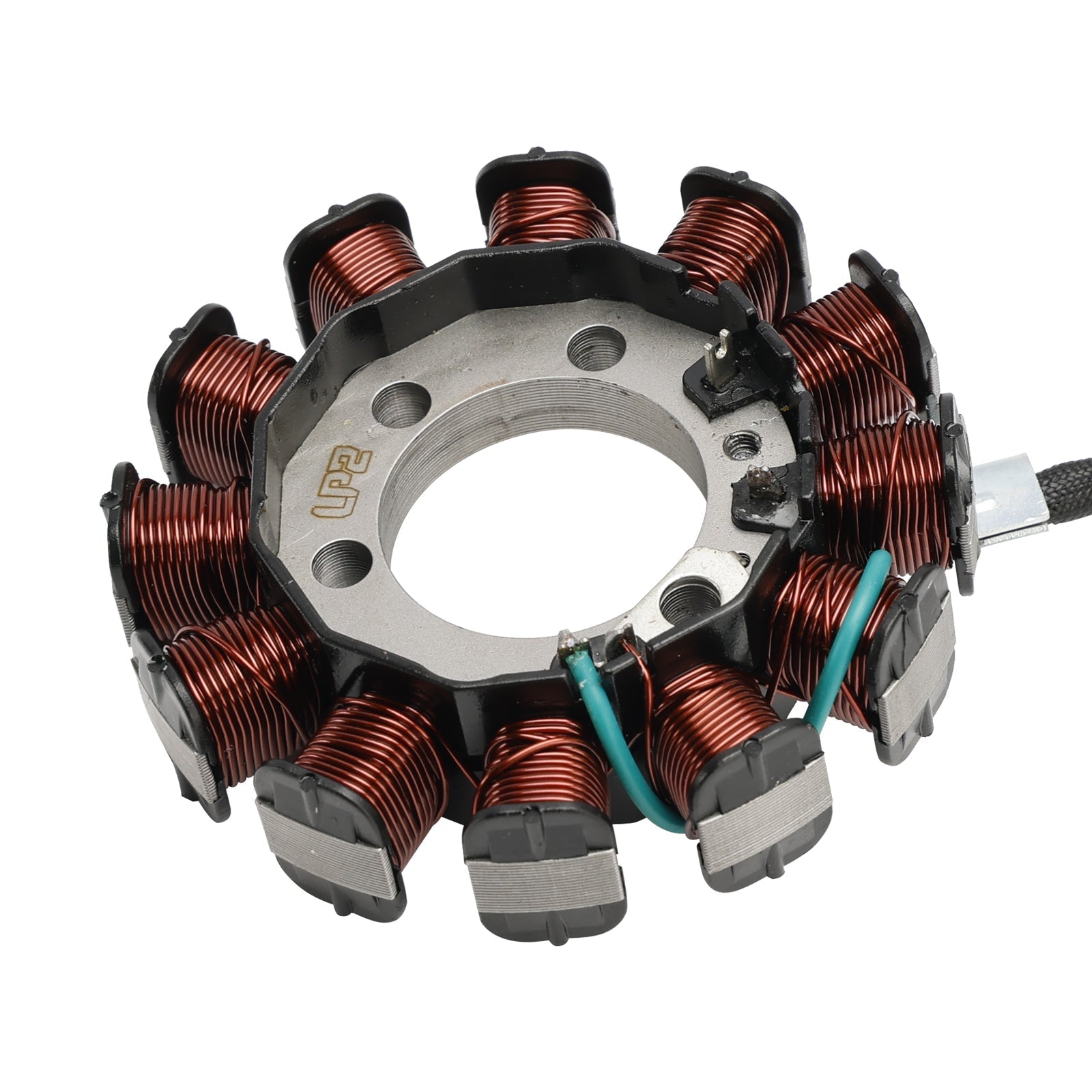

other specifications: Number of wires: 4 Number of plugs: 1 Number of pins: 4 Number of poles: 12
Replacement Part Number: 31120-K41-N01 31120-KYZ-T41
Fits Make/Model/Year: Fit for Honda AFP 125 DASH 125, Rear brake disk 2018-2021 Fit for Honda AFP 125 DASH 125, Rear brake drum 2018-2020 Fit for Honda ZN 125 ROAD SPORT RS 125 2018-2020 Fit for Honda CFT 125 XRM 125 2017-2019 Fit for Honda CFT 125 XRM 125 DUAL SPORT 2019-2021 Fit for Honda CFT 125 XRM 125 DUAL SPORT X 2021 Fit for Honda CFT 125 XRM 125 DUAL SPORT EXTREME 2020-2021 Fit for Honda CFT 125 XRM 125 MOTARD 2017-2021
Fit for Honda AFS125 FUTURE 125, Casted wheels, Rear brake disk 2016 Fit for Honda AFS125 FUTURE 125, Casted wheels, Rear brake drum 2016 - 2017 Fit for Honda AFS125 WAVE 125, Electric start, Cast wheels 2014-2018 Fit for Honda AFS125 WAVE 125, Electric start, Spoked wheels 2014-2018 Fit for Honda AFS125 WAVE 125, Kick start, Spoked wheels 2014-2018
(Compatibility Chart is for Reference ONLY!!!) (Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included: 1x Stator Generator
NOTICE: Before installing your new stator
Check the AC output of the stator. Replace any burned or corroded connectors on stator and regulator/rectifier. Check and repair any melted wiring. Use hi-temp dielectric grease on all connectors Our stator may use a different wire color code than your original. All of the wires are installed in the correct order; please do not change any of the wiring configurations. This stator is designed as a direct plug-in replacement and should be used as such. When bolting stator in, always use locking compound. If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer. The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
Shipping: Free Shipping Handling?time: Ship within 24 hours Delivery Time: 3-7 business days
Warranty: 1. Condition: 100% Brand New 2. Warranty Period: 1 Years 3. 24-Hour Support: Provide you with timely after-sale support
