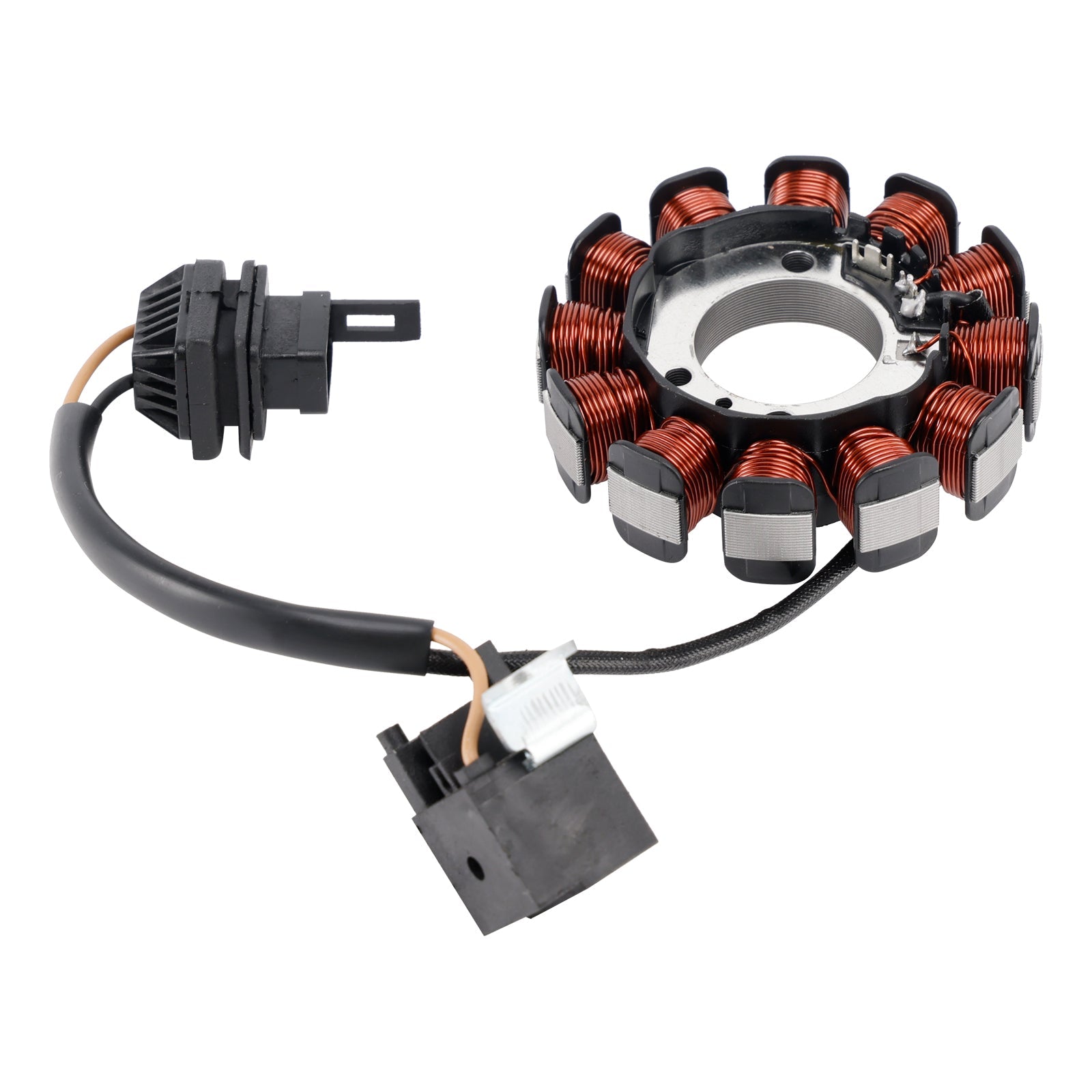

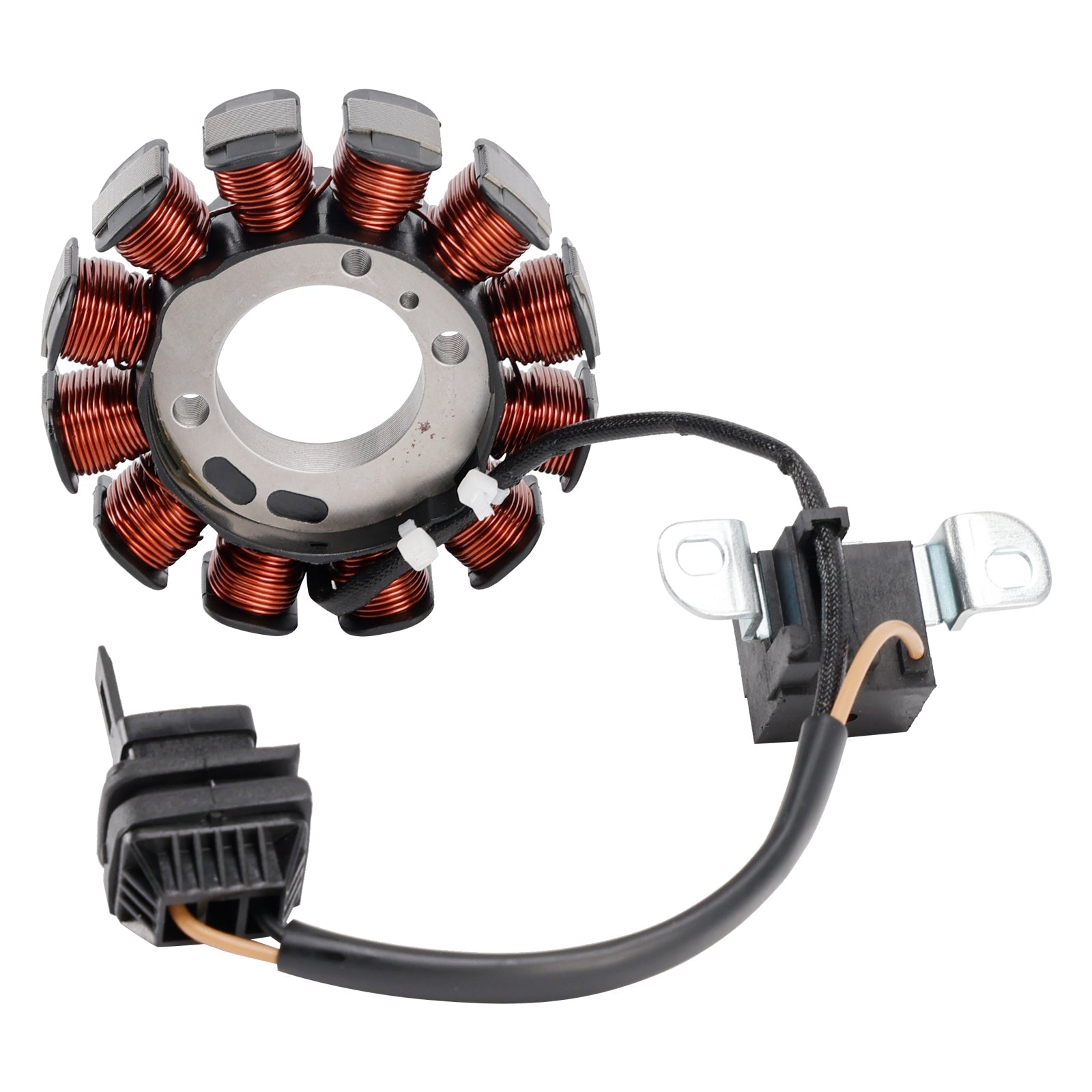

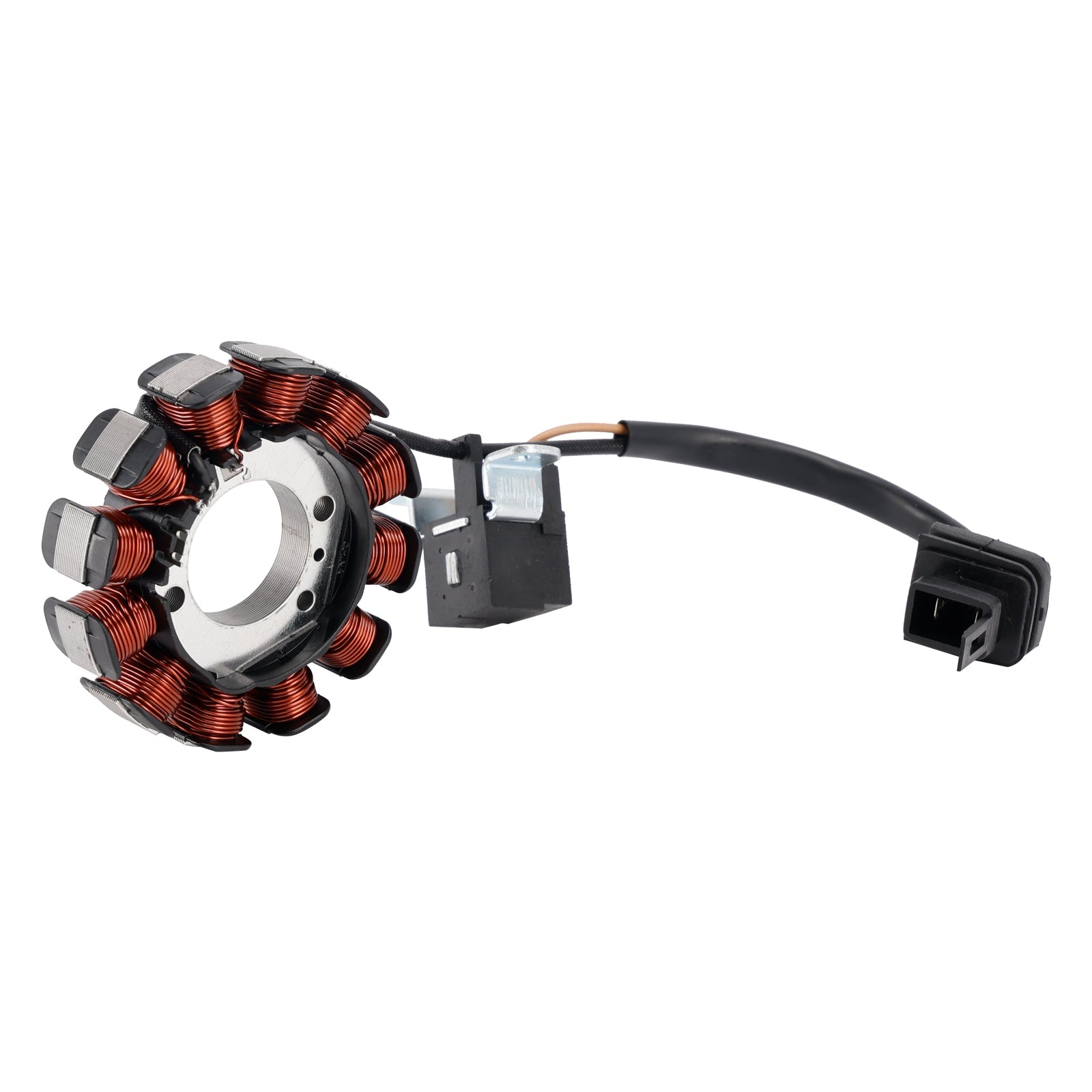

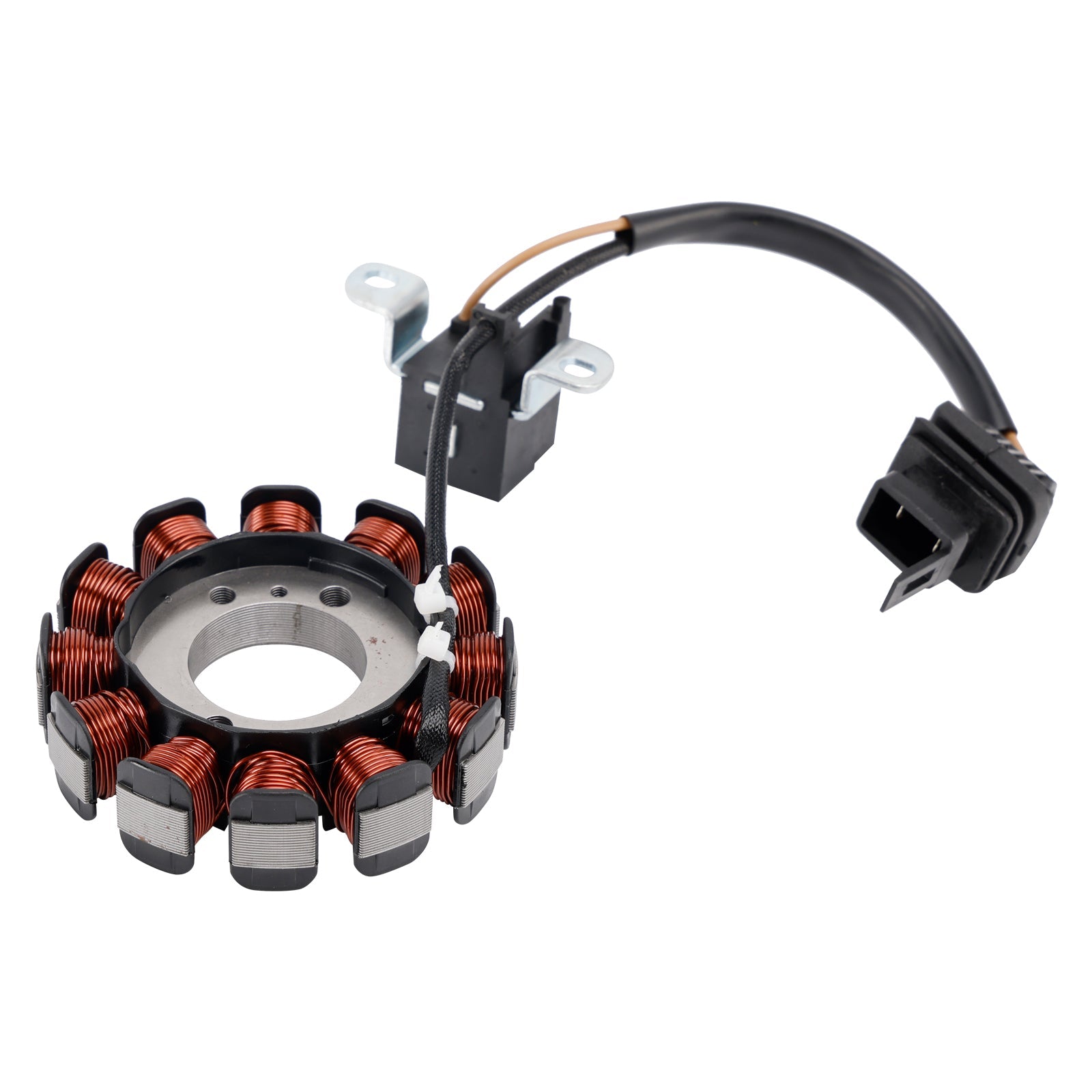

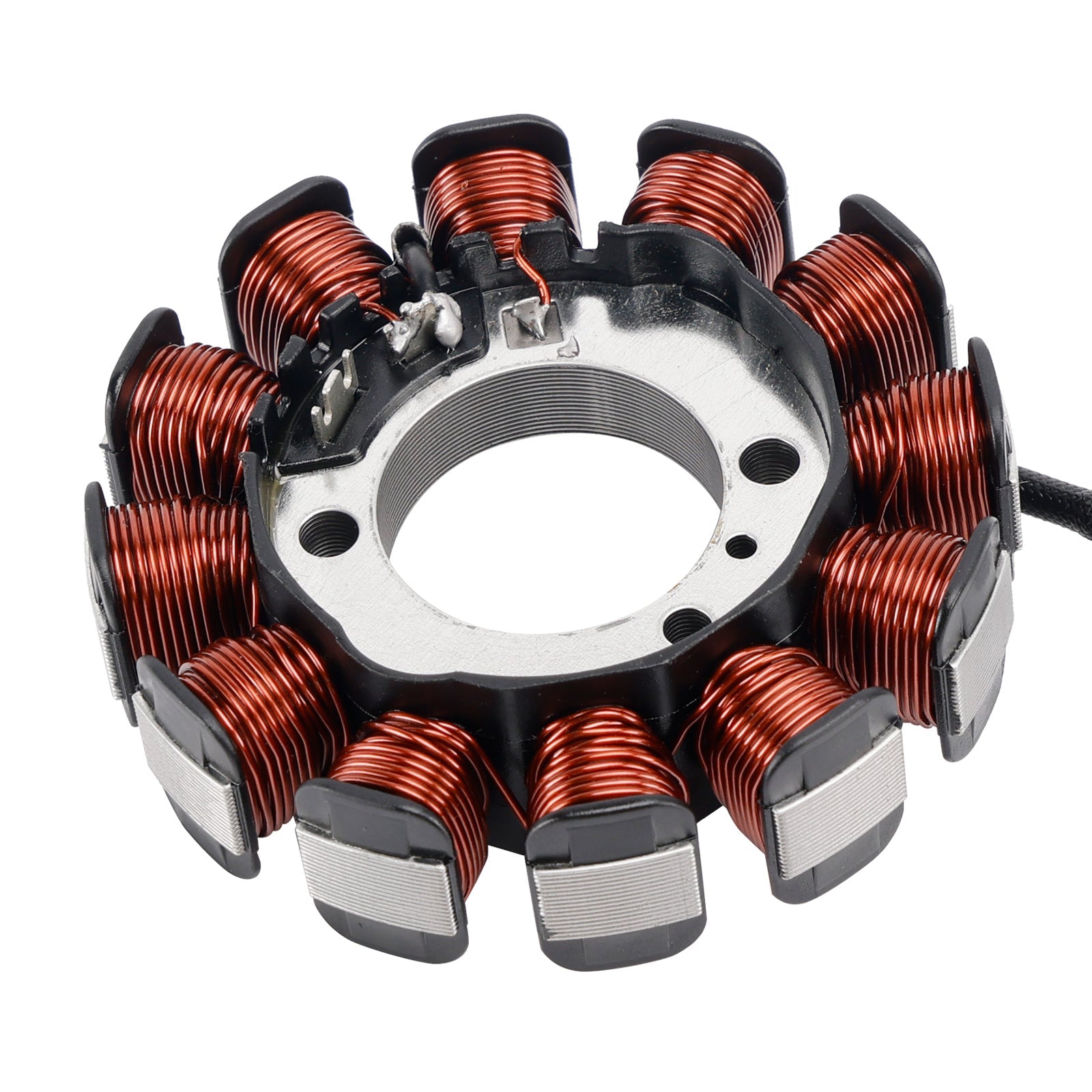

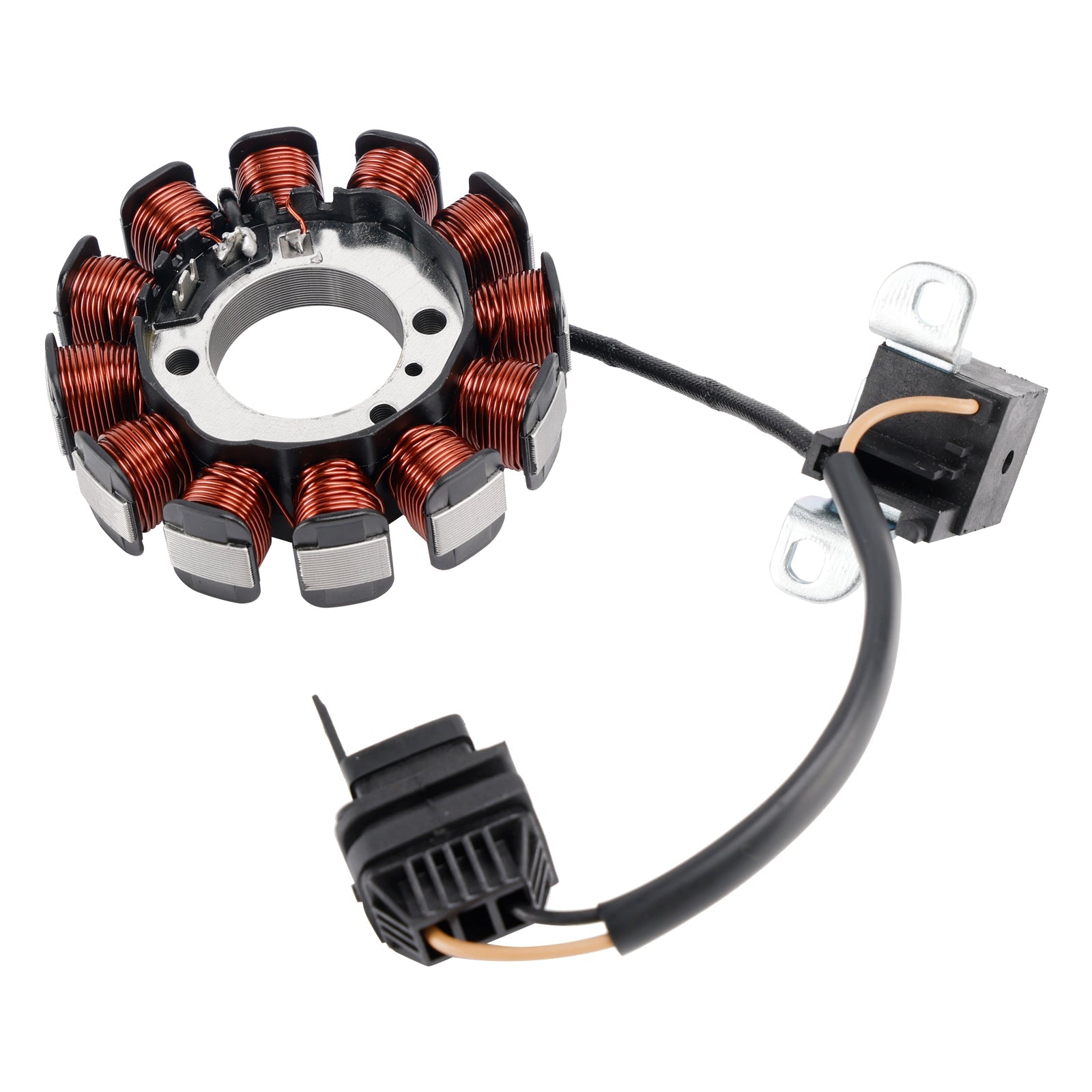

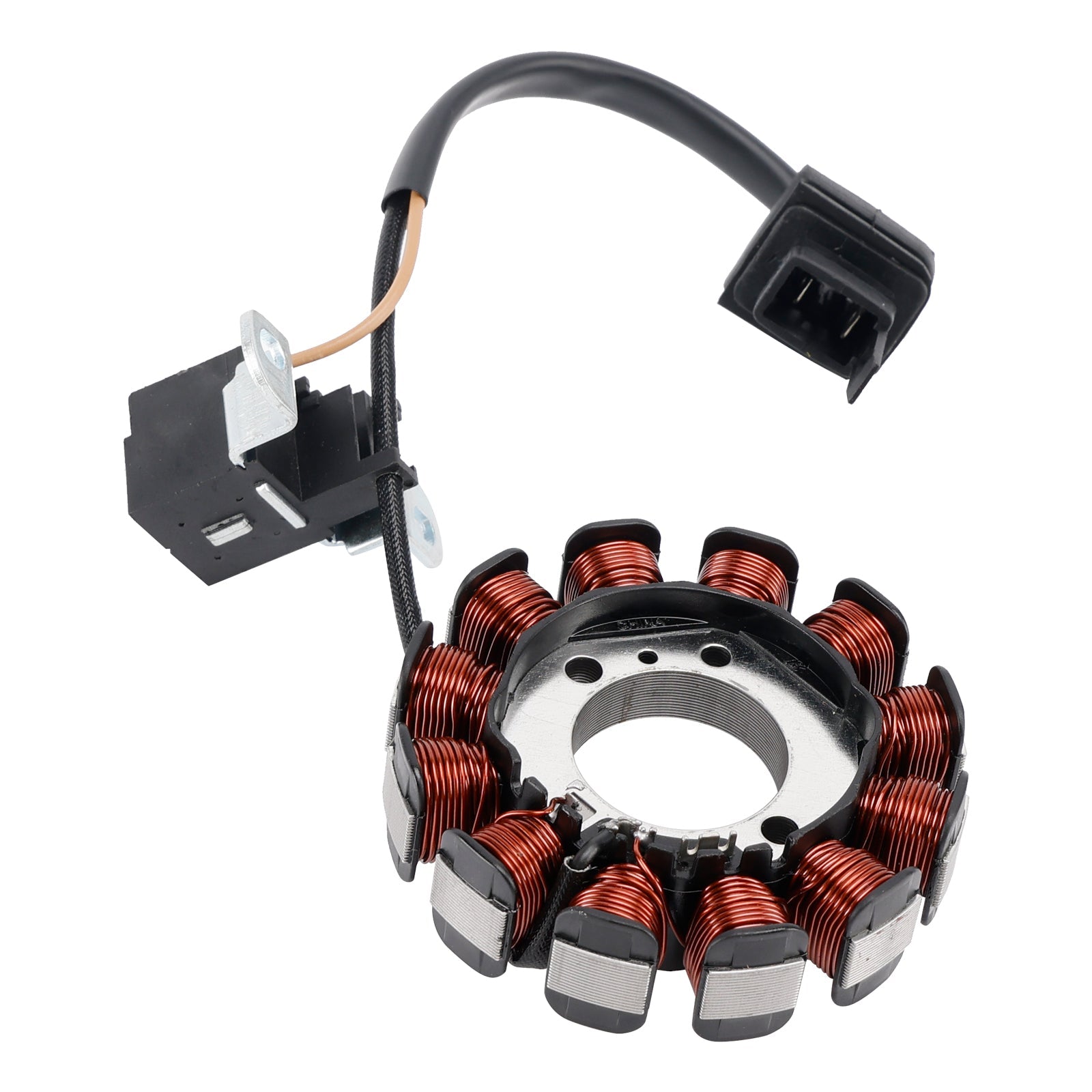

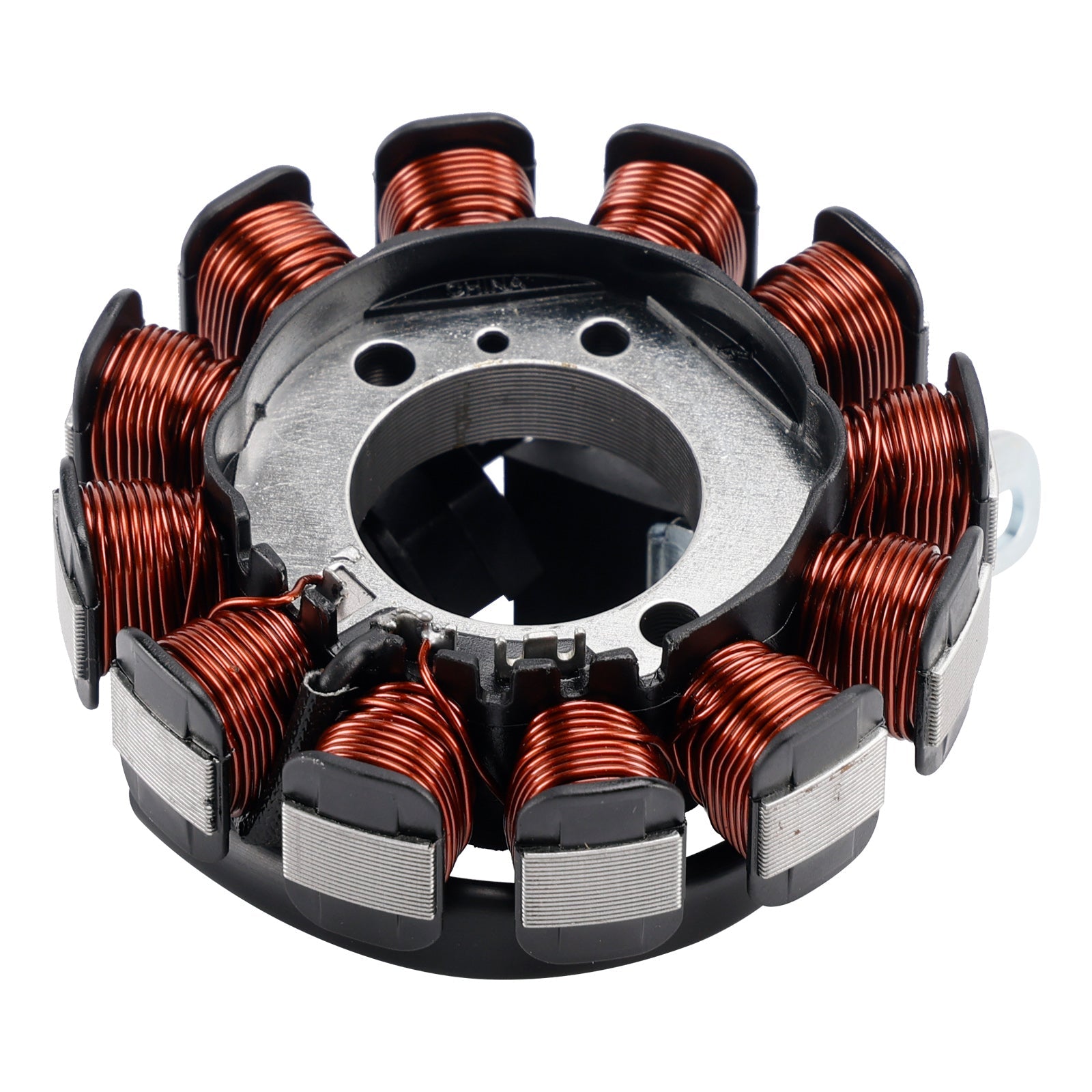

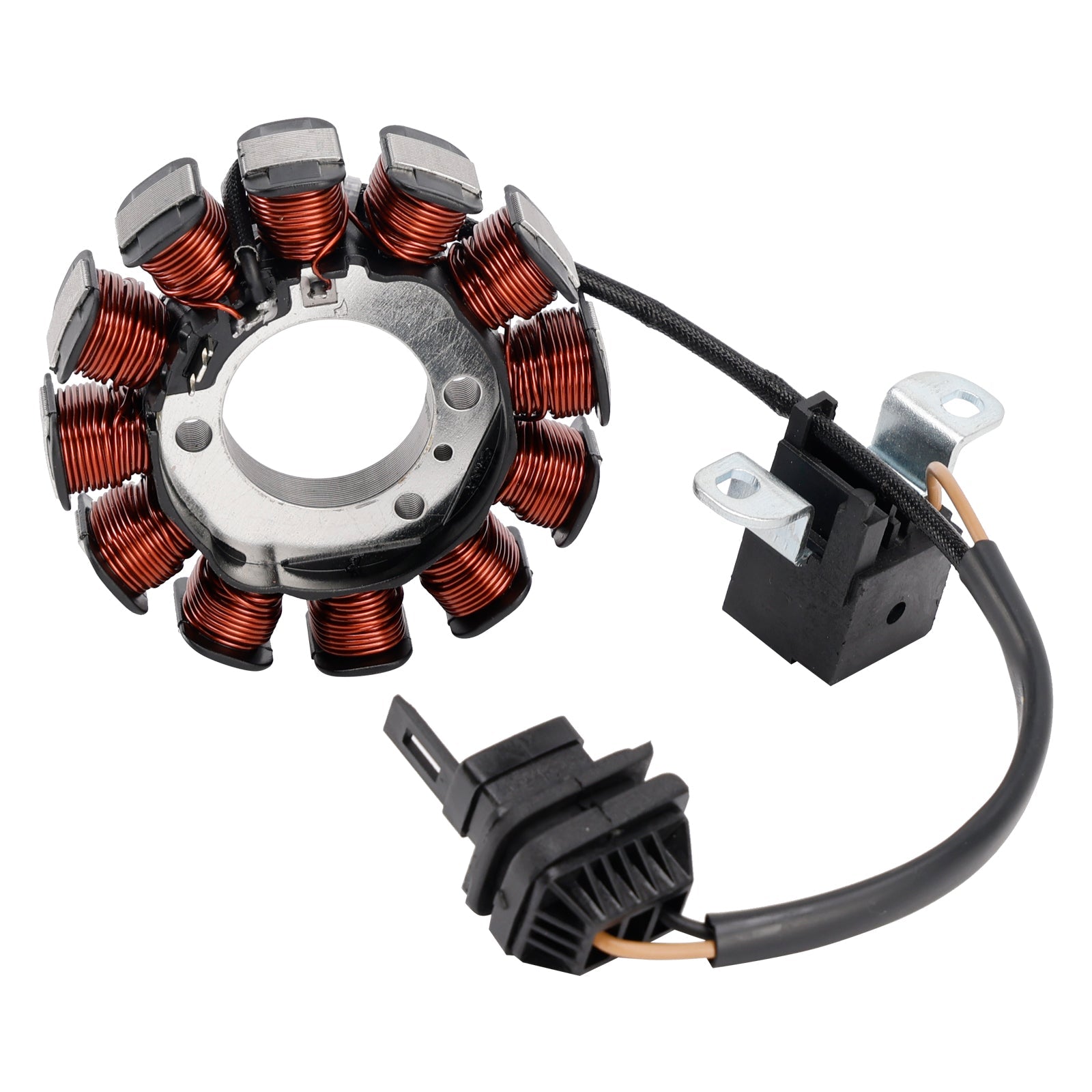

12-Pole Magneto Generator Stator Fit for Piaggio Liberty Fly Zip 50 4T

12-Pole Magneto Generator Stator Fit for Piaggio Liberty Fly Zip 50 4T

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.

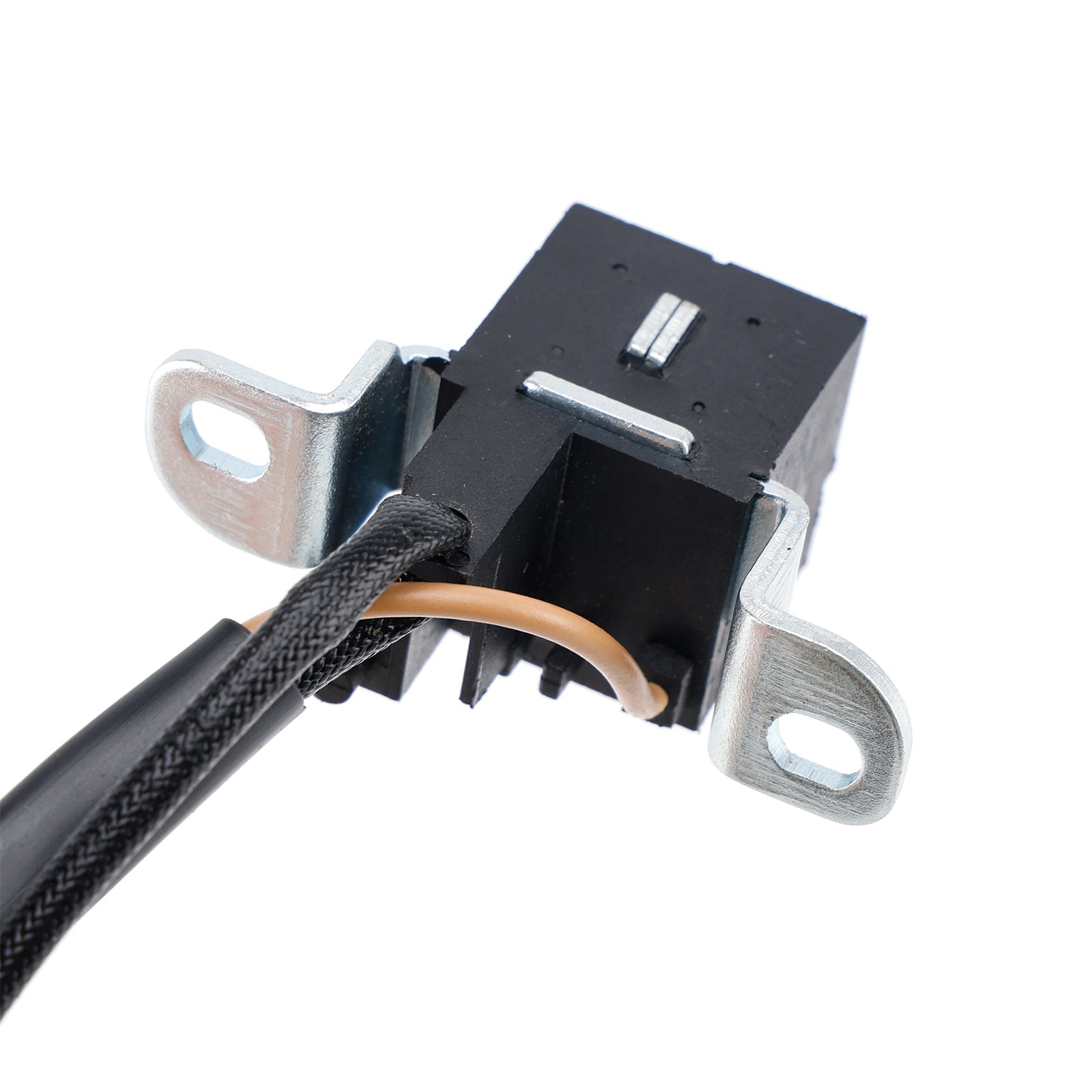

Pick up pulsar coil included.
Connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator Coil

other specifications:
Number of wires: 2

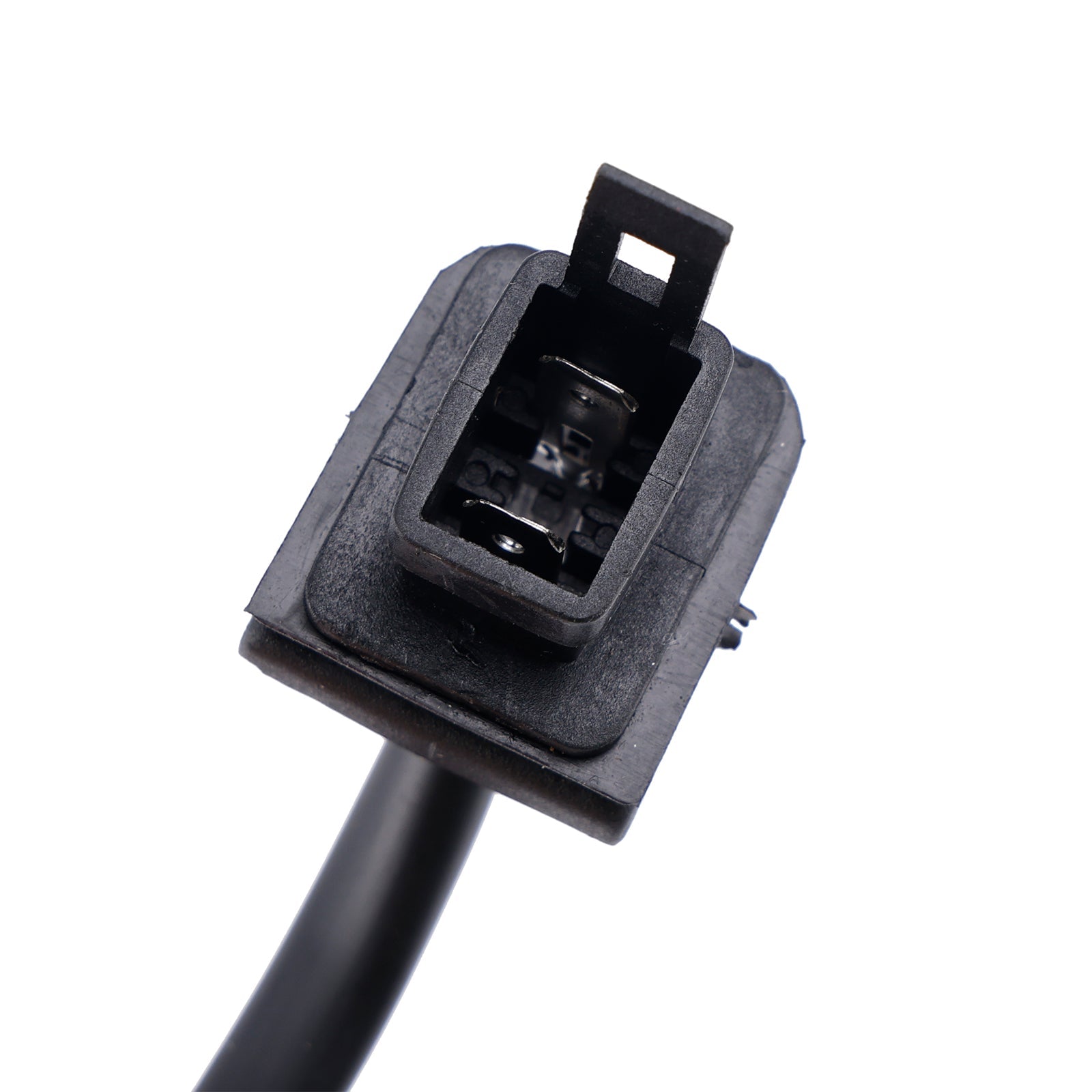

Number of plugs: 1
Number of pins: 2
Number of fixation holes: 2
Number of poles: 12

Please compare the number of pins and plugs with the old part before purchasing.

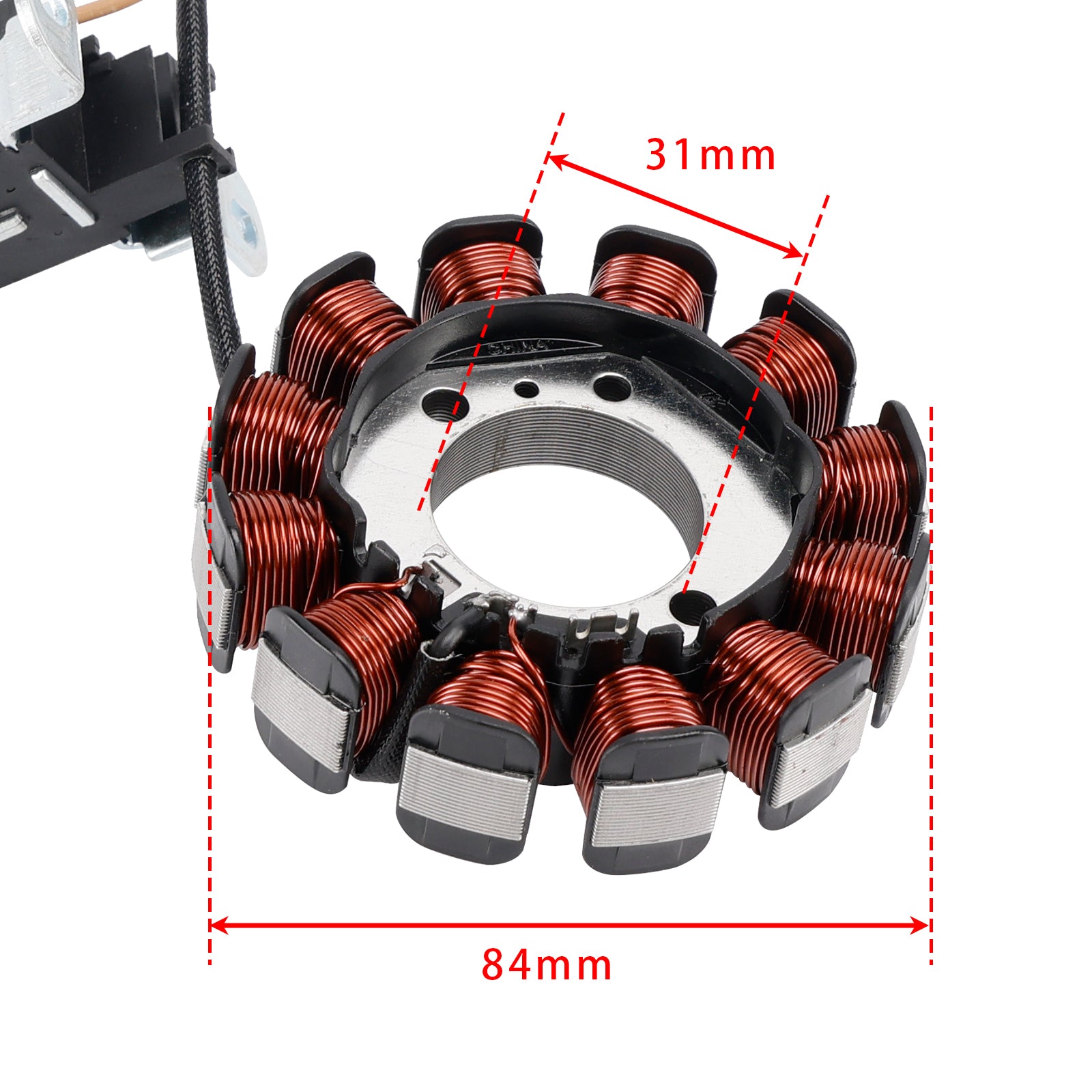

Size:
Interior diameter : 31 mm
Exterior diameter : 84 mm
Cable Length: approx. 200mm

Replacement Part Number:
969228
AP8551076
638993

(Always compare part numbers to your parts schematics and cross reference appropriately.)
(This is NOT a genuine Part, OEM part numbers are included for product type identification and comparison only.)

Fits Make/Model/Year:
Fit for Aprilia Scarabeo 4T / RST 4T 50 2003-2010
Fit for Aprilia Sportcity One 4T 50 2008-2010
Fit for Aprilia Scarabeo 4T / RST 4T / Net 4T 100 2001-2009
Fit for Derbi Atlantis 4T 50 2004-2012
Fit for Derbi Boulevard 4T 50 2009-2012
Fit for Derbi Atlantis 4T 100 2004-2006
Fit for Derbi Boulevard 4T 100 2010-2012
Fit for Italjet Jet Set 4T 50 2001-2003
Fit for Italjet Torpedo 4T 50 2001-2003
Fit for Malaguti Centro 4T 50 2008-2010
Fit for Malaguti Ciak Master 4T 50 2005-2009
Fit for Piaggio Fly 4T 50 2005-2012
Fit for Piaggio Fly 4T 2V 50 2012-2014
Fit for Piaggio Liberty 4T 50 2000-2003
Fit for Piaggio Liberty 4T 50 2005-2008
Fit for Piaggio Liberty 4T Delivery TNT / Single 50 2009-2014
Fit for Piaggio Liberty 4T Moc 50 2009-2015
Fit for Piaggio Liberty 4T PTT - Double 50 2009-2012
Fit for Piaggio Liberty 4T PTT 50 2007-2012
Fit for Piaggio Liberty 4T RST 50 2004-2005
Fit for Piaggio Liberty 4T Sport 50 2006-2008
Fit for Piaggio Vespa ET4 50 2000-2005
Fit for Piaggio Vespa LX 4T 50 2005-2008
Fit for Piaggio Vespa LXV 4T 50 2005-2008
Fit for Piaggio Zip 4T 50 2000-2014
Fit for Piaggio Free 4T 100 2002-2006

Please check and comfirm the number of stator poles is the same as ours and if your connectors and harness looks like the one in the photo before purchasing.

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x Stator Generator

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !
