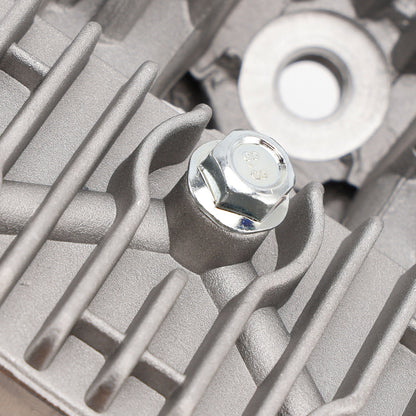

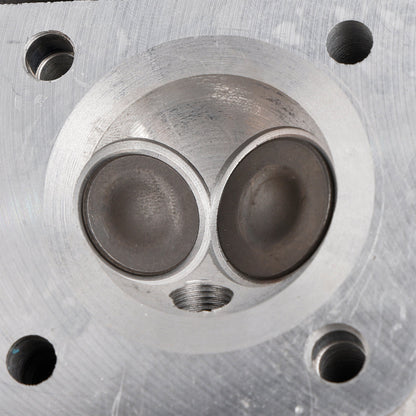

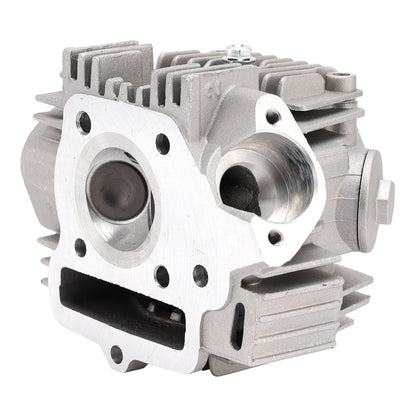

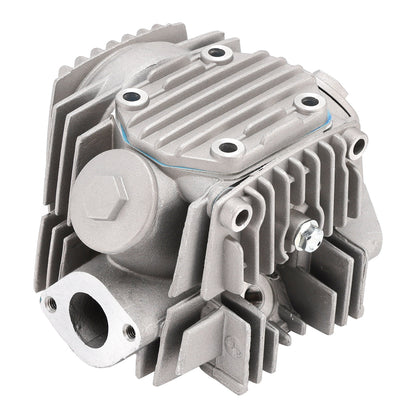

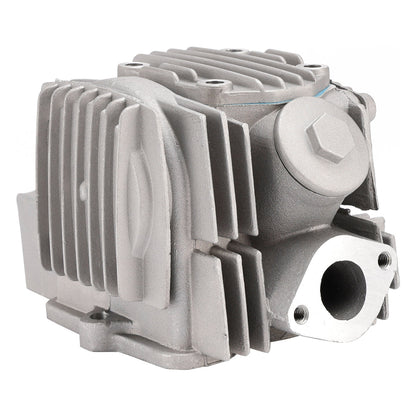

Description Complete Cylinder Head 110cc Engine for ATV Go Kart and Dirt Bike YX110

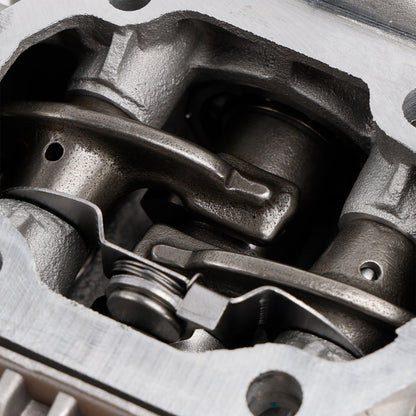

Features: Complete Cylinder Head Assembly. Supplied with internals such as camshaft, valves and tappets already installed. All of the components within this kit are bolt-on ready for a hassle free installation. Cylinder studs NOT included. Easy installation; professional assistance recommended if needed.
Specifications: Condition: Aftermarket 100% Brand New Material: Aluminum alloy Engine: 1P52FMH Timing Drive Sprocket - 28 teeth Cylinder diameter - 52.4mm Piston diameter suitability - 52.4mm Intake valve - 23mm Exhaust valve - 20mm, Cylinder head length - 91mm (machined face to machined face) Intake port diameter - 22mm Exhaust port diameter - 19.5mm
Fits Models: Complete 110cc cylinder head bundle for 4-stroke Monkey Type engines Fit for Many Chinese ATV Dirt Bike Go Kart with 110cc 152FMI engine. Like, NITRO MOTORS, LIFAN, KXD, LONCIN, ROKETA, KAZUMA, TAOTAO, SUNL, LEM MOTOR, HIGHPER, LIYA MOTOR, MRF, XTM.
The bore was clean and uniform, and the piston pin fitted without excessive side movement. After break-in, the engine stopped smoking on startup and maintained stronger compression when fully warmed.
P
Peter Rocha
Compression feels even again, and the engine pulls strongly during steep climbs. The gaskets remain dry after several heat cycles, with no visible oil smoke from the exhaust.
B
Benjamin Hayes
The bore surface arrived smooth and evenly finished, with clean edges around every port. Assembly went together without binding, and compression feels strong throughout the kick stroke.
B
Benjamin Hayes
Compression came back strong after the rebuild, and the ATV starts with much less cranking. The cylinder surface was clean and ready for assembly right out of the box.
O
Orson Whitaker
Outstanding!!!
Reviews in Other Languages
Choosing a selection results in a full page refresh.
These scammed will not answer emails, do NOT use them. They sent a grill without the letters to finish and will not reply. Now the grill has an F and a D only, maybe it should have been an F and a U. Yeah F-U Ass-hole-osary. You suck.
