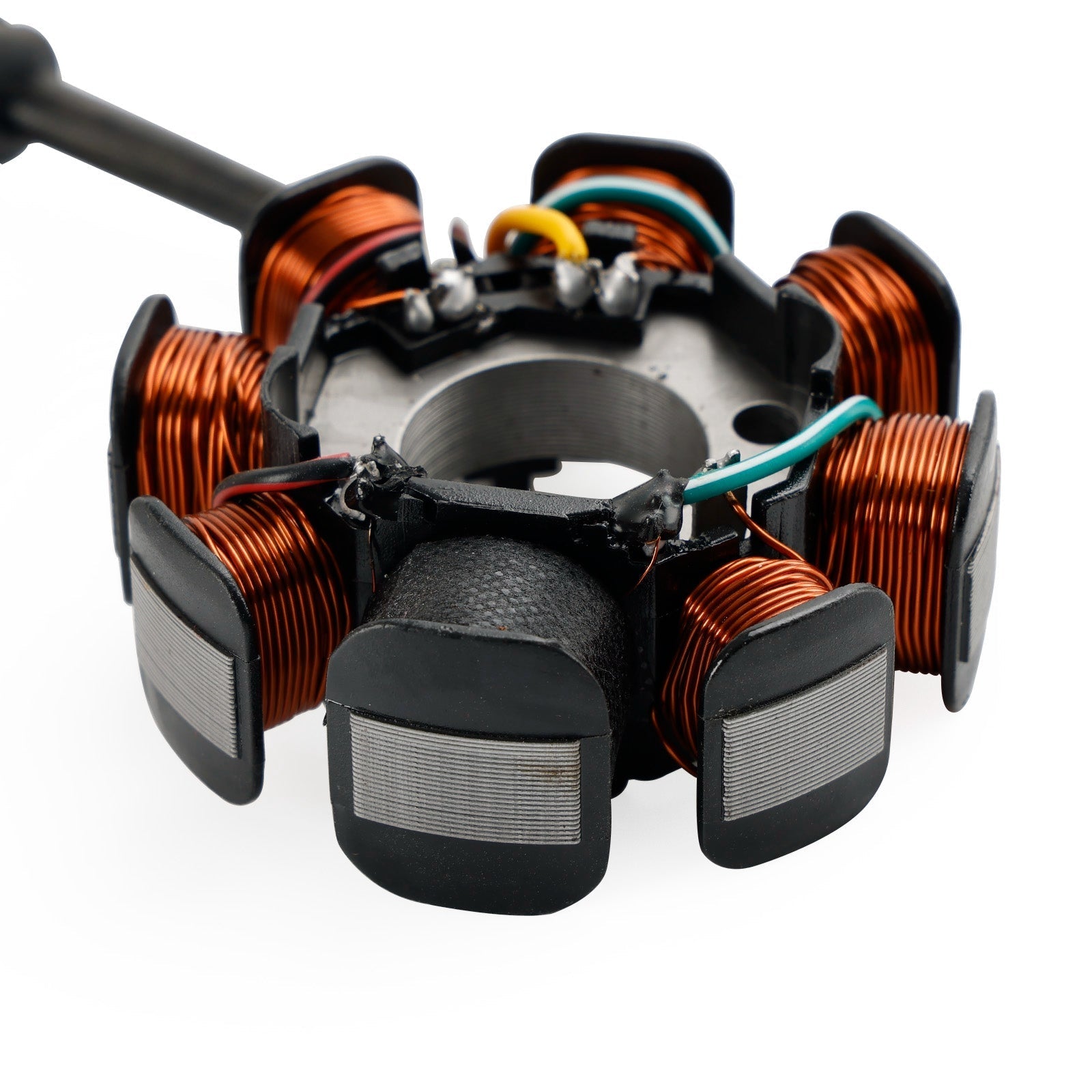

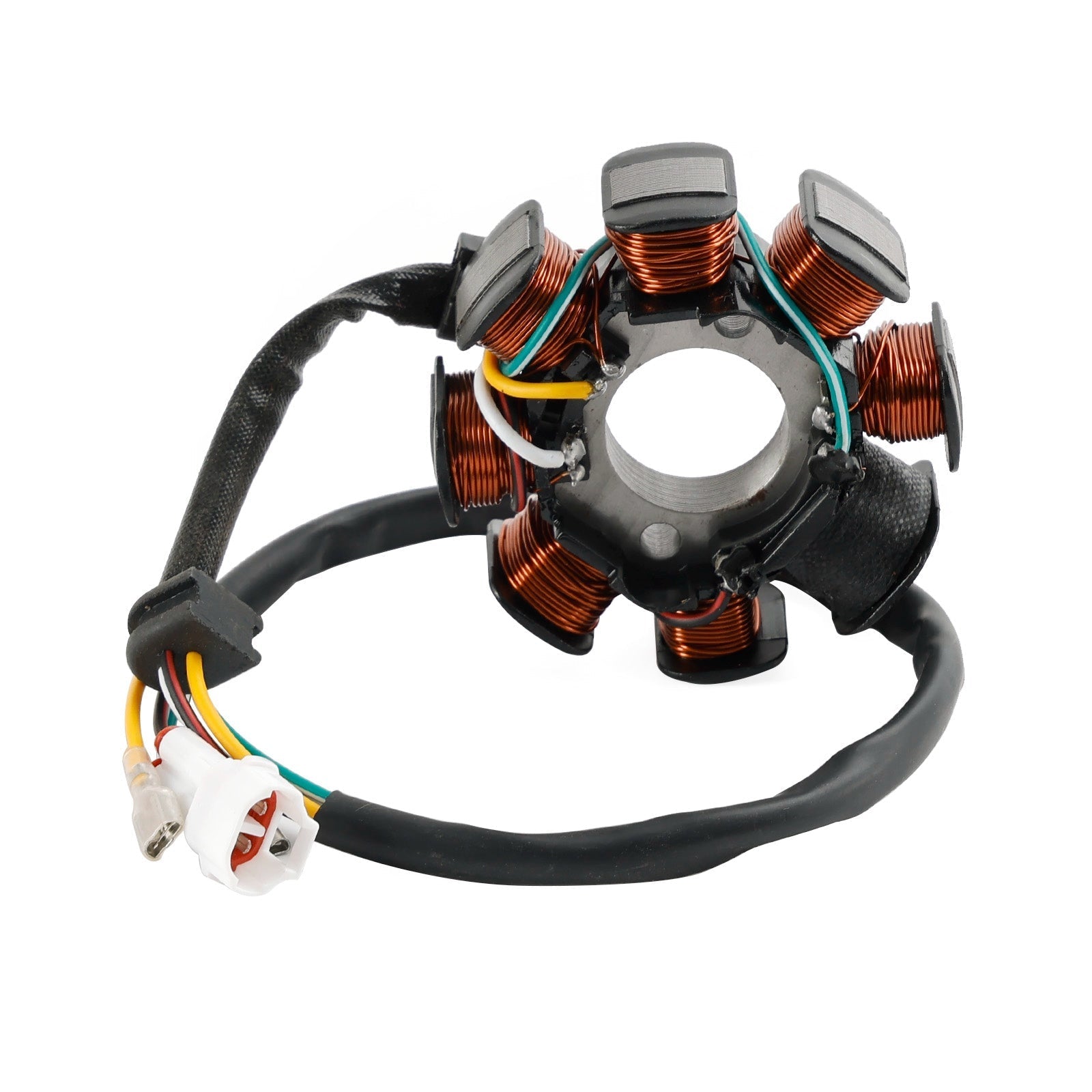

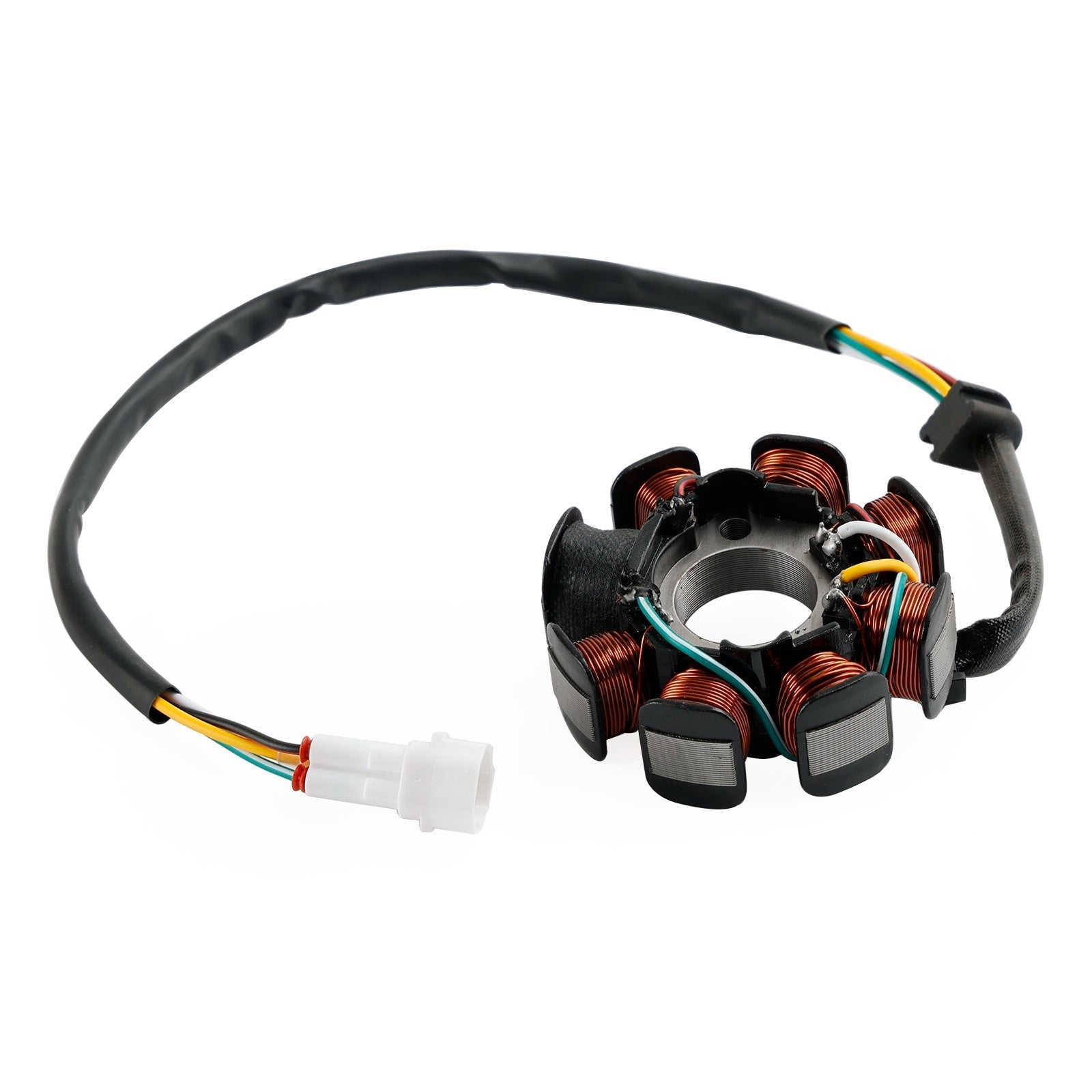

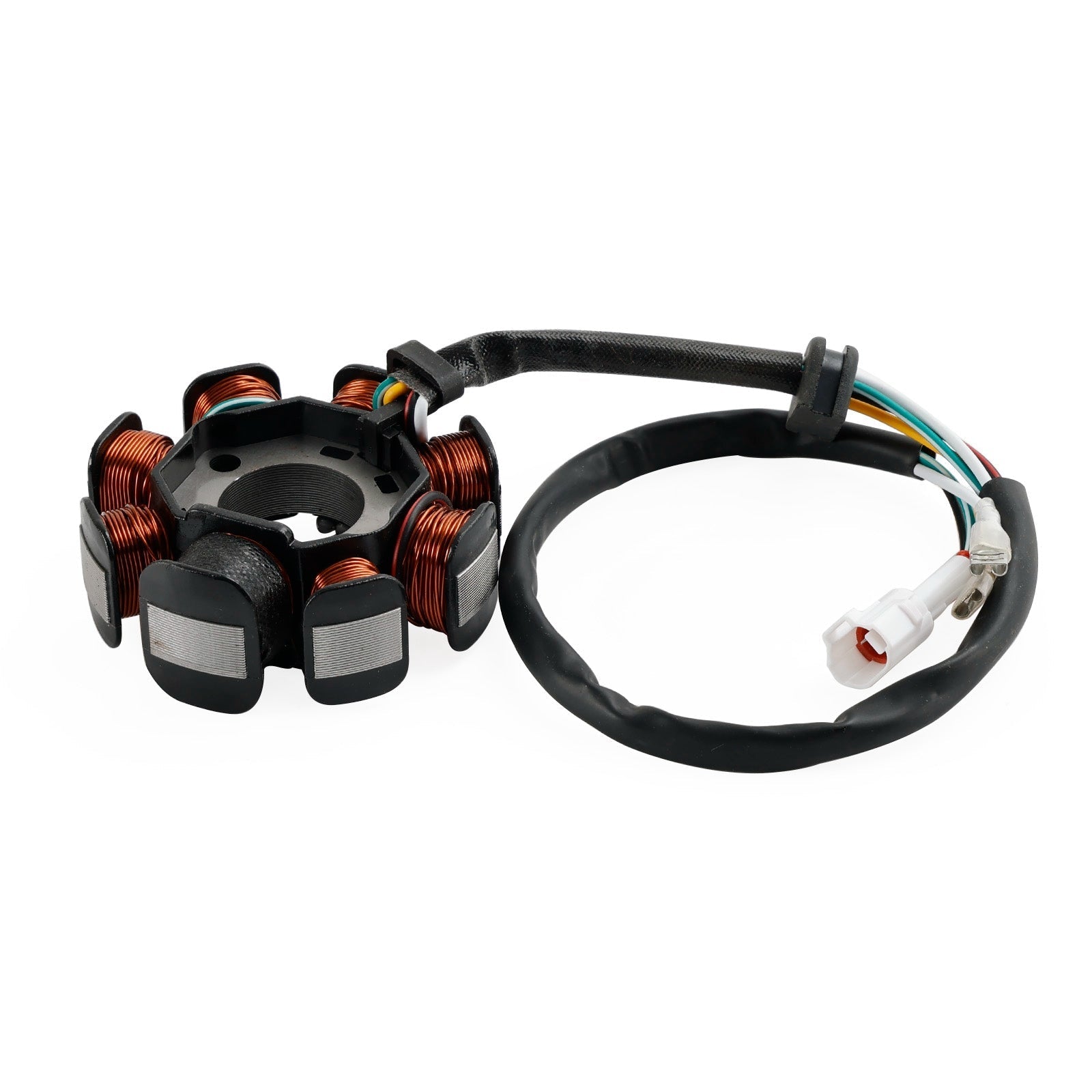

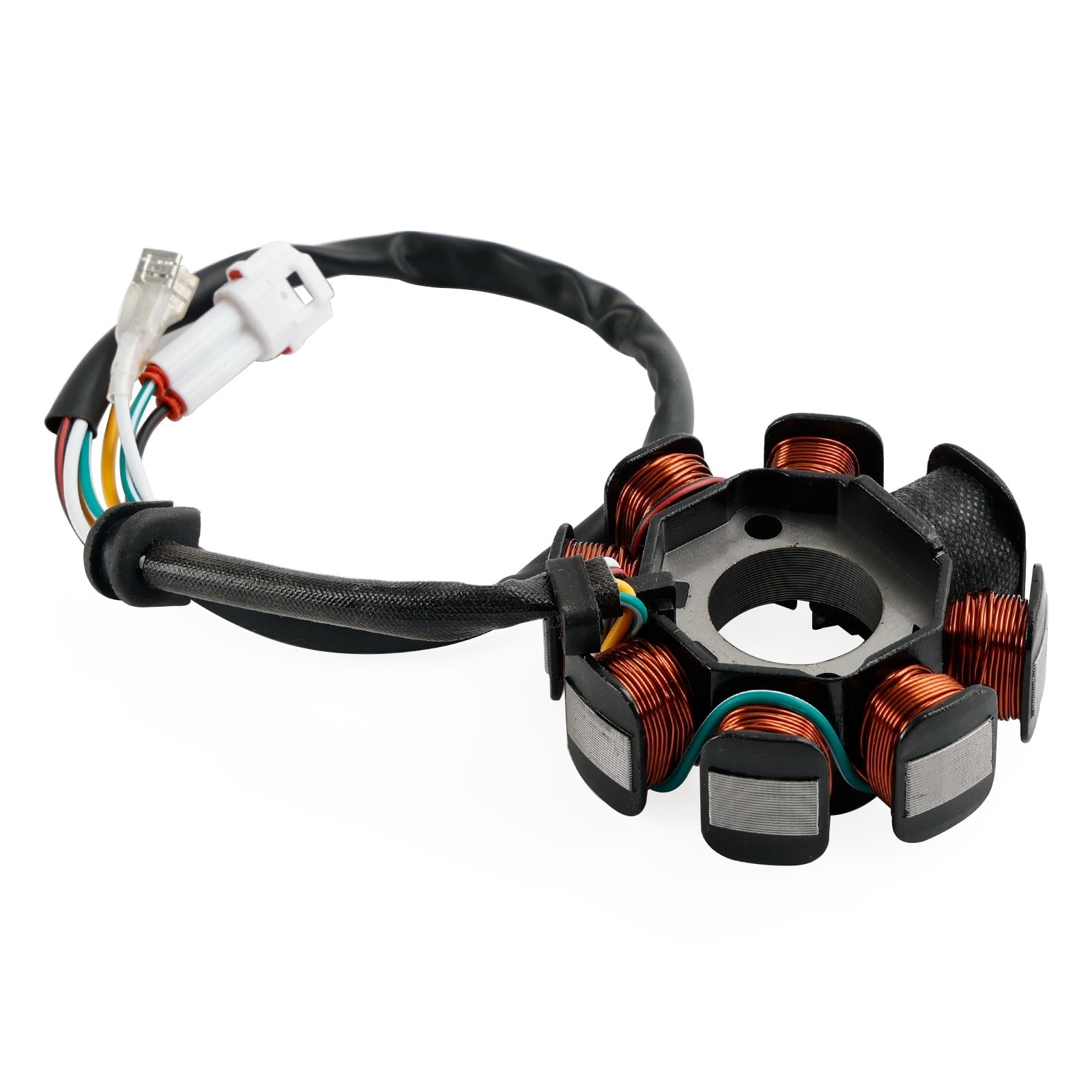

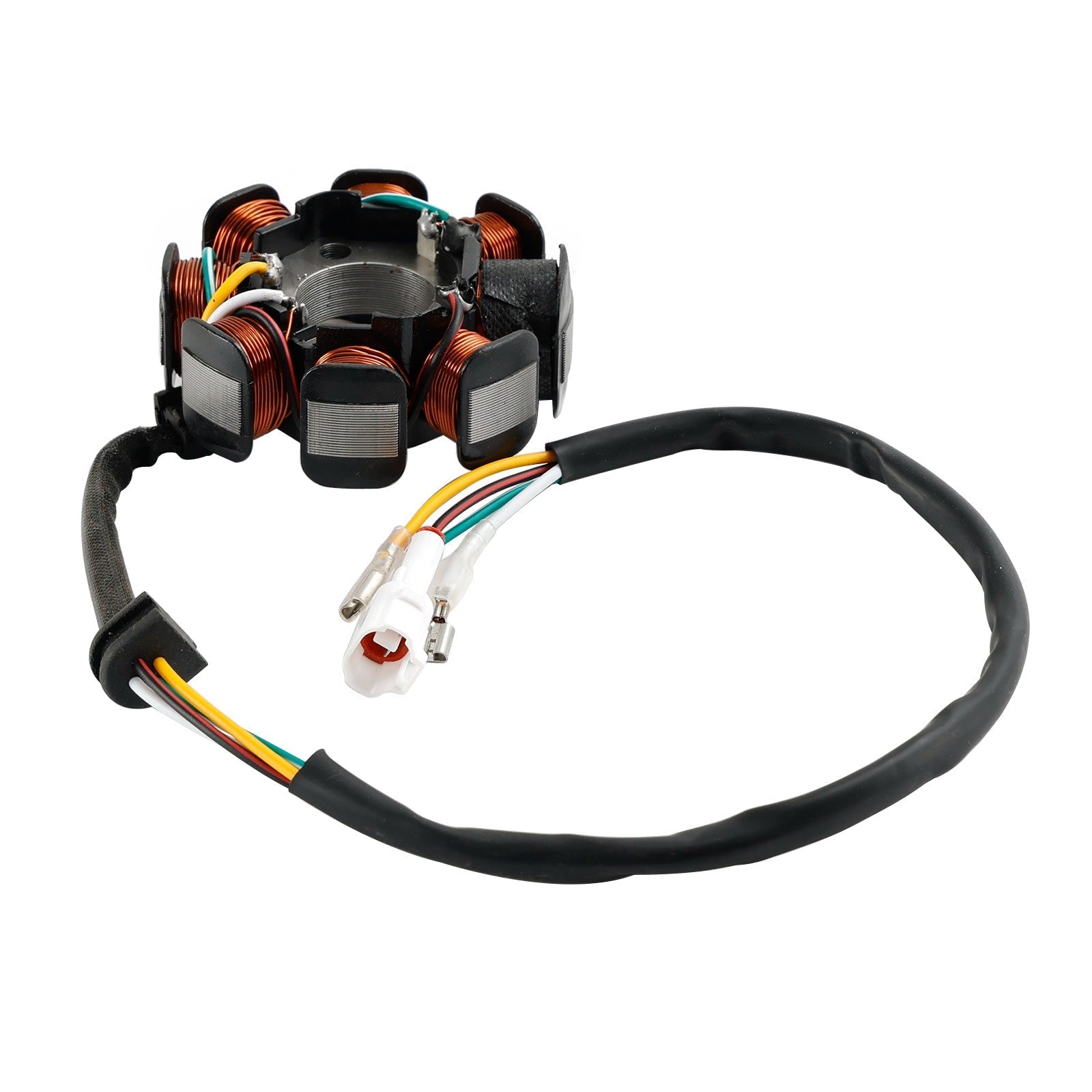

06-11 KTM 250 EXC-F XC-F XCF-W 400 450 525 XC XC-W EXC Stator Generator

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.

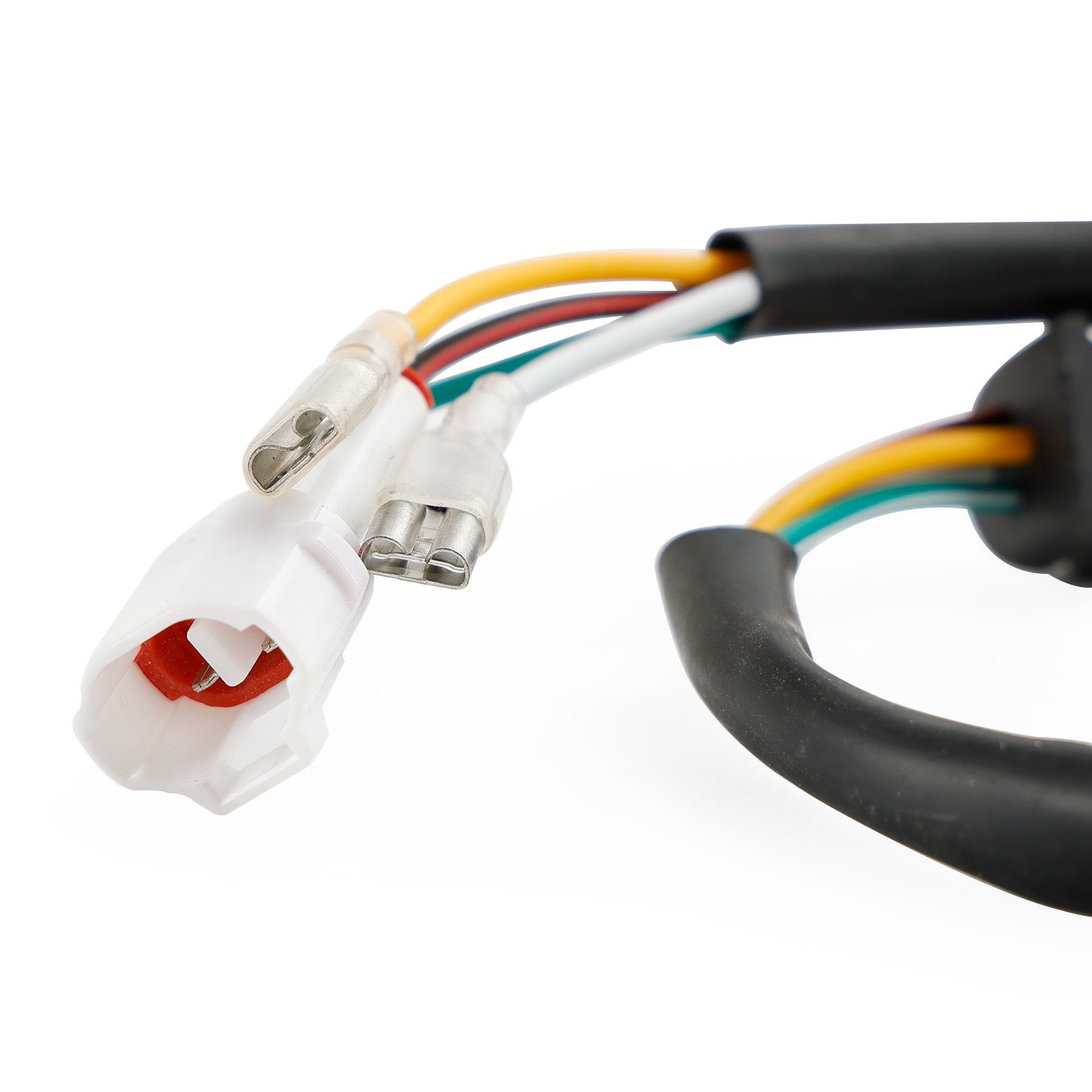

Connector included.
Rubber grommet included.
All products shipped are tested.
As an inexpensive alternative to the expansive original part.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Stator Coil

other specifications:
Number of wires: 4
Number of plugs: 3
Number of pins: 2 + 1 + 1
Number of poles: 8

Replacement Part Number:
77039104000
59039104200

Fits Model/Year:
Fit for 250 EXC-F 2006-2011
Fit for 250 EXC-F CH0ION EDITION 2010
Fit for 250 EXC-F SIX DAYS 2007-2011
Fit for 250 EXC-F FACTORY EDITION 2011
Fit for 250 XC-F 2007-2009
Fit for 250 XCF-W 2006-2009
Fit for 250 XCF-W CH0ION EDITION 2010
Fit for 250 XCF-W SIX DAYS 2011
Fit for 250 EXC RACING 2006
Fit for 400 EXC FACTORY RACING 2007
Fit for 400 EXC RACING 2006-2007
Fit for 450 EXC 2007
Fit for 450 EXC-G RACING 2006
Fit for 450 EXC RACING 2006-2007
Fit for 450 EXC RACING SIX DAYS 2006-2007
Fit for 450 EXC FACTORY RACING 2007
Fit for 525 EXC 2007
Fit for 525 EXC FACTORY RACING 2007
Fit for 525 EXC-G RACING 2006
Fit for 525 EXC RACING 2006-2007
Fit for 525 EXC RACING SIX DAYS 2006-2007
Fit for 400 XC-W 2007
Fit for 450 XC 2007
Fit for 450 XC-W 2007
Fit for 525 XC 2007
Fit for 525 XC DESERT RACING 2006-2007
Fit for 525 XC-G RACING 2006
Fit for 525 XC-W 2007

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x Stator Generator

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.

Shipping:
Free Shipping
Handling?time: Ship within 24 hours
Delivery Time: 3-7 business days

Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
