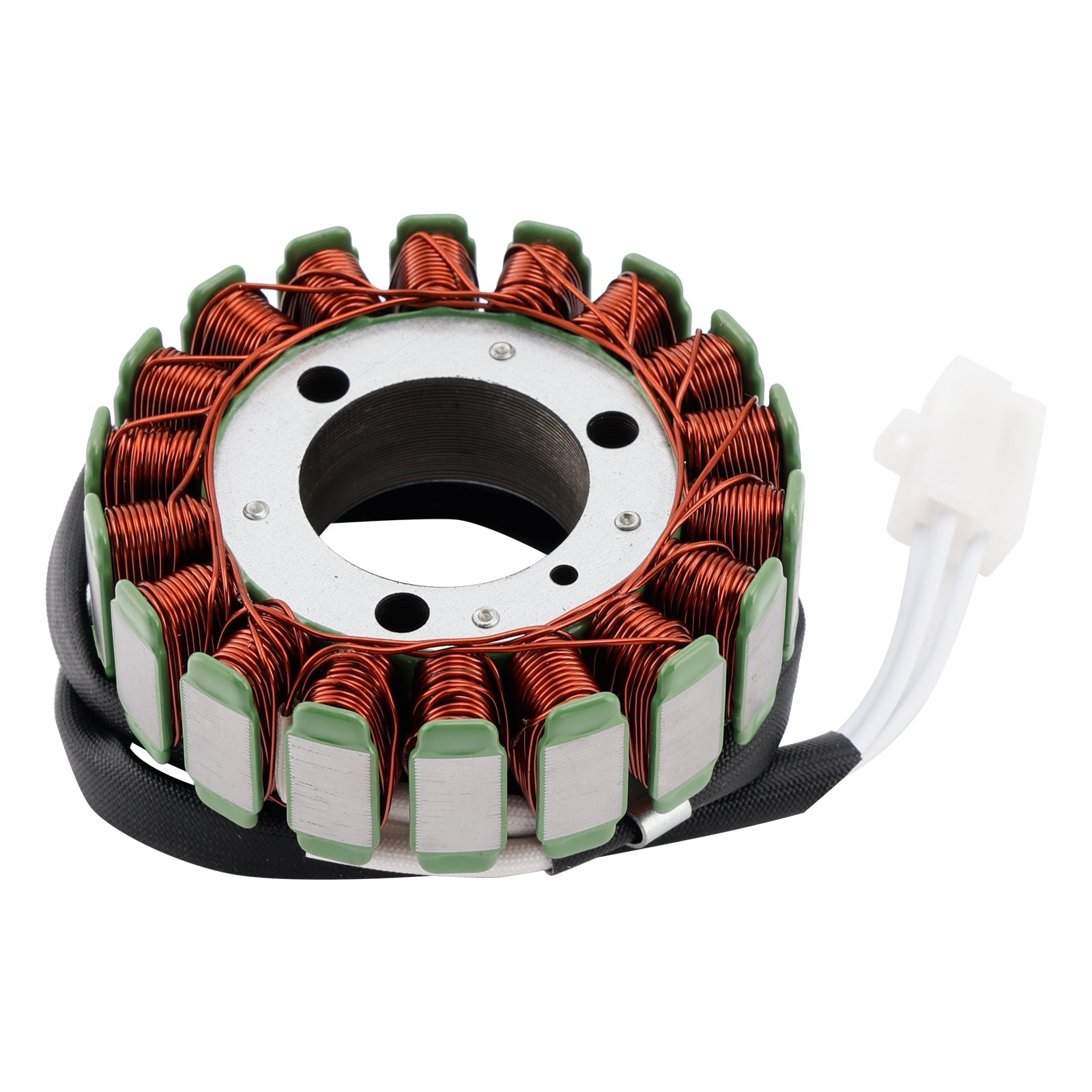

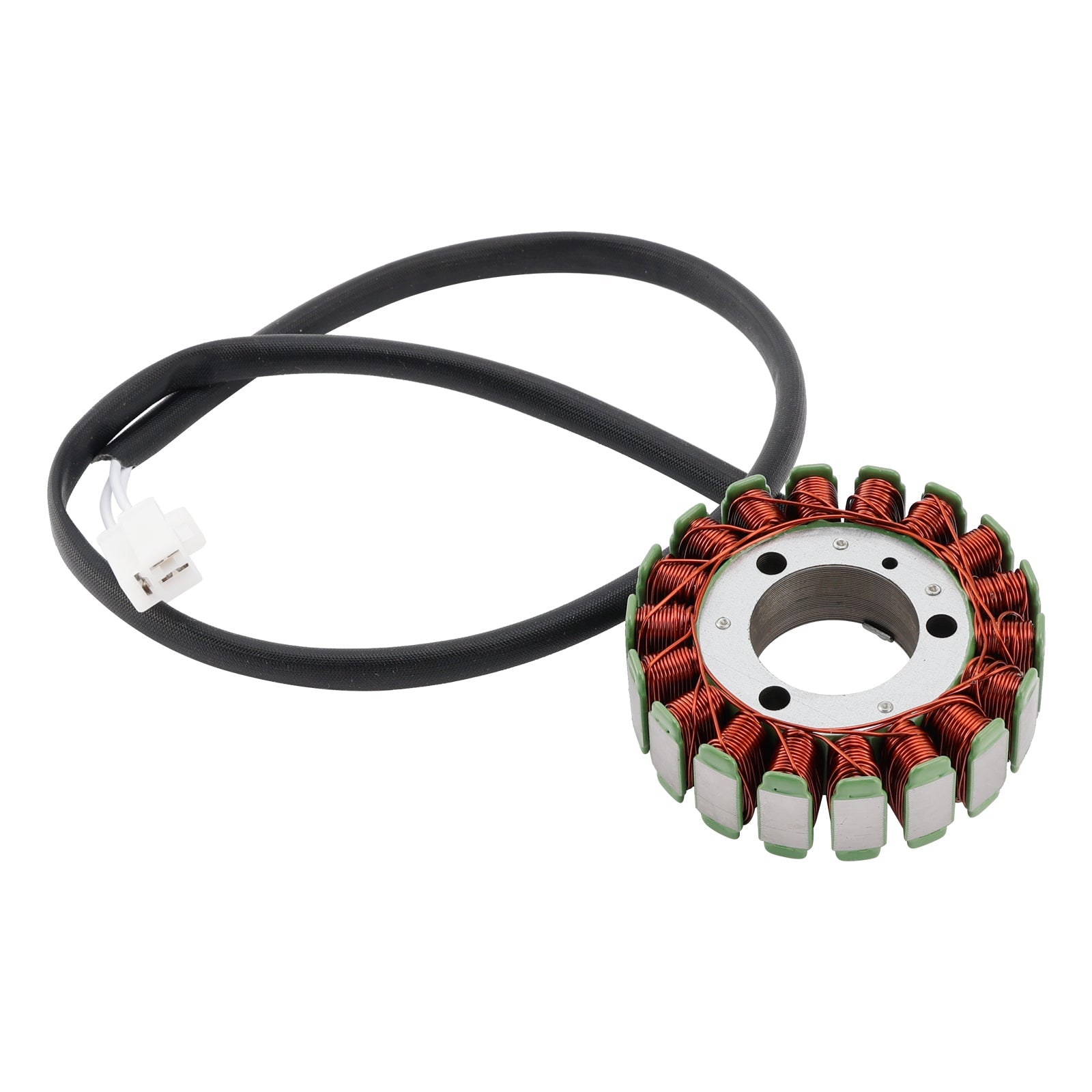

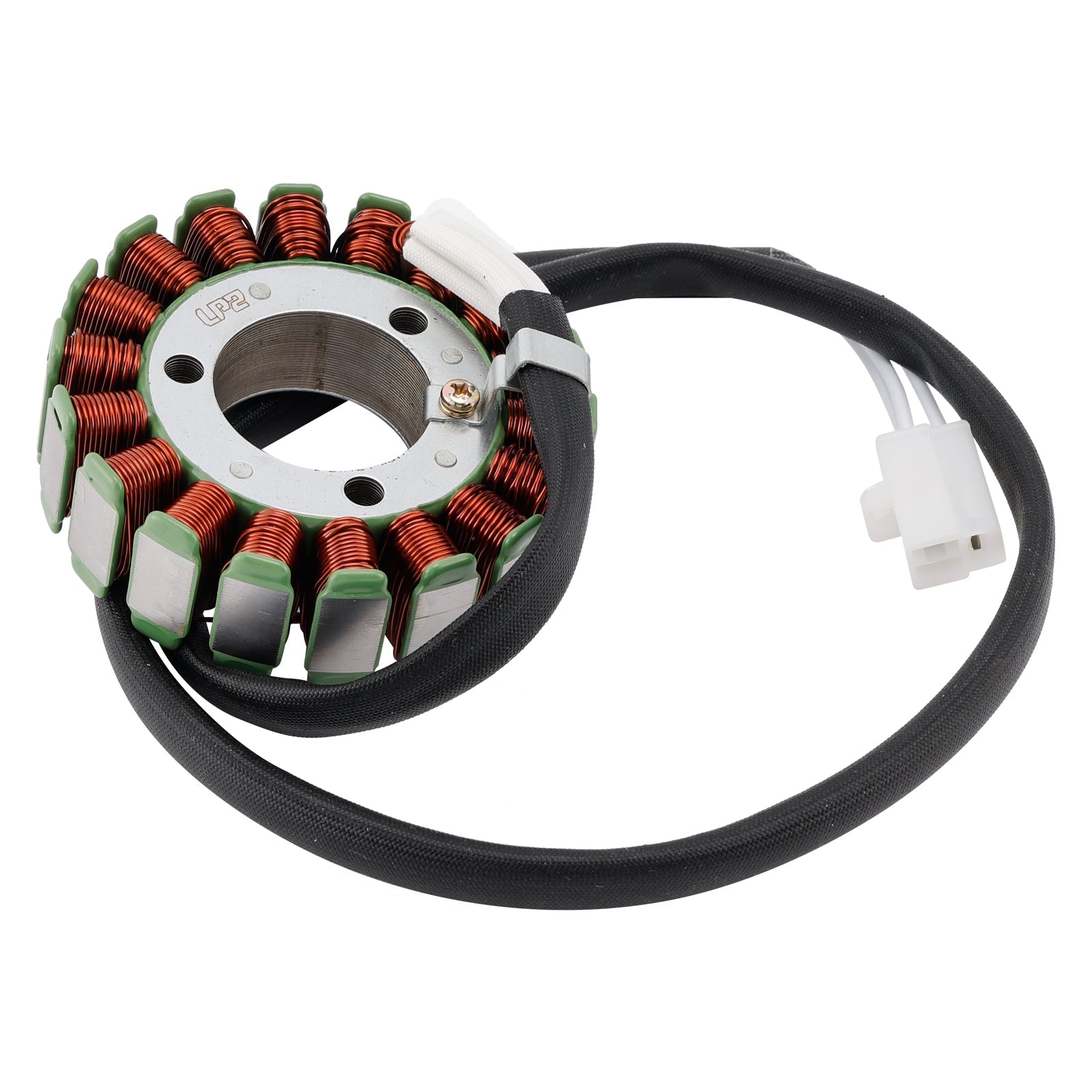

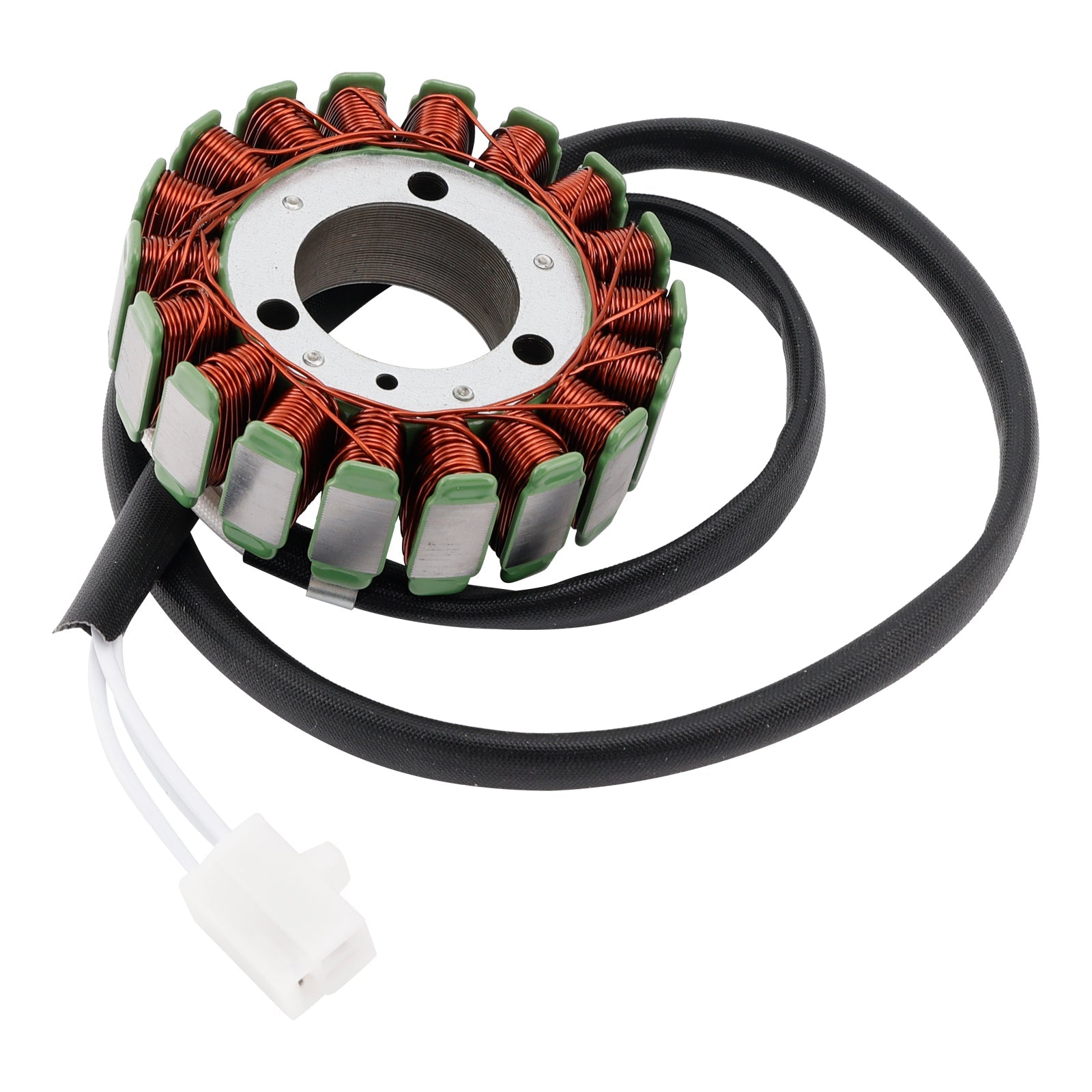

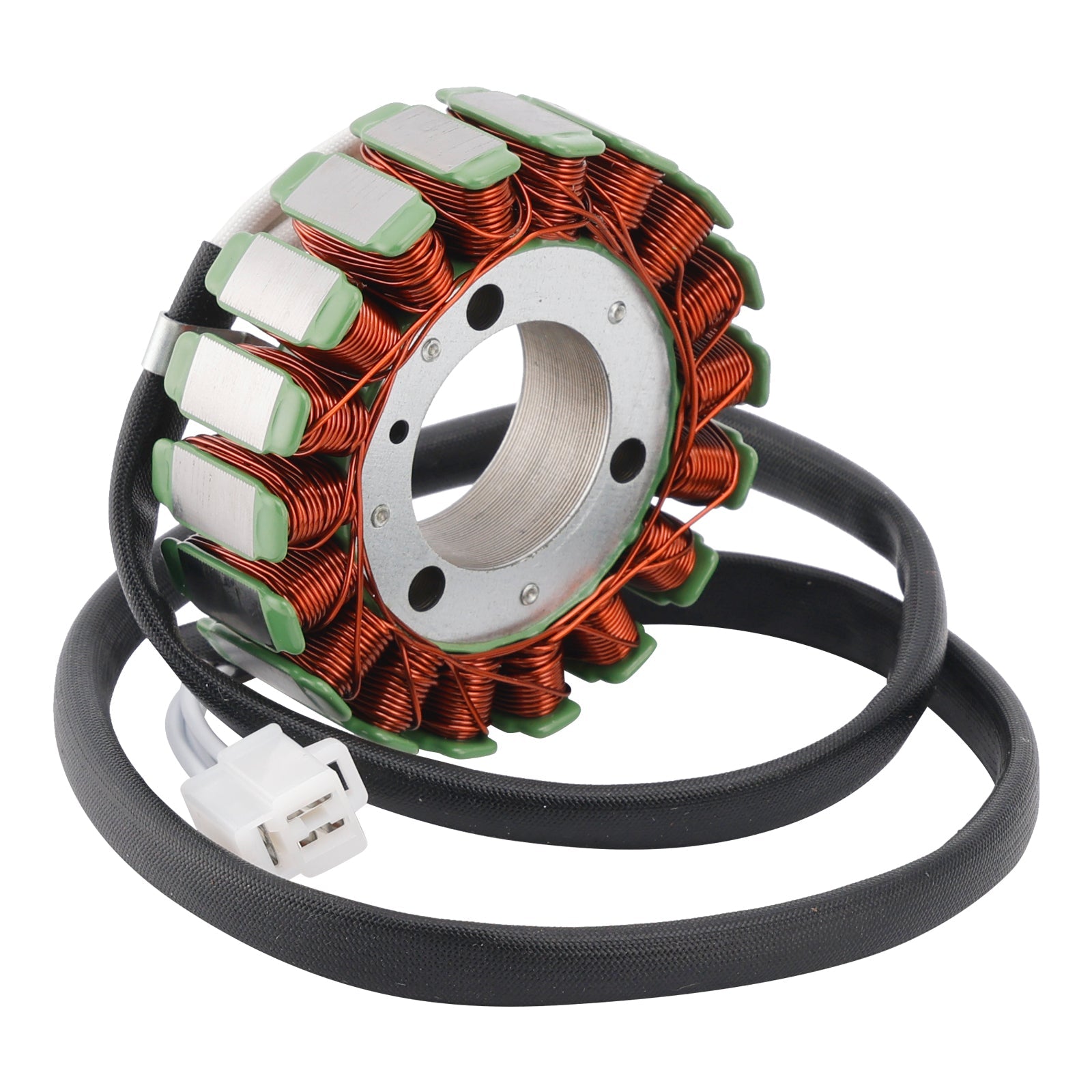

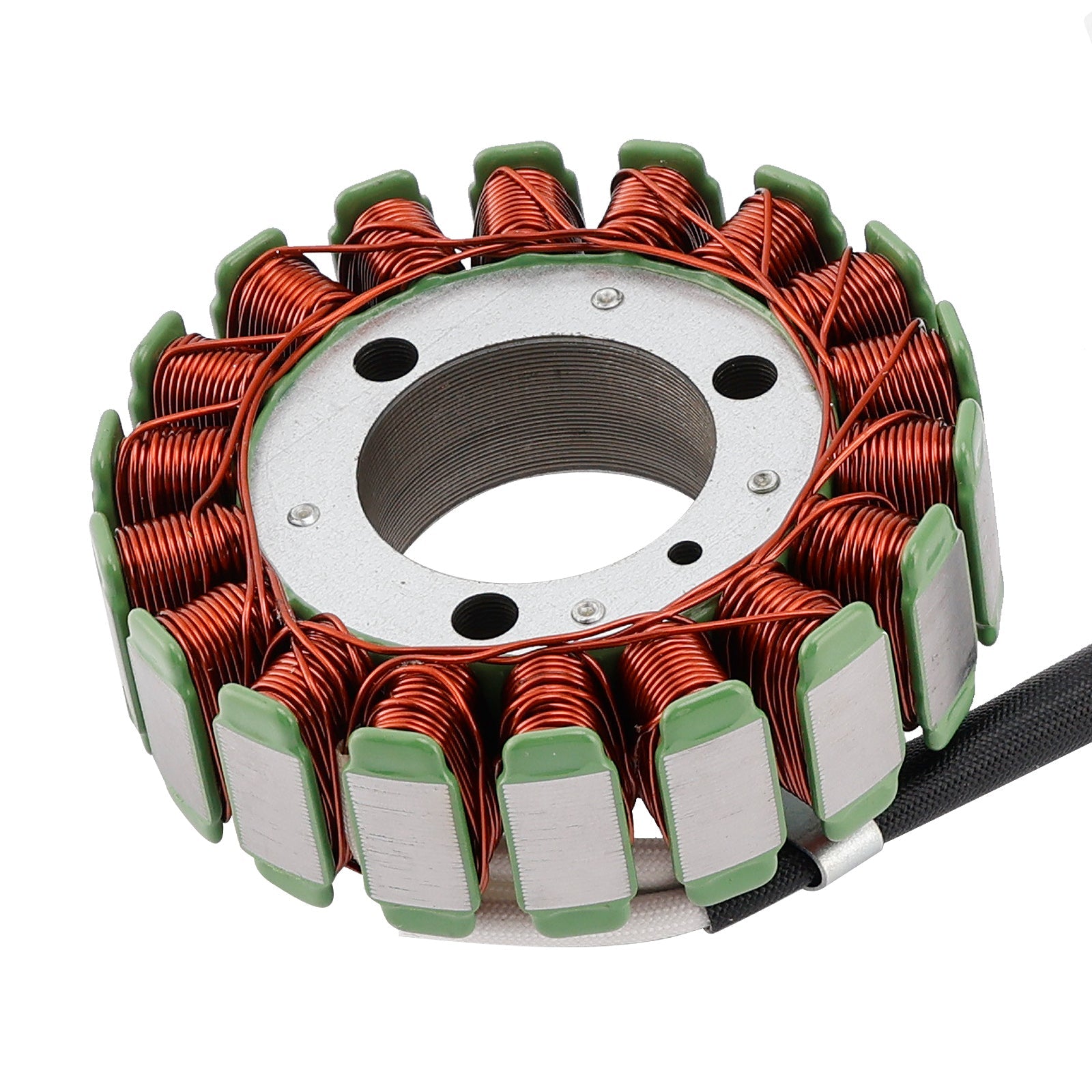

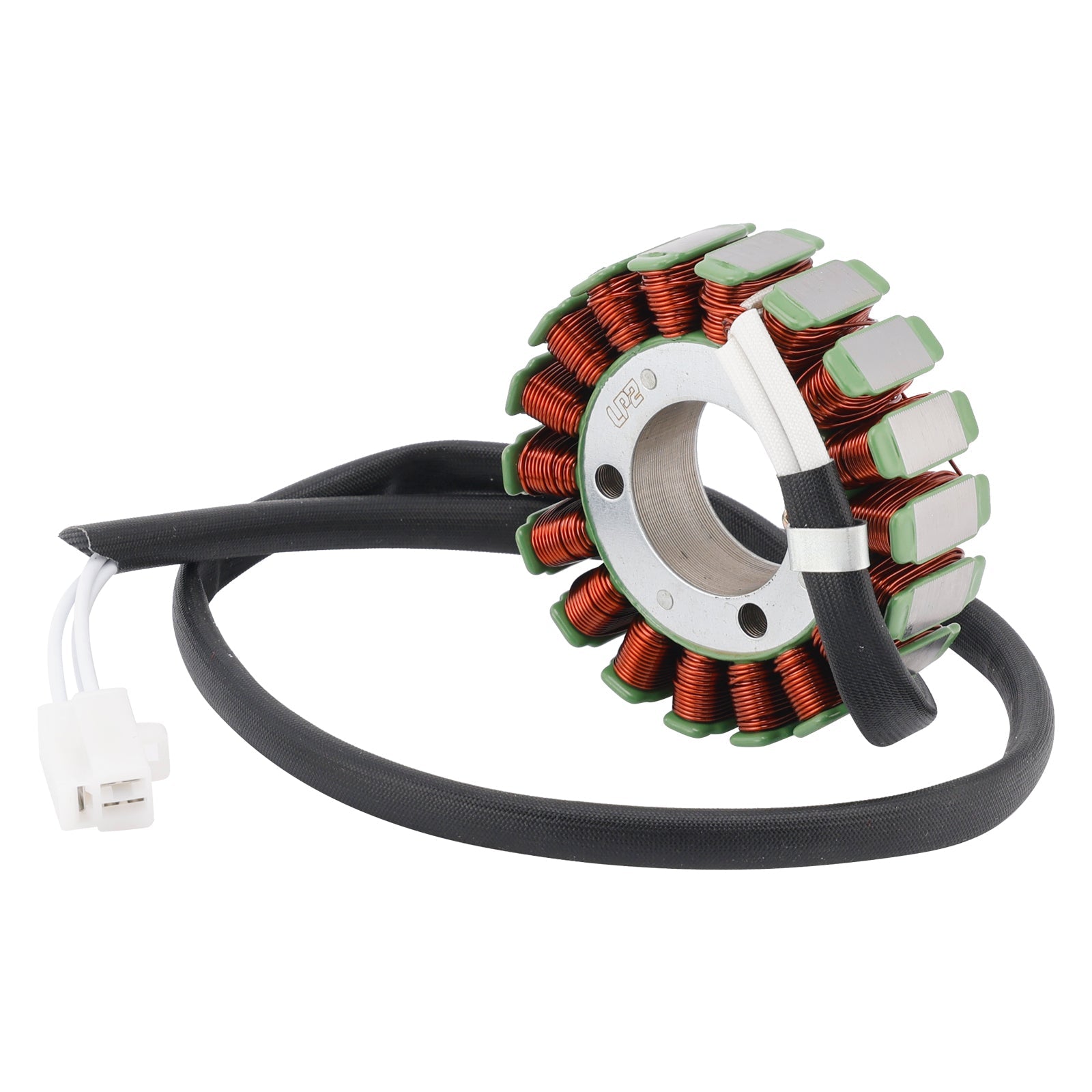

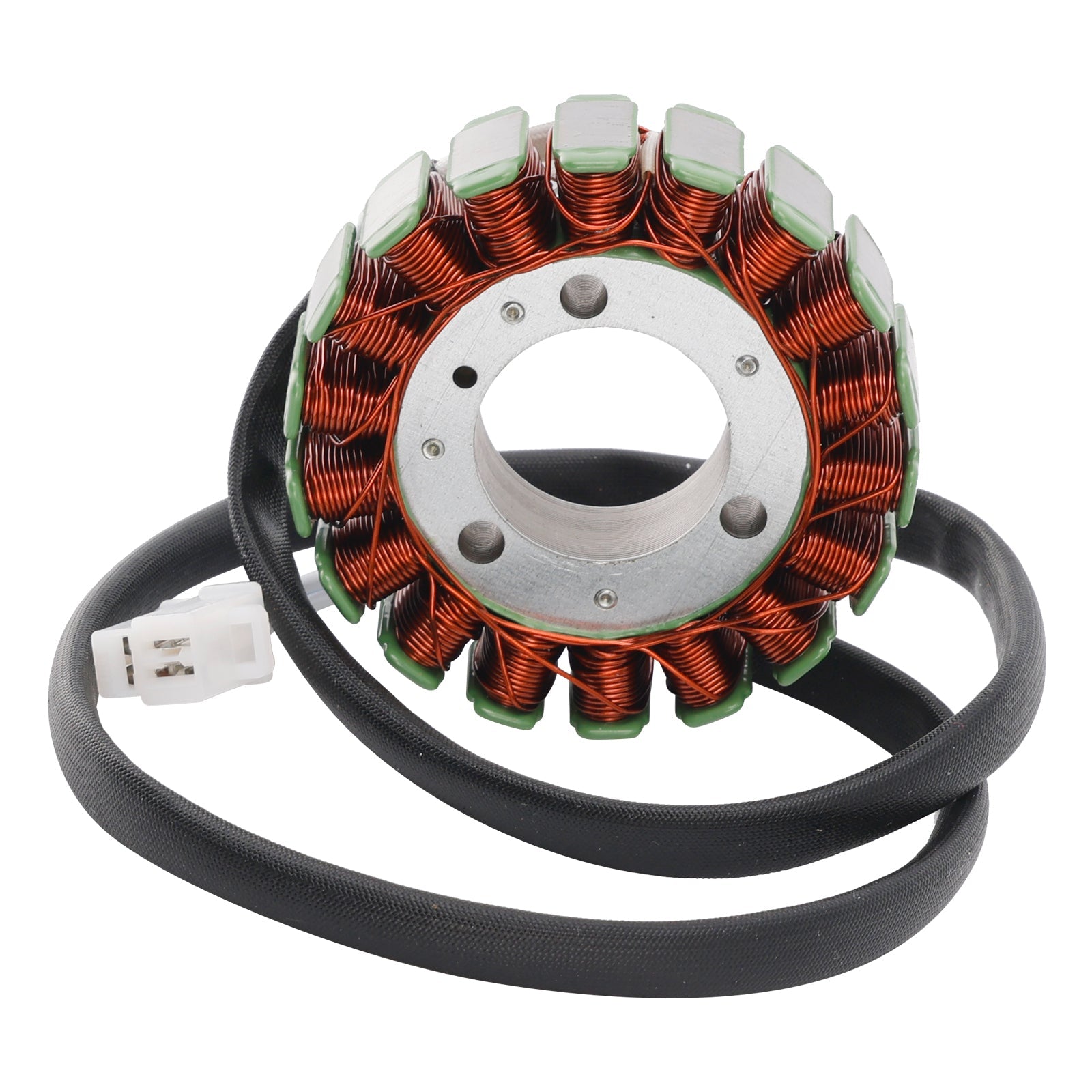

Yamaha XJR 400 XJR400 XJR400R 1993-2007 18-Pole 4HM-81410-00 Magneto Generator Stator

Yamaha XJR 400 XJR400 XJR400R 1993-2007 18-Pole 4HM-81410-00 Magneto Generator Stator

Regular price €61,99 EUR
Regular price Sale price €61,99 EUR
Sale Sold out
Shipping calculated at checkout.

Replacement Part Number:
4HM-81410-00

Fits Make/Model/Year:
Fit for Yamaha XJR400 4HM 1993-2007
Fit for Yamaha XJR400R 4HM 1995-2007


Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Pick up pulsar coil included.

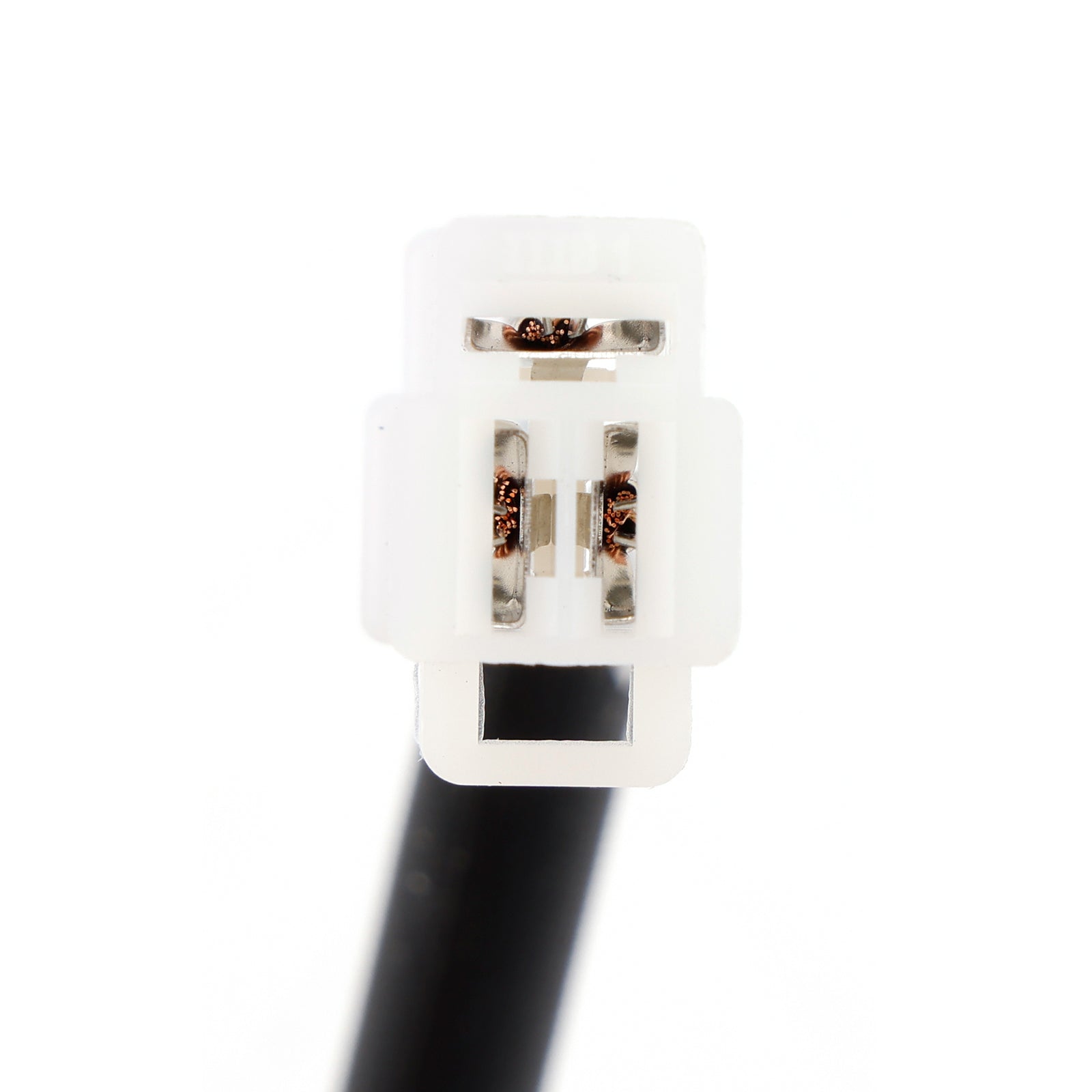

Connector included.
Rubber grommet included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator Coil

other specifications:
Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of fixation holes: 3
Number of poles: 18

Size:
Exterior diameter: 93.5mm
Interior diameter: 37mm

Package Included:
1x Stator Generator

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
