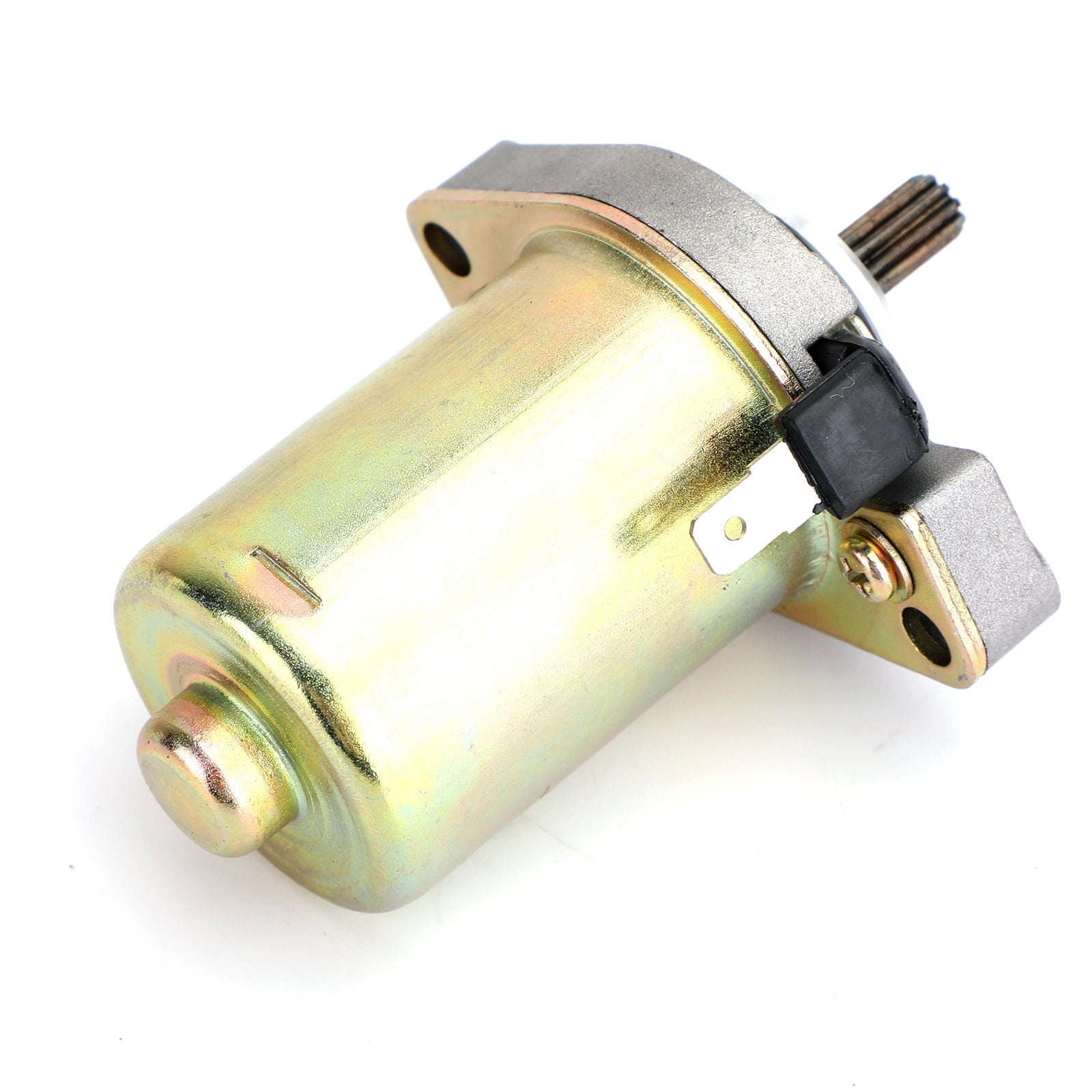

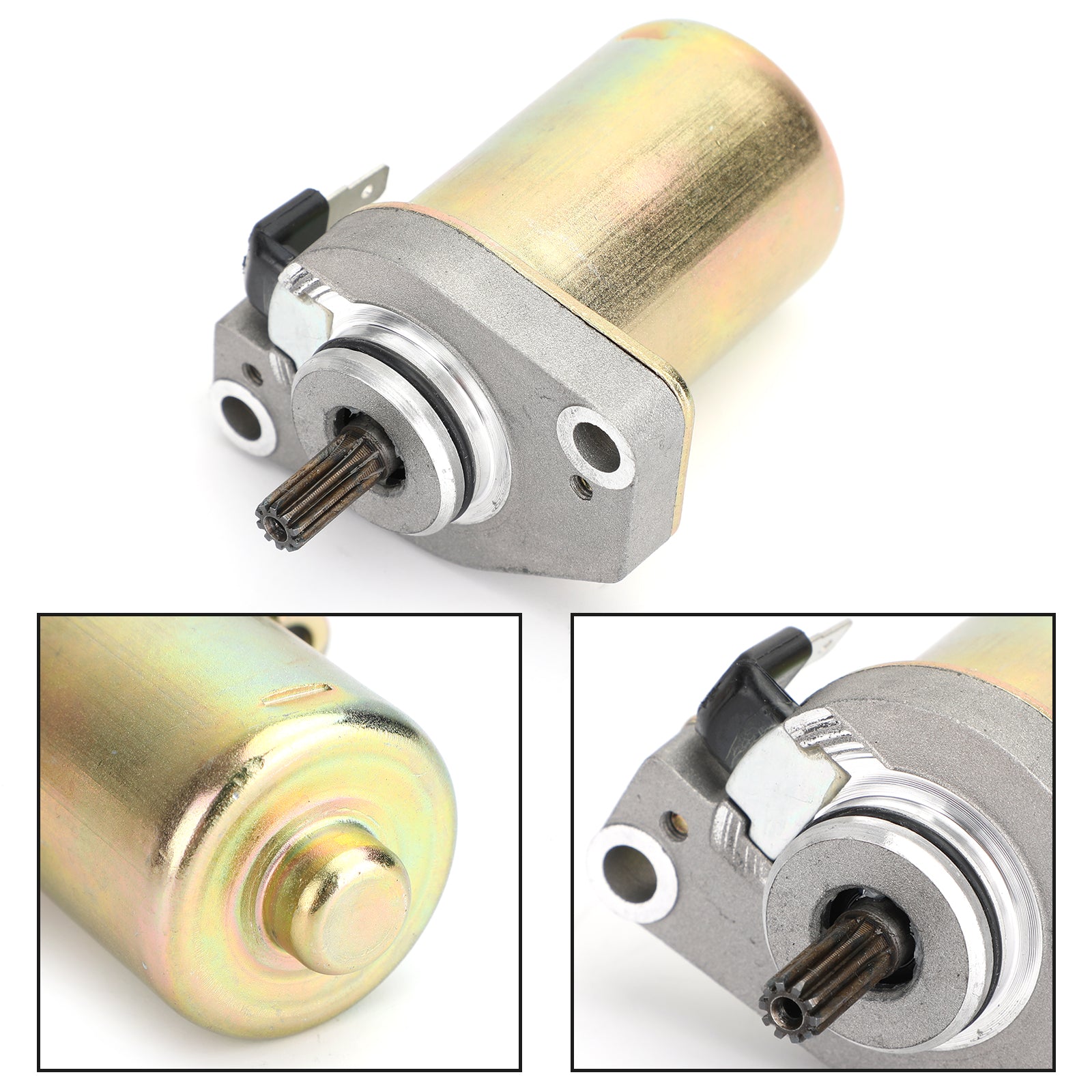

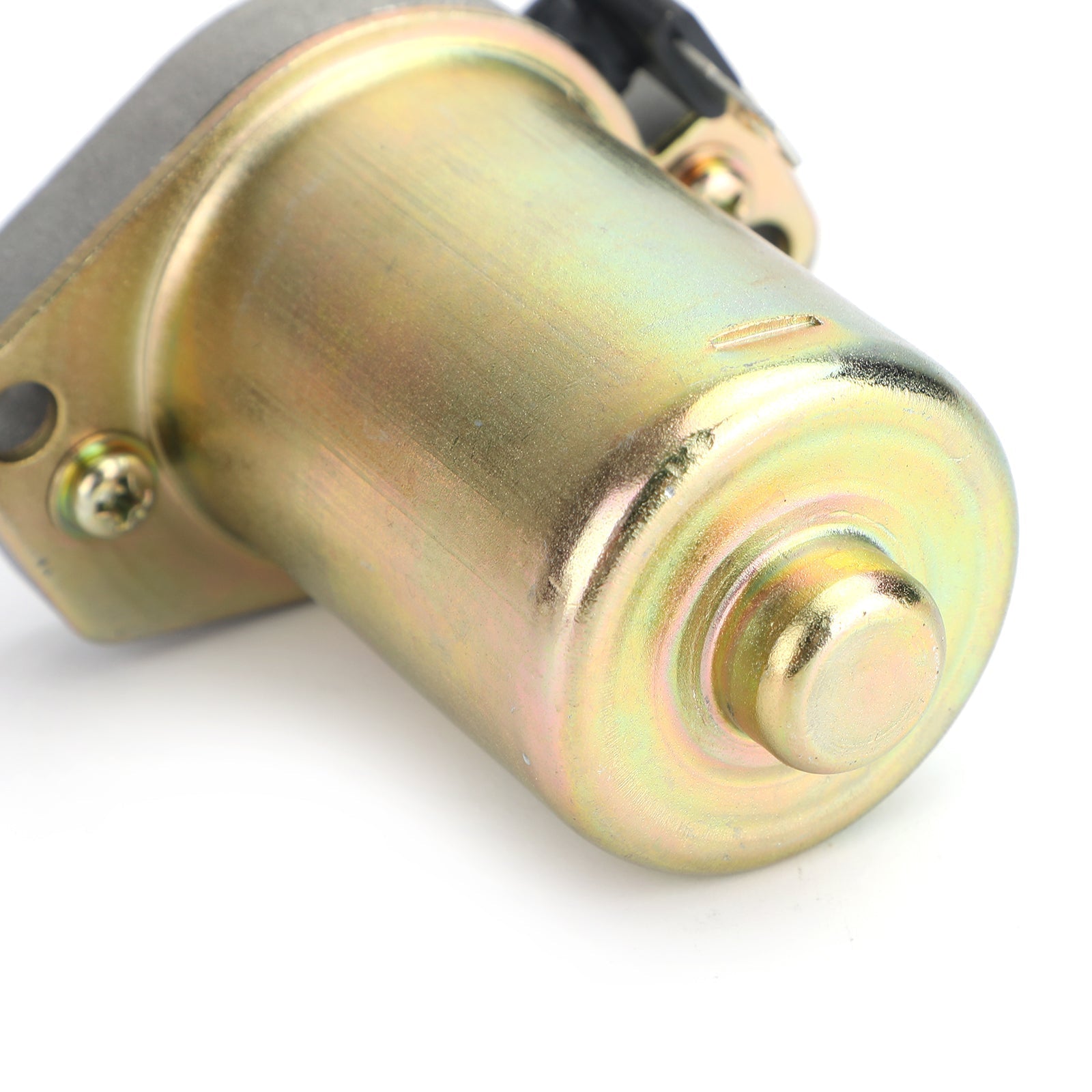

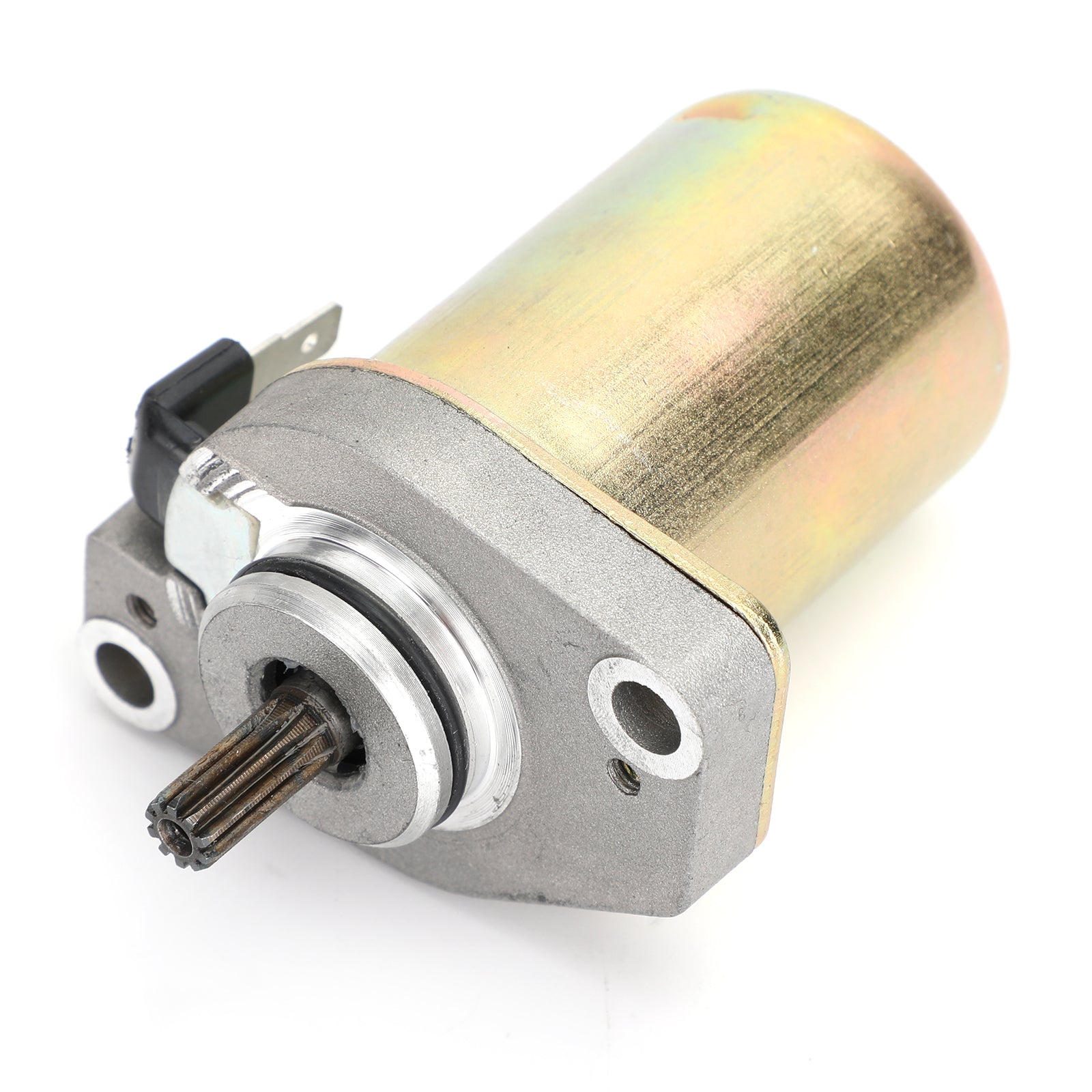

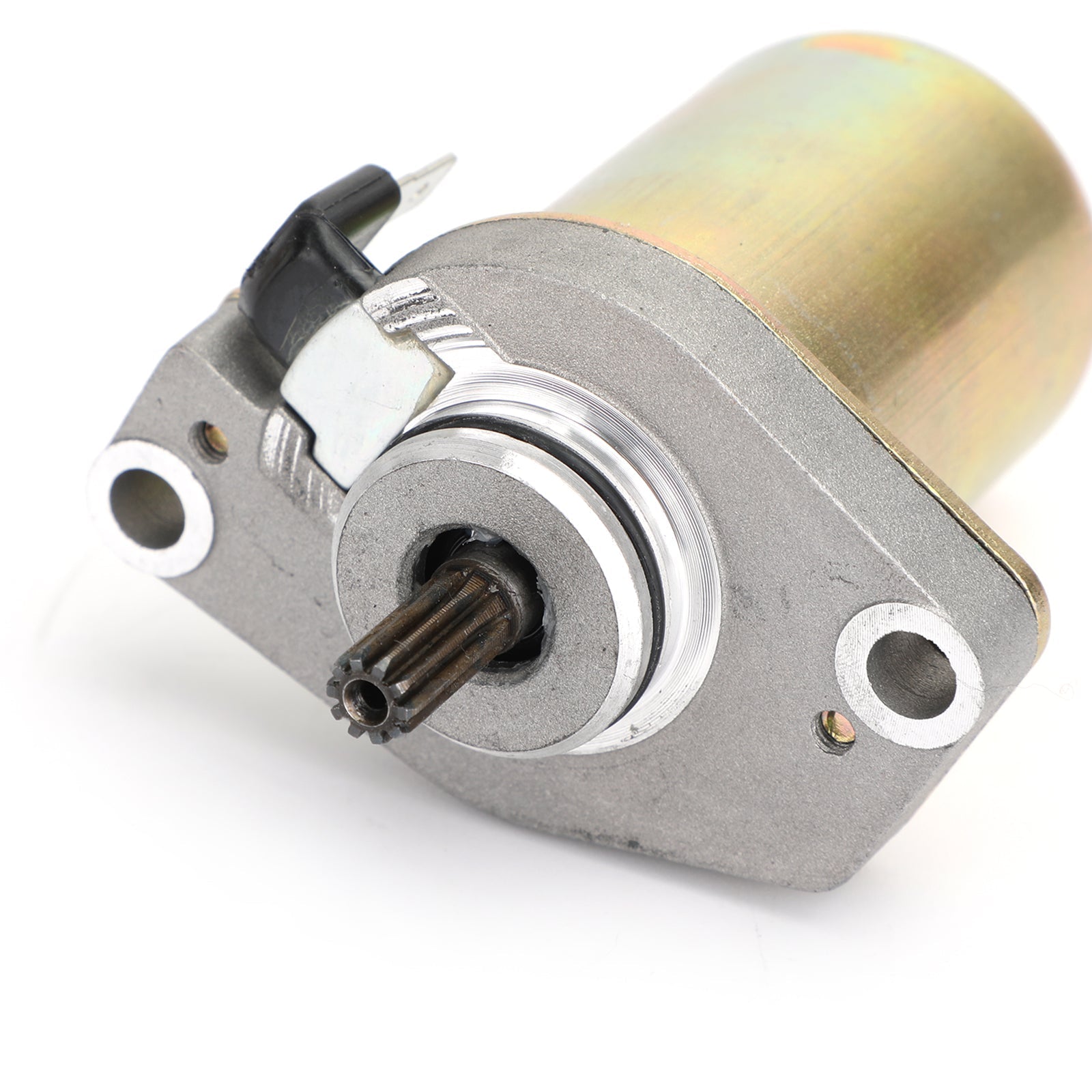

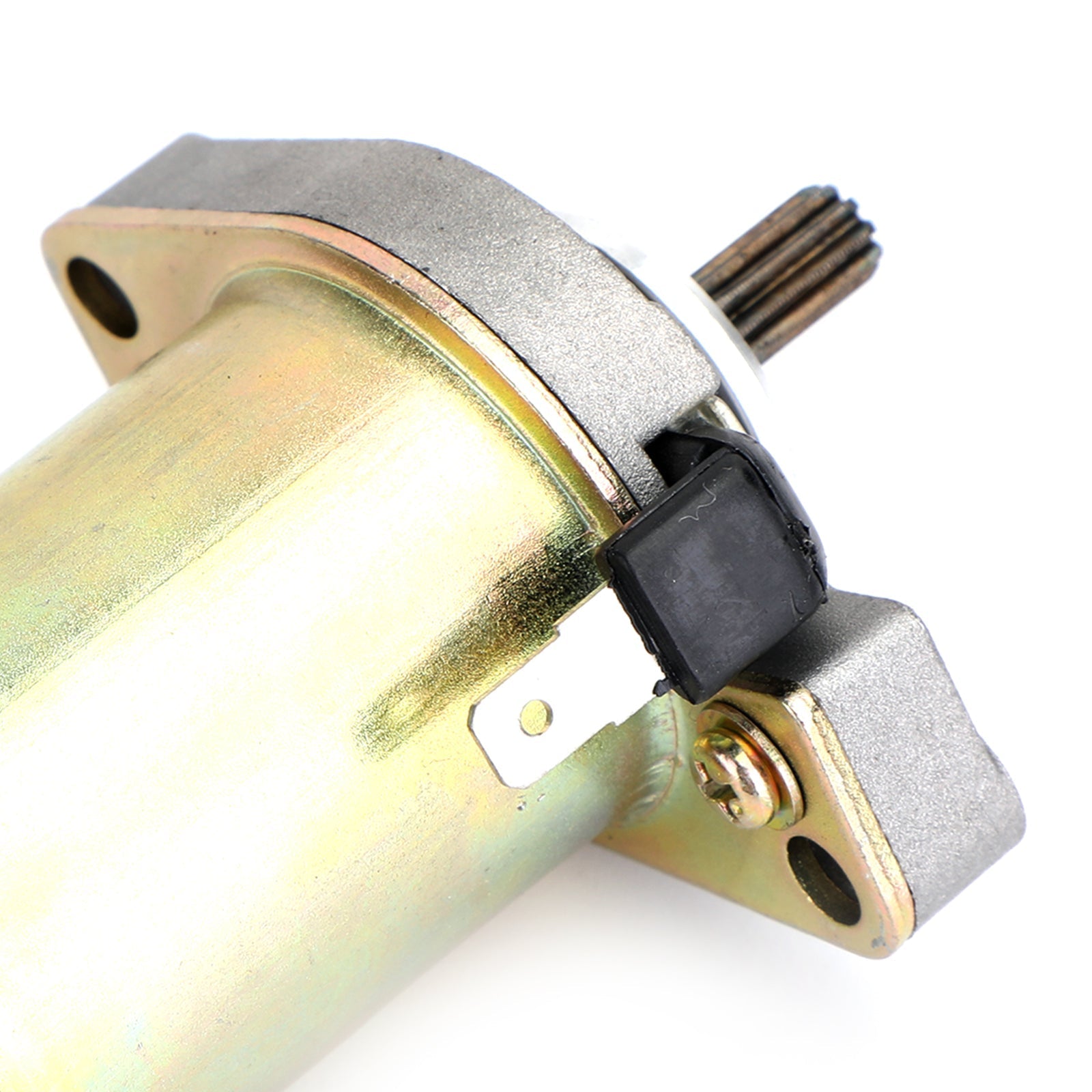

New Starter For Yamaha Scooter 1997-2001 CW50 Zuma II w/49cc 5BM-81800-01-00 Assosary

Specifications:

Starter Type: PMDD
Rotation: CCW
Rated Voltage: 12v
Number of Teeth: 10

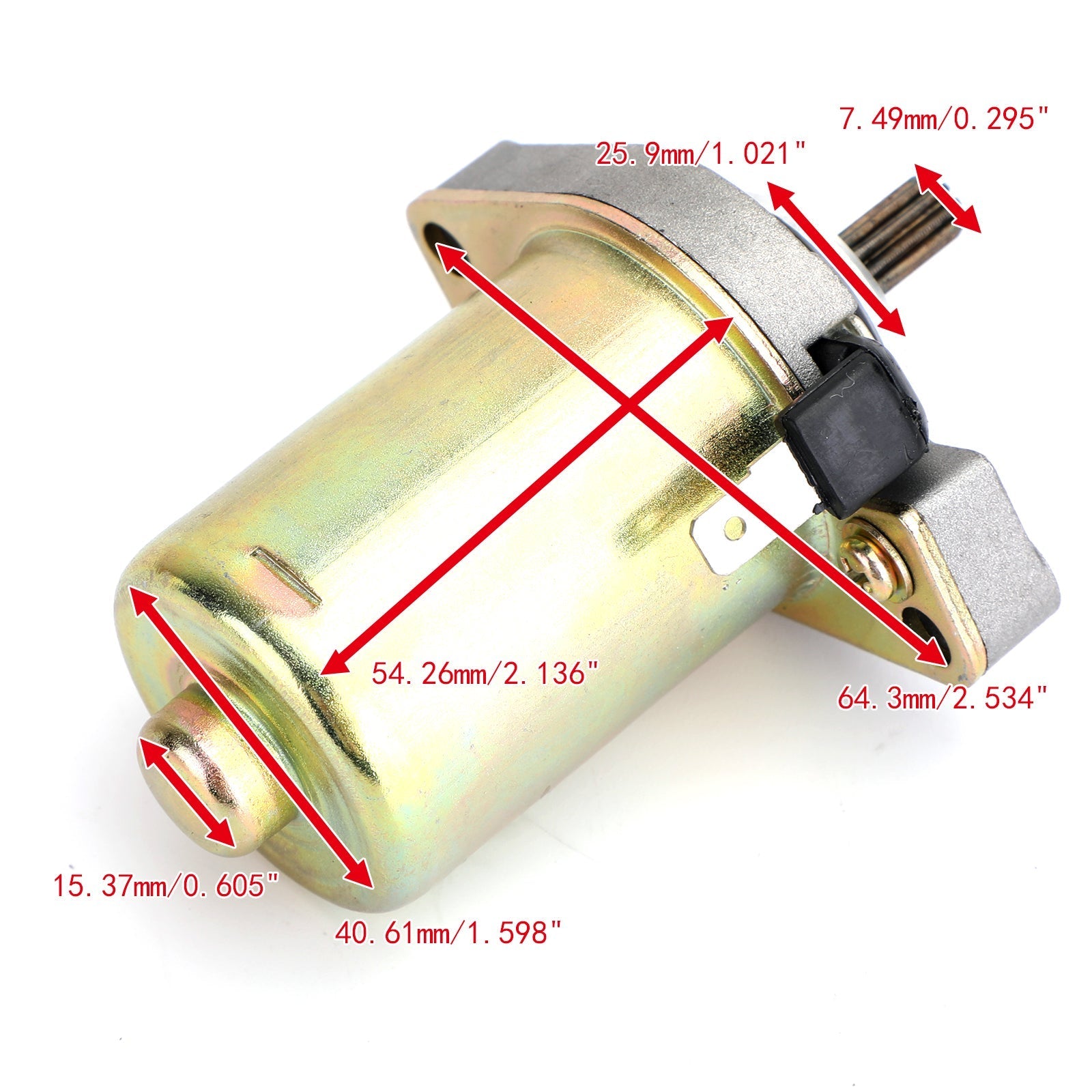

Gear OD: 7.49mm / 0.295in
Mtg Ear 1 Hole: 6.9mm Unthreaded
Mtg Ear 2 Hole: 6.9mm Unthreaded

Replacement Part Number:
For Yamaha 5BM-81800-01,3KJ-81800-01,3YJ-81800-01,4CU-H1800-00,4CU-H1800-01,4CU-H1800-10,5SU-H1800-00,5SU-H1800-10
For Yamaha 3FC-81800-01,3FC-81800-02,3FC-81800-11,3GF-H1800-00,3GF-H1800-10,4VV-H1800-00,3AA-81800-00,3AA-81800-01,3AA-81800-02,5WW-H1800-00
For Yamaha 4SB-H1800-00,4SB-H1800-10
For Arrowhead SMU0347
For Aprilia AP8206459,AP8206805,AP8224103
For Benelli 19240011A0
For Beta Motor 33-00420
For Lester 18749
For Malaguti 74800100

Fitment:
For Yamaha TZM50 1994/1997 49cc
For Yamaha CV50 Jog 2001-2002 49cc
For Yamaha CV50A Jog 2001-2004/2006-2007 49cc
For Yamaha CV50R Jog 2001-2004/2006-2007 49cc
For Yamaha CV50Z-II Jog ZII 2007 49cc
For Yamaha CV50ZII Jog ZII 2004/2006 49cc
For Yamaha CV50ZR Jog ZR 2001-2004/2006-2007 49cc
For Yamaha NS50 Aerox 2013-2016 49cc
For Yamaha NS50F Aerox 4 2014/2016 49cc
For Yamaha NS50N Aerox Naked 2013-2014/2016 49cc
For Yamaha NS50 Aerox R 2015-2016 49cc
For Yamaha YA50D Axis 50 1990-1997 49cc
For Yamaha YE50 Zest 50 1992-1995 49cc
For Yamaha YG50 Jog 50 ZR 50 1991-2000 49cc
For Yamaha YH50 Why 1998-2006 49cc
For Yamaha YJ50 Jog Aprio 1994-2004 49cc
For Yamaha YJ50R Vino 50 1997-2005 49cc
For Yamaha YJ50RA Vino Classic 2002-2005 49cc
For Yamaha YL50 Basic Jog 2004-2007 49cc
For Yamaha YM50 Breeze 1995 49cc
For Yamaha YN50 NEO'S 1997-2013 49cc
For Yamaha YQ50 Aerox 1997-2012 49cc
For Yamaha YV50Z Jog Z 1998-2000 49cc
For Yamaha YV50H Jog Poche 1999/2001-2007 49cc
For Yamaha YV50C Jog 1998-1999 49cc
For Yamaha CR50z Target 1991/1996 49cc
For Yamaha CW50 BW'S 1989-2013 49cc
For Yamaha CW50E BW'S 2013 49cc
For Yamaha CW50L BW'S 2001/2003-2009 49cc
For Yamaha CW50 Zuma 1989-1990 49cc
For Yamaha CW50 Zuma II 1997-2001 49cc
For Yamaha CY50 Jog 50 1992-2001 49cc
For Yamaha CY50 CY50N Jog 1990-2001 49cc
For Yamaha CX50 Champ 1988/1990 49cc
For Yamaha EW50 Slider 2000-2004 49cc
For Yamaha EW50N Slider Naked 2003-2009 49cc

For Aprilia Amico 50 1990-1999 50cc
For Aprilia Area 51 50 1998-2002 50cc
For Aprilia Gulliver 50 1995-1999 50cc
For Aprilia Rally 50 1995-2004 50cc
For Aprilia SR 50 1992-2002 50cc
For Aprilia Scarabeo 50 DT 1994-2002 50cc
For Aprilia Scarabeo 50 1993-2005 50cc
For Aprilia Sonic 50 AC 1998-2002 50cc
For Aprilia Sonic 50 1998-2008 50cc
For Aprilia Gulliver 50 1994 50cc

For Benelli 491 50 LC 1998-2006 50cc
For Benelli 491 Sport / ST / Superbike 1998-2002 50cc
For Benelli K2 50 1998-2003 50cc
For Benelli Naked 50 2001-2002 50cc
For Benelli Pepe 50 1999-2006 50cc

For Beta Ark 50 LC / AC / K 1996-2010 50cc
For Beta Ark 50 AC 1997-2008 50cc
For Beta Ark 50 LC 1997-2008 50cc
For Beta Eikon 50 LC 1999-2006 50cc
For Beta Quadra 50 1995-2002 50cc
For Beta Tempo 50 1993-1994/1999-2001 50cc

For Italjet Dragster 50 1998-2003 50cc

For Atala Carosello 50 All Years 50cc

For KTM Ark 50 AC 1998-1999 50cc
For KTM Kross 50 1996-2000 50cc

For MBK CS 50 2006 50cc

Package Incleded:
1x Starter

Notice:
Compatibility only for reference,please check out the size & part numbers fits your motorcycle or not.
This is an aftermarket part,not an original part.
