NanoVNA V2 3G 3.2" Vector Network Antenna Analyzer 50kHz-3GHz For Shortwave

?

Feature:
1: 3GHz second generation NanoVNA vector network analyzer is based on OwOComm's S-A-A-2 design with greatly upgraded
performance. Compared with the basic S-A-A-2, the SAA-V2 is designed with a metal housing, an increased screen size from 2.8" to 3.2",
and a touch screen pen to make your operation more convenient while adding measurement duplexer and filter functions.

2: Can test the antenna standing wave impedance also can debug the duplexer filter insertion loss isolation standing wave also can test the
cable attenuation shortening factor phase also can test the amplification of the antenna amplifier And with frequency meter function Powerful function.

3: Metal housing, large screen touch more accurate, easy to operate, no need to connect to the power supply, free from the constraints
of the data cable, can be used as a single unit. Can also measure duplexer measurement filter (at present, in addition to this model,
other products can not do such a powerful function).

Specifics:
Condition: 100% Brand New
Measurement frequency range: 50kHz - 3GHz
System dynamic range (after calibration): 70dB (50k to 1.5GHz); 60dB (to 3GHz)
S11 noise floor (after calibration): -50dB (to 1.5GHz); -40dB (to 3GHz)
Scan rate: 100 points/sec
Number of scan points (on device screen): adjustable, 201 points max
Number of calibration points (maximum number of scanning points on USB): 1024 points (when connected to a PC using the host computer)
Power supply: USB, 400mA
RF port: SMA (not RP-SMA)
USB interface: Micro USB
Display Screen: 3.2" TFT (320 x 480)
Battery: 2000 mAh 3.6V/3.7V Li-ion battery, 6*40*60 mm (max. size)
Net weight: 320g
Port 2 Return Loss: ��?13dB (to 3GHz), 20dB (to 1.5GHz)
Display Tracking: 4, Marker: 4, Setting Save: 5
Item size: 115 * 80 * 27mm / 4.5 * 3.1 * 1.1in
Package weight: 330g / 11.6ounce
PC software compatibility: Linux, Windows (7+)

Note:
1.Please allow 1-3mm difference due to manual measurement.
2.The color might be a little different from the actual product due to color display of different monitors.

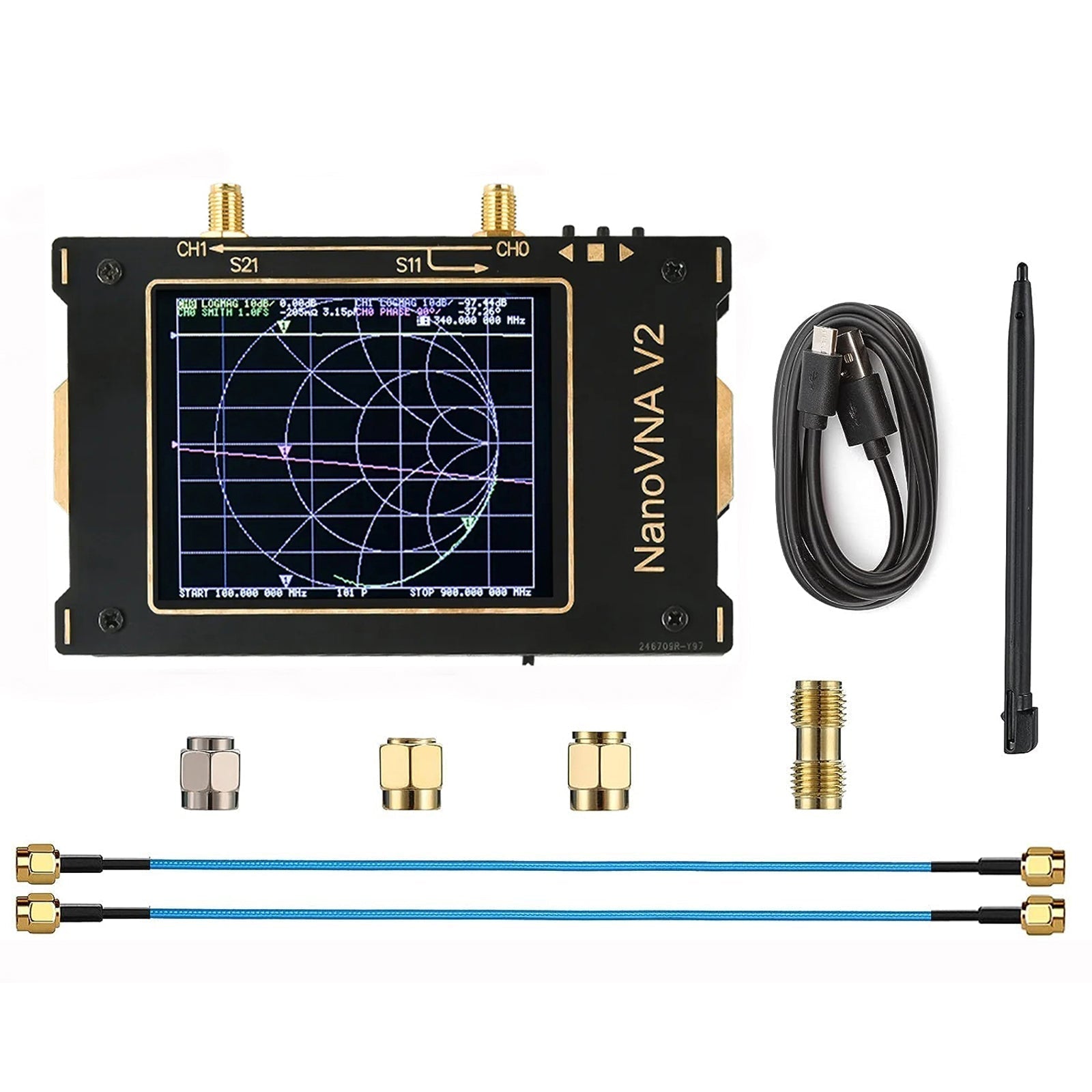

Package Included:
1 * Vector Network Analyzer
2 * 300mm RF Cable SS405 SMA Double Male Needle
1 * USB Data Cable
1 * Calibration Kit (50�� Load)
1 * Calibration Kit (Short)
1 * Calibration Kit (Open)
1 * SMA Female to Female Connector
1 * Touch Pen
