MLX90640 32x24 Digital Infrared Thermal Imager Thermal Imager W/1.8" TFT Display

Feature:
1: Compact, lightweight, and portable, it is easy to carry and does not take up too much space.
2: Its uses FR4 epoxy outershell material for better protecting internal component and has a long service lifespan.
3: Adopt infrared sensors, 32*24 pixel far infrared array, clearly imaging.
4: Real-time measurement, with -40℃ to +300℃ measurement ranges, and an 8Hz dynamic refresh rate.
5: With a 1.8" TFT display, the data is clear at a glance.
6: Built-in a lithium-ion battery, USB Type-C charging design, long battery lifespan.
7: This thermal imager has a photo-taking and photo memory function within its built-in SPI flash chip, which can store up to 90 pictures.

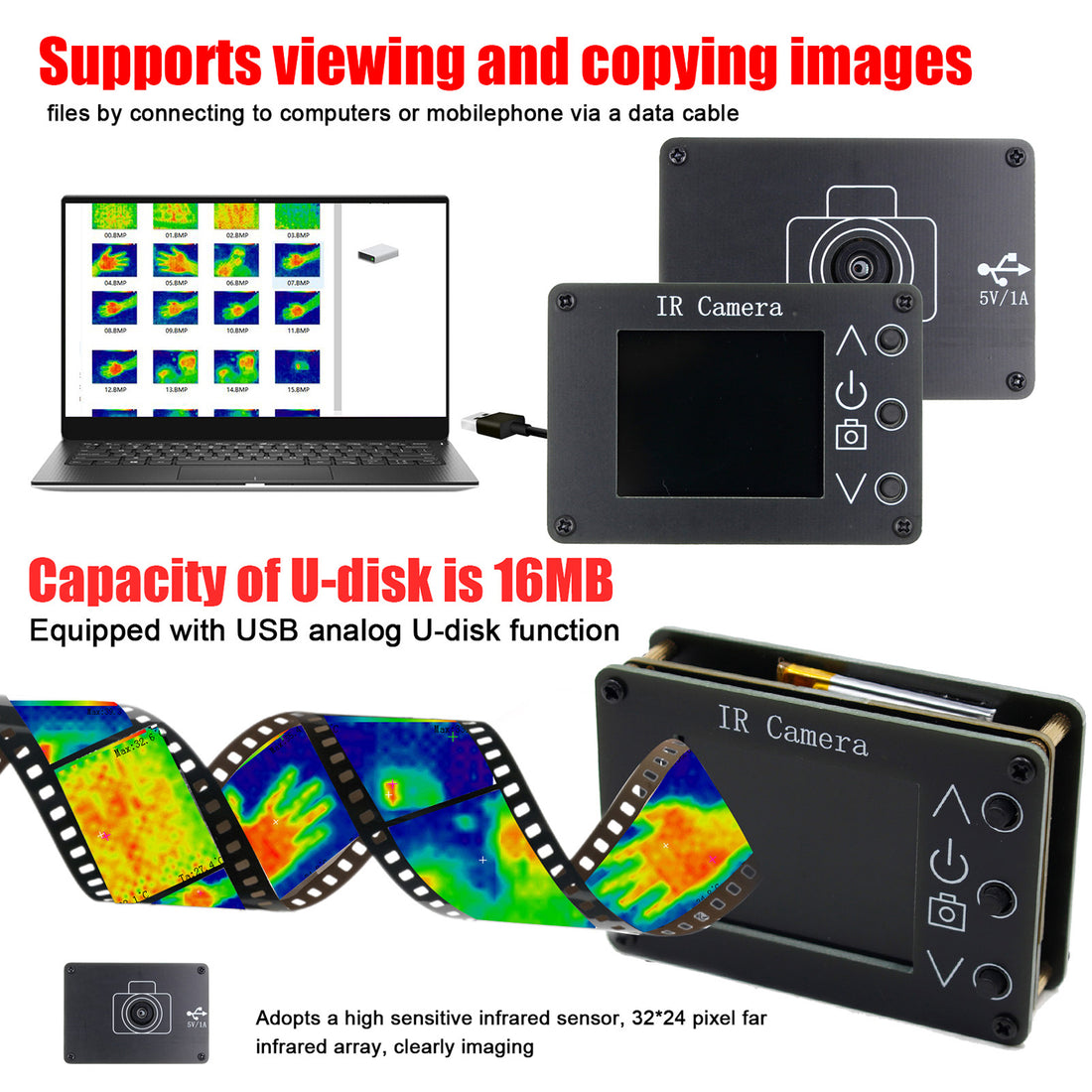

8: With a data transmission interface, you can view and copy imagefiles by connecting computers or mobilephones with a data cable.
9: With integrated design, it can operate smoothly without external devices.
10:This product combines the functions of surface temperature measurement and real-time thermal imaging, suitable for both the human temperature detection function and the industry temperature detection function.

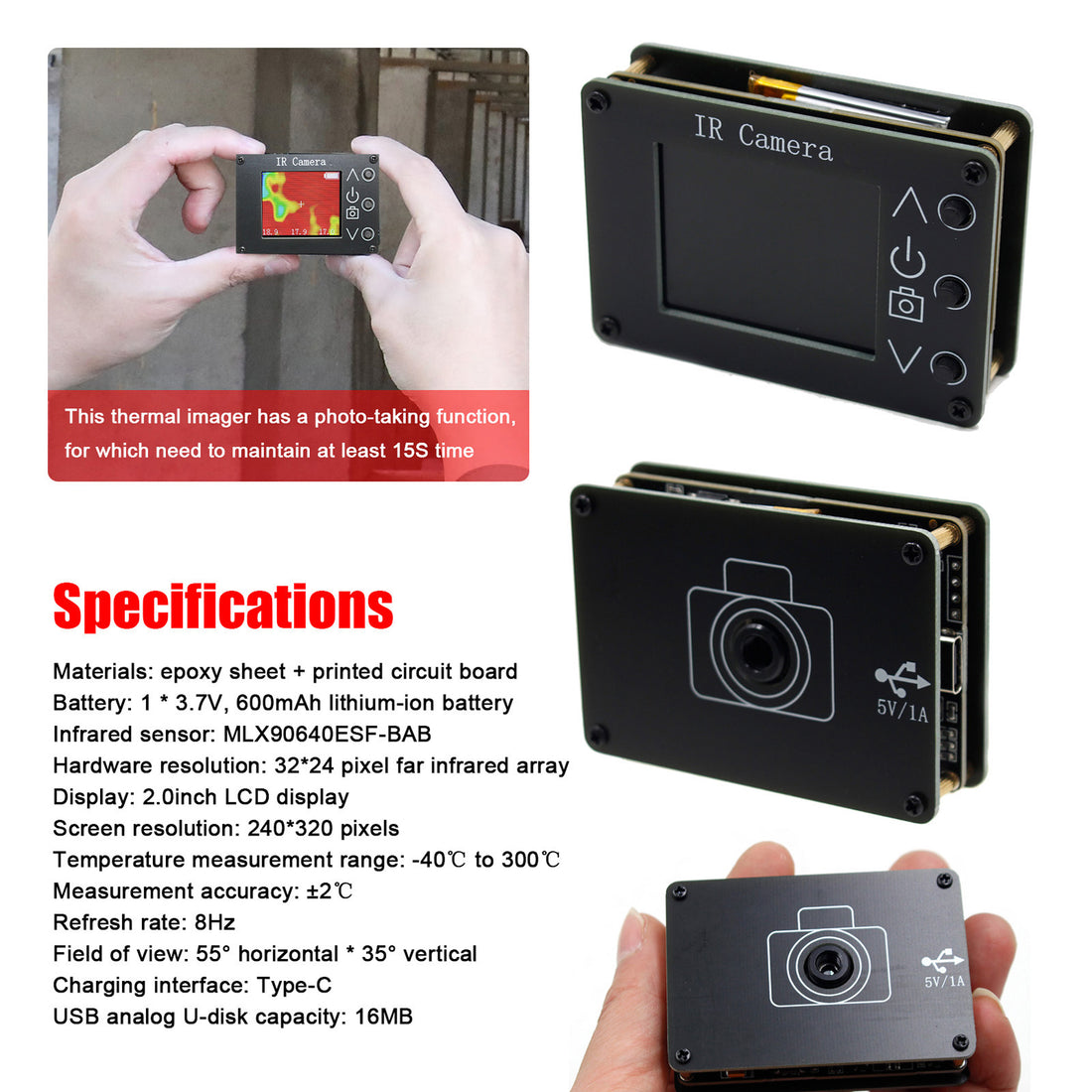

Specifics:
Condition: 100% Brand New
Name: Thermal Imager
Materials: epoxy sheet + printed circuit board
1. Module:JM_MLX90640_CSB
2. Use MLX90640ESF_BAB IR Sensor
3. Resolution : 32x24
4. Temperature measurement range :?‐40℃~300℃
5. Measurement accuracy : +/‐2℃(Central area,0~100℃)
6. Operate temperature : 10℃~50℃
7. Operate humidity: <=70%
8. Refresh rate : 8HZ
9. No need to calibrate
10. FOV : 55°x35°

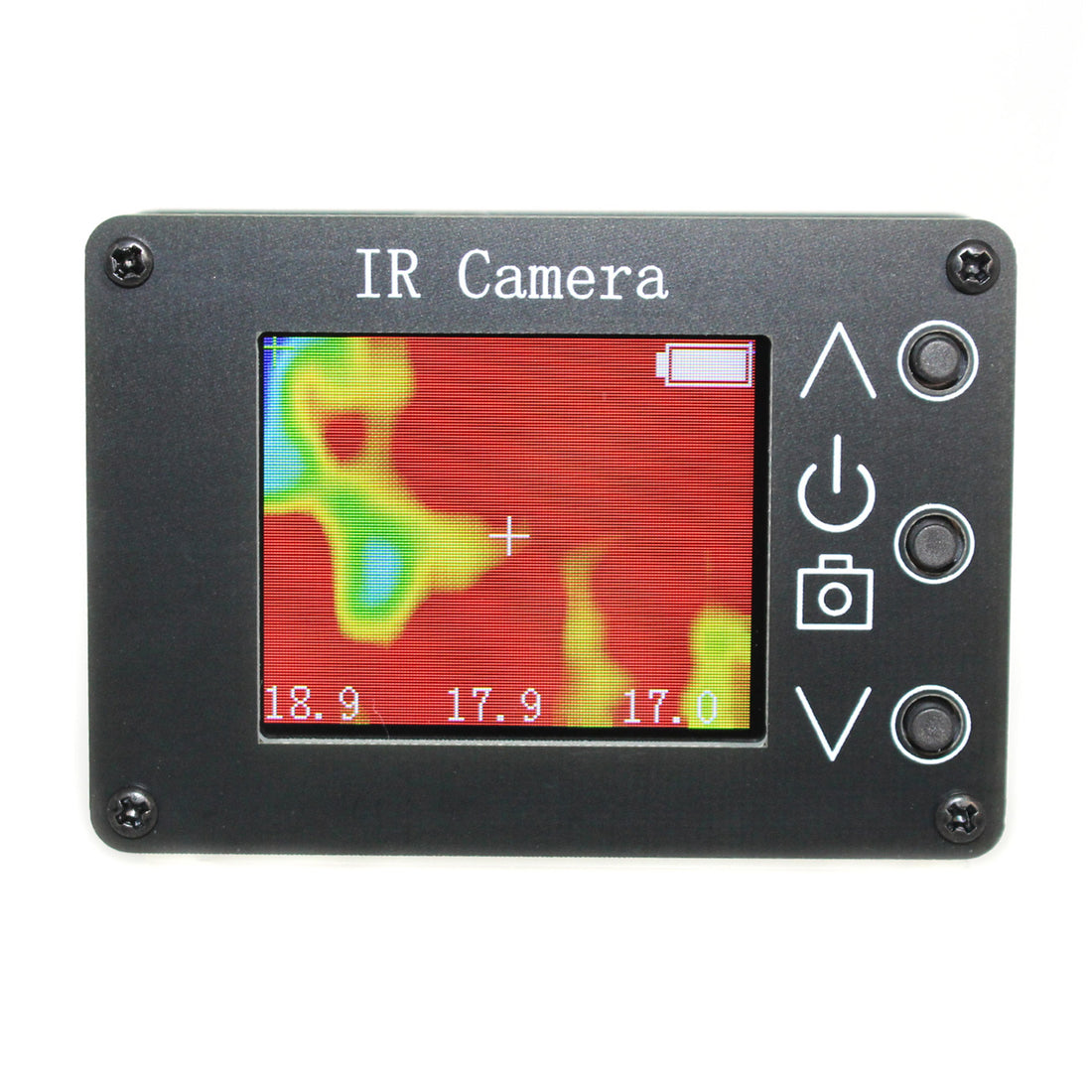

11. Display center point ,maximum and minimum temperature
12. Make photo(Can saved 90PCS photos, connect to computer, copy and delete)
13. Rechargeable Battery
14. TFT size : 1.8inch(display resolution：160x128)

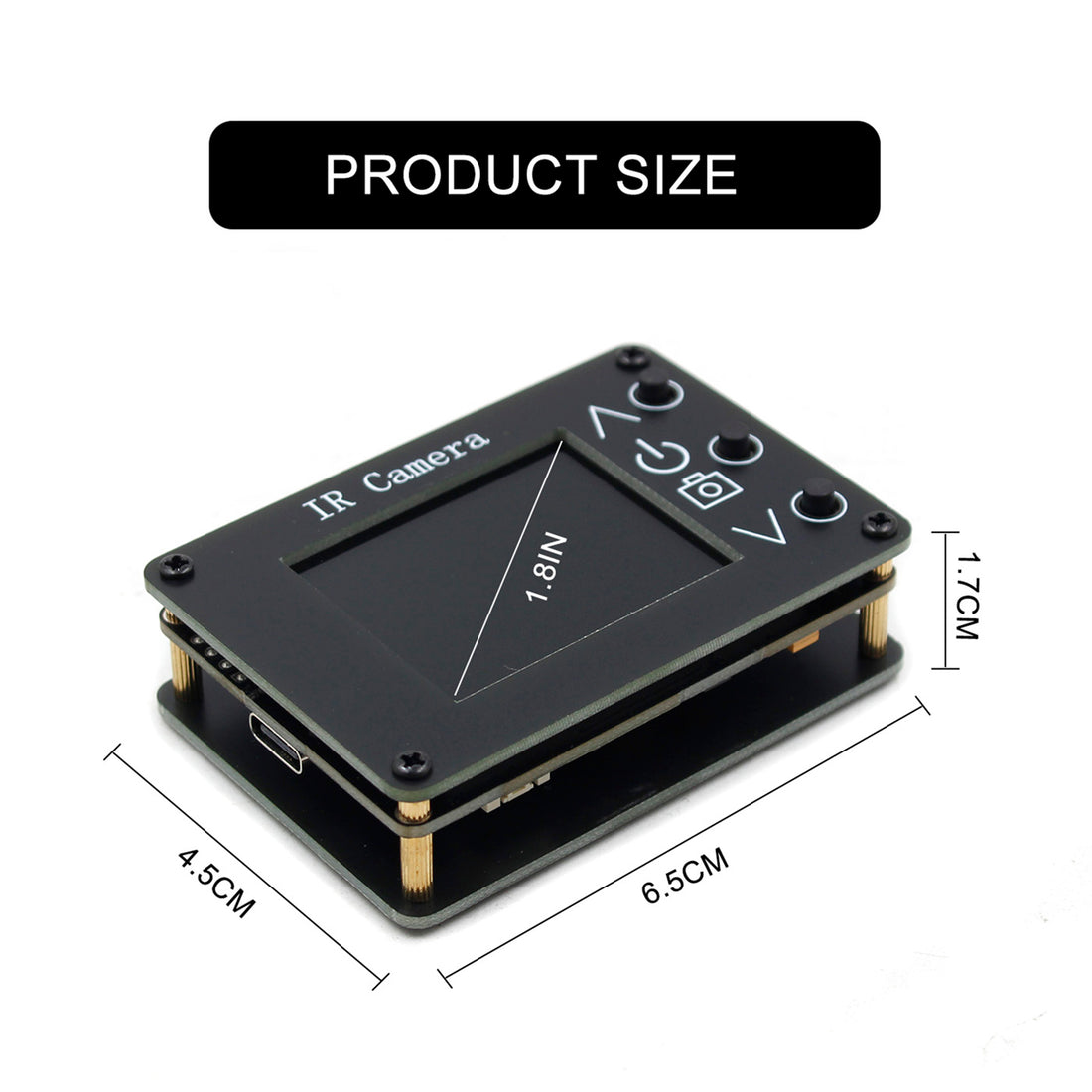

15. Product size : 66*46*20mm / 2.60*1.81*0.79in
16. Power port : USB Type‐C? ? 5V/1A
17. Working time: ≥4 hours

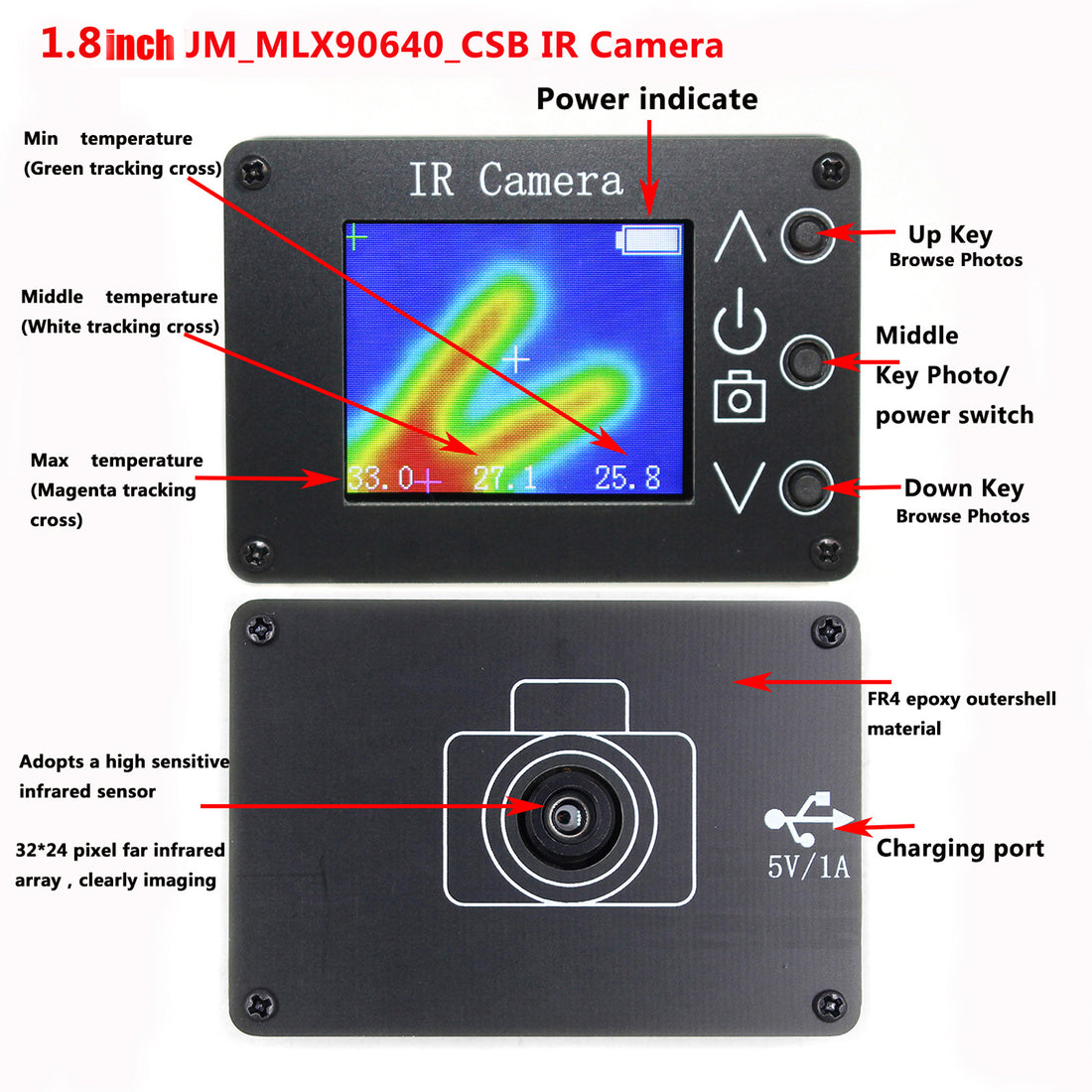

Operate description:
1、Charging : Use USB Type‐C line, 5V/1A
2、Open/Close : Press Middle Key Long
4、Make photo: Press Middle Key
5、Review photo: Press Up or Down Key
6、Quit photo: Press Up or Down Key Long
7、Copy photo : connect computer with usb line, computer will get a disk.
Note: can not change photo in disk or put other file into the disk. Before connect computer, pls fully charged and shutdown

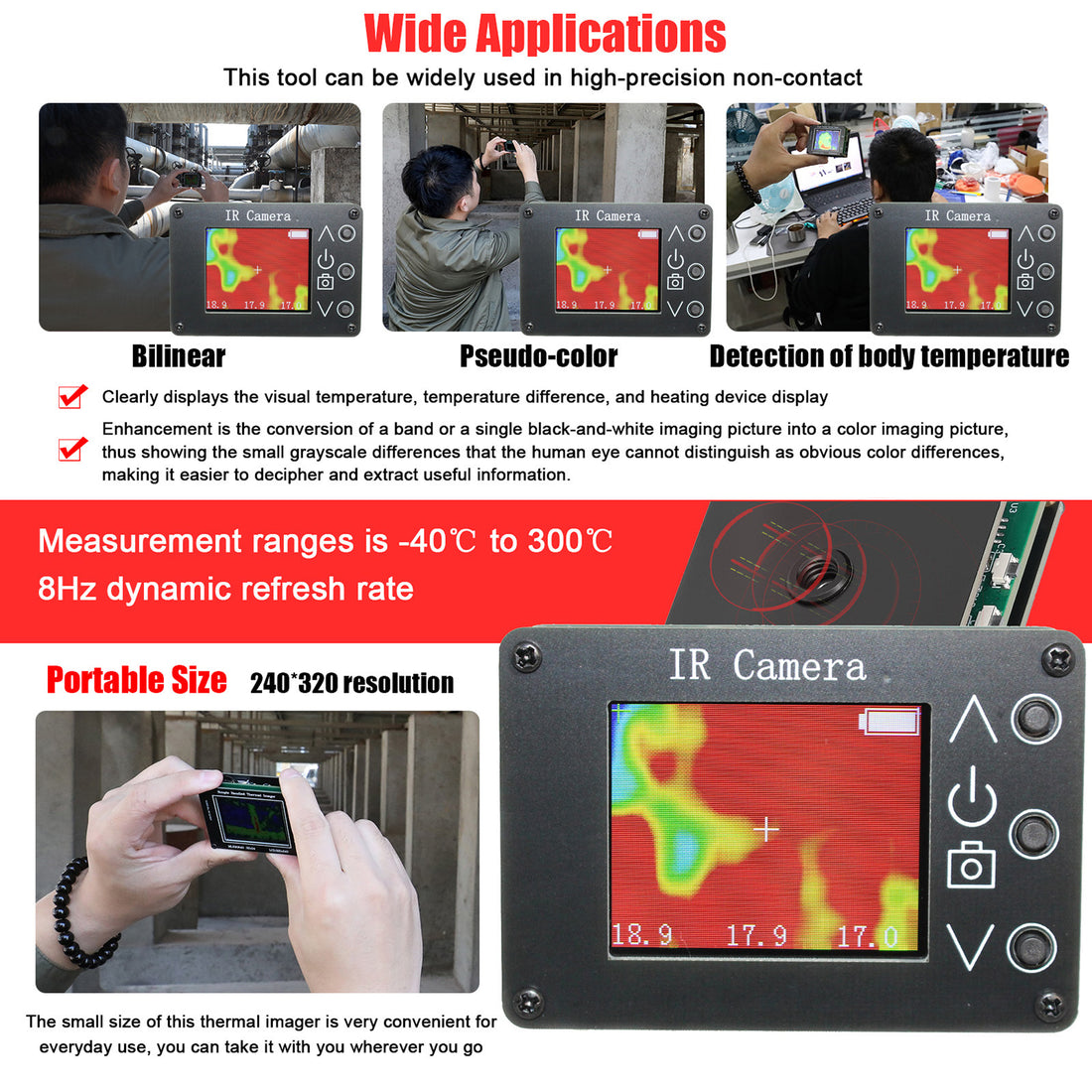

Application:
- High-precision non-contact temperature measurement
- Security and intrusion detection
- Body temperature detection
- Intelligent ambient temperature measurement and control of buildings
- Car air conditioning control
- Microwave oven and oven temperature detection and control
- Temperature monitoring of industrial parts
- Visual temperature sensor
- Thermal inspection of circuit boards and components

Note:
1.Please allow 1-3mm difference due to manual measurement.
2.Due to the light and screen difference, the item's color may be slightly different from the pictures.

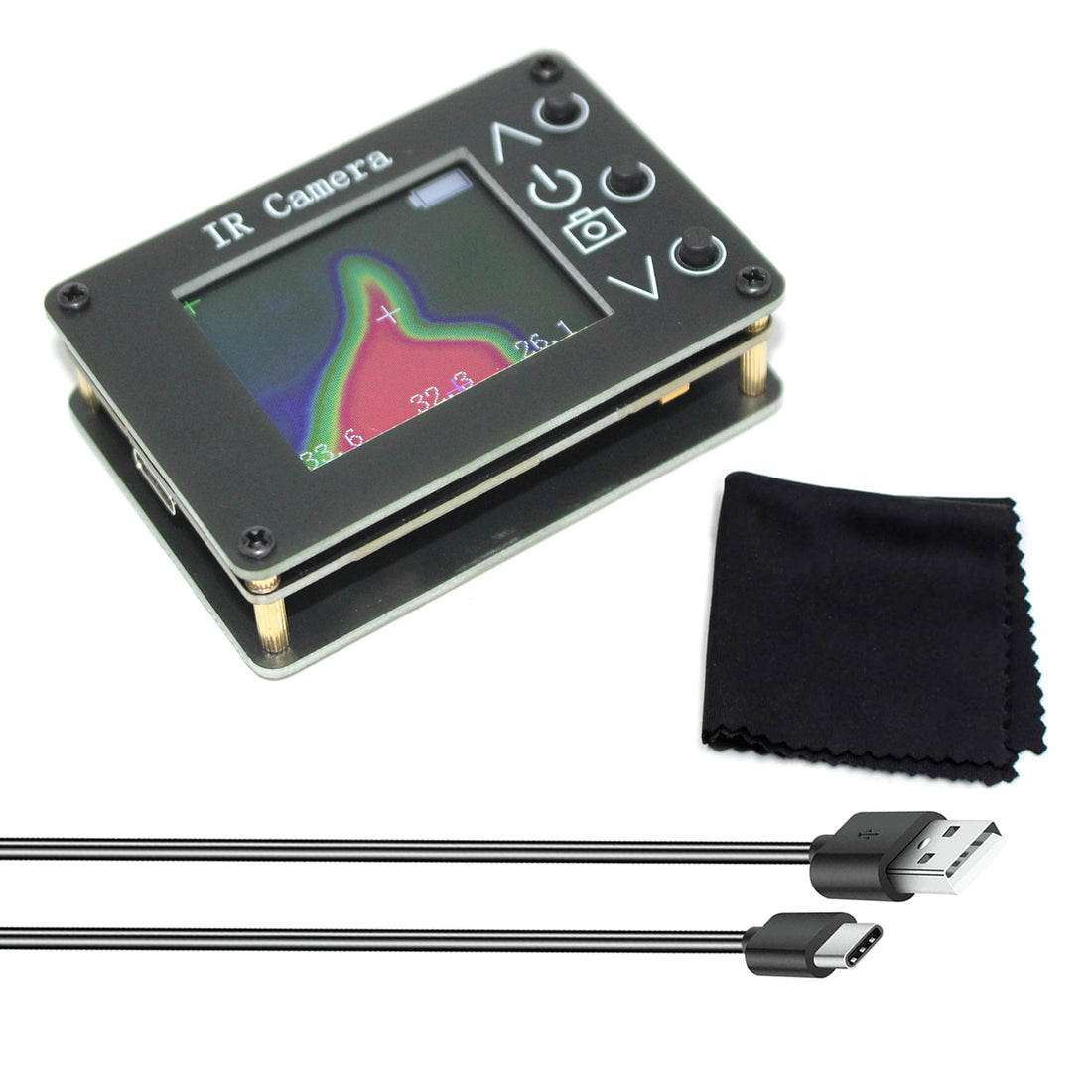

Package Included:
1* Thermal Imager
1* USB Type-C
1* Mirror cleaning cloth
