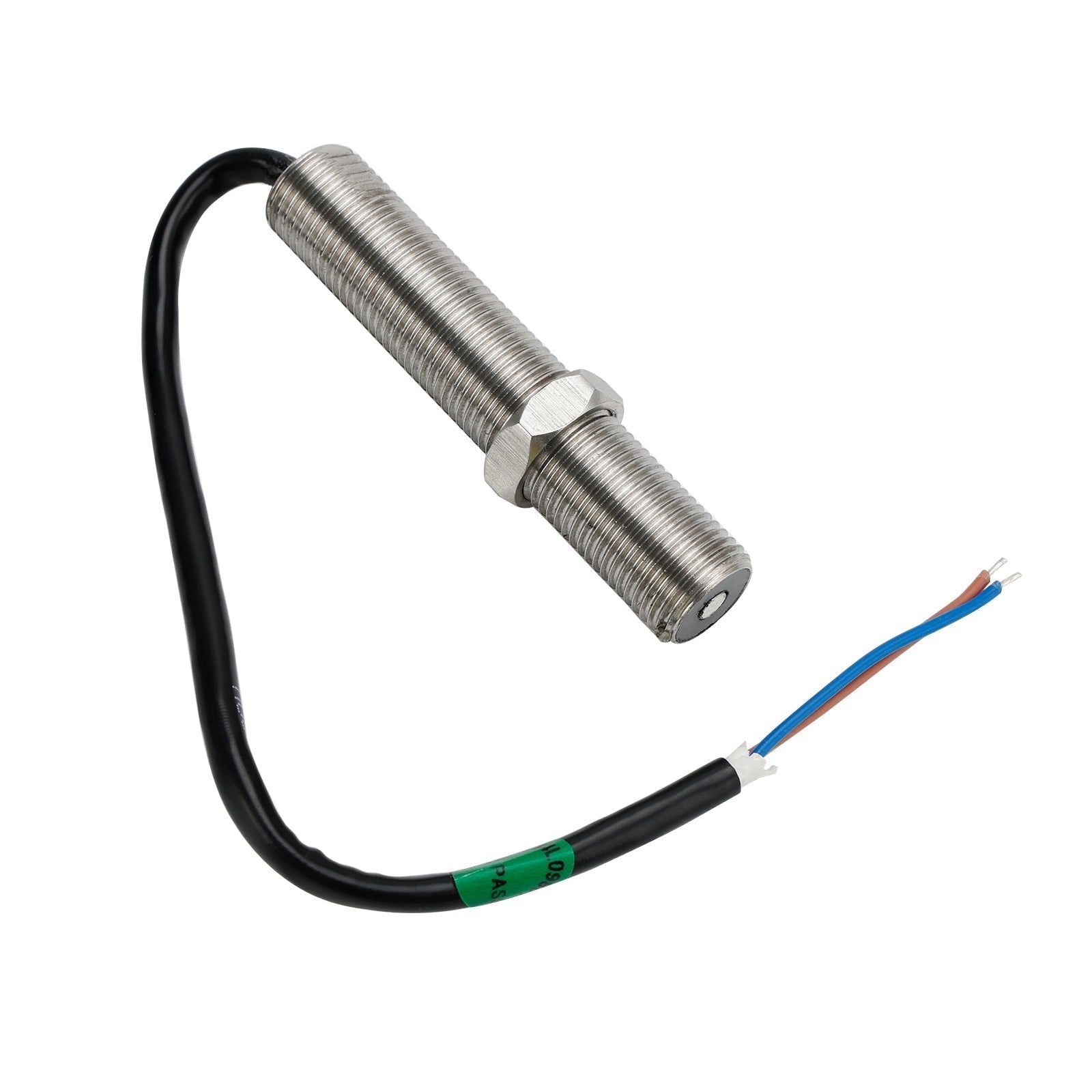

Magnetic Pickup MPU Generator Speed Sensor RPM MSP675 For Generator Set

?

Feature:
1: Made of high quality material, durable and practical to use.
2: The magnetic speed sensor is mounted in the ring gear case or flywheel bell housing of the engine.
3: The threaded hole for the speed sensor should be perpendicular to the centerline of the crankshaft and
centered over the ring gear teeth. A spot face should be present to provide a flat surface on which to anchor
the locknut.With the engine stopped, screw the speed senor in until it touches a gear tooth, then back it out 3/4
of a turn and secure it with the locknut. Any ferrous gear may be used as long as the frequency and amplitude
of the resulting signal meet the speed control unit specifications
The wire leads should be twisted for their entire length from the magnetic speed sensor to the control unit.
The leads may need shielding if they are longer than 10 ft. (3m), or if external interference is present.
Do not connect either of the speed sensor leads to anything but the speed control unit used.
The shield should not be connected at the speed sensor end.

Specifics:
Condition: 100% Brand New
Range:50-5000Hz
Temperature range: -20��?celsius to 60��? ?Pickup Length: 3.125"
Thread Length: 2.75"
Lead Length: 7.00"
Thread Size: 5/8-18 UNF-2A
Drill Size: 37/64

Note:
1.Please allow 1-3mm difference due to manual measurement.
2.Due to the light and screen difference, the item's color may be slightly different from the pictures.

Package Included:
1 X MSP675 Speed Sensor
