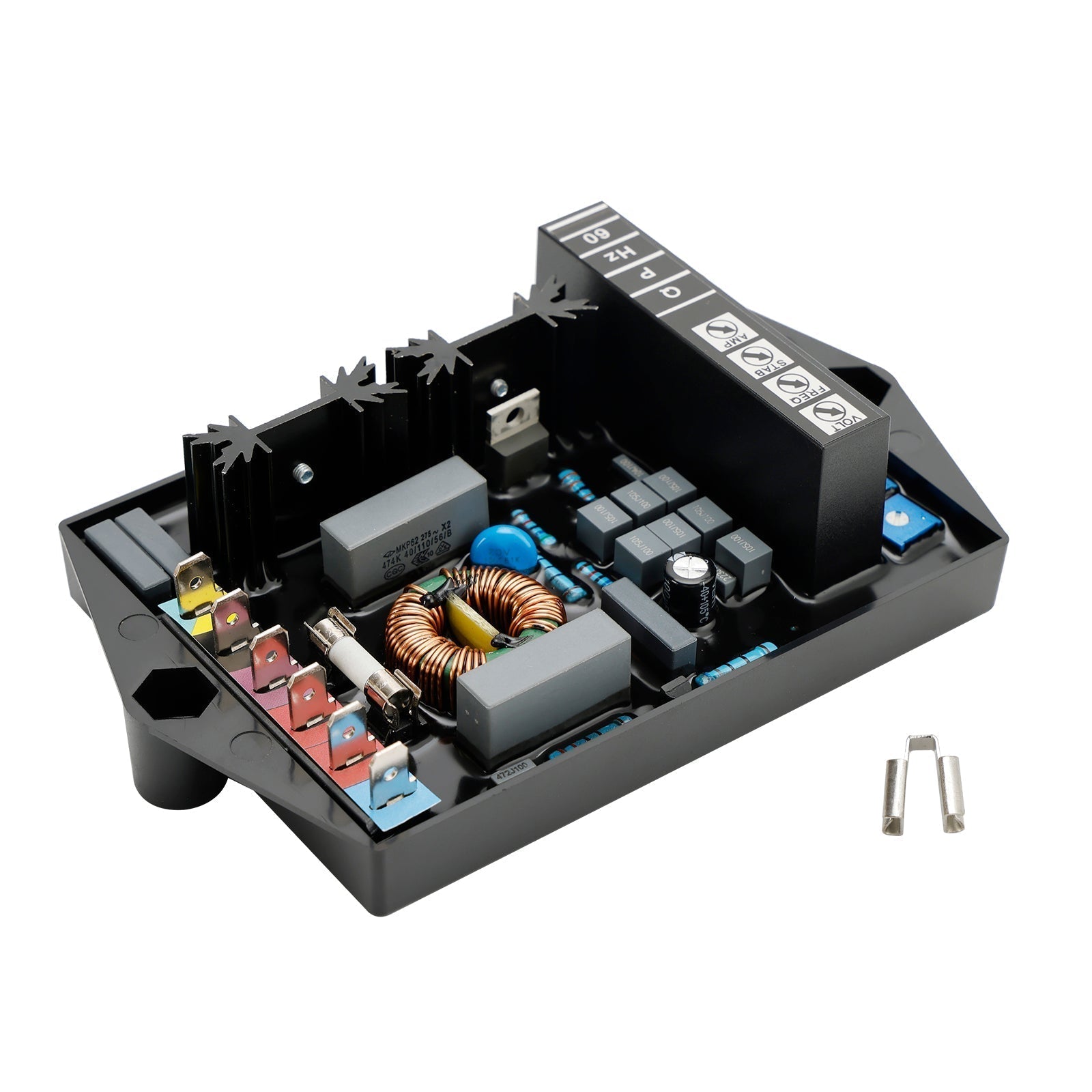

M16FA655A Automatic Voltage Regulator AVR Replacement For Gensets Parts

?

Feature:
The voltage regulator type ���MARK V��? is suitable for Synchronous Generators of MARELLI MOTORI make,
MJB series, size range 160-225 frames. The regulator is fully insulated in order to maintain high reliability also
with severe ambient conditions (high level of humidity, dust, salt atmosphere), and in case of high vibrations level.
The regulator is proper both for single and 3-phase generators.

Specifics:
Condition: 100% Brand New
REGULATION ACCURACY: +/- 0.5% rated steady state conditions
VOLTAGE DRIFT:+/- 0.5 %, voltage change, for 50��C T amb change
RESPONSE TIME: 1 cycle
OPERATING TEMPERATURE: -30 ��C �� +70 ��C
EXCITER FIELD RESISTANCE: 8 �� (min) �� 20 ��(max)
INPUT/OUTPUT DATA:
-SUPPLY VOLTAGE:170 -270 V
-POWER SUPPLY:350 VA (max)
-POWER DISSIPATED: 15 W (max)
-VOLTAGE SENSING: 170 - 270 V
-OUTPUT VOLTAGE (DC):30 V
-OUTPUT CURRENT (DC): 5 A (max, continuos)
-OUTPUT CURRENT (DC): 8 A (max forcing one minute)

Note:
1.Please allow 1-3mm difference due to manual measurement.
2.Due to the light and screen difference, the item's color may be slightly different from the pictures.

Package Included:
1 X Product Instructions
1 X Automatic Voltage Regulator

Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
