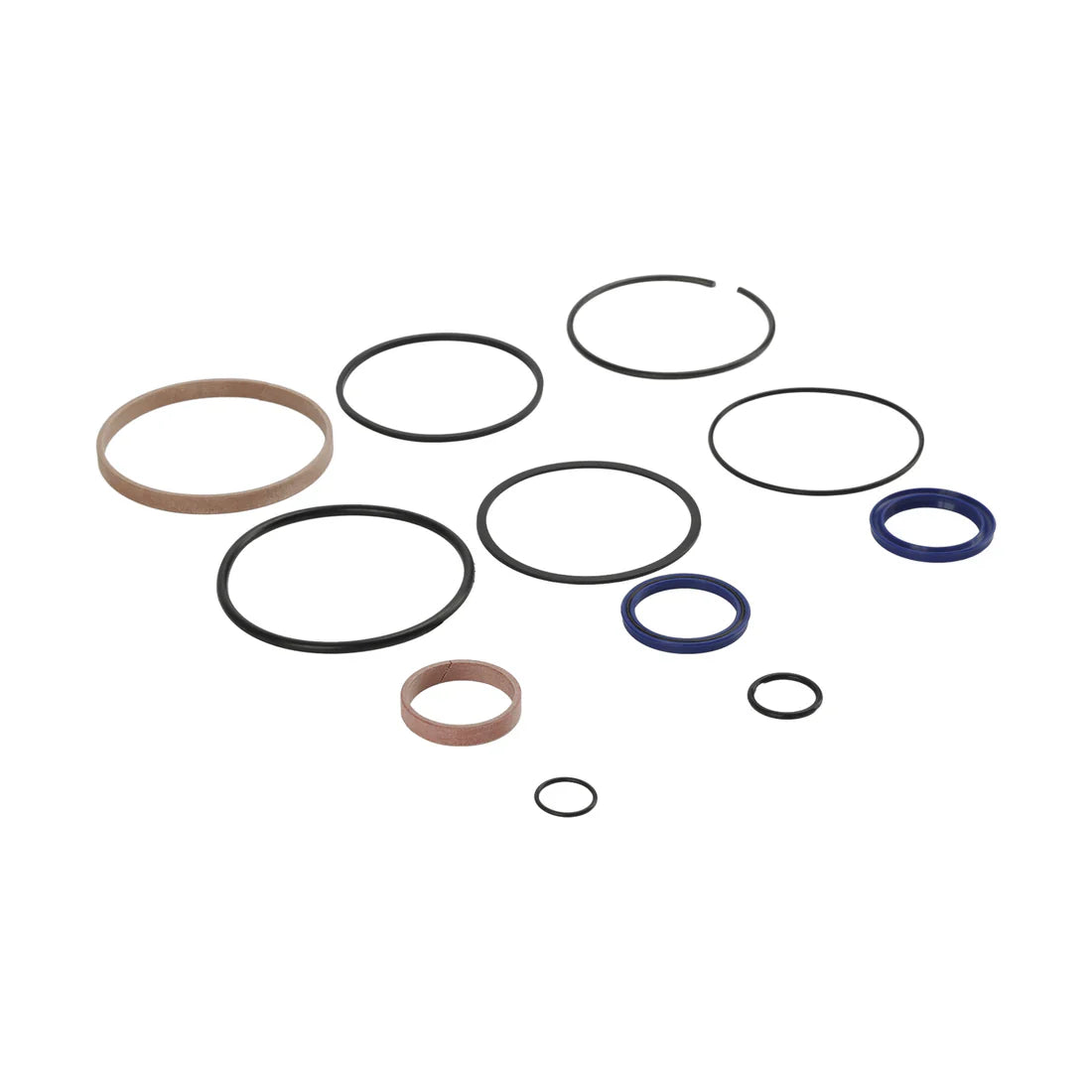

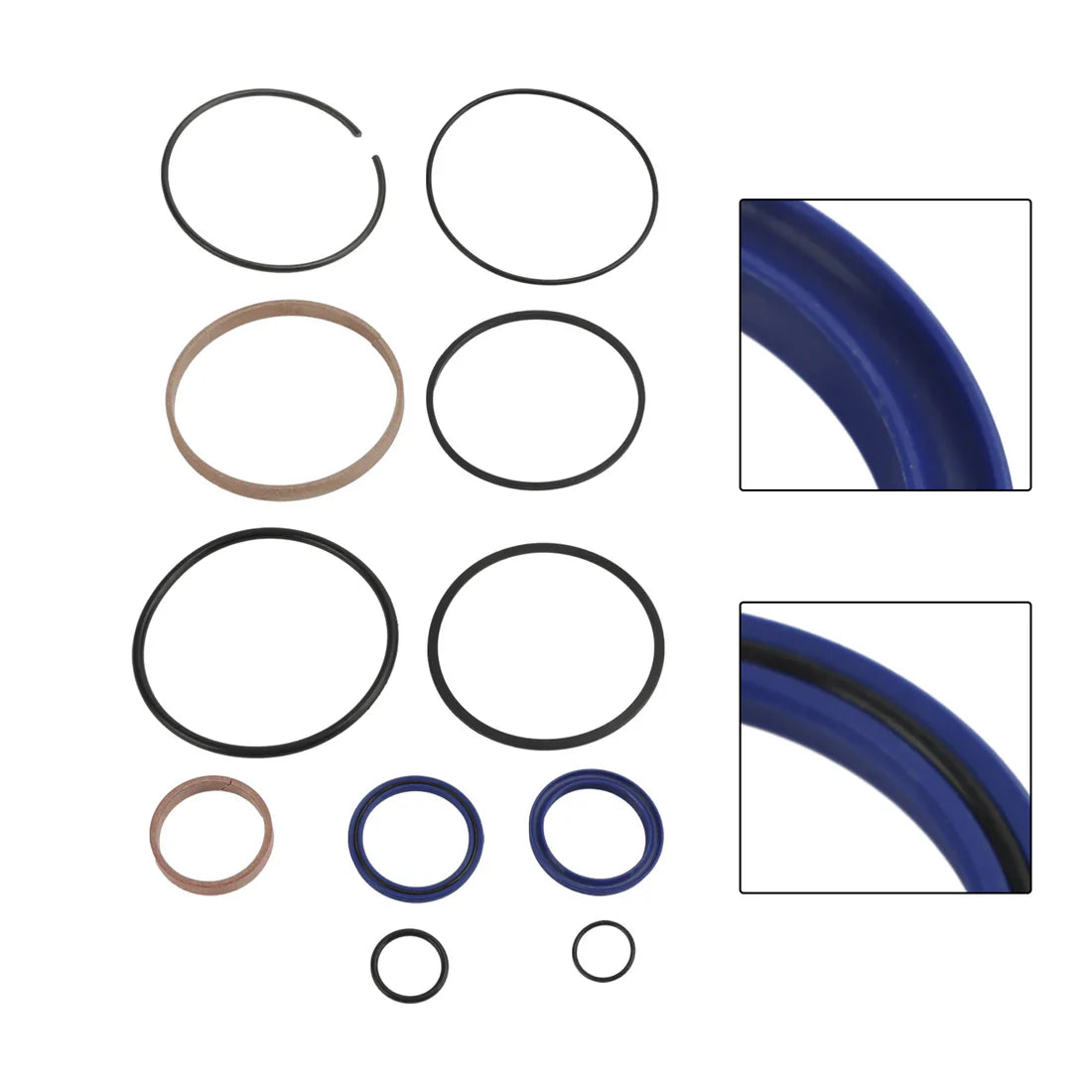

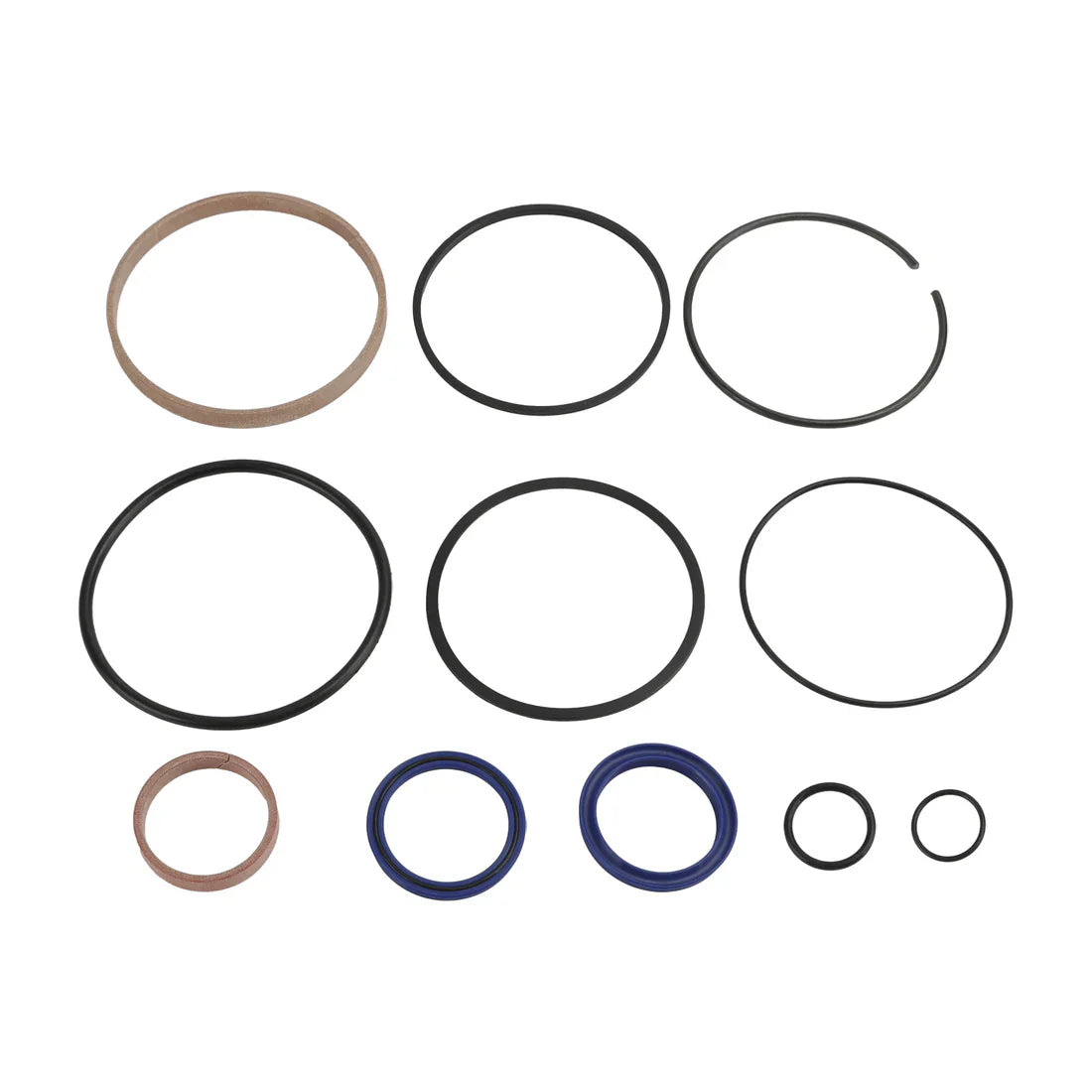

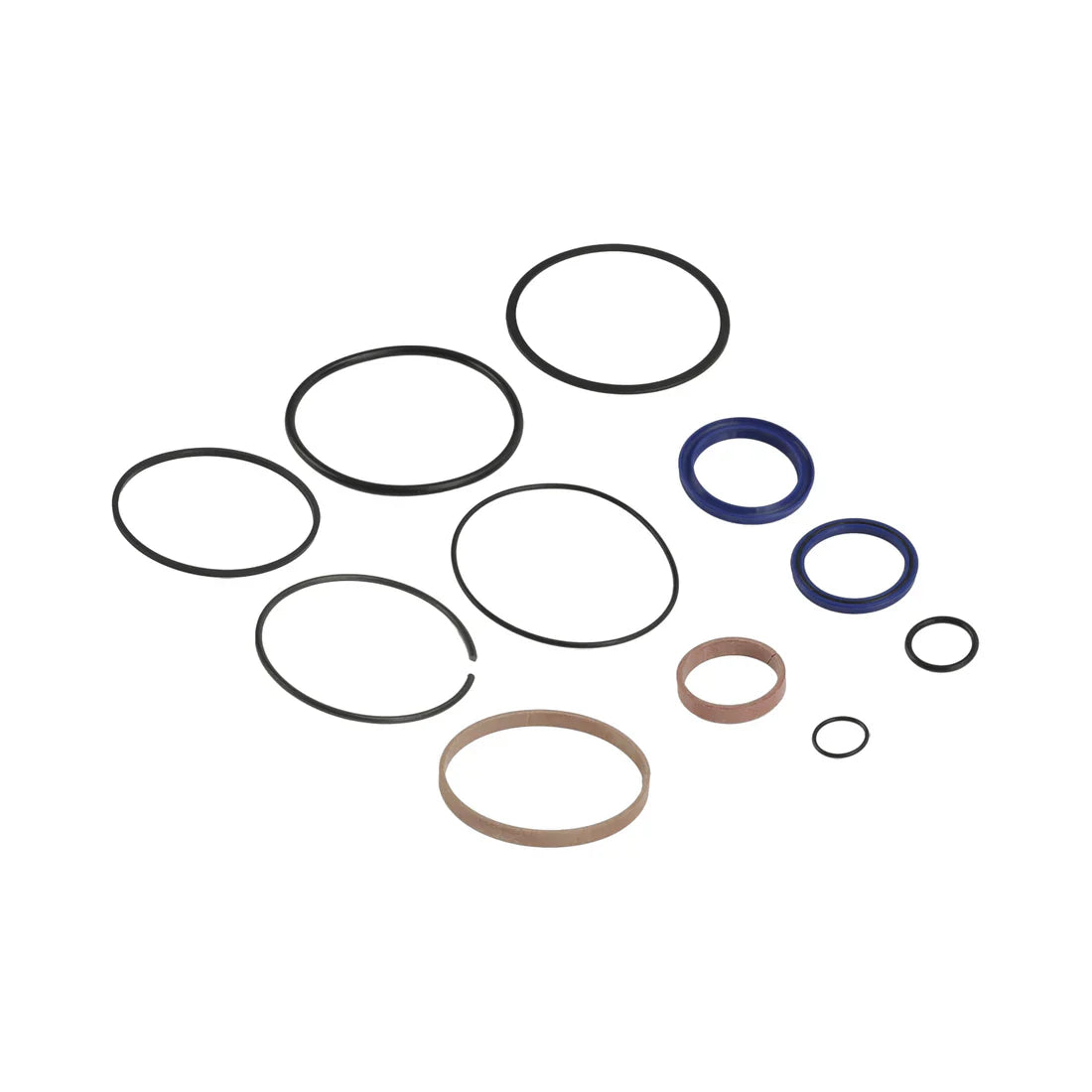

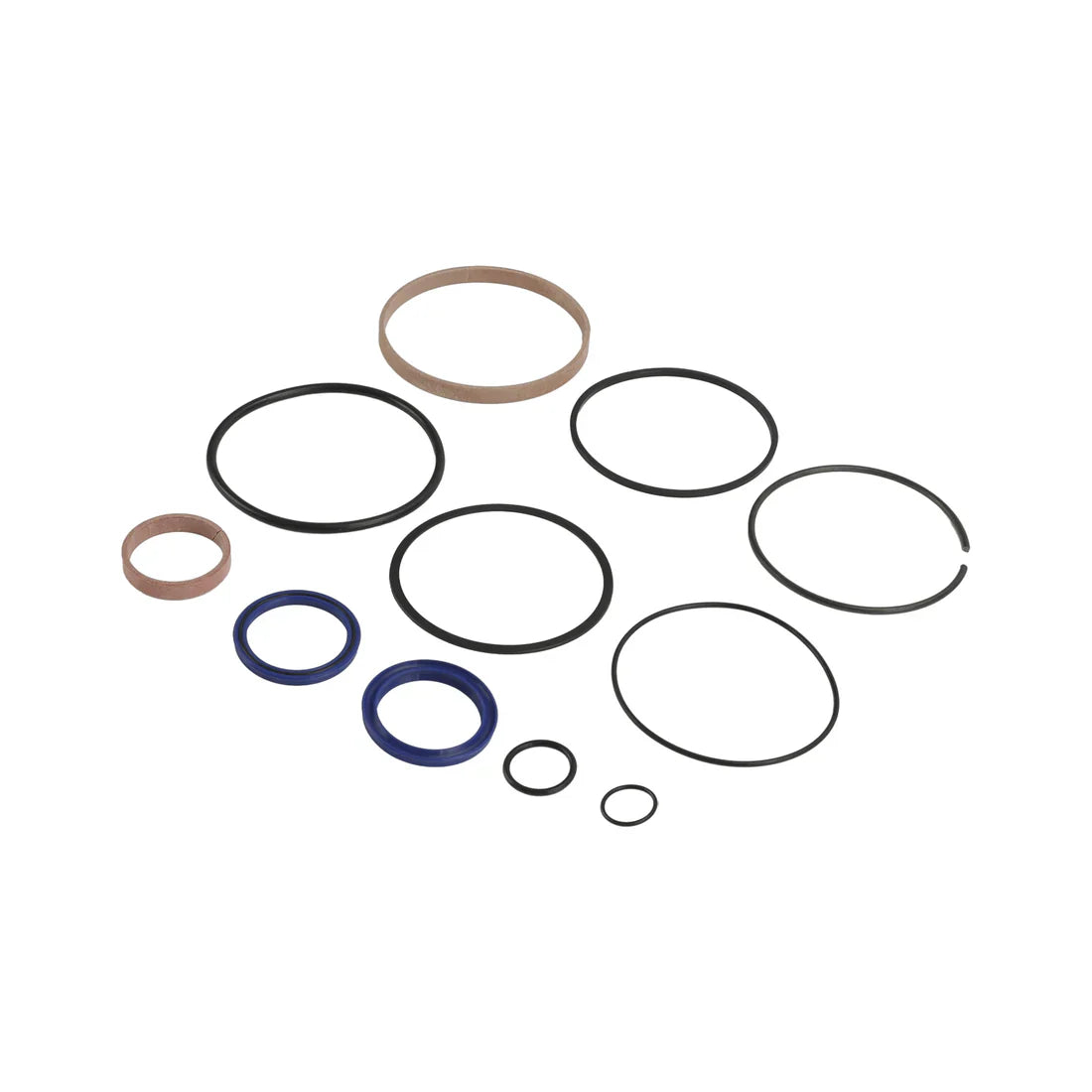

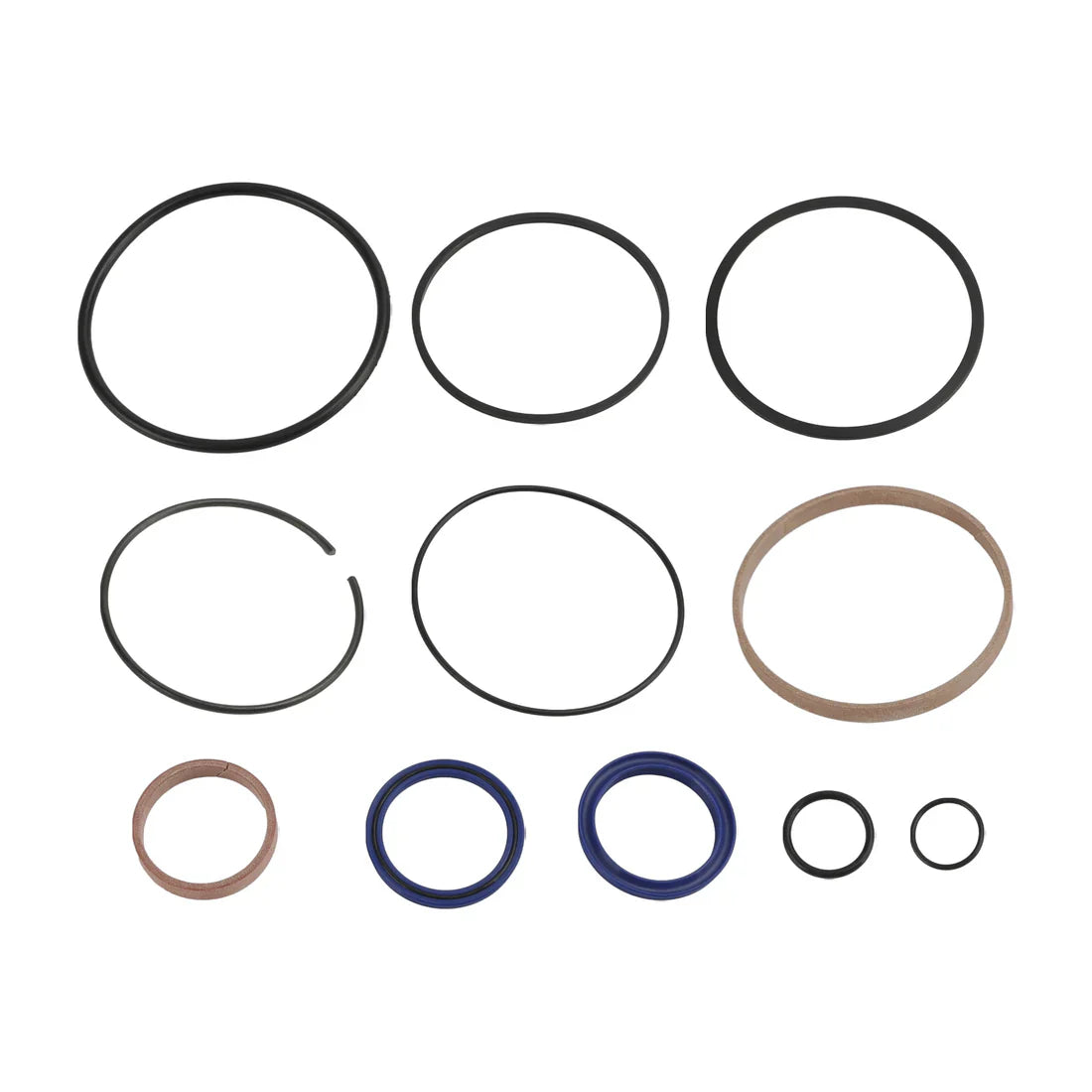

Champoo Hydraulic Log Splitter Rebuild Seal Kit For 4.0" Bore X 1.75" Rod Cylinde
Feature: 1: Made of high quality material, durable and practical to use. 2: High Performance,Long Working Life. 3: Easy installation and removal. 4: Professional install will be highly recommend,Installation instruction not included. 5: Designed and manufactured to exacting specifications which meet or exceed OEM performance.
Specifics: Condition: 100% Brand New Material :Rubber Plastic Type: Cylinder Rseal Kit Seal Size: 4.0"Bore x 1.75"
Fitment Type: Direct Replacement
1. Cylinder tube Bore (I.D.) 4.0" x rod (O.D) 1.75". Please note some cylinder rod head OD size is not rod size.
2. Wear rings. Piston wear ring : 101.6 mm ( OD 4") x 95.25mm (ID 3.75") ��x 9.53mm (0.375" wide), Nylon Rod wear ring : 44.5mm (ID 1.752") x 50.8mm (OD 2��? x 9.53mm (0.375" wide), Nylon
3. Piston seals 1 square ring and 1 O-ring. ��Piston Square ring: D101.6 mm x91.6mm x 3.28mm; O-ring (installed under the square ring): 91.0 mm x 2.65 mm . CPU + NBR

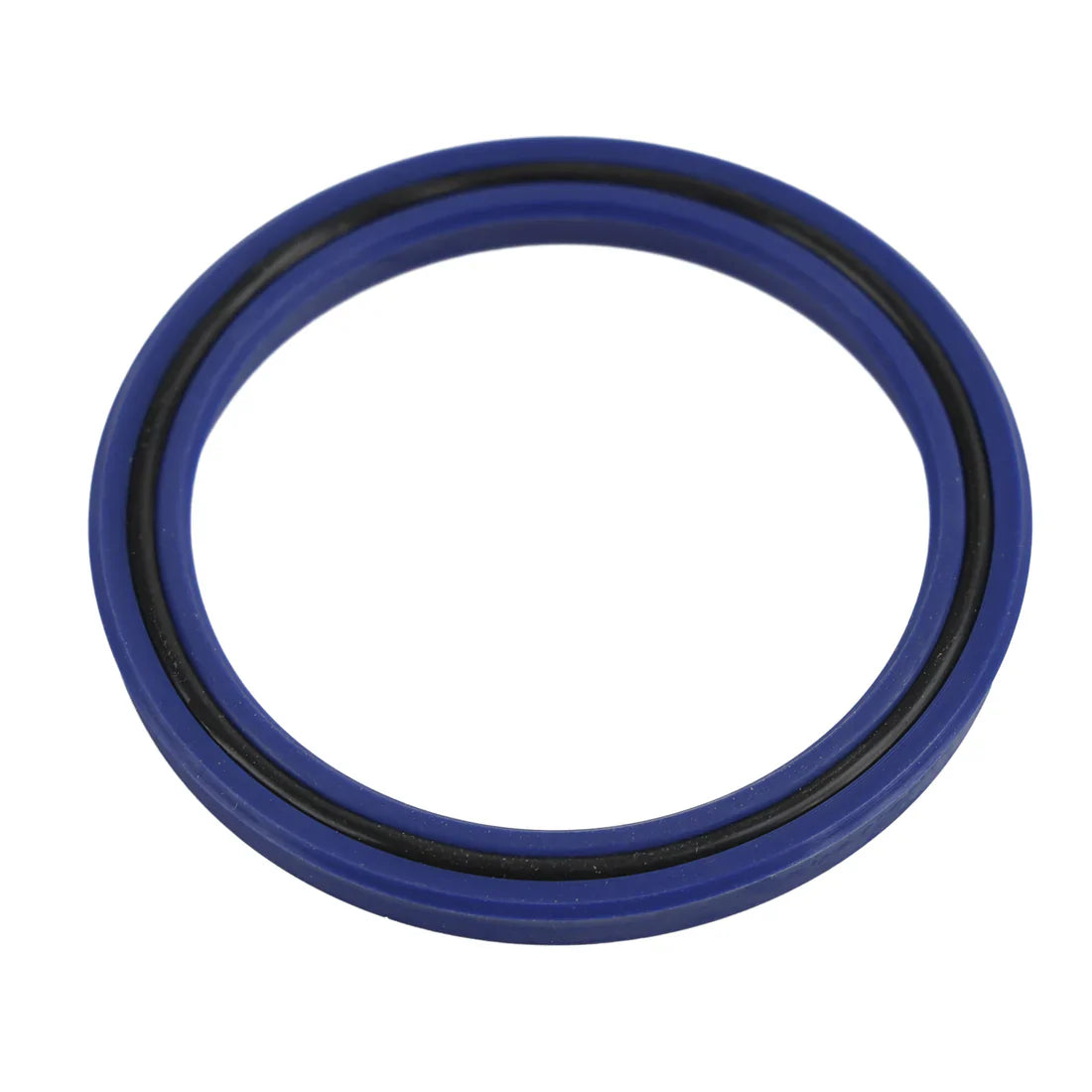

4. Rod O-ring (item 13): 44.5mm x 54mm x 5mm, CPU. There is O-ring inside.

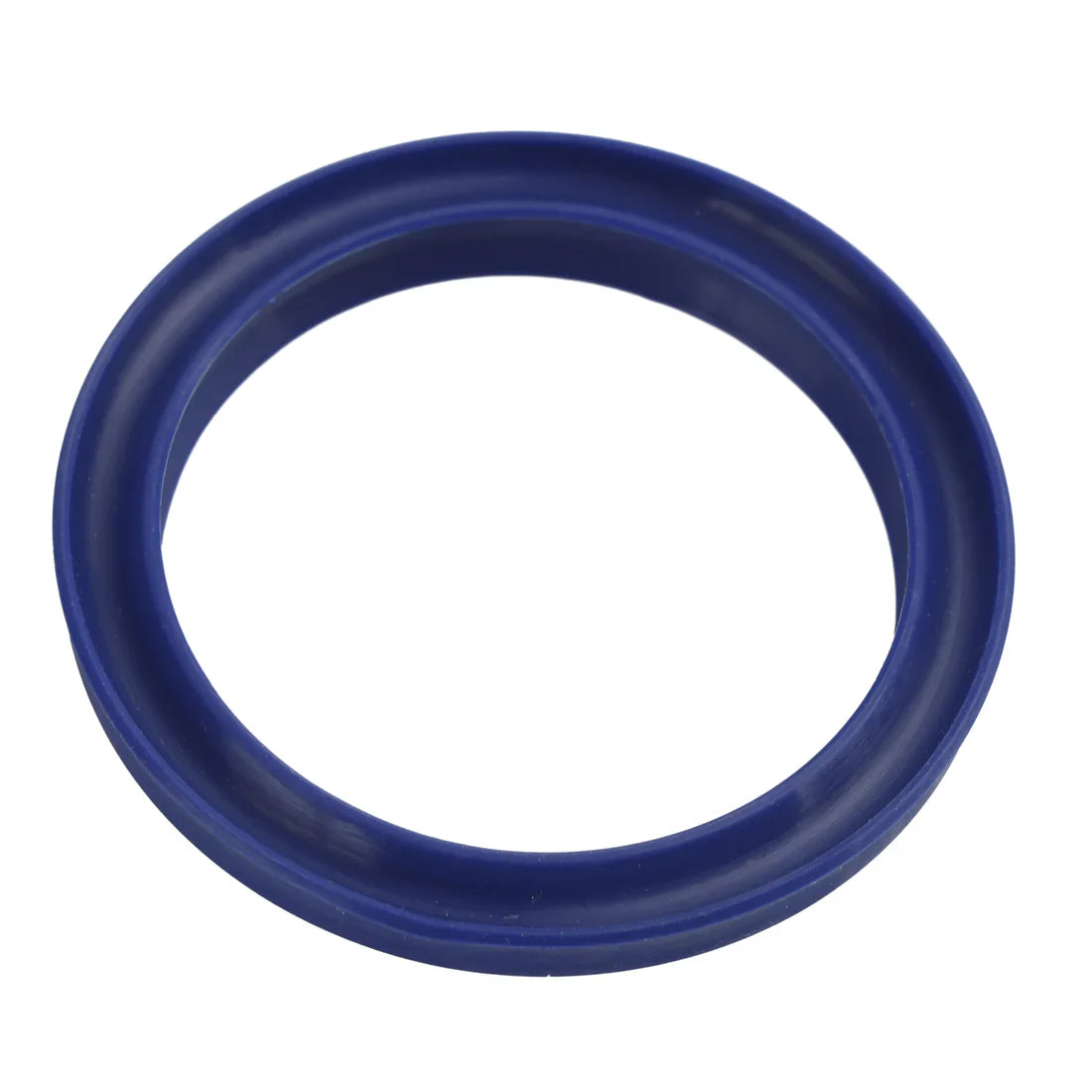

5. Rod dust ring (Item 12): 44.5mm x 54mm 5.5mm /7.3mm, TPU Below is 4.0"Bore x 1.75" rod cylinder Specification that OEM made by this seal kit: Retracted (center to center between rod mountain hole and clevis hole: 32.4��?br>Extended (center to center same as above): 56.4��?br>Stroke: ��24��0.05��?br>Dimension from center of clevis hole to back face of cylinder: ��2.95��?br>Dimension from center of rod end hole to front face of rod: 1.06��?br>Dimension from center of rod end hole to front face of cylinder: 1.18��?br>Ports: ��1/2" NPT Dimension from port to port: 25.4��?br>Rod: 1.75" rod Rod end mountain hole: ��0.55��?br>Clevis Mountain hole: ��1.16��?br>Dimension between mountain clevis to clevis: ��0.87��?br>Thickness of each mountain clevis: ��0.375��?br>Length of each mounting clevis: ��4.125��?br> Note: 1.Please allow 1-3mm difference due to manual measurement. 2.Please be awared of this part is not original part, is aftermarket part. 3.Before you purchase,Please confirm whether suitable for you need.
