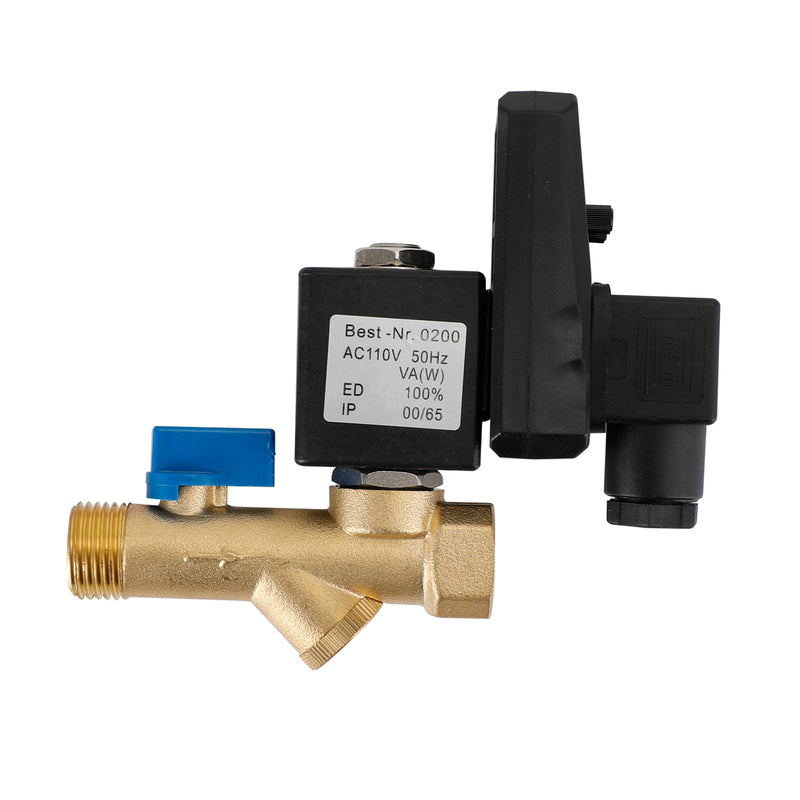

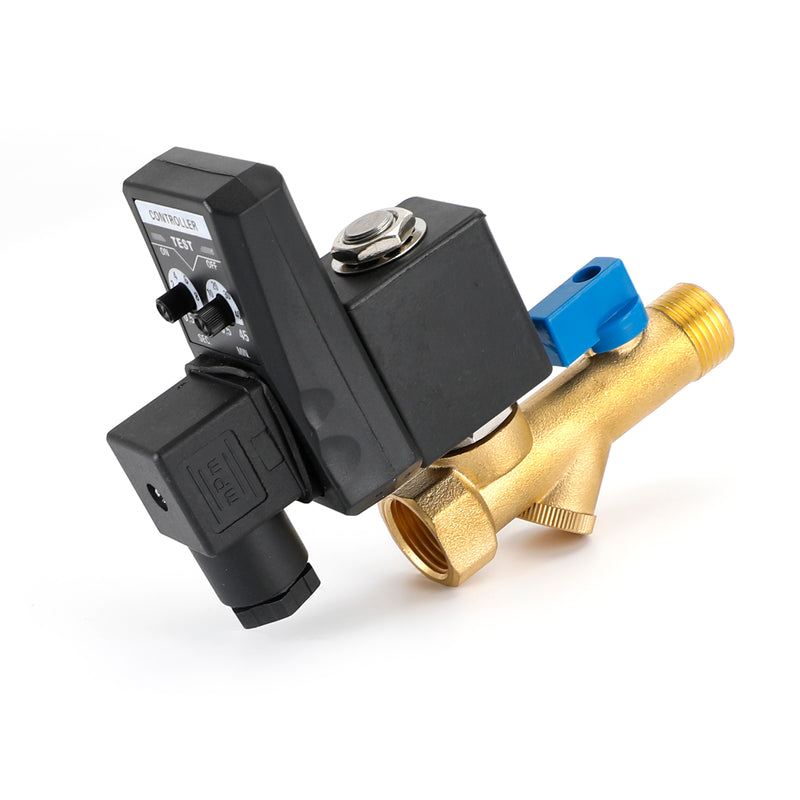

G1/2 Auto Electronic Timed Drain Valve For Air Compressor Condensate Management, AC220V / Split-body Type

1/2" Automatic Electronic Timed Air Compressor Condensate Auto Drain Valve

Feature:
1: This is a reliable, high quality condensate drain valve to keep compressed air treatment equipment running optimally.
2: Timed electric drain valve can be programmed to discharge condensate at timed interval to match conditions.

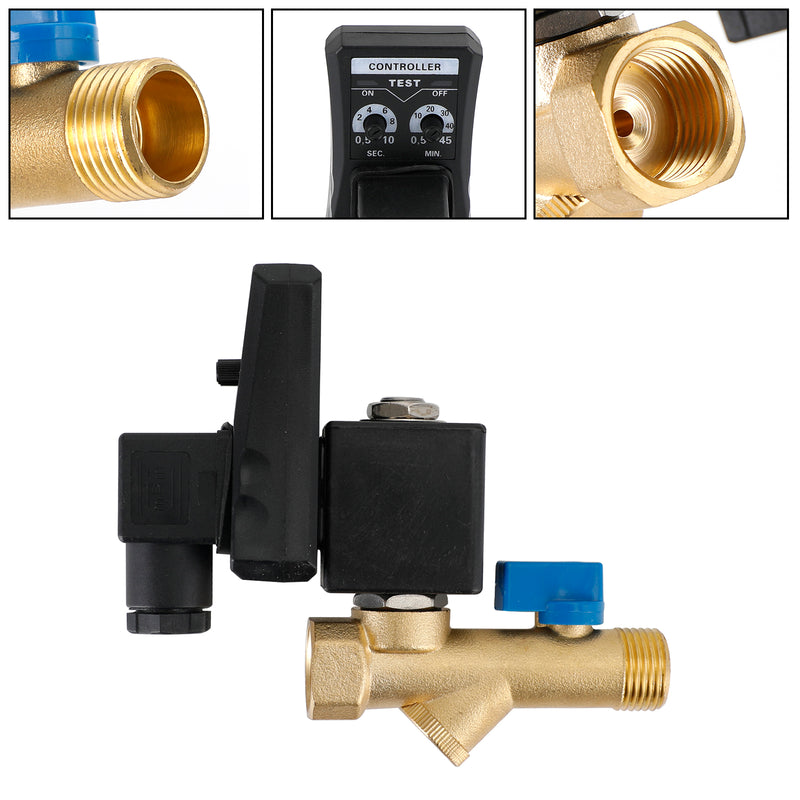

3: Valve open time is adjustable from 0.5 to 10 seconds, and close time is from 0.5 to 45 minutes.
4: It operate automatically and waste less compressed air when discharging condensate.
5: G1/2 thread automatic drain valve for air compressor is widely used and can fit for most air compressors.
Note: AC230V can also be connected to AC220V.

Specifics:
Condition: 100% Brand New
Voltage: AC110V, AC230V (Optional)
Type: One-body type���Split-body type Valve (Optional)
Valve material: ABS plastic + brass
Valve operation mode: Direct action
Interval (closed): 0.5-45 minutes
Discharge time: 0.5-10 seconds.

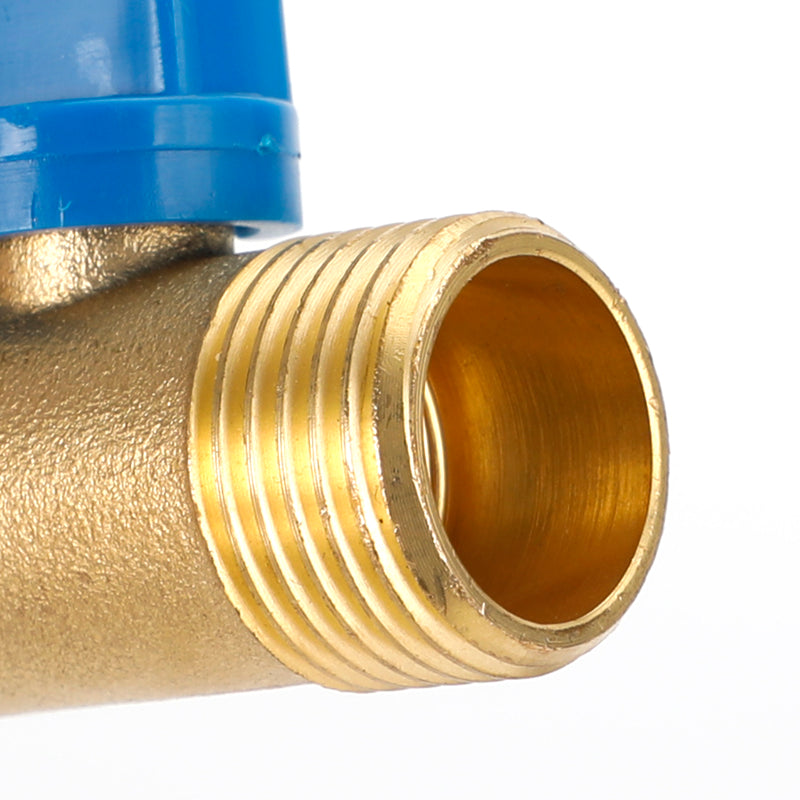

Thread: G1/2 (DN15)
Protection level: IP65

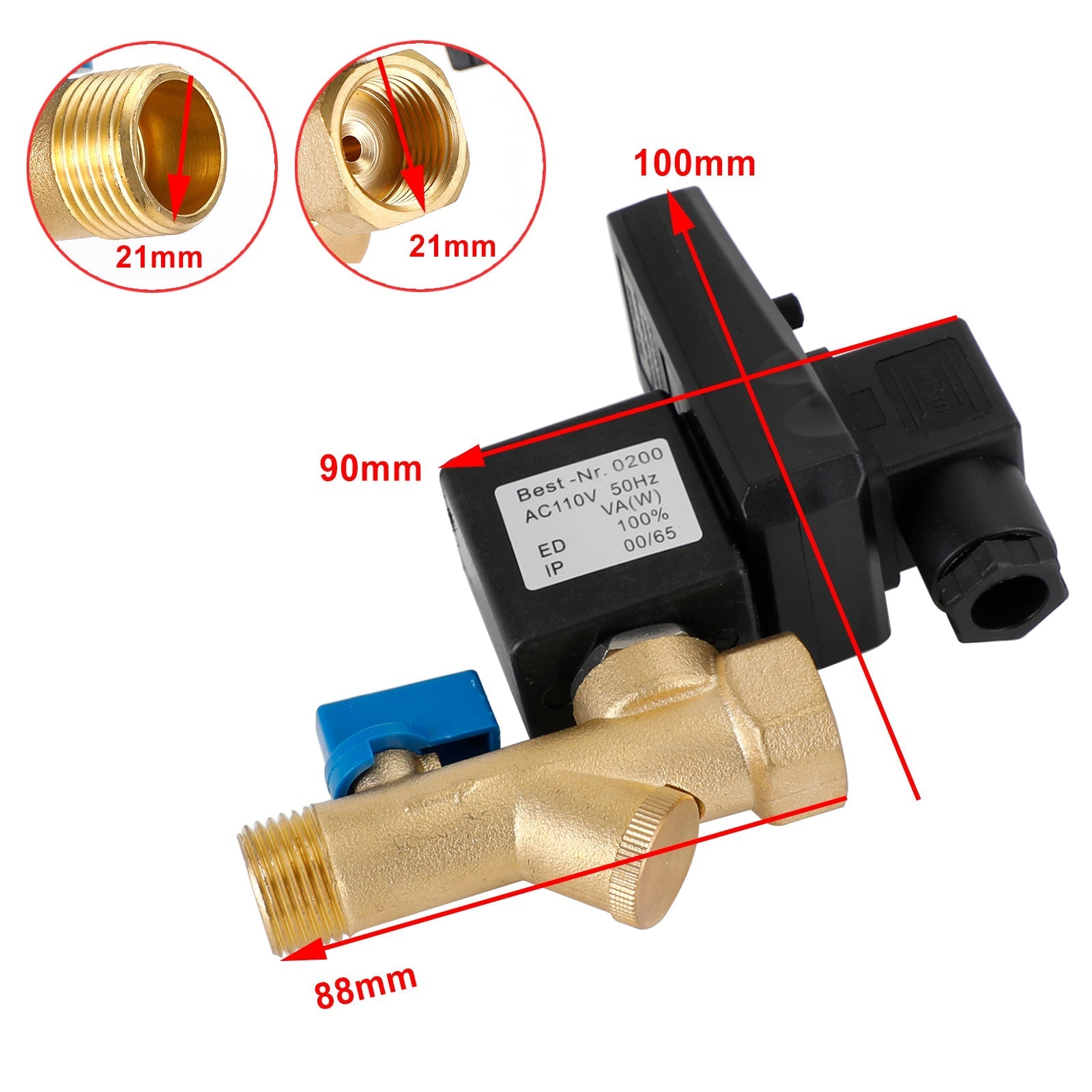

Thread outer diameter: 21 mm
Pressure: 0-1.6Mpa
Fluid: air, water
Fluid temperature: -5��?80��?
Fluid Direction: One-way

Note:
1.Please allow 1-5mm errors due to manual measurement.
2.Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
When installing the electronic drain valve, please ensure that:
1. Compressed air has been emptied (zero pressure)
2. The power is cut off

Package Included:
1 * Electric Timer Auto Water Valve
