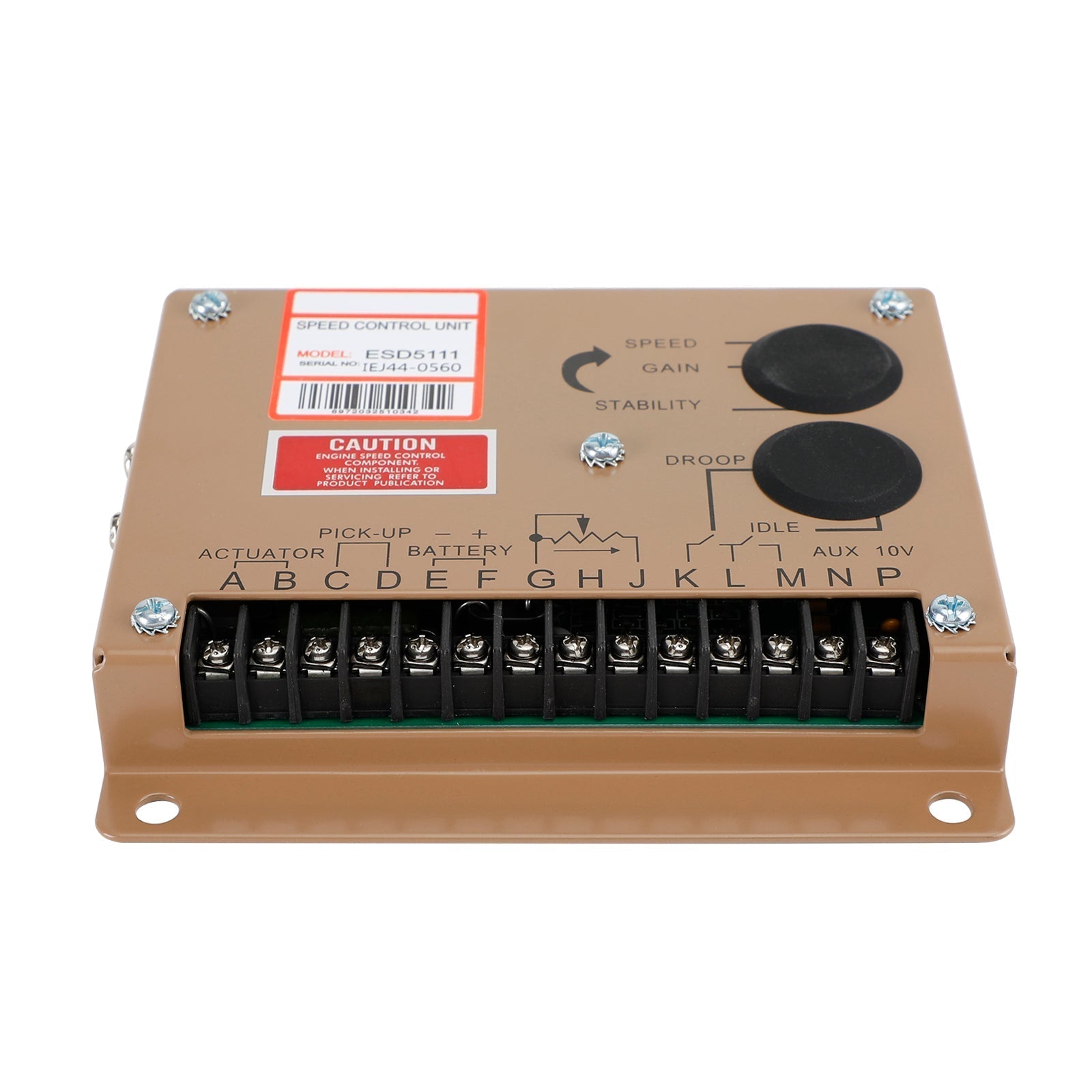

ESD5111 Electronic Engine Speed Controller Governor For Generator Genset Parts

?

Feature:
1: Newly added startup fuel quantity control and smooth and slow startup process control functions,
which can solve the black smoke phenomenon caused by rapid refueling during the startup process of the engine,
and greatly improve the life of the engine.
2: Made of high quality material, durable and practical to use.
3: There are functions of parallel machine, idle speed, speed ramp and starting fuel control.
4: Applicable to Cummins, Volvo Fukang, GAC generator sets.

Specifics:
Condition: 100% Brand New
Type: Engine Speed Controller
Model: ESD5111
Compatible Model: Speed Controller
Isochronous Operation/Steady State Stability: �� 0.25% or better
Speed Range/Governor: 1K-7.5K Hz continuous
Speed Drift with Temperature: �� 1% Maximun
IDLE Adjustment: 160 �� 20Hz ~ 60% of set speed
Droop adjustment Min.(K-L Jumpered): 15Hz. �� 6Hz. per 1.0 A change
Droop adjustment Max.(K-L Jumpered): 400Hz. �� 75Hz. per 1.0 A change
Droop Adj. Max. (K-L Jumpered): 875Hz., �� 75Hz. per 1.0 A change
Droop Adj. Min. (K-L Jumpered): 15Hz., �� 6Hz. per 1.0 A change
Speed Trim Range: �� 200Hz.
Remote Variable Speed Range: 500 -7.5Hz. or any part thereof
Terminal Sensitivity
J: 100Hz., �� 15Hz/Volt @ 5.0 K Impedance
L: 735Hz., �� 60Hz/Volt @ 65 K Impedance
N: 148Hz., �� 10Hz/Volt @ 1Meg. Impedance
P: 10V DC Supply @ 20ma Max.
Speed Switch Adjustment Range: 1000-10000Hz.
Environmental
Ambient Operating Temperature Range: -40��c to +85��c
Relative Humidity: up to 95%
Storage Temperature: -55��c ~ 90��c
Shock: 20-100HZ 500mm/Sec.
Input Power
Supply: 12 or 24V DC Battery Systems(Transient and Reverse Voltage Protected)
Polarity: Negative Ground(Case Isolated)
Power Consumption: 50mA continuous plus actuator current
Actuator Current Range @ 25��c-(Inductive Load)
Min. 2.5 Amps, Max. 10 Amps continuous
Speed Sensor Signal: 0.5-120 V RMS
Speed Switch Relay Contacts(N.O.and N.C.): 10Amp

Note:
1.Please allow 1-3mm difference due to manual measurement.
2.Due to the light and screen difference, the item's color may be slightly different from the pictures.
3.The speed controller is strong and durable enough to be installed in the control box or fixed on the peripheral parts
of other control equipment on the engine. If water, moisture or condensation comes into contact with the controller,
it must be mounted vertically so that liquid can flow away from the speed controller.
4.Prevent overheating; overspeed stop drive, not controlled by the speed control system, to prevent personal injury
and equipment damage when the engine fails. Do not rely entirely on the electronic actuator of the speed control system
for overspeed protection. Another set of parking drives must be applied, such as fuel solenoid valves.

Package Included:
1 X English Product Instructions
1 X Engine Speed Governor Controller ESD5111

Warranty:
Guarantee Period: 1 Years
Returns & Refunds: Customers can return the goods within 60 days of receipt and process quick refund within one day
24-Hour Support: Provide you with timely after-sale support
