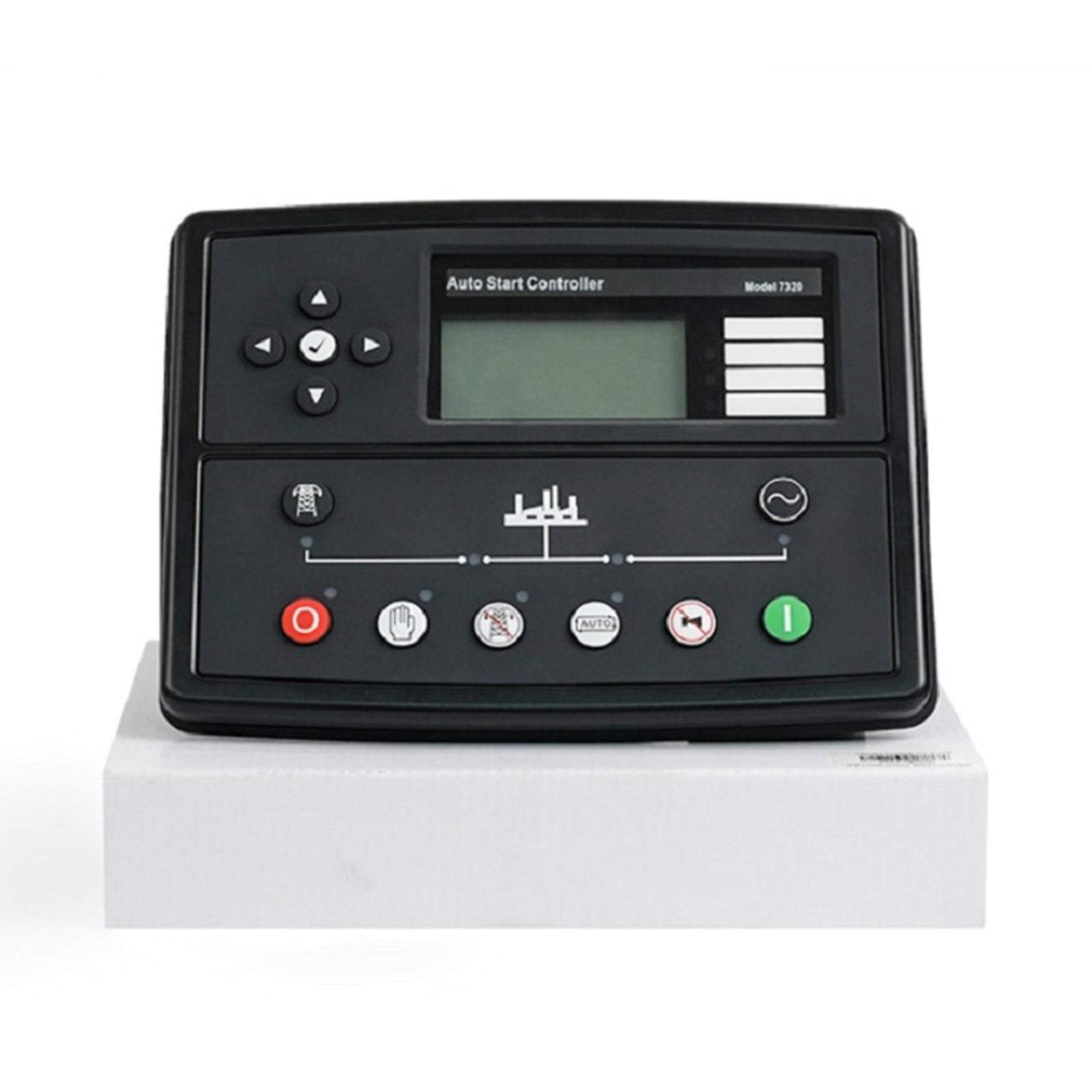

DSE7320 Generator Control Module for Auto Mains Failure (AMF) - Remote Monitoring & Ethernet Communication

Feature:
1: The DSE7320 is an Auto Mains (Utility) Failure Control Module suitable for a wide variety of single, diesel or gas, gen-set applications.
2: Monitoring an extensive number of engine parameters, the module will display warnings, shutdown and engine status information on the backklight LCD screen, illuminated LEDs.
3: Engine for controlling EFI or non-electrospray and gas, providing advanced engine detection and protection.
4: The module has an extensive list of features including enhanced event and performance monitoring and remote communications.
5: Improved features include a real-time clock to enhance event logging and monitoring; Ethernet communication reduces monitoring costs.

Specifics:
Condition: 100% Brand New
Color: black
Size(approx.): 240 X 181.1 X 41.7mm / 9.45 X 7.13 X 1.64in
Panel opening size(approx.): 220 X 160mm / 8.66 X 6.30in
Speed sensor frequency range: 1Hz-10KHz
Speed sensor voltage range: minimum +/-0.5V (during start-up) -70V
Fuel relay output A: 15Amp DC output
Start the appliance output B : 15Amp DC output
Relay outputs C and D: 8Amp 250V passive output
Custom output E, F, G and H: 2Amp DC output

Note:
1.Please allow 1-3mm difference due to manual measurement.
2.Due to the light and screen difference, the item's color may be slightly different from the pictures.

Package Included:
1 X User Manual
1 X Electronics Controller for DSE7320
