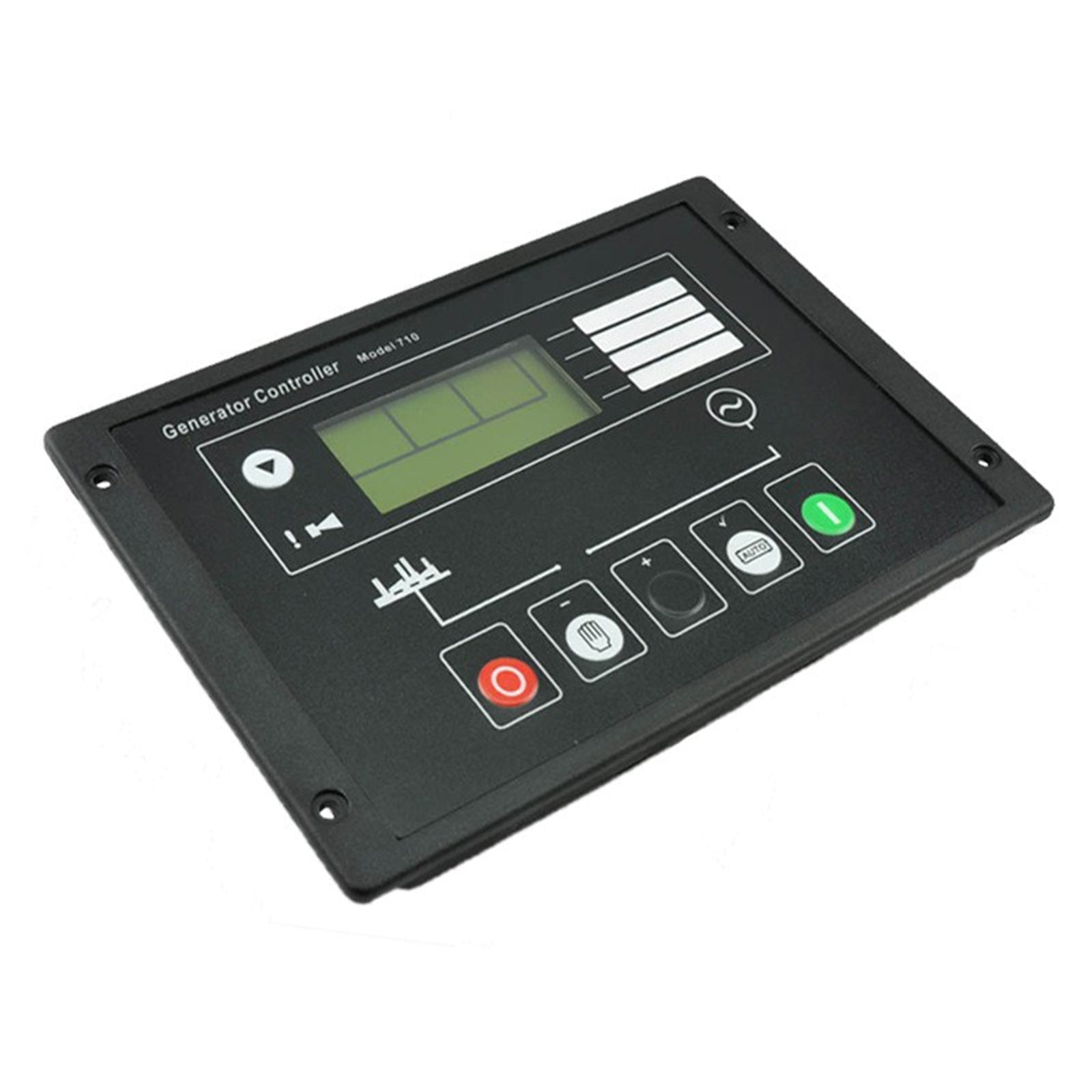

DSE710 For Deep Sea Generator Controller Auto Start Control Panel

Description:
1: The DSE710 is an Automatic Start Control Module that offers an advanced range of engine monitoring and protection features
2: The module has been designed to monitor generator frequency, generator volts, generator current, engine oil pressure, engine
coolant temperature, engine running hours and battery volts.
3: The module also displays the engine speed. When the module detects a fault condition it automatically shuts down the engine
and indicates the exact fault on the modules LCD display or relevant LED indicator.
4: The module can be configured using the front panel or via the DSE810 interface and a PC. The module can also be controlled from a PC that is located up to 100 meters away.

Feature:
- PC/Front panel configuration
- Digital and analogue inputs
- Digital outputs
- Automatic shutdown or warning when fault conditions are detected
- Automatic/Manual/Remote start
- Engine pre-heat
- Engine monitoring and protection features
- Protected Solid State (PSS) outputs

Specifics:
Condition: 100% Brand New
Power Supply: 8 to 35V DC continuous
Cranking Dropouts: able to survive 0 V for 50mS, providing supply was at least 10 V
before dropout and supply recovers to 5V. This is achieved without the need for internal batteries.
Max Current: operating: 180mA at 12V, 190mA at 24V; standby: 145mA at 12V. 150mA at 24V
Alternator Input Range: 35V(L-N) to 277V(L-N) AC (+20%) 50Hz - 60Hz (min 15V AC)
Auxiliary Output: solid state 2.4A DC at supply voltage
Fuel/Start Output: solid state 3.4A DC at supply voltage
Generator C.T. : 5A secondary 0.5VA
Dimensions:
Overall: 209 mm x 146 mm x 30.3 mm/8.2" x 5.7" x 1.2"
Panel Cut-Out: 182 mm x 137 mm/7.2" x 5.4"
Maximum Panel Thickness: 8 mm/0.3"

Note:
1.Please allow 1-3mm difference due to manual measurement.
2.Due to the light and screen difference, the item's color may be slightly different from the pictures.

Package Included:
1 X Generator Controller
