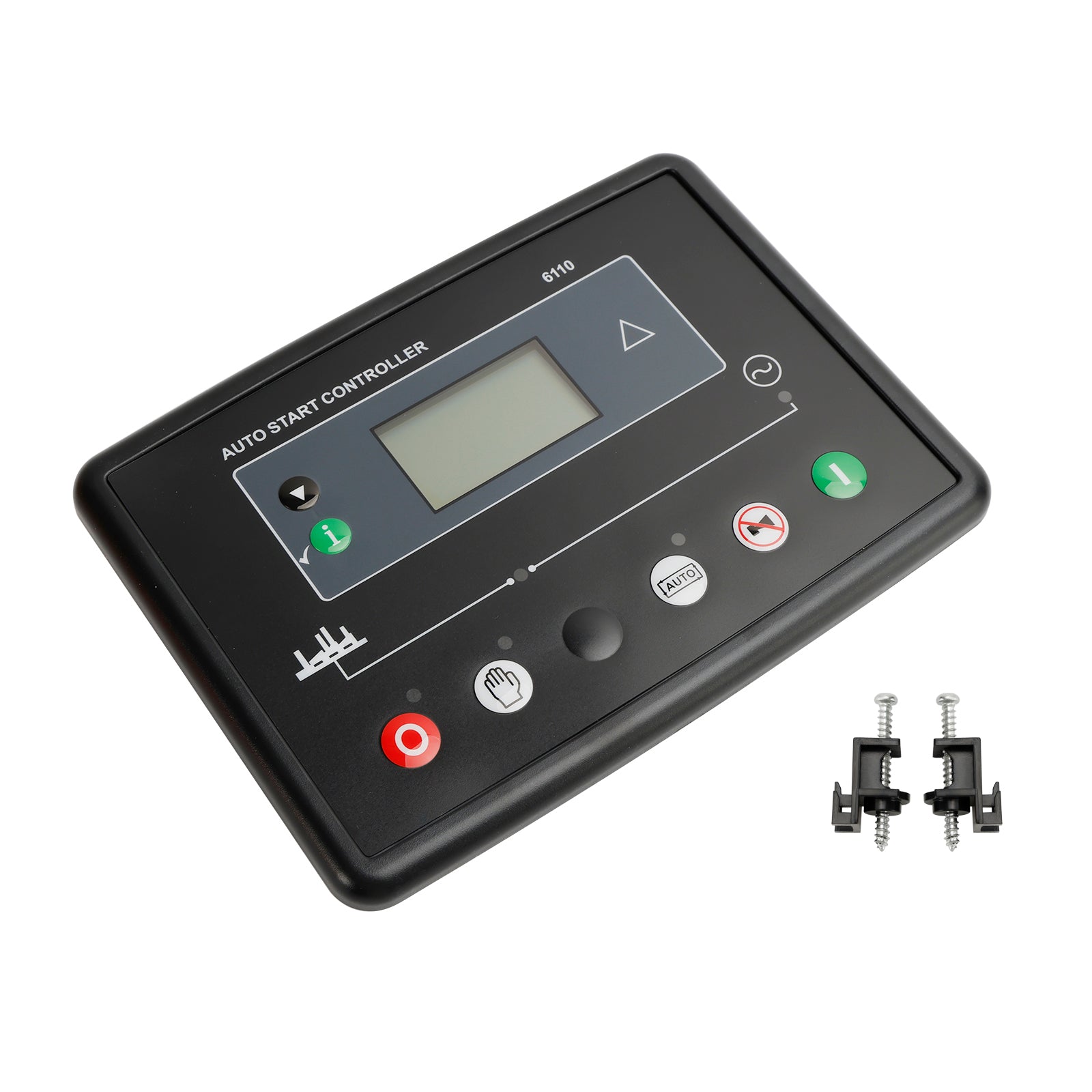

DSE6110 Generator Controller Auto Start Diesel Genset Control Panel

For Deepsea DSE6110 6110 Electronic Controller Control Module Panel

The DSE6110 is an Auto Start Control Module suitable for a wide variety of single gen-set applications.

Monitoring speed, frequency, voltage, current, oil pressure, coolant temperature and fuel level, the modules
will display warnings, shutdown and engine status information on the back-lit LCD screen and illuminated LED.

Key features:
-Large back-lit text LCD display
-Multiple display languages
-LED and LCD alarm indication
-Power save mode
-CAN and magnetic pick-up/Alt. versions available (specify on ordering)
-PC and front panel configuration
-6 digital inputs
-3 analogue inputs
-6 outputs (4 configurable on Magnetic Pick-up/Alt., 6 configurable on CAN version)
-Configurable timers and alarms
-Alternative configuration
-Event Log (10)
-Remote Start input
-3 phase generator monitoring
-Current monitoring and protection
-Battery voltage monitoring
-Engine pre-heat
-Hours counter
-Comprehensive shutdown or warning on fault condition

Key benefits:
-Hours counter provides accurate information for monitoring and maintenance periods
-User-friendly set-up and button layout
-Multiple engine parameters are monitored simultaneously
-Module can be configured to suit individual applications
-Compatible with a wide range of CAN engines
-Uses DSE Configuration Suite PC software for simplified configuration
-IP65 rating (with optional gasket) offers increased resistance to water ingress
-Licence-free PC softwar

Specifics:
Condition: 100% Brand New
Operating Voltage: DC 8.0V to DC 35.0V, continuous power supply
Power Consumption:
Alternator Input Range:
15V-360V AC (ph-N)
3-phase 4-wire: 26V-620 V AC (ph-ph)
3-phase 3-wire: 15V-360 V AC (ph-N)
Single-phase 2-wire: 15V - 360 V AC (ph-N)

Alternator Frequency: 50/60Hz
Speed Sensor Voltage: VPP 2.2-100Vpp (Peak to peak)
Speed Sensor Frequency: 10000Hz (max)
Start Relay Output: 16A controller power voltage output
Fuel Relay Output: 16A controller power voltage output

Programmable Relay Output 1: 7A 250VAC voltage free output
Programmable Relay Output 2: 7A 50VAC voltage free output
Programmable Relay Output 3: 16A 250VAC voltage free output
Programmable Relay Output 4: 16A 250VAC voltage free output

Case Size: 216 x 158 x 43 mm/8.5 x 6.2 x1.5 inch
Panel Cutout: 192 x 132mm/7.6 x 5.2 inch
C.T.: secondary 5A rated

Working Temperature: -25~+70��������?
Humidity: 20~90%
Storage Temperature: -40~+85��������?
Protection Level:
IP55: when waterproof rubber seal installed between the controller and panel fascia.
IP42: when waterproof rubber seal is not installed between the controller and panel fascia.

Insulating intensity object: input/output/power
Quote standard: IEC688-1992
Test way: AC 1.5kV/1min leakage current:3mA

Note:
1.Please allow 1-3mm difference due to manual measurement.
2.Due to the light and screen difference, the item's color may be slightly different from the pictures.

Package Included:
1 X Product Instructions
1 X Electronic Controller Control Module Panel

Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
