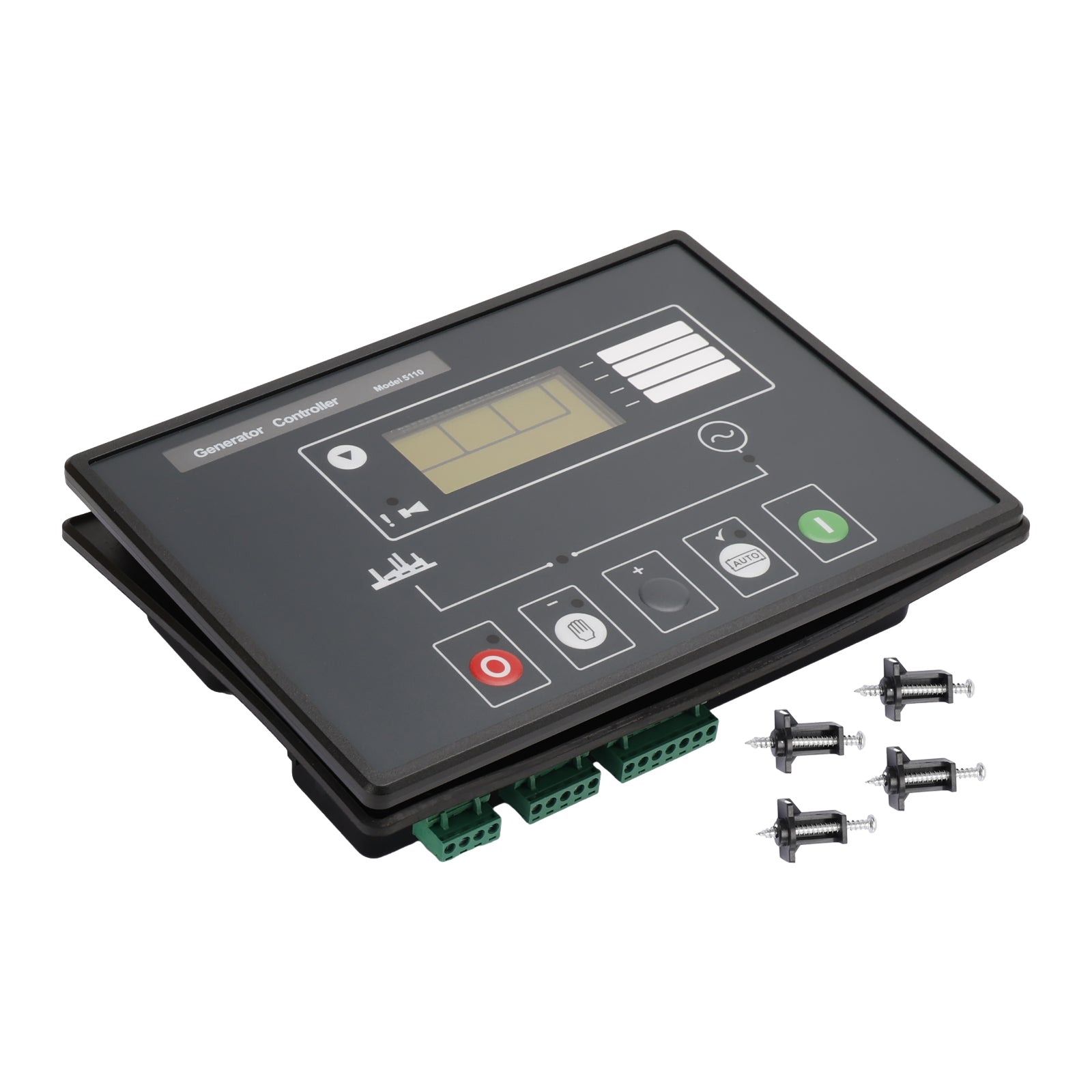

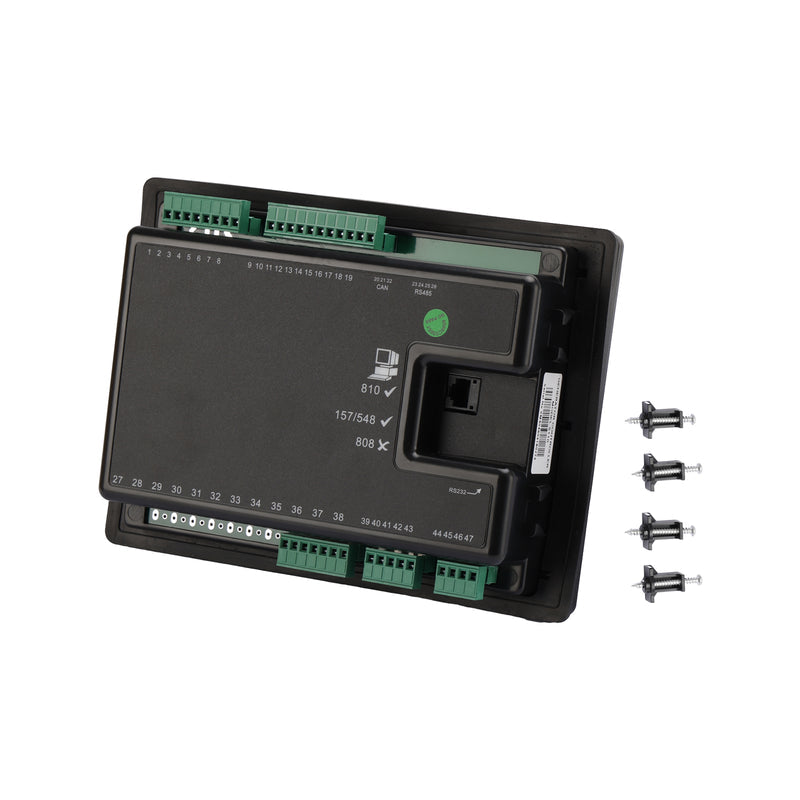

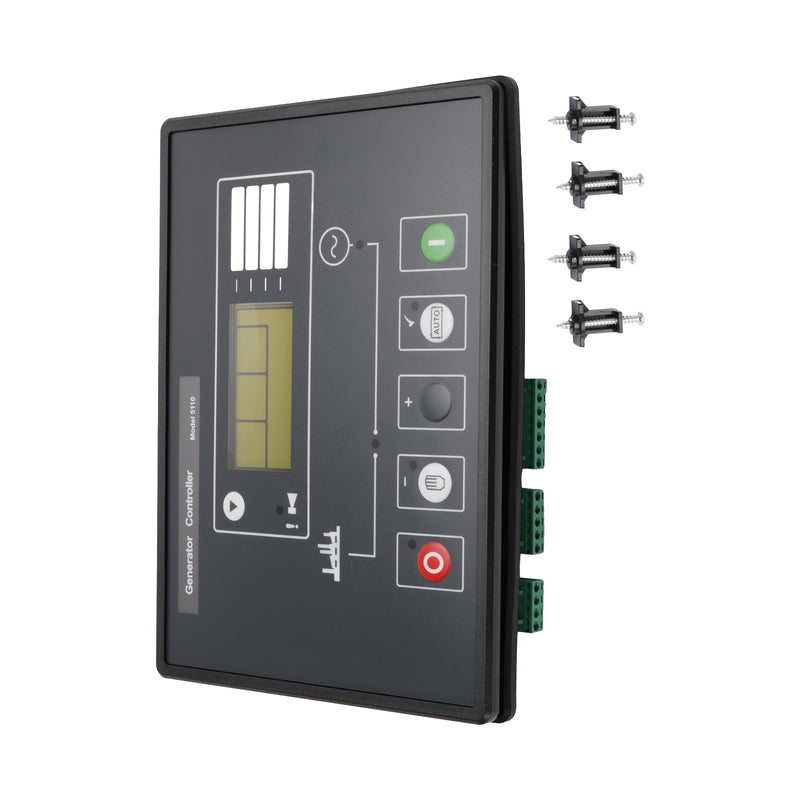

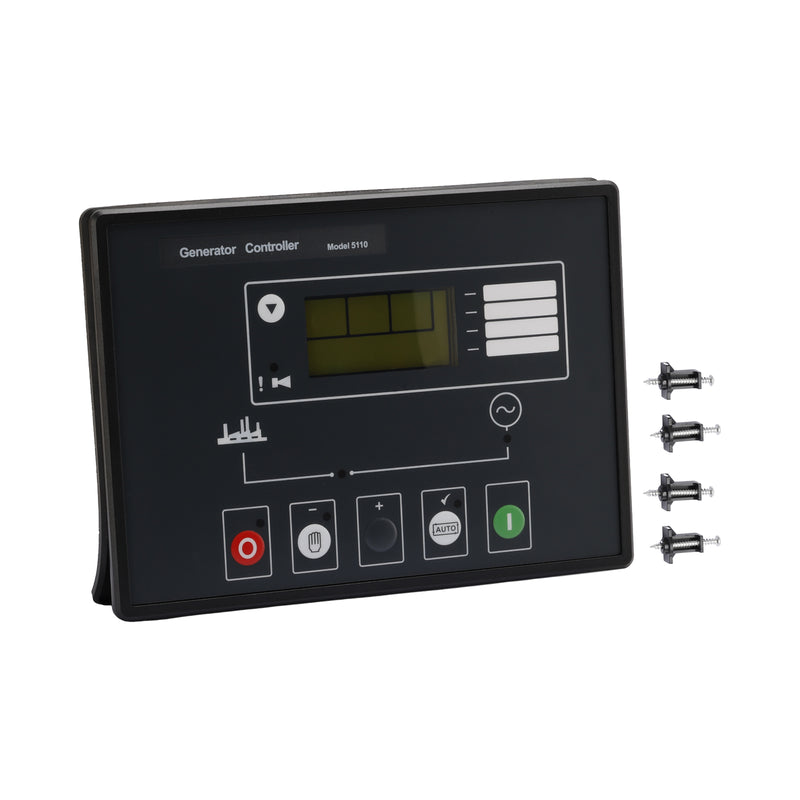

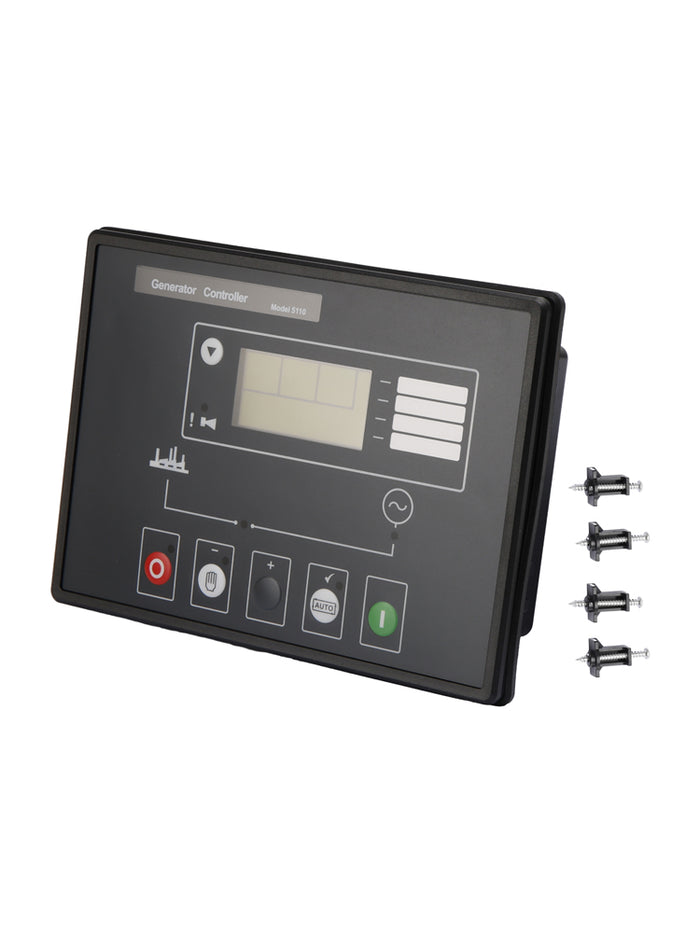

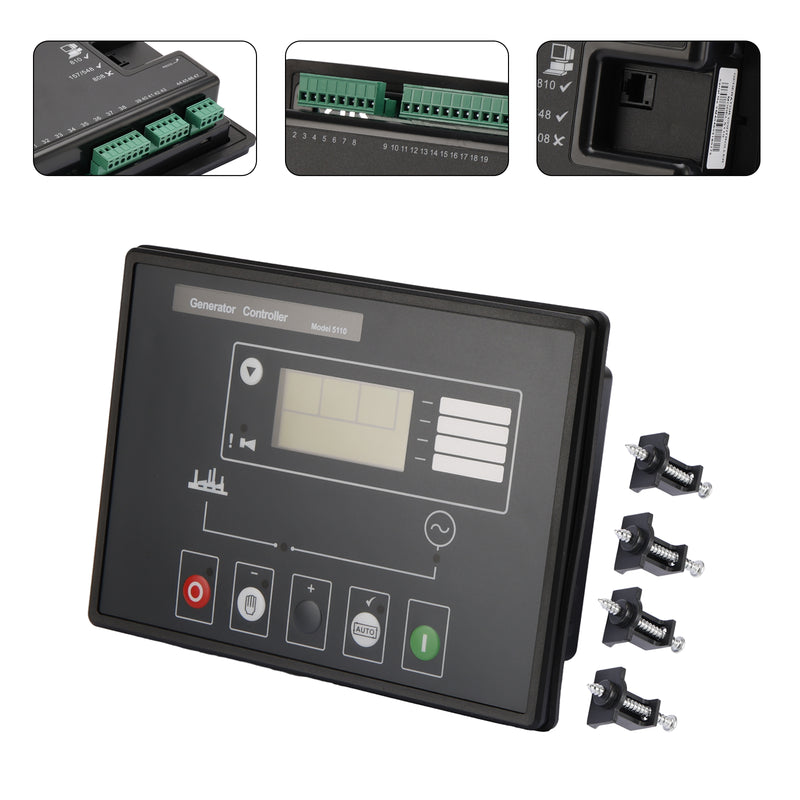

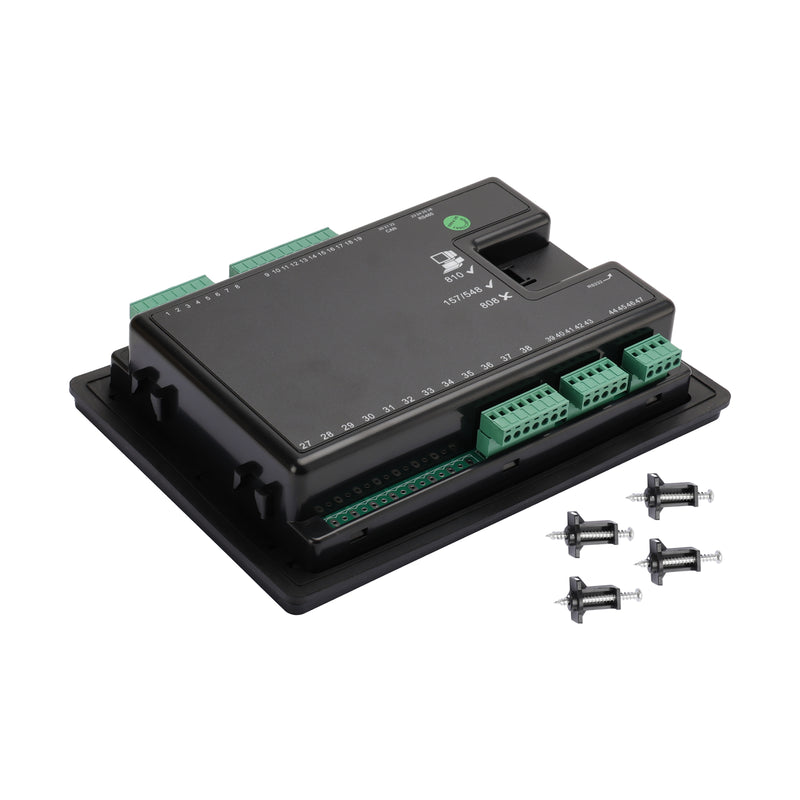

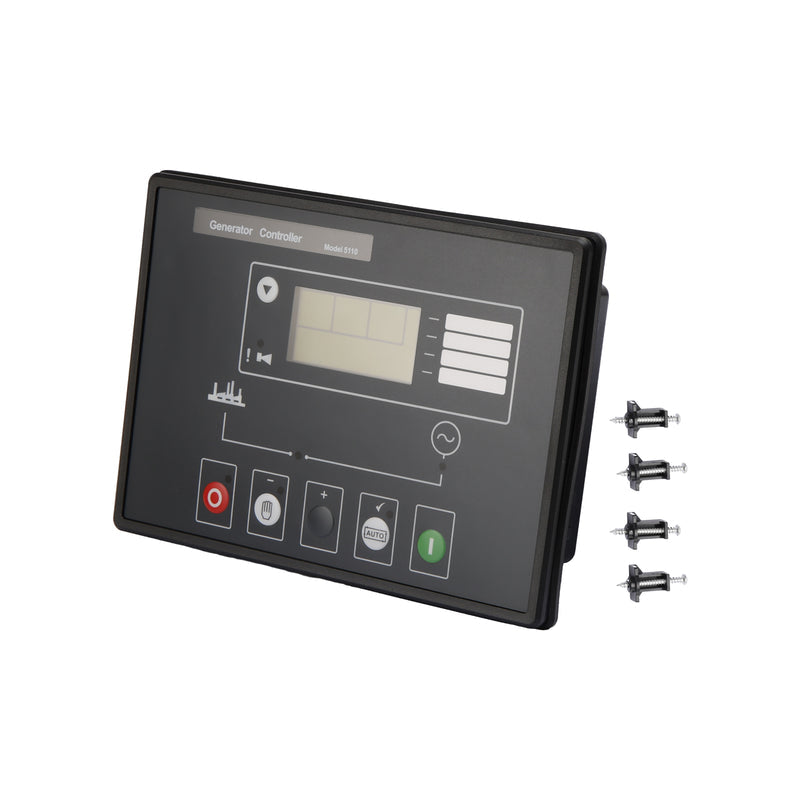

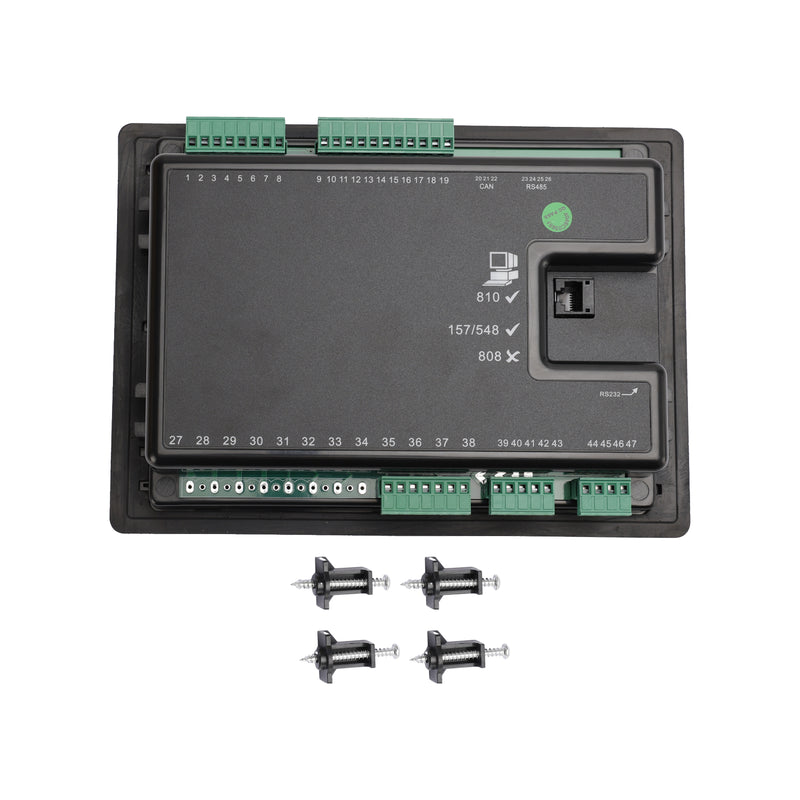

DSE5110 Generator Auto Start Control Module Compatible With Deep Sea

Feature:
1.Automatically starts
2.Automatically loads transfer
3.Configurable inputs & outputs
4.Configurable alarms & timers
5.Digital inputs
6.Analogue inputs
7.Back-lit character LCD display
8.Engine protection
9.Front panel mounting
10.PC configurable
11.100% Front panel configuration
12.LCD alarm indication
13.LED alarm indication
14.Icon based fault diagnostics

Product Description:
The DSE5110 is an Automatic Start Control Module designed to automatically start and stop diesel and gas generating
sets that include non electronic engines. The module also provides excellent engine monitoring and protection features.
The module has the ability to monitor under speed, over speed, charge failure, emergency stop, low oil pressure,
high engine temperature, fail to start, fail to stop and loss of the speed sensing signal. The module displays fault conditions
on the LCD display and via the LED indicators on the front.

Specifics:
Condition: 100% Brand New
Part Number: DSE5110
Quantity: 1
Dc Supply: 8V to 35V continuous
Cranking Dropouts: Able to survive 0V for 50mS, providing the supply was at least 10V before dropout and supply recovers to 5V
Start Relay Output: 16A DC supply at supply voltage
Fuel Relay Output: 16A DC at supply voltage
Auxiliary Relay Outputs: 5A DC at supply voltage
Charge Fail/Excitation Range: 0V to 35V
Maximum operating Current: 320mA at 12V, 215mA at 24V
Maximum stand by Current: 175mA at 12V, 95mA at 24V
Alternator Input Range: 15V (L-N) to 333V AC (L-N) absolute maximum
Alternator Input Frequency: 50-60 Hz at rated engine speed (Minimum: 15V AC L-N)
Magnetic Pick-Up Voltage Input Range: +/- 0.5V to 70V Peak
Magnetic Input Frequency: 10,000 Hz (max) at rated engine speed

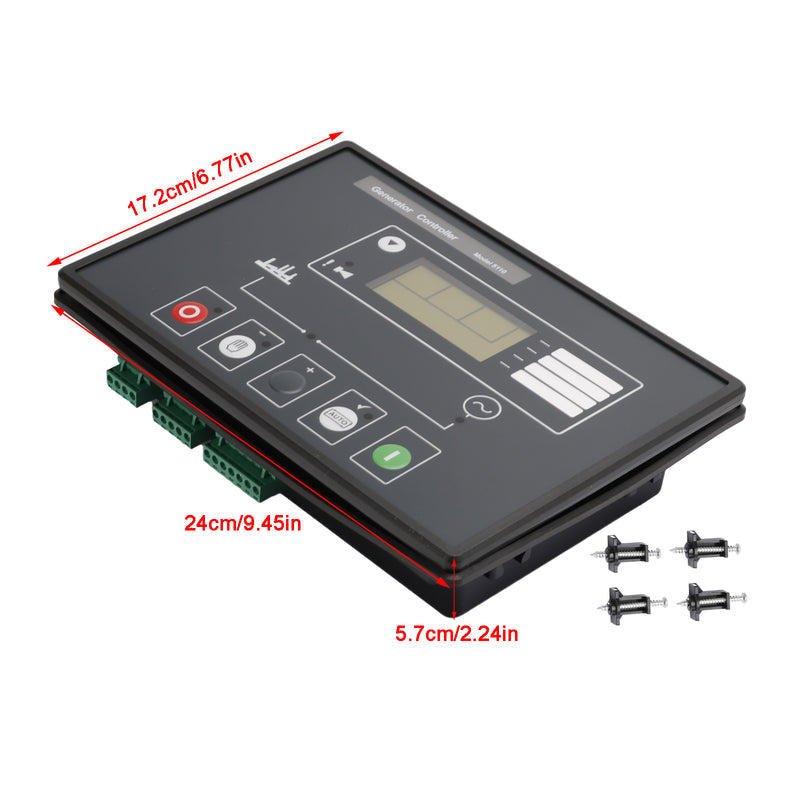

Overall: 240mm x 172mm/9.4" x 6.8"
Panel Cut-Out: 220mm x 160mm/8.7" x 6.3"
Maximum panel Thickness: 8mm/0.3"

Package Included:
1 X Generator Controller Module Control Panel
1 X English Product Instructions
