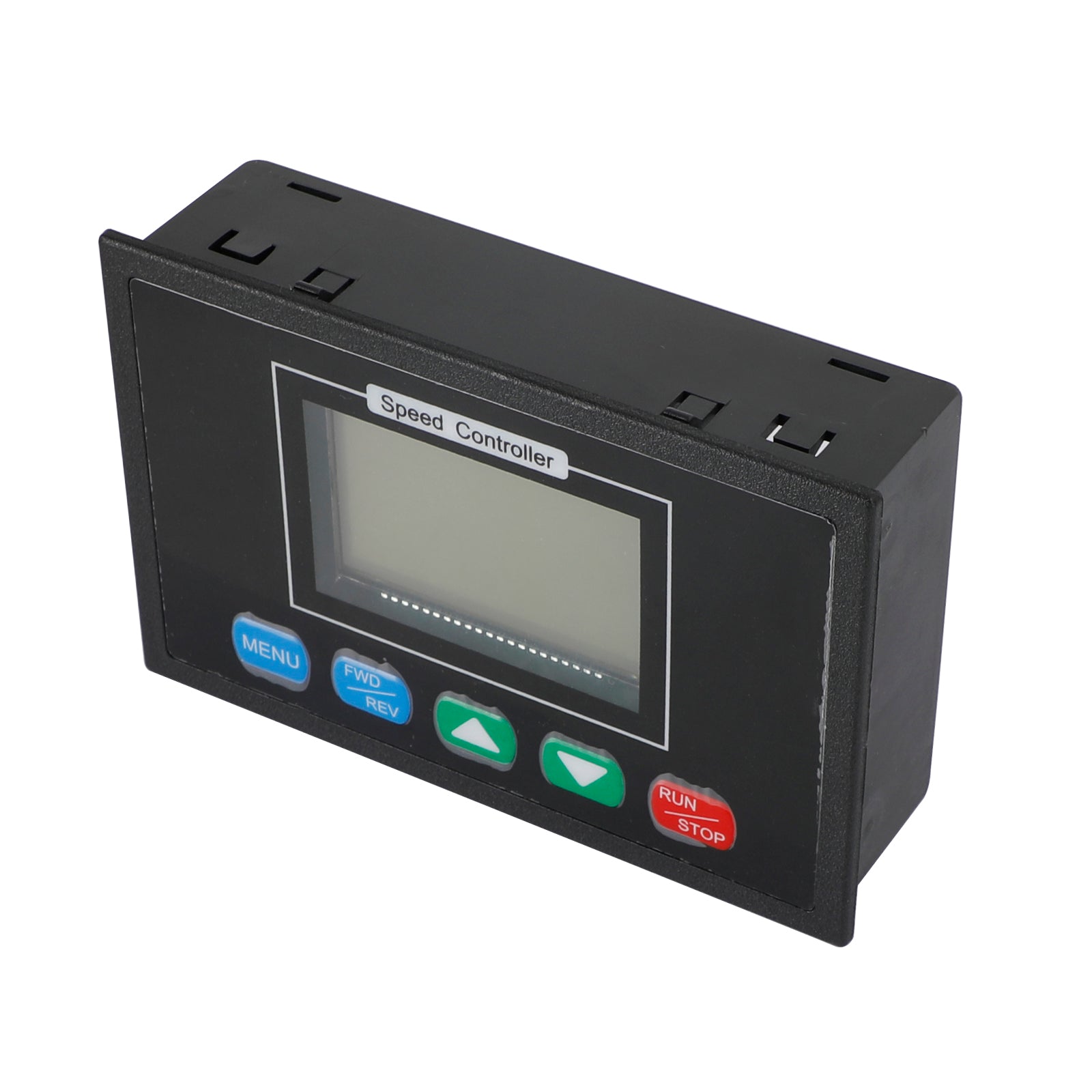

Digital PWM Motor Speed Controller 0~100% DC12V 24V 36V 48V Time Reversible 40A

Digital PWM Motor Speed Controller 0~100% DC12V 24V 36V 48V Time Reversible 40A

Feature:
1: Can set working time, time to point stop.
2: Intelligent dual mode manual Fully automatic two modes are available.
3: Slow start and slow down time can be set with speed upper limit lower limit setting.
4: LCD screen with backlight capable of displaying working time speed percentage current mode forward rotation reverse state.
5: Tact switch to switch forward and reverse jog acceleration and deceleration solves the problem of traditional potentiometer.

Specifics:
Condition: 100% Brand New
Input voltage: DC10-55V
Output voltage: linear under load
Instantaneous current: 40A
Continuous current: 30A
Speed control type: adjust current
Adjustment speed control mode: jog + -
Speed range: 0 - 100%
Timing: yes
Control frequency: 15KHZ
Wiring type: fence terminal block
Support motor: brush motor
Speed digital display: percentage 0-100%
Slow start and slow stop: can be set
Module size: 136mm * 89mm * 37mm / 5.34in * 3.5in * 1.45in
Panel opening:129mm * 81.5mm / 5.07in * 3.2in

Note:
1. Please allow 1-3mm difference due to manual measurement.
2. The input must be divided into positive and negative. The input voltage must be equal to the rated voltage of the motor (within 10-55V), otherwise it will burn out.
3. Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.

Package Included:
1 X DC Motor Speed Controller
