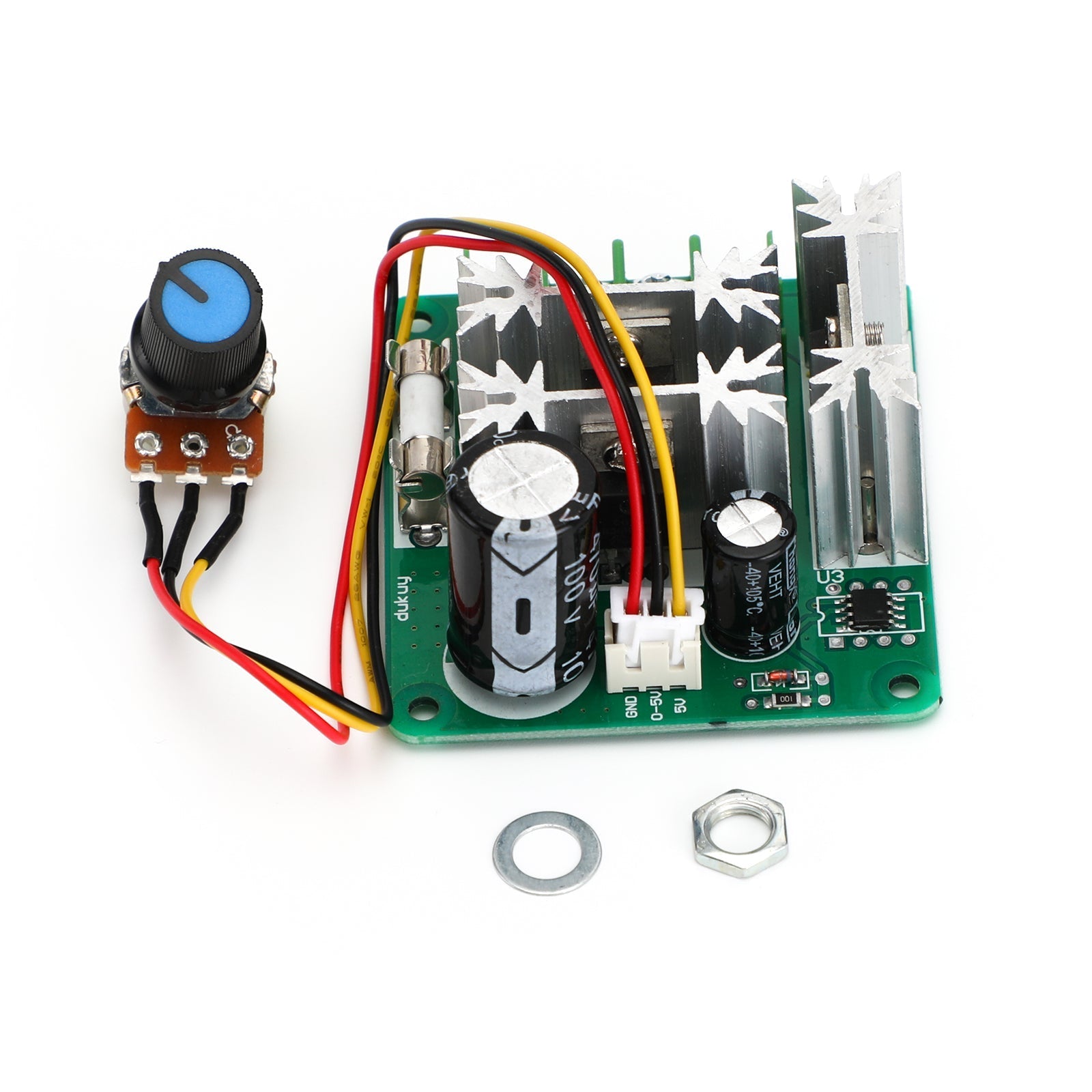

DC 6V-90V 15A PWM Motor Stepless Variable Speed Control Switch Governor

DC 6V-90V 15A PWM Motor Stepless Variable Speed Control Switch Governor

Feature:
1: Potentiometer with speed control switch function, button switch function
2: Motor speed controller can provide 15A continuous current for your DC motor or other DC load
3: DC motor speed controller allows the use of pulse width modulation (PWM) DC voltage to control the speed of the DC motor
4: Change the direction of the motor, interchange the positive and negative wires of the motor

Specifics:
Condition: 100% brand new
Input power supply voltage: 9V-60V DC(max)
Adjustable speed range: 0%-100%
PWM frequency: 15kHz
Quiescent current: 0.005 A (standby)
Control power: 0.01-1000W
Maximum current: 15A
Control voltage: 0-5V
Size: about 6.5 x 6 x 3cm
Weight: approx. 80g

Note:
1. Before you try to wire the controller, make sure that the power is turned off
2. Cannot use electric vehicle motor.
3. The input voltage should be equal to the rated voltage of the motor, not 220V AC
4. The input voltage must be divided into positive and negative. The red wire is the positive pole of the power supply, the black wire is the negative pole of the power supply, and the blue and green motors are both positive and negative.

Package Included:
1x motor speed controller
