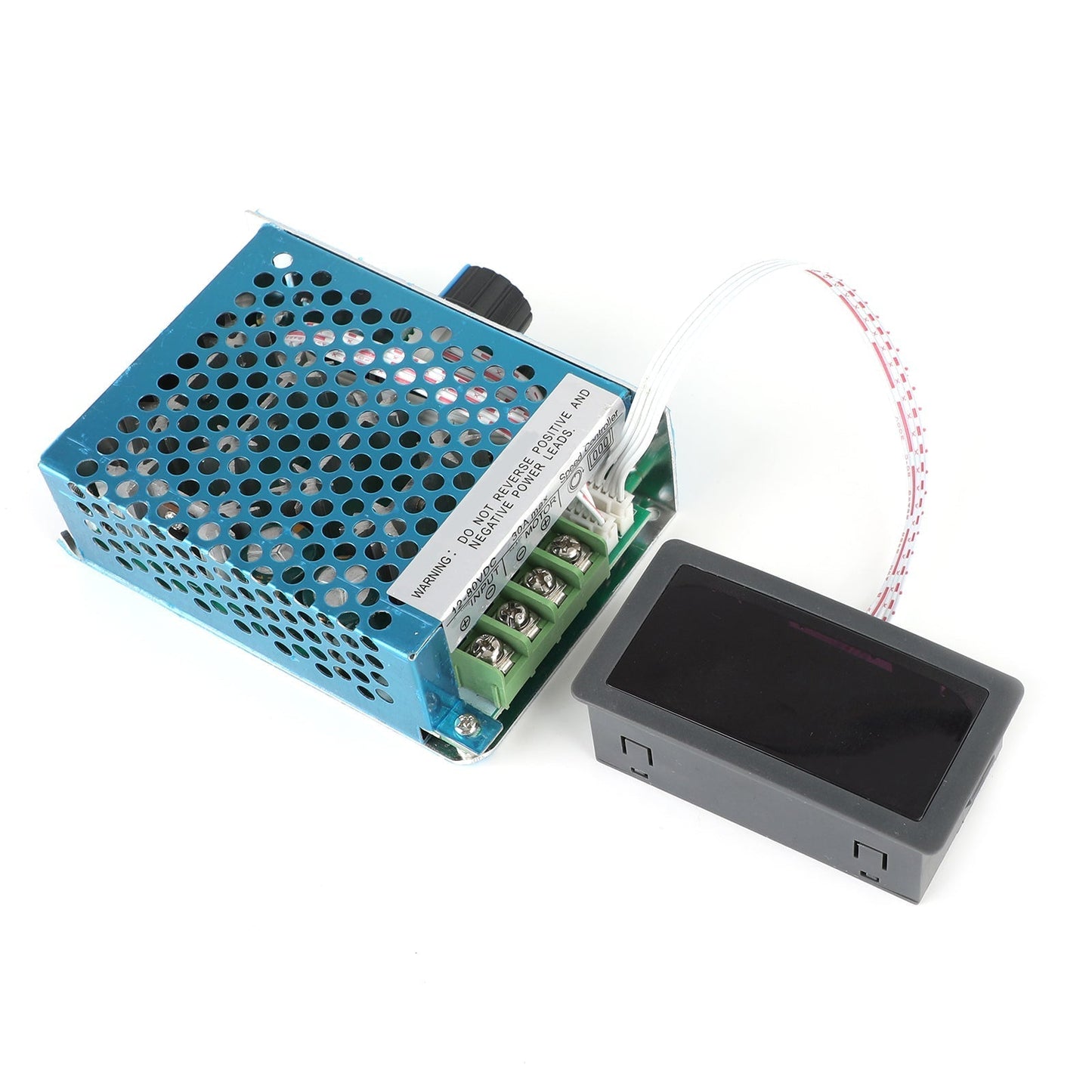

DC 12-80V 30A PWM LED Display Motor Speed Controller CW CCW Reversible Switch

DC 12-80V 30A PWM LED Display Motor Speed Controller CW CCW Reversible Switch

Feature:
1: High Power, Digital Display.
2: Potentiometer with switch, speed control button to achieve 0%-100% adjustment
3: Incorporate a 30A fuse, and with the protection function of reverse connect power supply.
4: About the display: such as display '48', It indicates that the current speed is the maximum motor speed of 48%.

Specifics:
Condition: 100% Brand New
Model: CCM6DS-D
Input voltage: DC 12-80V
Rated current: 20A
Maximum current: 30A
PWM Regulation range: 0%~100%
PWM frequency: 21kHz
Recommended power: 12V 250W or less, 24V 350W or less,......48V 500W or less
Potentiometer: resistance B100K, open size 8mm
Size: 100mm * 75mm * 28mm / 3.9" * 3" * 1.1" (Board), 79mm * 42mm * 24mm /3.11" * 1.65" * 0.94"(display)

Note:
1. Please allow 1-3mm difference due to manual measurement.
2. Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
3: The input of the DC motor speed controller is direct current, and cannot be directly connected to alternating current (such as household 220V alternating current), otherwise it will burn out.
4: The positive and negative poles of the DC power supply cannot be reversed, otherwise the governor will burn out.
5: The motor can be positive or negative. When the running direction is inconsistent with the expectation, the direction can be changed by adjusting the wire sequence.
6: The potentiometer knob can change the duty cycle of the governor output, thereby changing the motor speed.

Package Included:
1x DC motor speed controller
