SKU:M587-A073
Couldn't load pickup availability
Features:

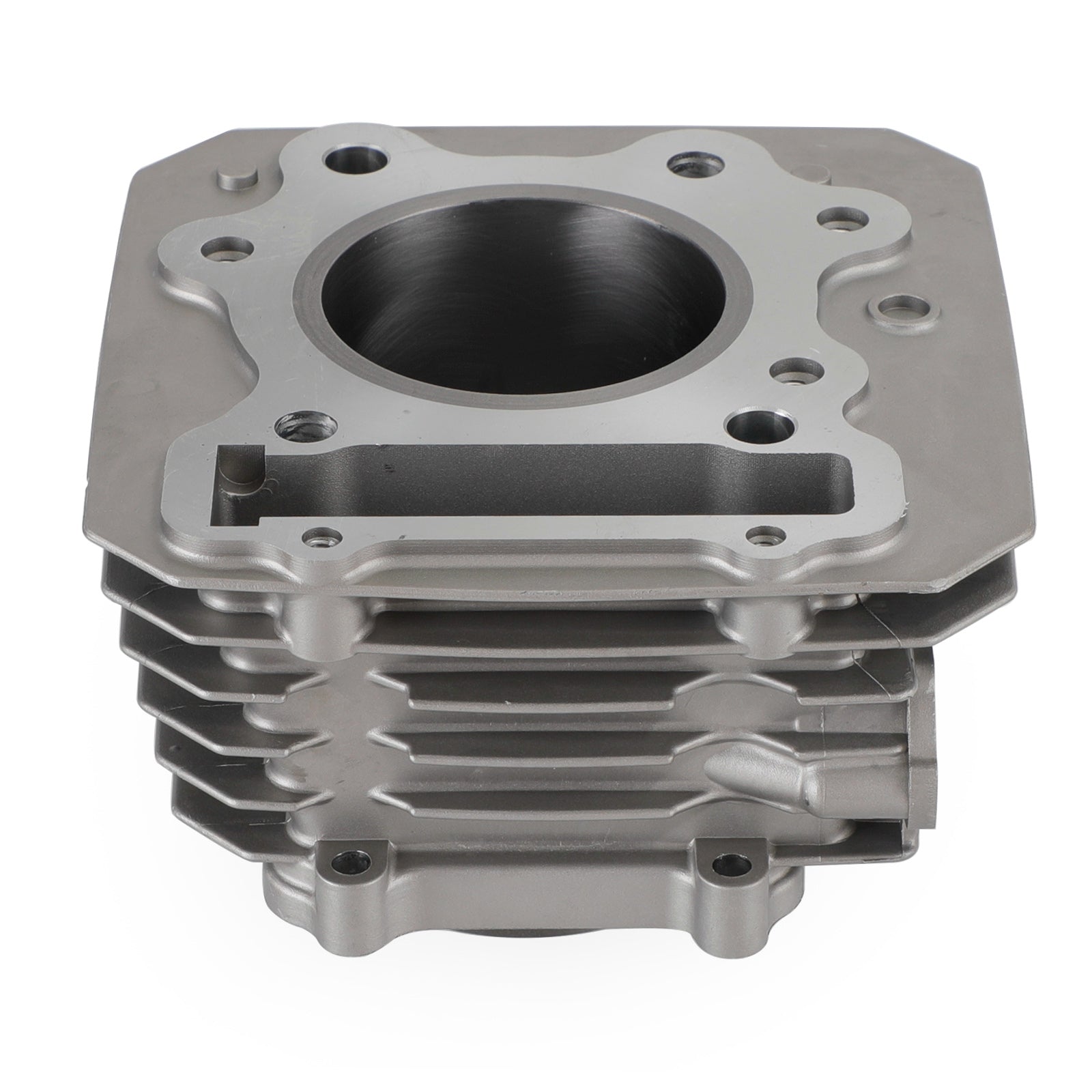

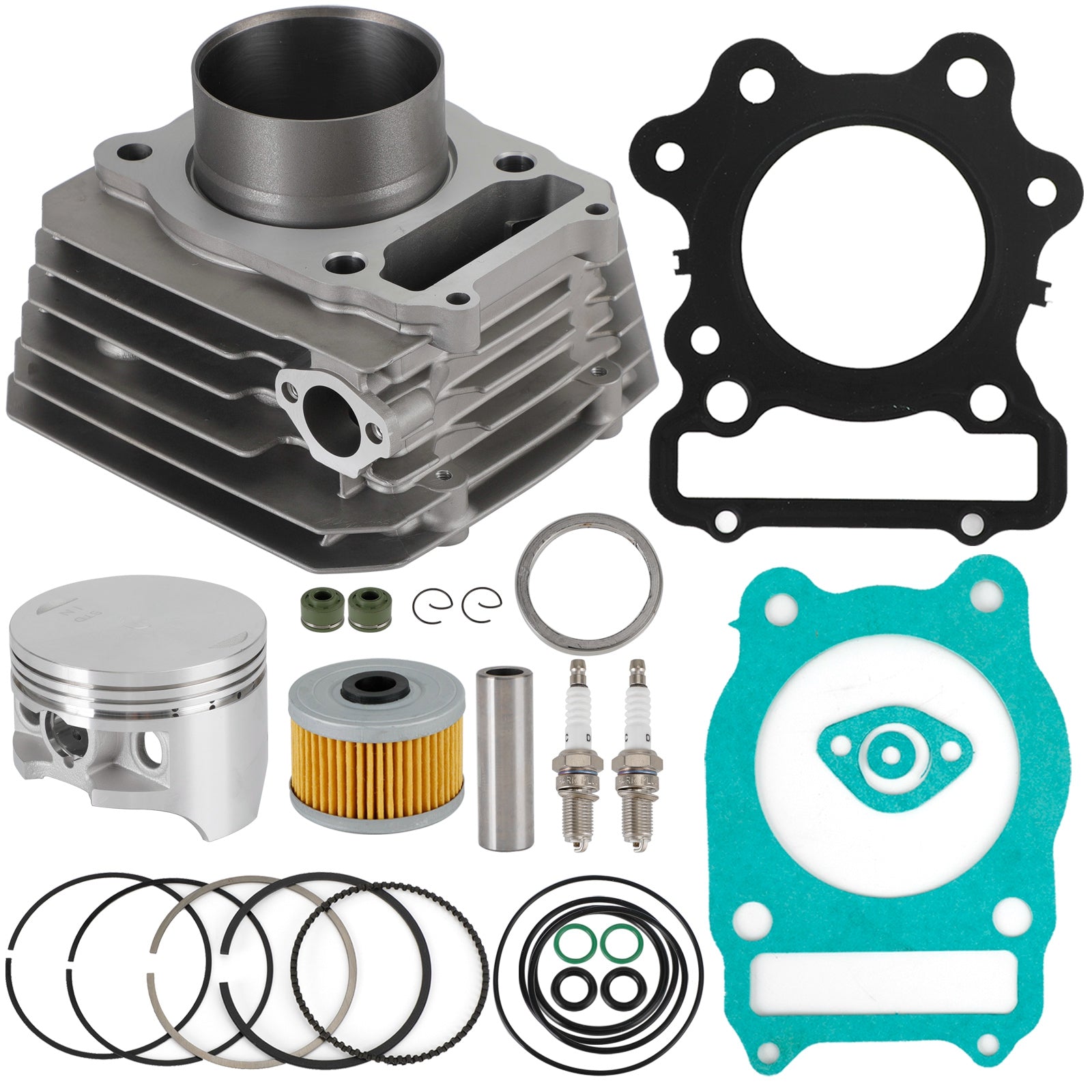

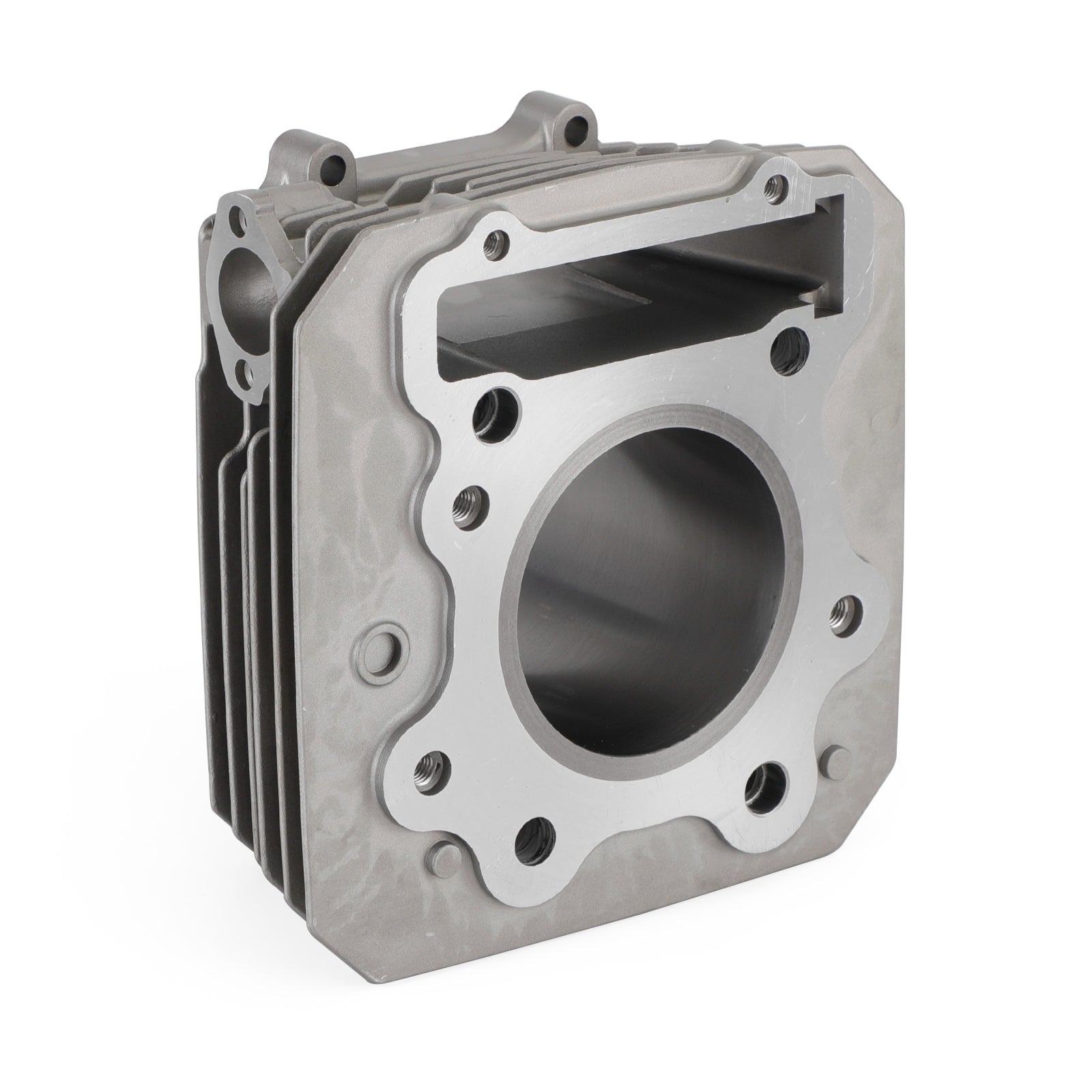

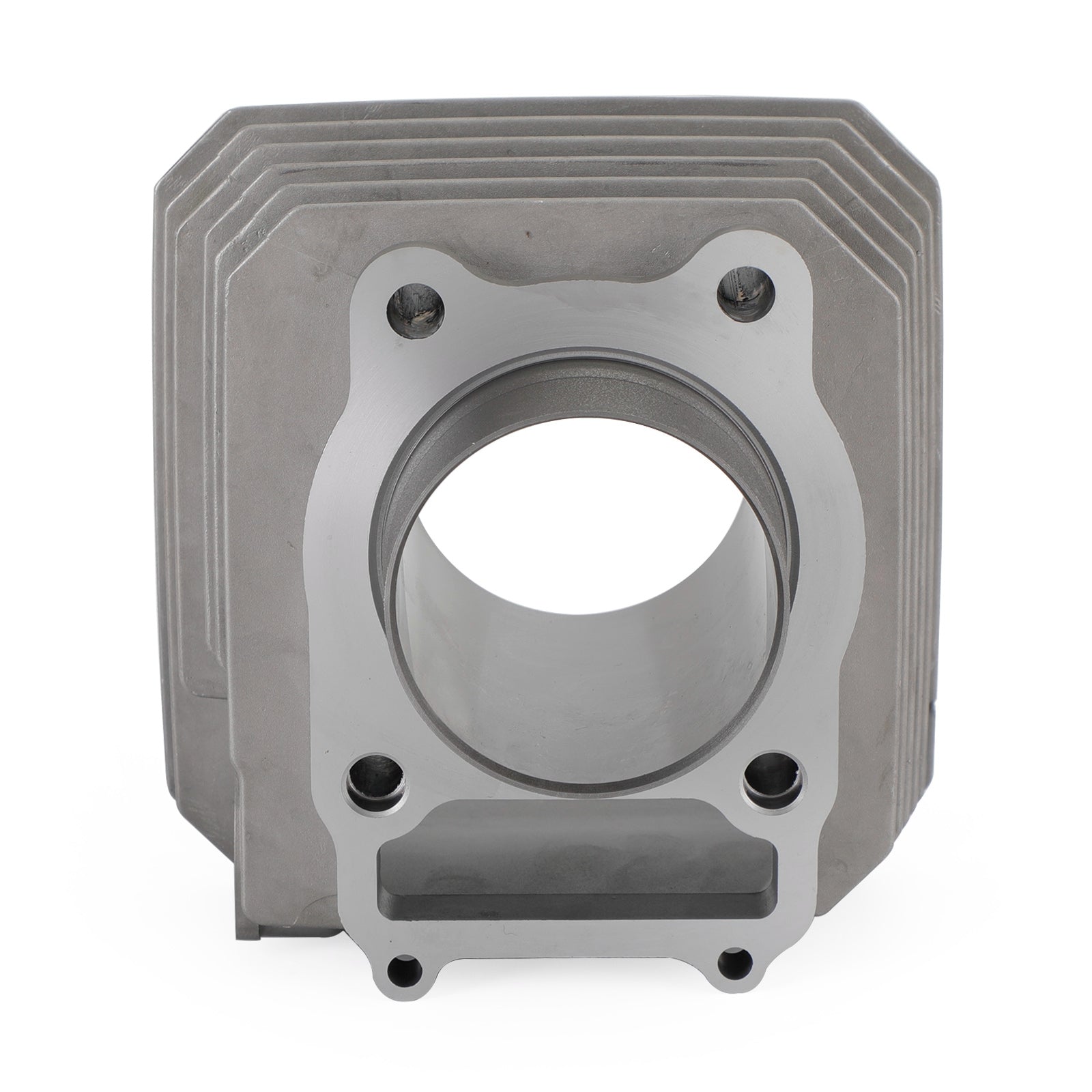

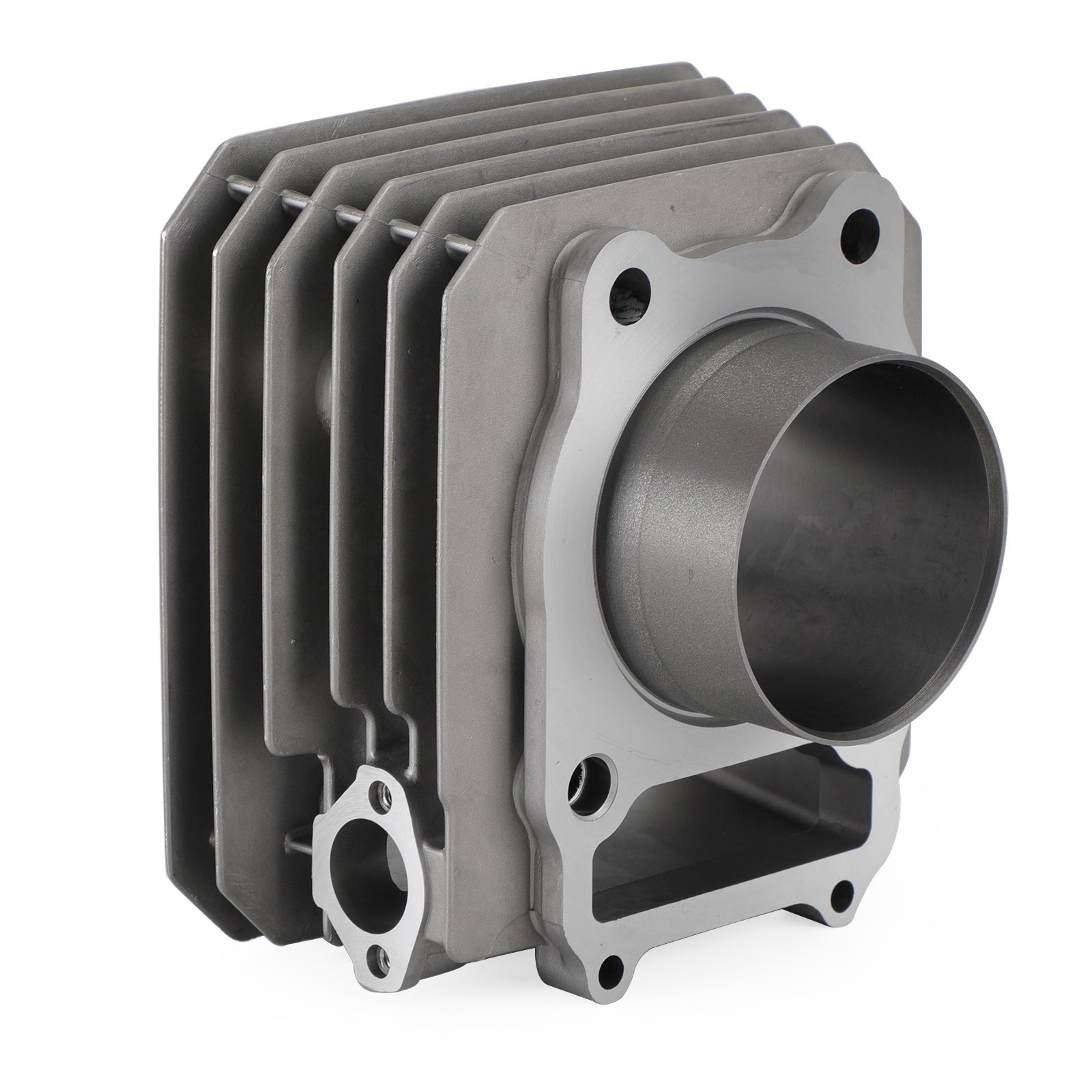

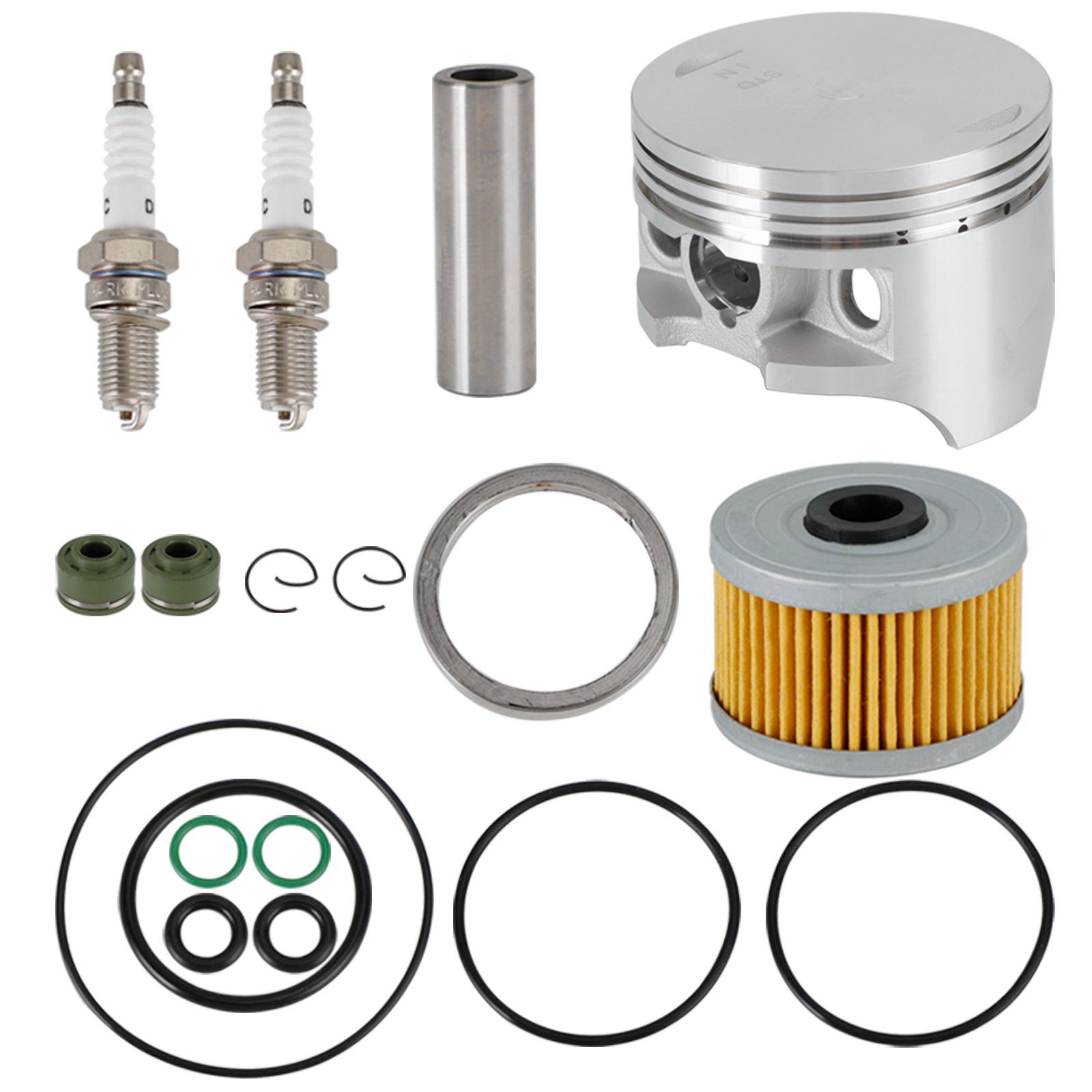

Kit includes cylinder, spark plugs, oil filter, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
Cast piston has super-high silicone content for additional strength.
Piston skirts are Molybdenium Teflon coated to minimize resistance/wear and provide extended life.
Piston dome is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 74.00 mm.
All of the components within this kit are bolt-on ready for a hassle free installation.
Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Cylinder Material: High-Grade Cast Aluminum
Piston Material: Forged Aluminum
Bore Size: STD 74.00mm
Spark Plug Dimension:
Thread Diameter: 12mm
Thread Length: 19mm
Electrode Gap:0.9mm
Replacement Part Number:
Cylinder: 12000-HC4-000, 12100-HC4-000
Cylinder head gasket: 12251-HA0-004
Cylinder base gasket: 12191-HC4-900
Cylinder o-ring(78.3x2mm): 91304-HA0-003
Valve tappet cover o-rings(57x3mm): 12392-HC4-005
Cylinder o-ring(33.7x2.4mm): 91305-HA0-680 (Sits Between Cylinder and Intake Manifold)
Intake pipe gasket: 18291-MN4-920
Valve stem seals: 12209-KL4-005
Oil filter: 15412-HM5-A10
Fitment:
Fit for Honda TRX 300 2x4 & 4x4 FW four-wheelers 1988-2000
(This is for the Utility Model ATVs with the rack on the front and the back, NOT the race model ATVs)
Fit for 1988 Honda ATV TRX300 FOURTRAX 300
Fit for 1988 Honda ATV TRX300FW FOURTRAX 4X4
Fit for 1989 Honda ATV TRX300 FOURTRAX
Fit for 1989 Honda ATV TRX300FW FOURTRAX 4X4
Fit for 1990 Honda ATV TRX300
Fit for 1991 Honda ATV TRX300
Fit for 1991 Honda ATV TRX300FW
Fit for 1992 Honda ATV TRX300
Fit for 1992 Honda ATV TRX300FW
Fit for 1993 Honda ATV TRX300
Fit for 1993 Honda ATV TRX300FW
Fit for 1994 Honda ATV TRX300
Fit for 1994 Honda ATV TRX300FW
Fit for 1995 Honda ATV TRX300
Fit for 1995 Honda ATV TRX300FW 4X4
Fit for 1996 Honda ATV TRX300 FOURTRAX
Fit for 1996 Honda ATV TRX300FW FOURTRAX 4X4
Fit for 1997 Honda ATV TRX300
Fit for 1997 Honda ATV TRX300FW 4X4
Fit for 1998 Honda ATV TRX300
Fit for 1998 Honda ATV TRX300FW 4X4
Fit for 1999 Honda ATV TRX300 FOURTRAX
Fit for 1999 Honda ATV TRX300FW FOURTRAX 4X4
Fit for 2000 Honda ATV TRX300
Fit for 2000 Honda ATV TRX300FW 4X4
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
Package includes:
1x Cylinder
1x Standard Size Piston

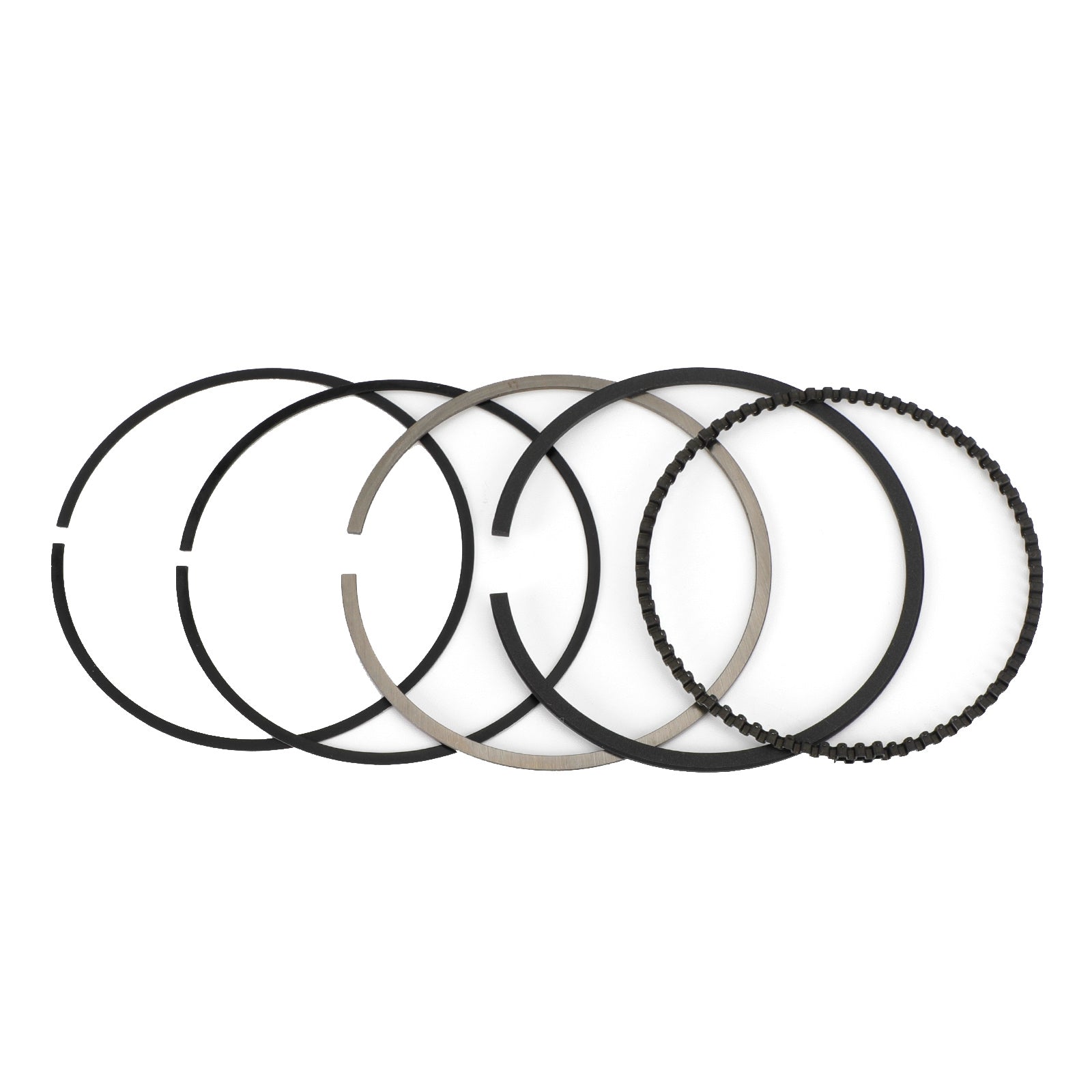

1x Piston Ring Set
1x Wristpin
2x Circlips
1x Oil Filter

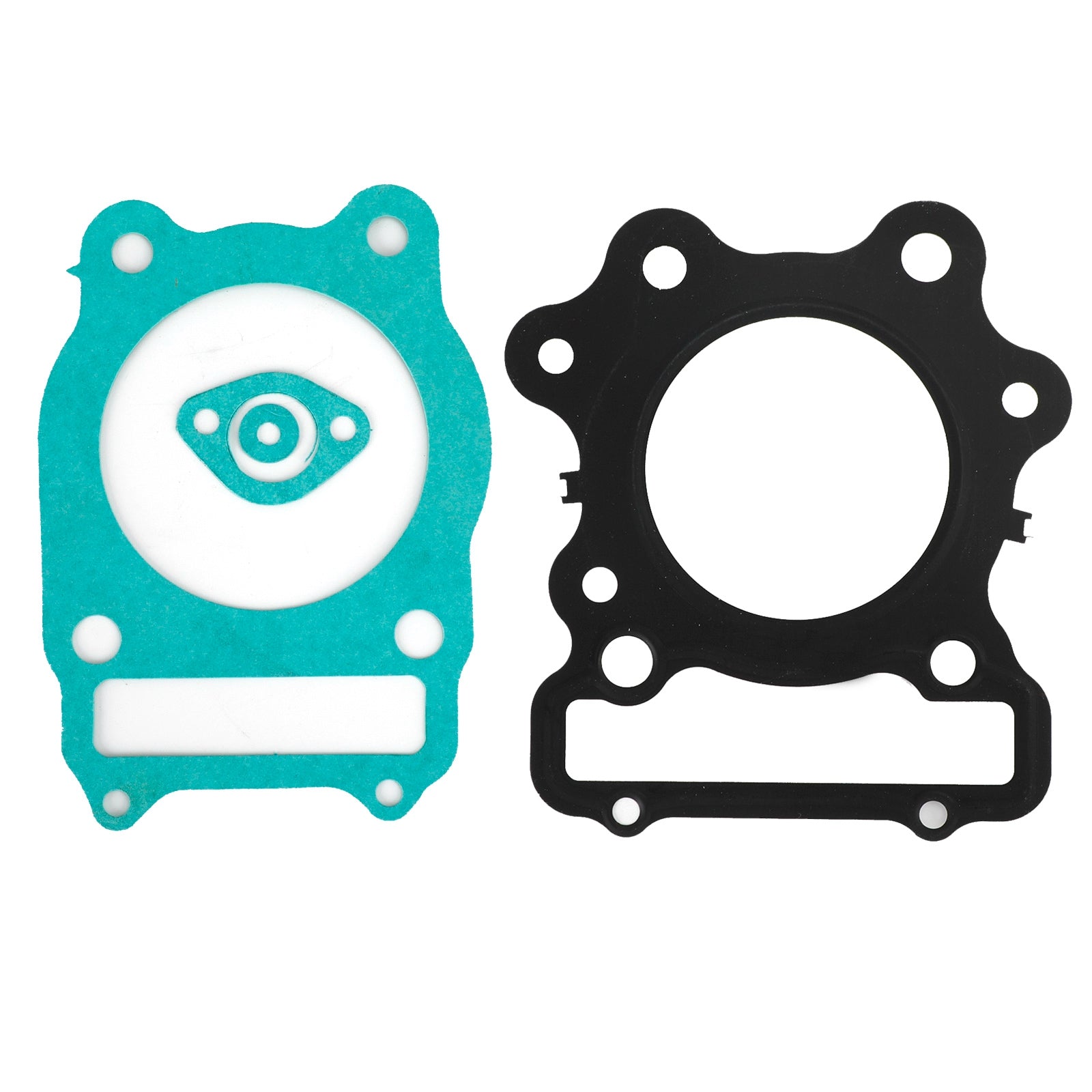

1x Cylinder Head Gasket
1x Cylinder Base Gasket
1x Exhaust Gasket
2x Valve Stem Seals
1x Exhaust Gasket
1x Cylinder O-ring(78.3x2mm)
2x Valve Tappet Cover C-rings(57x3mm)
1x Sits Between Cylinder and Intake Manifold O-ring(33.7x2.4mm)
1x Exhaust Pipe Gasket
2x Spark Plug
Note:
Ring end gaps are checked prior to shipment for proper sizing.
Please check out the product and size fits your motorcycle or not before you purchase.
