Cylinder Piston Gasket Set For Hisun V Twin Utv 800 Msu Massimo Bennche Hs Tsc

Features:
If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.

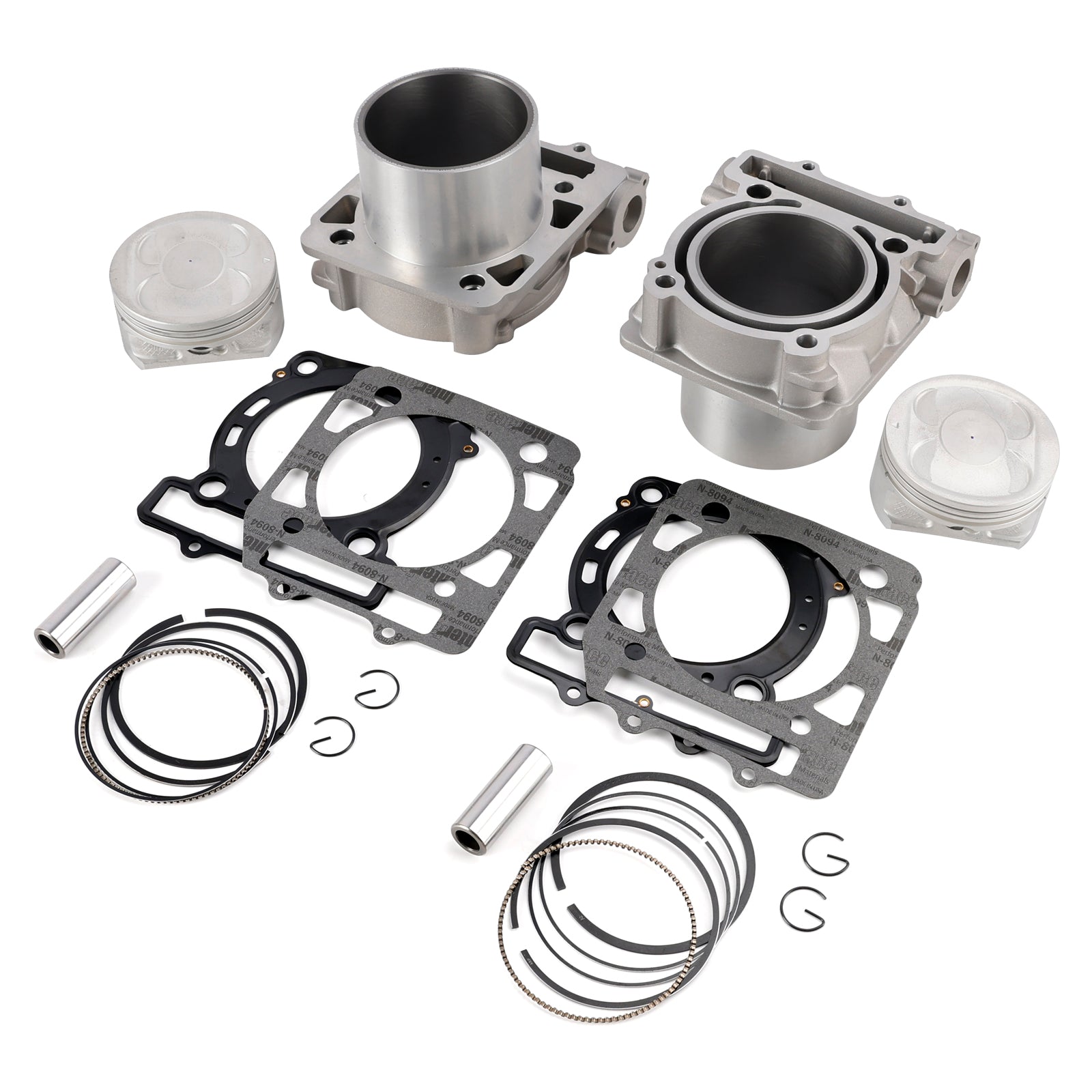

Kit includes (I+ II) cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).

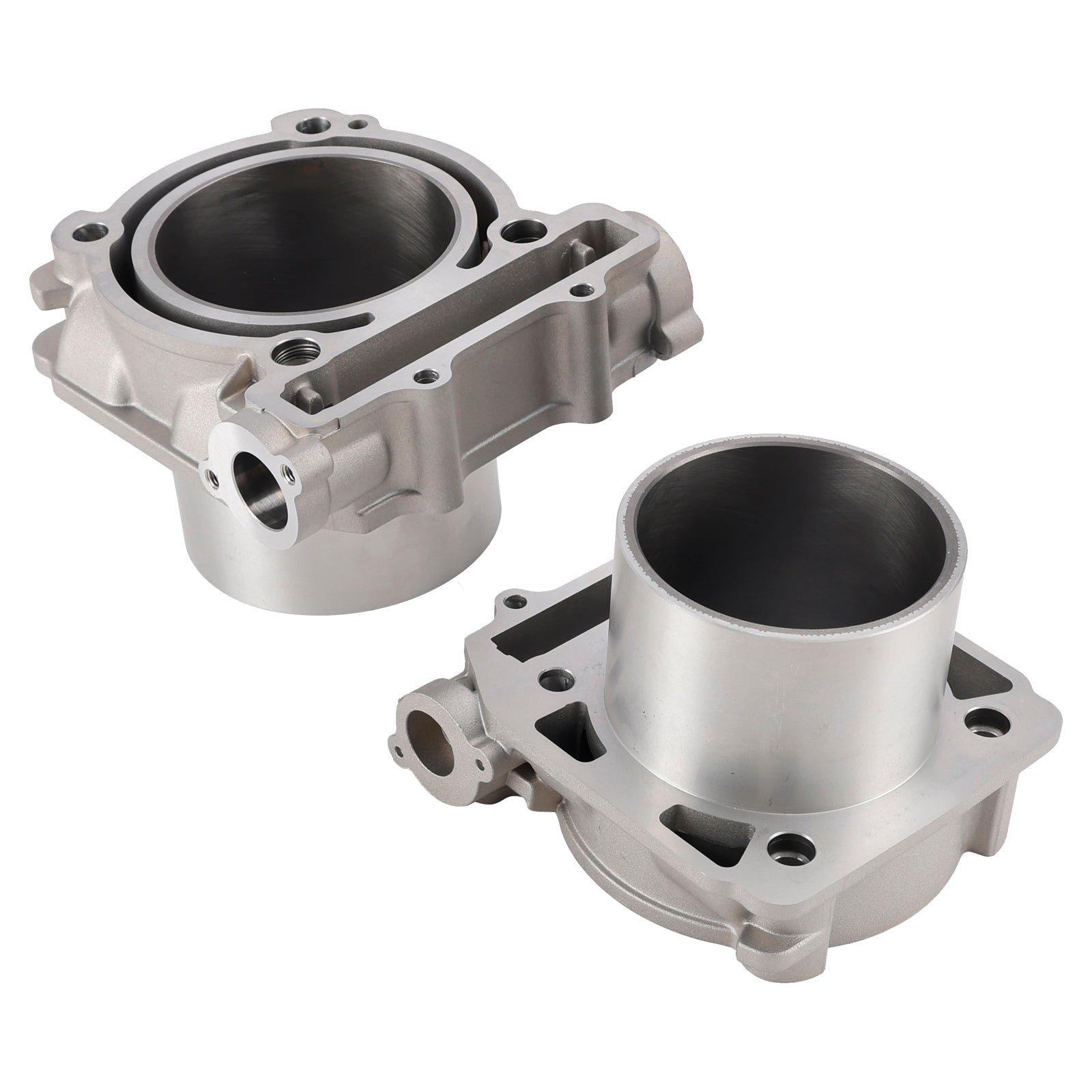

The Hisun 800cc V-Twin Engine takes two separate and different cylinder bodies: cylinder body 1 and cylinder body 2.
Where the tensioner hole is located, the other side is Not open

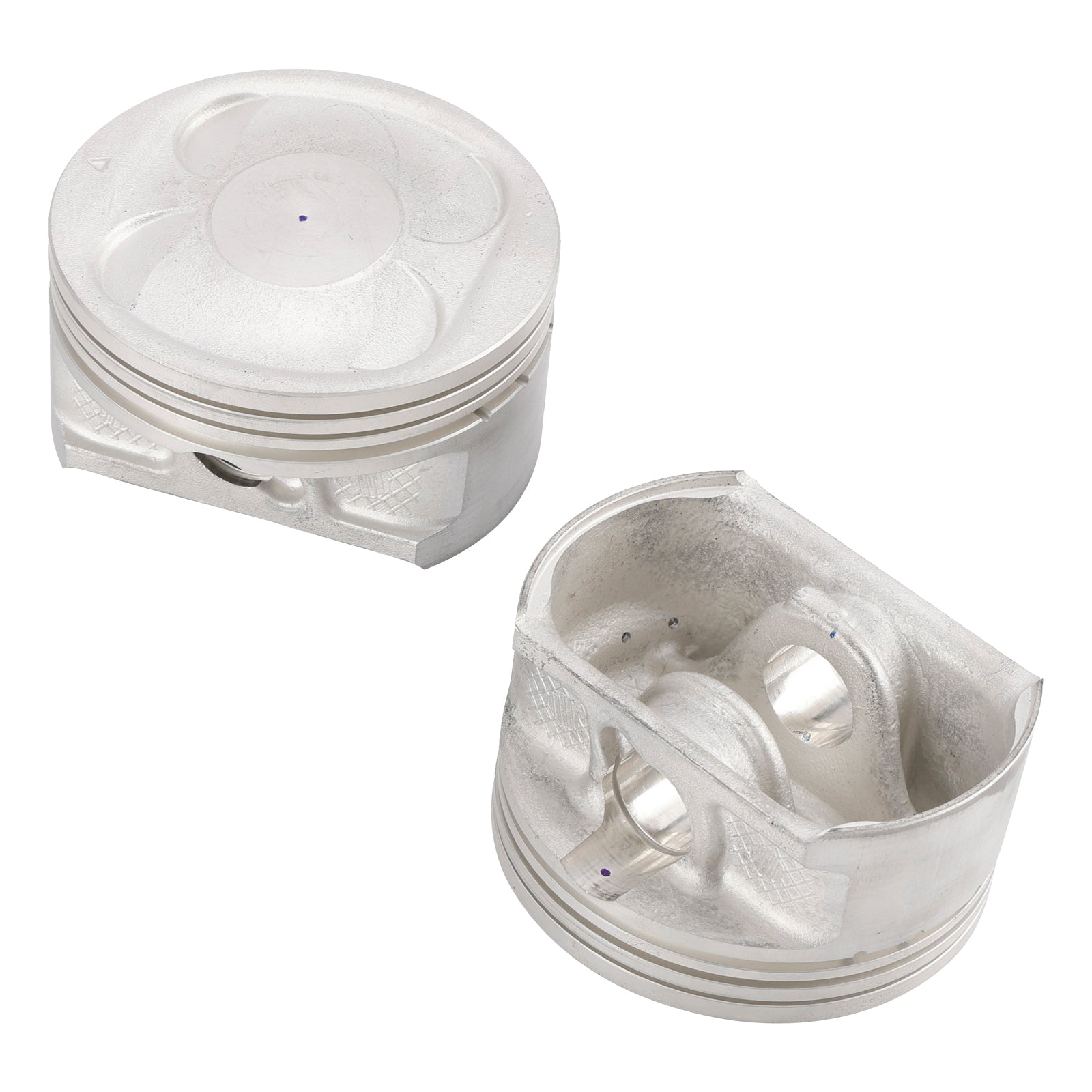

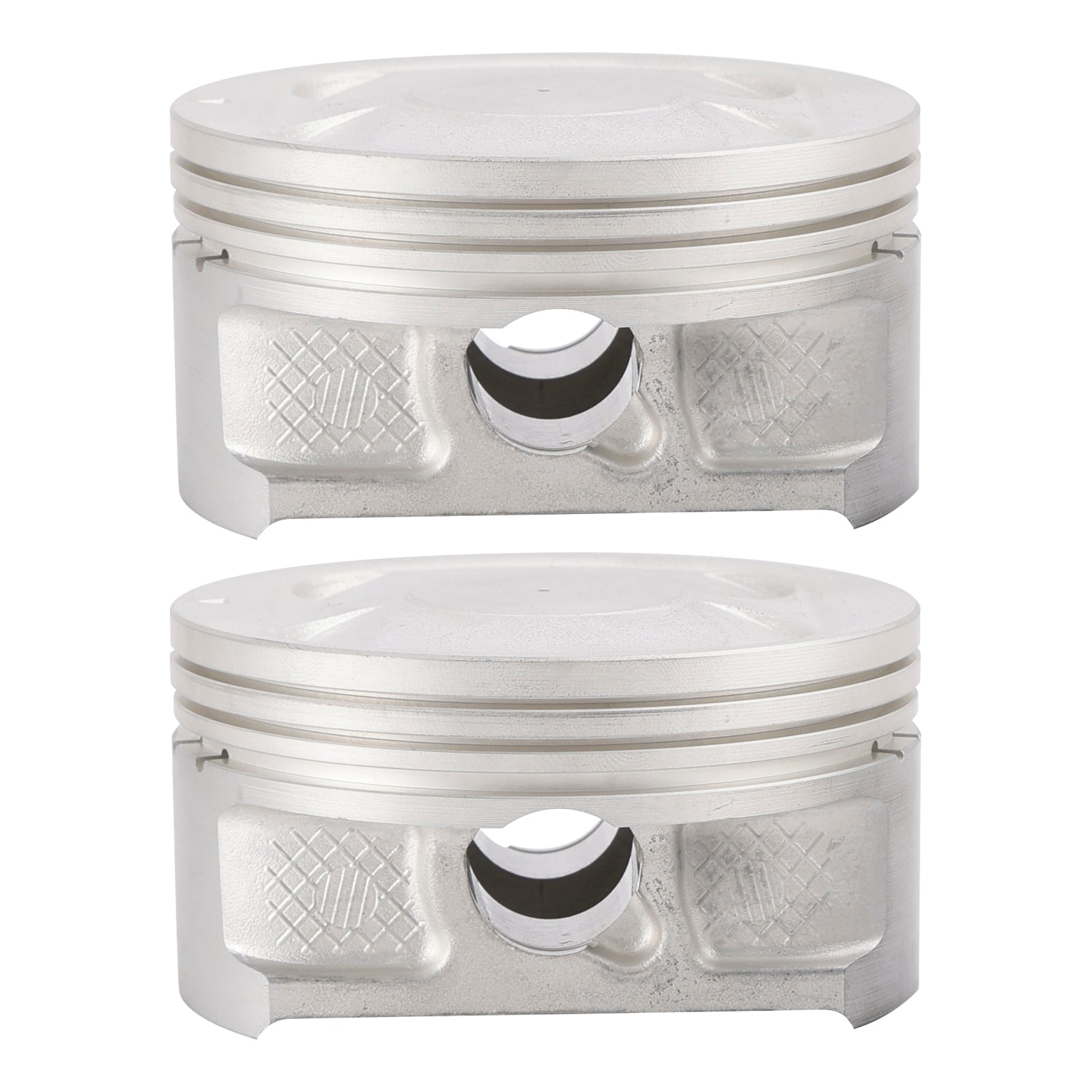

Piston is anodized for superior heat resistance and longer lifespan.

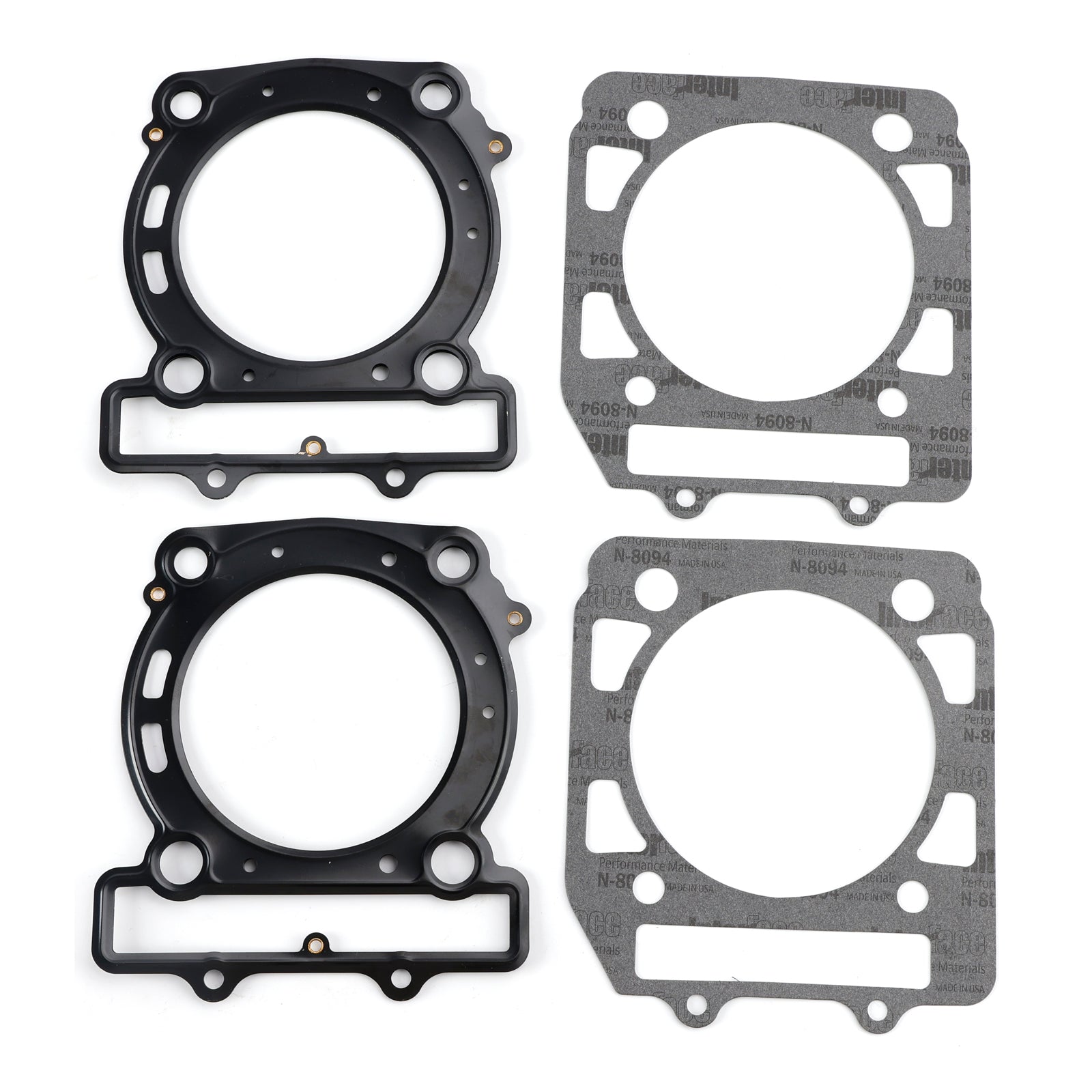

The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 91mm.
This kit is excellent as a low-cost replacement for defects in the original cylinder.

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum
Displacement: 800cc
Bore Type: Standard Bore
Placement on Vehicle: Front
Bore diameter: STD 91mm
Pin diameter: 20mm
Pin Overall Length: 55mm

Replacement Part Number:
Cylinder Body Assy 1: 12110-010-0000, 12120-F68-0001
Cylinder Body Assy 2: 12120-010-0000, 12120-F68-0002
Cylinder Base Gasket(2): 12150-010-0000, 12150-F68-0000
Cylinder Head Gasket(2): 12250-010-0000, 12250-F68-0000
Piston (Std): 13101-010-0000, 13101-F68-0000
Pin, Piston: 13111-010-0000, 13111-F68-0000
Piston Ring Set (Std): 13120-010-0000, 13120-F68-0000
Circlips, piston: 91301-010-0000, 91301-F68-0000

Always compare part numbers to your parts schematics and cross reference appropriately.

Fits Models:
WILL FIT 2008-2017 EFI (ELectronic Fuel Injected) HiSUN ?800 V-Twin UTV'S INCLUDING, MASSIMO, CUB CADET, SUPERMACH, BENNCHE, Q LINK, COLEMAN, BIG MUDDY, POWERMAX, NORDIK UTVs (and many more)

(Compatibility Chart is for Reference ONLY!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

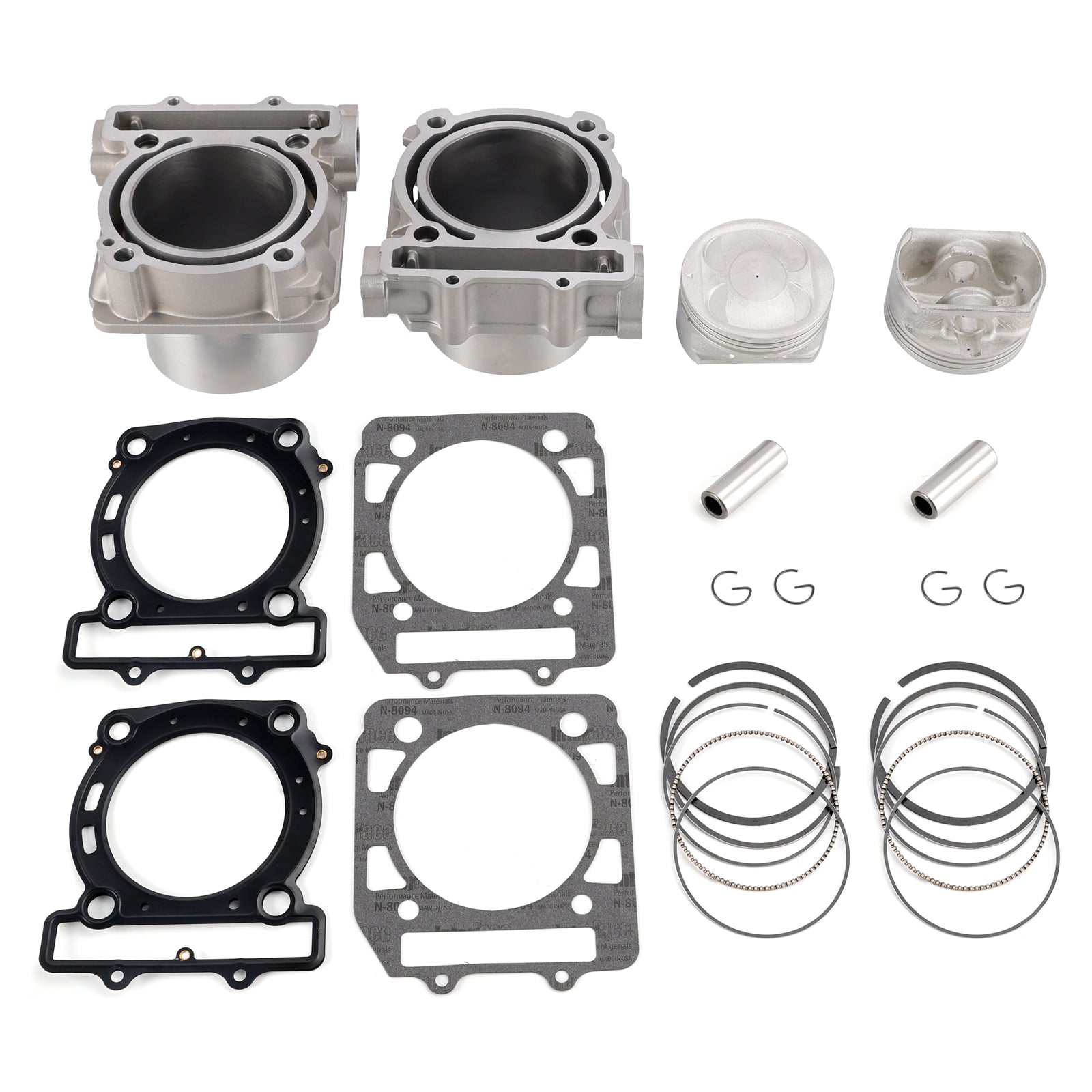

Package Includes:
1x Cylinder Body 1
1x Cylinder Body 1 Base Gasket
1x Cylinder Body 1 Head Gasket
1x Cylinder Body 2
1x Cylinder Body 2 Base Gasket
1x Cylinder Body 2 Head Gasket
2x Pistons
2x Wristpins

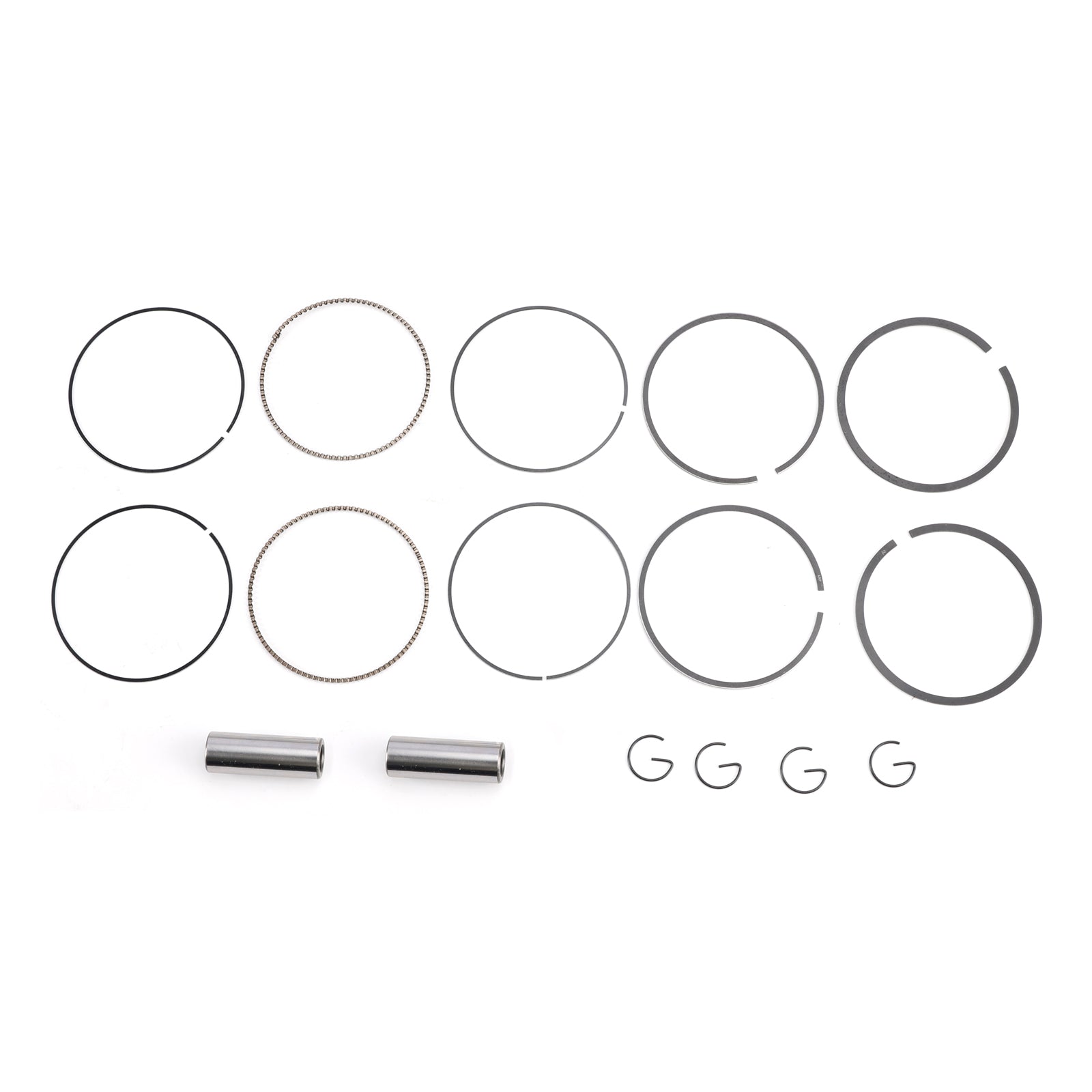

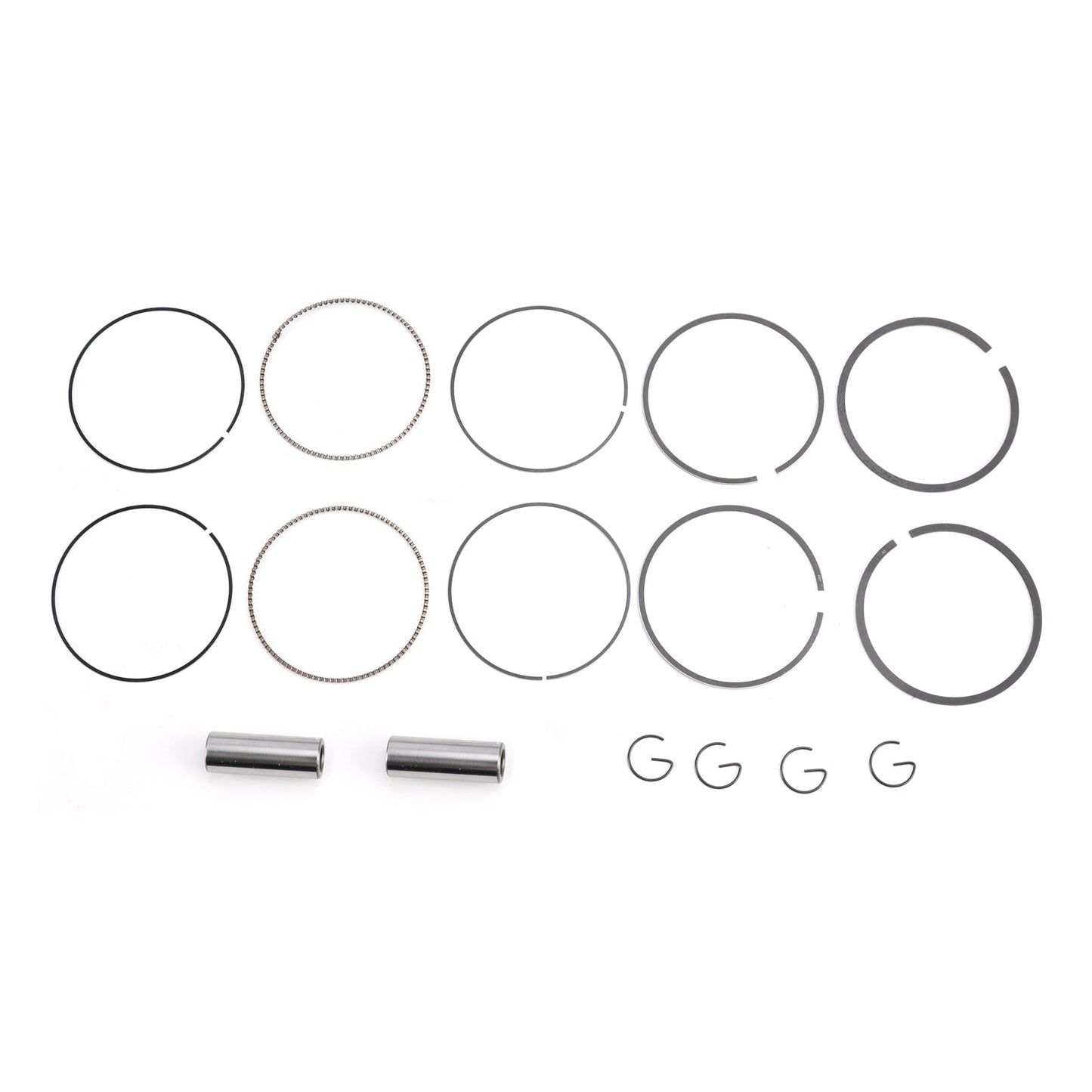

2x Piston Ring Set
2x Circlips(2)

(Comes exactly as pictured.)

Note:
Carefully compare to your old parts to be sure this is the correct part for your machine.

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.

Shipping:
Free Shipping
Handling?time: Ship within 24 hours
Delivery Time: 3-7 business days

Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
