Cylinder Piston Gasket Kit For HiSUN,MSU,TSC,Cub Cadet,Yardsport,Qlink,400,UTV

Features:
Cylinder block kit. commonly used for (but not limited to) 400cc engines, such as the Hisun 400cc 4x4 UTVs & ATVs, as well as many other clones, rebrands and similar displacement machines.

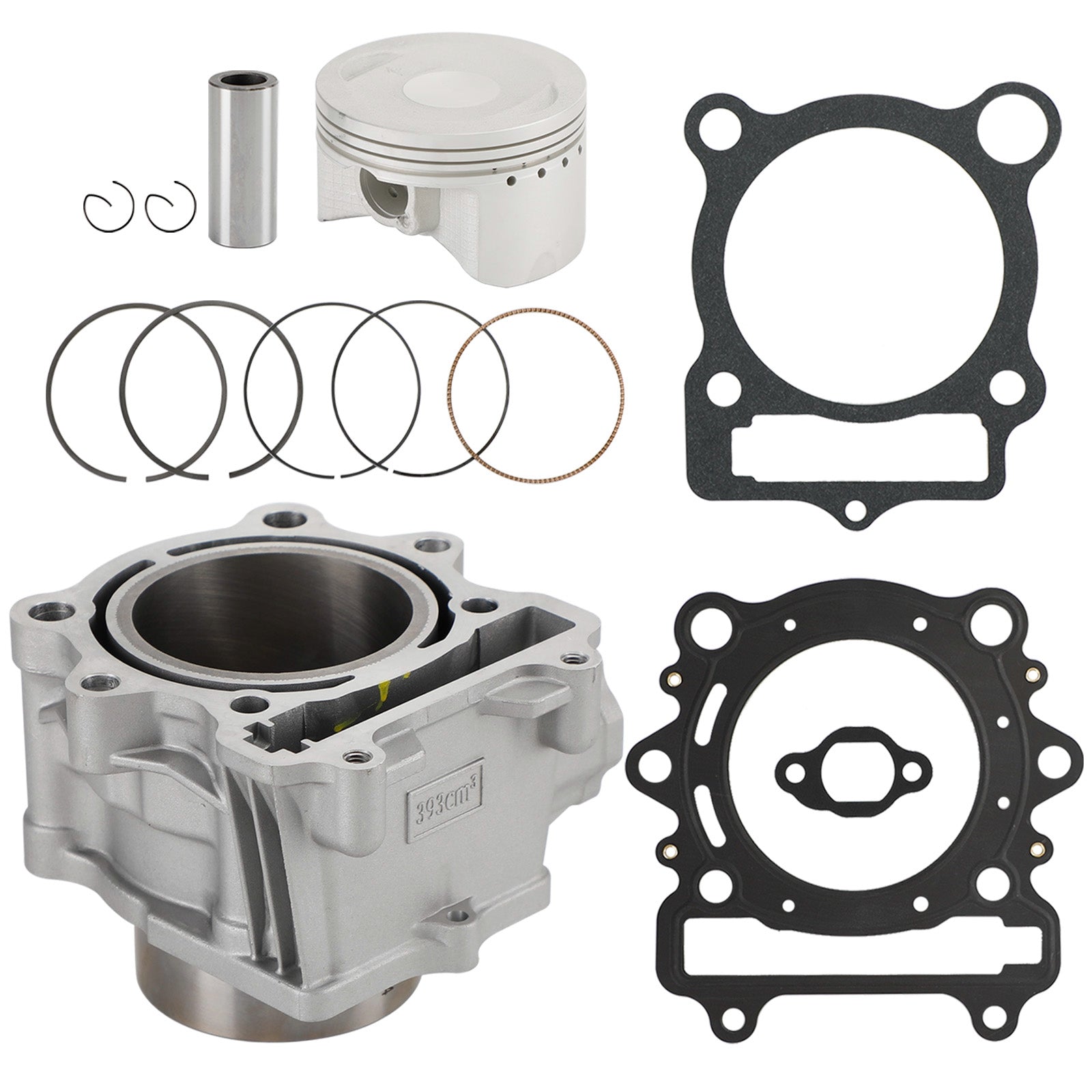

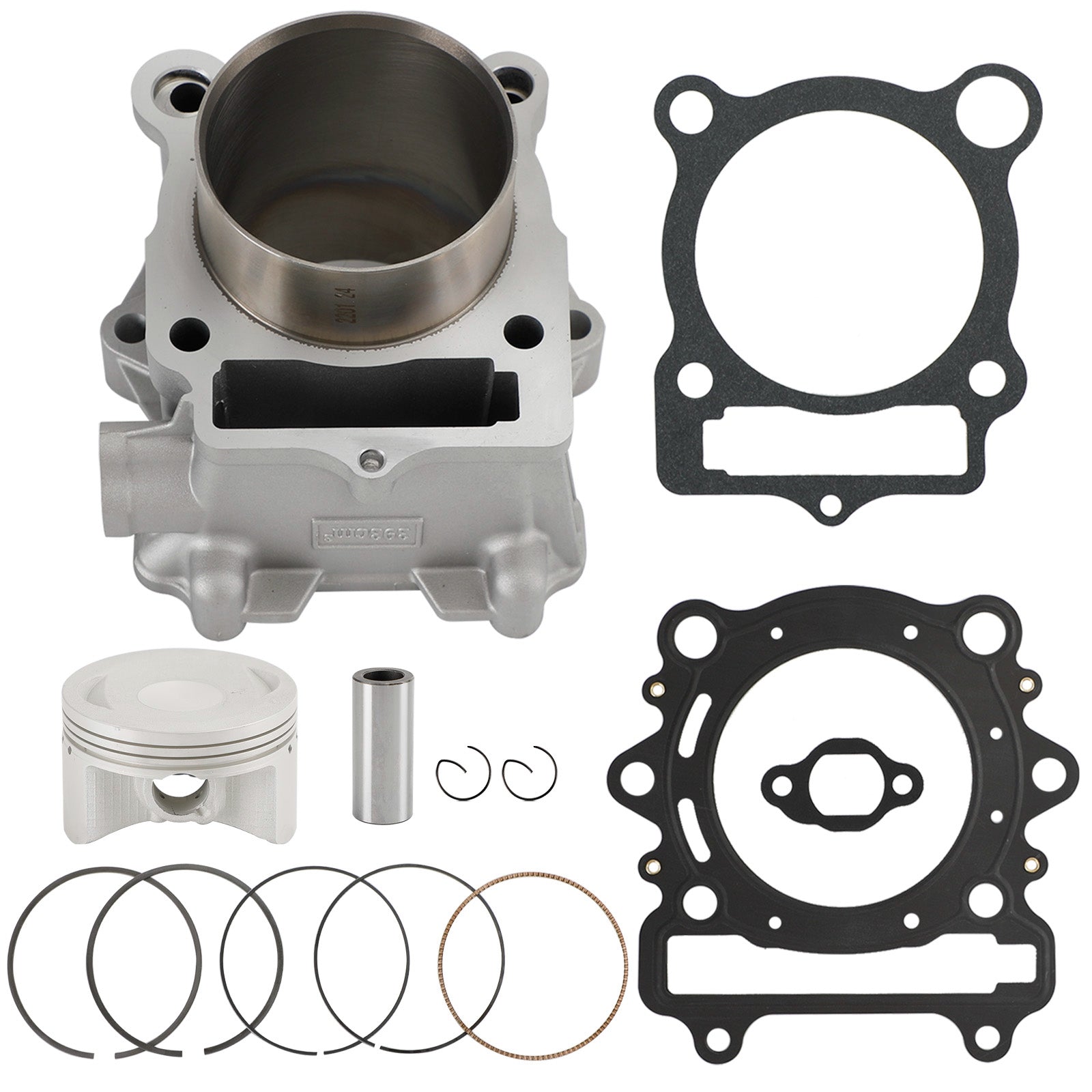

Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
Cast piston has super-high silicone content for additional strength.
Piston is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for bore size - 84.50mm.

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Piston Material: Forged Aluminum
Actual Displacement: 393cc
Bore Size: 84.50mm
Pin OD: 20mm
Pin L: 57mm

Replaces Part Number:

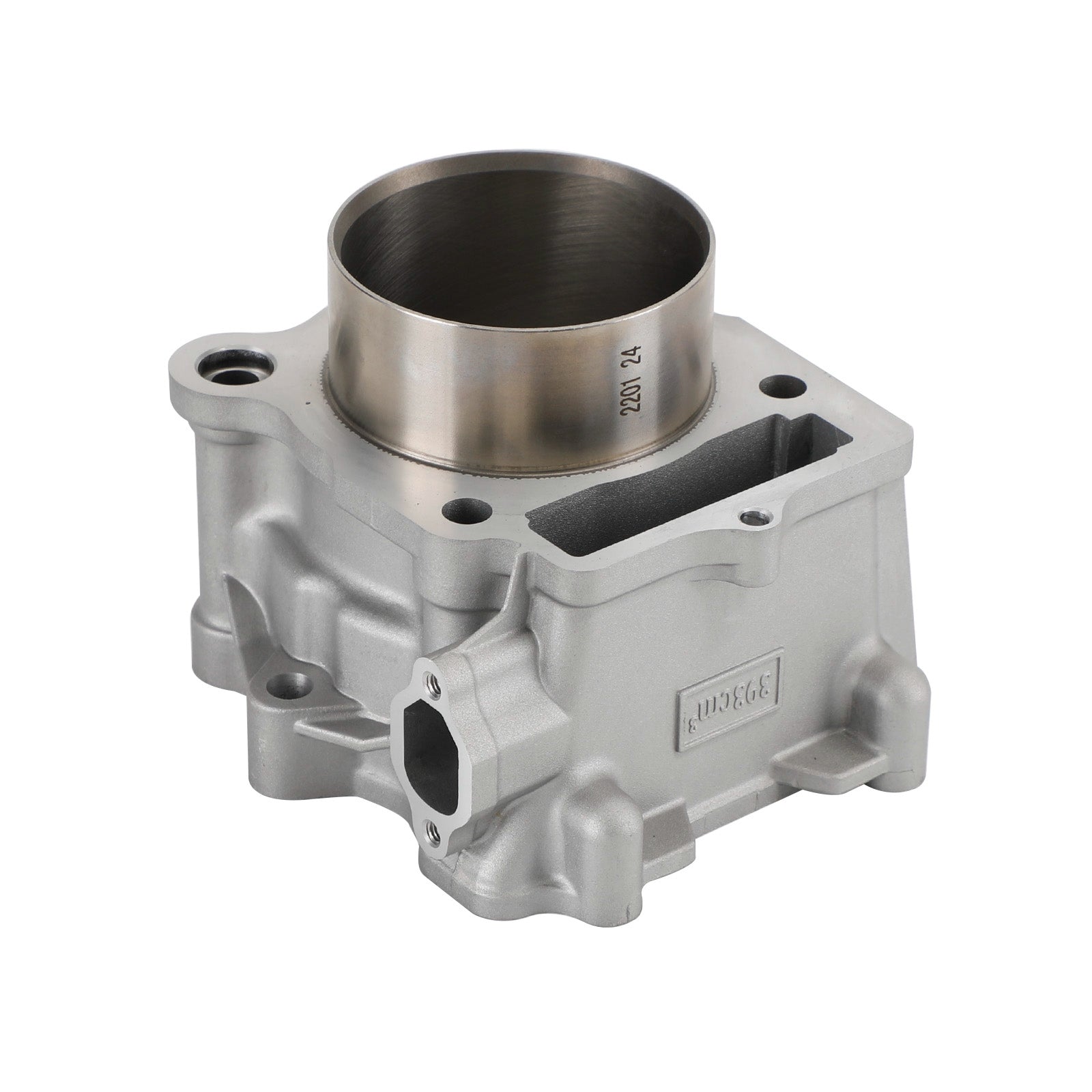

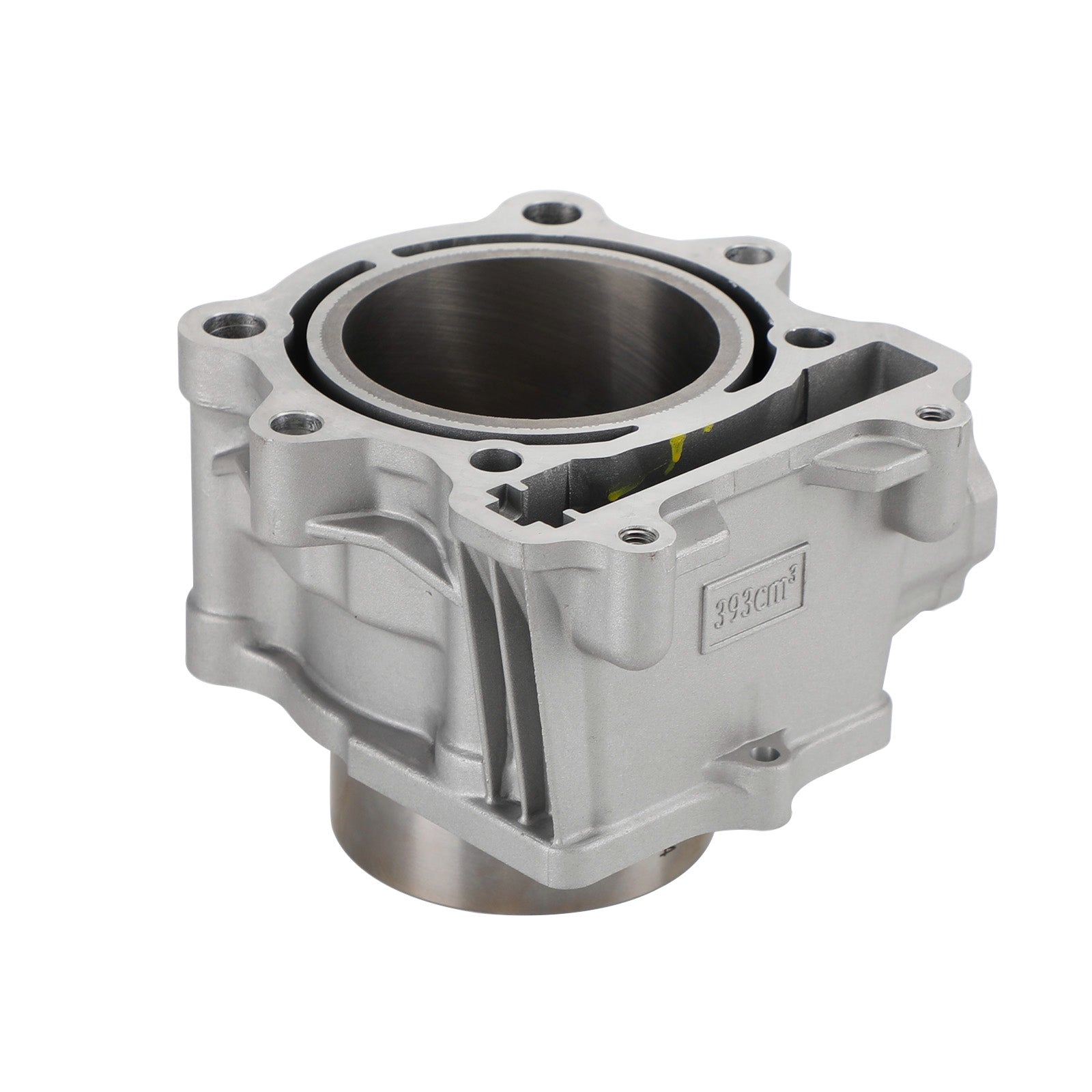

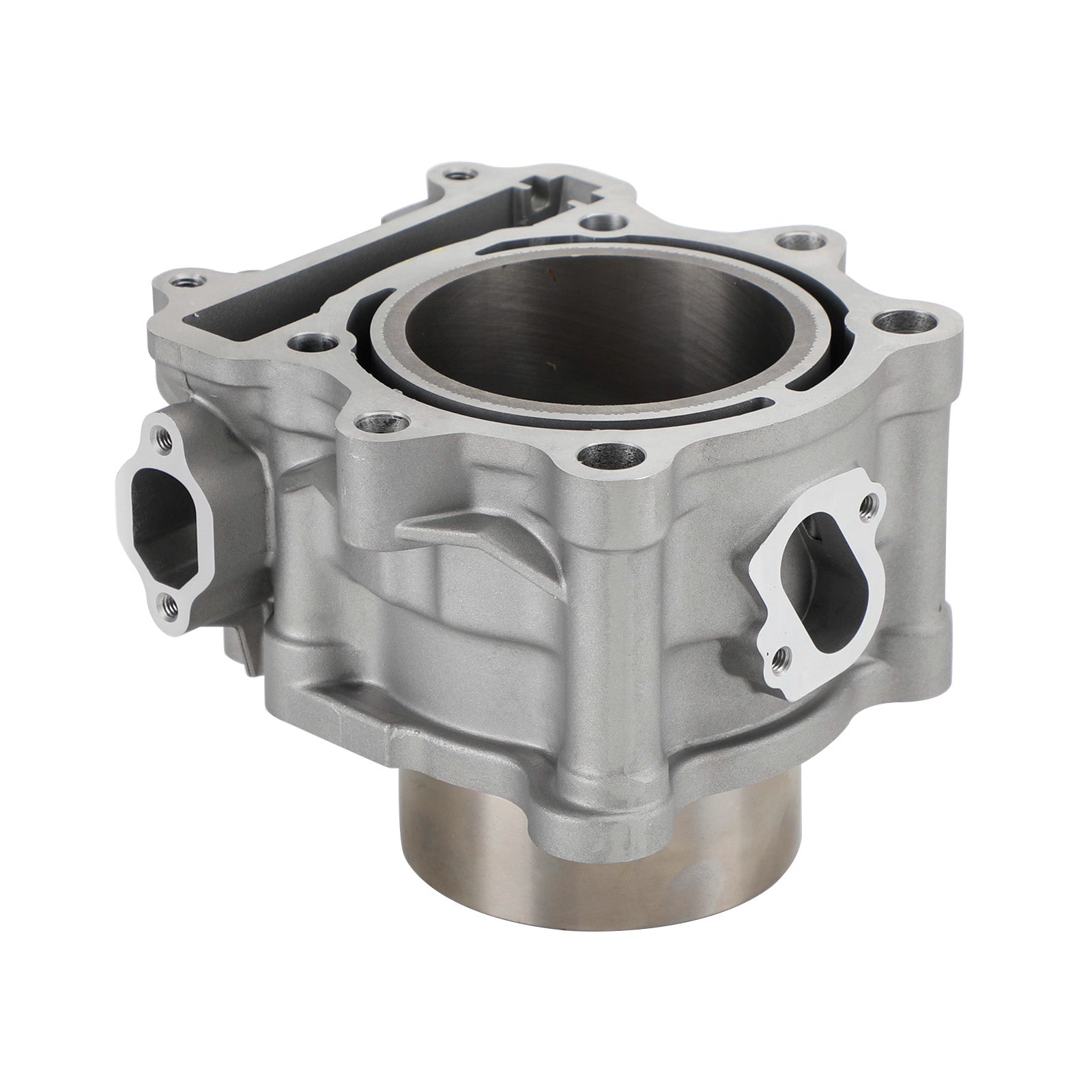

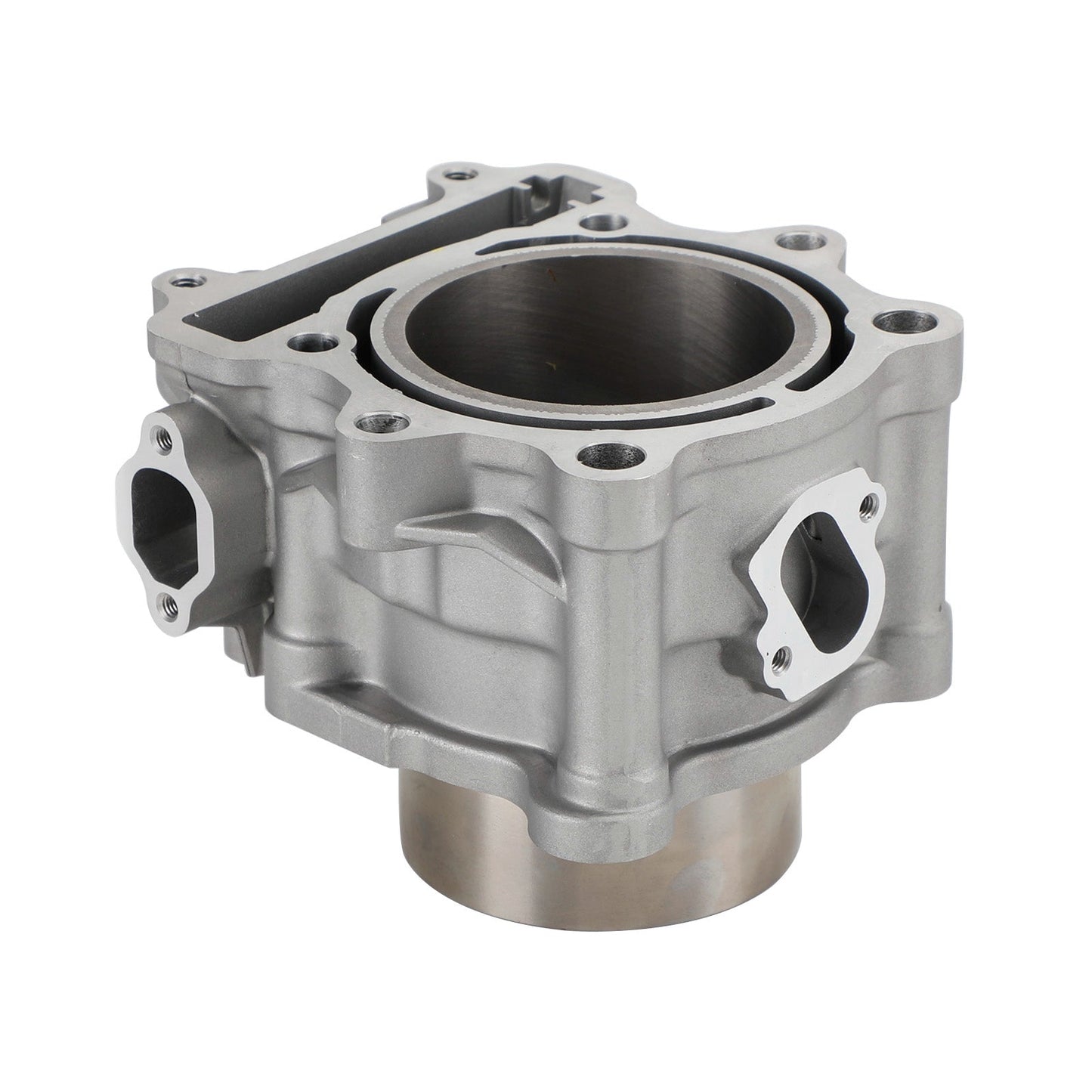

Cylinder Block: 12100-003-0000

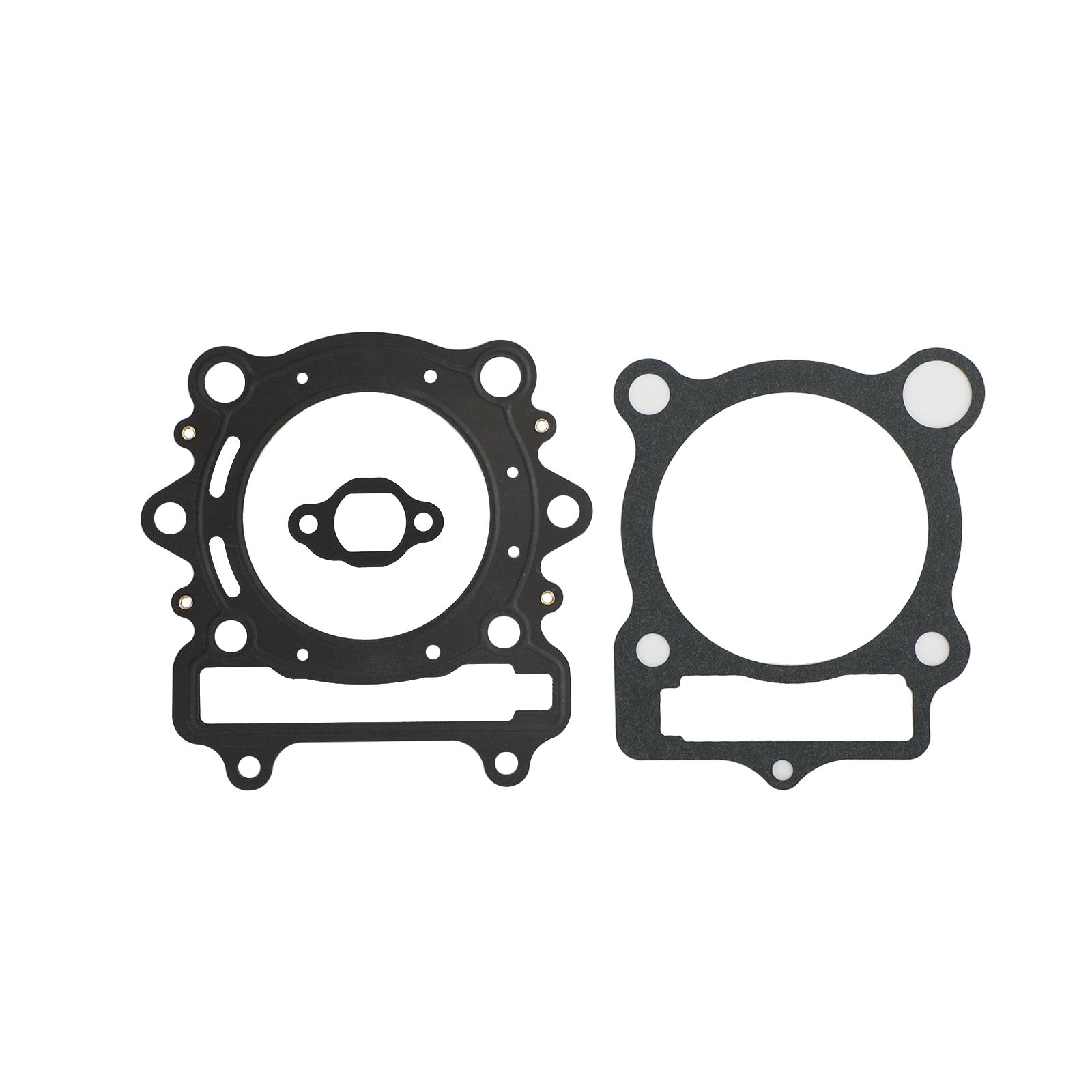

Cylinder Base Gasket: 12150-003-0000
Cylinder Head Gasket: 12250-003-0002
Tensioner Gasket: 14508-002-0000

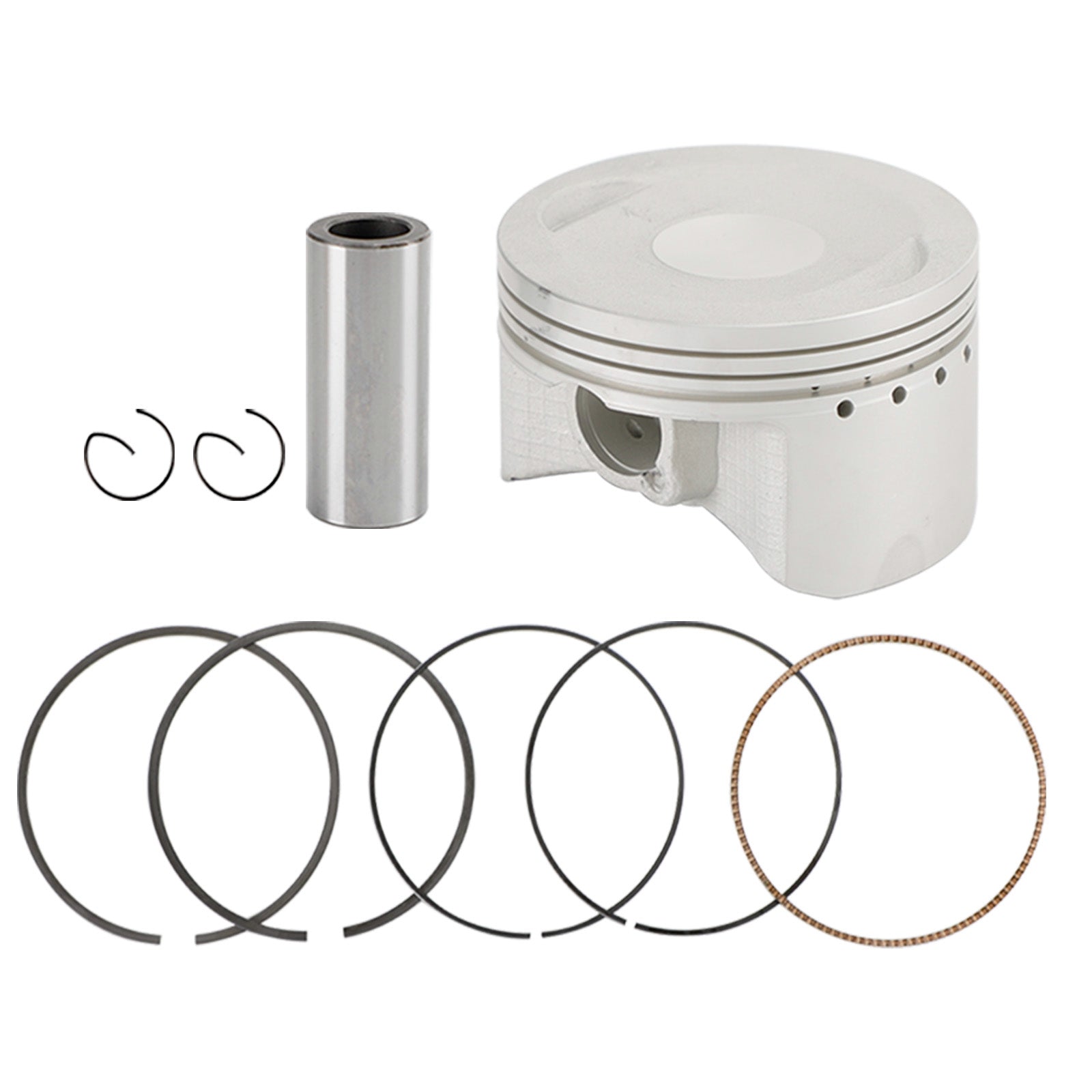

Piston: 13101-004-0000
Piston Ring Set: 13120-004-0000
Piston Circlip: 91301-002-0000
Piston Pin: 13111-004-0000

Fitment:
1. Fits HiSUN 400 UTV'S and ATV's INCLUDING, For Hisun, For Massimo, For Supermach, For Bennche, For Coleman Outtfitter, For Cub Cadet, For Menards Yardsport,
For Qlink, For Big Muddy, For Nordik, For TSC, For Rural King, For Excalibur, For Precision, For JMC and Many Other UTV, ATV 400cc.
2. This does Not fit the CF Moto engine or T-Boss Linhai engines.
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

Package Includes:

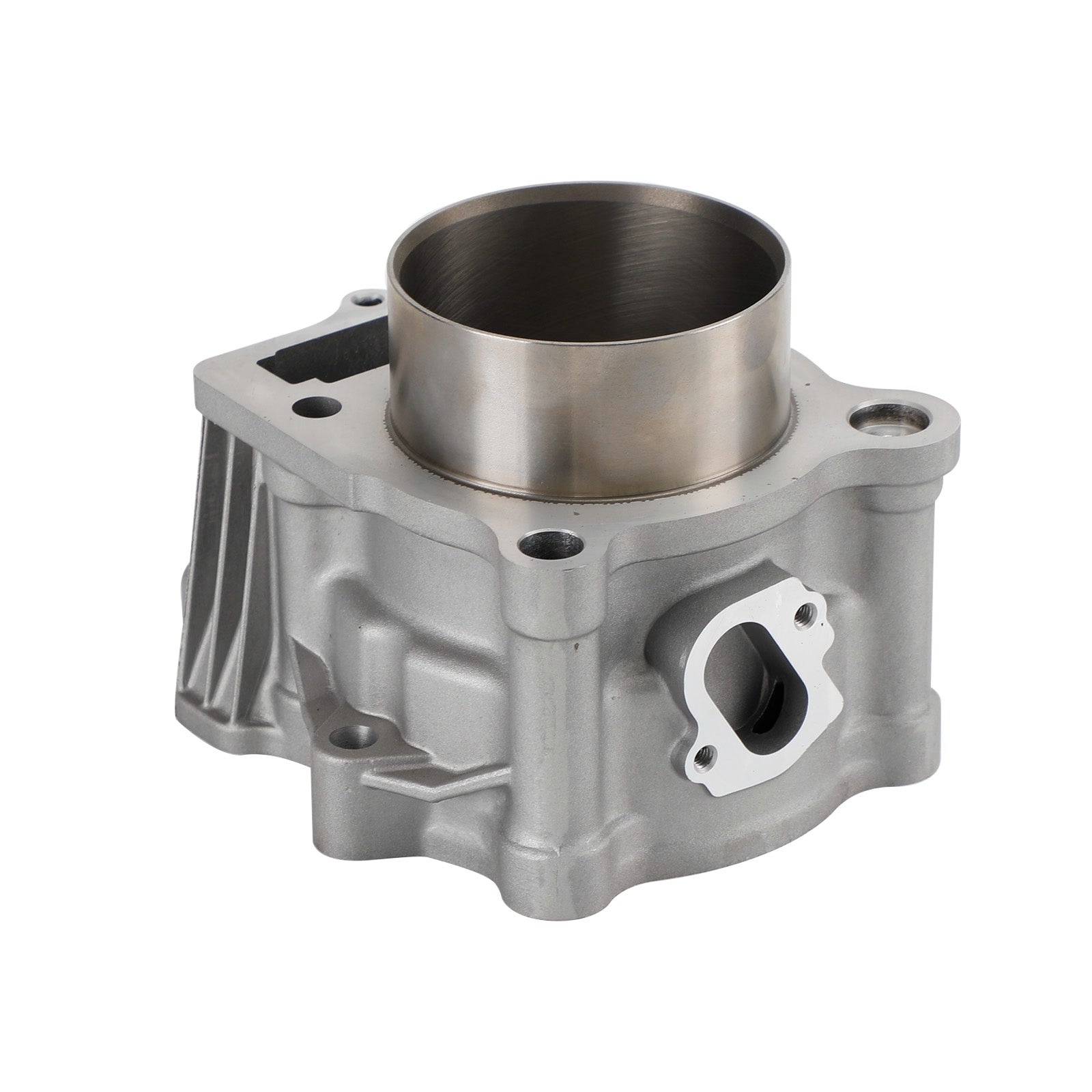

1x Cylinder
1x Piston
1x Piston Ring Set
1x Wristpin
1x Circlip(2)
1x Cylinder Head Gasket
1x Cylinder Base Gasket
1x Tensioner Gasket

Note:
Please check out the product and part number we provided fits your motorcycle or not before you purchase.
