523900 RV Power Gear Slide Out Motor Replacement Slide Out Motor 12V 524097 520819
523900 RV Power Gear Slide Out Motor Replacement Slide Out Motor 12V 524097 520819
Couldn't load pickup availability

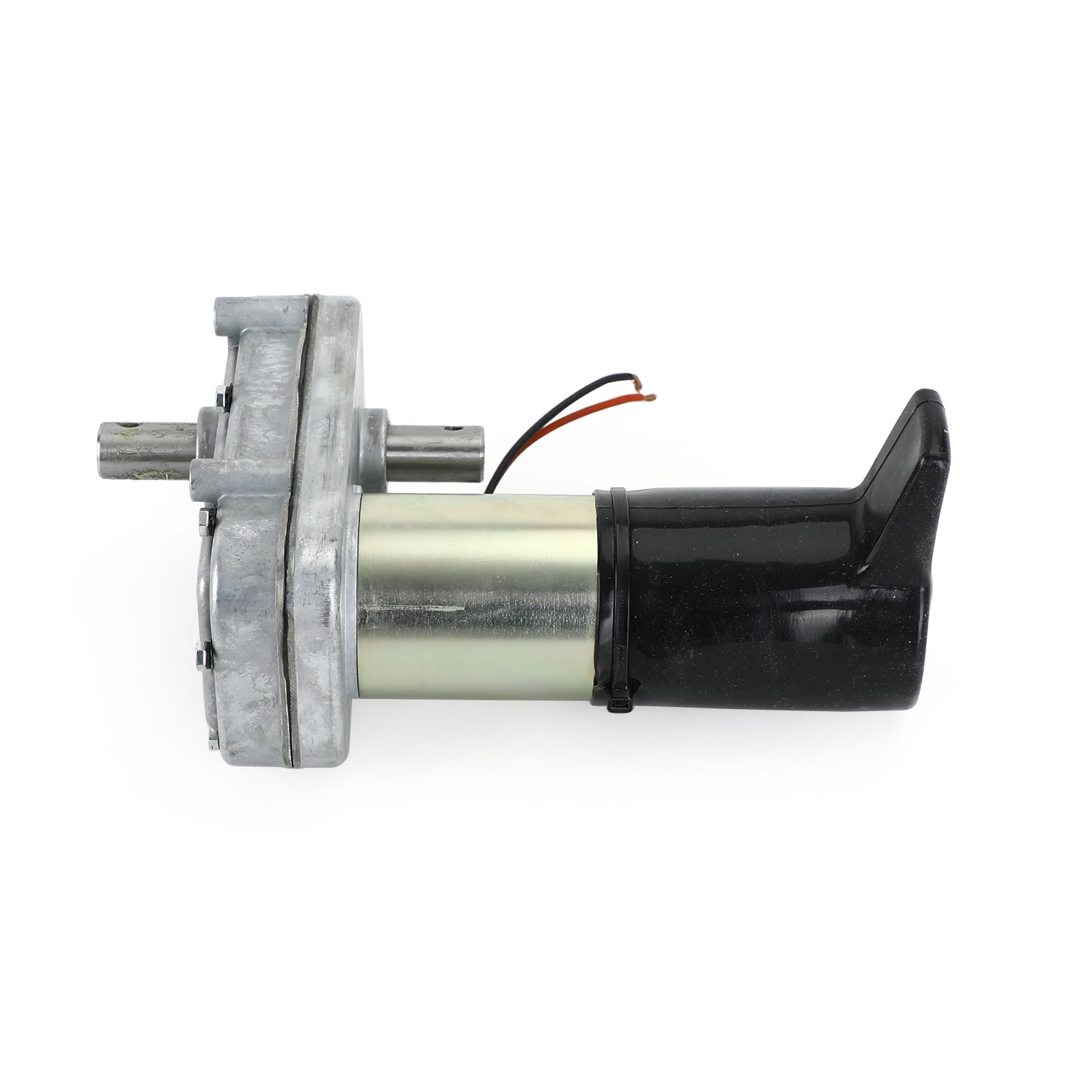

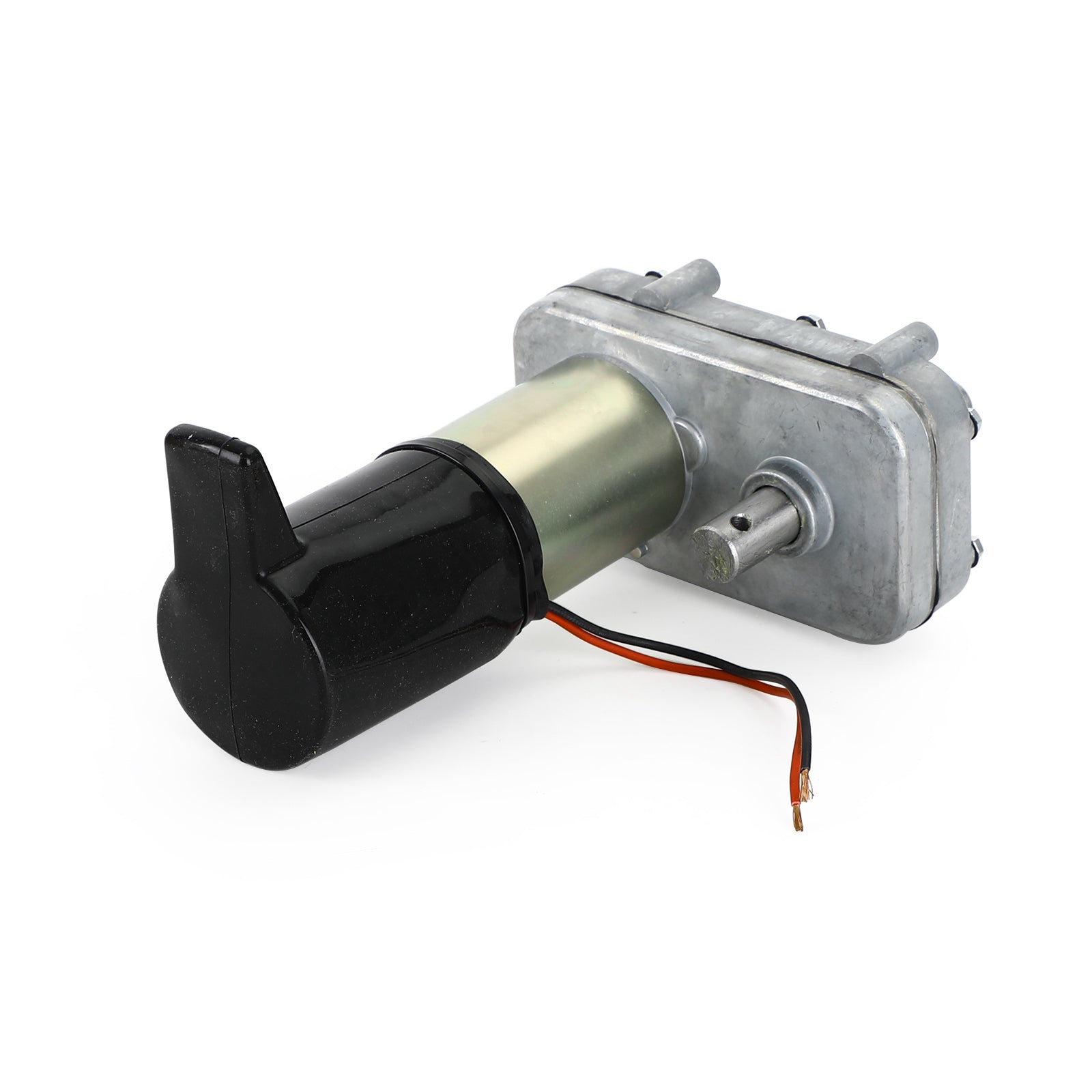

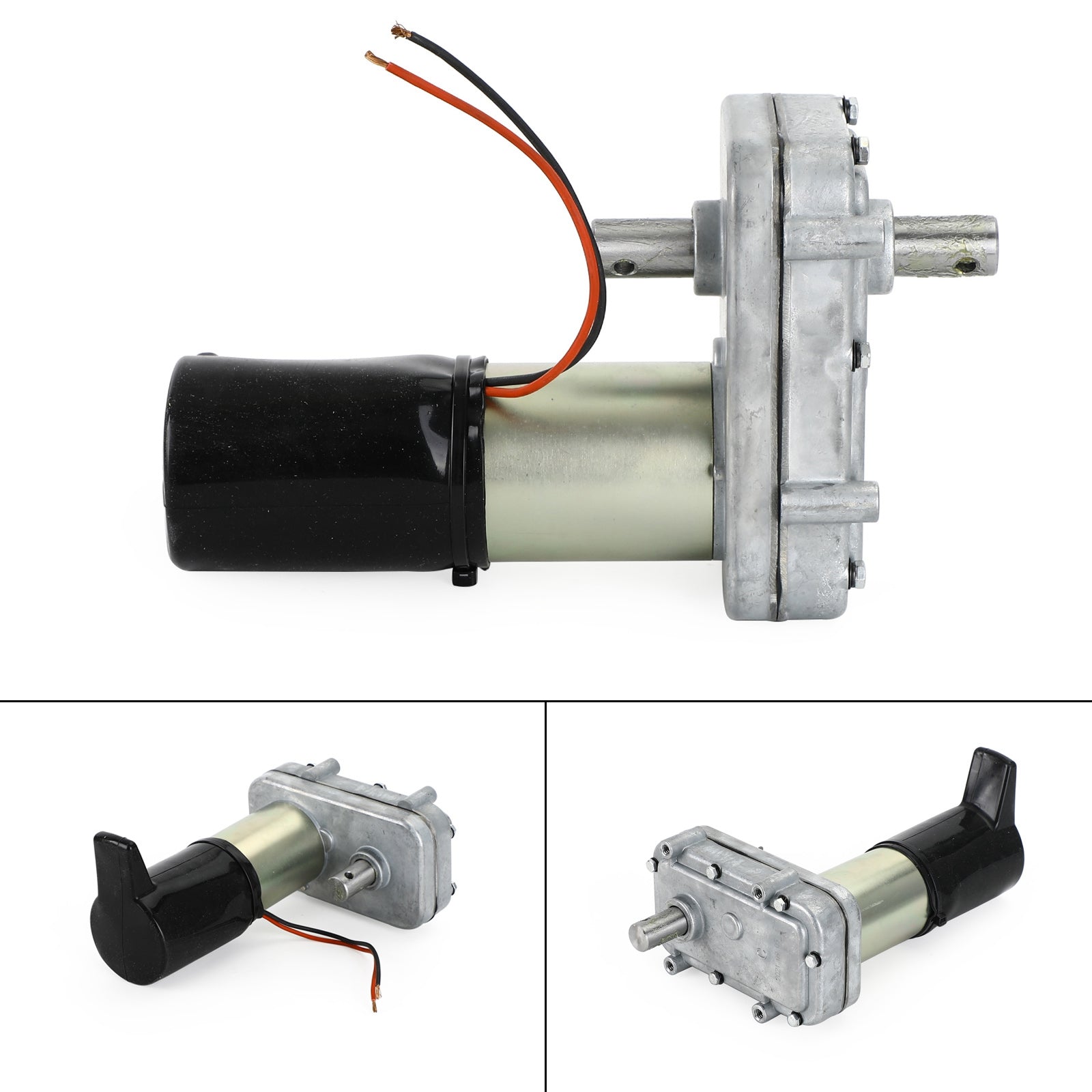

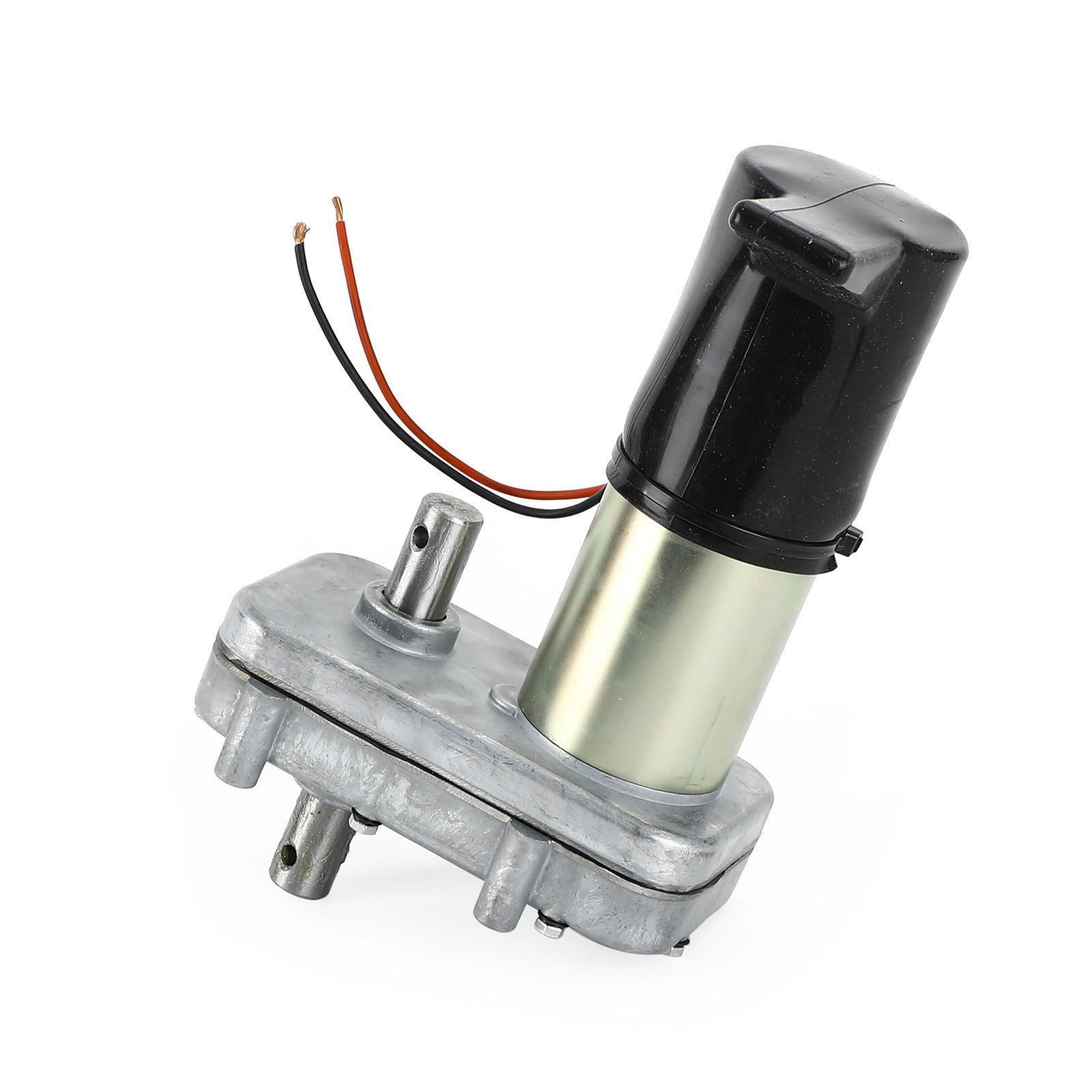

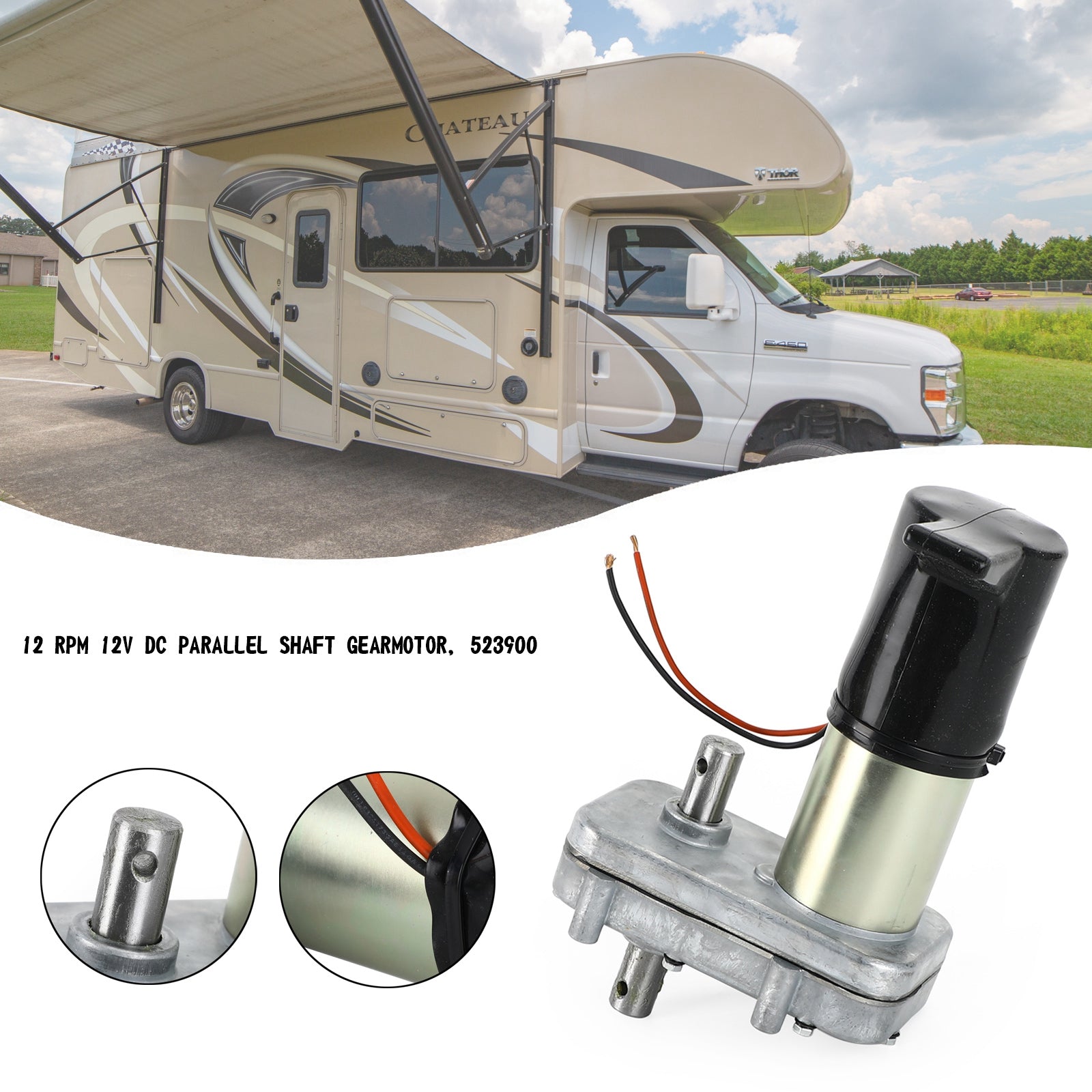

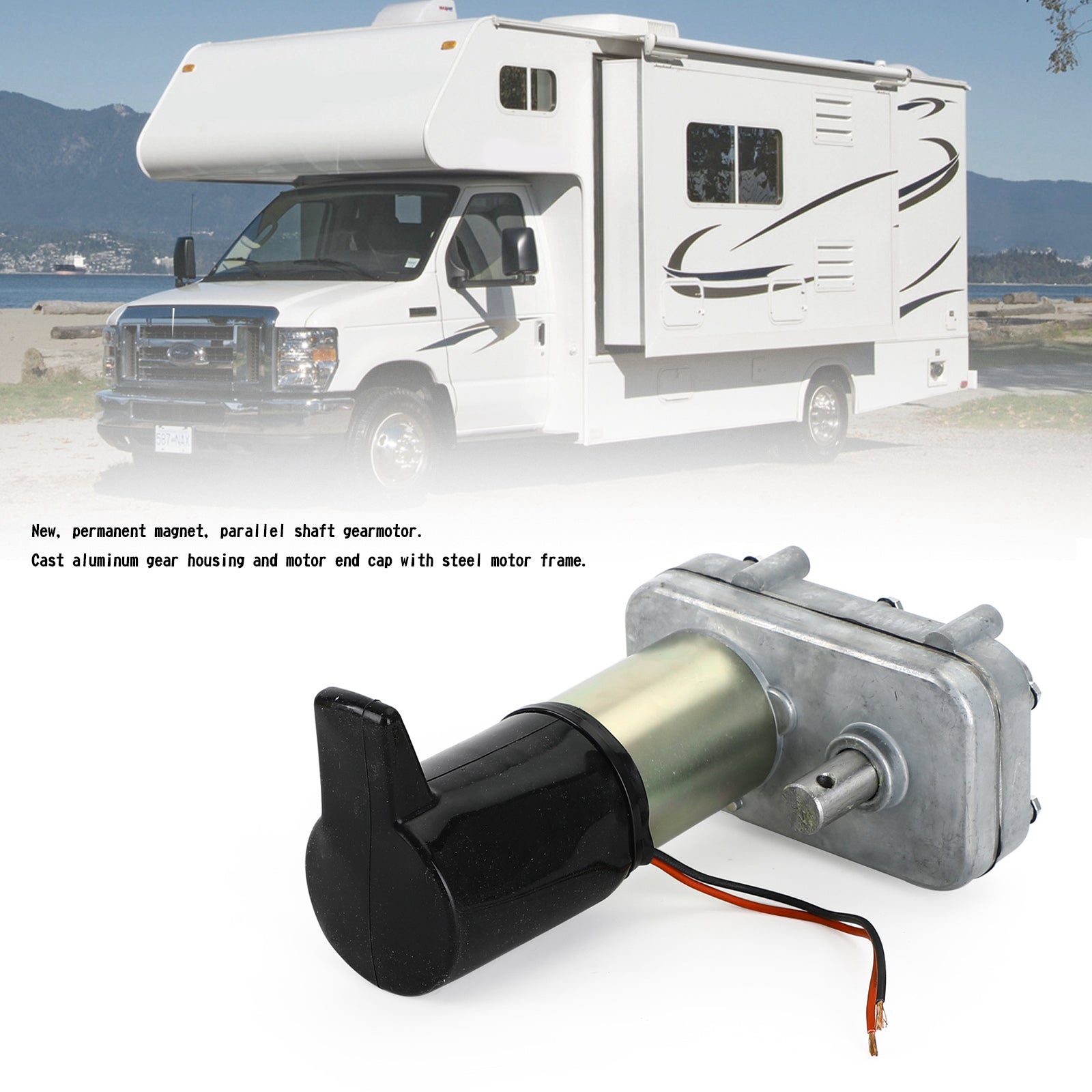

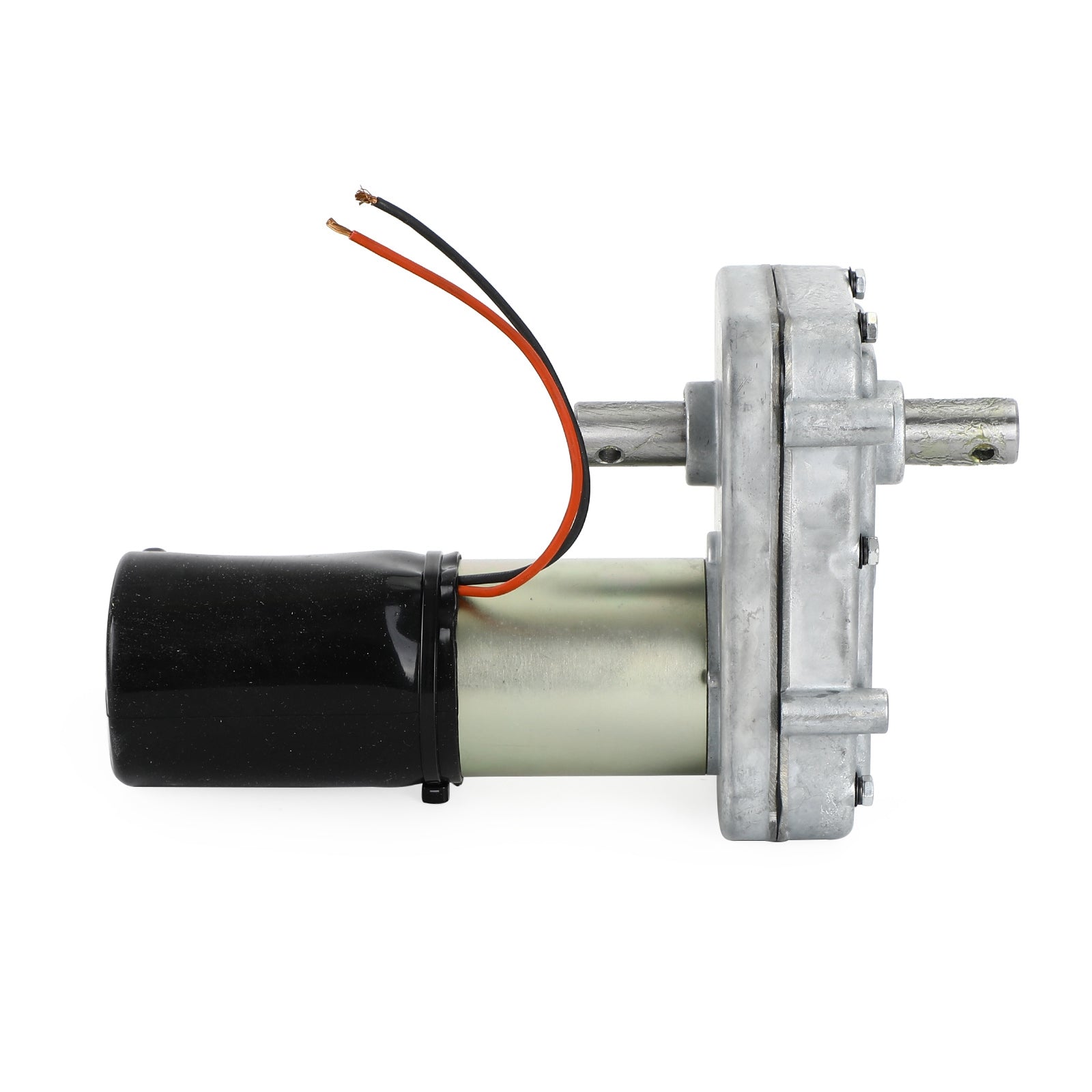

New, permanent magnet, parallel shaft gearmotor.

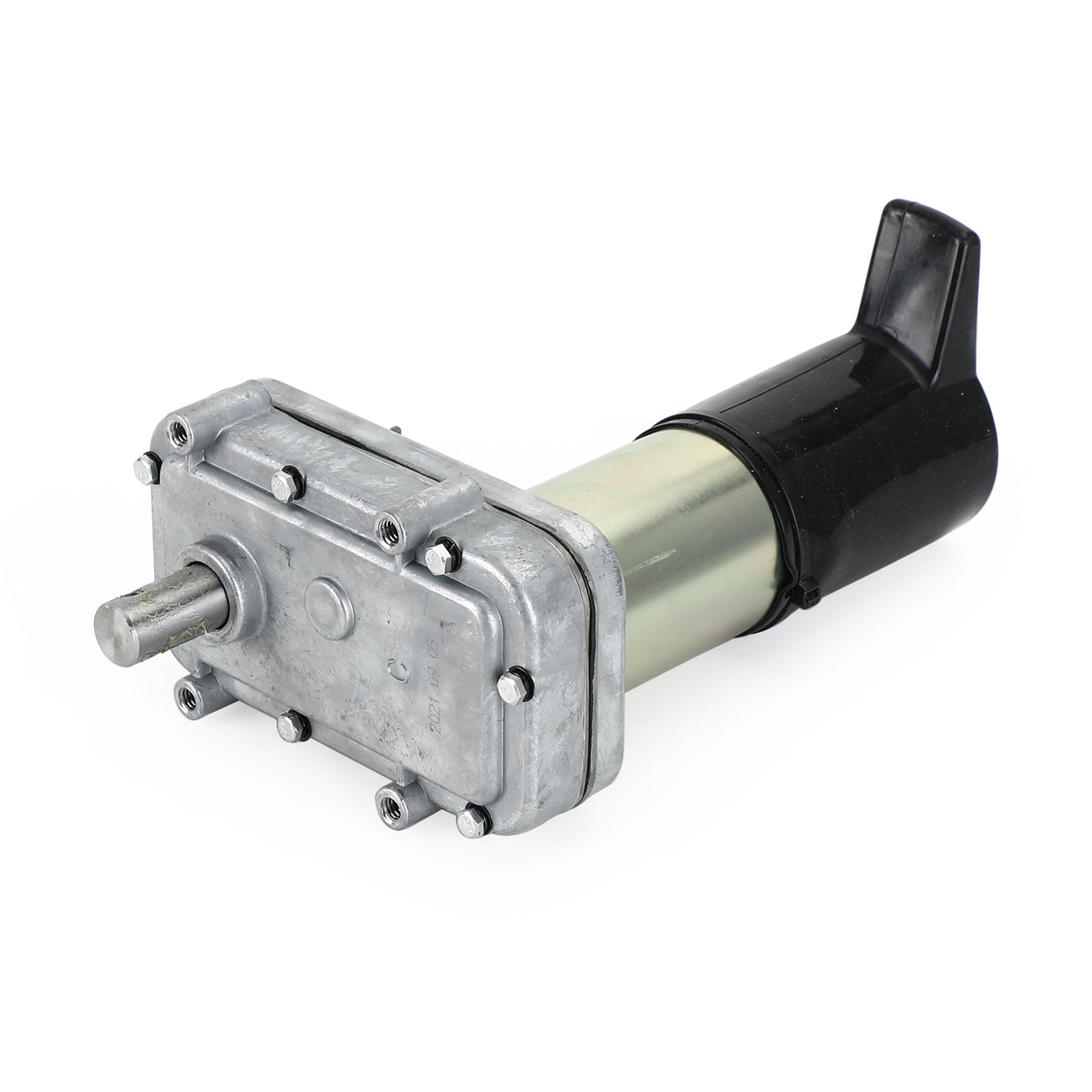

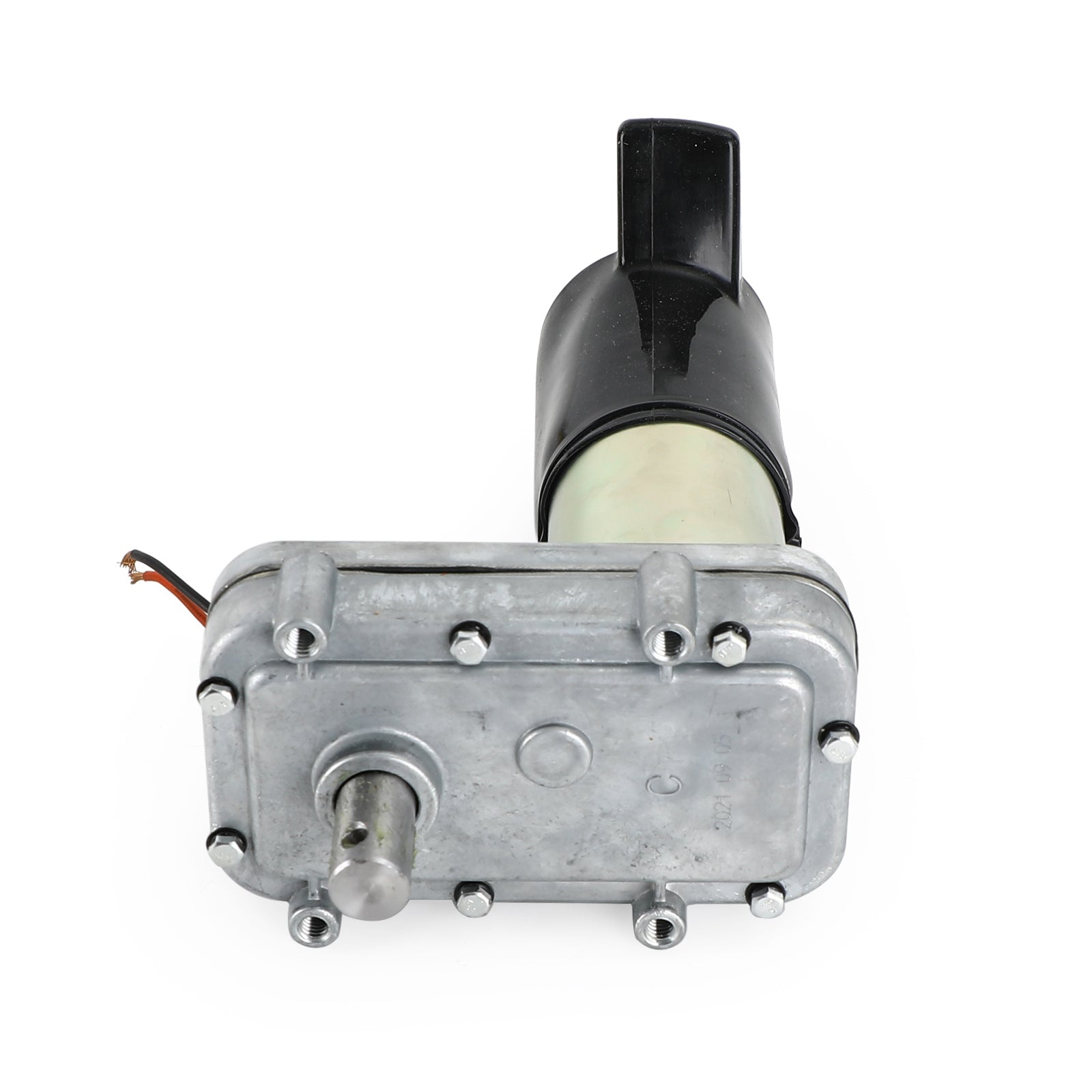

Cast aluminum gear housing and motor end cap with steel motor frame.
12V DC electro-mechanical brake on rear of motor with manual release lever.
Replaces Power Gear motors:
521976W, 521976, 523983, 524327, 524097, 520819, 522967, 523036, 523931, 524246, 523498, 523432, 523143, 523529, 524094, 52441.
[Upgrade Quality] The replacement slide out motor by power gear 523900 is made of durable high-quality materials
Well-tested by the manufacturer, meets OEM standards.
SPECIFICATIONS:
Speed 9 RPM @ 850 in-lbs, 17 Amps
12 RPM @ 400 in-lbs, 9.5 Amps
14 RPM (no load)
Voltage 12 DC
Torque 850 in-lbs
Holding Torque 500 in-lbs.
Rotation Reversible
Duty Intermitten
Shipping Information:
Delivery Time: 3-7 business days.
Free Quick Shipping.
