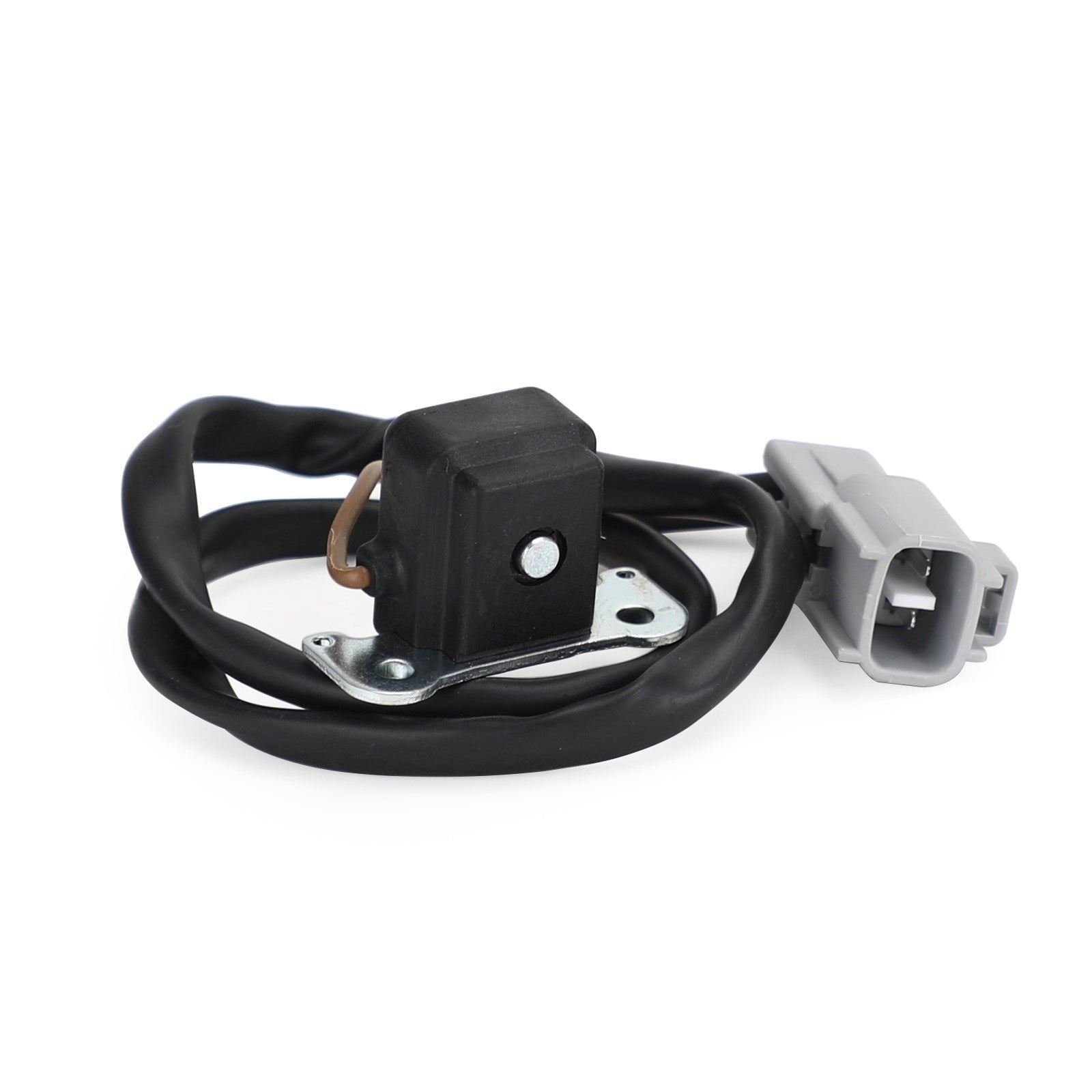

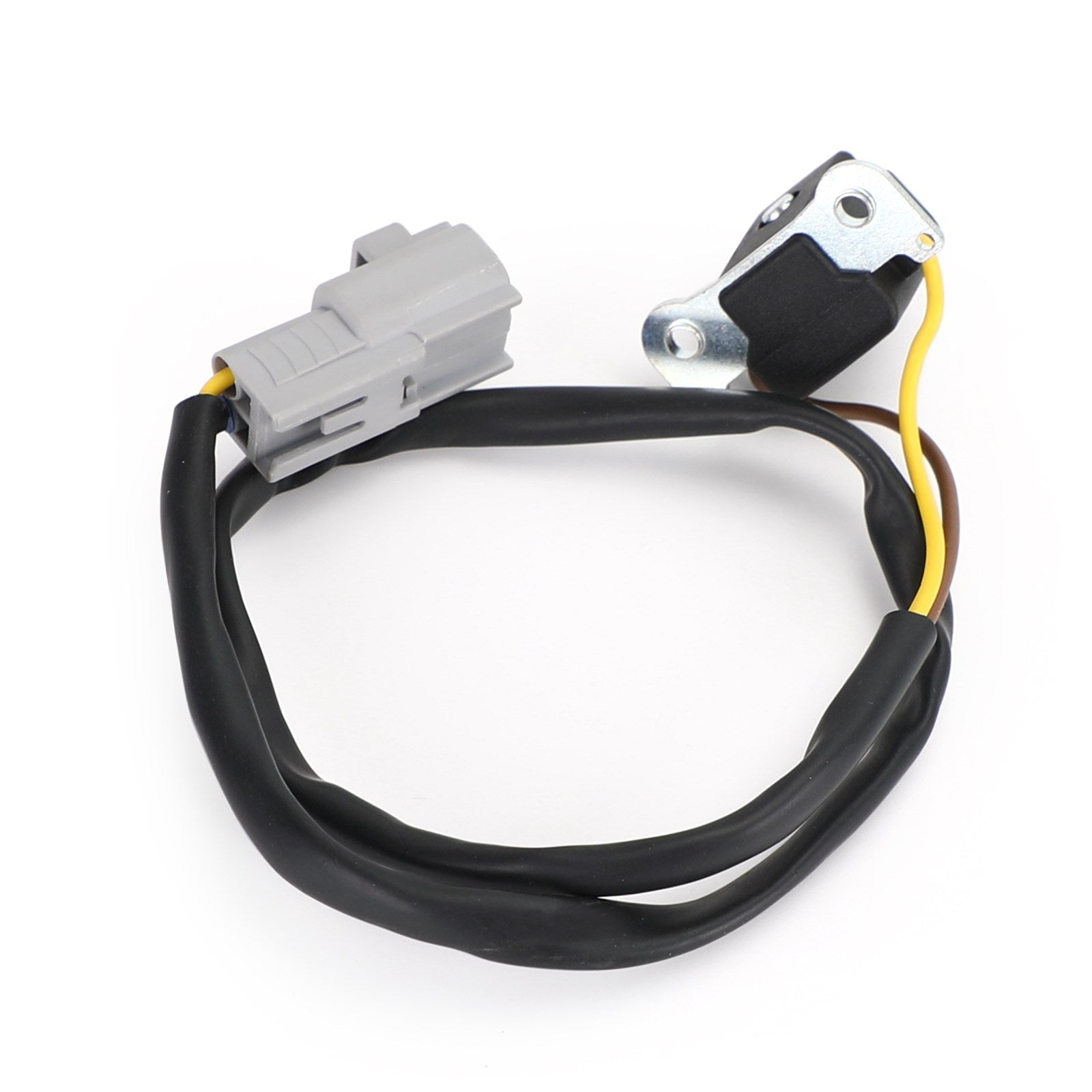

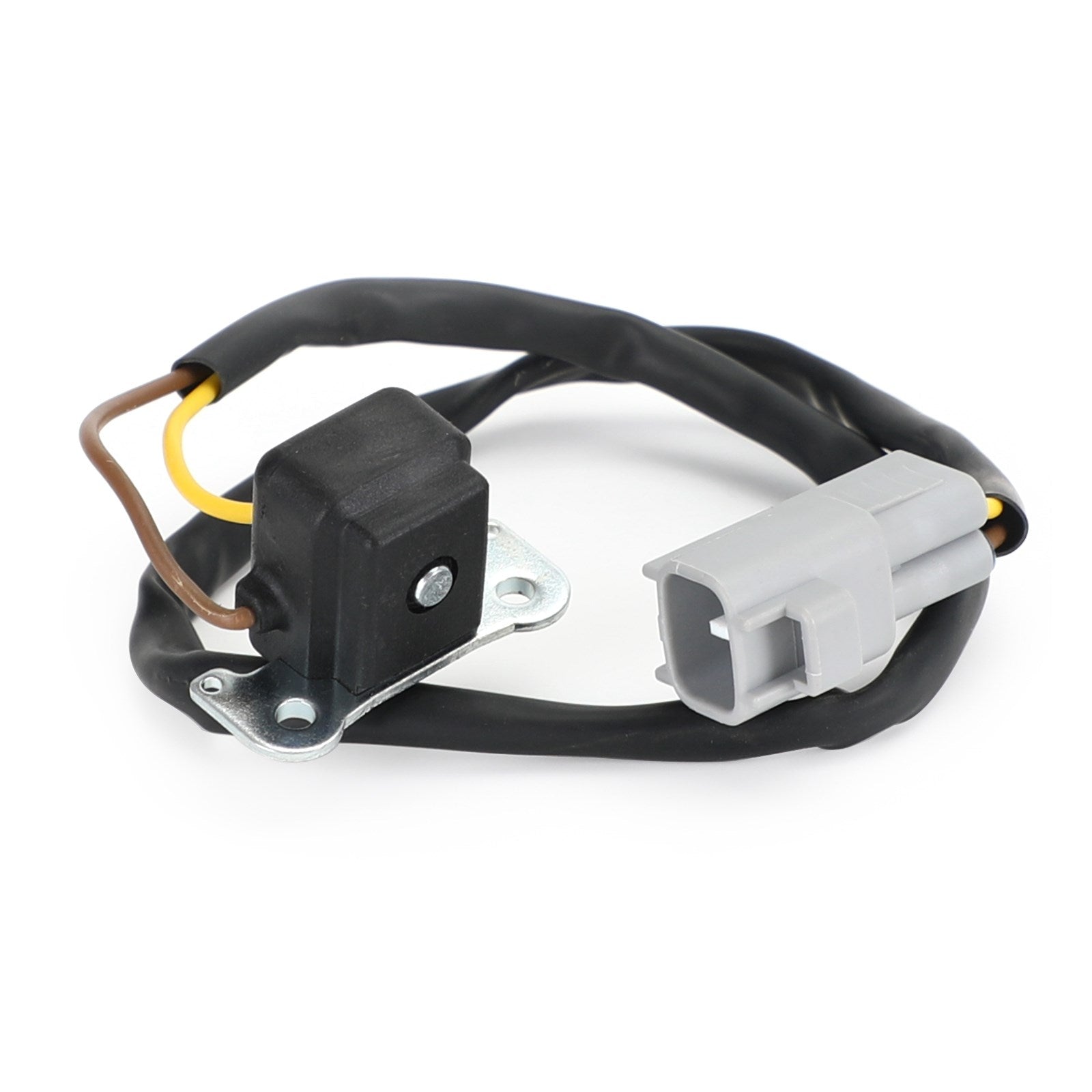

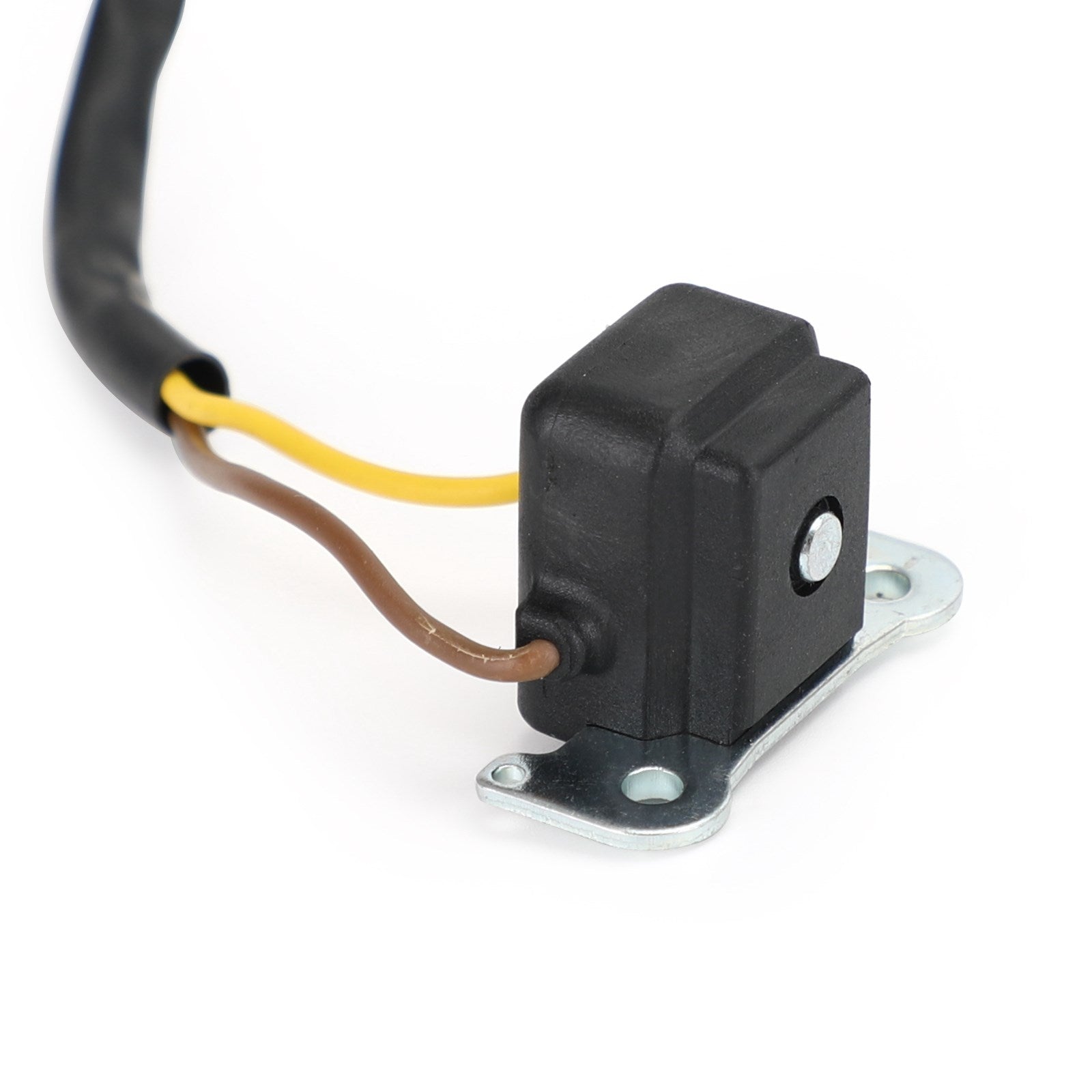

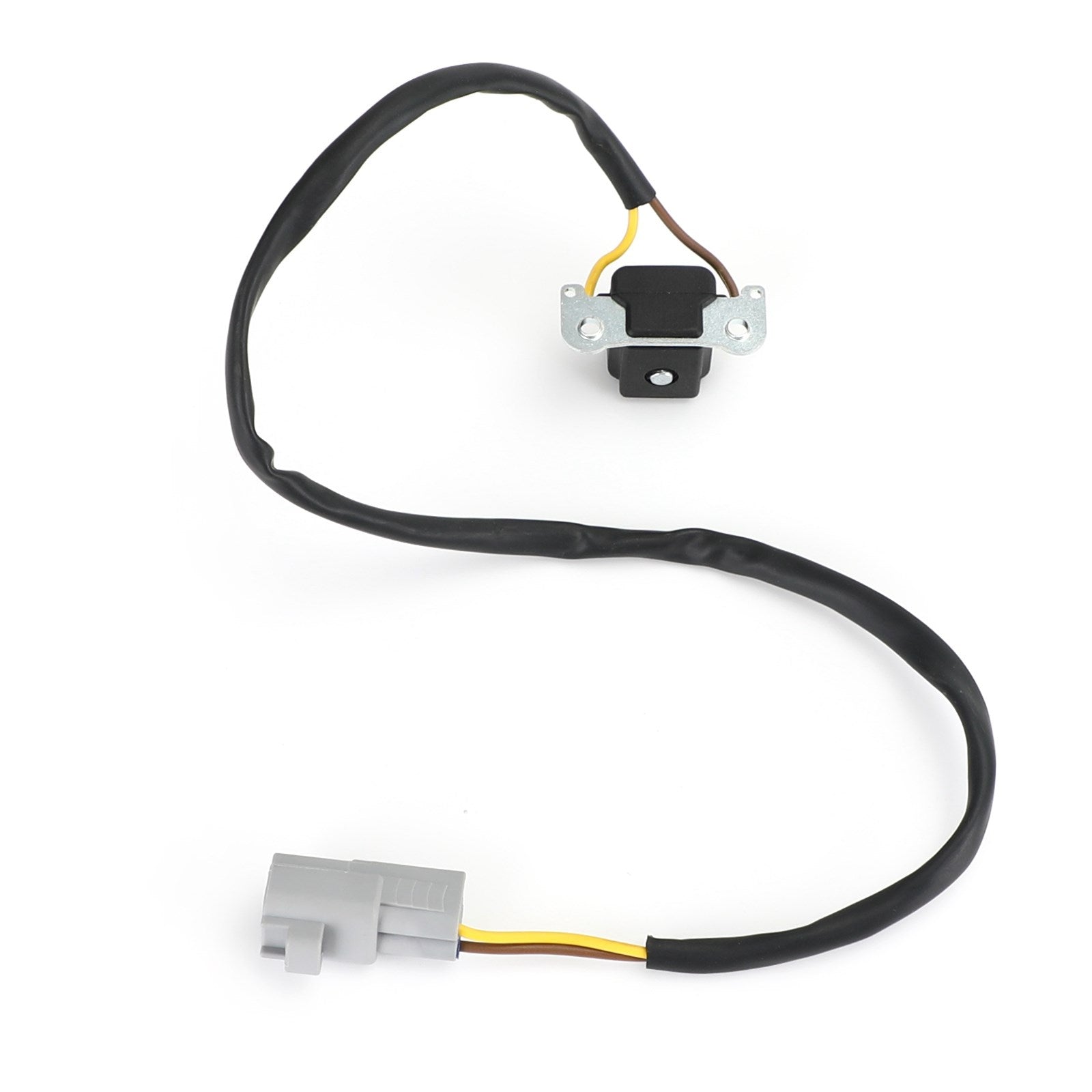

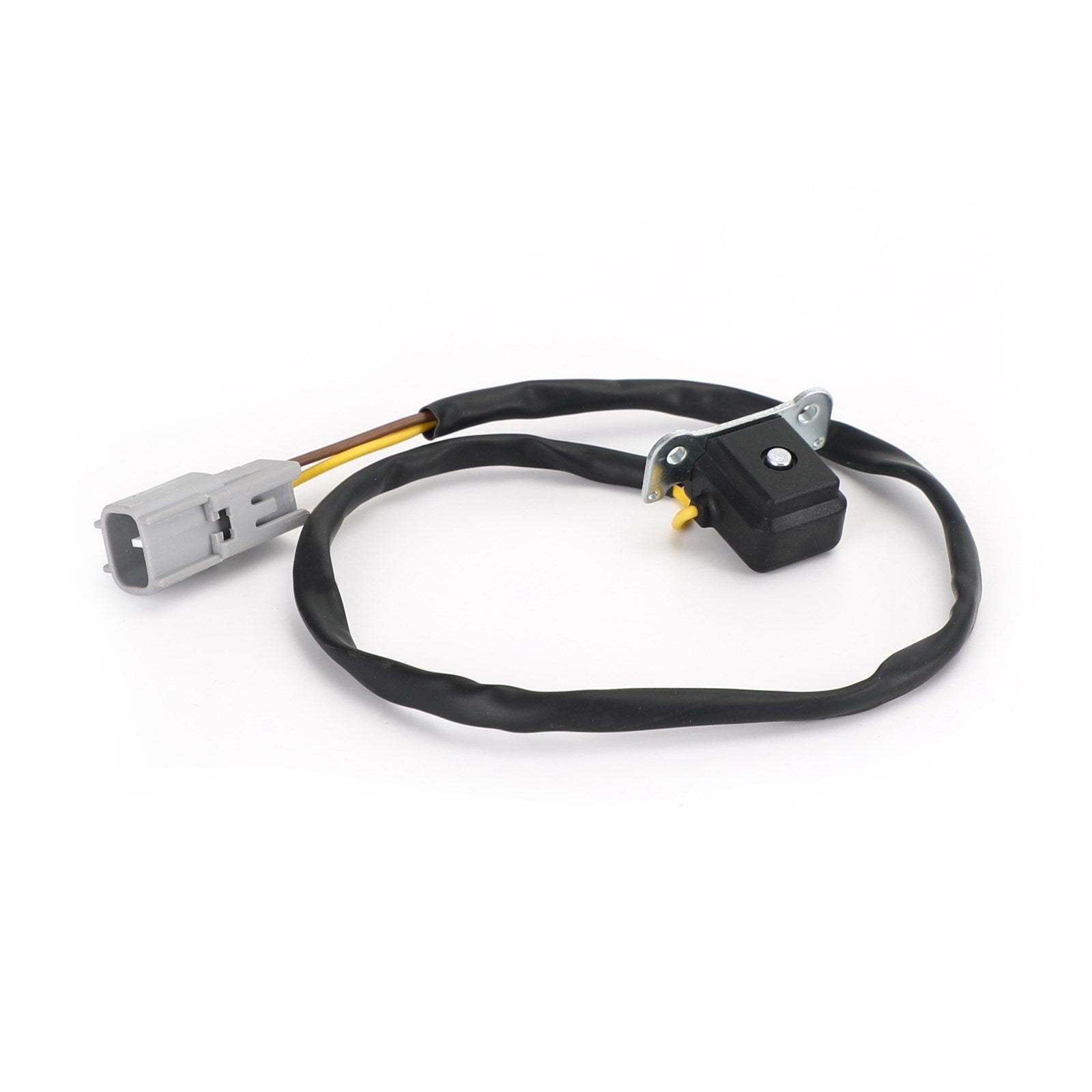

Coil-Pulsing For Kawasaki Mule 3000 3010 3020 4000 4010 59026-2065 59026-0559

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Pick up pulsar coil

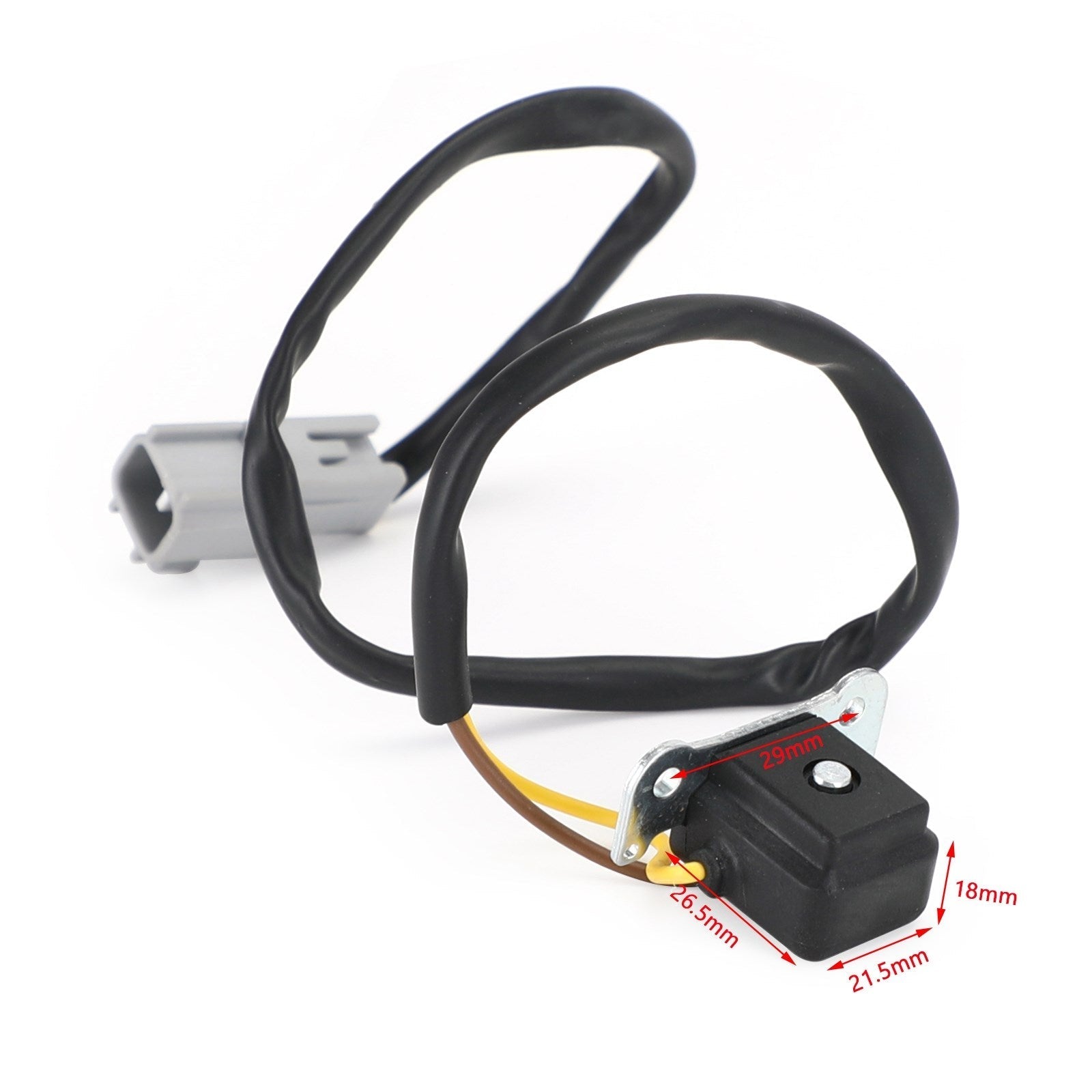

Dimensions:
Height: 18mm
Length: 26.5mm
Width: 21.5mm
Bracket center to center: 29mm


Other Specifications:
Number of wires: 2

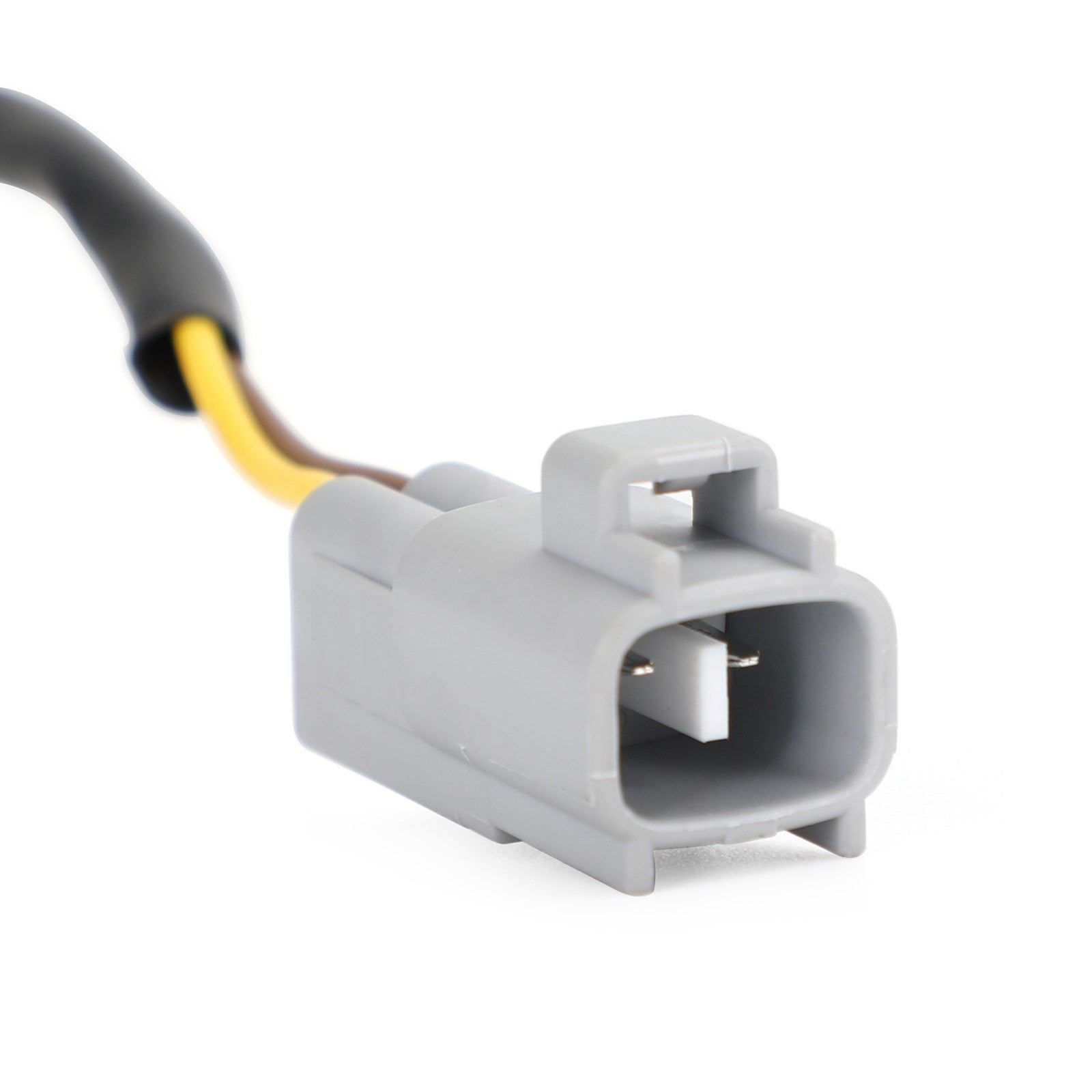

Number of plugs: 1

Replacement Part Number:
59026-2065
59026-0559

Fitments:
Fit for Kawasaki KAF620 Mule 3000 2001-2008
Fit for Kawasaki KAF620 Mule 4000 2009-2018
Fit for Kawasaki KAF620 Mule 3020 Turf 2001-2003
Fit for Kawasaki KAF620 Mule 3010 4X4 2001-2008
Fit for Kawasaki KAF620 Mule 4010 4X4 2009-2018
Fit for Kawasaki KAF620 Mule 4010 4X4 SE 2016-2018
Fit for Kawasaki KAF620 Mule 3010 Trans 4X4 2005-2008
Fit for Kawasaki KAF620 Mule 4010 Trans 4X4 2009-2010
Fit for Kawasaki KAF620 Mule 4010 Trans 4X4 SE 2016-2018
Fit for Kawasaki KAF620 Mule 4010 Trans 4X4 Camo 2014-2017
Fit for Kawasaki KAF620 Mule 4010 Trans 4X4 Realtree APG HD 2009-2013
Fit for Kawasaki KAF620 Mule 3010 4X4 Advanrage Classic 2003
Fit for Kawasaki KAF620 Mule 3010 Trans 4X4 Hardwoods Green HD 2005-2008
Fit for Kawasaki KAF620 Mule 4010 4X4 Hardwoods Green HD 2009
Fit for Kawasaki KAF620 Mule 3010 4X4 Hardwoods Green HD 2004-2008

Features:
Brand new pickup/pulsar coil for you to repair your stator.
Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
Often unavailable from the OEM manufacturer.
All products shipped are tested.

Package Included:
1x Pick up pulsar coil

Note:
Not following these instructions may result in damaging the part or other components on your vehicle.
-By using a small soldering iron weld the wires to the ones on your OEM wiring harness.
-Insulate your solders with heat shrink.
-Before attempting to start your vehicle, adjusting the air gap is necessary for certain models.
-Rotate the fly wheel by hand so the raised node is lined up with the pick up /pulsar coil and adjust as close as possible, but no less than 0.010 in.
-If no spark or erratic spark, switch the wires at the plug.

Shipping:
Free Shipping
Item location: Los Angeles, California warehouse
Delivery Time: 3-7 working days

Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
