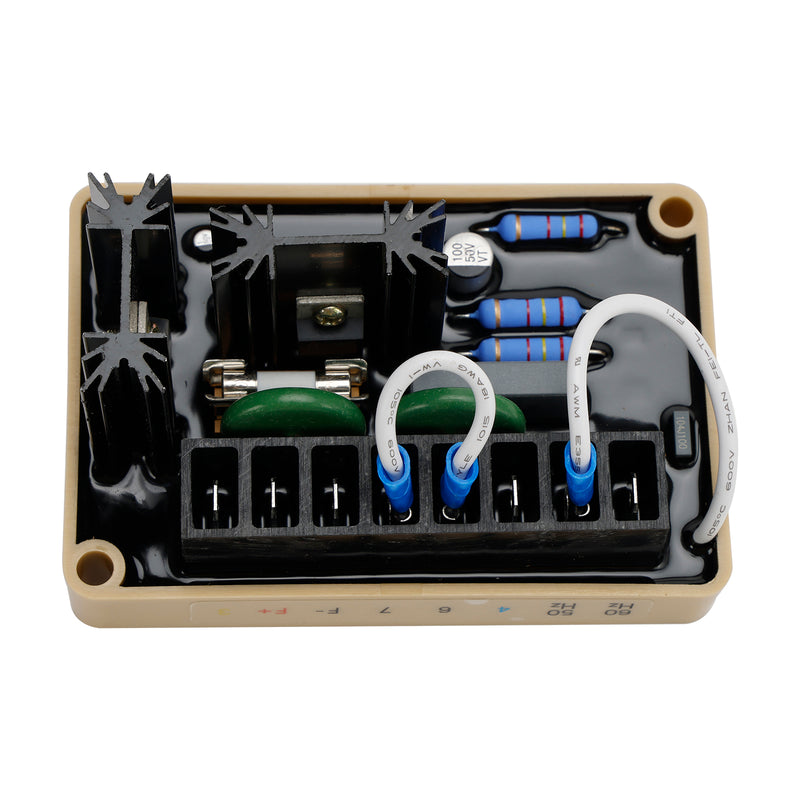

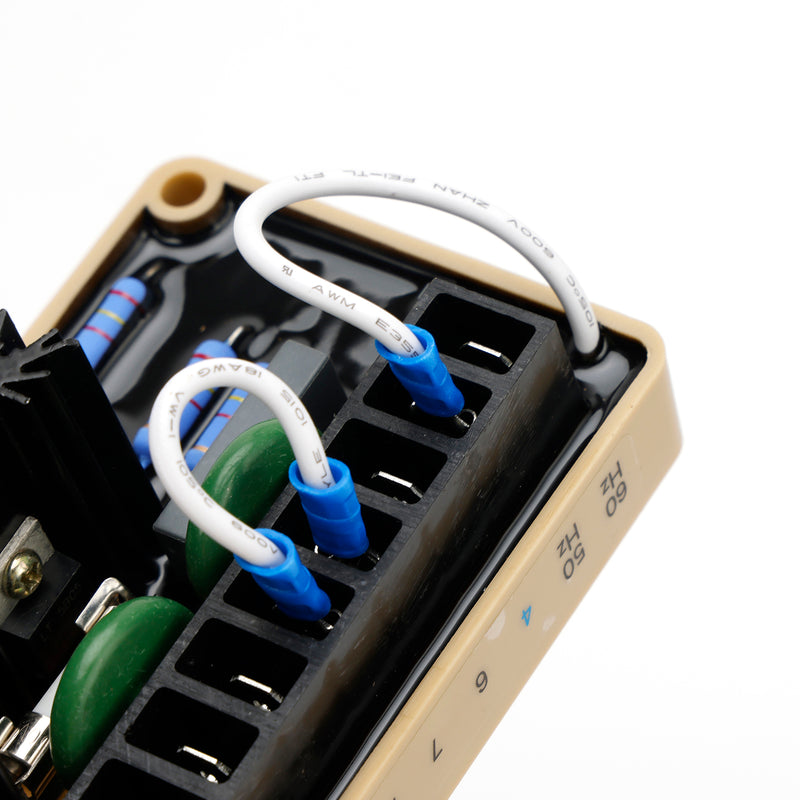

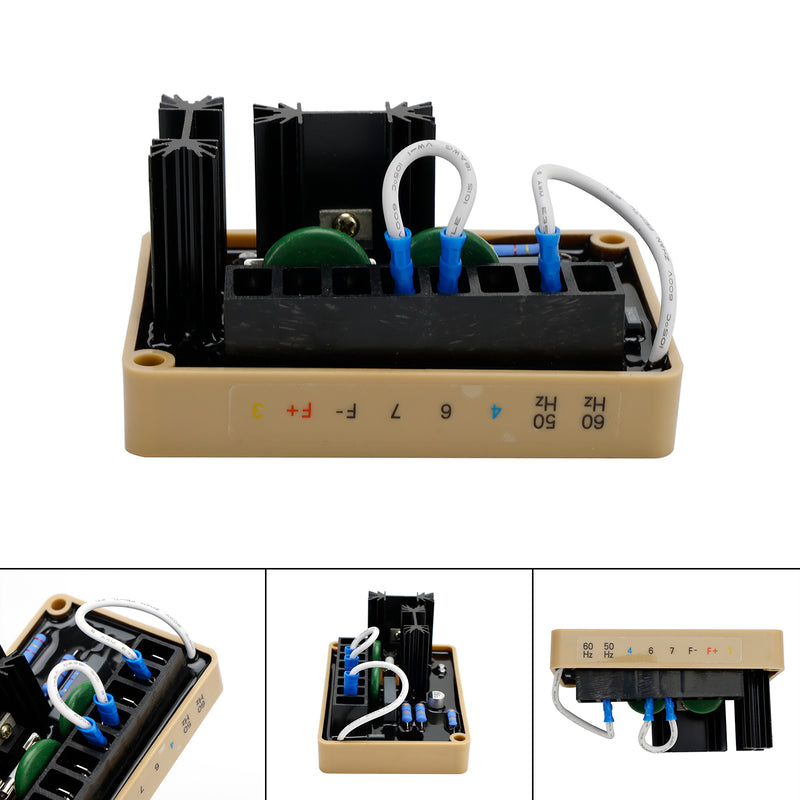

AVR SE350 Automatic Voltage Regulator Compatible With Marathon Generator

?

The SE350 voltage regulator is an encapsulated electronic voltage regulator
that controls the output of a brushless AC generator by regulating the current into the exciter field.

Specifics:
Condition: 100% Brand New
Sensing&Power Input: 190-240 Vac
Burden: 500 VA
Output Power-Continuous: 73 Vdc at 3.5 Adc(255w)
Outout Power-Forcing(240 Vac Inout Power): 105Vdc at 5Vdc (525w)
Regulation: 1.0%
Remote Voltage Adjustment Range:
��10% with 2000 ohm rheostat
��5% with 1000 ohm rheostat
Frequency Compensation: Adjustable
Roll off Frequency:
54-61 Hz for 60Hz
45-51 Hz for 50Hz
Weight: 6.5 oz
Operating Temperature: -40��?to +60��?
Storage Temperature: -65��?to +85��?
Power Dissipation: 8 watts maximum

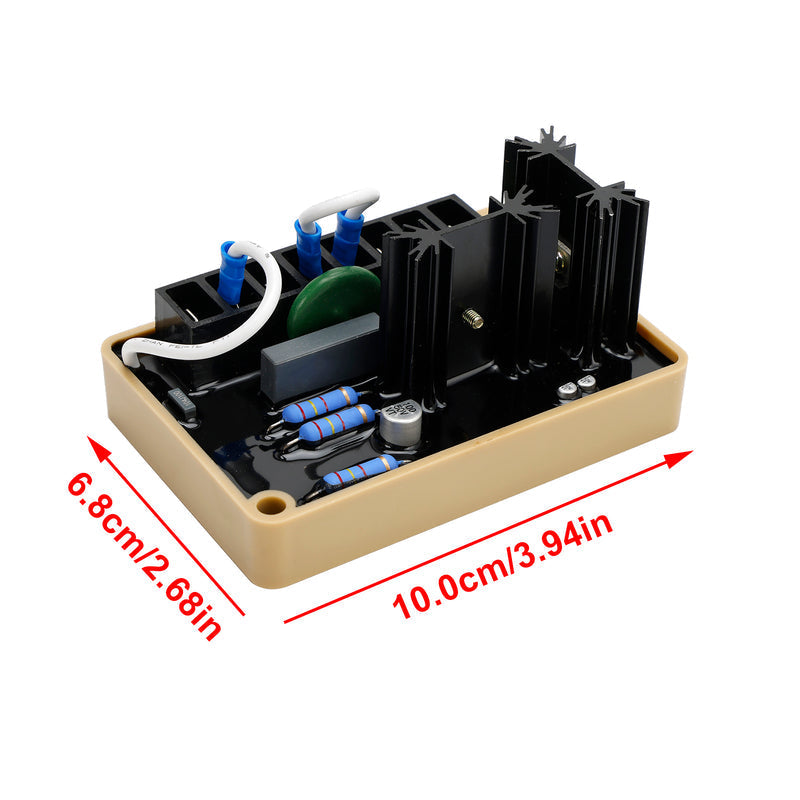

Size: 3.94"��2.66"��2.2" (Length��Width��Height)
Voltage Buildup: Internal provisions forautomatic voltage build up from generator residual voltage as low as 10 Vac.
EMI Suppression: Internal Electromaghetic Interference Filter(EMI Filter)

Note:
1.Please allow 1-3mm difference due to manual measurement.
2.Due to the light and screen difference, the item's color may be slightly different from the pictures.

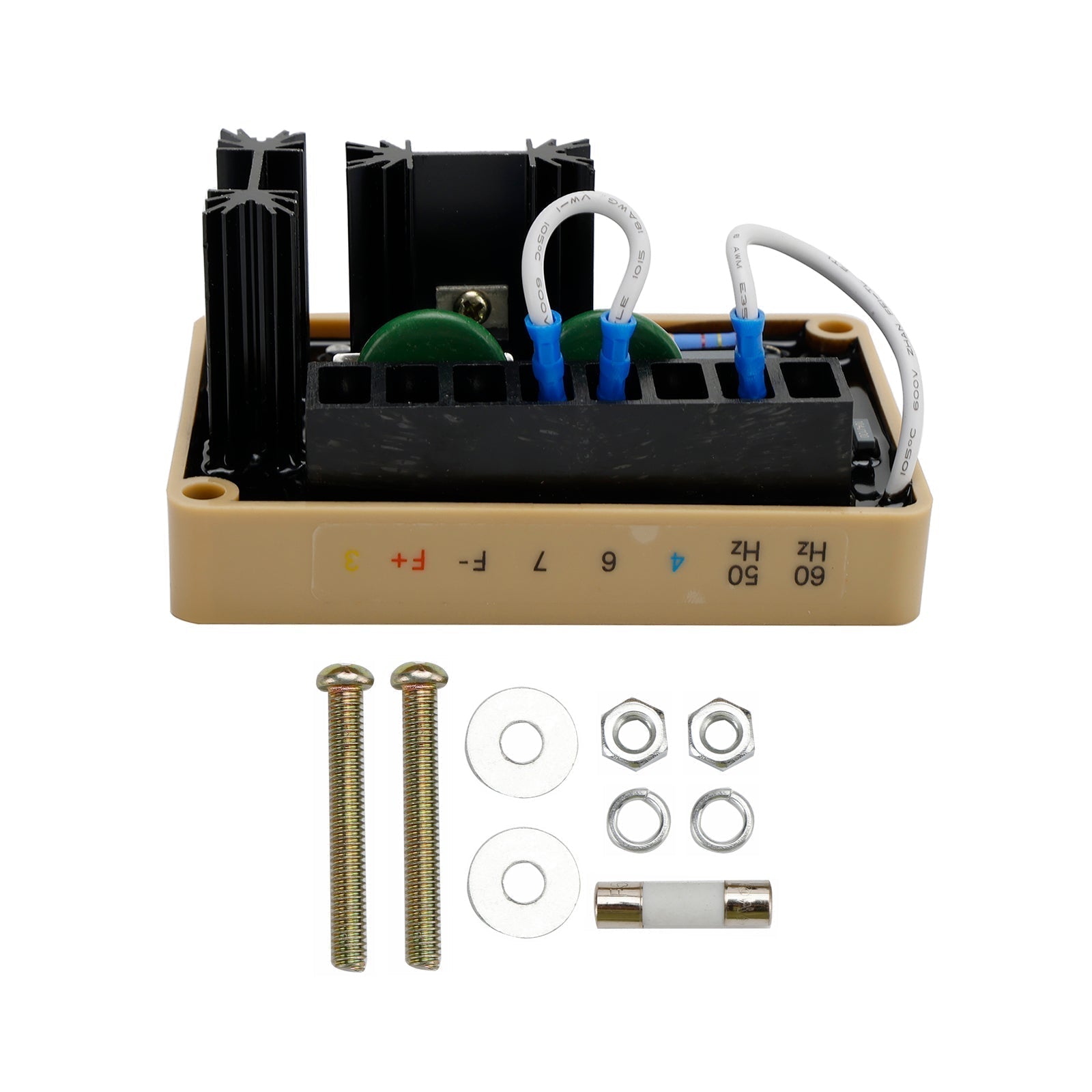

Package Included:
1 X Product Instructions
1 X AVR SE350 Automatic Voltage Regulator
