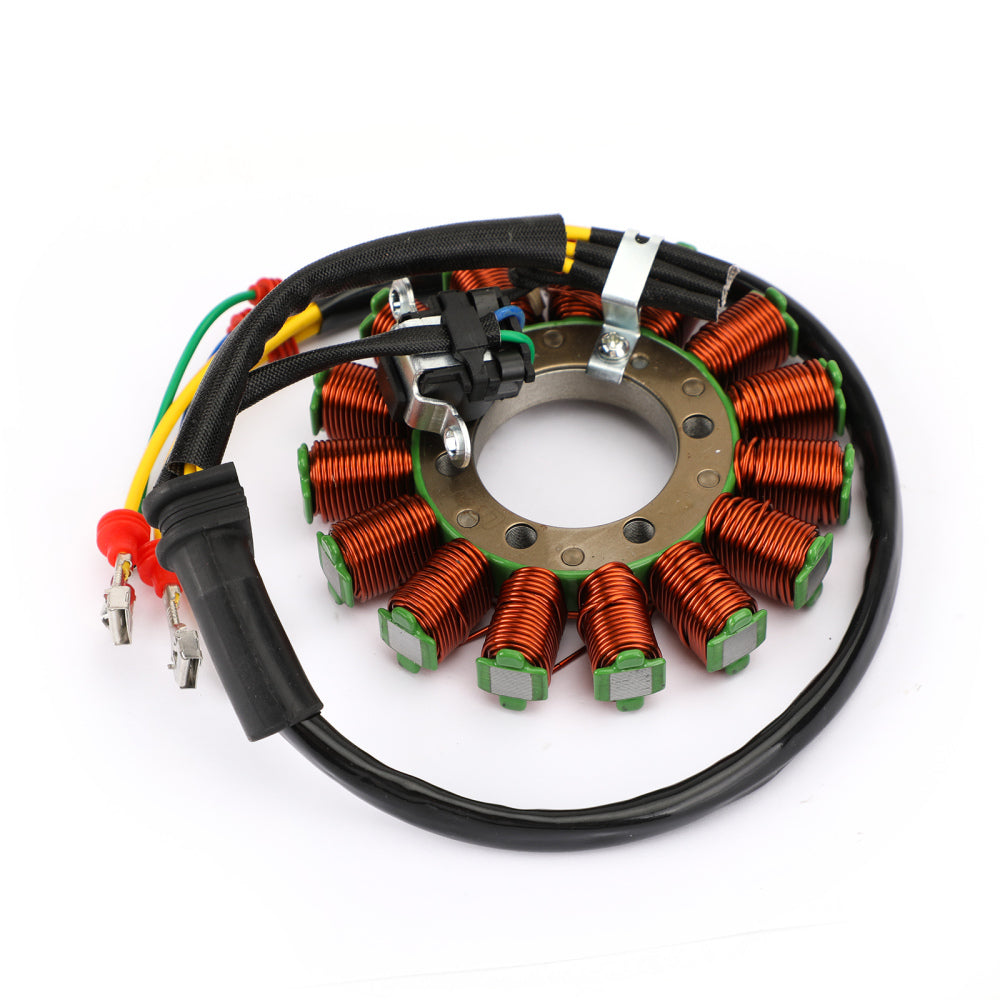

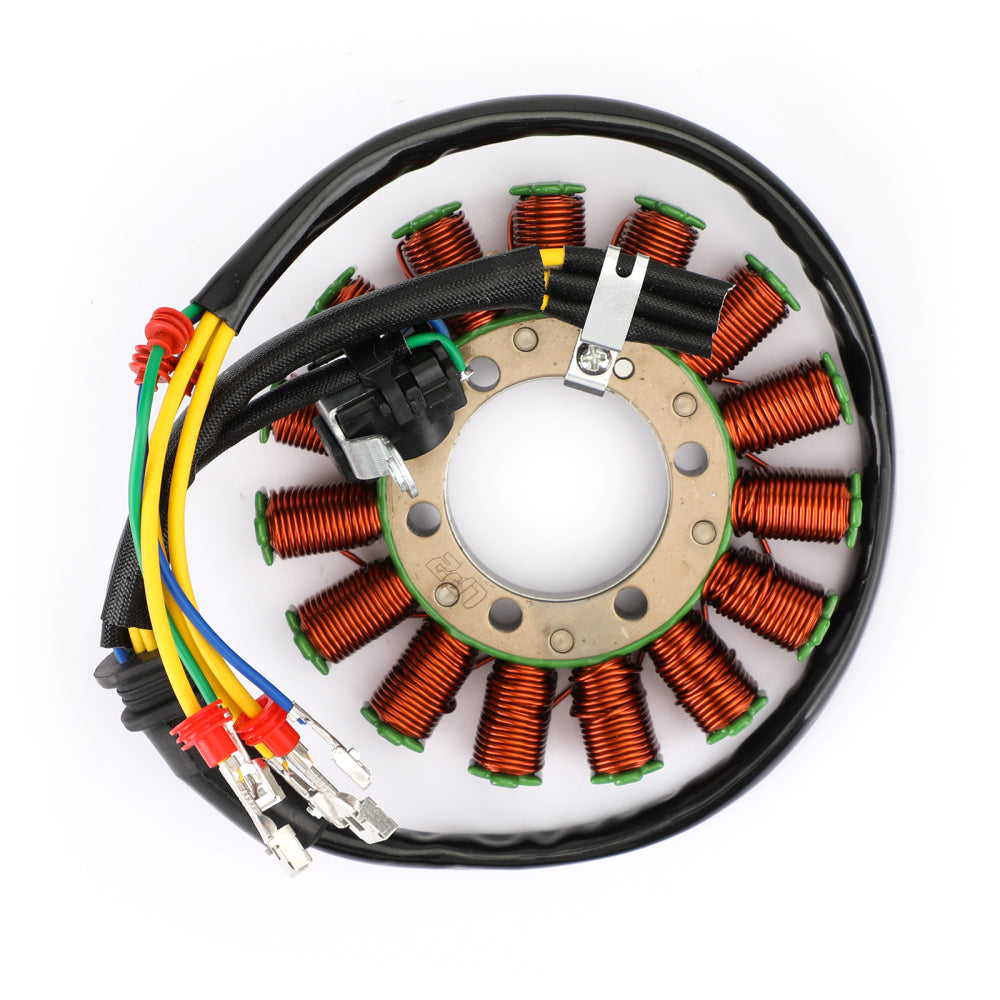

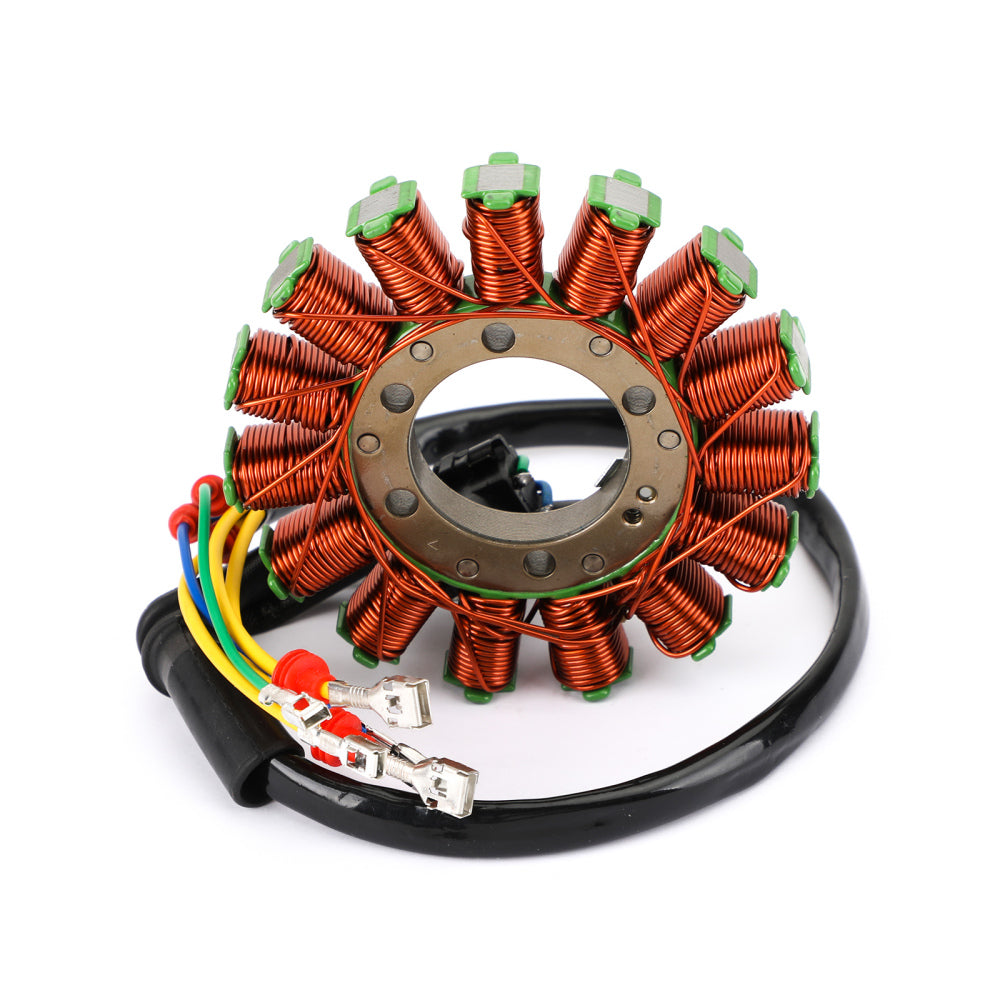

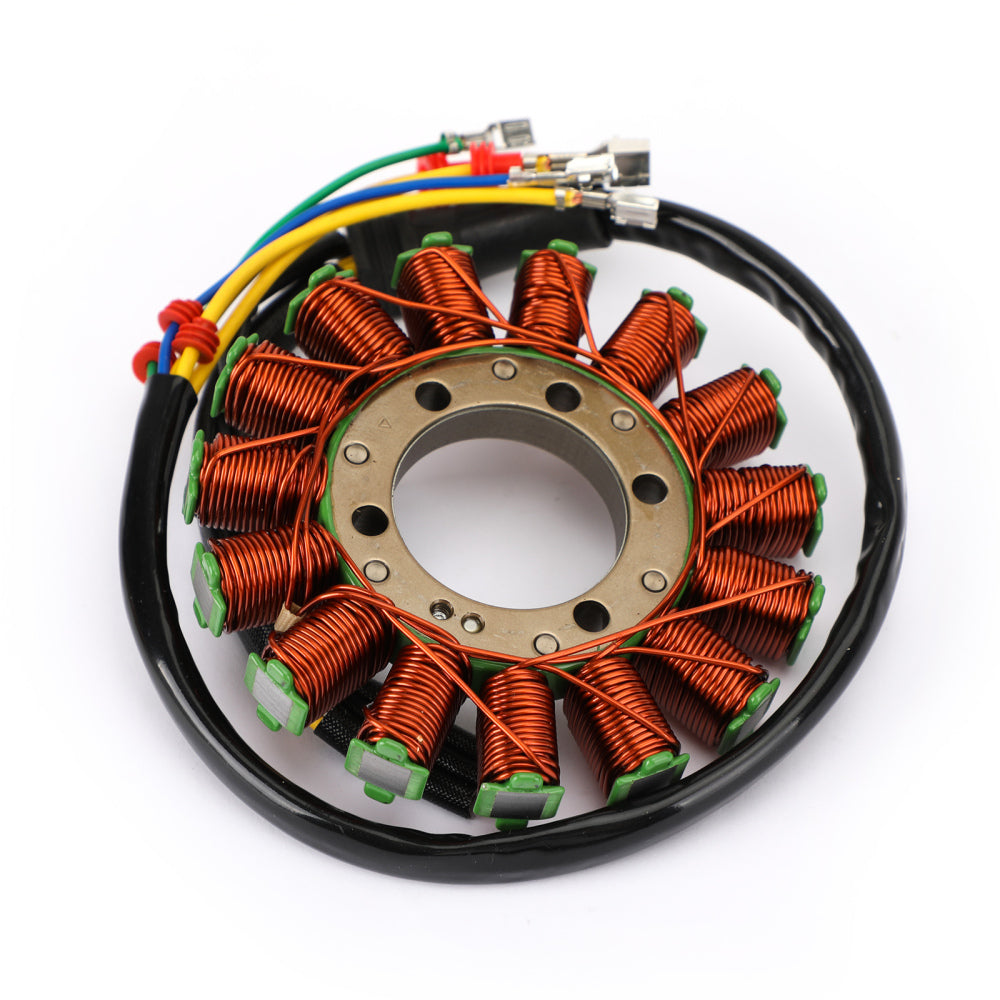

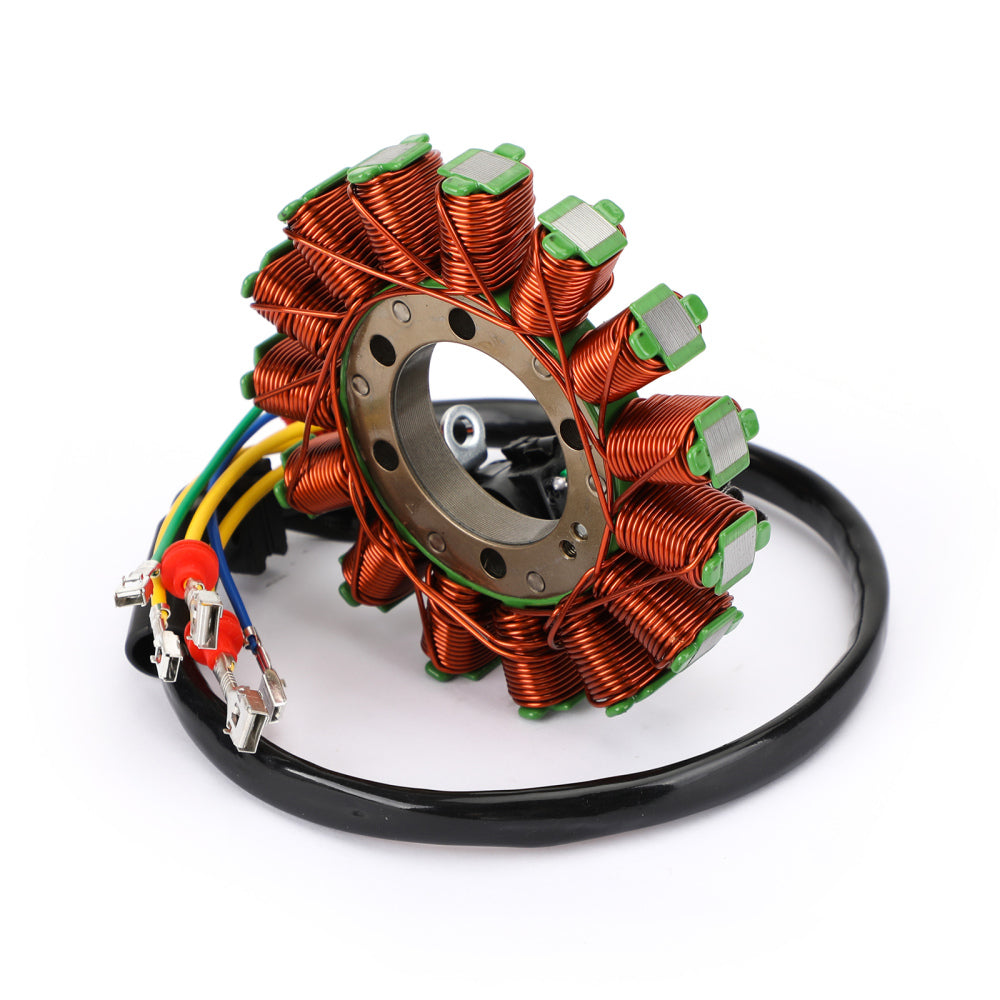

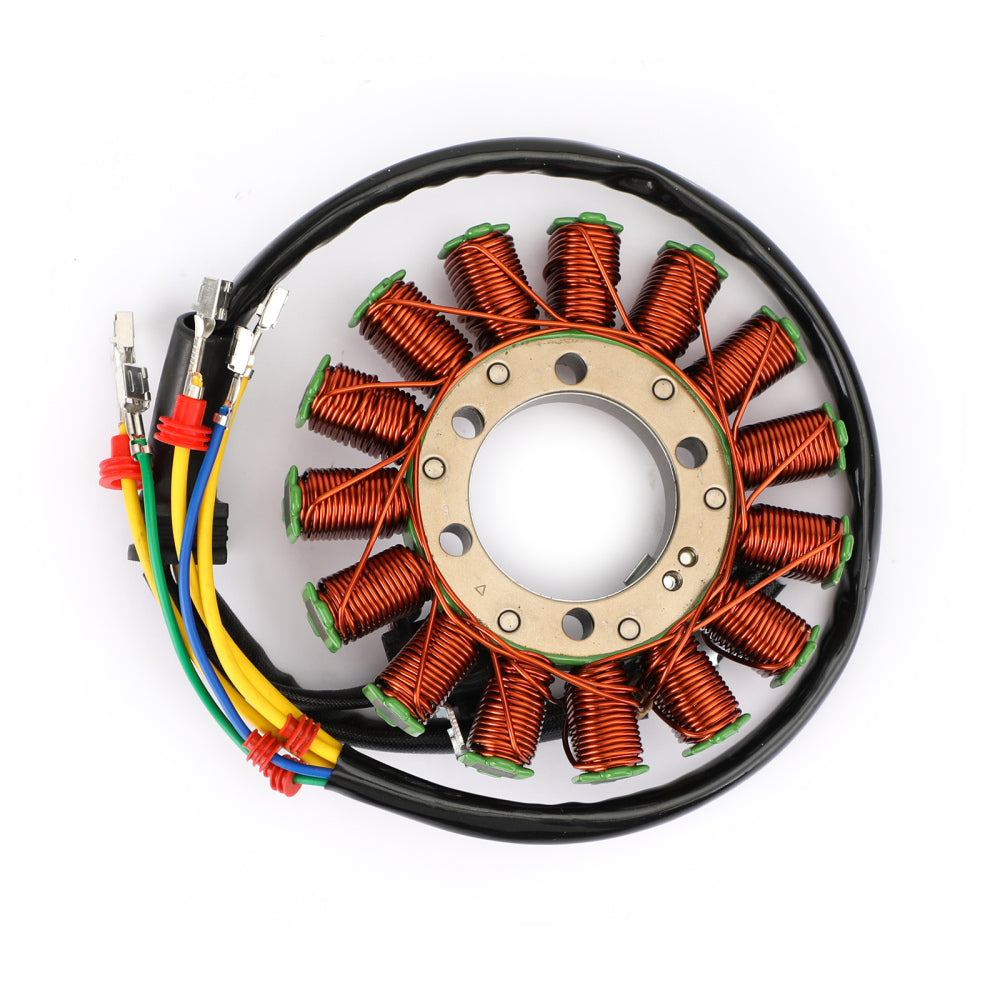

Magneto Generator Engine Stator Coil Fit For For Honda SXS700M2 SXS700M4 Pioneer 700 700-2 2014-2021

Specifics:
Condition: Aftermarket 100% Brand New
Quantity: 1PC
Type: Generator Stator Coil

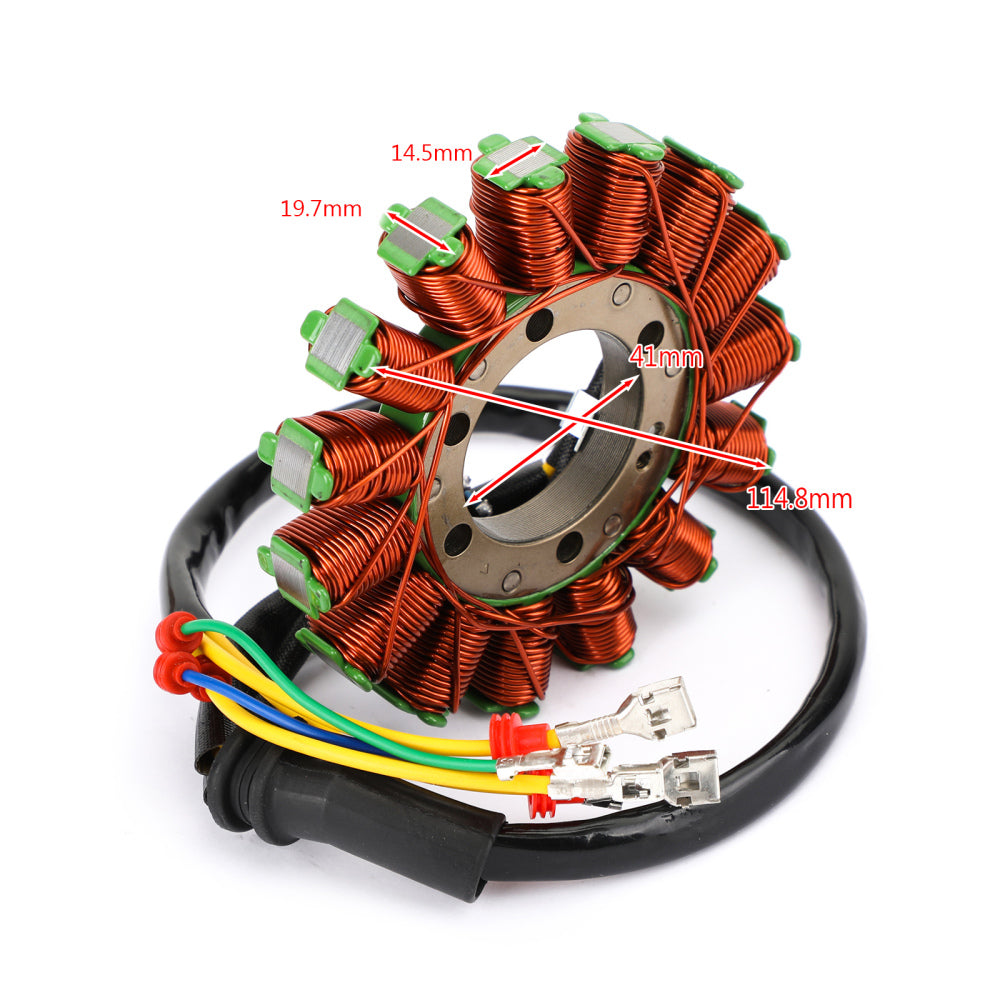

Dimensions :
Interior diameter : 41mm
Exterior diameter : 114.8mm
Pole's Thickness : 19.7mm
Pole's Width : 14.5mm

Other Specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 5
Number of fixation holes: 5
Number of poles: 15

Reference Part Number: 31120-HL3-A01

Fitments:
Fit for Honda Pioneer 700 SXS700 2014-2021
Fit for Honda Pioneer 700-4 SXS700M2 4AC 2014
Fit for Honda Pioneer 700-4 SXS700M4 3AC 2014
Fit for Honda Pioneer 700-4 SXS700M4 2AC 2015-2016
Fit for Honda Pioneer 700-4 SXS700M4 AC 2014-2015
Fit for Honda Pioneer 700 SXS700M2 2AC 2014-2016
Fit for Honda Pioneer 700 SXS700M2 A 2018-2021
Fit for Honda Pioneer 700 SXS700M2 AC 2015-2021
Fit for Honda Pioneer 700 SXS700M2D 2A 2019-2021
Fit for Honda Pioneer 700 SXS700M2D 2AC 2017-2021
Fit for Honda Pioneer 700 SXS700M2D A 2018-2021
Fit for Honda Pioneer 700 SXS700M2D AC 2017-2021
Fit for Honda Pioneer 700 SXS700M4 A 2018-2021
Fit for Honda Pioneer 700 SXS700M4 AC 2016-2021
Fit for Honda Pioneer 700 SXS700M4D 2A 2018-2021
Fit for Honda Pioneer 700 SXS700M4D 2AC 2017-2021
Fit for Honda Pioneer 700 SXS700M4D A 2018-2021
Fit for Honda Pioneer 700 SXS700M4D AC 2017-2021

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.

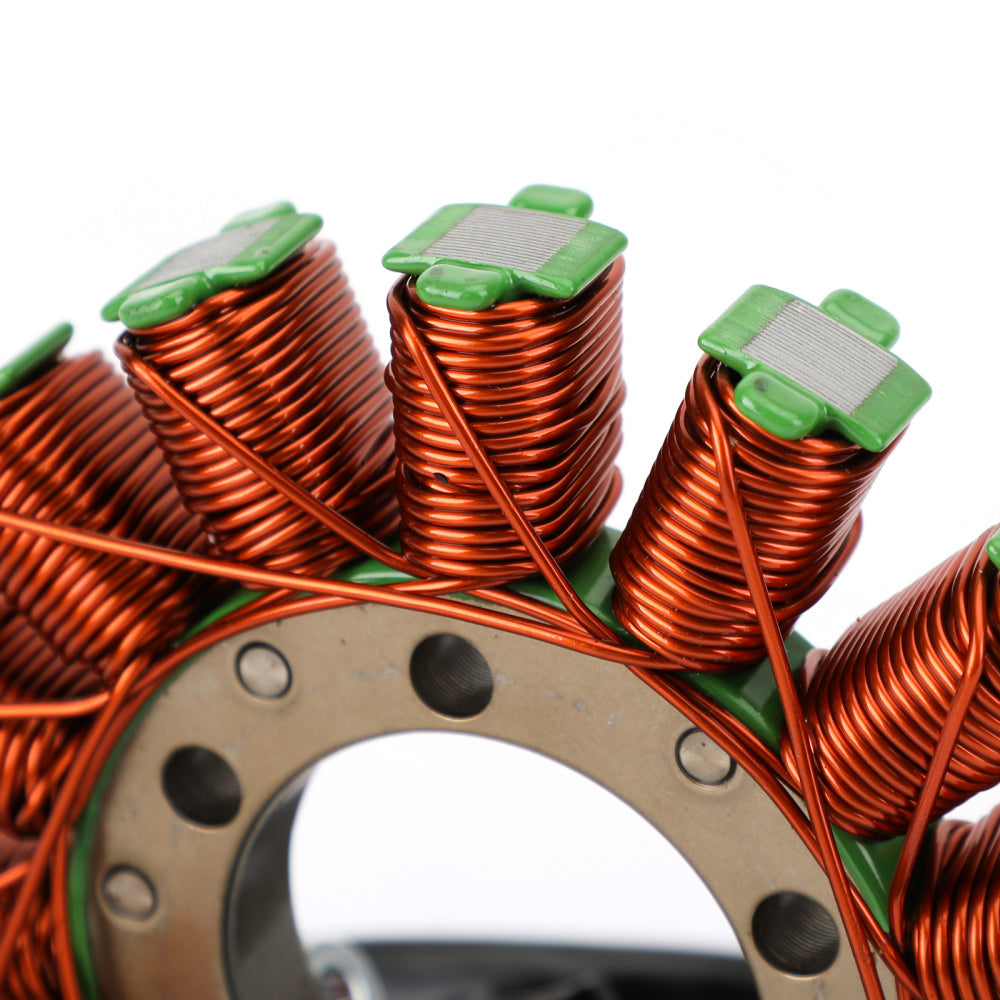

Highest grade copper wingdings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.

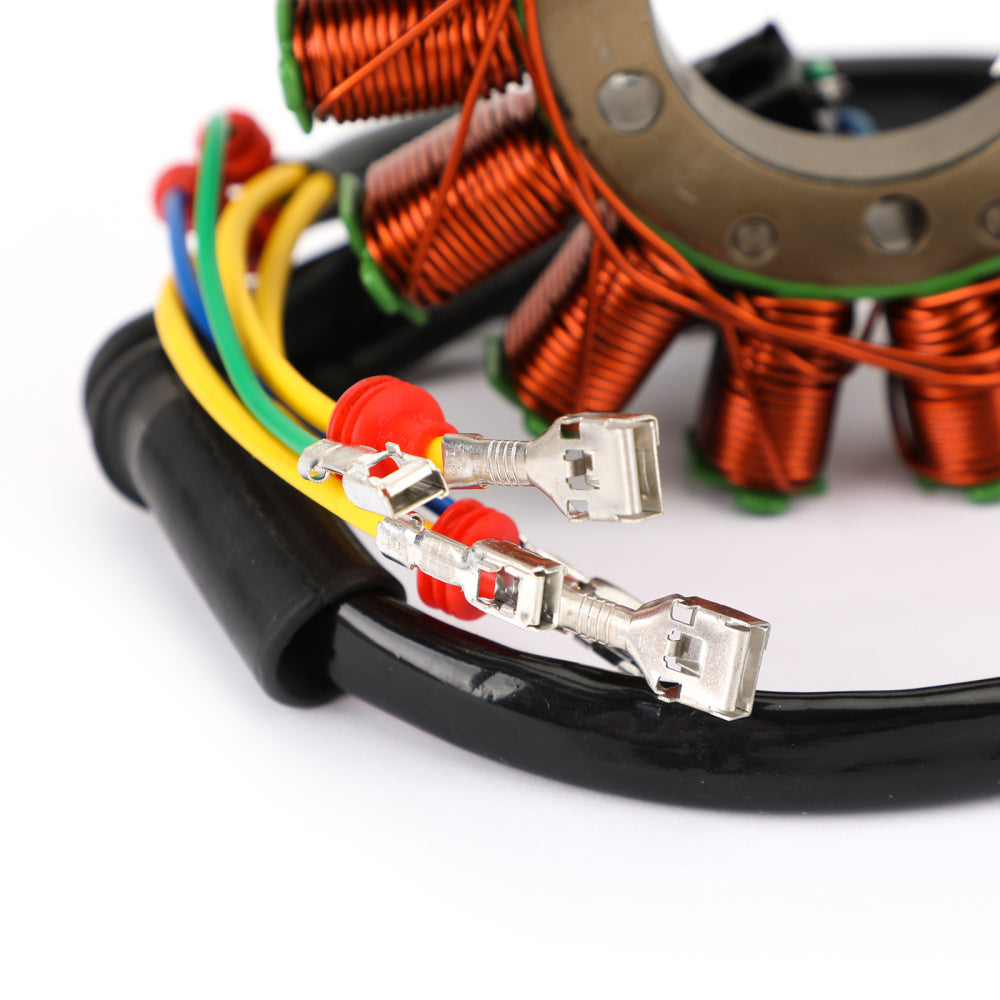

Connector included.
All products shipped are tested.

Package includes: 1 x Generator Stator Coil

Note:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Shipping:
Free Shipping
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days

Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
