2009-2016 Kawasaki KX250F 77mm Cylinder Piston Gasket Top End Rebuild Kit

Features:
If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.

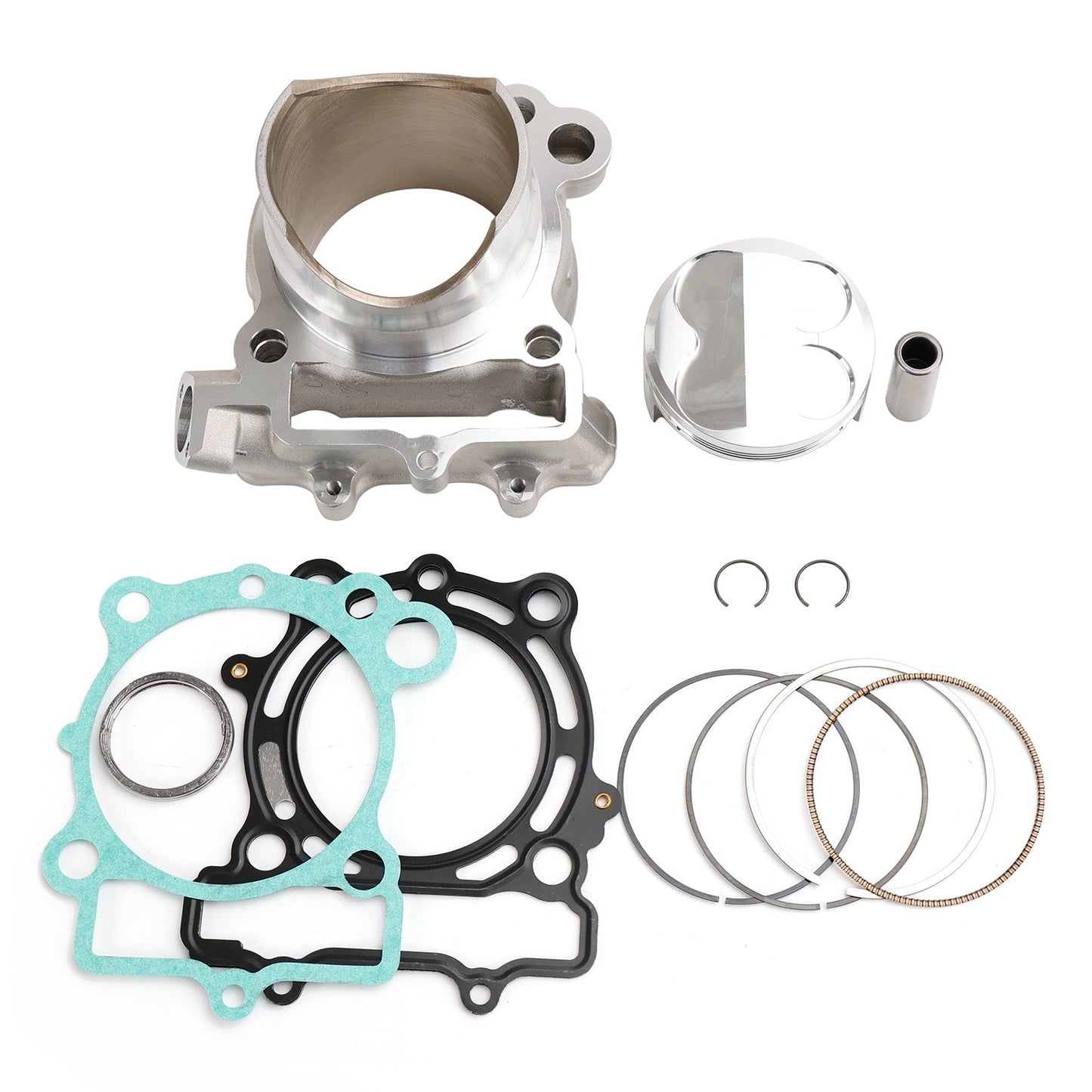

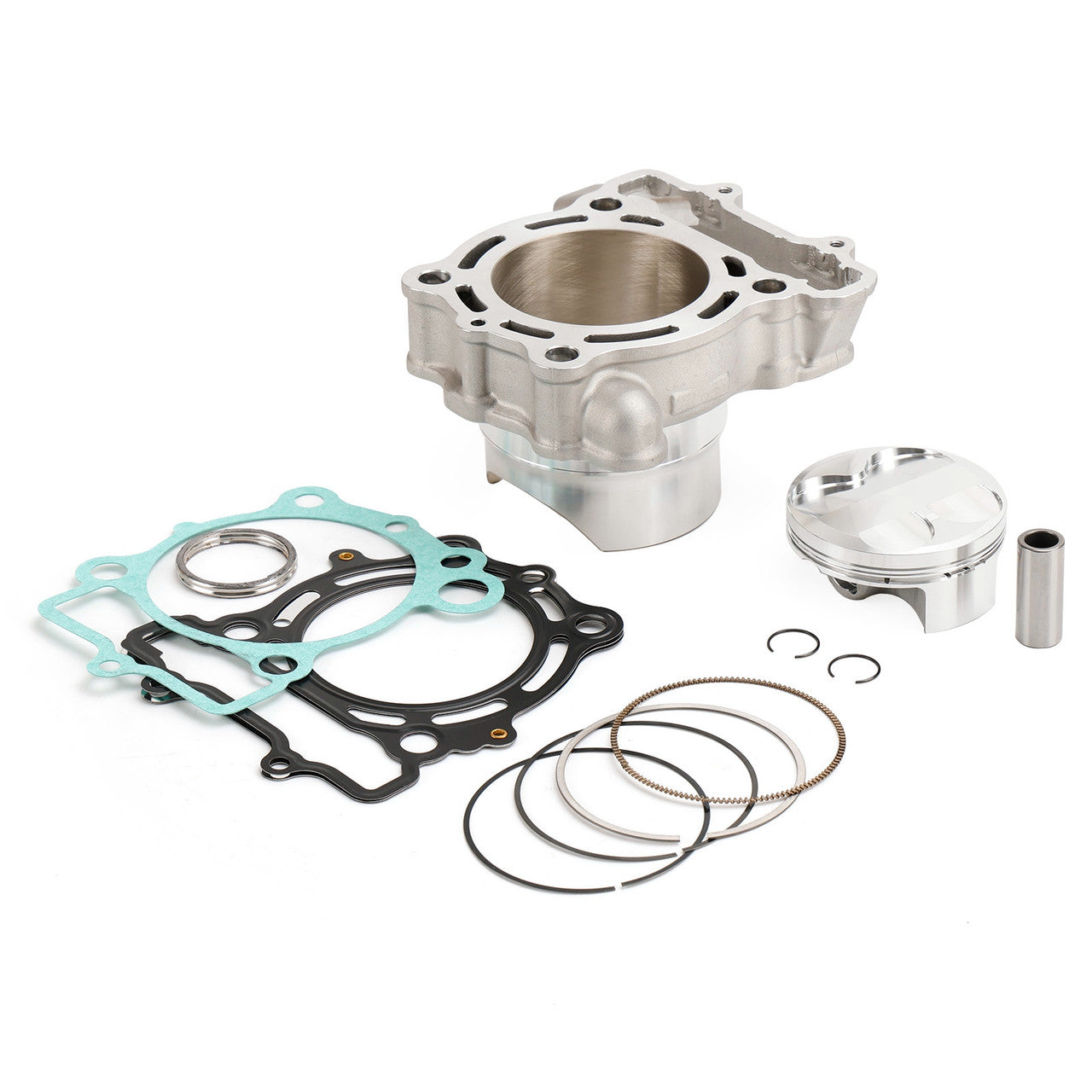

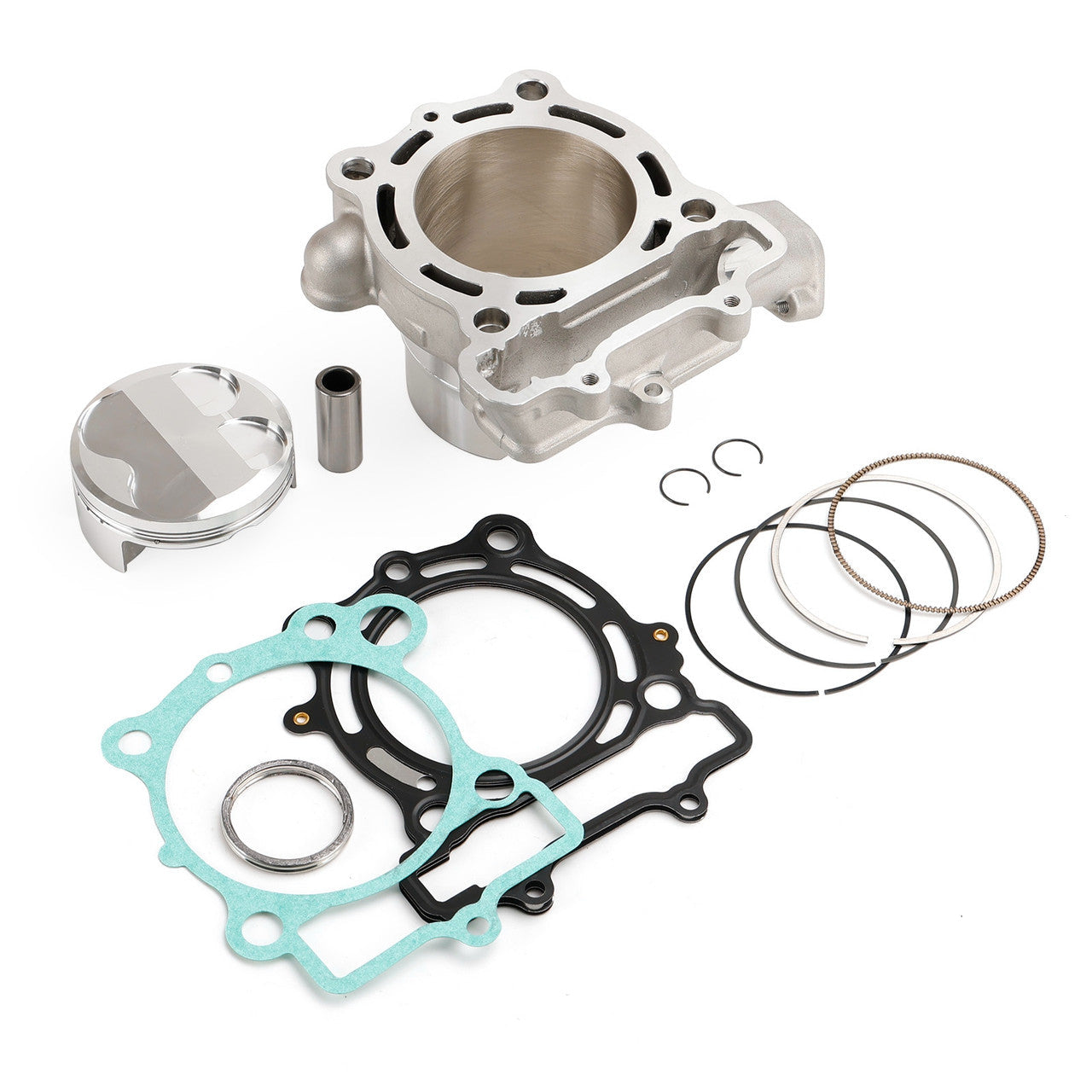

Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
Piston is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 77mm x 53.6mm stroke, 16mm steel piston pin.
Compression Ratio: 13.8:1.
This kit is excellent as a low-cost replacement for defects in the original cylinder.

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum
Displacement: 249cc
Bore Type: Standard Bore
Bore diameter: STD 77mm
Stroke: 53.6mm
Pin diameter: 16mm

Replacement Part Number:
Cylinder: 11005-0110, 11005-0127, 11005-0138, 11005-0586, 11005-0613, 11005-0644
Cylinder Base Gasket: 11061-0357
Cylinder Head Gasket: 11004-0738
Piston (Std): 13001-0088, 13001-0115, 13001-0125, 13001-0730, 13001-0747
Pin, Piston: 13002-0024, 13002-0030, 13002-0041
Piston Ring Set (Std): 13008-0028
Circlips, piston: 92033-1161

Fits Models:
Fit for Kawasaki KX250F 2009-2016

Package Includes:
1x Cylinder
1x Piston
1x Piston Ring Set
1x Wristpin
1x Circlip(2)
1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Exhaust Gasket
