2006-2024 Yamaha Raptor 700R YFM700R YFM700 Cilindro de 102 mm, 1S3-11310-00-00

Name: 2006-2024 Yamaha Raptor 700R YFM700R YFM700 Cilindro de 102 mm, 1S3-11310-00-00
Brand: Assosary
SKU: MTTPABB-A08~2
Price: 201.99 EUR
Availability: InStock

€201,99 EUR

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Cantidad

Características:

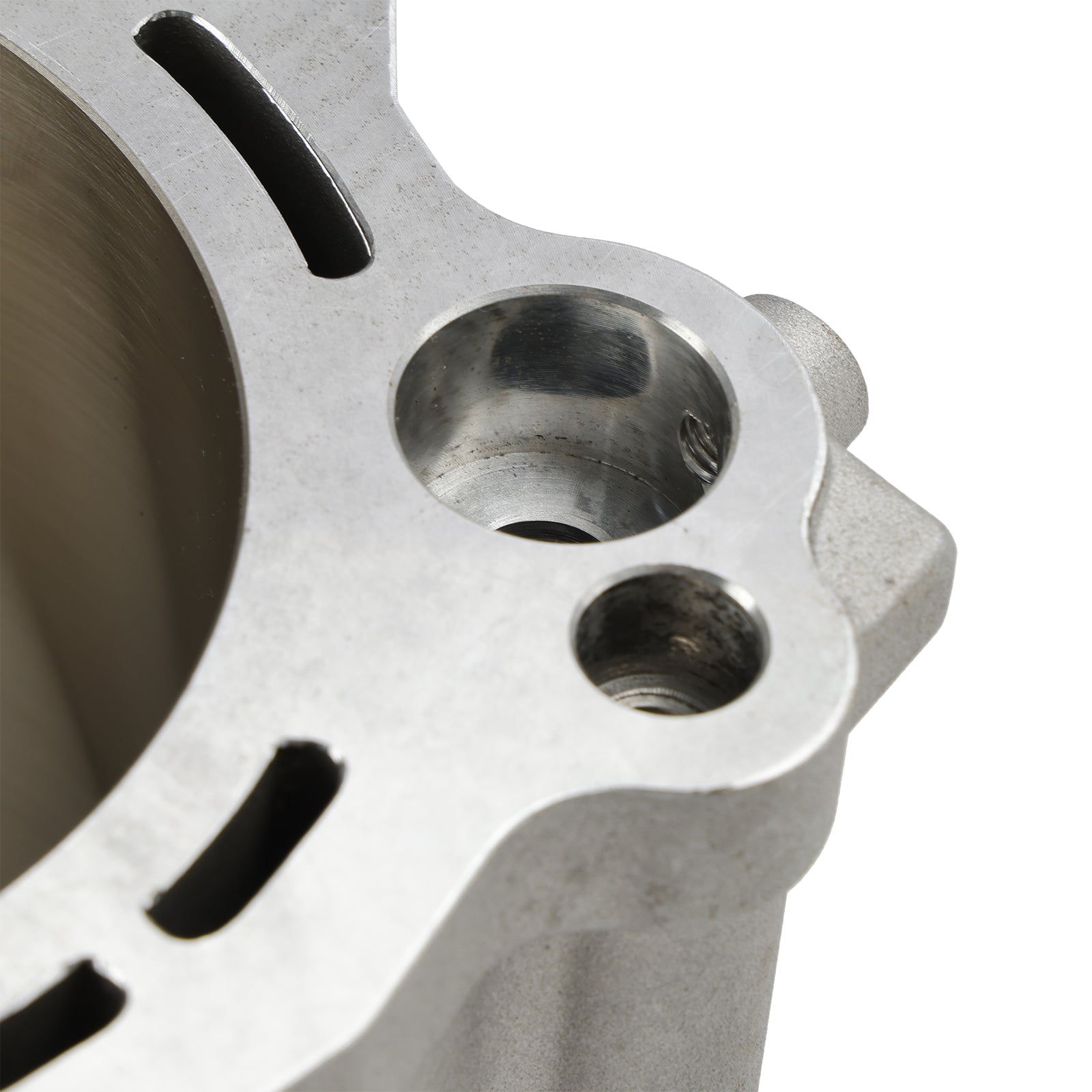

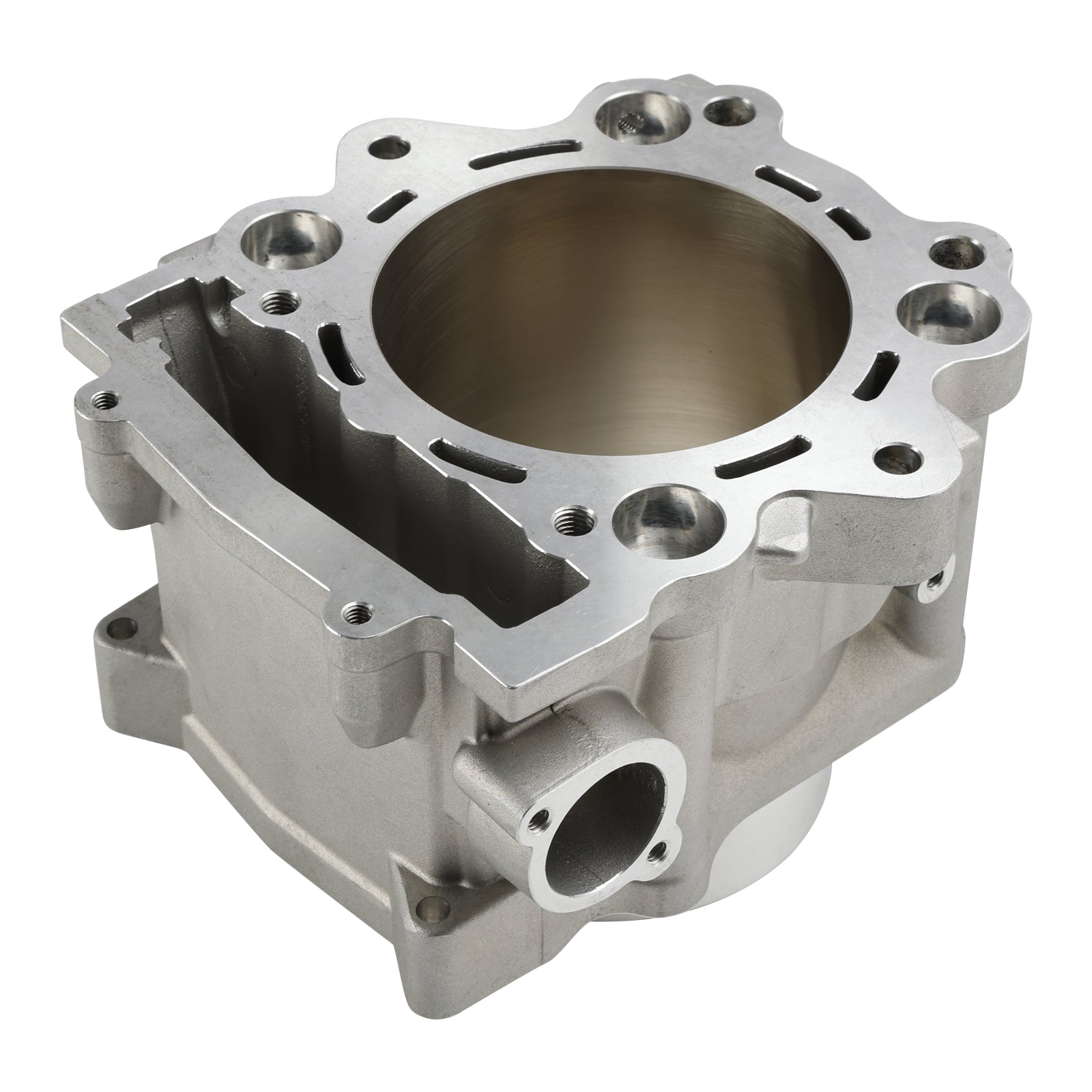

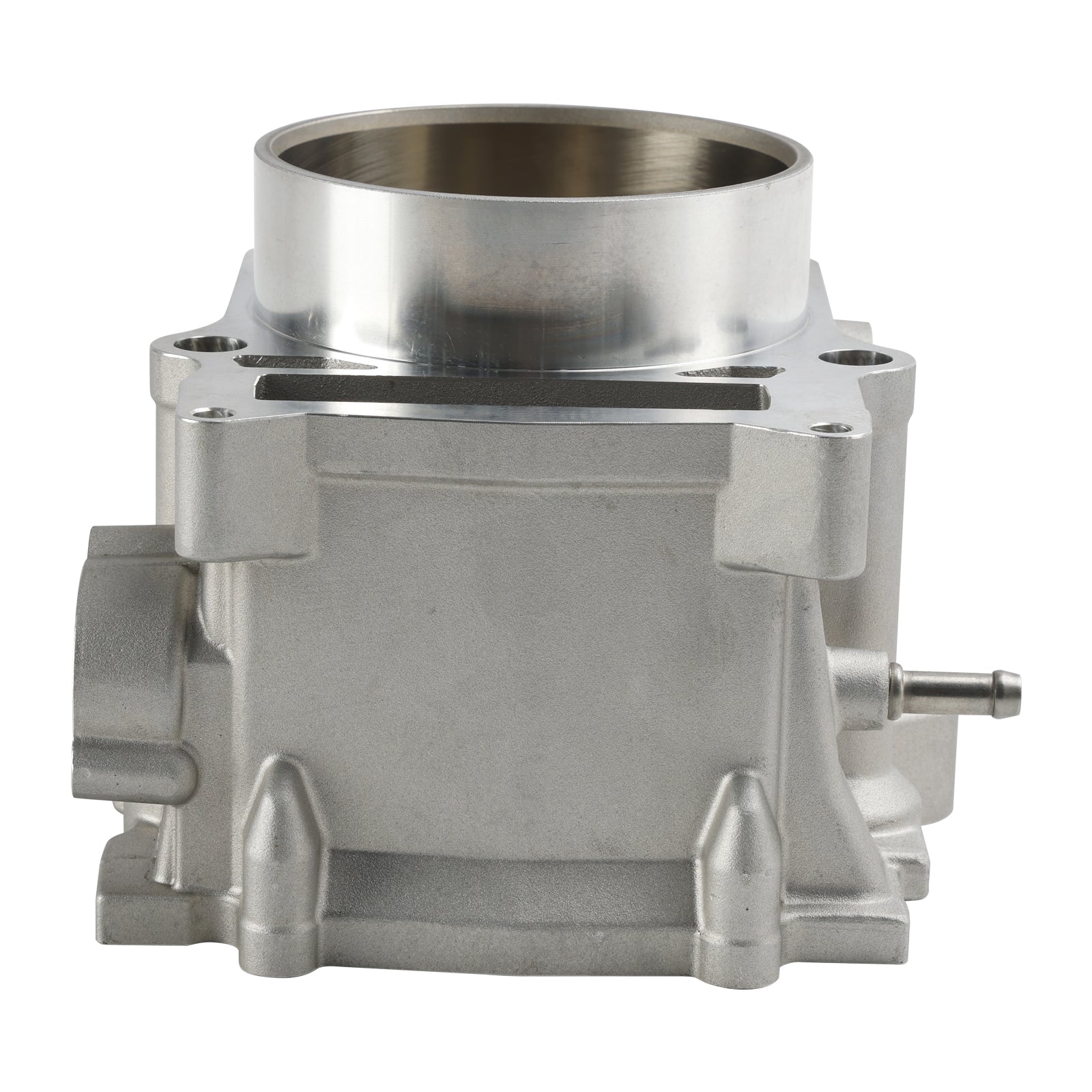

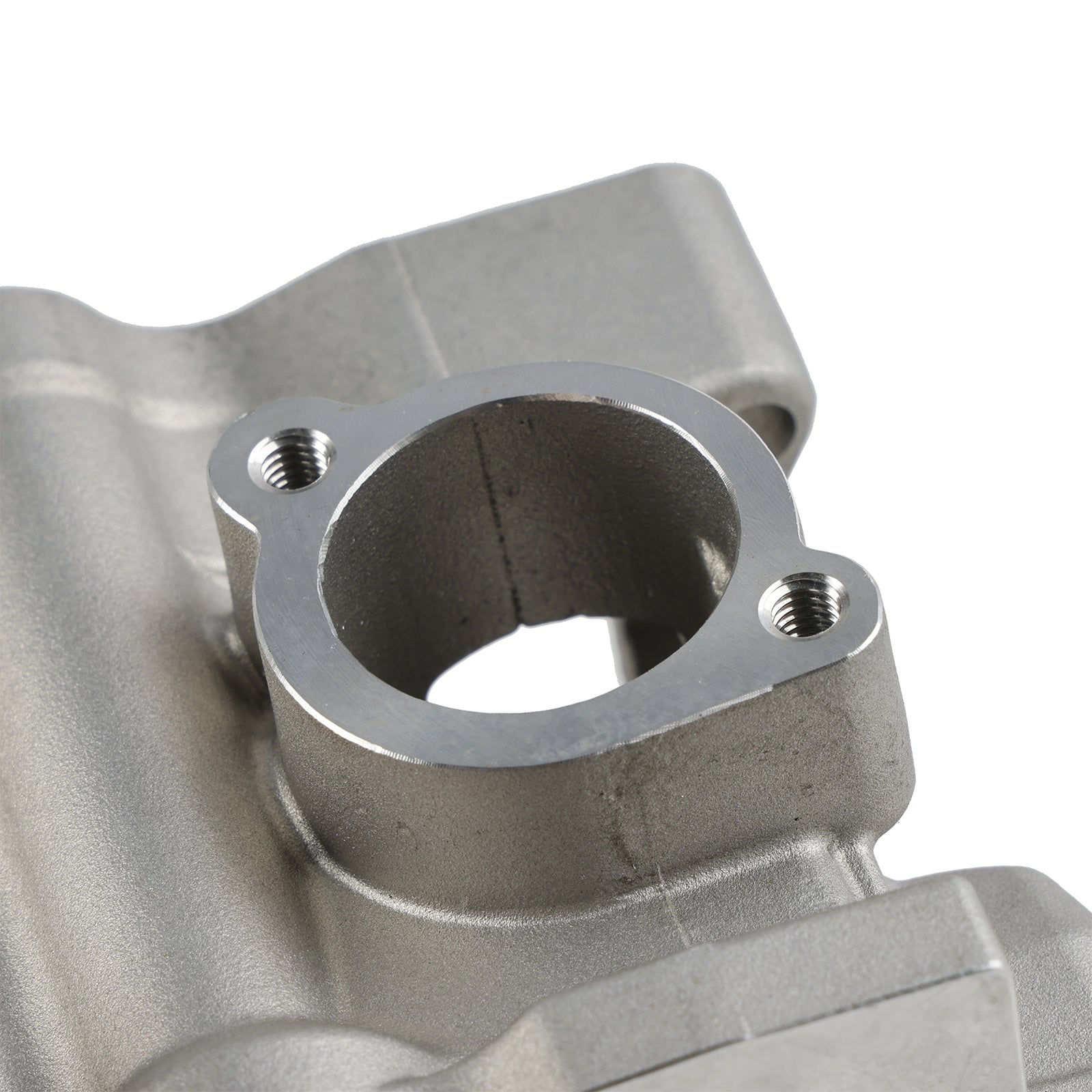

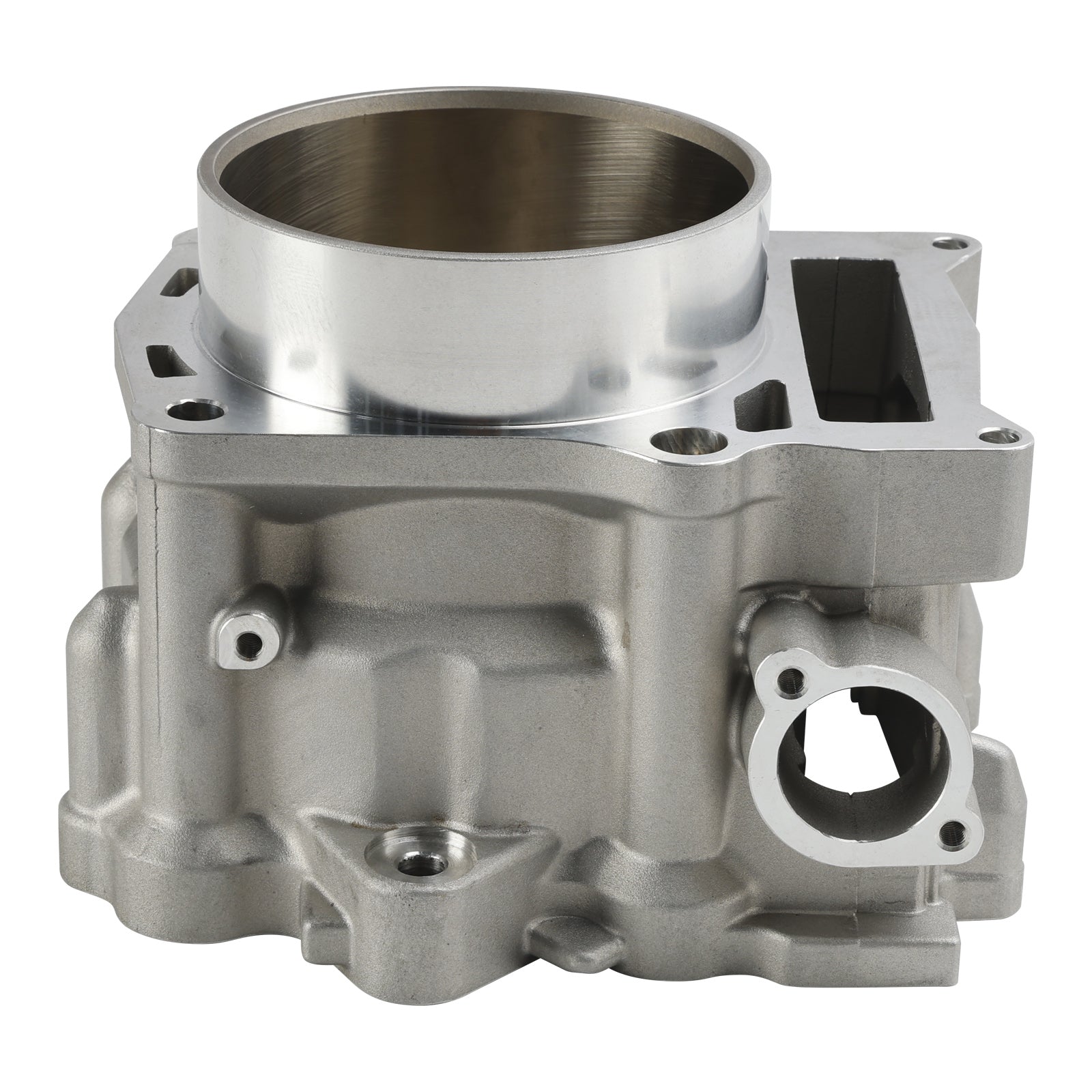

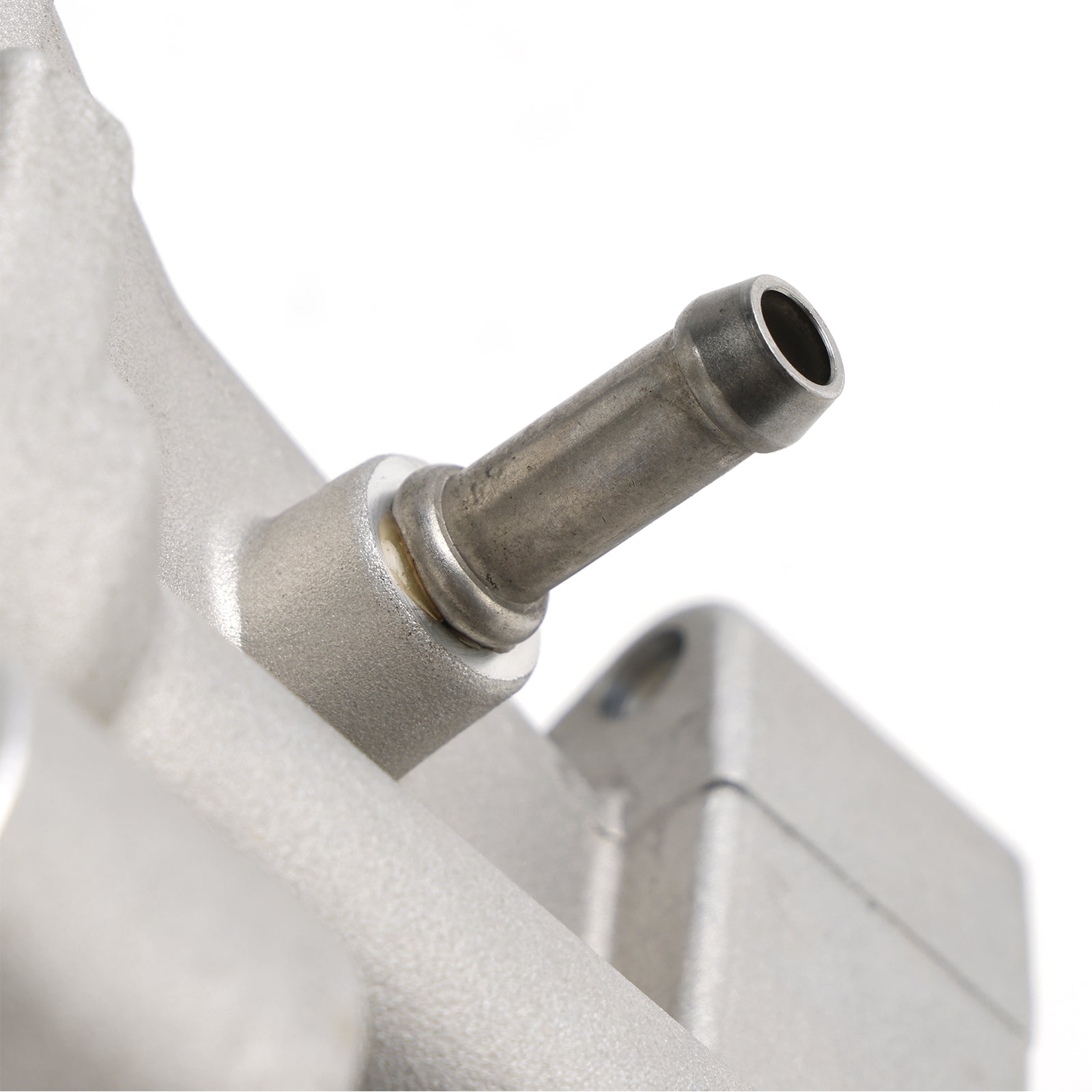

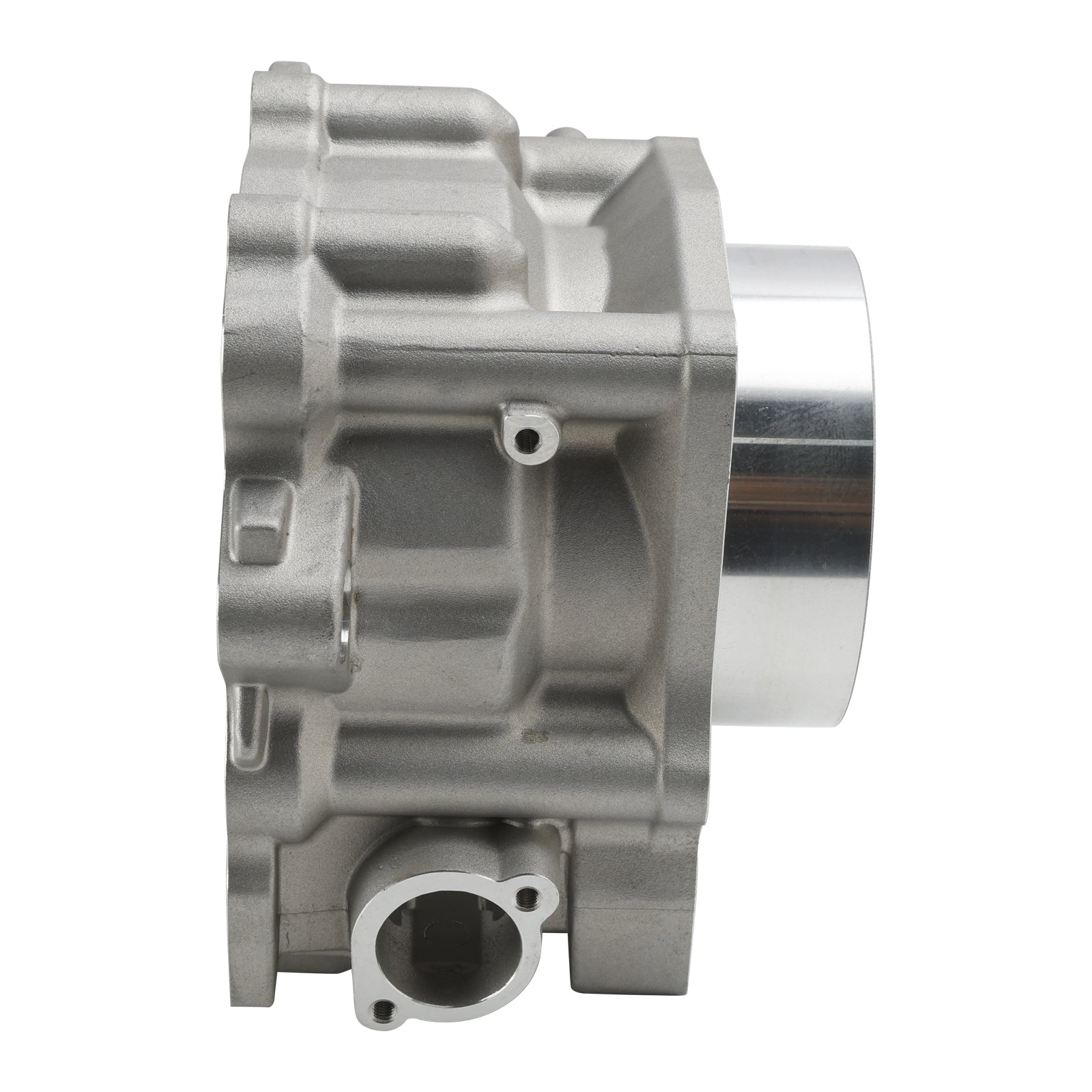

El cilindro está hecho de carburo de silicio y níquel galvanizado y aluminio fundido.
Totalmente nuevo y reemplazo directo de su cilindro de fábrica desgastado.
Los cilindros listos para instalar, con montaje directo por perno, no requieren reenchapado y tienen un aspecto prácticamente idéntico a los cilindros OEM.
El cilindro es de tamaño estándar: 102 mm x 84 mm de carrera.

Presupuesto:
Condición: Posventa 100% nuevo
Cantidad: 1 juego
Material: Aluminio
Cilindrada: 686 cc
Tipo de orificio: orificio estándar
Tamaño del orificio: STD 102 mm
Carrera: 84 mm

Número de pieza de repuesto:
1S3-11310-00-00
1S3-11310-01-00

Compatible con los modelos:
Compatible con Yamaha Raptor 700 YFM700R 2006-2024
Compatible con Yamaha Raptor 700 YFM700RSP Edición 50 Aniversario 2006
Compatible con Yamaha Raptor 700 YFM700RSE Edición Especial 2007-2012
Compatible con Yamaha Raptor 700 YFM700RSE2 Edición Especial II 2007
Compatible con Yamaha Raptor 700 YFM700RYR GYTR Edición 2007
Compatible con Yamaha Raptor 700 YFM700RSP Edición Especial 2008
Compatible con Yamaha Raptor 700 YFM700RSP2 Edición Especial II 2008
Compatible con Yamaha Raptor 700 YFM700 2013-2024
Compatible con Yamaha Raptor 700R YFM700RSE Edición Especial 2013-2024
Compatible con gráficos personalizados Yamaha Raptor 700R YFM700RW 2012
Compatible con gráficos personalizados Yamaha Raptor 700R YFM700R 2013
Compatible con Yamaha Raptor 700R YFM700RSL Team Yamaha 2014

El paquete incluye:
1x Cilindro con orificio estándar

Ver todos los detalles
