Válvula solenoide neumática eléctrica 4V110-06, 2 posiciones, 5 vías, PT 1/8", 24 V CC
Válvula solenoide neumática eléctrica 4V110-06, 2 posiciones, 5 vías, PT 1/8", 24 V CC
No se pudo cargar la disponibilidad de retiro
?
Detalles específicos:
Condición: 100% nuevo
Nombre: Válvula solenoide neumática
Modelo: 4V110-06
Voltaje: CC 12 V / CC 24 V / CA 220 V (opcional)
Presión de funcionamiento: 0,15 ~ 0,8 MPa
Acción: Tipo de actuación pilotada internamente
Tipo: 5 puertos, 2 posiciones
Tamaño del puerto ENTRADA-SALIDA: 1/8", Escape: 1/8"
Lubricación: No requerida
Material: aleación de aluminio
Aislamiento: Clase F
Protección: IP65
Rango de temperatura: -5 - 60°
Frecuencia máxima: 7 ciclos/s
Tiempo mínimo de activación: 0,05 segundos

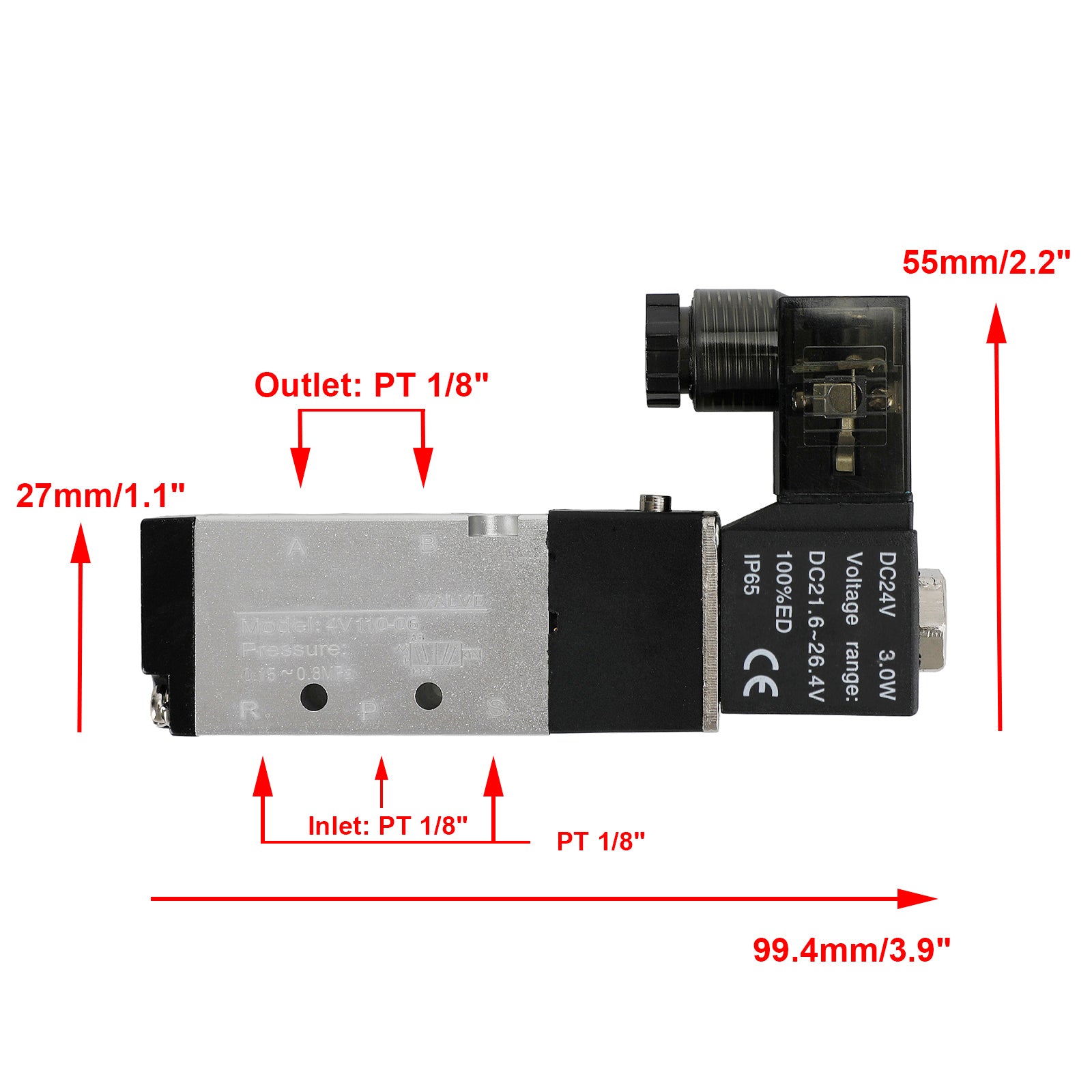

Tamaño total (aprox.): 9,9 x 5,5 x 2,7 cm (largo x ancho x alto).
Nota:
1. Permita errores de 1-5 mm debido a la medición manual.
2. Preste atención para verificar los componentes antes de usarlos, para detectar si están dañados durante el transporte y luego instálelos y úselos.
3. Tenga en cuenta que la dirección del flujo de gas y el tipo de diente de toma de control son correctos para su instalación.
4. Durante la instalación, preste especial atención a que el voltaje cumpla con los requisitos. Al depurar toda la máquina,
Se recomienda utilizar primero la depuración manual del dispositivo y luego encenderlo para realizar la depuración.
El paquete incluye:
1 x válvula de aire solenoide neumática
Garantía:
Periodo de garantía: 1 año
Devoluciones y reembolsos: Los clientes pueden devolver los productos dentro de los 60 días posteriores a la recepción y procesar un reembolso rápido en un día.
Soporte las 24 horas: Le brindamos soporte posventa oportuno.
