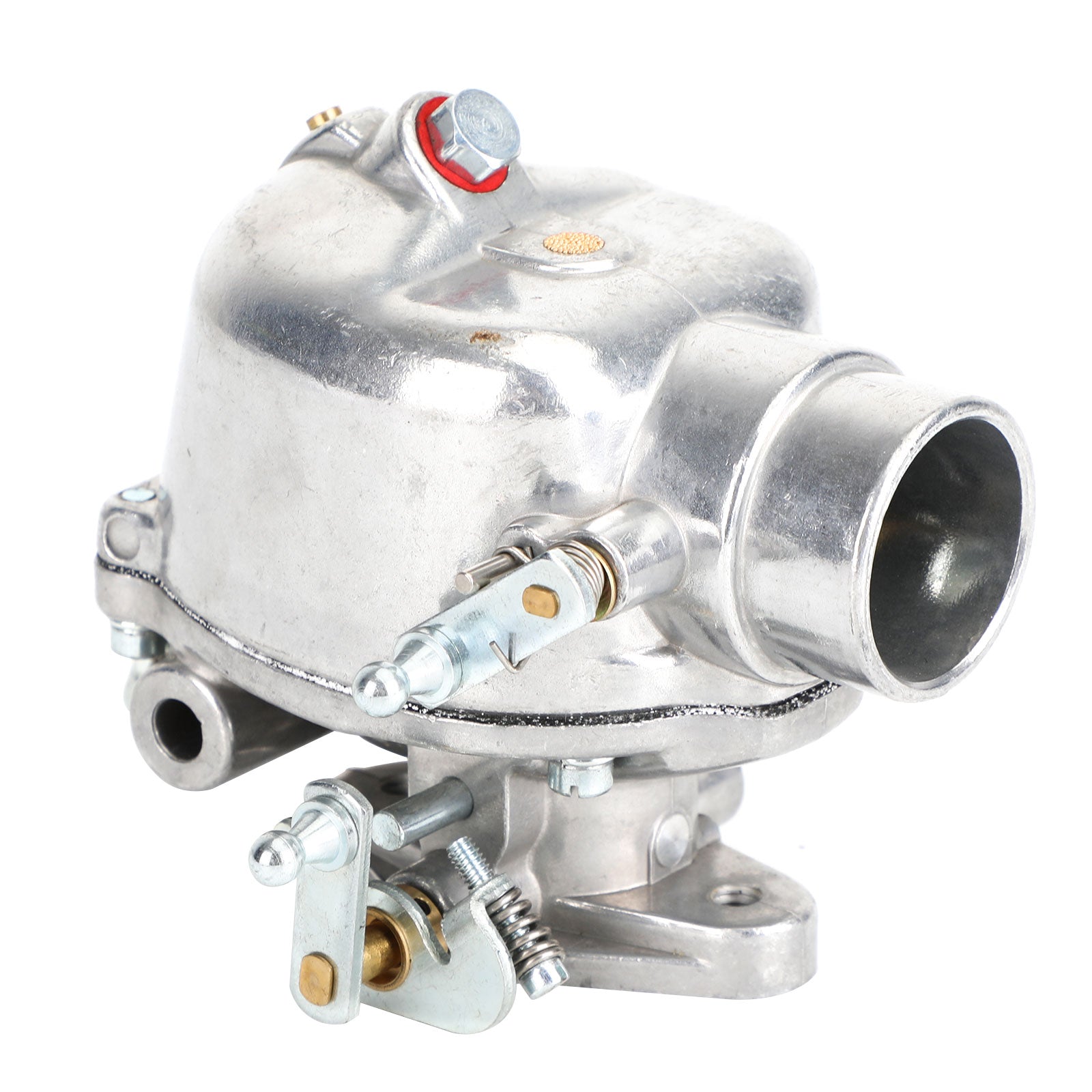

Carburador para tractor Ford Jubilee NAA NAB TSX428 EAE9510C para Marvel Schebler
Carburador para tractor Ford Jubilee NAA NAB TSX428 EAE9510C para Marvel Schebler
No se pudo cargar la disponibilidad de retiro
Característica:
1: Hecho de material de alta calidad, duradero y práctico de usar.
2: Alto rendimiento, larga vida útil.
3: Fácil instalación y extracción.
4: Se recomienda encarecidamente la instalación profesional. No se incluyen instrucciones de instalación.
Detalles específicos:
Condición: 100% nuevo
Tipo: Carburador de tractor
Material: Aluminio
La medida del perno de montaje: 2-1/4" de centro a centro
El tamaño de la garganta del acelerador mide: 1-1/16" de diámetro
La bocina de aire del estrangulador (entrada de aire) mide: 1-5/8" de diámetro exterior
Las medidas de entrada de combustible: 1/8" NPT
Número de pieza de repuesto: EAE9510C B2NN9510A
Mueble:
Conjunto de carburador para modelos de tractores Ford series 600 y 700 con motores de gasolina de 134 CID.
Carburador para tractor Ford Jubilee NAA NAB 600 620 630 650 660 700 740 800 850
Carburador para Marvel Schebler TSX428
Carburador para Zenith 0-13880 13880
Nota:
1.EAE9510C NO se puede reemplazar por EAE9510D TSX580, son totalmente diferentes
2. Verifique las imágenes de la lista para asegurarse de que sea el artículo correcto para usted, gracias.
3. Permita errores de 1-5 mm debido a la medición manual.
El paquete incluye:
1x Kit de carburador
