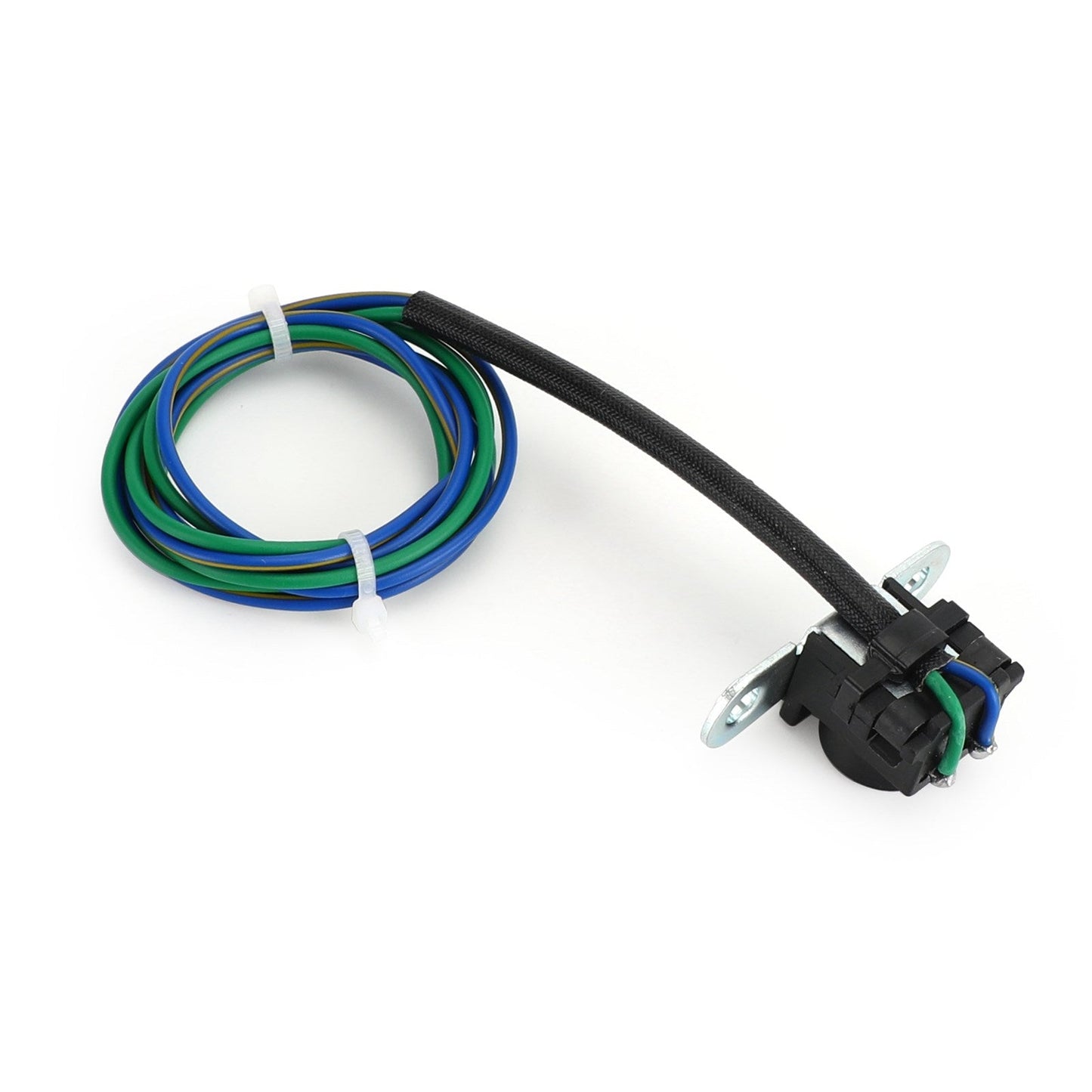

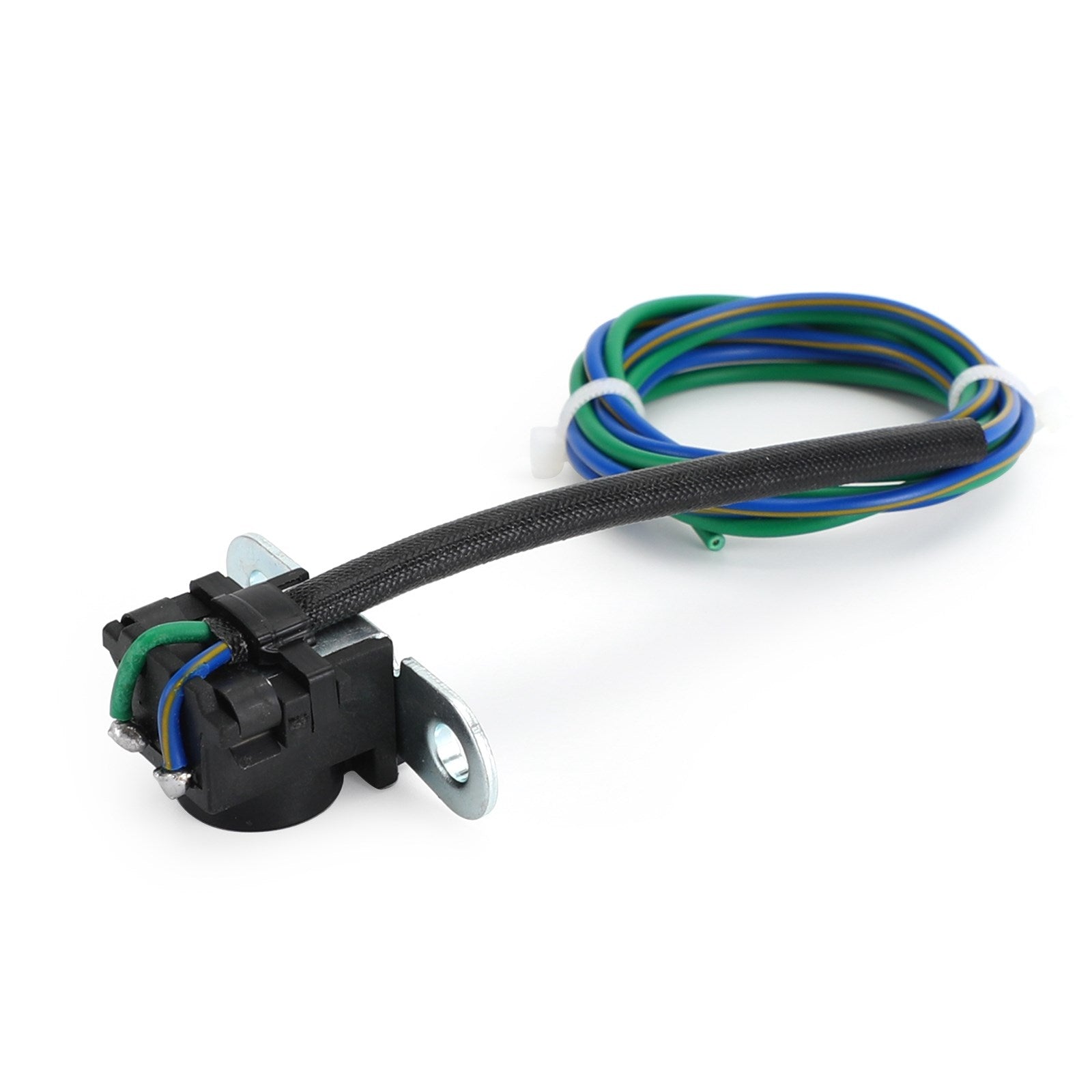

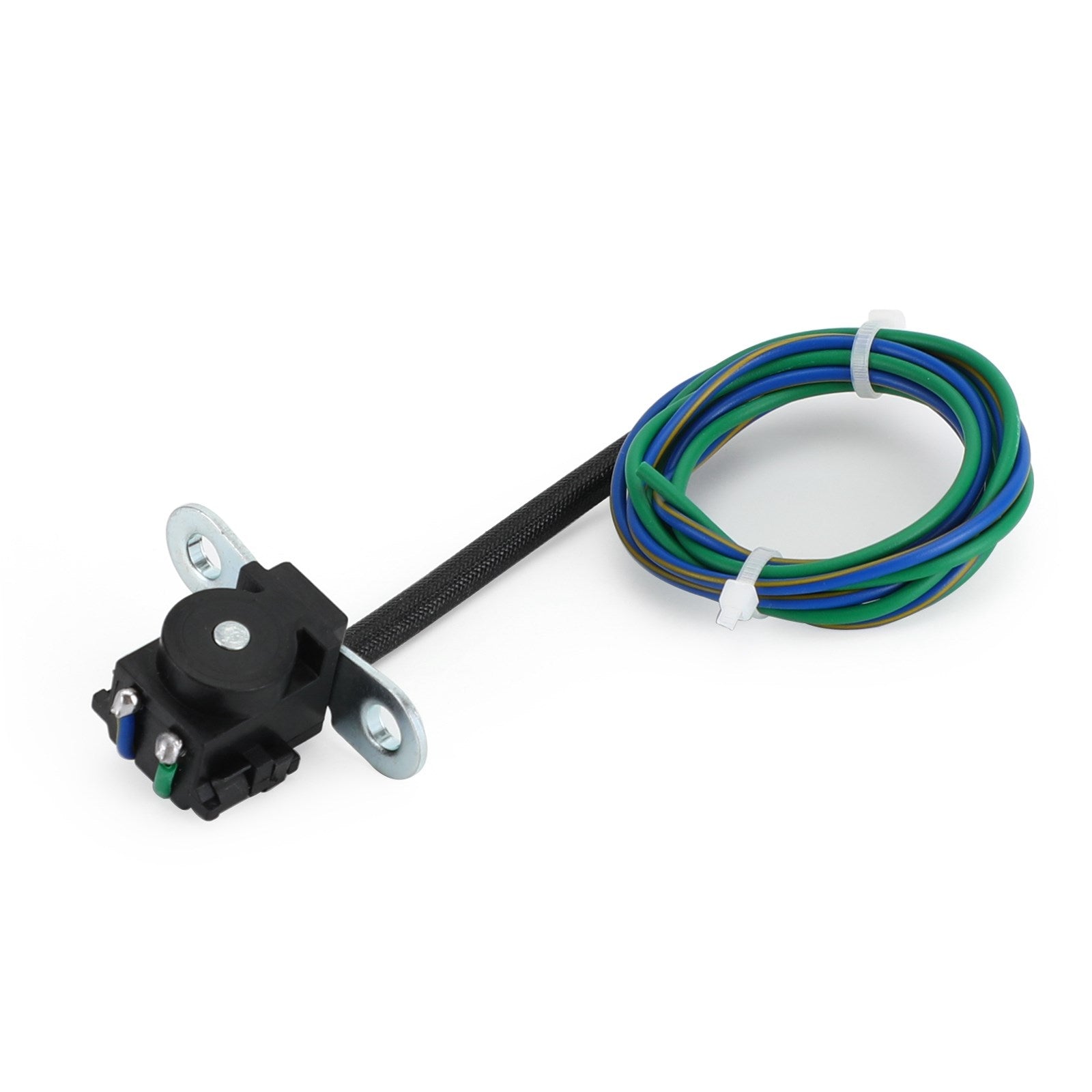

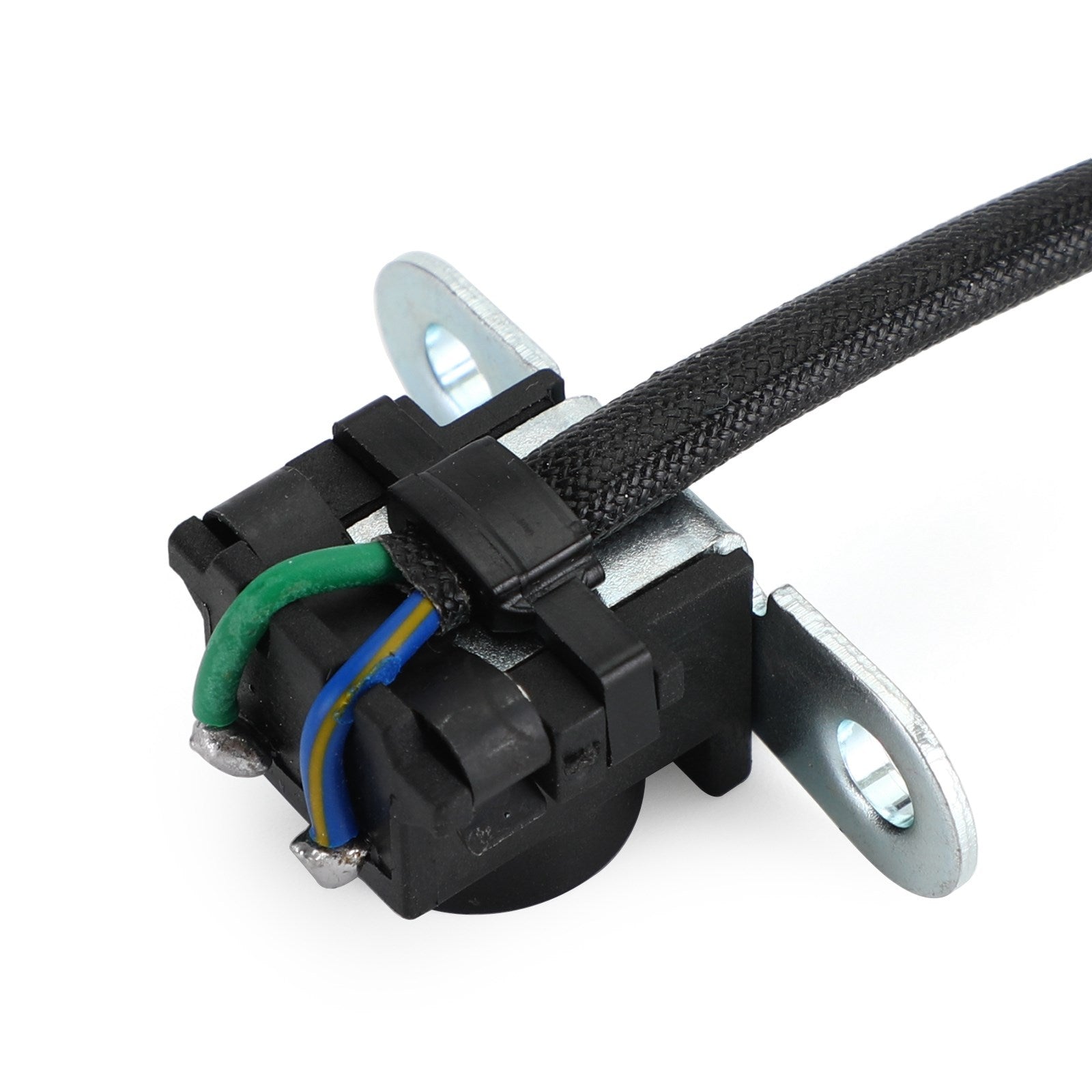

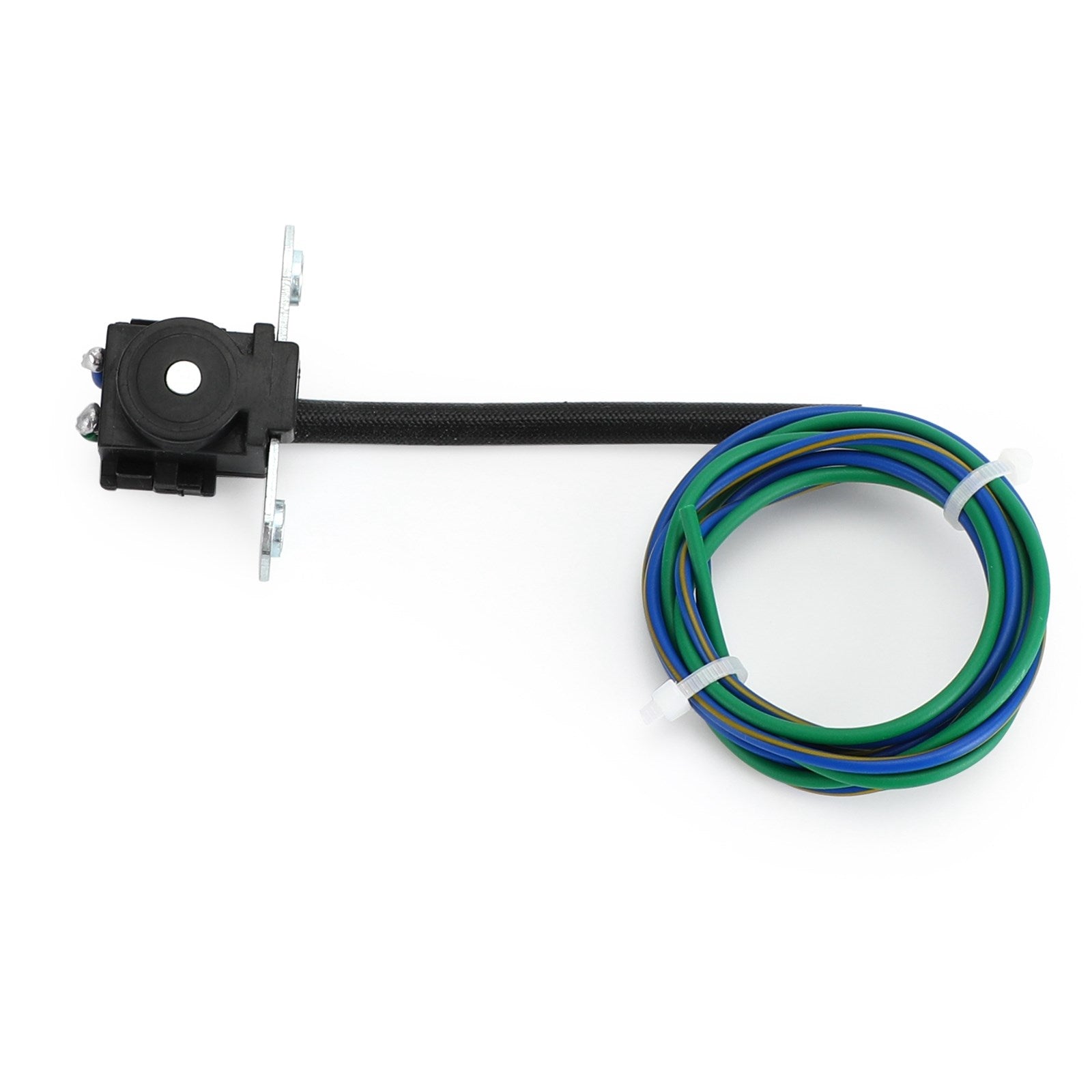

Bobine de capteur Pulsar pour Honda TRX400, TRX 400 X EX, Sportrax 400 (1999-2014)

Bobine de capteur Pulsar pour Honda TRX400, TRX 400 X EX, Sportrax 400 (1999-2014)

Prix habituel €14,89 EUR
Prix habituel Prix promotionnel €14,89 EUR
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.

Caractéristiques:
État : Pièces de rechange 100 % neuves
Quantité : 1 pièce
Type : Bobine de pulsar de ramassage

Dimensions:

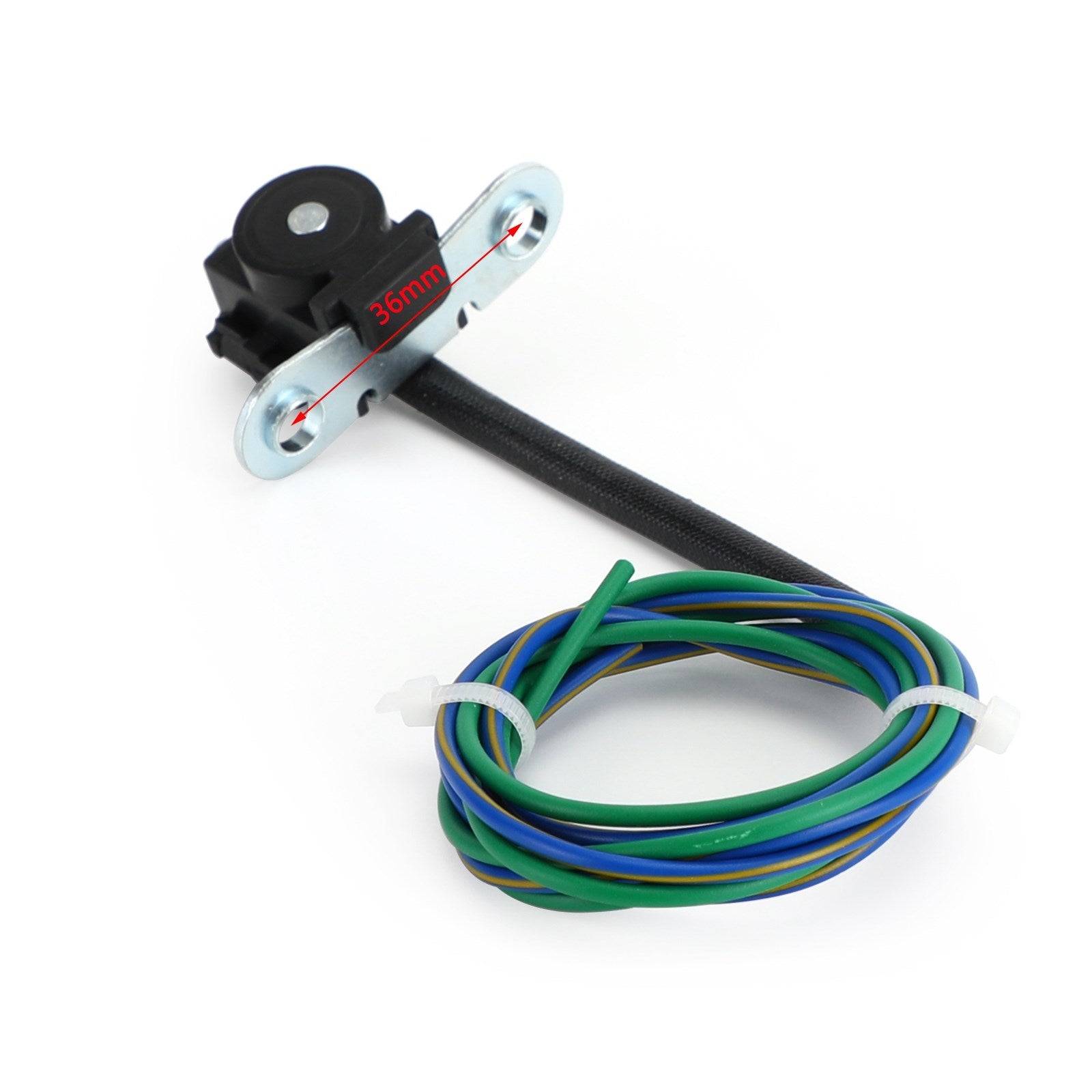

Centre du support à centre : 36 mm
Nombre de fils : 2

Numéro de pièce de rechange :
31120-HN1-000
31120-HN1-003
31120-HN1-A40
31120-HN1-A41
31120-MEN-A91

Équipements :
Convient pour Honda TRX400 Sportrax 400 EX 2002-2008.
Convient pour Honda TRX400 Sportrax 400X2009
Convient pour Honda TRX400 TRX 400 EX 1999-2001/2004/2006-2008
Convient pour Honda TRX400 TRX 400 X 2009-2014

Emballage inclus:
1x bobine de pulsar de ramassage

Caractéristiques:
Bobine de ramassage/pulsar toute neuve pour vous permettre de réparer votre stator.
Remplacement direct de votre unité d'origine.
Plug-and-play, montage direct, installation facile.
Souvent indisponible auprès du fabricant OEM.
Tous les produits expédiés sont testés.


NOTE:
Le non-respect de ces instructions peut entraîner des dommages à la pièce ou à d’autres composants de votre véhicule.
-En utilisant un petit fer à souder, soudez les fils à ceux de votre faisceau de câbles OEM.
-Isolez vos soudures avec de la gaine thermorétractable.
-Avant de tenter de démarrer votre véhicule, le réglage de l'entrefer est nécessaire pour certains modèles.
- Faites tourner le volant à la main de sorte que le nœud surélevé soit aligné avec la bobine de captage/pulsar et ajustez-le aussi près que possible, mais pas moins de 0,010 po.
-S'il n'y a pas d'étincelle ou si l'étincelle est irrégulière, inversez les fils de la prise.

Afficher tous les détails
