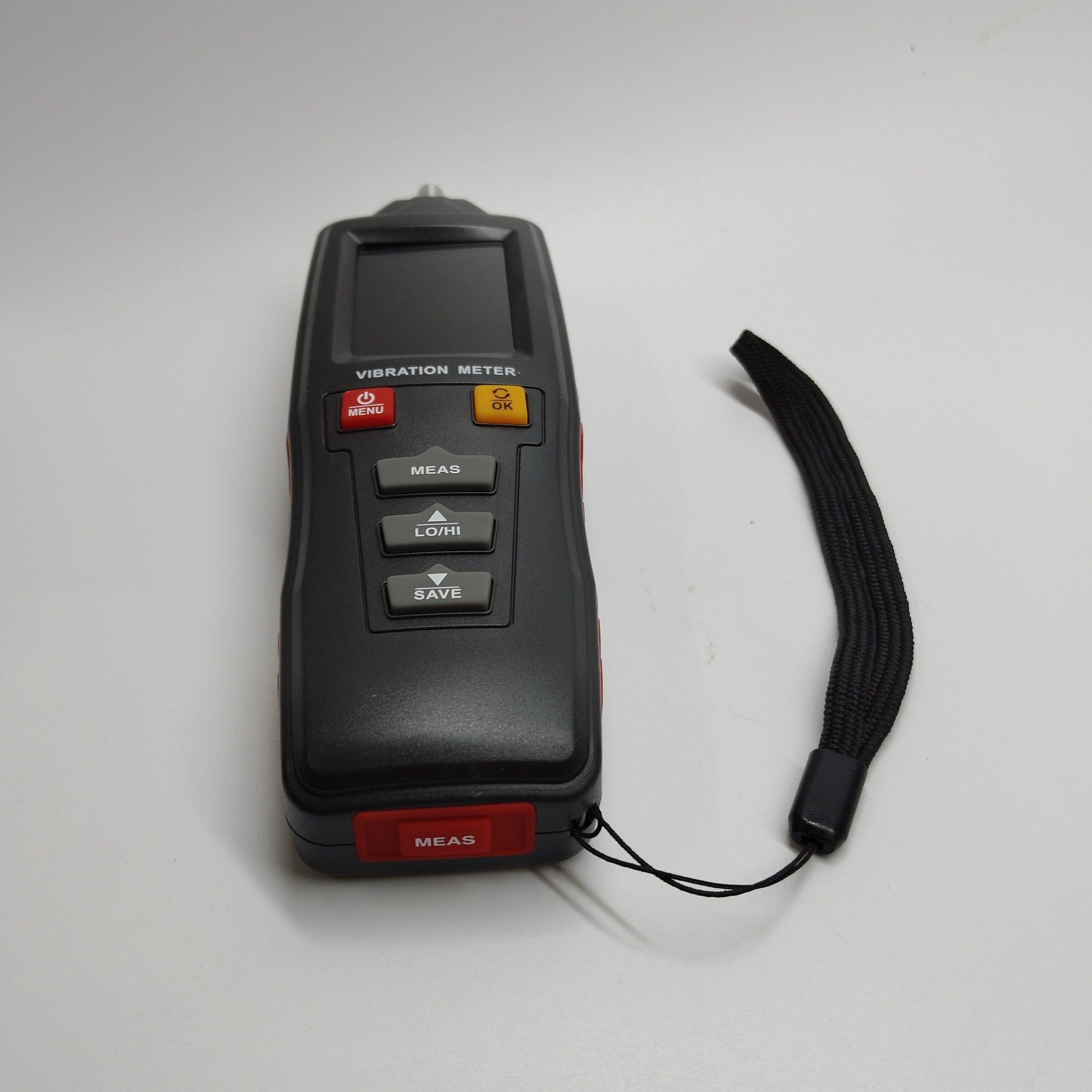

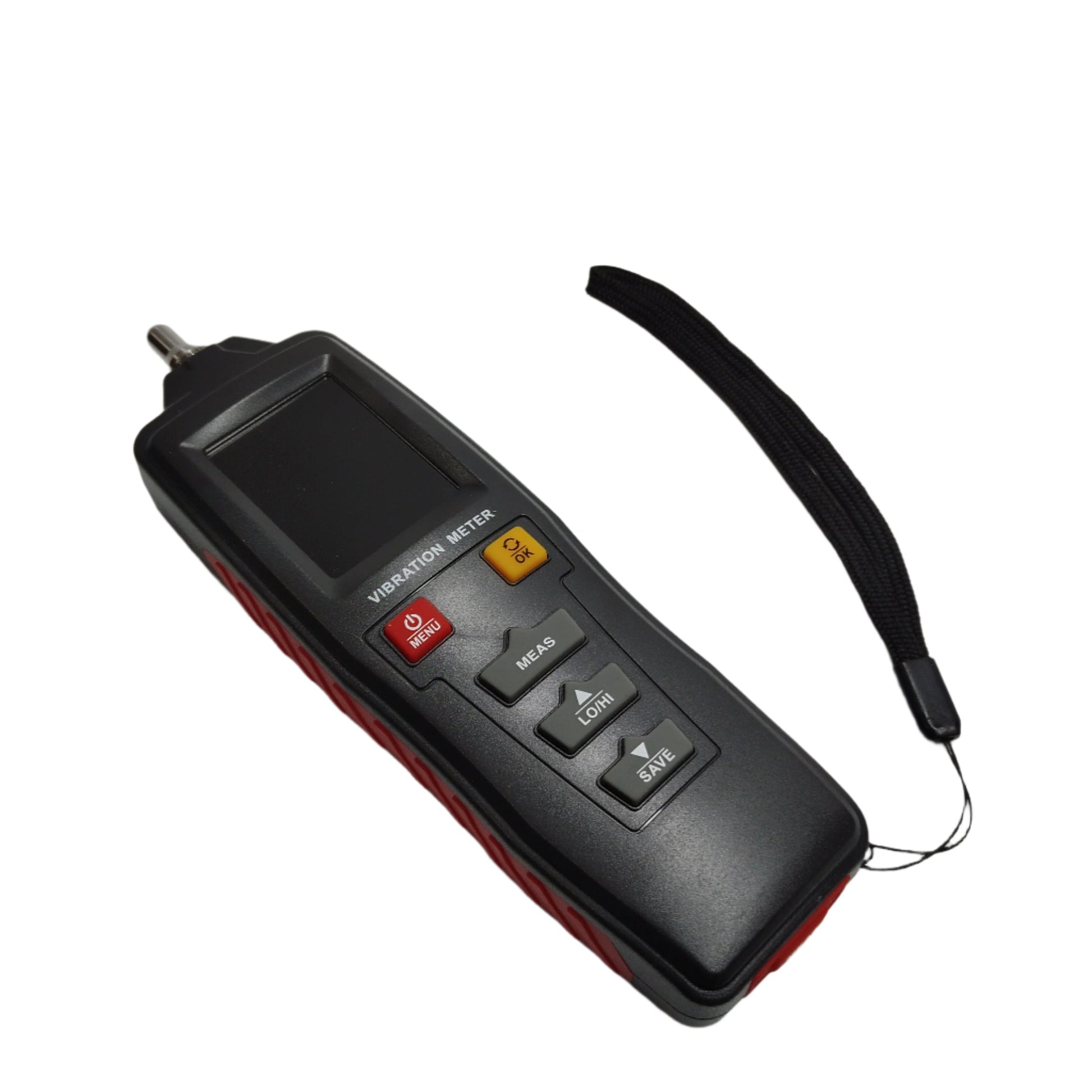

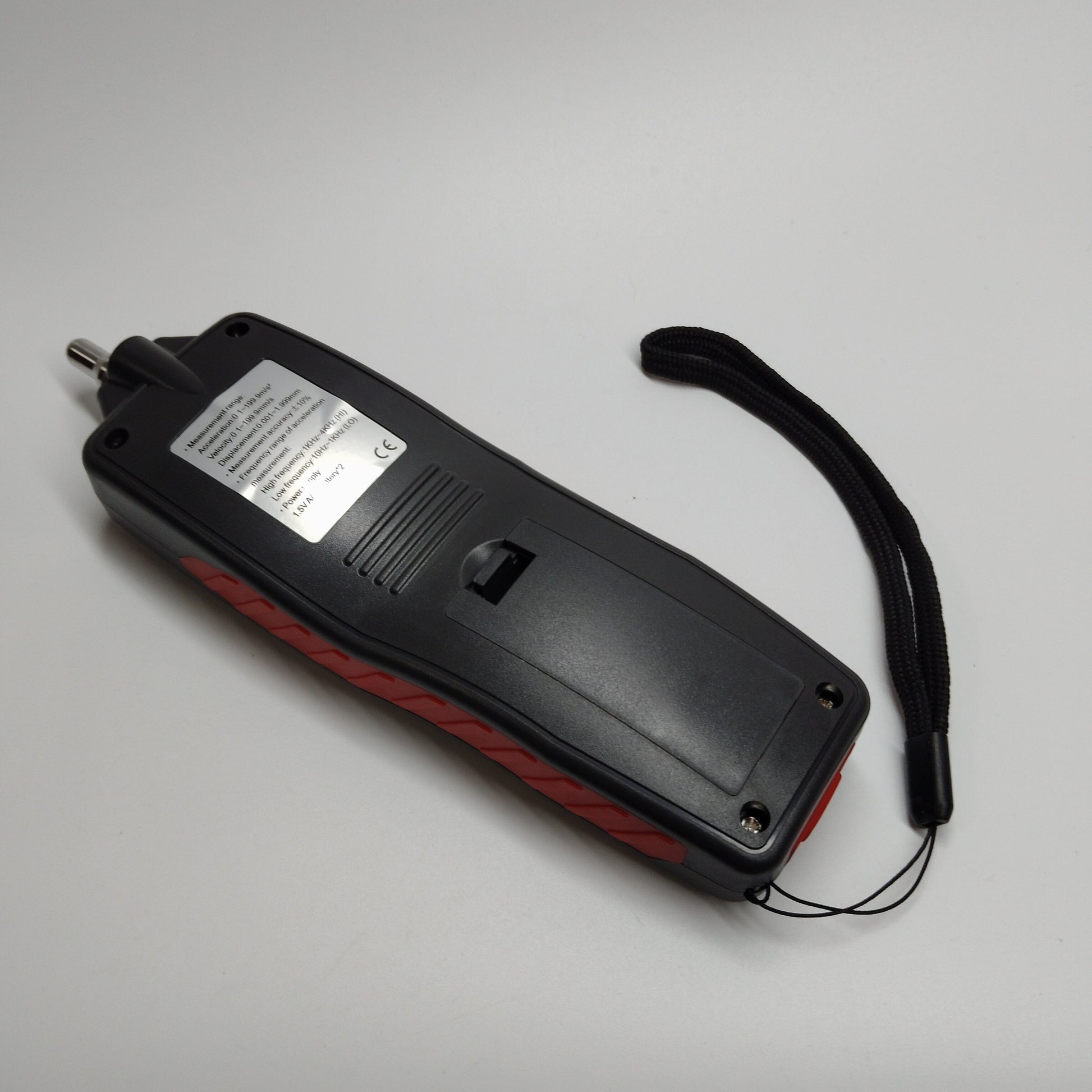

WT63B LCD Digital Vibration Meter Vibrometer Acceleration Displacement Tester

Feature:
1: The product design is simple, compact and easy to carry and use.
2: Use hi-sense of vibration sensor, measuring accurately.
3: Double measurement button for meeting level or vertical measurement requirements.
4: Magnetic probe with spiral interface, easy to install and remove, fit various measurement condition.
5: Screen flip-different from traditional vibrometers, we provide a 4-screen flip function, which allows you to read data in multiple directions more easily.
6: This product is widely used in machinery manufacturing, power metallurgy, general aerospace and other fields.

Specifics:
Condition: 100% Brand New
Vibration acquisition: piezoelectric ceramic accelerometer (shear type)
Measuring range: acceleration: 0.1~199.9m/s2
Speed: 0.1~199.9mm/s
Displacement: 0.001~1.999mm
Measurement error:
Vibration displacement: 0.01~0.02mm, ≤±10%. ≥0.02mm, ≤±5%
Vibration speed: 0~2.0mm/s, ≤±10%. ≥2.0mm/s, ≤±5%
Vibration acceleration: 0~2.0m/s2, ≤±10%. ≥2.0m/s2, ≤±5%
Acceleration measurement frequency range:
High frequency: 1KHz-15KHz (HI)
Low frequency: 20Hz-1KHz (LO)
Speed measurement frequency range: 20Hz-1KHz (LO)
Displacement measurement frequency range: 20Hz-1KHz (LO)
LCD display: color display
Display data replacement cycle: 1 second
Store data: 7 groups
Power supply: 2X1.5V AAA batteries (Included)
Operating temperature range: 0~40℃
Working humidity range: 30~90%RH
Size: 180 x 54 x 30mm/7.09 x 2.13 x 1.18inch

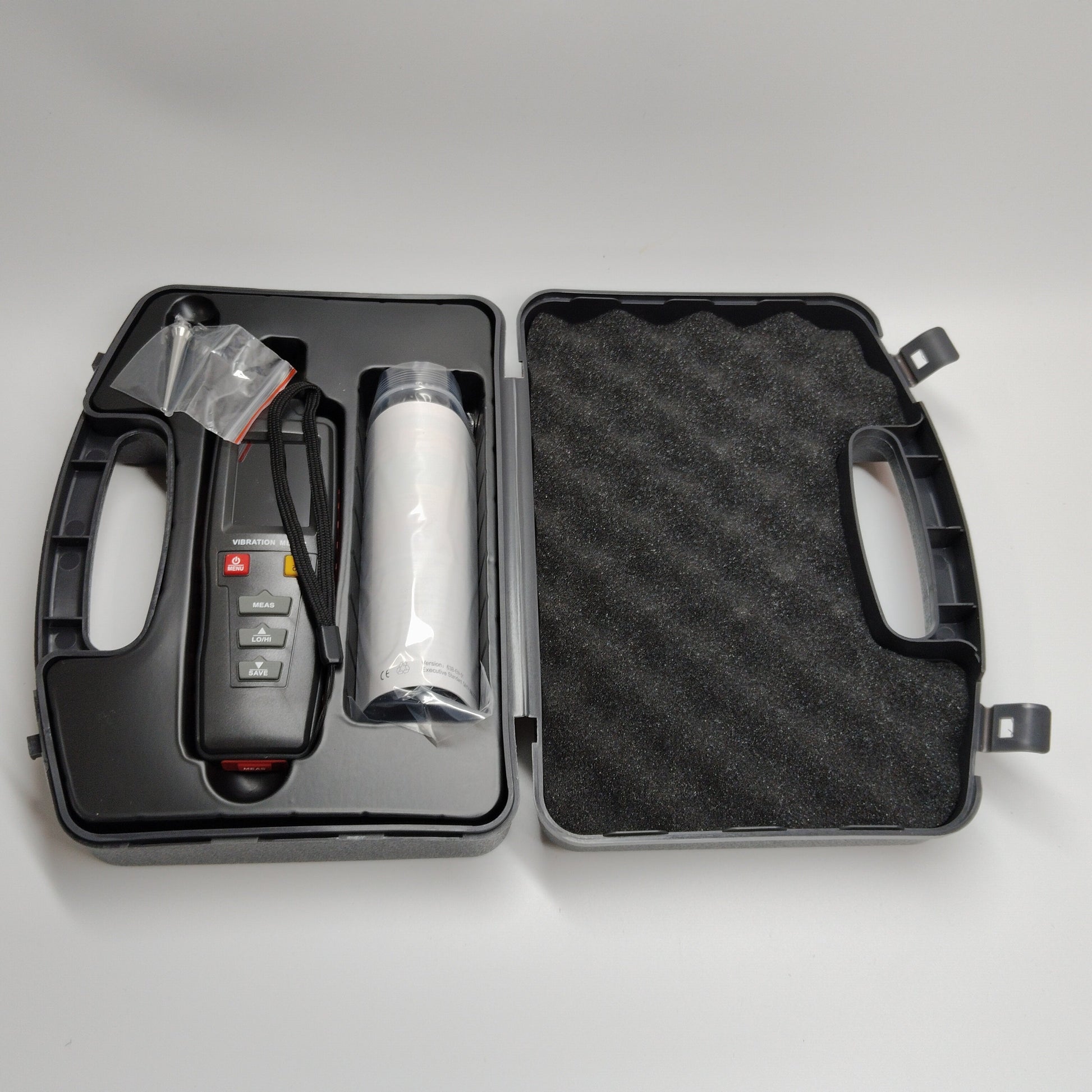

Package Included:
1 X Vibration tester
1 X Hand strap
1 X Probe
1 X Manual
