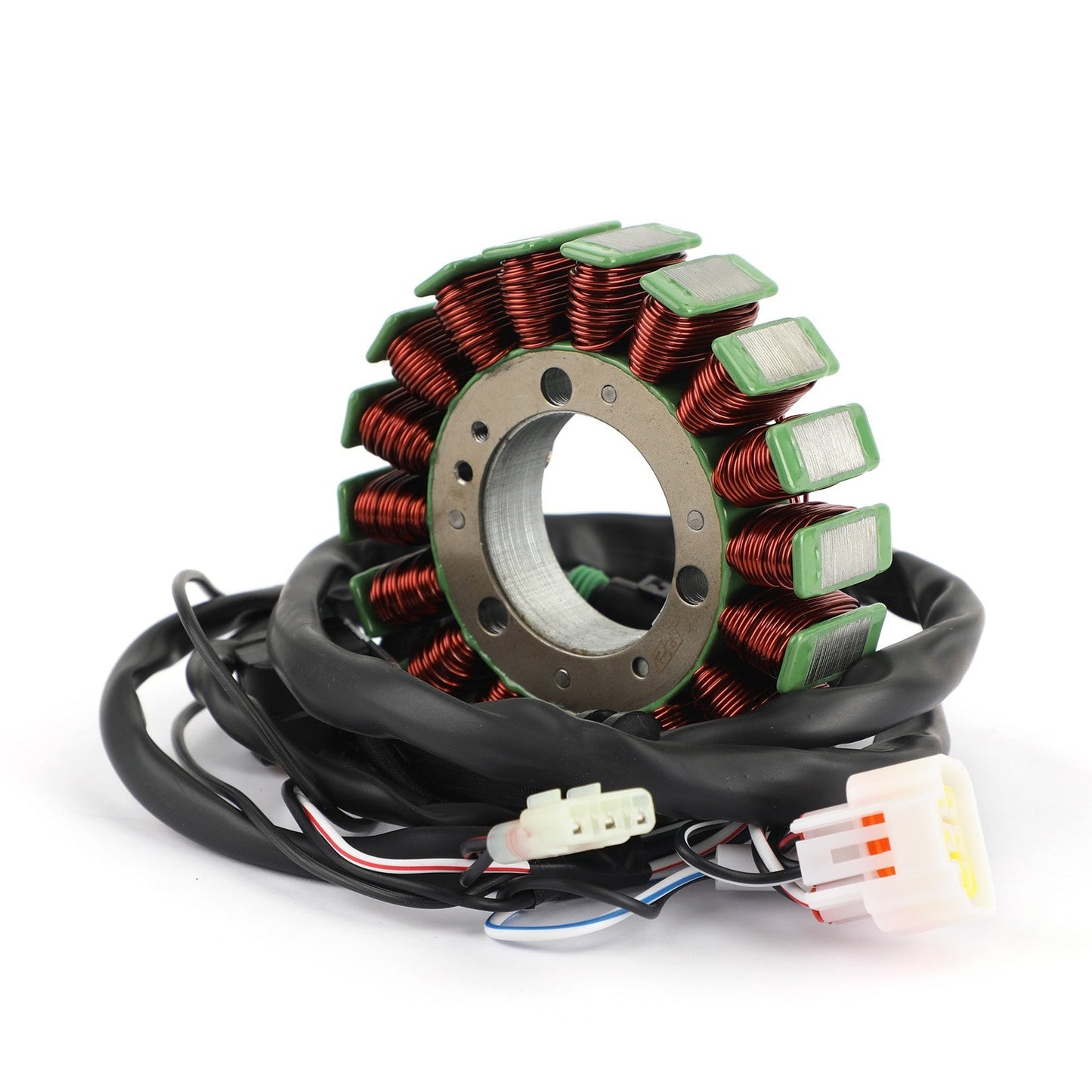

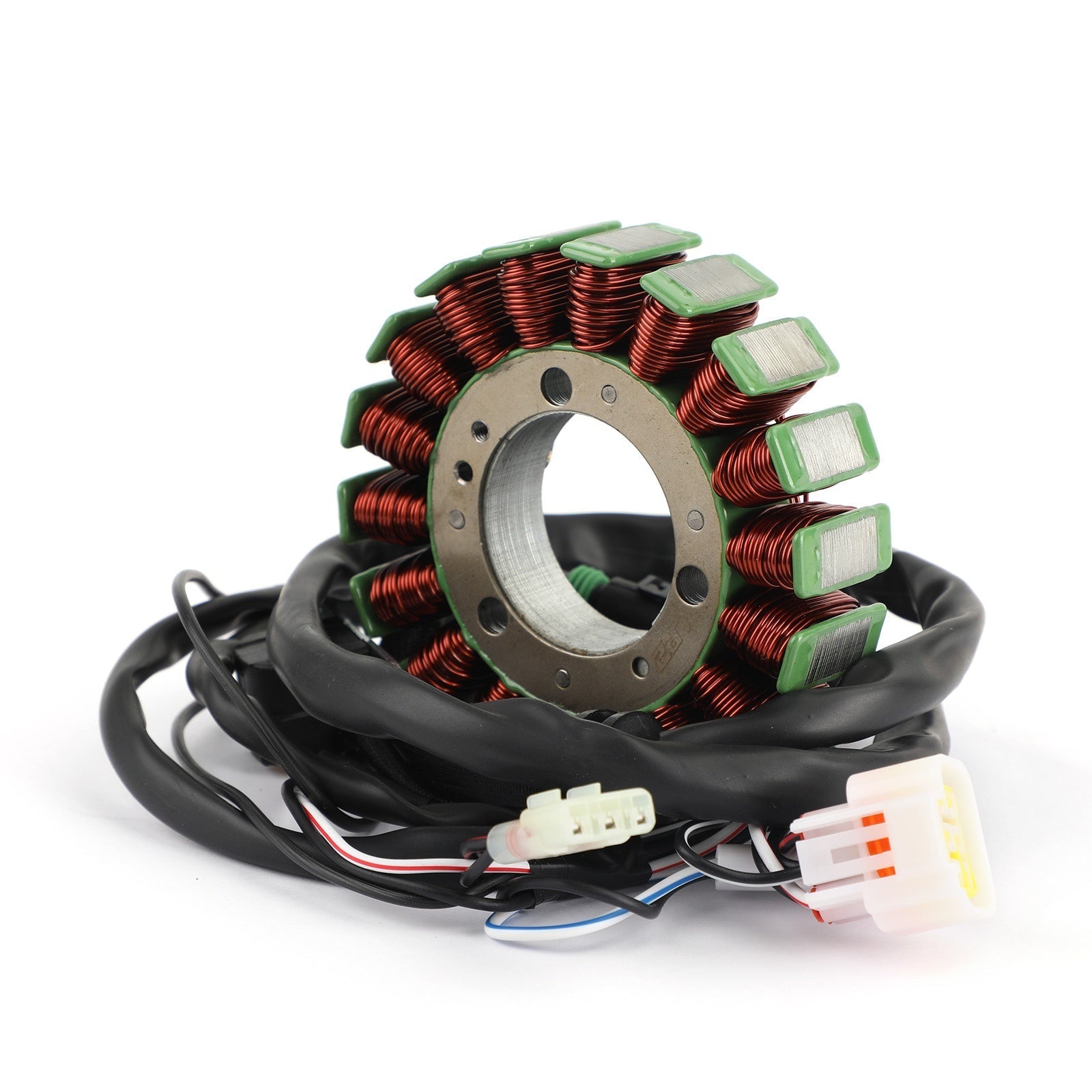

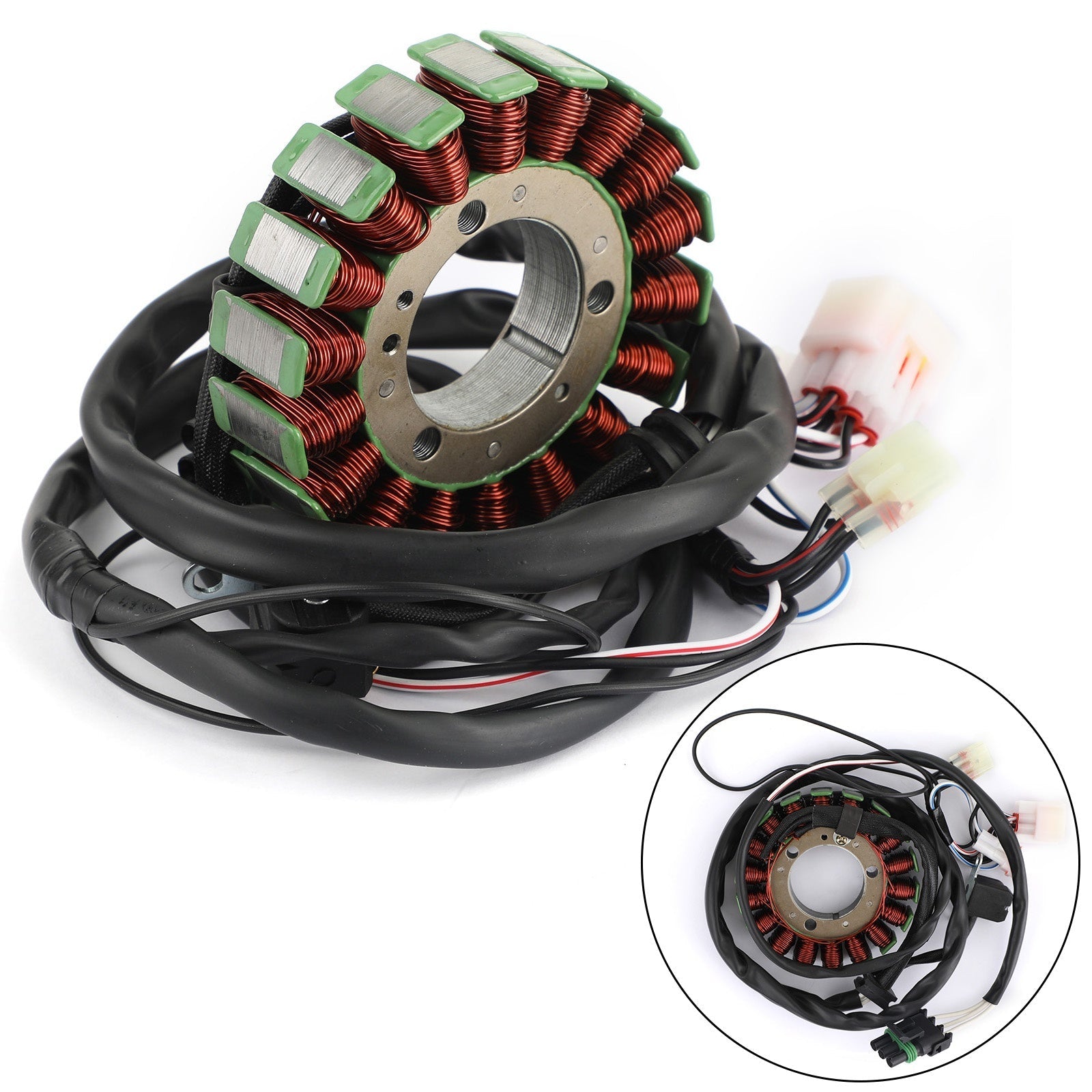

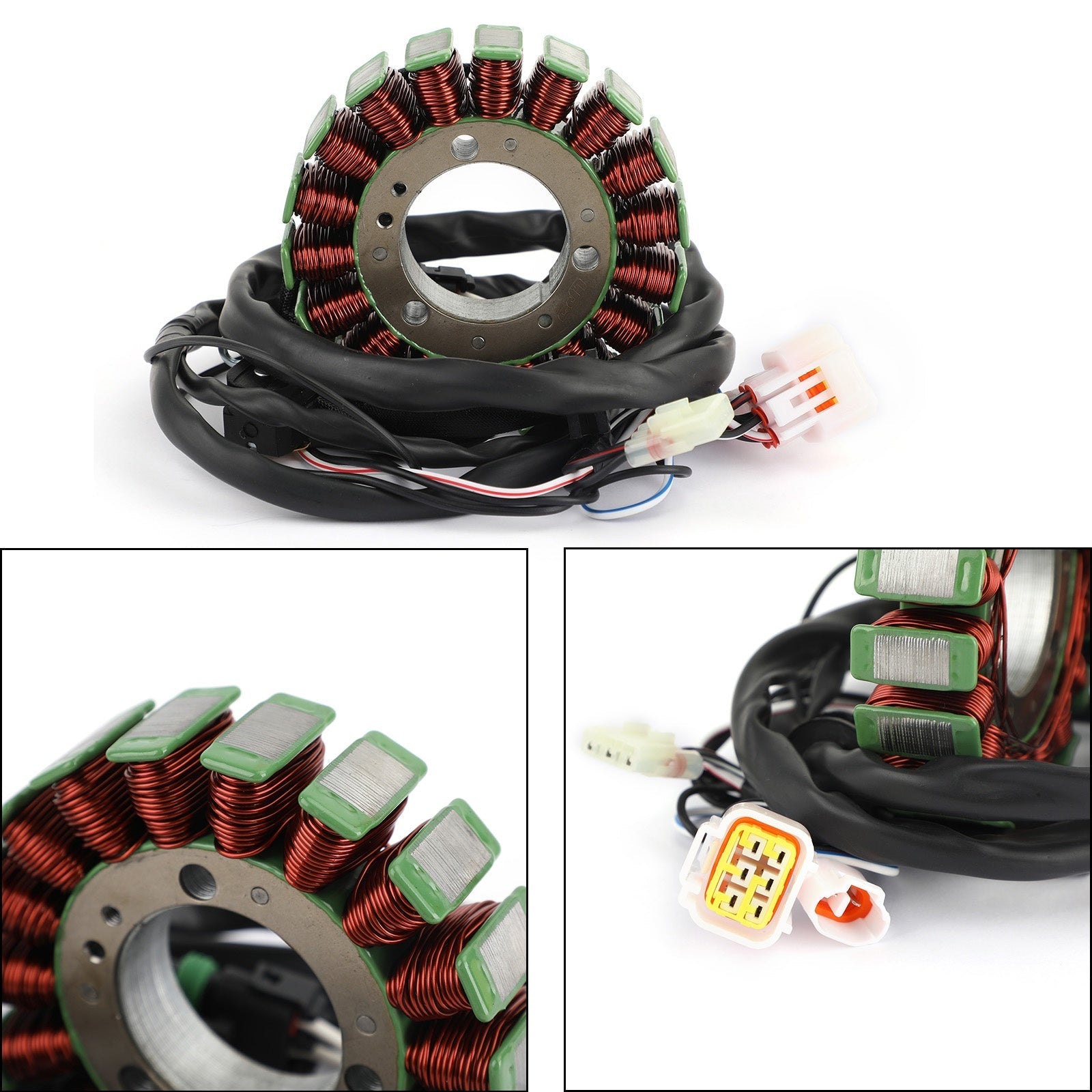

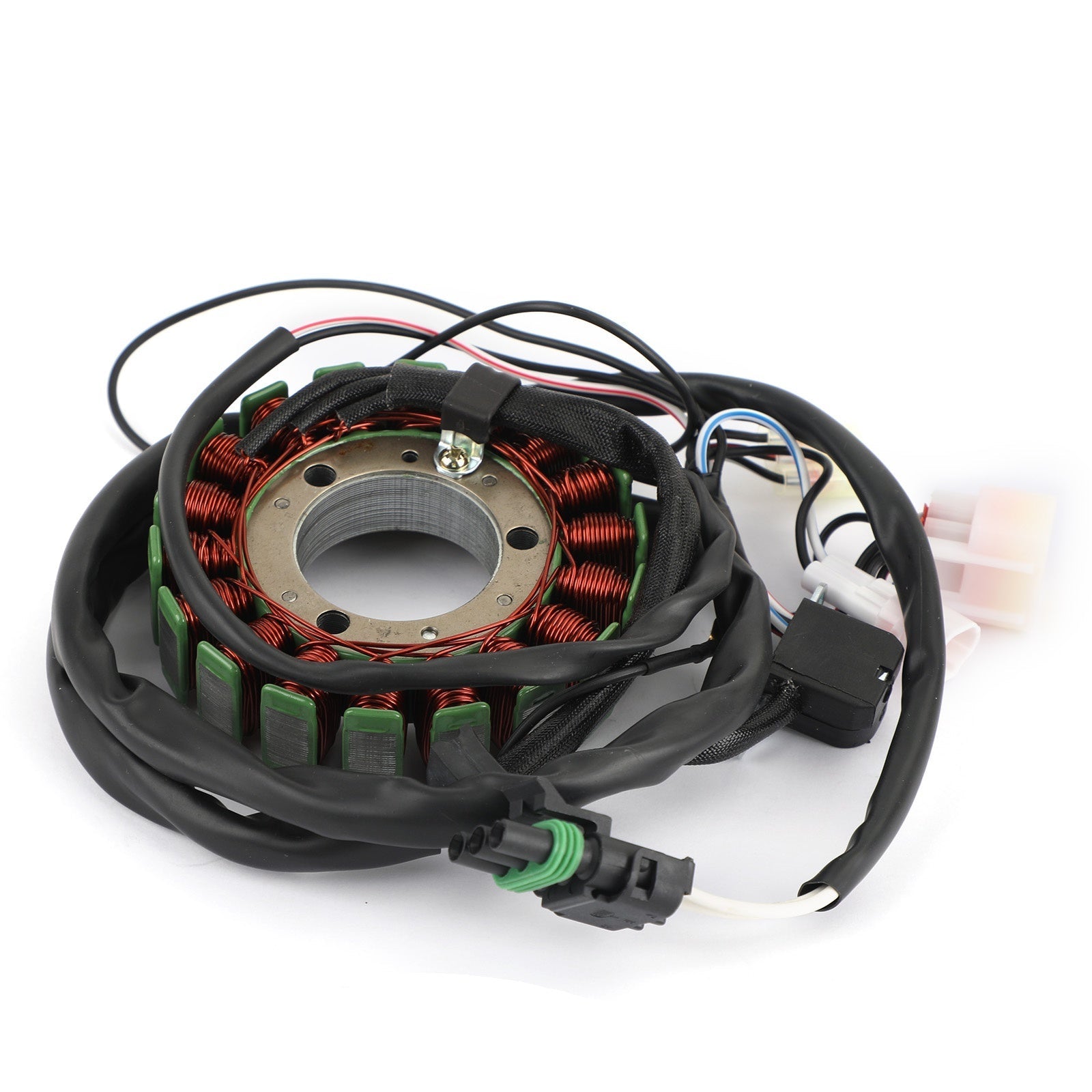

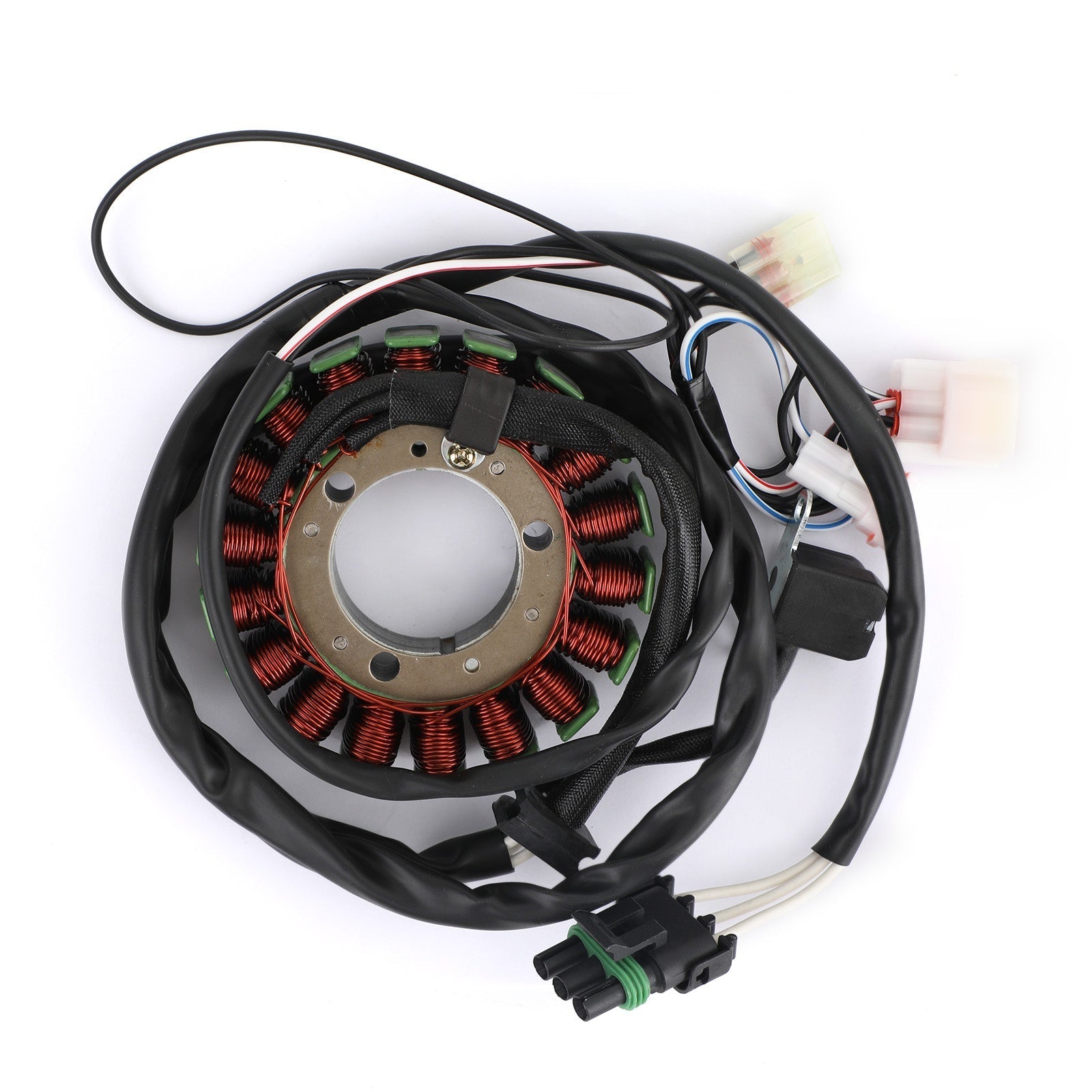

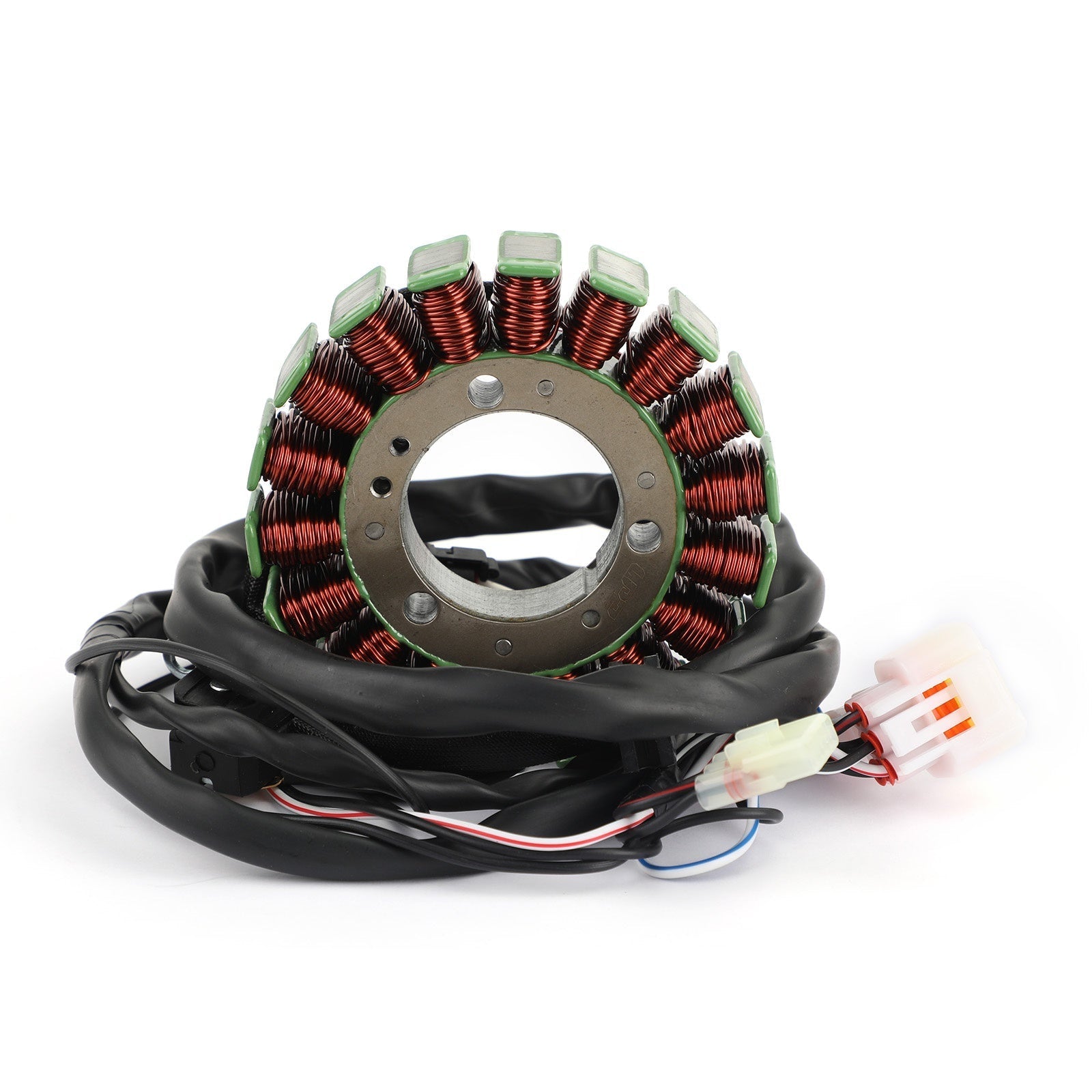

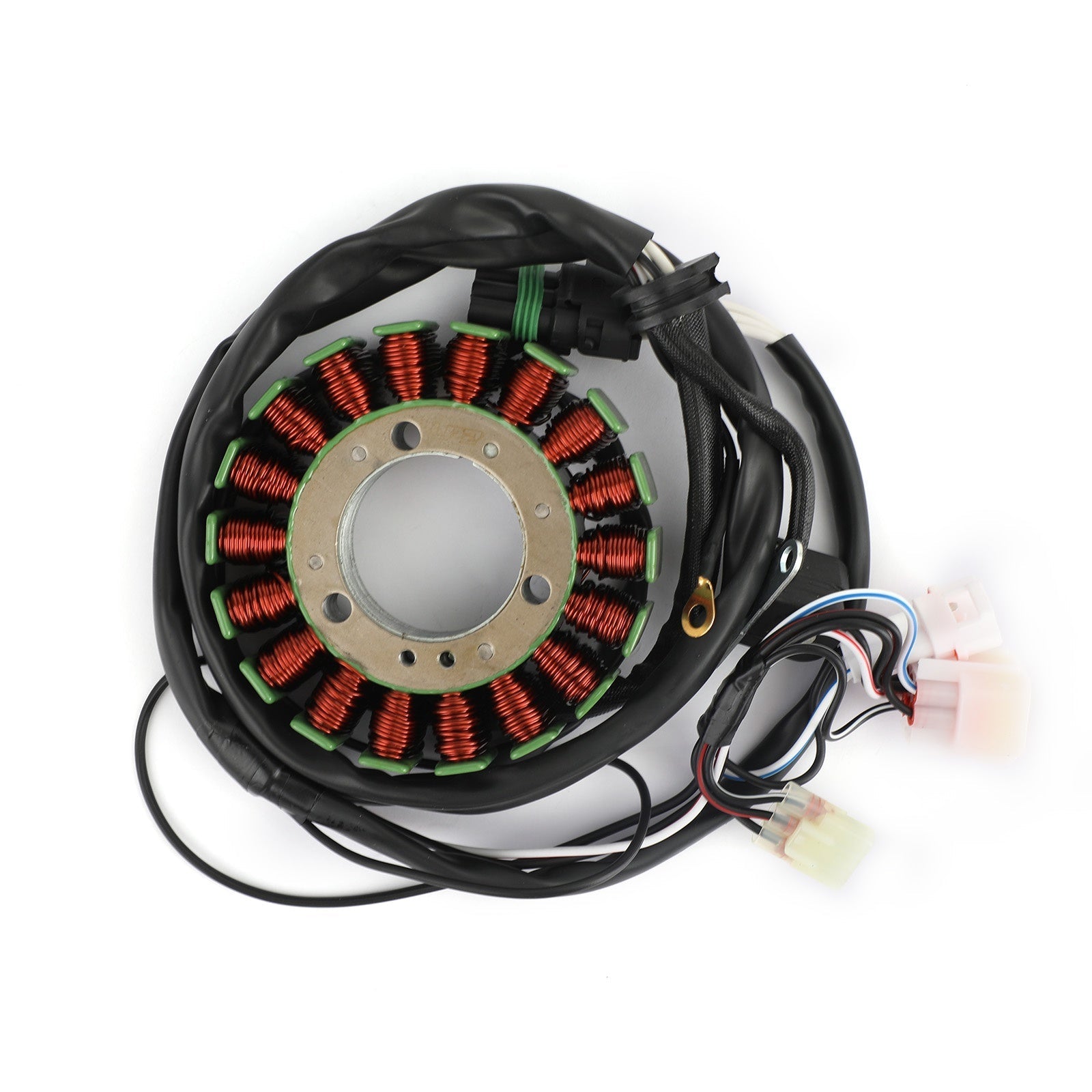

Stator Magneto Fit for Polaris Sportsman 300 08-10 Hawkeye 300 06-11 3089853
Stator Magneto Fit for Polaris Sportsman 300 08-10 Hawkeye 300 06-11 3089853
Couldn't load pickup availability
Replacement Part Number:
3089853
Please confirm the?Replacement Part Number before ordering.
Fitments:
Fit for Polaris Hawkeye 300 2X4 2006-2011
Fit for Polaris Hawkeye 300 2X4 INTL 2006-2007
Fit for Polaris Hawkeye 300 4X4 2006-2007
Fit for Polaris Hawkeye 300 4X4 INTL 2006-2007
Fit for Polaris Sportsman 300 4X4 2008-2010
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

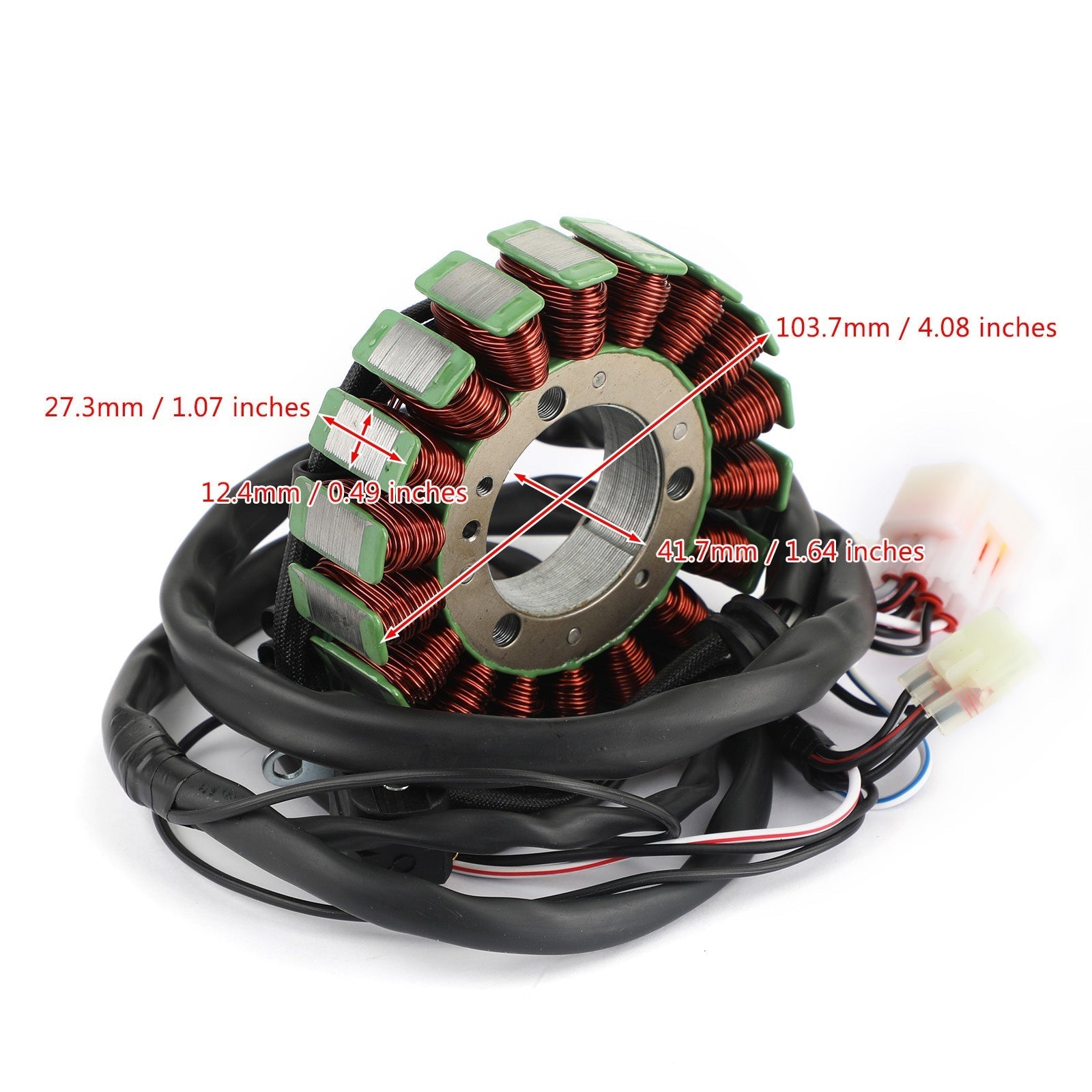

Dimensions:
Interior diameter : 41.7mm / 1.64 inches
Exterior diameter : 103.7mm / 4.08 inches
Pole's Thickness : 27.3mm / 1.07 inches
Pole's Width : 12.4mm / 0.49 inches

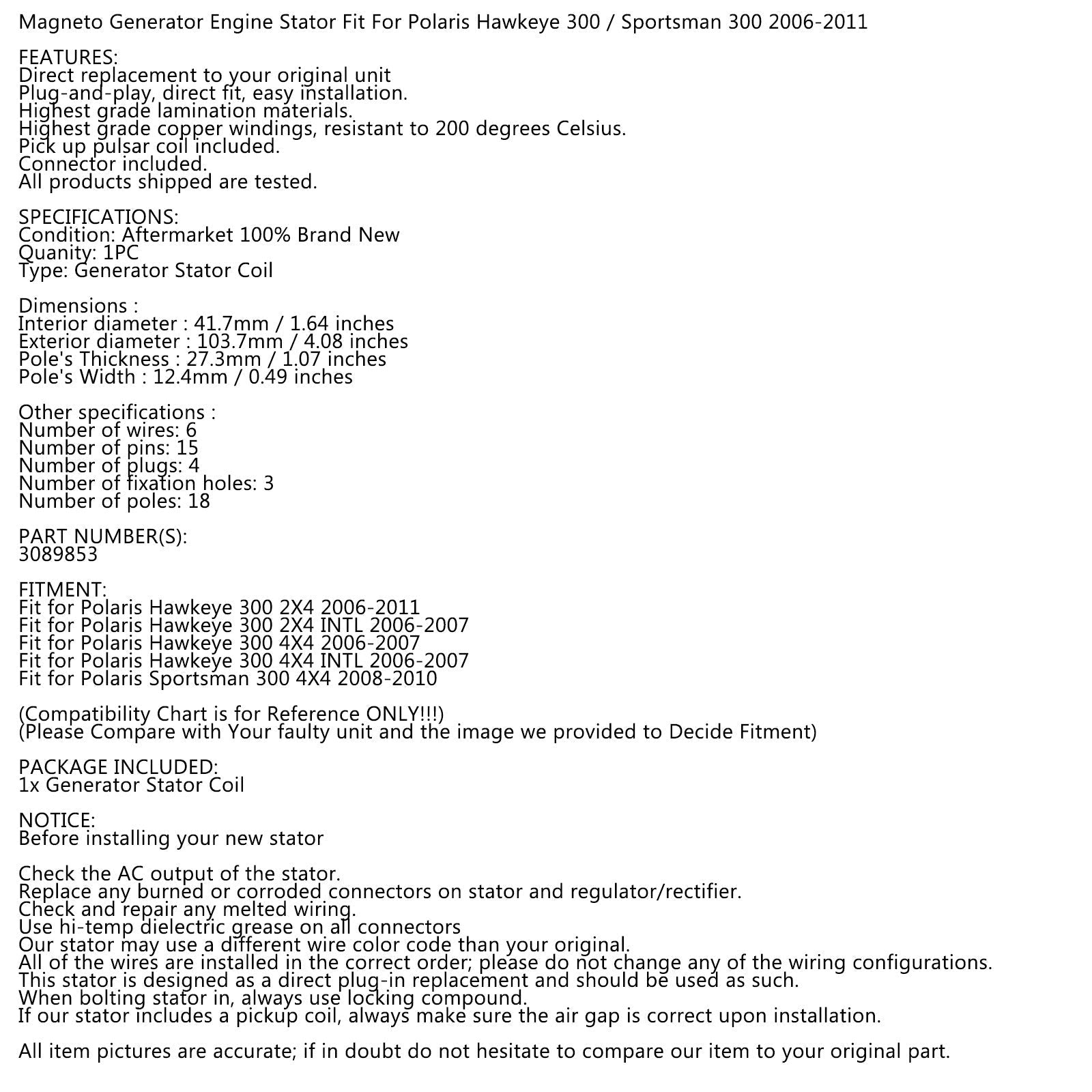

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.

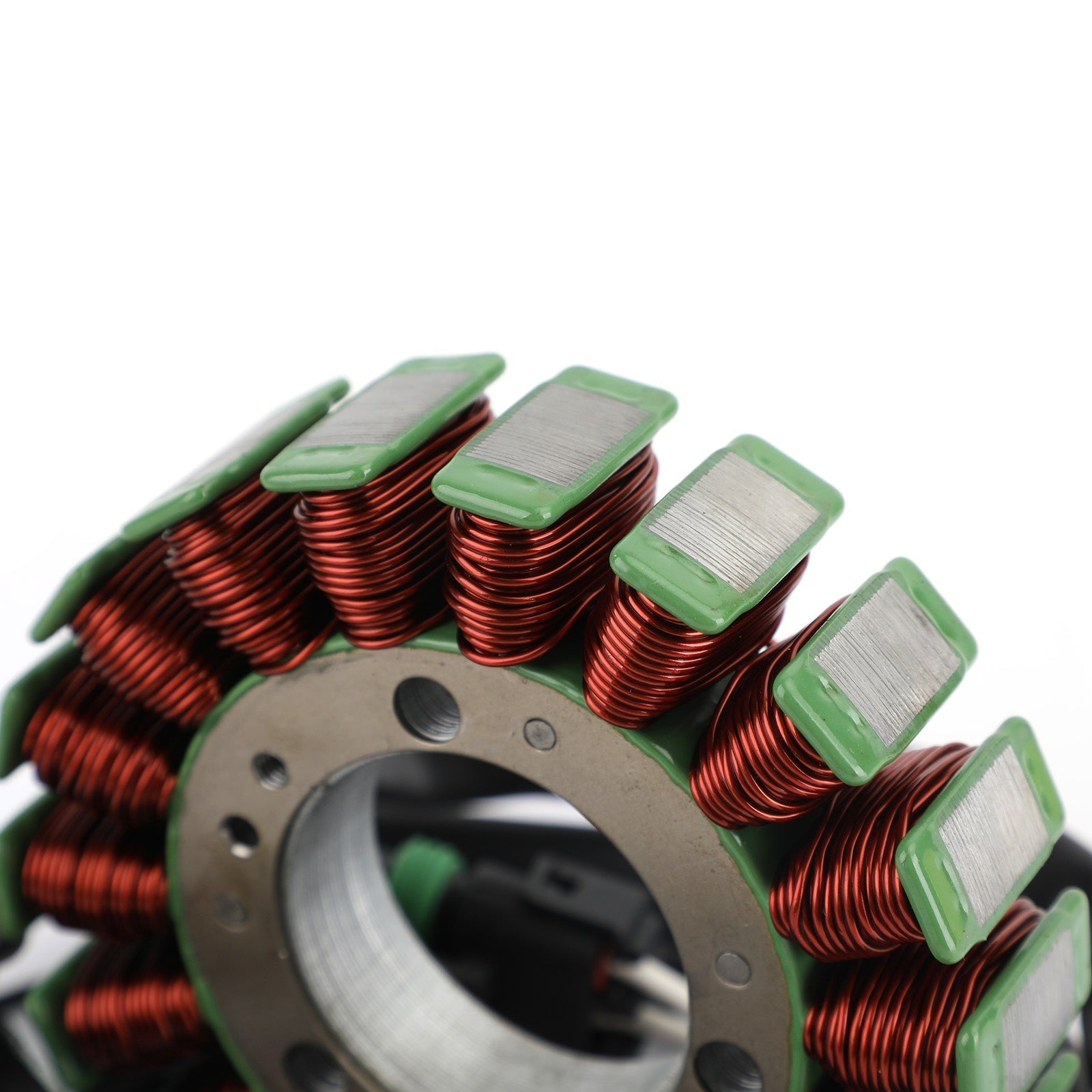

Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.

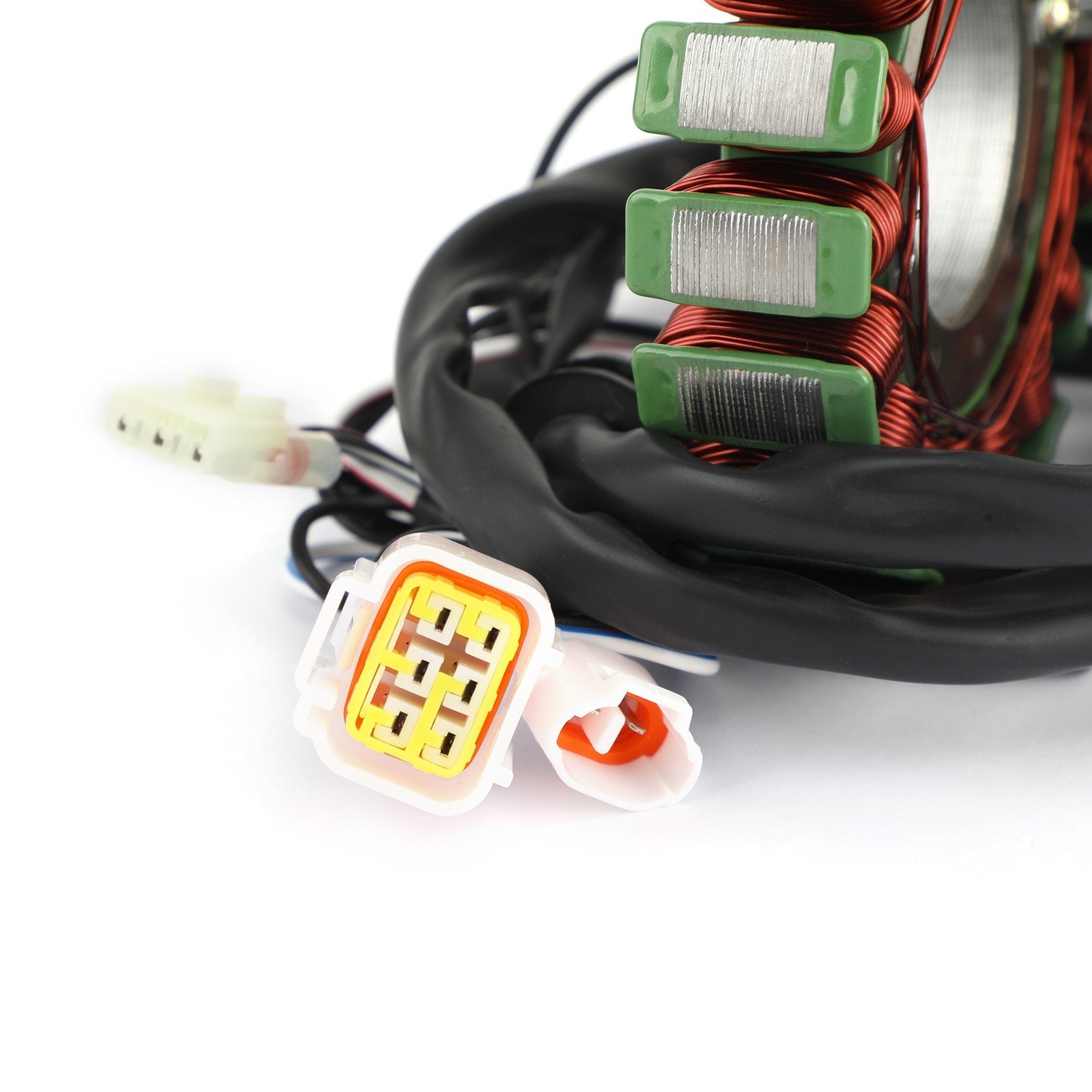

Connector included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Other Specifications:
Number of wires: 6
Number of pins: 15
Number of plugs: 4
Number of fixation holes: 3
Number of poles: 18
Package Included:
1x Generator Stator Coil
Notice:
Before installing your new stator:
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Shipping:
Free Shipping
Item location: Los Angeles, California warehouse
Delivery Time: 3-7 working days
Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
